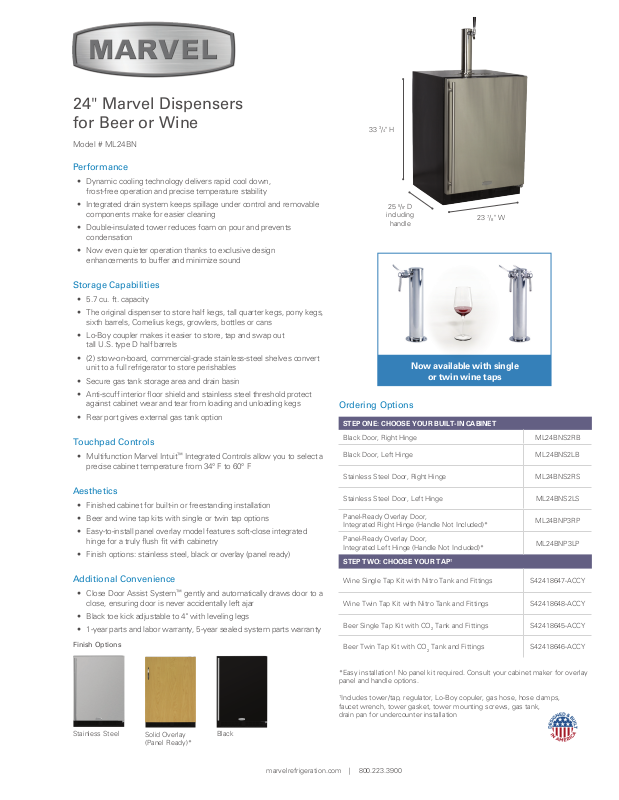

Marvel ML24BN PRODUCT SPECIFICATIONS
24" Marvel Dispensers
for Beer or Wine
Model # ML24BN
Performance
• Dynamic cooling technology delivers rapid cool down,
frost-free operation and precise temperature stability
• Integrated drain system keeps spillage under control and removable
components make for easier cleaning
• Double-insulated tower reduces foam on pour and prevents
condensation
• Now even quieter operation thanks to exclusive design
enhancements to buffer and minimize sound
Storage Capabilities
• 5.7 cu. ft. capacity
• The original dispenser to store half kegs, tall quarter kegs, pony kegs,
sixth barrels, Cornelius kegs, growlers, bottles or cans
• Lo-Boy coupler makes it easier to store, tap and swap out
tall U.S. type D half barrels
• (2) stow-on-board, commercial-grade stainless-steel shelves convert
unit to a full refrigerator to store perishables
• Secure gas tank storage area and drain basin
• Anti-scuff interior oor shield and stainless steel threshold protect
against cabinet wear and tear from loading and unloading kegs
• Rear port gives external gas tank option
Touchpad Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature from 34° F to 60° F
Aesthetics
• Finished cabinet for built-in or freestanding installation
• Beer and wine tap kits with single or twin tap options
• Easy-to-install panel overlay model features soft-close integrated
hinge for a truly ush t with cabinetry
• Finish options: stainless steel, black or overlay (panel ready)
33 3/4" H
25 5/8" D
including
handle
23 7/8" W
Now available with single
or twin wine taps
Ordering Options
STEP ONE: CHOOSE YOUR BUILT-IN CABINET
Black Door, Right Hinge ML24BNS2RB
Black Door, Left Hinge ML24BNS2LB
Stainless Steel Door, Right Hinge ML24BNS2RS
Stainless Steel Door, Left Hinge ML24BNS2LS
Panel-Ready Overlay Door,
Integrated Right Hinge (Handle Not Included)*
Panel-Ready Overlay Door,
Integrated Left Hinge (Handle Not Included)*
STEP TWO: CHOOSE YOUR TAP
†
ML24BNP3RP
ML24BNP3LP
Additional Convenience
• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar
• Black toe kick adjustable to 4" with leveling legs
• 1-year parts and labor warranty, 5-year sealed system parts warranty
Finish Options
Stainless Steel
Solid Overlay
(Panel Ready)*
Black
marvelrefrigeration.com | 800.223.3900
Wine Single Tap Kit with Nitro Tank and Fittings S42418647-ACCY
Wine Twin Tap Kit with Nitro Tank and Fittings S42418648-ACCY
Beer Single Tap Kit with CO
Beer Twin Tap Kit with CO
*Easy installation! No panel kit required. Consult your cabinet maker for overlay
panel and handle options.
†
Includes tower/tap, regulator, Lo-Boy copuler, gas hose, hose clamps,
faucet wrench, tower gasket, tower mounting screws, gas tank,
drain pan for undercounter installation
Tank and Fittings S42418645-ACCY
2
Tank and Fittings S42418646-ACCY
2
24" (61 cm) wide appliance
Clearance for
"A"
"B"
"C"
"D"
"E"
"I"
"G"
"H"
"F"
Product Dimensions
Panel Overlay Dimensions
screw head,
4 places
Top of door
7
⁄8"
4
(12.4 cm)
15⁄32"
(2.9 cm)
111⁄16"
(4.3 cm)
1
1
(3.8 cm)
typical
⁄2"
1" (2.5 cm) diameter
1
x
⁄4" (6 mm) deep
4 places
Hinge side of door
Left Hand Hinged Door
24" (61 cm) wide appliance
Clearance for hinge
at top and bottom
233⁄4"
(60.3 cm)
14"
(35.6 cm)
3
1
⁄16"
31⁄8"
(7.9 cm)
(3 cm)
1
⁄4" (6 mm)
radius is
permissible
This side
facing interior
11
3
⁄16"
(9.4 cm)
Left Hand Hinged Door
13⁄4"
(4.4 cm)
(5.1 cm)
1
(6 mm)
Deep
⁄4"
3011⁄32"
(77.1 cm)
2"
Right Hand Hinged Door
24" (61 cm) wide appliance
Clearance for hinge
at top and bottom
1
⁄4"
(6 mm)
Deep
13⁄4"
(4.4 cm)
31⁄8"
(7.9 cm)
3011⁄32"
(77.1 cm)
This side
facing interior
2"
(5.1 cm)
11
⁄16"
3
(9.4 cm)
Right Hand Hinged Door
24" (61 cm) wide appliance
Hinge side of door
233⁄4"
(60.3 cm)
14"
(35.6 cm)
3
1
⁄16"
(3 cm)
1
⁄4" (6 mm)
radius is
permissible
1" (2.5 cm) diameter
1
x
⁄4" (6 mm) deep
4 places
Rough-In Dimensions
A. Rough-In Width 24"
Solid Door 34" to 35"
B. Rough-In Height
Overlay Door
34 1/4" to
35 1/4"
C. Rough-In Depth 24"
Product Dimensions
D. Width 23 7/8"
33 3/4" to
34 3/4"
E. Height
Solid Door
Overlay Door 34" to 35"
Depth to Front of Case 21 1/2"
Solid Door 23 23/32"
F. Depth to Front of Door
Overlay Door
22 7/8"
Without
Handle
G. Depth to Handle
Depth with door at 90˚
Solid Door 46 13/32"
Overlay Door 46 1/2"
25 21/32"
(Stainless Steel, Black)
Product Features
Interior Cabinet Finish White
Half kegs, tall quarter kegs, pony
Clearance for
screw head,
4 places
Top of door
Capacity
Shelving System Stow-on-board
Shelf Fronts Stainless steel
Other Storage
Interior Lighting NA
Toe Grill Finish Black
Hinge
Handle
Control Type Intuit
Temperature Range 34° to 60° F
7
⁄8"
4
(12.4 cm)
Lock No
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6'
Shipping Weight 160 lbs
Finishes Stainless Steel, Black, Overlay
Vacation Mode Yes
Agency Approvals CSA
5
⁄32"
1
(2.9 cm)
111⁄16"
11⁄2"
(3.8 cm)
typical
(4.3 cm)
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
5.7 cu. ft.
kegs, sixth barrels, Cornelius
kegs, growlers, bottles / cans
tank (beer tap kit)
CO
2
Nitro tank (wine tap kit)
Classic Hinge
(Integrated Hinge on
Panel Overlay Model)
Slim Designer Handle
(Panel Overlay Does
Not Include Handle)
™
5/1/19 Rev A
marvelrefrigeration.com | 800.223.3900
