Marvel ML24BCG0 INSTALLATION INSTRUCTIONS AND OPERATION MANUAL
EN Installation, Operation and Maintenance Instructions
FR Instructions d’installation, d’utilisation et d’entretien
ES Instrucciones de instalación, operación y mantenimiento
Beverage center
Stockage de boissons
Centro de bedidas
ML24BCG0
CONTENTS
Contents:
Safety information ...............................................................2
Unpacking your beverage center ........................................3
Warranty registration .....................................................3
Installing your beverage center ..........................................4
Cabinet clearances .........................................................4
Leveling the appliance ....................................................4
Electrical connection ......................................................5
Product Dimensions ...........................................................6
Using your Electronic control .............................................8
Starting your beverage center .......................................8
Turning your beverage center "ON" or "OFF" ................8
Set the temperature .......................................................8
Beverage center operation ............................................8
Alarms ............................................................................8
Door ajar ....................................................................8
Temperature sensor fault ...........................................8
High and Low temperature ........................................8
Alarm mute ....................................................................8
Shelving congurations ......................................................9
Care and cleaning .............................................................10
Energy saving tips ............................................................10
Obtaining service .............................................................11
Troubleshooting ................................................................12
Warranty ...........................................................................13
Important Safety Instructions
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care
must be exercised when installing, maintaining, or operating this appliance.
Recognize Safety Symbols,
Words, and Labels.
!
WARNING
WARNING-You can be killed or seriously injured if
you do not follow these instructions.
!
CAUTION
CAUTION-Hazards or unsafe practices which could re-
sult in personal injury or property / product damage.
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause cancer.
NOTE
NOTE-Important information to help assure a problem
free installation and operation.
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause birth defects or
other reproductive harm..
is committed to building a quality product
in an environmentally friendly manner. Our processes are
tightly controlled and closely monitored. We have achieved
certications in ISO 9001 for quality assurance, ISO 14001
for environmental management, and OHSAS 18001 for occupational health and safety from Lloyd’s Register Quality
Assurance.
2

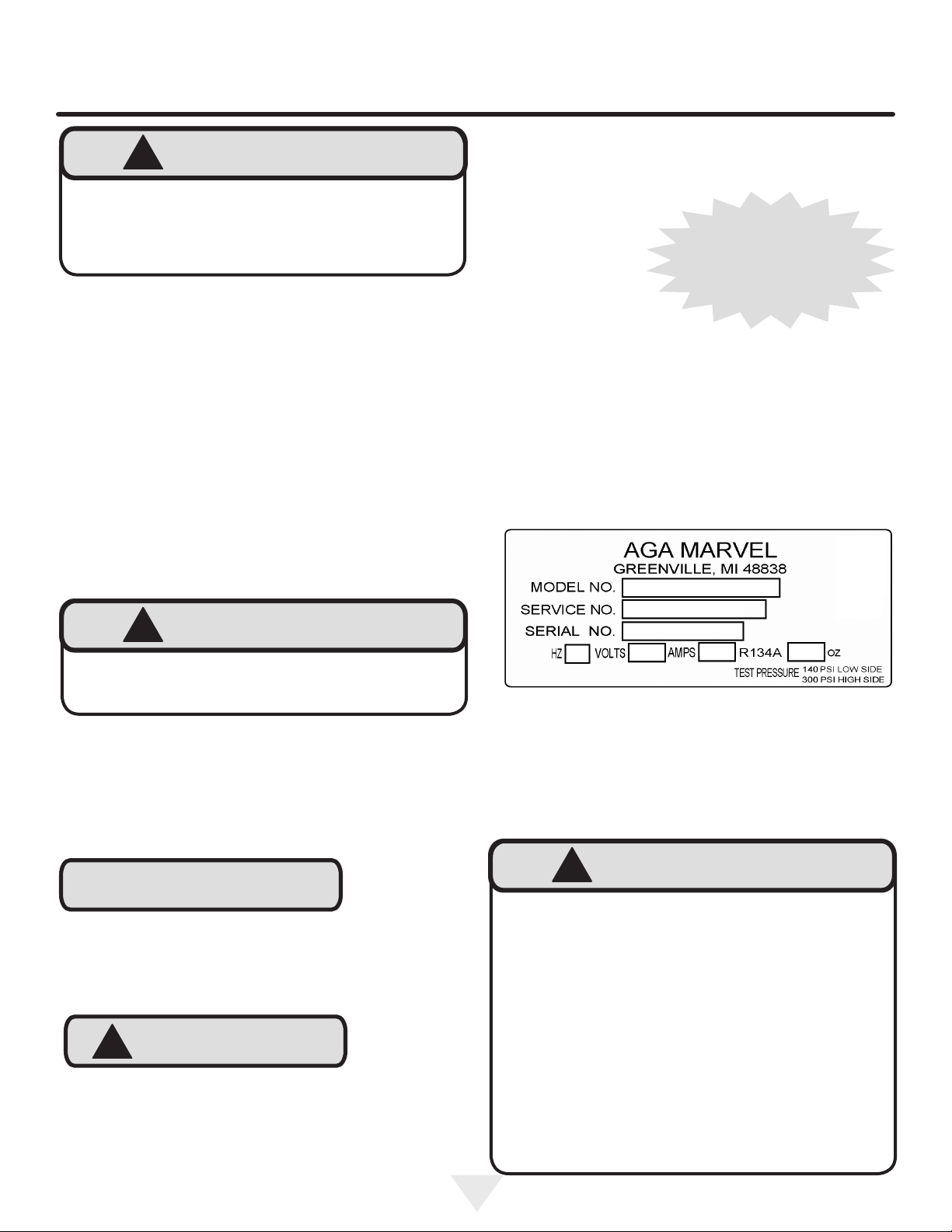

UNPACKING YOUR BEVERAGE CENTER
!
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
Remove Interior Packaging
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped
inside the product in a plastic bag along with the warranty
registration card, and other accessory items.
Important
Keep your carton and packaging until your appliance has
been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as
proof of damage in transit. Afterwards please dispose of all
items responsibly.
Warranty Registration
It is important you send in your warranty registration card
immediately after taking delivery of your appliance or you
can register online at www.agamarvel.com.
The following information will
be required when registering
your appliance.
Service Number
Serial Number
Date of Purchase
Dealer’s name and address
The service number and serial number can be found on the
serial plate which is located inside the cabinet on the left
side near the top. (See gure 1).
Online registration
available at
www.agamarvel.com
!
WARNING
WARNING - Dispose of the plastic bags which can
be a suffocation hazard.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
NOTE
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
!
CAUTION
XXXXXXXXXXXX
XXXXXXXXXXXX
Figure 1
!
WARNING
WARNING - Help Prevent Tragedies
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous - even if they sit out for "just a few hours".
If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent accidents.
If the appliance was shipped, handled, or stored in other
than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before
plugging in. This will assure oil returns to the compressor.
Plugging the appliance in immediately may cause damage
to internal parts.
Before you throw away your old refrigerator or
freezer:
• Take off the doors or remove the drawers.
• Leave the shelves in place so children may not
easily climb inside.
3
INSTALLING YOUR BEVERAGE CENTER
Select Location
The proper location will ensure peak performance of your
beverage center. We recommend a location where the unit
will be out of direct sunlight and away from heat sources.
To ensure your product performs to specications, the recommended installation location temperature range is from
55 to 100°F (13 to 38°C).
Cabinet Clearance
Ventilation is required from the bottom front of the beverage
center. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the beverage center as long as the front grille remains
unobstructed.
!
WARNING
An optional stacking kit is required to stack products.
Failure to use a stacking kit could result in personal
injury. Contact your dealer or Aga Marvel customer
service at 800-223-3900 to order.
Front Grille,
keep this area
open.
Front Leveling
Legs
Figure 2
Rear
Leveling
Legs
Leveling Legs
Adjustable legs at the front and rear corners of the bever-
age center should be set so the unit is rmly positioned
on the oor and level from side to side and front to back.
The overall height of your Marvel beverage center may be
adjusted between the minimum, 333⁄4" (85.7 cm), by turning
the leveling leg in (CW ↷) and the maximum, 343⁄4" (88.3
cm) by turning the leveling leg out (CCW ↶).
!
CAUTION
Front Grille
Do not obstruct the front grille. The openings within the
front grille allow air to ow through the condenser heat exchanger. Restrictions to this air ow will result in increased
energy usage and loss of cooling capacity. For this reason
it is important this area not be obstructed and the grille
openings kept clean. AGA MARVEL does not recommend
the use of a custom made grille as air ow may be restricted. (See Figure 2).
To adjust the leveling legs, place the beverage center on a
solid surface and protect the oor beneath the legs to avoid
scratching the oor. With the assistance of another person,
lean the beverage center back to access the front leveling
legs. Raise or lower the legs to the required dimension by
turning the legs. Repeat this process for the rear by tilting the beverage center forward using caution. On a level
surface check the beverage center for levelness and adjust
accordingly.
The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete
tighten the two front grille screws. (See Figure 5).
4
Figure 3
INSTALLING YOUR BEVERAGE CENTER
!
Electrical Shock Hazard
Do not remove
ground prong
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power
cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
WARNING
Figure 4
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable lo-
cal codes and ordinances (see Figure 6). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to provide the proper power
supply. The third ground prong should not, under any circumstances, be cut or removed.
Figure 6
Figure 5
Front grille
Front grille screw
NOTE
Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down.
GFCI’s are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances.
5
MODEL
ML24BCG0

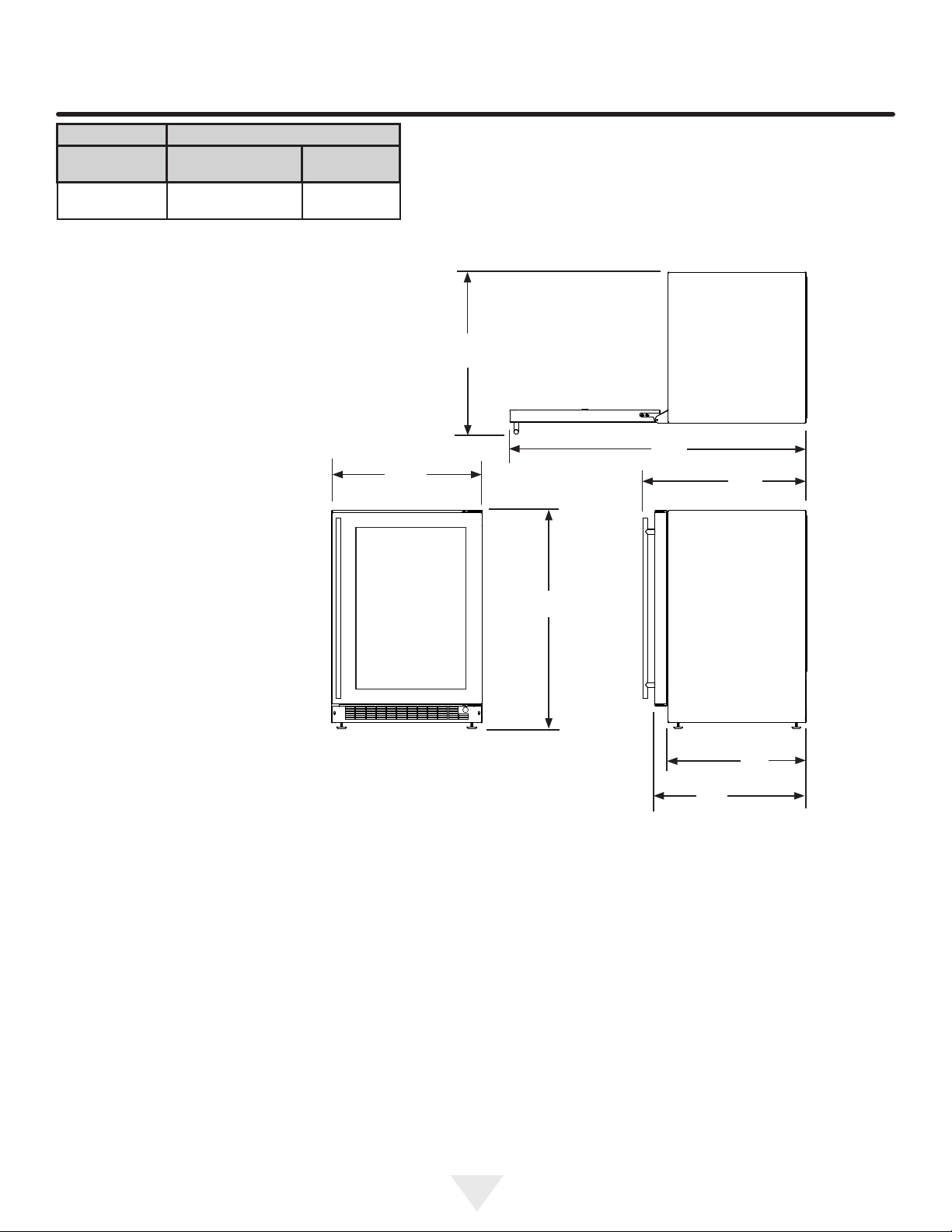

PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
"A" "B" "C" "D" "E" "F" "G" "H" "J"
24"
(61 cm)
**34" to 35"
(86.4 to 88.9 cm)
*
237⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
2521⁄32"
(65.2 cm)
4613⁄32"
(117.9 cm)
(65.2 cm)
"A"
"B"
2511⁄16"
Figure 7a
Figure 8
"E"
"C"
Figure 7
"D"
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended for
this application, (see Figure 8).
6
PRODUCT DATA
MODEL
ML24BCG0 115V/60Hz/15A
ELECTRICAL
REQUIREMENTS #
PRODUCT DIMENSIONS
PRODUCT
WEIGHT
140 lbs
(63.6 kg)
"J"
"D"
"H"
"G"
* Depth dimension of rough-in opening may vary depending on each individual installation. To recess entire door "F"
dimension plus 1" (2.5 cm) for thickness of power cord plug
is required.
** Minimum rough-in opening required is to be larger than
the adjusted height of the cabinet.
"E"
Figure 9
211⁄2"
(54.6 cm)
"F"
# A grounded 15 amp dedicated circuit is required. Follow
all local building codes when installing electrical and appliance.
7
Figure 10
close-up of
control

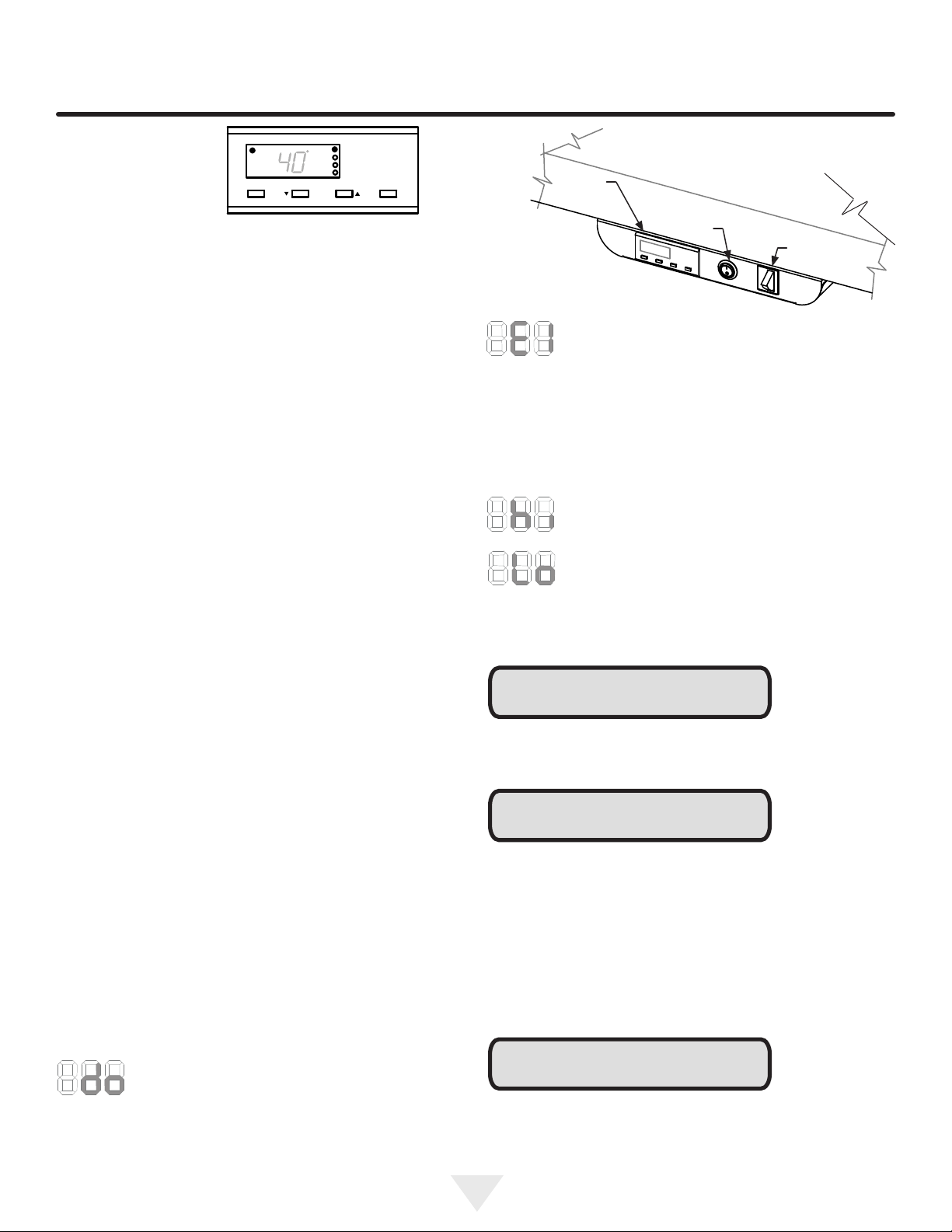

USING YOUR ELECTRONIC CONTROL
Alarm
F
Set
Press and Hold Press and Hold
Colder Warmer
ON/OFF
Control
Light Switch
Figure 11
Control
Assembly
Starting your beverage center
Plug the beverage center power cord into a wall outlet. Your
beverage center will begin cooling after power is applied.
If your beverage center does not start, check that the beverage center is turned on and the set temperature is cold
enough.
Turning your beverage center ON or OFF
If the beverage center is on, the beverage center temperature will be shown on the display. To turn the beverage
center off, press and hold the "ON/OFF" button for three (3)
seconds. "OFF" will appear on the display.
If the beverage center is not on, "OFF" will be shown on
the display. To turn the beverage center on, press and hold
the "ON/OFF" button for three (3) seconds. The beverage
center temperature will be shown on the display.
Set temperature
To set the beverage center temperature, press and hold
the "SET" button. When the "SET" button is pressed, the
display will show the set temperature. While holding the
"SET" button, press the "WARMER" or "COLDER" buttons
to adjust set temperature.
Door Switch
• Temperature Sensor Fault: If the control-
ler detects that the temperature sensor is
not properly functioning, a temperature
sensor alarm will sound in one (1) second intervals. "E1"
will ash on the display panel and the Alarm LED located
at the top left of the display below the word "Alarm" will be
illuminated. Please call AGA MARVEL Customer Service or
your dealer if this error code is displayed.
"Alarm" will be illuminated. The alarm will remain active
until the condition is corrected.
• High and Low Temperature Alarm: If the
storage compartment temperature deviates
excessively from the set-point temperature, the
alarm will sound in (1) second intervals. The
display panel will ash either "Hi" or "Lo" de-
pending upon the condition and the Alarm LED
light at the top left of the display below the word
Beverage center operation
The available temperature range of the beverage center is
34° to 42°F (1° to 6° C).
It may take up to 24 hours for your beverage center to
reach desired temperature. This will depend on amount of
content loaded and number of door opening and closings.
For best results allow beverage center to "pull down" to
desired set temperature before loading. Once contents are
loaded, allow at least 48 hours for temperature to stabilize
before making any adjustments to the set temperature.
Alarms
Your MARVEL Prime Controls™ will monitor beverage
center function and alert you with a series of audible and
visual alarms.
• Door Ajar Alarm: If the door has been left
open for over ve (5) minutes, the alarm
will sound in one (1) second intervals. The
display panel will ash "do" and the Alarm LED located at
the top left of the display below the word "Alarm" will be illuminated. This will stop as soon as the door is closed.
NOTE
After a high temperature alarm condition, check all perishables to ensure they are safe for consumption.
NOTE
The temperature alarm may occur as a result of high usage
or introduction of warm contents to the storage compartment. If the temperature alarm continues to occur, your unit
may require service.
Alarm Mute
Press any key to mute the audible portion of an alarm.
NOTE
This action will only mute the alarm. If the condition that
caused the alarm continues, the alarm code will continue to
ash and will sound for 20 seconds every 60 minutes.
8
SHELVING CONFIGURATIONS
Loading Tips and Suggestions
Your beverage center is equipped with a cantilever shelf
system which provides maximum adjust ability and customizing of the shelving arrangements listed below.
Beverage center:
24" (61 cm) Wide Models:
Shown with a glass door. Figure 12.
(2) perforated metal
cantilever shelves.
(See Figure 13).
Figure12
To Add or Remove a Shelf
Remove stored product from the shelf. Do not try to remove
a loaded shelf from the beverage center. Grasp the shelf
front with both hands, rotate the front upward and lift out.
(See Figure 14). To install a shelf insert the shelf in the appliance and insert the top hooks into the shelf support slots
and drop the shelf down so the hooks drop over the bottom
of the slots.
Figure 13
Perforated metal shelf
Shelf support
slot
Installed shelf
tang
Rear tang
(hook) on
shelf
Figure 14a
!
CAUTION
Make sure your cantilever shelf is secure on the shelf supports by pressing down on the shelf before loading.
!
CAUTION
Never try to move a loaded shelf, remove everything from
the shelf before moving. Use both hands when moving the
shelf.
Figure 14
9
CARE AND CLEANING AND ENERGY SAVING TIPS
Front Grille
Be sure that nothing obstructs the required air ow openings in front of the cabinet. At least once or twice a year,
brush or vacuum lint and dirt from the front grille area (see
page 4).
!
CAUTION
SHOCK HAZARD: Disconnect electrical power from the
appliance before cleaning with soap and water.
Cabinet
The painted cabinet can be washed with either a mild soap
and water and thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Interior
Wash interior compartment with mild soap and water. Do
NOT use an abrasive cleaner, solvent, polish cleaner or
undiluted detergent.
Care of Appliance
1. Avoid leaning on the door, you may bend the door
hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mopping near the front of the appliance. Damage to the
grille can occur.
3. Periodically clean the interior of the appliance as
needed.
4. Periodically check and/or clean the front grille as
needed.
In the Event of a Power Failure
If a power failure occurs, try to correct it as soon as possible. Minimize the number of door openings while the
power is off so as not to adversely affect the appliance's
temperature.
Light bulb replacement
!
WARNING
DISCONNECT THE POWER CORD BEFORE
ATTEMPTING LIGHT BULB REPLACEMENT.
Failure to do so may result in an electrical shock
that could severely injure you.
Do NOT under any circumstance use a light bulb
that exceeds 15 watts!
The beverage center uses one, 15 watt incandescent light
bulb to illuminate the interior. The light bulb is a very reliable electrical component, but should it not function properly, please call the dealer where you purchased your wine
cellar from for a replacement light bulb. Use only an original equipment light bulb from your dealer or AGA MARVEL.
To replace the light bulb, disconnect power to the unit. Unscrew the old light bulb located behind the display housing
at the top of the unit. Set the old light bulb aside. Screw
the new light bulb into place. Reconnect power to the unit.
Check to see if the light bulb operates properly to complete
the installation.
The light bulb is not covered by your warranty. A replacement bulb can be obtained from your dealer or from AGA
MARVEL.
The following suggestions will minimize the
cost of operating your refrigeration appliance.
1. Do not install your appliance next to a hot appliance
(cooker, dishwasher, etc.), heating air duct, or other
heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance beneath door are not obstructed and kept clean to allow
ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not
shared with other appliances).
5. When initially loading your new product, or whenever
large quantities of warm contents are placed within
refrigerated storage compartment, minimize door
openings for the next 12 hours to allow contents to pull
down to compartment set temperature.
6. Maintaining a relatively full storage compartment will
require less appliance run time than an empty compartment.
7. Ensure door closing is not obstructed by contents
stored in your appliance.
8. Allow hot items to reach room temperature before placing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature
that meets your personal preference and provides the
proper storage for your stored contents.
11. When on vacation or away from home for extended pe-
riods, set the appliance to warmest acceptable tem perature for the stored contents.
12. Set the control to the "off" position if cleaning the
appliance requires the door to be open for an extended
period of time.
10
OBTAINING SERVICE
If Service is Required:
• If the product is within the rst year warranty period
please contact your dealer or call AGA MARVEL Cus-
tomer Service at 800.223.3900 for directions on how to
obtain warranty coverage in your area.
• If the product is outside the rst year warranty period,
AGA MARVEL Customer Service can provide recommendations of service centers in your area. A listing
of authorized service centers is also available at www.
agamarvel.com under the service and support section.
• In all correspondence regarding service, be sure to
give the service number, serial number, and proof of
purchase.
• Try to have information or description of nature of the
problem, how long the appliance has been running, the
room temperature, and any additional information that
may be helpful in quickly solving the problem.
• Table "A" is provided for recording pertinent information
regarding your product for future reference.
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must
be within 10 days of purchase).
For Your Records
11
Table A
TROUBLESHOOTING
Before You Call for Service
If the appliance appears to be malfunctioning, read through
this manual rst. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and
refer to the cause and its remedy before calling for service.
The problem may be something very simple that can be
solved without a service call. However, it may be required
to contact your dealer or a qualied service technician.
!
WARNING
Electrocution Hazard
• Never attempt to repair or perform maintenance on
the appliance until the main electrical power has been
disconnected. Turning the appliance control "OFF"
does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.
!
CAUTION
In the unlikely event you lose cooling in your unit, do not
unplug the product from the electric supply, but do call
a qualied service technician immediately. It is possible
that the loss of cooling capacity is a result of excessive
frost build-up on the evaporator cooling coil. In this case,
removing power to the unit will result in the melting of this
excessive quantity of ice, which could generate melt water
that exceeds the capacity of the defrost drain system and
could result in water damage to your home. The end-user
will be ultimately responsible for any water damage caused
by prematurely turning the unit off without appropriately
managing the excess water run-off.
Problem Possible Cause Remedy
Appliance not cold enough
(See "Set temperature" on page 8)
Appliance too cold
(See "Set temperature" on page 8)
No interior light. • Light bulb is burned out • Replace light bulb, see page 10.
Light will not go out when door is
closed
Noise or Vibration • Appliance not level
Appliance will not run. • Appliance turned off
• Control set too warm
• Content temperature not stabilized.
• Excessive usage or prolonged
door openings.
• Airow to front grille blocked.
• Door gasket not sealing properly.
• Control set too cold
• Door gasket not sealing properly.
• Display light is turned on. (Glass
door models only.
• Door not activating light switch.
• Failed light switch
• Fan hitting tube obstruction.
• Power cord not plugged in.
• No power at outlet.
• Adjust temperature colder. Allow 24 hours for temperature to
stabilize.
• Allow temperature to stabilize for
at least 24 hours.
• Airow must not be obstructed to
front grille. See "clearances" on
page 4.
• Replace door gasket.
• Adjust temperature warmer.
Allow 24 hours for temperature to
stabilize.
• Replace door gasket.
• Turn off display light, shut door.
• Appliance not level, level appli-
ance, (See page 4, "leveling legs")
• Contact a qualied service technician.
• Level appliance, see "Leveling
Legs" on page 4.
• Contact a qualied service technician.
• Turn appliance on. See "Starting
your beverage center" on page 8.
• Plug in power cord.
• Check house circuit.
12
HOUSEHOLD PRODUCT WARRANTY
Entire Product
Limited One Year Parts and Labor Warranty
AGA MARVEL warrants that it will supply all necessary
parts and labor to repair or replace in the end user’s home
or ofce, any component which proves to be defective
in material or workmanship, subject to the condition and
exclusions stated below, for a period of one year from the
date of purchase by the end user.
Additional Second Through Fifth Year
Limited Parts Only Warranty
During the four years following expiration of the one year
limited warranty, AGA MARVEL will supply replacement
parts for the hermetically sealed refrigeration system which
consists of the compressor, condenser, drier, accumulator,
bypass valve, connecting tubing and the evaporator that
are proven to be defective due to workmanship or materials
subject to the conditions and exclusions below.
The above warranties do not cover:
• Shipping costs of replacement parts or returned defective parts.
• Customer education or instructions on how to use the
appliance.
• Any content loss due to product failure.
• Removal or installation of product.
Nor do the above warranties cover failure of this product or
its components due to:
• Transportation or subsequent damages.
• Commercial use or use other than normal household or
small ofce.
• Improper installation, misuse, abuse, accident or alteration, use of wiring not conforming to electrical codes,
low or high voltages, failure to provide necessary maintenance, or other unreasonable use.
Parts or Service
Not Supplied or Designated by AGA MARVEL
The above warranties also do not apply if:
• The original bill of sale, deliver date, or serial number
cannot be veried.
• Defective parts are not returned for inspection if so
requested by AGA MARVEL.
• The refrigeration equipment is not in the possession of
the original end use purchaser.
The warranties set forth herein are the only warranties
extended by AGA MARVEL. Any implied warranties, including the implied warranty of merchantability, are limited to
the duration of these express warranties. In no event shall
AGA MARVEL be liable for any consequential or incidental
damages or expenses resulting from breach of these or any
other warranties, whether express or implied.
Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied
warranty lasts, so the above exclusion or limitation may not
apply to you. This warranty gives you specic legal rights
and you may have other rights that may vary from state to
state.
No person, rm, or corporation is authorized to make any
other warranty or assume any other obligation for AGA
MARVEL. These warranties apply only to products used in
any of the fty states of the United States and the District of
Columbia.
To obtain performance of this warranty, report any defects
to:
1260 E. VanDeinse St.
Greenville MI 48838
Phone: 800.223.3900
13
14
Loading...
