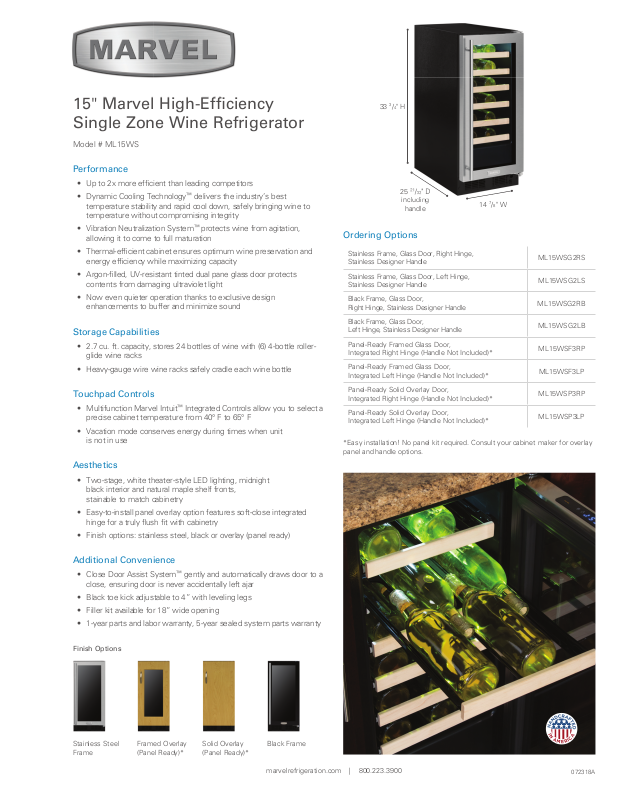

Marvel ML15WSG2LS Specification Sheet
15" Marvel High-Effi ciency
/
32
32
Single Zone Wine Refrigerator
Model # ML15WS
Performance
• Up to 2x more effi cient than leading competitors
• Dynamic Cooling Technology
temperature stability and rapid cool down, safely bringing wine to
temperature without compromising integrity
• Vibration Neutralization System
allowing it to come to full maturation
• Thermal-effi cient cabinet ensures optimum wine preservation and
energy effi ciency while maximizing capacity
• Argon-fi lled, UV-resistant tinted dual pane glass door protects
contents from damaging ultraviolet light
• Now even quieter operation thanks to exclusive design
enhancements to buffer and minimize sound
Storage Capabilities
• 2.7 cu. ft. capacity, stores 24 bottles of wine with (6) 4-bottle roller-
glide wine racks
• Heavy-gauge wire wine racks safely cradle each wine bottle
Touchpad Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature from 40° F to 65° F
• Vacation mode conserves energy during times when unit
is not in use
Aesthetics
• Two-stage, white theater-style LED lighting, midnight
black interior and natural maple shelf fronts,
stainable to match cabinetry
• Easy-to-install panel overlay option features soft-close integrated
hinge for a truly fl ush fi t with cabinetry
• Finish options: stainless steel, black or overlay (panel ready)
™
delivers the industry’s best
™
protects wine from agitation,
3
33
/4" H
21
/32" D
25
including
handle
14
7
/8" W
Ordering Options
Stainless Frame, Glass Door, Right Hinge,
Stainless Designer Handle
Stainless Frame, Glass Door, Left Hinge,
Stainless Designer Handle
Black Frame, Glass Door,
Right Hinge, Stainless Designer Handle
Black Frame, Glass Door,
Left Hinge, Stainless Designer Handle
Panel-Ready Framed Glass Door,
Integrated Right Hinge (Handle Not Included)*
Panel-Ready Framed Glass Door,
Integrated Left Hinge (Handle Not Included)*
Panel-Ready Solid Overlay Door,
Integrated Right Hinge (Handle Not Included)*
Panel-Ready Solid Overlay Door,
Integrated Left Hinge (Handle Not Included)*
*Easy installation! No panel kit required. Consult your cabinet maker for overlay
panel and handle options.
ML15WSG2RS
ML15WSG2LS
ML15WSG2RB
ML15WSG2LB
ML15WSF3RP
ML15WSF3LP
ML15WSP3RP
ML15WSP3LP
Additional Convenience
• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar
• Black toe kick adjustable to 4” with leveling legs
• Filler kit available for 18” wide opening
• 1-year parts and labor warranty, 5-year sealed system parts warranty
Finish Options
Framed Overlay
Frame
(Panel Ready)*
Solid Overlay
(Panel Ready)*
Black FrameStainless Steel
marvelrefrigeration.com | 800.223.3900
072318A
Clearance for
"I"
"G"
"H"
Product Dimensions
"A"
Rough-In Dimensions
A. Rough-In Width 15”
Solid Door 34 to 35”
B. Rough-In Height
C. Rough-In Depth 24”
Overlay Door
34 1/4 to
35 1/4”
"B"
"C"
"H"
"G"
Panel Overlay Dimensions (Frame Door)
screw head,
4 places
Figure 14
Left Hand Hinged Door
15" (38.1 cm) wide appliance
143⁄4"
(37.5 cm)
5"
(12.7 cm)
3
⁄16"
1
(3 cm)
1
⁄4" (6 mm)
radius is
permissible
(12.4 cm)
1
⁄4" (6 mm)
Deep
47⁄8"
1
3
⁄8"
(7.9 cm)
1
(4.4 cm)
(77.1 cm)
1
⁄8"
3
(7.9 cm)
Minimum
3
⁄4"
3011⁄32"
Clearance
for hinge
2 places
1" (25.4 mm) diameter
counter bore
deep 4 places.
(9.7 cm)
1
4
⁄8"
(10.5 cm)
Minimum
27
⁄32"
3
1
⁄8"
3
(7.9 cm)
Minimum
15⁄32"
(2.9 cm)
Hinge side of door
1
⁄4" (6.4mm)
This side
facing interior
"E"
"D"
"I"
Clearance
for hinge
2 places
Figure 16
Right Hand Hinged Door
15" (38.1 cm) wide appliance
1
⁄4" (6 mm)
13⁄4"
(4.4 cm)
3011⁄32"
(77.1 cm)
Deep
(7.9 cm)
Minimum
3
(7.9 cm)
1
⁄8"
3
143⁄4"
(37.5 cm)
7
4
⁄8"
(12.4 cm)
(12.7 cm)
1
⁄8"
1
⁄4" (6 mm)
radius is
permissible
This side
facing interior
5"
13⁄16"
(3 cm)
Top of door
Hinge side of door
Clearance for
screw head,
4 places
1" (25.4 mm) diameter
1
counter bore
⁄4" (6 mm)
deep 6 places.
327⁄32"
(9.7 cm)
1
⁄8"
3
(7.9 cm)
Minimum
5
⁄32"
1
(2.9 cm)
Product Dimensions
D. Width 14 7/8”
33 3/4” to
34 3/4”
E. Height
Solid Door
Overlay Door 34” to 35”
F. Depth 21 1/2”
Solid Door 23 23/32”
G. Depth to Front of Door
Overlay Door
22 7/8”
Without
Handle
H. Depth to Handle 25 21/32” (Stainless Steel)
I. Depth with door at 90˚
Solid Door 37 13/32”
Overlay Door 37 1/2”
Product Features
Interior Cabinet Finish Black
Capacity Up to 24 wine bottles
Shelving System Roller-Glide System
Shelf Fronts Natural Maple
Other Storage NA
Interior Lighting White LED
Toe Grill Finish Black
Hinge Classic Hinge
Handle
Control Type Intuit
Temperature Range 40° to 65° F
Lock No
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6’
Shipping Weight 125 lbs
Finishes Stainless Steel, Overlay, Black
Vacation Mode Yes
Agency Approvals CSA
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
Slim Designer Handle
(Panel Overlay Does
Not Include Handle)
™
11
1
(4.3 cm)
1
4
⁄8"
(10.5 cm)
Minimum
072318A
1
⁄2"
1
⁄16"
(3.8 cm)
typical
311⁄16"
(9.4 cm)
2"
(5.1 cm)
2"
(5.1 cm)
311⁄16"
(9.4 cm)
1
1
(3.8 cm)
typical
⁄2"
11
1
⁄16"
(4.3 cm)
marvelrefrigeration.com | 800.223.3900
