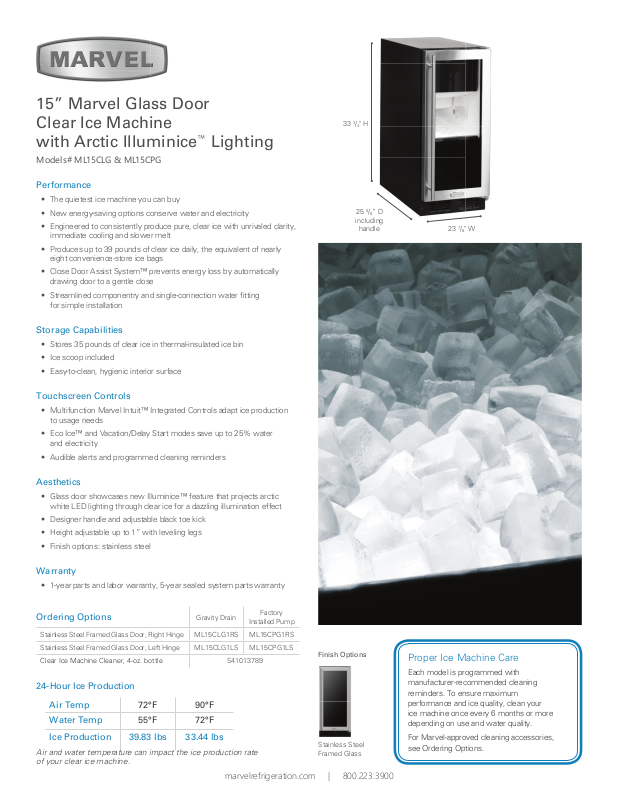

Marvel ML15CPG1LS Specifications
15” Marvel Glass Door
Clear Ice Machine
with Arctic Illuminice
Models# ML15CLG & ML15CPG
Performance
• The quietest ice machine you can buy
• New energy-saving options conserve water and electricity
• Engineered to consistently produce pure, clear ice with unrivaled clarity,
immediate cooling and slower melt
• Produces up to 39 pounds of clear ice daily, the equivalent of nearly
eight convenience-store ice bags
• Close Door Assist System™ prevents energy loss by automatically
drawing door to a gentle close
• Streamlined componentry and single-connection water fi tting
for simple installation
Storage Capabilities
• Stores 35 pounds of clear ice in thermal-insulated ice bin
• Ice scoop included
• Easy-to-clean, hygienic interior surface
Touchscreen Controls
• Multifunction Marvel Intuit™ Integrated Controls adapt ice production
to usage needs
• Eco Ice™ and Vacation/Delay Start modes save up to 25% water
and electricity
• Audible alerts and programmed cleaning reminders
™
Lighting
33 3/4" H
25 5/8” D
including
handle
23 7/8" W
Aesthetics
• Glass door showcases new Illuminice™ feature that projects arctic
white LED lighting through clear ice for a dazzling illumination effect
• Designer handle and adjustable black toe kick
• Height adjustable up to 1” with leveling legs
• Finish options: stainless steel
Warranty
• 1-year parts and labor warranty, 5-year sealed system parts warranty
Ordering Options
Stainless Steel Framed Glass Door, Right Hinge ML15CLG1RS ML15CPG1RS
Stainless Steel Framed Glass Door, Left Hinge ML15CLG1LS ML15CPG1LS
Clear Ice Machine Cleaner, 4 -oz. bottle S41013789
Gravity Drain
Factory
Installed Pump
24-Hour Ice Production
Air Temp 72°F 90°F
Water Temp 55°F 72°F
Ice Production 39.83 lbs 33.44 lbs
Air and water temperature can impact the ice production rate
of your clear ice machine.
marvelrefrigeration.com | 800.223.3900
Finish Options
Stainless Steel
Framed Glass
Proper Ice Machine Care
Each model is programmed with
manufacturer-recommended cleaning
reminders. To ensure maximum
performance and ice quality, clean your
ice machine once every 6 months or more
depending on use and water quality.
For Marvel-approved cleaning accessories,
see Ordering Options.
"B"
PRODUCT DIMENSIONS
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
14
7
⁄8"
(37.8 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
235⁄8"
(60 cm)
259⁄16"
(64.9 cm)
3713⁄32"
(95 cm)
1611⁄16"
(42.4 cm)
**34
1
⁄4" to 351⁄4"
(87 to 89.5 cm)
*24"
(61 cm)
147⁄8"
(37.8 cm)
34" to 35"
(86.4 to 88.9 cm)
2215⁄16"
(58.3 cm)
-
385⁄8"
(98.1 cm)
141⁄8"
35.9 cm)
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
14
7
⁄8"
(37.8 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
235⁄8"
(60 cm)
259⁄16"
(64.9 cm)
3713⁄32"
(95 cm)
1611⁄16"
(42.4 cm)
PRODUCT DIMENSIONS
PRODUCT DATA
ELECTRICAL
REQUIREMENTS #
PRODUCT
WEIGHT
105 lbs
(47.7 kg)
105 lbs
(47.7 kg)
105 lbs
(47.7 kg)
* To install ML15C*P model with the door face ush with the
adjacent cabinet doors, custom decorative panel thickness
cannot exceed
3
⁄4" (19 mm).
** Minimum rough-in opening required is to be larger than
the adjusted height of the cabinet.
# A grounded 15 amp dedicated circuit is required. Follow
all local building codes when installing electrical and appli-
ance.
PRODUCT DIMENSIONS
PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
ML15C*S
15"
(38.1 cm)
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
14
7
⁄8"
(37.8 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
235⁄8"
(60 cm)
259⁄16"
(64.9 cm)
3713⁄32"
(95 cm)
1611⁄16"
(42.4 cm)
ML15C*P
15"
(38.1 cm)
**34
1
⁄4" to 351⁄4"
(87 to 89.5 cm)
*24"
(61 cm)
147⁄8"
(37.8 cm)
34" to 35"
(86.4 to 88.9 cm)
2215⁄16"
(58.3 cm)
-
385⁄8"
(98.1 cm)
141⁄8"
35.9 cm)
ML15C*G
15"
(38.1 cm)
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
14
7
⁄8"
(37.8 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
235⁄8"
(60 cm)
259⁄16"
(64.9 cm)
3713⁄32"
(95 cm)
1611⁄16"
(42.4 cm)
"A"
"D"
"J"
"H"
"G"
"F"
"E"
"C"
Figure 17
"E"
"D"
Figure 17a
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a
Figure 18
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
ML15CLG*
ML15C*S
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
15"
(38.1 cm)
DOOR STYLE
(G) Glass Door
(S) Solid Door
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended for
this application, (see Figure 18).
**34" to 35"
(86.4 to 88.9 cm)
(61 cm)
24"
7
14
⁄8"
(37.8 cm)
(85.7 to 88.3 cm)
Figure 19
(S) solid
door shown
333⁄4" to 343⁄4"
235⁄8"
(60 cm)
211⁄2"
(54.6cm)
259⁄16"
(64.9 cm)
(17.6 cm)
CL Gravity
drain
3713⁄32"
(95 cm)
15
6
⁄16"
1
(3.2 cm)
(12.4 cm)
1611⁄16"
(42.4 cm)
CL
Water
inlet
1
⁄4"
47⁄8"
Width 14 7/8"
Interior Finish White
Capacity 35 lbs
Other Storage Ice Bi n
Interior Lighting (1) Arctic White Waterproof LED Pod
Toe Grill Finish Black
Hinge Classic Hinge
Handle Designer
Control Type Intuit™
Lock No
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 5'
Shipping Weight 160 lbs
Appliance Weight 90 to 100 lbs
Finishes SS
Agency Approvals CSA
marvelrefrigeration.com | 800.223.3900
Finishes Key
SS = Stainless Steel
