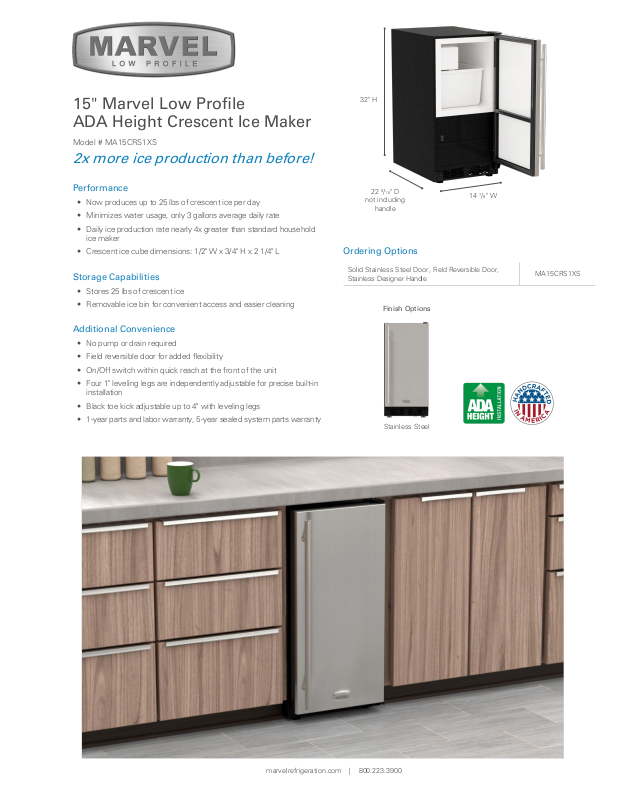

Marvel MA15CRS1XS Specifications
15" Marvel Low Prole
ADA Height Crescent Ice Maker
Model # MA15CRS1XS
2x more ice production than before!
32" H
Performance
• Now produces up to 25 lbs of crescent ice per day
• Minimizes water usage, only 3 gallons average daily rate
• Daily ice production rate nearly 4x greater than standard household
ice maker
• Crescent ice cube dimensions: 1/2" W x 3/4" H x 2 1/4" L
Storage Capabilities
• Stores 25 lbs of crescent ice
• Removable ice bin for convenient access and easier cleaning
Additional Convenience
• No pump or drain required
• Field reversible door for added exibility
• On/Off switch within quick reach at the front of the unit
• Four 1" leveling legs are independently adjustable for precise built-in
installation
• Black toe kick adjustable up to 4" with leveling legs
• 1-year parts and labor warranty, 5-year sealed system parts warranty
22 5/16" D
not including
handle
14 7/8" W
Ordering Options
Solid Stainless Steel Door, Field Reversible Door,
Stainless Designer Handle
Finish Options
Stainless Steel
MA15CRS1XS
marvelrefrigeration.com | 800.223.3900
Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit does
not require additional air space for top, sides, or rear.
However, the front grille must NOT be obstructed, and
clearance is required for an electrical connection in the rear.
!
CAUTION
Unit can NOT be installed behind a closed cabinet door.
CUTOUT DIMENSIONS
Preferred location
Product Dimensions
Installation Operation and Maintenance Instructions
for water line and
eletrical outlet is in
adjacent cabinet.
34-1/4"
(870 mm)
to
35"
(889 mm)
7"
mm) (178
4"
(102 mm)
15-1/4"
(38 7 mm)
Not Including Handle
24"
(610 mm)
5/8"
(16 mm)
Rough-In Dimensions
Rough-In Width 15 1/4"
Rough-In Height 34 1/4" to 35"
Rough-In Depth 24"
Product Dimensions
Width 14 7/8"
Height 32" to 33"
Depth of Cabinet 20 3/4"
Depth to Front of Door 22 5/16"
Depth to Handle 23 13/16"
Depth with door at 90˚ 35 13/16”
Product Features
Interior Cabinet Finish White
Capacity Up to 25 lbs of crescent ice
Shelving System NA
Shelf Fronts NA
Other Storage Ice Bin
Interior Lighting NA
Toe Grill Finish Black
Hinge Classic Hinge
Handle Slim Designer Handle
Control Type Mechanical Switch
Temperature Range NA
Lock No
Electrical Requirements 115V / 60Hz / 15A
Length of Power Cord 6'
Product Weight 84 lbs
Shipping Weight 90 lbs
Finishes Stainless Steel
Vacation Mode No
Agency Approvals UL
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
marvelrefrigeration.com | 800.223.3900
