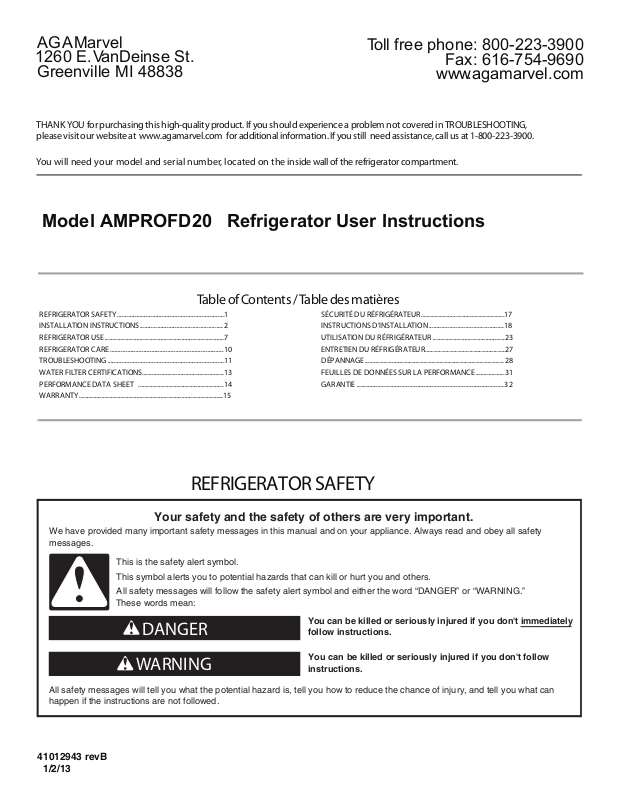

Marvel AMPROFD20 Operation Manual
AGA Marvel
1260 E. VanDeinse St.
Greenville MI 48838
THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,
please visit our website at www.agamarvel.com for additional information. If you still need assistance, call us at 1-800-223-3900.
You will need your model and serial number, located on the inside wall of the refrigerator compartment.
Toll free phone: 800-223-3900
Fax: 616-754-9690
www.agamarvel.com
Model AMPROFD20 Refrigerator User Instructions
Table of Contents / Table des matières
REFRIGERATOR SAFETY...................................................................
INSTALLATION INSTRUCTIONS....................................................2
REFRIGERATOR USE...........................................................................7
REFRIGERATOR CARE.......................................................................10
TROUBLESHOOTING.........................................................................
WATER FILTER CERTIFICATIONS...................................................
PERFORMANCE DATA SHEET .....................................................
WARRANTY..........................................................................................15
11
13
14
1
SÉCURITÉ DU RÉFRIGÉRATEUR....................................................
INSTRUCTIONS D’INSTALLATION....................................
UTILISATION DU RÉFRIGÉRATEUR .............................................
ENTRETIEN DU RÉFRIGÉRATEUR..................................................
DÉPANNAGE.......................................................................................28
FEUILLES DE DONNÉES SUR LA PERFORMANCE..................31
GARANTIE ............................................................................................32
17
...........18
23
27
REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
41012943 revB
1/2/13
follow instructions.
You
can be killed or seriously injured if you don't
instructions.
follow
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
■
Plug into a grounded 3 prong outlet.
■
Do not remove ground prong.
■
Do not use an adapter.
■
Do not use an extension cord.
■
Disconnect power before servicing.
■
Replace all parts and panels before operating.
■
Remove doors from your old refrigerator.
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
SAVE THESE INSTRUCTIONS
■
Use nonflammable cleaner.
■
Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
■
Use two or more people to move and install refrigerator.
■
Disconnect power before installing ice maker (on ice maker
kit ready models only).
■
Use a sturdy glass when dispensing ice (on some models).
■
Do not hit the refrigerator glass doors (on some models).
Proper Disposal of Your Old Refrigerator
WARNING
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
– even if they will sit for “just a few days.” If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
■ Take off the doors.
■ Leave the shelves in place so that children may not easily
climb inside.
Important information to know about disposal of
refrigerants:
Dispose of refrigerator in accordance with Federal and Local
regulations. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with
established procedures.
INSTALLATION INSTRUCTIONS
Unpack the Refrigerator
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
Remove the Packaging
■ Remove tape and glue residue from surfaces before turning
on the refrigerator. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
2
■ Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see “Refrigerator Safety.”
■ Dispose of/recycle all packaging materials.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator for
cleaning or service, be sure to cover the floor with
cardboard or hardboard to avoid floor damage. Always pull
the refrigerator straight out when moving it. Do not wiggle or
“walk” the refrigerator when trying to move it, as floor
damage could occur.
Clean Before Using
After you remove all of the packaging materials, clean the inside of
your refrigerator before using it. See the cleaning instructions in
“Refrigerator Care.”
Important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
Location Requirements
WARNING
NOTE: This refrigerator is intended for use in a loca
temperature ranges from a minimum of 55°F (13°C) to a maximum
of 110°F (43°C). The preferred room temperature range for
optimum performance, which reduces electricity usage and
provides superior cooling, is between 60°F (15°C) and 90°F
(32°C).
It is recommended that you do not install the refrigerator
near a heat source, such as an oven or radiator.
" (1.25 cm)
2 " (6.3 cm)
tion where the
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
To ensure proper ventilation for your refrigerator, allow for ¹⁄ "
(1.25 cm) of space on each side and at the top. Allow for 1"
(2.54 cm) of space behind the refrigerator. If your refrigerator has
an ice maker, allow extra space at the back for the water line
connections. When installing your refrigerator next to a
leave 2 ¹⁄
require more) to allow for the door to swing open.
See “dimensions” on page 4.
" (6.3 cm) minimum on the hinge side (some models
xed wall,
Electrical Requirements
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its nal location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 volt, 60 Hz., AC only, 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned o
extension cord.
NOTE: Before performing any type of installation, cleaning, or
oving a light bulb, turn the control (Thermostat, Refrigerator or
rem
Freezer Control depending on the model) to OFF and then
disconnect the refrigerator from the electrical source. When you
nished, reconnect the refrigerator to the electrical source and
are
reset the control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting. See “Using the
Controls.”
by a switch. Do not use an
3
Dimensions
g
Body Width
front leg
adjusters
3/8”
35 5/8”
(90.5 cm)
Model AMPROFD20
26-31/32”
(68.5cm)
Hinge
24-1/8”
(61.3cm)
69-15/16”
(177.6cm)
68-1/2”
(174 cm)
Rough In
Measurements
Electrical
Water
1” (2.5 cm)
air gap
24” (61 cm)
cabinet depth
25” (63.5 cm)
4” (10.2 cm)
for door swing
w/ door open 90
counter depth
41-1./4”
(105 cm)
gap
front
stabilizers
70-1/4” (178.4cm)
with frid
43-3/8”
(110.2cm)
e door open
24-1/2”
(62.3cm)
36-1/2”
(92.7 cm)
4
Water Supply Requirements
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
TOOLS NEEDED:
Flat-blade screwdriver
7⁄16 " and ¹⁄2 " Open-end or two
adjustable wrenches
IMPORTANT:
All installations must meet local plumbing code requirements.
Do not use a piercing-type or ³⁄16 " (4.76 mm) saddle valve
which reduces water ow and clogs more easily.
Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain
above freezing.
For models with water lters, the disposable water lter
should be replaced at least every 6 months.
Water Pressure
A cold water supply with water pressure of between 35 and
120 psi (241 and 827 kPa) is required to operate the water
dispenser and ice maker. If you have questions about your water
pressure, call a licensed, qualied plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 35 and 120 psi (241 and
827 kPa).
If a reverse osmosis water ltration system is connected to your
cold water suppl
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):
Check to see whether the sediment lter in the reverse
osmosis system is blocked. Replace the lter if necessary.
Allow the storage tank on the reverse osmosis system to rell
after heavy usage.
If your refrigerator has a water lter, it may further reduce the
water pressure when used in conjunction with a reverse
osmosis system. Remove the water lter. See “Water Filtration
System.”
If you have questions about your water pressure, call a licensed,
qualied plumber.
y, the water pressure to the reverse osmosis
¹⁄4" Nut driver
¹⁄4" Drill bit
Cordless drill
Connect the Water Supply
Read all directions before you begin.
IMPORTANT: If you turn on the refrigerator before the water line is
connected, turn o the ice maker to avoid excessive noise or
damage to the water valve.
Connect to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Find a ¹⁄2 " to 1 ¹⁄4 " (12.7 mm to 31.8 mm) vertical cold water
pipe near the refrigerator.
IMPORTANT:
Make sure it is a cold water pipe.
Horizontal pipe will work, but the following procedure
must be followed: Drill on the top side of the pipe, not the
bottom. This will help keep water away from the drill. This
also keeps normal sediment from collecting in the valve.
4. Determine the length of copper tubing you need. Measure
from the connection on the lower right rear of the refrigerator
to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use
¹⁄4" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure
ends of copper tubing are cut square.
both
5. Using a cordless drill, drill a ¹⁄4" hole in the cold water pipe you
have selected.
6. Fasten the shuto valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the ¹⁄4" drilled hole in
the water pipe and that the washer is under the pipe clamp.
Tighten the packing nut. Tighten the pipe clamp screws slowly
and evenly so the washer makes a watertight seal. Do not
overtighten.
7. Slip the compression sleeve and compression nut on the
copper tubing
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten or
you may crush the copper tubing.
8. Place the free end of the tubing in a container or sink, and turn
ON the main water supply. Flush the tubing until water is clear.
Turn OFF the shuto valve on the water pipe.
A. Cold water pipe
B. Pipe clamp
C. Copper tubing
D. Compression nut
as shown. Insert the end of the tubing into the
E. Compression sleeve
F. Shuto valve
G. Packing nut
A
B
C
D
E
F
G
5
Connect to Refrigerator
The water line comes down from the top on the back of the refrigerator.
Follow the connection instructions below:
1. Create a service loop (minimum diameter of 2 ft [61 cm]) with
the copper tubing. Avoid kinks when coiling the copper
tubing.
2. Remove the plastic cap from water valve inlet port. Place a
compression nut and sleeve on the copper tubing.
3. Insert the end of the copper tubing into the water valve inlet
port. Shape t
into the port to avoid kinks.
4. Slide the compression nut over the
water valve inlet port.
ubing slightly so that the tubing feeds straight
sleeve and screw into the
A
B
C
D
A. Plastic water tubing
B. Sleeve
C. Compression nut
D. Copper tubing
Complete the Installation
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
NOTE: Allow 24 hours to produce the
three batches of ice produced. Allow 3 days to completely
the
ll the ice storage bin.
rst batch of ice. Discard
5. Using an adjustable wrench, hold the nut on the plastic water
line to keep it from moving. Then, with a second wrench turn
the compression nut on the copper tubing counterclockwise
to completely tighten. Do not overtighten.
A
B
C
D
A. “P” clamp
B. Plastic water line
6. Check connection by pulling on
plastic water line to the refrigerator cabinet with a “P” clamp.
7. Turn on water supply to the refrigerator and check for leaks.
Correct any leaks.
C. Compression nut
D. Copper tubing
copper tubing. Attach the
6
Door Closing and Door Alignment
A
The base grille covers the leveling screws and roller assemblies
located at the bottom of the refrigerator cabinet below the freezer
door or drawer. Before making adjustments, remove the base
grille and move the refrigerator to its
1. Remove the base grille. Grasp the grille
toward you.
nal location.
rmly and pull it
"
2. Move the refrigerator to its
NOTE: To allow the refrigerator to roll easier, raise the leveling
legs o
the oor by turning the leveli
counterclockwise. The front rollers will be touching the
3. So the doors will close easier, use a ¹⁄
leveling screws clockwise. This will raise the front of the
refrigerator tilting it slightly downward to the rear. Turn both
leveling screws the same amount.
NOTE: Having someone push against the top of the
refrigerator takes some weight o
makes it easier to turn the screws.
nal location.
ng screws
" hex driver to turn both
the leveling screws. This
"
A
A. Leveling screw
4. Open and close the doors to make sure t
you like. If not, increase the tilt by turning both leveling screws
clockwise. It may take several turns of the leveling screw to
allow the doors to close easier.
5. Check for door alignment. If one door is lower than the other,
adjust the leveling screw, on the lower side of t
Us
ing a ¹⁄
side of the refrigerator until the doors are aligned. It may take
several turns of the leveling screw to raise the refrigerator.
NOTE: Havi
refrigerator takes some weight o
makes it easier to turn the screws.
" hex driver, turn the screw clockwise to raise that
ng someone push against the top of the
hey close as easily as
he refrigerator.
the leveling screws. This
r.
6. Make sure the refrigerator is steady. If the refrigerator seems
unsteady or rolls forward when the door or drawer is opened
adjust the leveling screws. Using a
leveling screw on each side clockwise until the rollers are up
and the leveling feet are
NOTE: Having someone push against the top of the
refrigerator takes
makes it easier to turn the screws.
7. Replace the base grille by aligning the ends of the grille with
the leveling assemblies on each side and snapping the grille
into place.
some weight o
rmly against the or.
" hex driver, turn the
¹⁄
the leveling screws. This
REFRIGERATOR USE
Opening and Closing Doors
There are two refrigerator compartment doors. The doors can be
opened and closed either separately or together.
There is a vertically-hinged seal on the left refrigerator door.
When the left side door is opened, the hinged seal
automatically folds inward so that it is out of the way.
When both doors are closed, the hinged seal automatically
forms a seal between the two doors.
A. Hinged seal
7
Using the Controls
The control center is located at the top front of the refrigerator
compartment.
Temperature Controls
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR too warm REFRIGERATOR Control 1°
lower
For your convenience, your temperature controls are preset at the
factory. When you
controls are still set to the recommended set points as shown.
IMPORTANT:
The recommended settings should be correct for normal
household refrigerator use. The controls are set correctly
when milk or juice is as cold as you like and when ice cream is
rm.
When the power is on, the temperature display shows the set
point temperature of the compartment.
Wait 24 hours for your refrigerator to cool completely before
adding food. If you add food before the refrigerator has cooled
completely, your food may spoil.
NOTE: Adjusting the refrigerator and freezer temperature
controls to a colder than recommended setting will not cool
the compartments any faster.
If the temperature is too warm or too cold in the refrigerator or
freezer,
blocked before adjusting the controls.
rst check the air vents to be sure they are not
install your refrigerator, make sure the
Recommended Settings
To Turn Your Refrigerator O /On:
Press the freezer (+) touch pad repeatedly until “OFF” appears
in the freezer display. Allow a few seconds for the refrigerator
to shut o
Press either the refrigerator or freezer (-) touch pad to turn on
the refrigerator.
. Neither compartment will cool.
FREEZER too warm/too little
ice
REFRIGERATOR too cold Adjust REFRIGERATOR
FREEZER too cold Adjust FREEZER Control 1°
Adjust FREEZER Control 1°
lower
Control 1° higher
higher
Additional Control Center Features
Max Ice
The Max Ice feature assists with temporary periods of heavy ice
use by increasing ice production.
Press the Max Ice feature touch pad to set the freezer to the
lowest temperature setting. Press the Max Ice feature touch
pad again to return to the normal freezer set point.
NOTE: The Max Ice feature will automatically shut o
approximately 24 hours.
in
Humidity Control
The Humidity Control feature turns on a heater to help reduce
moisture on the door hinge seal. Use in humid environments or
when you notice moisture on the door hinge seal. The refrigerator
uses more energy when Humidity Control is on.
Press Humidity Control when the environment is warm and
more humid, or if you notice moisture on the door hinge seal.
The indicator light will be lit when humidity control is ON.
Press Humidity Control to save energy when the environment
is less humid.
Adjusting Controls
The REFRIGERATOR control adjusts the refrigerator compartment
temperature. The FREEZER control adjusts the freezer
compartment temperature.
If you need to adjust the temperature in either the refrigerator or
freezer compartment, use the settings listed in the chart as a
guide.
To Adjust Set Point Temperatures:
The rst touch of the (+) or (-) touch pad displays the current
temperature set point.
Press the (+) or (-) touch pads until the desired temperature
set point is displayed.
NOTE: Except when
adjust either temperature control more than one setting at a
time. Wait 24 hours between adjustments for the temperature
to stabilize.
rst turning on the refrigerator, do not
8
Temp Alarm
The Temp Alarm feature provides temperature information in the
event of a power outage.
Power outage: During a power outage, if the temperatures in the
refrigerator and freezer compartments exceed normal operating
temperatures, the highest temperature reached will be displayed.
Press the Temp Alarm touch pad until the indicator light is lit,
to turn on this feature. Press and hold Temp Alarm for
3 seconds until the indicator light goes o
feature.
Temperature alarm: An alarm will sound repeatedly if the freezer
or refrigerator compartment temperatures exceed normal
operating temperatures for an hour or more.
The temperature displays will alternately show the current
temperatures and the highest temperatures the compartments
reached.
Press the Temp Alarm touch pad once to stop the audible
alarm and alternating temperat ure displays. The Temp Alarm
light will continue to
set temperature.
ash until the refrigerator returns to the
to turn o this
Door Alarm
The Door Alarm feature sounds a chime every few seconds when
the refrigerator door has been left open for 5 continuous minutes.
The chime will sound until the door is closed or Door Alarm is
turned o .
Press the Door Alarm touch pad to turn this feature on or o .
The indicator light will be lit when the Door Alarm feature is on.
Crisper Humidity Control
You can control the amount of humidity in the moisture-sealed
crisper. Depending on your model, adjust the control to any
setting between FRUIT and VEGETABLES or LOW and HIGH.
FRUIT/LOW (open) for best storage of fruits and vegetables with
skins.
VEGETABLES/HIGH (closed) for best storage of fresh, leafy
vegetables.
Max Cool
The Max Cool feature assists with periods of high refrigerator use,
full grocery loads, or temporarily warm room temperatures.
Press Max Cool to set the freezer and refrigerator to the
lowest temperature settings. Press Max Cool again to return
to the normal refrigerator set point.
NOTE: The Max Cool feature will automatically shut o in
approximately 12 hours.
Filter Reset
The Filter Reset control allows you to restart the water lter status
tracking feature each time you replace your water
“Water Filtration System.”
Press and hold the Filter Reset touch pad for 3 seconds, until
the Order or Replace light turns o
.
lter. See
User Preferences
The control center allows you to set user preferences, if desired.
Temperature Display (F_C)
This preference allows you to change the temperature display.
F - Temperature in degrees Fahrenheit
C - Temperature in degrees Celsius
Alarm (AL)
This preference allows you to turn o the sound of all alarms.
ON - You will hear the alarm sound.
OFF - You will not hear the alarm sound.
Sabbath Mode (SAB)
IMPORTANT: This preference does not disable interior lights.
ON - All control panel lights will be disabled.
OFF - All control panel lights will be enabled.
NOTE: Press any touch pad on the control panel to restore the
control panel lights.
To Access the User Preferences Menu:
1. Press and hold the Door Alarm touch pad for 3 seconds. The
preference name will appear in the Freezer display and the
preference status (F or C) or (ON or OFF) will appear in the
Refrigerator display.
2. Use the Freezer (+) or (-) touch pads to scroll through the
preference names. When the desired preference name is
displayed, pr
change the preference status.
3. Set your preferences by pressing and
touch pad for 3 seconds, or by shutting the refrigerator
compartment door.
ess the Refrigerator (+) or (-) touch pads to
holding the Door Alarm
Ice Maker
IMPORTANT: Flush the water system before turning on the ice
maker. See “Water Dispenser.”
Turning the Ice Maker On/O
To turn the ice maker ON, simply lower the wire shuto arm.
To manually turn the ice maker OFF, lift the wire shuto
OFF (arm up) position and listen for the click.
NOTE: Your ice maker has an automatic shuto
the ice cubes will
raise the wire shuto
force the wire shuto
NOTE: Turn o the ice maker before removing th
to serve ice or to clean the bin. This will keep the ice cubes from
dropping out of the ice maker and into the freezer compartment.
After replacing the ice storage bin, turn on the ice maker.
l the ice storage bin and the ice cubes will
arm to the OFF (arm up) position. Do not
arm up or down.
Ice Production Rate
The ice maker should produce a complete batch of ice
approximately every 3 hours.
To increase ice production, lower the freezer and refrigerator
temperature. See “Using the Controls.” Wait 24 hours
between adjustments.
Remember
Allow 24 hours to produce the rst batch of ice. Allow 3 days
to completely
batches of ice produced.
The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice
maker to a softened water supply. Water softener chemicals
(such as salt) can damage parts of the ice maker and lead to
poor quality ice. If a softened water supply cannot be avoided,
make sure the water softener is operating properly and is well
maintained.
Do not store anything on top of the ice maker or in the ice
storage bin.
ll the ice storage bin. Discard the rst three
arm to the
. As ice is made,
e ice storage bin
9
Water Dispenser
(on some models)
IMPORTANT:
After connecting the refrigerator to a water source or replacing
the water
to depress and hold the water dispenser lever for 5 seconds,
then release it for 5 seconds. Repeat until water begins to
ow. Once water begins to ow, continue depressing and
releasing the dispenser lever (5 seconds on, 5 seconds o
until a total of 4 gal. (15 L) has been dispensed. This will
air from the
the water
some households. As air is cleared from the system, water
may spurt out of the dispenser.
NOTE: After 5 minutes of continuous dispensing, the
dispenser will stop dispensing water to avoid
continue dispensing, press the dispenser button again.
Allow 24 hours for the refrigerator to cool down and chill
water. Dispense enough water every week to maintain a fresh
supply.
Dispensing Water
1. Hold a container under the dispenser while pressing the
button.
2. Release the button to stop dispensing.
lter, ush the water system. Use a sturdy container
lter and water dispensing system, and prepare
lter for use. Additional ushing m
ay be required in
ooding. To
)
ush
IMPORTANT: The disposable water
least every 6 months. If the water
ice maker decreases noticeably before 6 months have passed,
replace the water
lter more often.
lter should be replaced at
he water dispenser or
ow to t
Replacing the Water Filter
To purchase a replacement water lter,
contact your dealer or call 1-800-223-3900.
IMPORTANT: Air trapped in the water system may cause water
lter to eject. Always dispense water for at least 2 minutes
and
before removing the
1. Turn
2. Remove sealing label from replacement
3. Turn the
4. Flush
NOTE: The dispenser feature may be used without a water
installed. Your water will not be
replace the
lter counterclockwise to remove.
end into the lter head.
closed.
the water system. See “Water Dispenser” or “Water and
Ice Dispenser.”
ter with the blue bypass cap.
lter or blue bypass cap.
lter clockwise until it stops. Snap the cover
part number 31104
lter and insert the
lter
ltered. If this option is chosen,
REFRIGERATOR CARE
Cleaning
Water Filtration System
The water lter is located in the upper right-hand corner of the
refrigerator compartment.
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
Water Filter Status Lights
The water lter status lights will help you know when to change
the water
change the water
lter should be installed.
After replacing the water
3 seconds until the Order or Replace light turns o
the Controls.”
lter. When the Order light is on, it is almost time to
ter. When the Replace light is on, a new water
lter, press and hold FILTER RESET for
. See “Using
WARNING
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically.
However, clean both sections about once a month to avoid
buildup of odors. Wipe up spills immediately.
IMPORTANT: Because air circulates between both sections, any
odors formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors. To avoid odor
transfer and drying out of food, wr
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers,
concentrated detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or other harsh
cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean
mild detergent in war
3. Wash stainless steel and painted metal exteriors with
sponge or soft cloth and a mild detergent in warm water.
To keep your stainless steel refrigerator looking like new
and to remove minor scu s or marks, it is suggested that
you use a Stainless Steel Cleaner and Polish.
m water.
ap or cover foods tightly.
mmable uids, cleaning waxes,
sponge or soft cloth and a
a clean
10
Loading...
