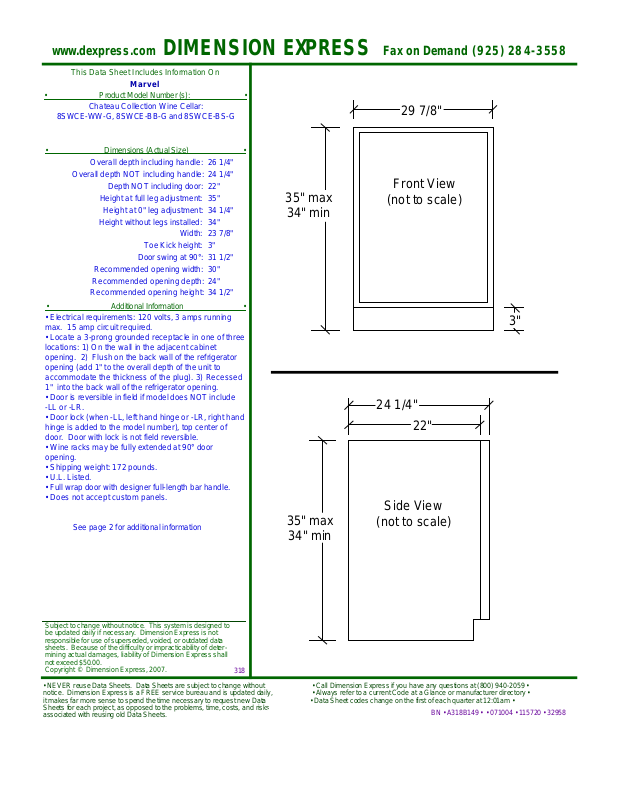

Marvel 8SWCEBBGL, 8SWCEBBGR Specification Sheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

8SWCE-WW-G, 8SWCE-BB-G and 8SWCE-BS-G

• Dimensions (Actual Size) •

• Additional Information •

• Electrical requirements: 120 volts, 3 amps running max. 15 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three locations: 1) On the wall in the adjacent cabinet opening. 2) Flush on the back wall of the refrigerator opening (add 1" to the overall depth of the unit to accommodate the thickness of the plug). 3) Recessed 1" into the back wall of the refrigerator opening.

• Door is reversible in field if model does NOT include

-LL or -LR.

• Door lock (when -LL, left hand hinge or -LR, right hand hinge is added to the model number), top center of door. Door with lock is not field reversible.

• Wine racks may be fully extended at 90° door opening.

• Shipping weight: 172 pounds.

• U.L. Listed.

• Full wrap door with designer full-length bar handle.

• Does not accept custom panels.

See page 2 for additional information

Chateau Collection Wine Cellar:

Overall depth including handle:

Overall depth NOT including handle:

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Height without legs installed:

Width:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

Recommended opening depth:

Recommended opening height:

26 1/4" 24 1/4" 22" 35" 34 1/4" 34" 23 7/8" 3" 31 1/2" 30" 24" 34 1/2"

35" max

34" min

35" max

34" min

29 7/8"

Front View

(not to scale)

24 1/4"

22"

Side View

(not to scale)

Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00. Copyright © Dimension Express, 2007.

• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 • notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory • it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am • Sheets for each project, as opposed to the problems, time, costs, and risks associated with reusing old Data Sheets.

318

BN • A318B149 • • 071004 • 115720 • 32958

www.dexpress.com

DIMENSION EXPRESS

Fax on Demand (925) 284-3558

Additional Information:

• 8SWCE-WW-G : White cabinet, white frame glass door, high gloss white interior. Shelf fronts are clear, solid maple (unfinished).

• 8SWCE-BB-G : Black cabinet, black frame glass door, high gloss ebony interior. Shelf fronts are clear, solid maple (unfinished).

• 8SWCE-BS-G : Black cabinet, stainless finish frame glass door, high gloss ebony interior. Shelf fronts are clear, solid maple (unfinished).

Accessories:

• Casters: P/N 42244041.

• Marvel Shelf Front Kits: Prefinished shelf fronts (6) and wine cradle rack (1).

- Gloss black: P/N 42245244

- Gloss white: P/N 42245245

- Stainless steel: P/N 42245246

- Natural maple (unfinished): P/N 42245243

Page 2
