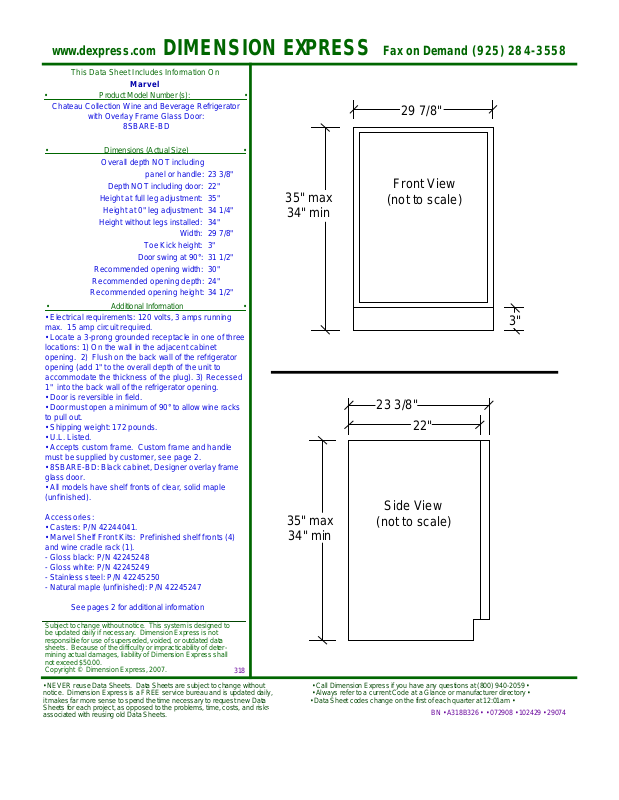

Marvel 8SBAREBDL, 8SBAREBDR Specification Sheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Chateau Collection Wine and Beverage Refrigerator

• Dimensions (Actual Size) •

• Additional Information •

• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.

• Door is reversible in field.

• Door must open a minimum of 90° to allow wine racks
to pull out.

• Shipping weight: 172 pounds.

• U.L. Listed.

• Accepts custom frame. Custom frame and handle
must be supplied by customer, see page 2.

• 8SBARE-BD: Black cabinet, Designer overlay frame
glass door.

• All models have shelf fronts of clear, solid maple
(unfinished).

Accessories:

• Casters: P/N 42244041.

• Marvel Shelf Front Kits: Prefinished shelf fronts (4)
and wine cradle rack (1).

- Gloss black: P/N 42245248

- Gloss white: P/N 42245249

- Stainless steel: P/N 42245250

- Natural maple (unfinished): P/N 42245247

with Overlay Frame Glass Door:

8SBARE-BD

Overall depth NOT including

panel or handle:

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Height without legs installed:

Width:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

Recommended opening depth:

Recommended opening height:

23 3/8"
22"
35"
34 1/4"
34"
29 7/8"
3"
31 1/2"
30"
24"
34 1/2"

35" max

34" min

35" max

34" min

29 7/8"

Front View

(not to scale)

3"

23 3/8"

22"

Side View

(not to scale)

See pages 2 for additional information

Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter­mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.

• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.

318

BN • A318B326 • • 072908 • 102429 • 29074

www.dexpress.com

DIMENSION EXPRESS

Fax on Demand [phone]

Additional Information:

Custom Overlay Glass Door Frame Dimensions

29 7/16"

1 3/4" min

• Product Model Number (s): •

Page 2

(not to scale)

This Data Sheet Includes Information On

Marvel

Chateau Collection Wine and Beverage Refrigerator

with Overlay Frame Glass Door:

8SBARE-BD

1 3/4" min

Front View

1 3/4" min

30 5/16" for

3 1/2" toe kick

29 13/16" for

4" toe kick

1 3/4"

min

Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
