Installation
Operation
and
Maintenance
Instructions
Beverage and Wine
Refrigerators
MARVEL
Chateau Collection
3SBARE
6SBARE
8SBARE
TABLE OF CONTENTS
Unpacking your beverage refrigerator....................
Removing the packaging......................
Warranty Registration .....................
Installing your beverage refrigerator.........
Selecting the location..........................
Cabinet Clearances ..........................................
Leveling legs .....................................
Grounding method..............................
Electrical Requirements........................
Using Your Sentry System™ Control ................................4

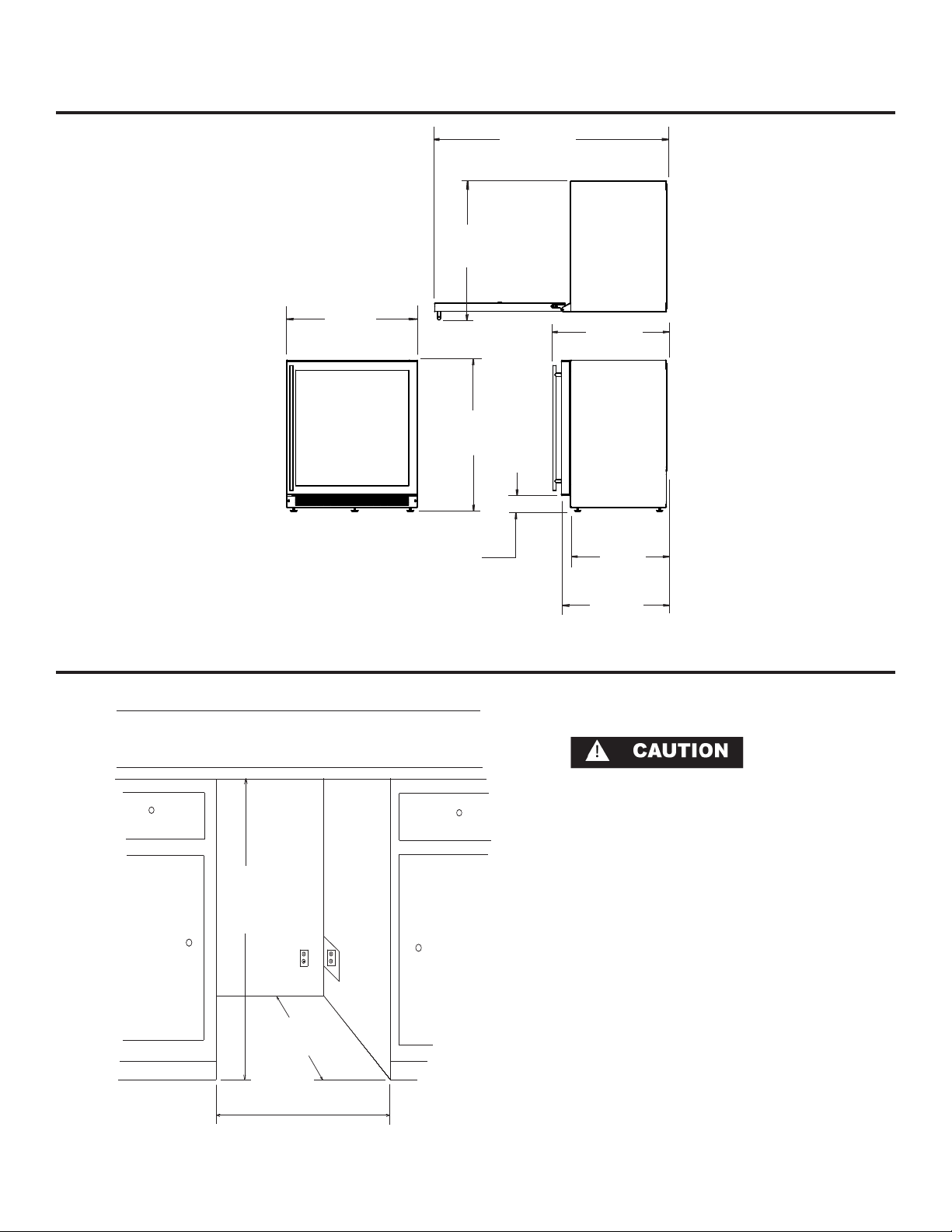

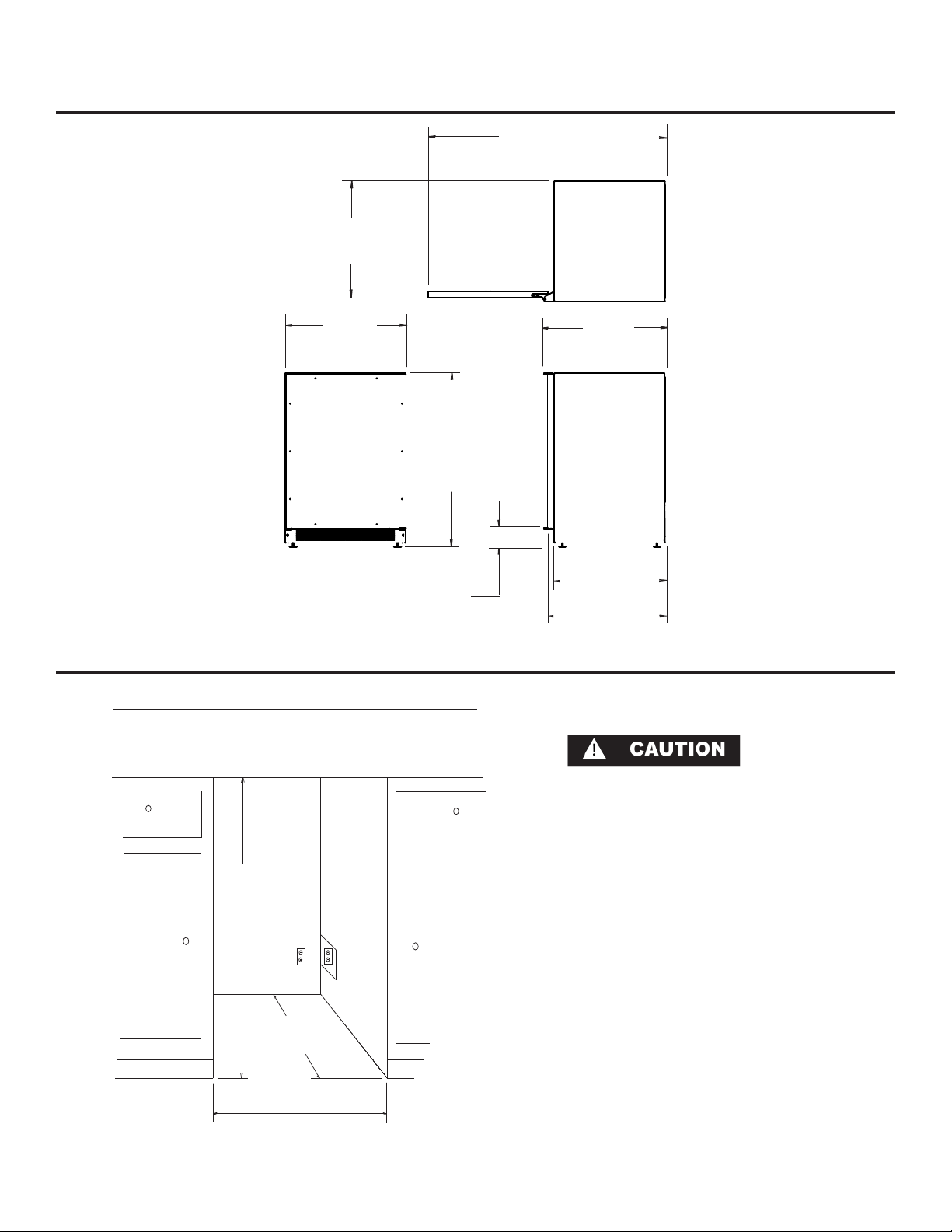

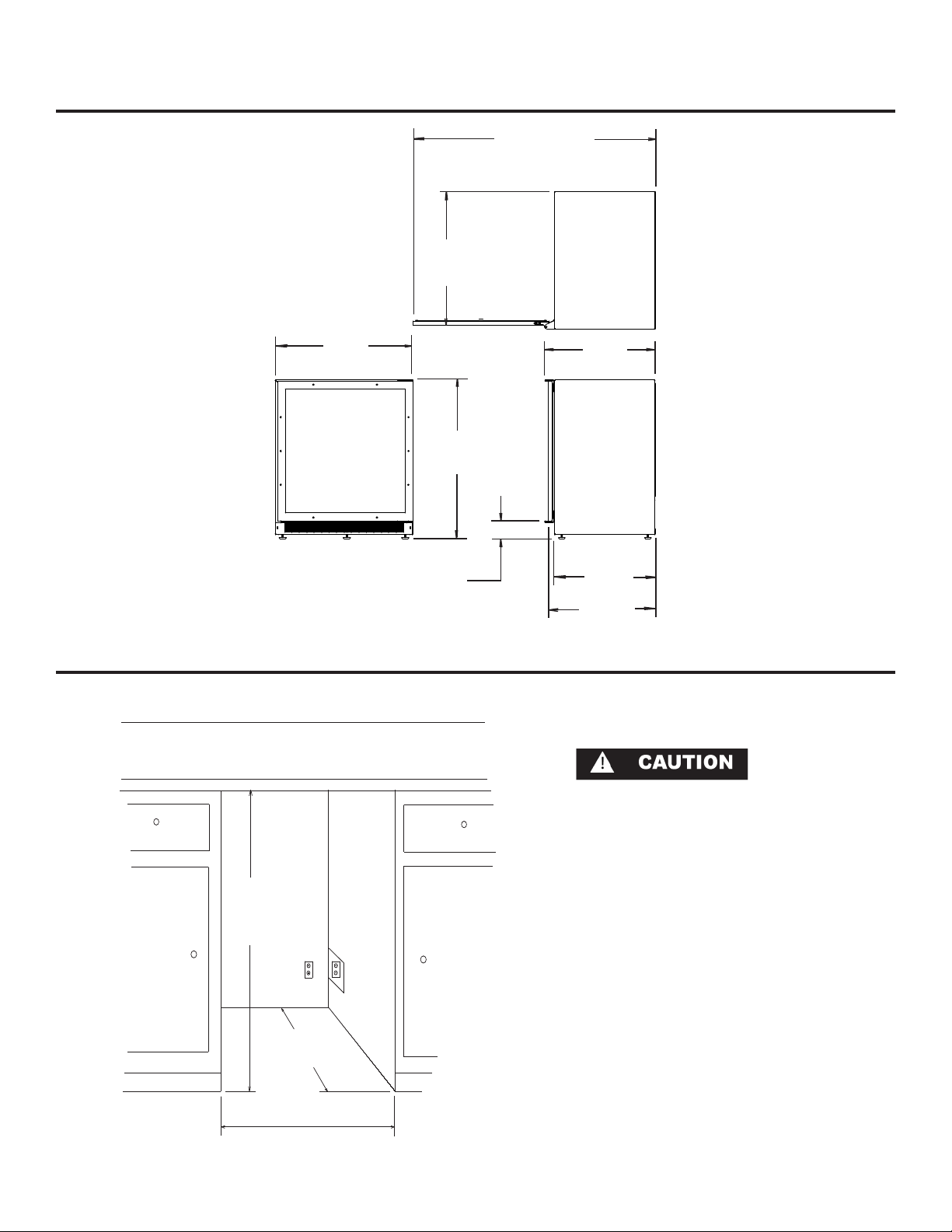

Dimensions for 3SBARE glass door.................
Recommended Rough in Opening Dimensions
for 3SBARE glass door.......................
Dimensions for 3SBARE glass overlay door.
Recommended Rough in Opening Dimensions
for 3SBARE glass overlay door........
Dimensions for 3SBARE solid overlay door.......
Recommended Rough in Opening Dimensions
for 3SBARE solid overlay door.......................................7
Dimensions for 6SBARE glass door...................................8
Recommended Rough in Opening Dimensions
for 6SBARE glass door......
Dimensions for 6SBARE glass overlay door.......................9
Recommended Rough in Opening Dimensions
for 6SBARE glass overlay door......................................9
Dimensions for 6SBARE solid overlay door
Recommended Rough in Opening Dimensions
for 6SBARE solid overlay door..........................
Dimensions for 8SBARE glass door..........
Recommended Rough in Opening Dimensions
for 8SBARE glass door......................................
Dimensions for 8SBARE glass overlay door.......................12
Recommended Rough in Opening Dimensions
for 8SBARE glass overlay door......................................12

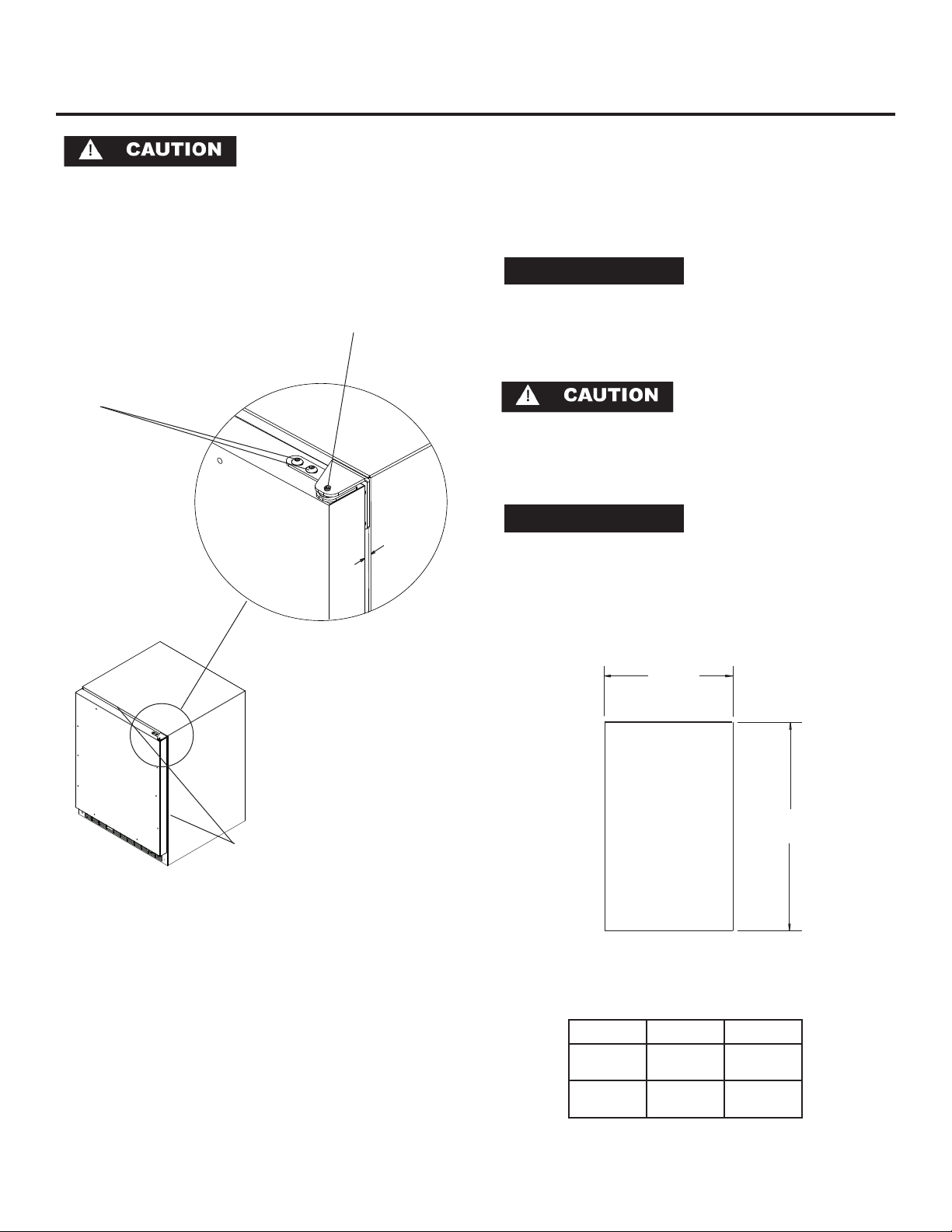

Full Overlay Panel Installation Instructions....
Features ........................................................................16
Care and Cleaning ................................
Cleaning condenser air flow.........................
Cleaning the cabinet...................................................17
Cleaning the interior......................................
Cleaning the wine shelves.............................
Cleaning the door gasket..............................

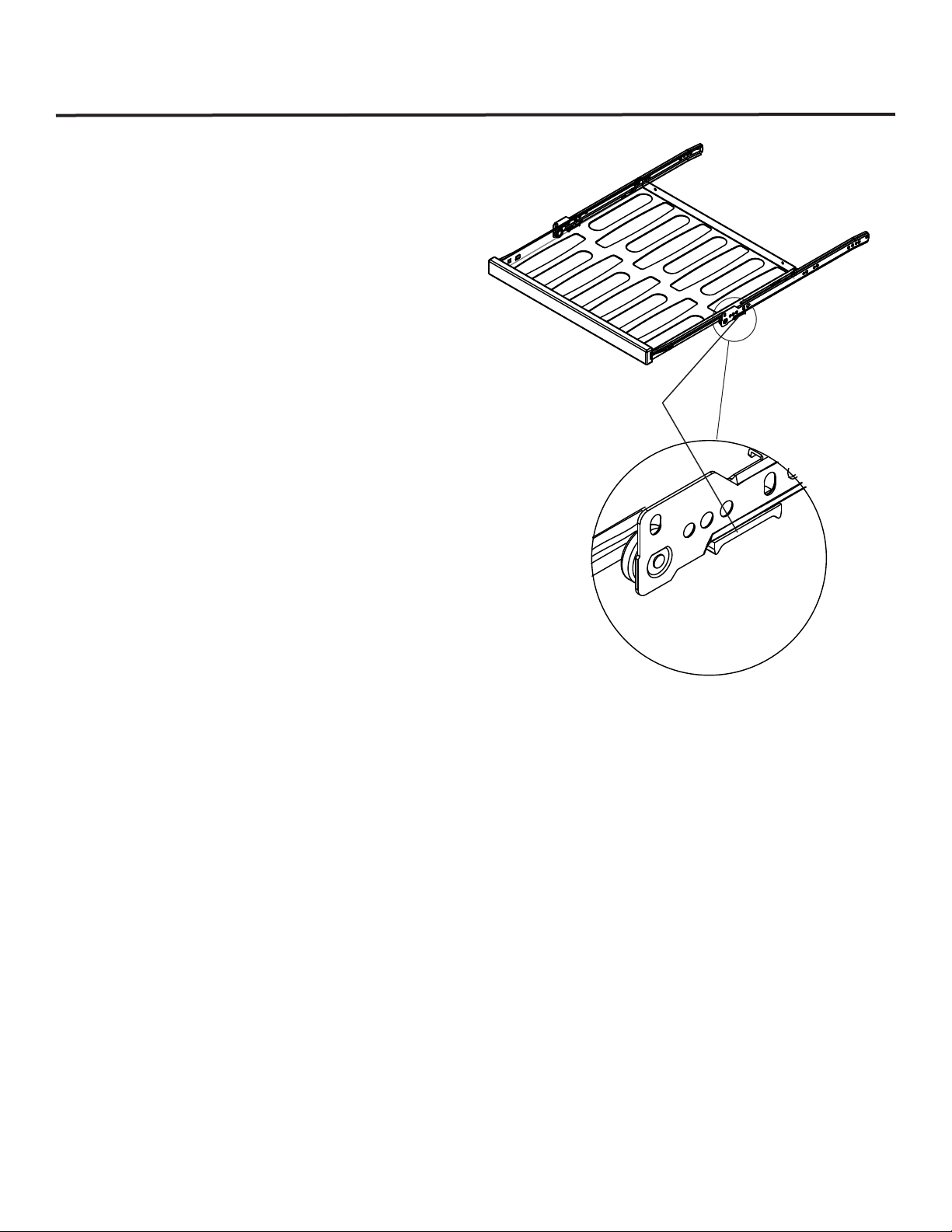

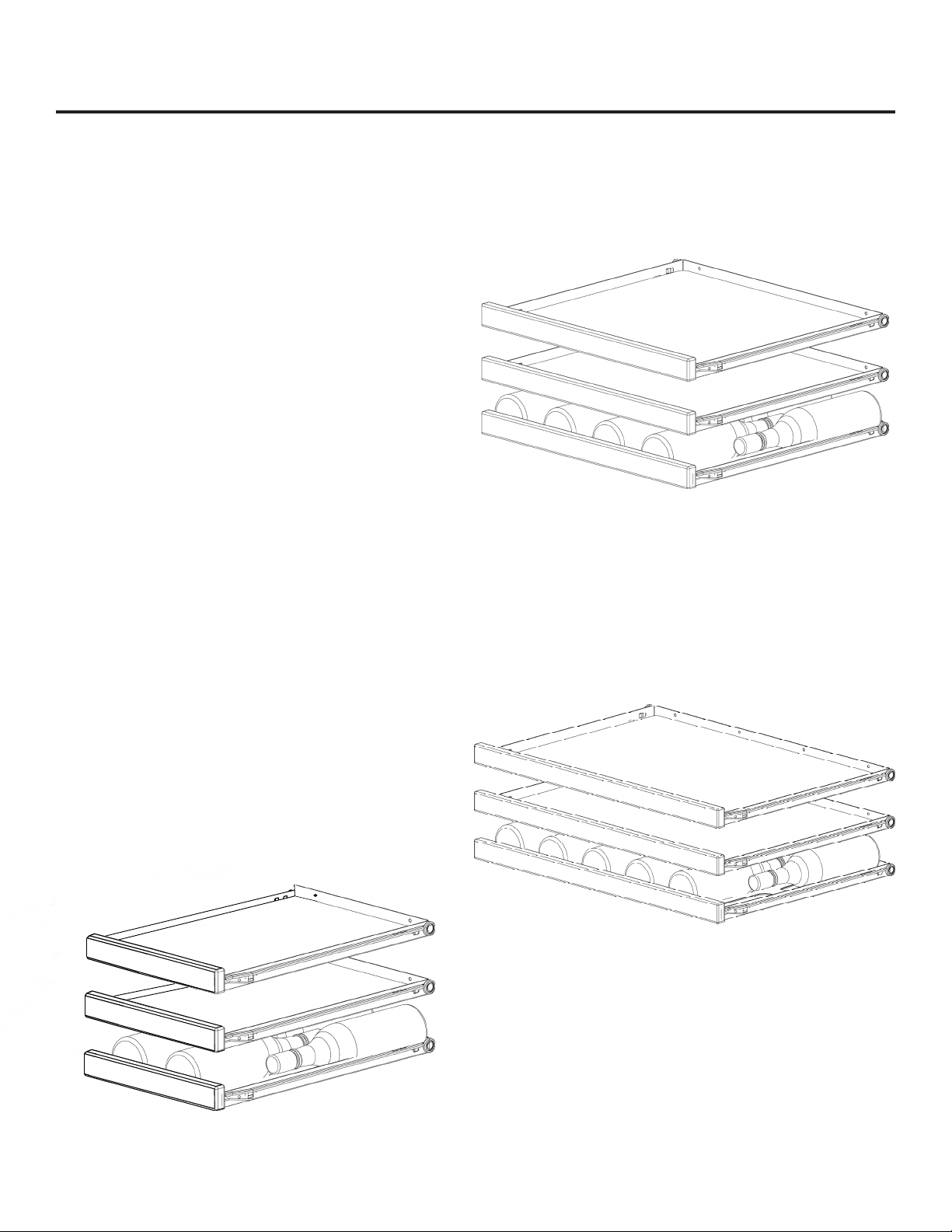

Removing the shelves.....................................
Replacing the light tubes............................................
Troubleshooting Guide.........................
Obtaining Service ..............................
Household Product Warranty................
...............
......................
............
.....................
......................
......................
..........
...........
.........................
....................
..........................
..........................
.....
...........
.....
.................
....................
.........................
........................
.........
2
.2
.................2
..3
..3
.........
.3
...3
..............3
.............3
..............
...............
................ .10
.......
..............11
.............13
............
...........
............
............
............
...5
.5
.6
...6
7
...8
....
..10
...........11
....
..17
...17
...17
..17
..17
.17
.18
......19
..20
...21
1
UNPACKING YOUR BEVERAGE REFRIGERATOR
NOTE
Important Safety Instructions
Warnings and safety instructions appearing in this
guide are not meant to cover all possible conditions and situations that may occur. Common sense,
caution, and care must be exercised when installing,
maintaining, or operating this appliance.
Recognize Safety Symbols,
Words, and Labels.
CAUTION-Hazards or unsafe practices which could
result in personal injury or property or product damage.
WARNING-Hazards or unsafe practices which could
result in personal injury.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its safe
delivery was assumed by the retailer upon acceptance of the
shipment. Claims for loss or damage sustained in transit
must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.
If the unit was shipped or has been laying on its back for
any period of time allow the refrigerator to sit upright for a
period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the refrigerator
in immediately may cause damage to internal parts.
Warranty Registration
It is important you send in your warranty registration card immediately after taking delivery of your refrigerator or you can
register online at www.marvelrefrigeration.com.
NOTE-Important information to make a problem free
installation.
Remove Packaging
Your beverage refrigerator has been packed for shipment with all parts that could be damaged by movement securely fastened. Cut the banding material at the
bottom of the carton, unfold the cartoning at the bottom
and remove the carton from the appliance. Remove the
plastic bag, styrofoam corner posts and any tape holding
the door closed and internal components in place.
The owners manual is shipped inside the beverage refrigerator in a plastic bag along with the warranty registration card.
Important
Keep your carton packaging until your beverage refrigerator has been thoroughly inspected and found to be
in good condition. If there is damage, the packaging
will be needed as proof of damage in transit. Afterwards
please dispose of all items responsibly in particular the
plastic bags which can be a suffocation hazard.
The following information will be required when registering
your unit.
Model Number
Serial Number
Date of Purchase
Dealers name and address
The model number and serial number can be found on the
serial plate which is located inside the refrigerator on the left
side toward the top of the liner.
Help Prevent Tragedies
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still dangerous, even if they sit out for “just a few days”.
If you are getting rid of your old refrigerator, please follow
the instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
Take off the doors or remove the drawers.•
Leave the shelves in place so children may not easily •
climb inside.
2
INSTALLING YOUR BEVERAGE REFRIGERATOR
Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
assure your product performs to specifications the recommended installation location temperature range is from
65 to 80°F (18 to 27°C) for indoor built in units and 65 to
90°F (18 to 32°C) for indoor freestanding units.
Cabinet Clearance
Ventilation is required from the bottom front section of the
unit. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the unit as long as the grille and door access remain unobstructed.
Front Grille
Do not obstruct the front grille. The openings within the
front grille provide air to flow into and exit from the refrigerator condenser. For this reason it is important this area to
not be obstructed and be kept clean. Marvel does not recommend the use of custom made grilles as air flow may be
restricted because of inadequate openings. (See Figure 1).
Leveling Legs
Adjustable legs at the front and rear corners of the unit
should be set so the unit is firmly positioned on the floor
and level from side to side and front to back. Turn leveling
legs clockwise to raise unit, counterclockwise to lower it.
(See Figure 1).
Do not splash or spray water from a hose on the •
refrigerator. Doing so may cause an electrical shock,
which may result in severe injury or death.
This unit should not, under any circumstances, be •
ungrounded.
Grounding Method
This product is factory equipped with a power supply cord
that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 2). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to exchange the existing
receptacle in accordance with the National Electrical Code
and applicable local codes and ordinances. The third
ground prong should not, under any circumstances, be cut
or removed.
Electrical Connection
115 volts, 3.3 amps running max. 15 amp dedicated circuit
required. 3 prong grounded receptacle required.
Do not use an extension cord
with this appliance.
Front Grille,
keep this
area open.
Figure 1
Leveling Legs
3
Figure 2
Glass Door
Model
Figure 3
Solid Door
Model
Figure 4
USING YOUR Sentry System™ CONTROL
LED
LED
Start Your Appliance
Please observe the following options when starting your
appliance during initial plug-in.
1) If Sentry System™ LED is flashing amber (see Figure 3
or 4) the appliance is on. Simply press and release “ON/
OFF” button to stop the flashing LED.
2) If the interior light is working but Sentry System™ display
is blank push and hold “ON/OFF” button for five (5)
seconds to start the appliance.
Once loaded allow at least 48 hours for the unit to stabilize
before making any adjustments to the initial temperature
setting.
Set Your Temperature Mode
This product can display either Fahrenheit or Celsius. To
do so, press the “°F/C” button on the display panel.
Viewing and Changing Current Temperature Settings
The temperature set point is initially set in the factory at 55
degrees F. The available temperature range of the unit is
from 40 to 65 degrees F (4 to 18 °C). .
To view the set point push the “SET” button once and the
word “SET” and the current set-point will be displayed.
While “SET” icon is displayed push the “WARMER” or
“COLDER” button for your desired temperature. Push the
“SET” key to exit set-point mode and activate your new
temperature settings, or after 10 seconds the new settings
will automatically be activated.
As with any refrigeration product, there is a slight temperature variance at different locations within the cabinet.
Door Ajar Alarm
If the door has been left open for over five (5) minutes, the
alarm will sound and the LED will flash green. This will
stop as soon as the door is closed.
High and Low Temperature
If your unit reaches temperatures outside normal operating
temperatures for your set point for more than one (1) hour,
an alarm will sound and the LED will flash red. This will
warn you the contents have seen temperatures that may not
be conducive for long-term storage.
Power Failure
If your unit experiences a power failure, the LED will flash
amber until the alarm is reset.
Reset Alarms
Press the “ON/OFF” button for approximately one (1) second. This will reset all audible and display alarms.
Sabbath Mode
Your refrigerator is equipped with a Sabbath Mode feature.
By activating this mode, you will be disabling all displays,
audible alarms and lights.
To activate Sabbath Mode, press and hold the “SET” button while pressing the “°F/C” button four (4) times within
seven (7) seconds. To deactivate Sabbath Mode, repeat the
process. Sabbath Mode will automatically deactivate after
72 hours.
Interior Light and Switch
The interior light makes it easy to view the contents of your
refrigerator. Pressing the “LIGHT” key toggles between 2
modes of operation for the internal lights: functional (default) mode and showcase mode. If you are in functional
(default) mode, the lights will turn on only if the door is
open. If you are in showcase mode, the lights will be on
whether or not the door is open.
Warning Alarms
Your refrigerator has been fitted with a Sentry System™
refrigeration monitor. This monitor will let you know if your
refrigerator is not functioning properly for optimum storage
and will alert you in the unlikely event there is an unstable
condition.
Advanced Sentry System™ features:
Sentry System™ continually monitors critical refrigeration
system components for proper operation. If component
parameters exceed normal operation specifications, the
display will automatically flash the respective error code as
follows:
E1-Compressor fault
E2-Condenser fan motor fault
E3-Evaporator thermistor sensor fault
E4-Display thermistor sensor fault
Please call a qualified service technician if any of these
codes are displayed.
4

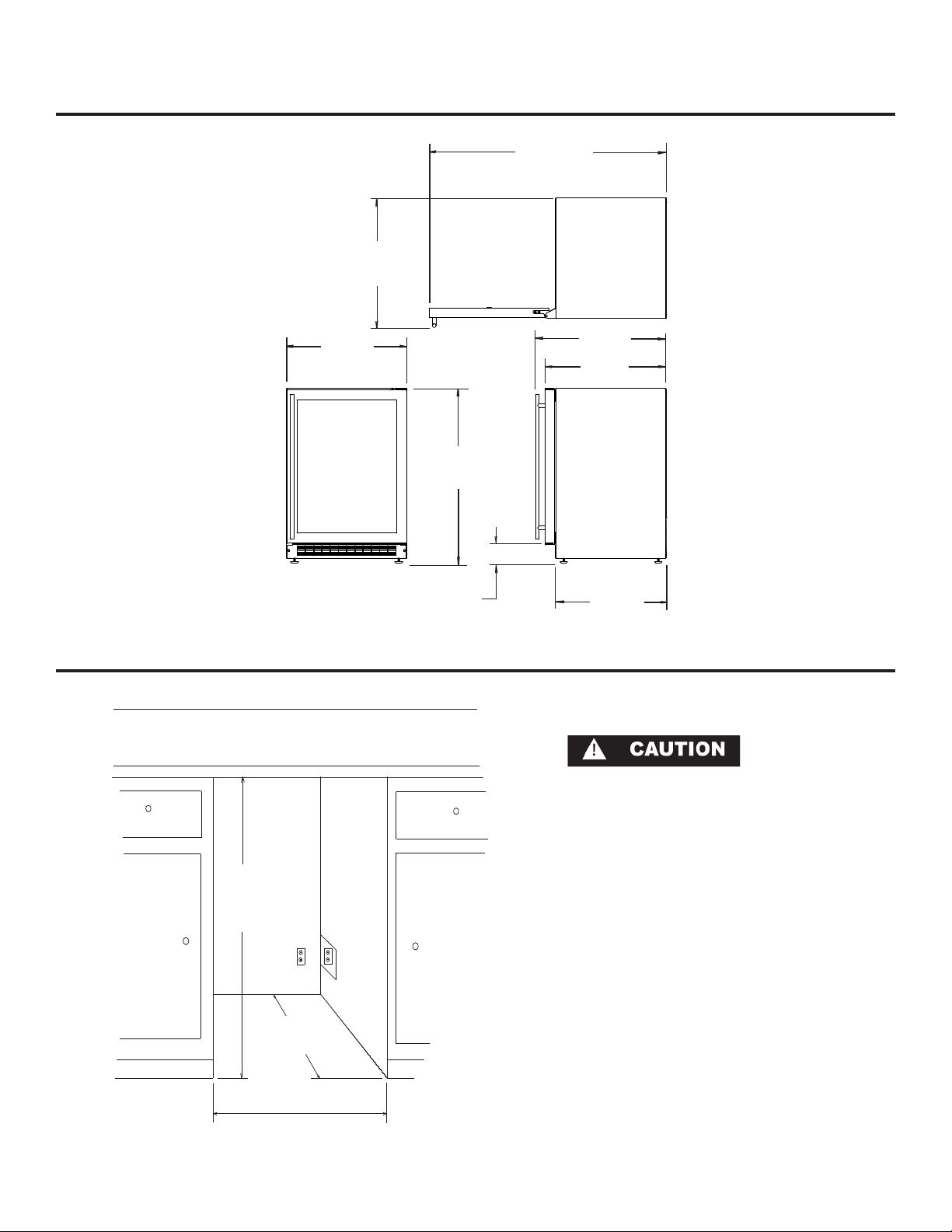

DIMENSIONS FOR 3SBARE GLASS DOOR
16-9/16”
(39.52cm)
14-7/8”
(37.78cm)
34-1/4” to 34-1/2”
(87 to 87.6 cm)
37”
(93.98cm)
25-7/32
(64.06cm)
23-9/32
(59.13cm)
3” to 3-1/4”
(7.62 to 8.26cm)
21-3/16”
(53.82cm)
Rough In Opening Dimensions, for 3SBARE Glass Door
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
depth
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 125 lbs. (56.8 kg.)
15” (38.1 cm)
each individual installation.
5
* Depth dimension may vary depending on
13-29/32”
(35.33cm)
14-7/8”
(37.78cm)

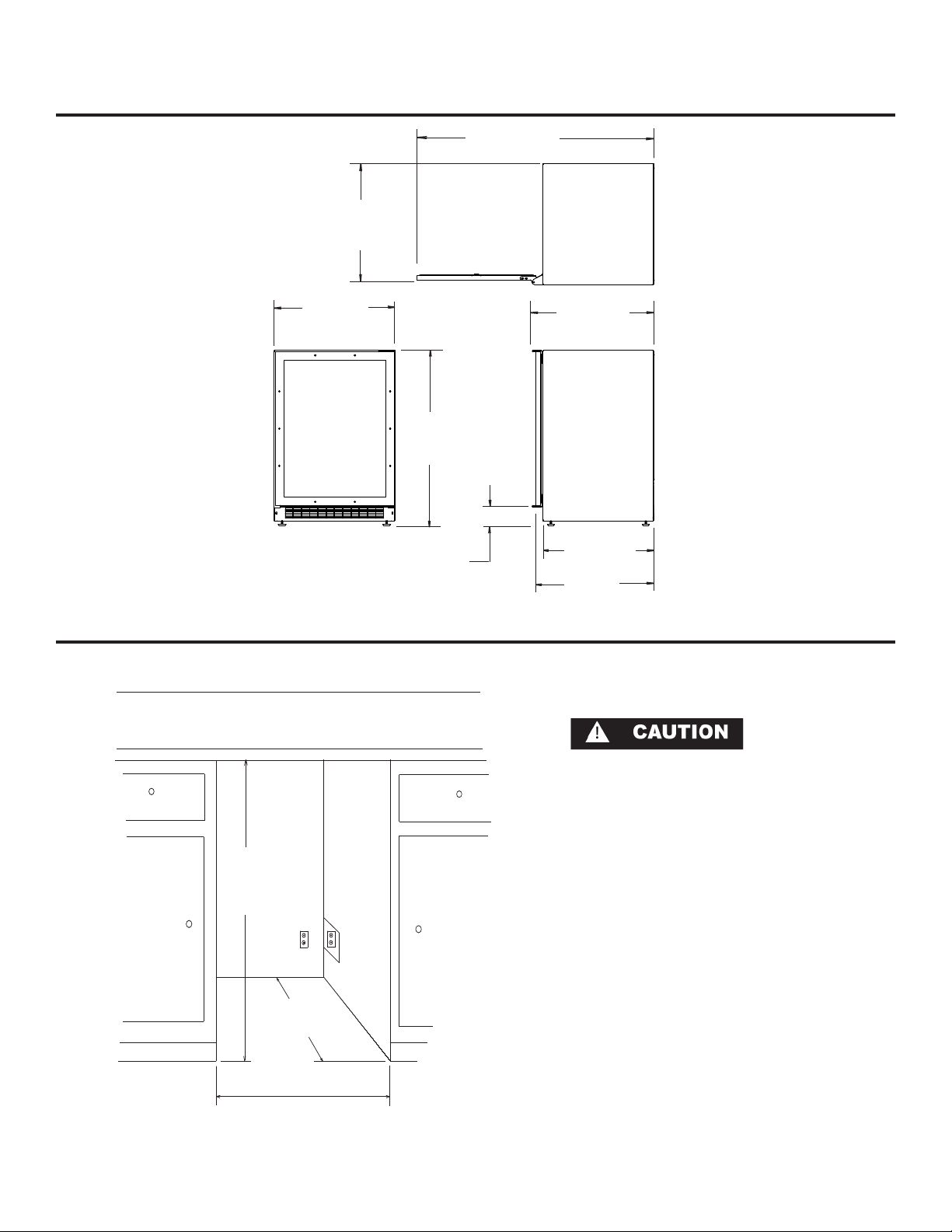

DIMENSIONS FOR 3SBARE GLASS OVERLAY DOOR
36-27/32
(93.57cm)
23-1/4”
(59.06cm)
22-17/32”
(57.23cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
3” to 3-1/4”
(7.62 to 8.26cm)
21-3/16”
(53.82cm)
Rough In Opening Dimensions for 3SBARE Glass Overlay Door
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
depth
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 125 lbs. (56.8 kg.)
15” (38.1 cm)
* Depth dimension may vary depending on
each individual installation.
6
DIMENSIONS FOR 3SBARE SOLID OVERLAY DOOR
37-5/32”
(94.39cm)
13-7/8”
(35.26cm)
(59.06cm)
14-7/8”
(37.78cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
23-1/4”
22-17/32”
(57.23cm)
3” to 3-1/4”
(7.62 to 8.26cm)
21-3/16”
(53.82cm)
Rough In Opening Dimensions for 3SBARE Solid Overlay Door
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
depth
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 125 lbs. (56.8 kg.)
15” (38.1 cm)
* Depth dimension may vary depending on
each individual installation.
7
Loading...
