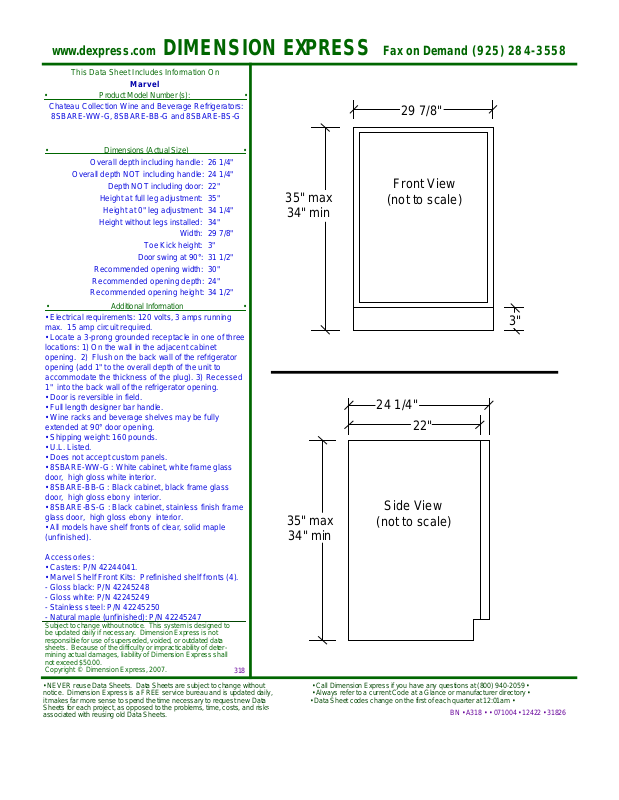

Marvel 8SBAREBBGR, 8SBAREBSGL, 8SBAREBBGL Specification Sheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Chateau Collection Wine and Beverage Refrigerators:

8SBARE-WW-G, 8SBARE-BB-G and 8SBARE-BS-G

• Dimensions (Actual Size) •

Overall depth including handle:

Overall depth NOT including handle:

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Height without legs installed:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

Recommended opening depth:

Recommended opening height:

• Additional Information •

• Electrical requirements: 120 volts, 3 amps running

max. 15 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three

locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.

• Door is reversible in field.

• Full length designer bar handle.

• Wine racks and beverage shelves may be fully

extended at 90° door opening.

• Shipping weight: 160 pounds.

• U.L. Listed.

• Does not accept custom panels.

• 8SBARE-WW-G : White cabinet, white frame glass

door, high gloss white interior.

• 8SBARE-BB-G : Black cabinet, black frame glass

door, high gloss ebony interior.

• 8SBARE-BS-G : Black cabinet, stainless finish frame

glass door, high gloss ebony interior.

• All models have shelf fronts of clear, solid maple

(unfinished).

Width:

26 1/4"
24 1/4"
22"
35"
34 1/4"
34"
29 7/8"
3"
31 1/2"
30"
24"
34 1/2"

35" max

34" min

35" max

34" min

29 7/8"

Front View

(not to scale)

3"

24 1/4"

22"

Side View

(not to scale)

Accessories:

• Casters: P/N 42244041.

• Marvel Shelf Front Kits: Prefinished shelf fronts (4).

- Gloss black: P/N 42245248

- Gloss white: P/N 42245249

- Stainless steel: P/N 42245250

- Natural maple (unfinished): P/N 42245247
