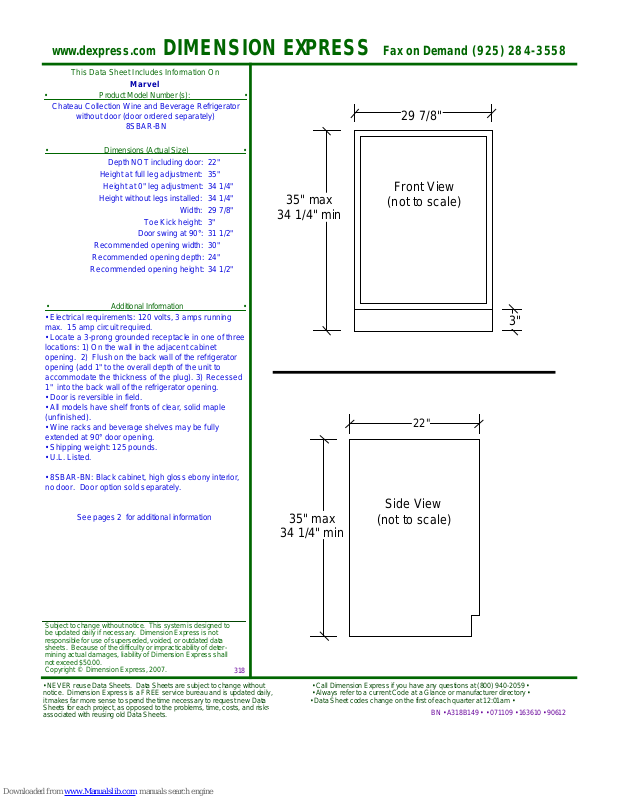

Page 1
www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Chateau Collection Wine and Beverage Refrigerator
without door (door ordered separately)
• Dimensions (Actual Size) •
Recommended opening width:
Recommended opening depth:
Recommended opening height:
• Additional Information •
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• All models have shelf fronts of clear, solid maple
(unfinished).
• Wine racks and beverage shelves may be fully
extended at 90° door opening.
• Shipping weight: 125 pounds.
• U.L. Listed.
8SBAR-BN
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
22"
35"
34 1/4"
34 1/4"
29 7/8"
3"
31 1/2"
30"
24"
34 1/2"
35" max
34 1/4" min
29 7/8"

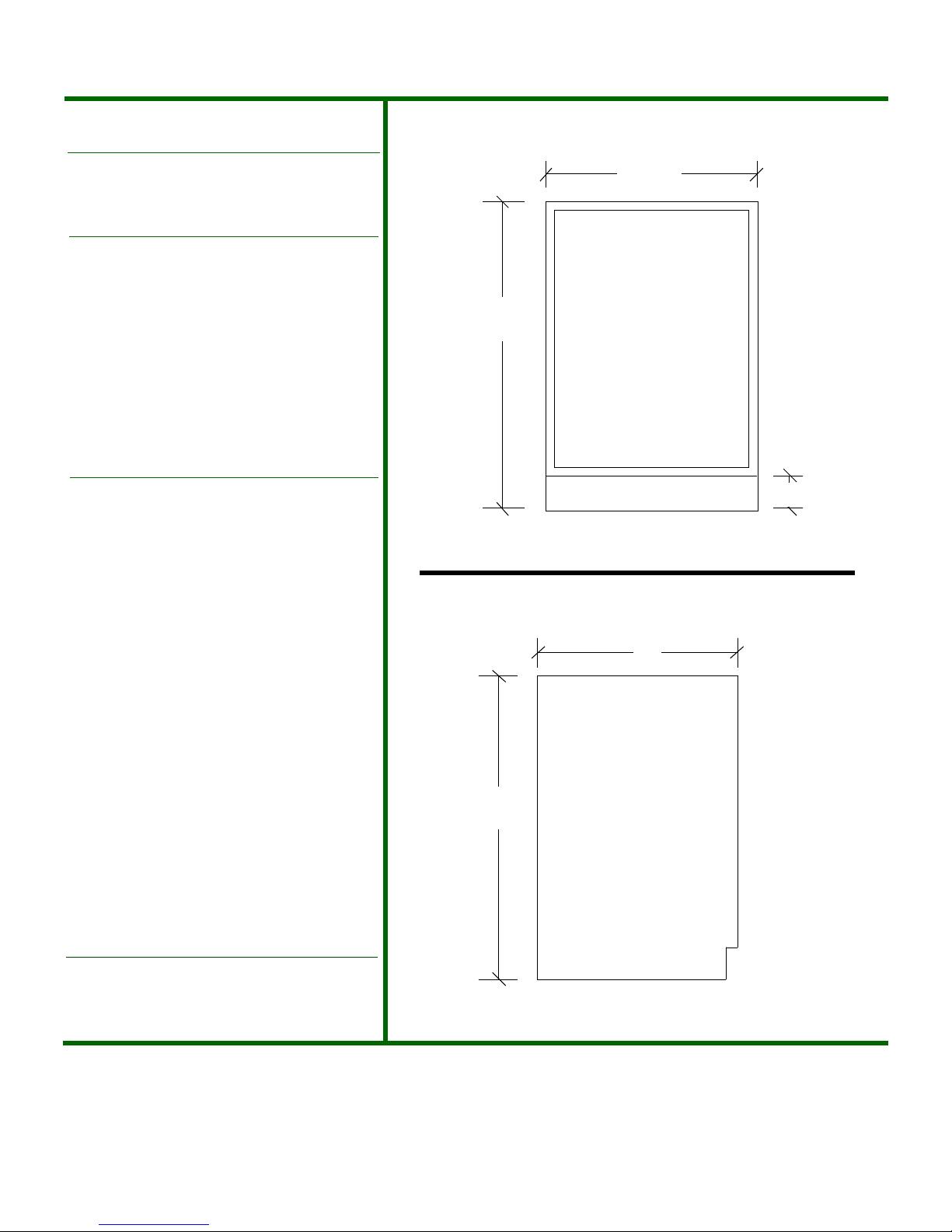

Front View
(not to scale)
3"
22"
• 8SBAR-BN: Black cabinet, high gloss ebony interior,
no door. Door option sold separately.
Side View
See pages 2 for additional information
35" max
(not to scale)
34 1/4" min
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
318
BN • A318B149 • • 071109 • 163610 • 90612
Page 2
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:
Door options:
1) Overlay Glass Door Frame (P/N 42245252, accepts customer
supplied wood frame overlay, see below). Add 1 3/8" to depth for door
without panel or handle.
2) Monochrome Wide Frame Glass Door with full-length designer bar
handle: P/N 42245256 black frame with black handle or
42245257stainless frame with stainless handle. Add 2 1/4" to depth
for door and 2" for full-length designer bar handle.
• Door availability subject to change without notice. Check with
manufacturer for availability.
Page 2
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Chateau Collection Wine and Beverage Refrigerator
without door (door ordered separately)
8SBAR-BN
Accessories:
• Marvel Shelf Front Kits for Beverage Refrigerator: Prefinished shelf
fronts (4).
- Gloss black: P/N 42245248
- Gloss white: P/N 42245249
- Stainless steel: P/N 42245250
- Natural maple (unfinished): P/N 42245247
1 3/4" min

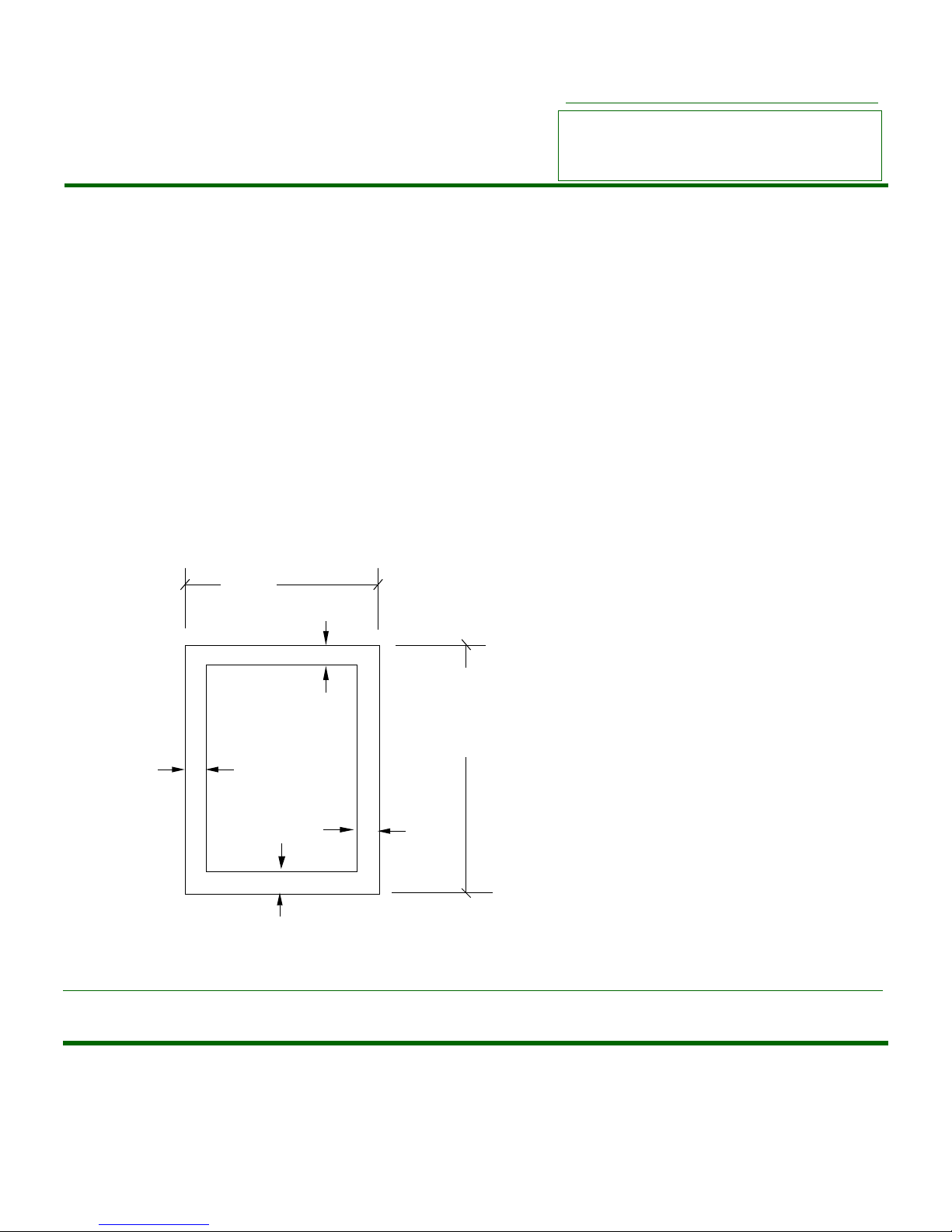

Custom Overlay Glass Door Frame Dimensions
(not to scale)
29 7/16"
1 3/4" min
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
Front View
1 3/4"
min
1 3/4" min
Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
149
BN • A318B149 • • 071109 • 163610 • 90612
