Installation
Operation
and
Maintenance
Instructions
Refrigerator / Freezer Models
61RF
80RF
MARVEL
Page 2
TABLE OF CONTENTS
Unpacking your refrigerator........................
Removing the packaging......................
Warranty Registration.....................
Installing your refrigerator......................................3
Selecting the location..........................
Cabinet Clearances..................................
Leveling legs......................................
Grounding method..............................
Electrical Requirements........................
Using Your Refrigerator..................................
Setting the temperature control..............
Defrosting instructions........
Dimensions For Models 61RF Solid Door................ 5
Recommended Rough in Opening Dimensions
For Models 61RF Solid Door................................ 5
Dimensions For Model 61RF Solid Overlay Door
Recommended Rough in Opening Dimensions
For Model 61RF Solid Overlay Door.
Dimensions For Model 80RF Solid Door..................7
Recommended Rough in Opening Dimensions
For Model 80RF Solid Door....................
Dimensions For Model 80RF Solid Overlay Door
Recommended Rough in Opening Dimensions
For Model 80RF Solid Overlay Door.

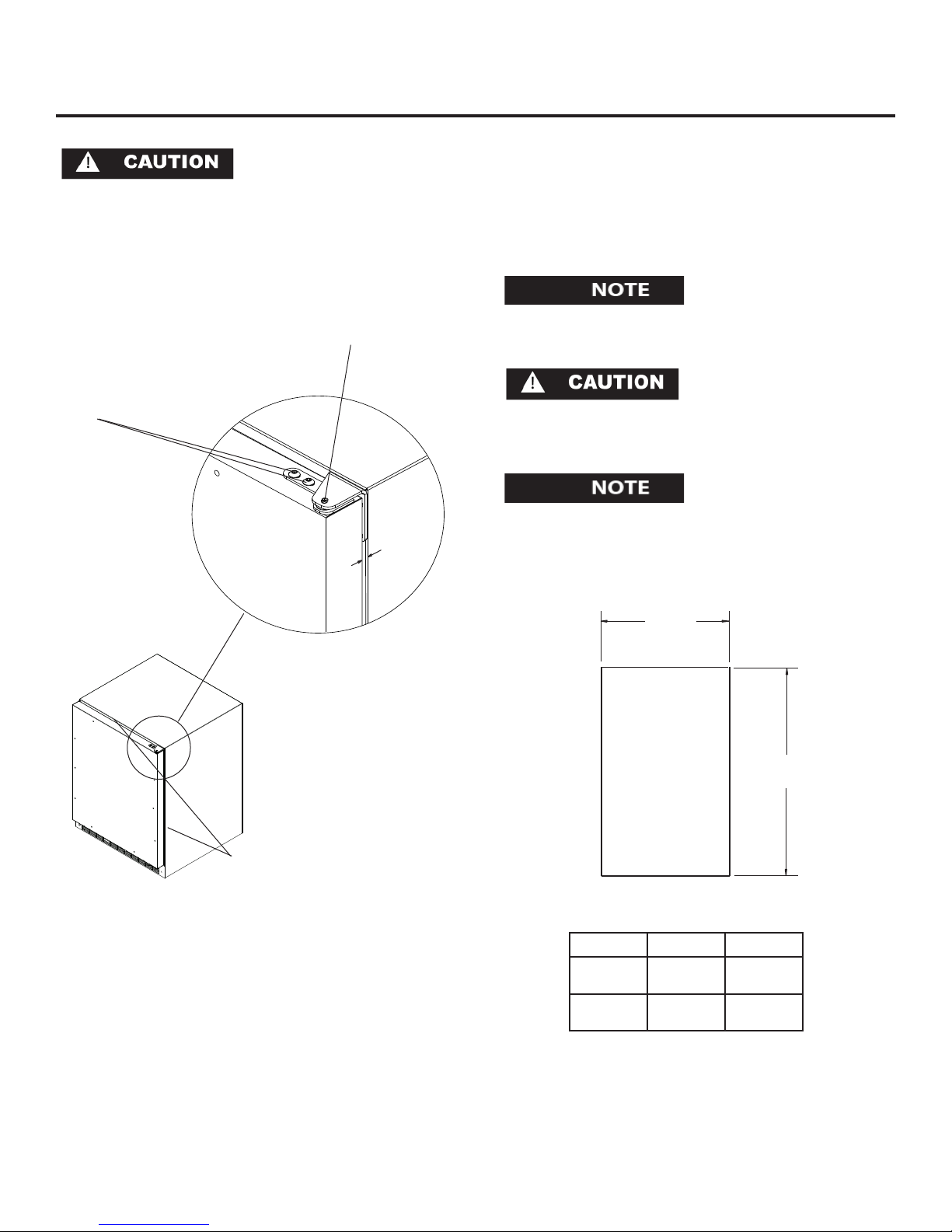

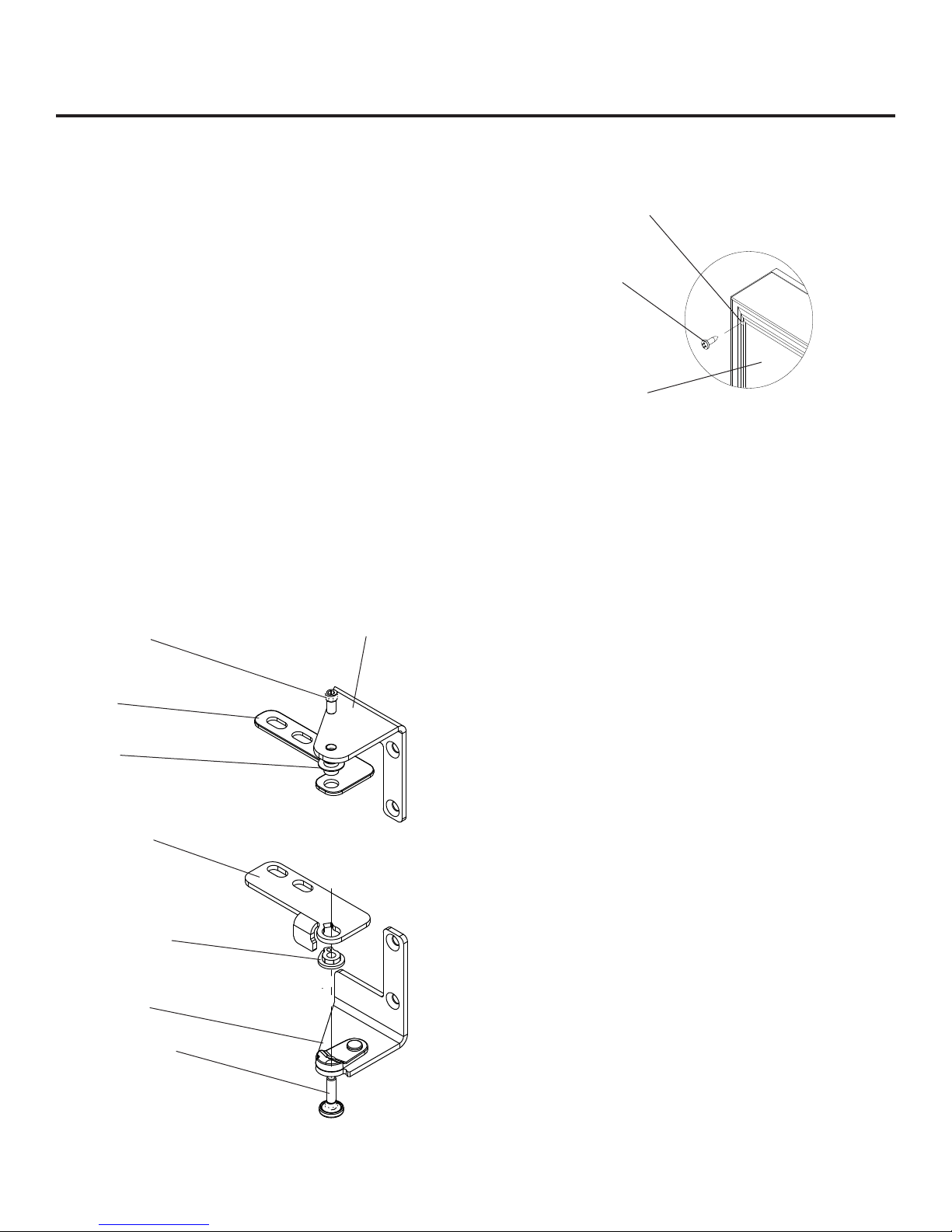

Full Overlay Panel Installation Instructions....
Care and Cleaning...................................
Troubleshooting Guide.........................
Obtaining Service...............................
Household Product Warranty................
....
.............
.........
............
.................
.............
.........
.............
...
...........
...........
.......
...........
..............
....
...................
............
.....
............
.......
....... 8
.........
..........
...........
...............
......13
.........
..2
..2
....2
..3
.3
...3
.3
....3
.4
...4
..4
6
.6
.9
..12
..13
...14
Important Safety Instructions
Warnings and safety instructions appearing in this
guide are not meant to cover all possible conditions and situations that may occur. Common sense,
caution, and care must be exercised when installing,
maintaining, or operating this appliance.
7
8
Recognize Safety Symbols,
Words, and Labels.
1
CAUTION-Hazards or unsafe practices which could
result in personal injury or property or product damage.
WARNING-Hazards or unsafe practices which could
result in personal injury.
NOTE-Important information to make a problem free
installation.
Page 3
UNPACKING YOUR REFRIGERATOR
Remove Packaging
Your refrigerator has been packed for shipment with
all parts that could be damaged by movement securely
fastened. Cut the banding material at the bottom of the
carton, unfold the carton at the bottom and remove the
carton from the appliance. Remove the plastic bag, styrofoam corner posts and any tape holding the door closed
and internal components in place. The owners manual is
shipped inside the refrigerator in a plastic bag along with
the warranty registration card.
Important
Keep your carton packaging until your refrigerator has
been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed
as proof of damage in transit. Afterwards please dispose
of all items responsibly in particular the plastic bags
which can be a suffocation hazard.
Warranty Registration
It is important you send in your warranty registration card immediately after taking delivery of your refrigerator or you can
register online at www.marvelrefrigeration.com.
The following information will be required when registering
your unit.
Model Number
Serial Number
Date of Purchase
Dealers name and address
The model number and serial number can be found on the
serial plate which is located inside the cabinet on the left side
near the top.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for
its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage
sustained in transit must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.
If the unit was shipped or has been laying on its back for
any period of time allow the refrigerator to sit upright for
a period of at least 24 hours before plugging in. This will
assure oil returns to the compressor. Plugging the refrigerator in immediately may cause damage to internal
parts.
Help Prevent Tragedies
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still dangerous - even if they sit out for “just a few days”.
If you are getting rid of your old refrigerator, please follow
the instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
Take off the doors or remove the drawers.•
Leave the shelves in place so children may not easily •
climb inside.
2
Page 4
INSTALLING YOUR REFRIGERATOR
Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
assure your product performs to specifications the recommended installation location temperature range is from 65
to 90°F (18 to 32°C).
Cabinet Clearance
Ventilation is required from the bottom front section of the
unit. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the unit as long as the grille and door access remain unobstructed.
Front Grille
Do not obstruct the front grille. The openings within the
front grille provides air to flow into and exit from the refrigerator condenser. For this reason it is important this area to
not be obstructed and be kept clean. Marvel does not recommend the use of custom made grilles as air flow may be
restricted because of inadequate openings. (See Figure 1).
Leveling Legs
Adjustable legs at the front and rear corners of the unit
should be set so the unit is firmly positioned on the floor
and level from side to side and front to back. Turn leveling
legs clockwise to raise unit, counterclockwise to lower it.
(See Figure 1).
Do not splash or spray water from a hose on the re-•
frigerator! Doing so may cause an electrical shock,
which may result in severe injury or death.
This unit should not, under any circumstances, be •
ungrounded.
Grounding Method
This product is factory equipped with a power supply cord
that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 2). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to exchange the existing
receptacle in accordance with the National Electrical Code
and applicable local codes and ordinances. The third
ground prong should not, under any circumstances, be cut
or removed.
Electrical Connection
115 volts, 3.3 amps running max. 15 amp dedicated circuit
required. 3 prong grounded receptacle required.
Do not use an extension cord
with this appliance.
Front Grille,
keep this
area open.

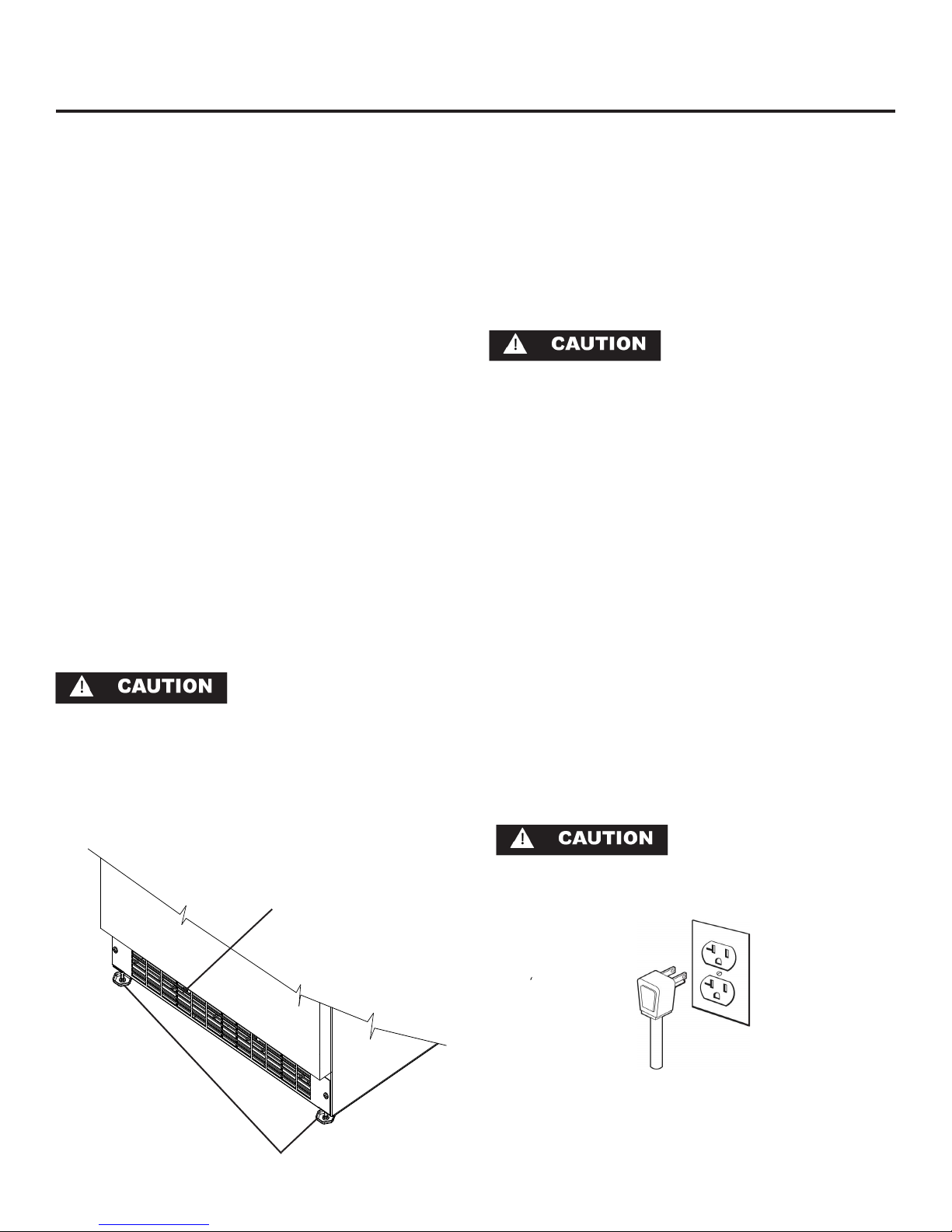

Figure 1
Leveling Legs
3
Figure 2
Page 5

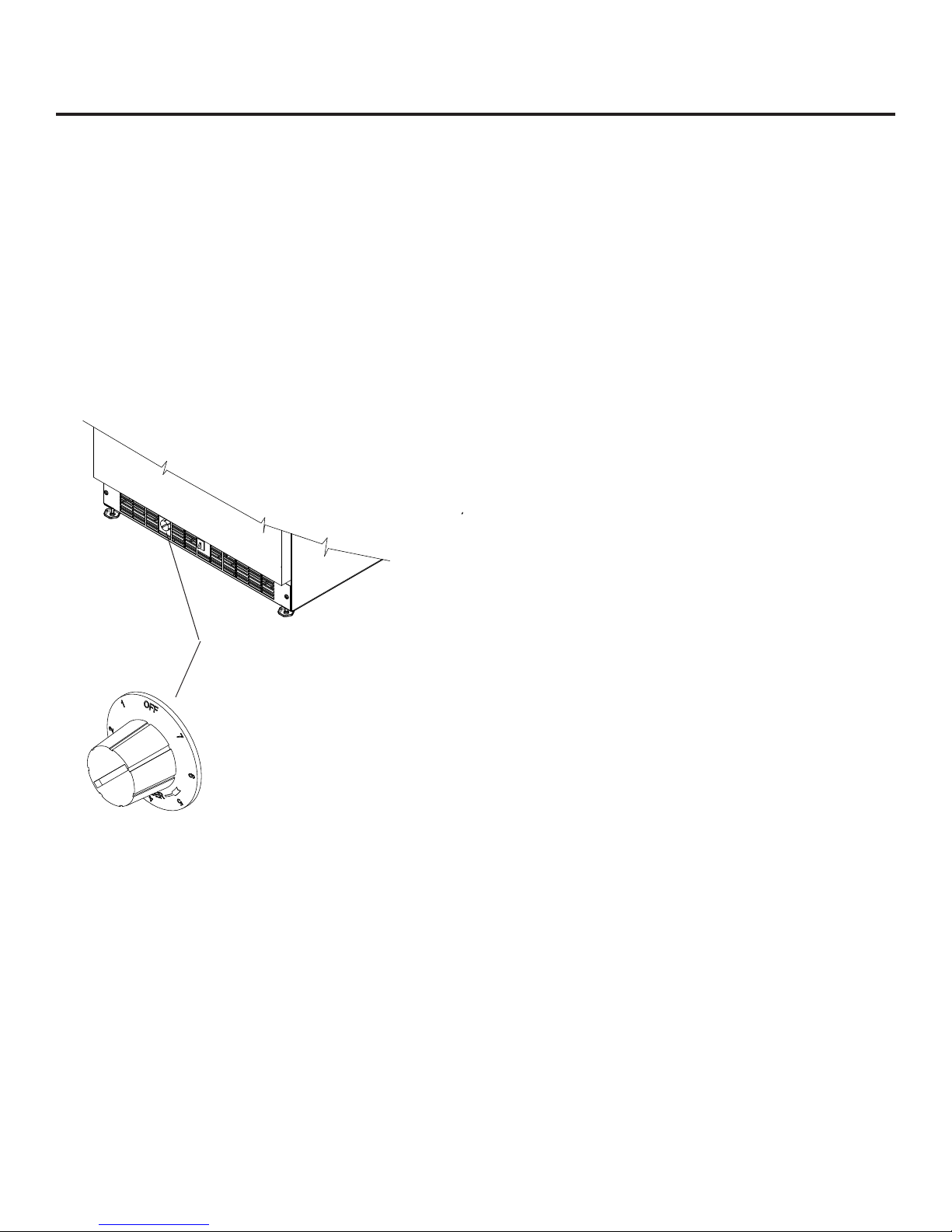

Setting the temperature control:
Initially set the cold control midway between the numbers
(between the #3 and #4).After at least 2 hours adjust to
the temperature that suits you. The higher the number you
select, the cooler the temperature. (See figure 3). After
loading the refrigerator allow at least 24 hours for your
refrigerator to reach a new temperature setting.
USING YOUR REFRIGERATOR
Figure 3
Cold control
underneath door
in grille
Defrosting instructions:
Never use a scraper or any tool that might scratch or pierce
the cooling plate. Follow these steps whenever 1/4” or more
of frost accumulates:
1) Disconnect the power cord and set the cold control knob
to the “OFF” position.
2) Remove contents.
3) Place pans of hot water on the cooling plate if you wish
to speed up defrosting.
4) Wipe out the interior and replace contents.
5) Connect power cord to outlet.
6) Set temperature control to desired level.
4
Page 6

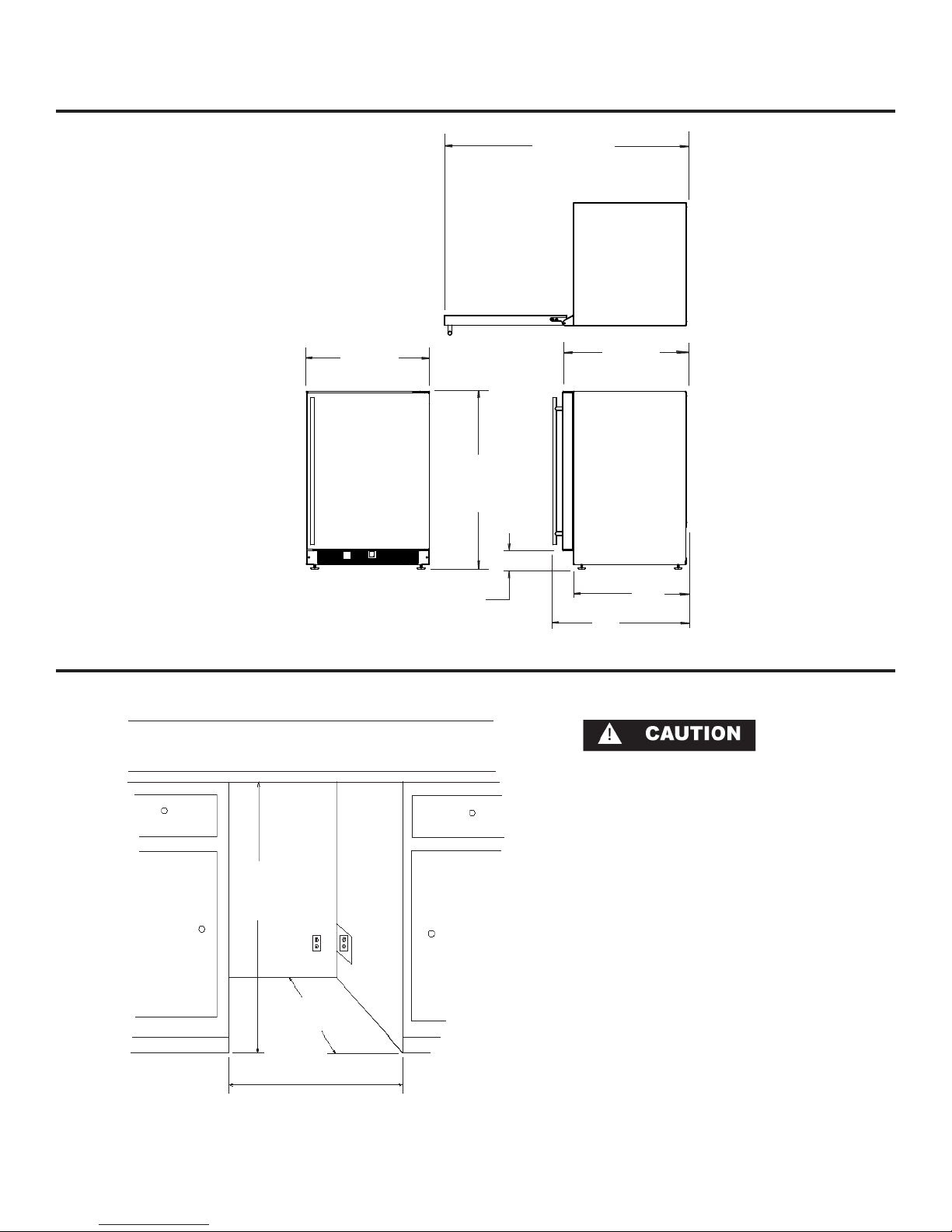

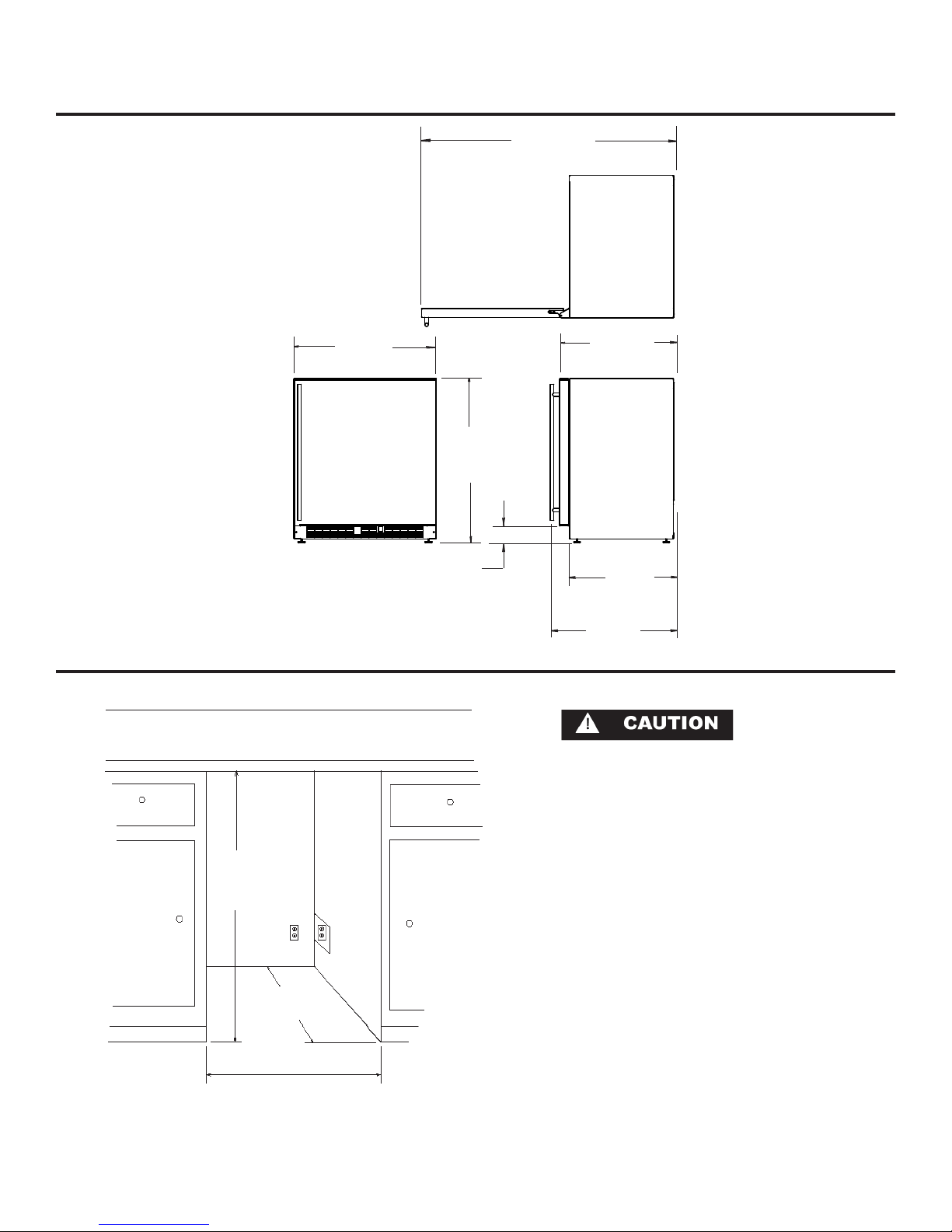

DIMENSIONS FOR MODELS 61RF SOLID DOOR
47”
(119.38cm)
23-7/8”
(60.66cm)
34-1/4” to 34-1/2”
87 to 87.6cm)
3” to 3-1/4”
7.62 to 8.26cm)
24-1/16”
(61.11cm)
26”
(66.04cm)
22”
(55.8cm)
Recommended Rough in Opening Dimensions, Models 61RF Solid Door
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
depth
24” (61 cm)
5
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 120 lbs. (54.5 kg.)
* Depth dimension may vary depending on
each individual installation.
Page 7
DIMENSIONS FOR MODEL 61RF SOLID OVERLAY DOOR
46-27/32”
(119.02cm)
23-7/8”
(60.66cm)
34-1/4” to 34-1/2”
87 to 87.6cm)
3” to 3-1/4”
7.62 to 8.26cm)
24-1/16”
(61.11cm)
22”
(55.8cm)
23-5/16”
(59.21cm)
Recommended Rough in Opening Dimensions, Model 61RF Solid Overlay Door
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
depth
24” (61 cm)
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 120 lbs. (54.5 kg.)
* Depth dimension may vary depending on
each individual installation.
6
Page 8

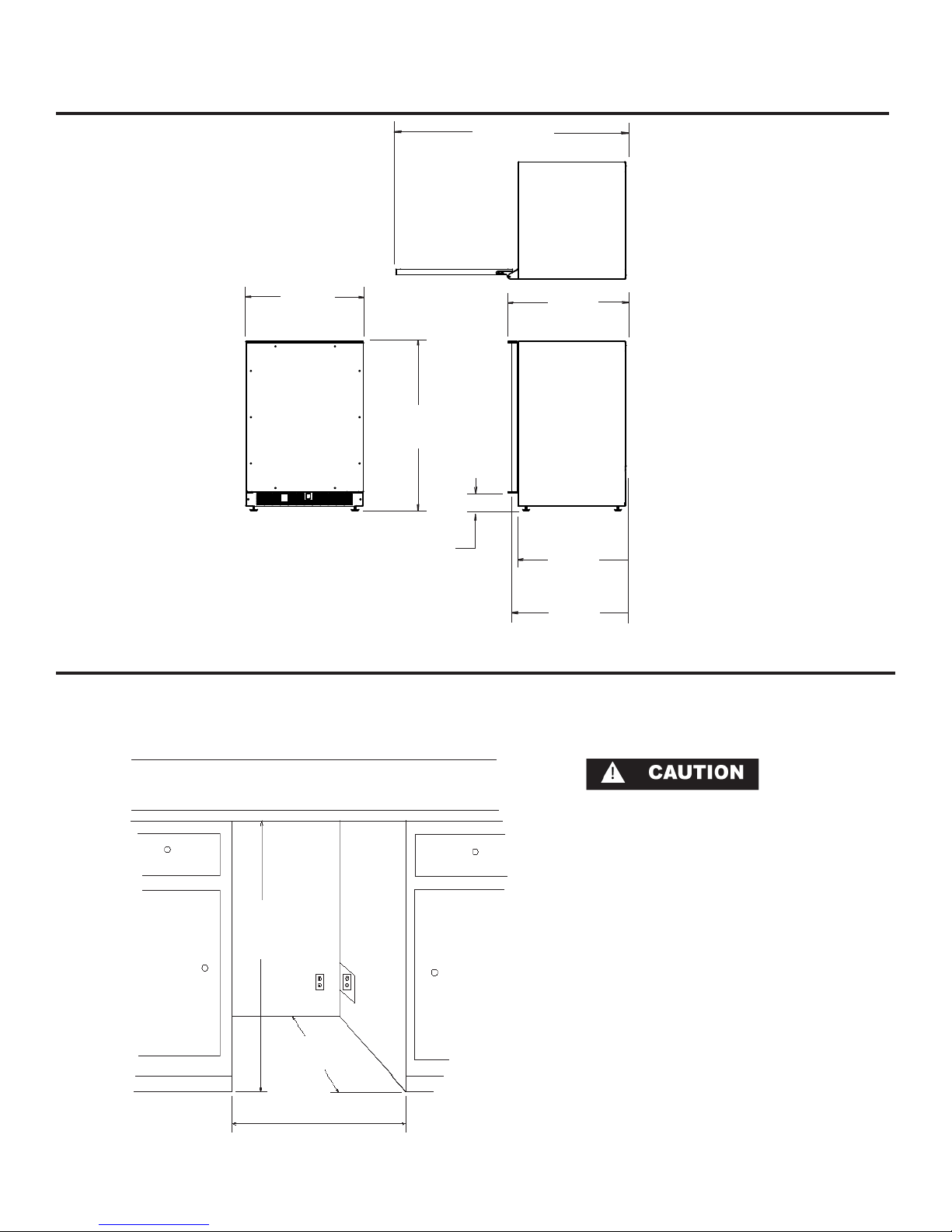

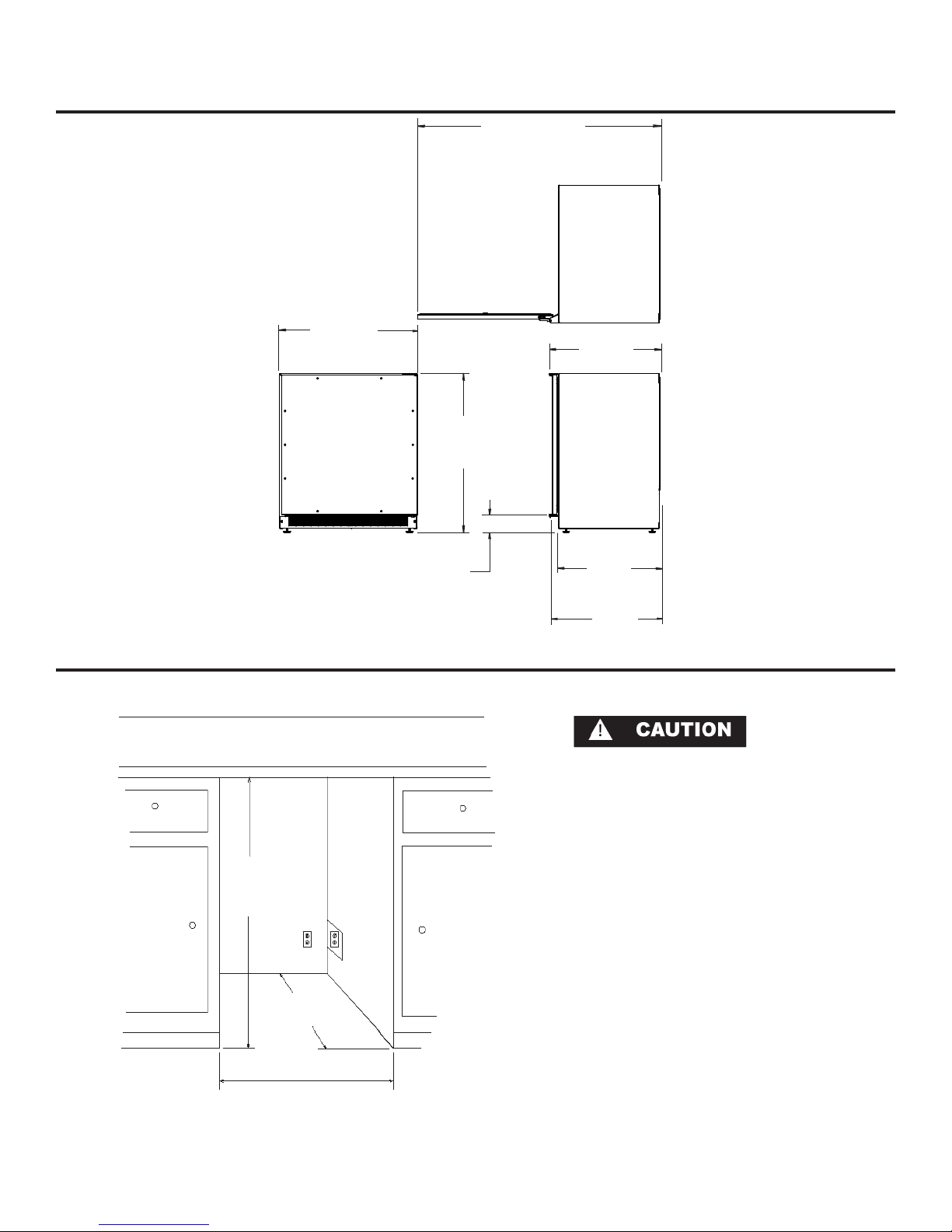

DIMENSIONS FOR MODEL 80RF SOLID DOOR
47”
(119.38cm)
29-7/8”
(75.9cm)
34-1/4” to 34-1/2”
87 to 87.6cm)
3” to 3-1/4”
7.62 to 8.26cm)
24-1/16”
(61.11cm)
22”
(55.8cm)
26”
(66.04cm)
Recommended Rough In Opening Dimensions, Model 80RF Solid Door
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
depth
30” (76.2 cm)
7
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 135 lbs. (61.4 kg.)
* Depth dimension may vary depending on
each individual installation.
Page 9
DIMENSIONS FOR MODEL 80RF SOLID OVERLAY DOOR
46-27/32”
(119.02cm)
29-7/8”
(75.9cm)
34-1/4” to 34-1/2”
87 to 87.6cm)
24-1/16”
(61.11cm)
3” to 3-1/4”
7.62 to 8.26cm)
22”
(55.8cm)
23-5/16”
(59.21cm)
Recommended Rough In Opening Dimensions, Model 80RF Solid Overlay Door
Electrical Requirements: 115 volts,
3.3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
Power outlet can be located in the
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
depth
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 135 lbs. (61.4 kg.)
30” (76.2 cm)
* Depth dimension may vary depending on
each individual installation.
8
Page 10
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
For the door closer to work properly it is necessary to
maintain a minimum space of 9/32” (7mm) between the
door and cabinet flange as shown . This space can be
adjusted by adjusting the top and bottom hinge adapters.
Step 1: Verify door alignment
The door should be parallel to the sides and top of the
refrigerator. If alignment is necessary the door may be
adjusted by loosening the 2 screws which secure the
hinge adapter brackets to the door and adjusting the
door side to side. Use a 5/32” allen wrench for this procedure. (See Figure 4 below).
Top hinge pin
Hinge adapter screws loosen these to adjust door, on
remove to remove
the door.
the top and bottom of the
door
9/32”
(7mm)
Step 4: Cut overlay panel
Depending on the refrigerator model cut the overlay
panel to the dimensions shown in Figure 5 and Table A
below.
For overlay with lock option panel thickness to be
3/4” (19mm) maximum to 5/8” (16mm) minimum.
Weight of the overlay panel should not exceed 20 pounds
(9.1 kilograms).
W
Door must be
parallel to top
Figure 4
and sides of
refrigerator
Step 2: Remove door
Remove the top hinge pin from the hinge with an 1/8”
allen wrench. Remove the door by angling the top of the
door outward and lifting the door off the bottom hinge.
(See detail in Figure 4).
Step 3: Remove gasket
Lay the door on its front being careful not to scratch it.
Remove the door gasket by peeling up and out of the
channel.
9
Front of
overlay
panel
H
Figure 5
Model W H
61RF
80RF
23-5/8”
(59.99cm)
29-5/8”
(75.23cm)
30-5/16”
(76.99cm)
30-5/16”
(76.99cm)
Table A
Step 5: Clamp panel to door
Set the overlay panel on the door front, align the edges,
and clamp together. Clamp the panel firmly but be careful not to crush the foam in the door or scratch the door.
Page 11
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS

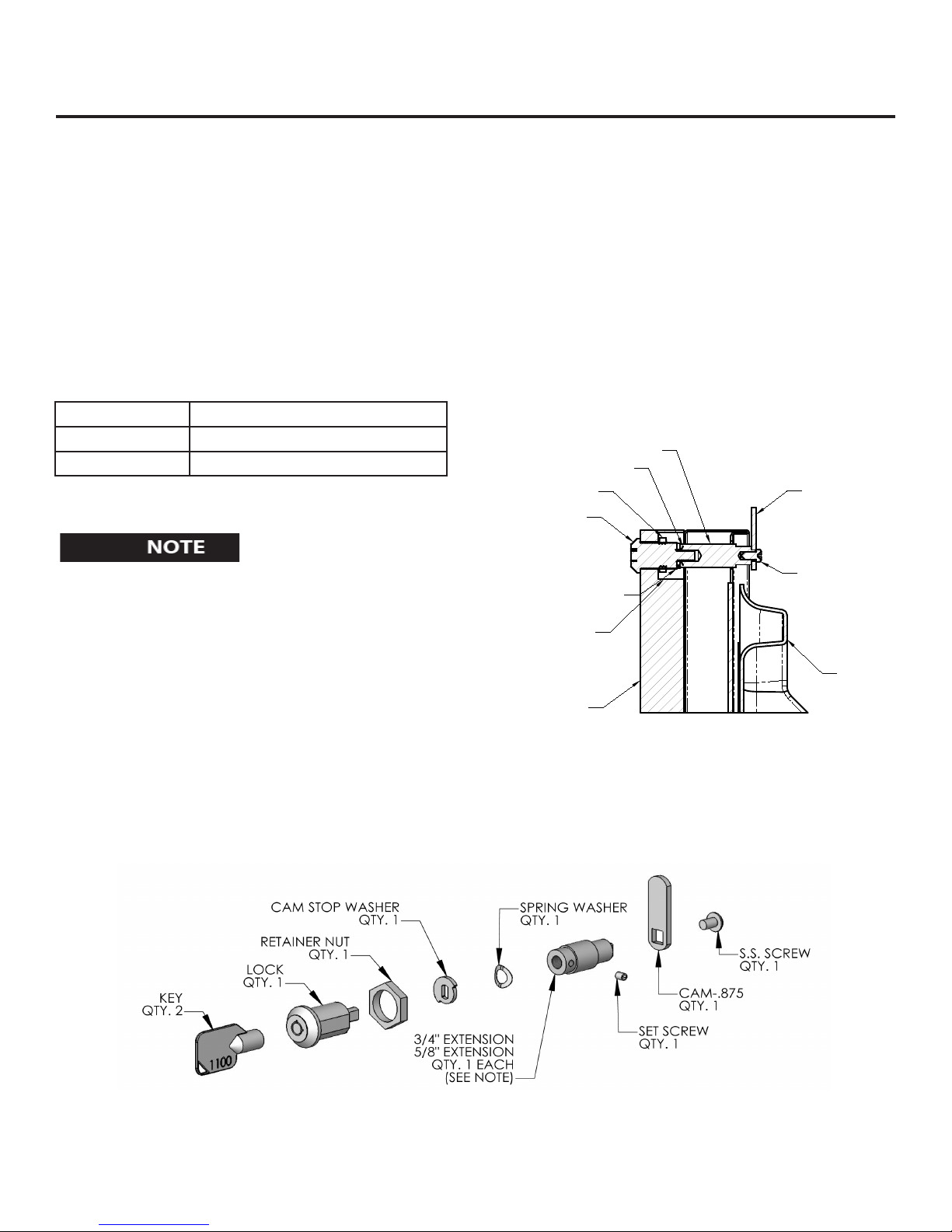

SECTION A-A
SCALE 1 : 1
LOCK
NUT
BRASS EXTENSION
CAM
PHILLIPS SCREW
13/16 COUNTER
BORE 7/16 DEEP
15/32 HOLE
3/4 INCH
WOOD PANEL
SPRING WASHER
INNER
DOOR
Step 6: Drill holes in overlay panel
Remove the hinge adapter bushings from the top and
bottom door hinge adapters. (See Figure 9).Using the
holes in the hinge adapters drill 5/16” (8mm) diameter
clearance holes into the overlay panels 3/4” (20mm)
deep. These will be clearance holes for the top and bottom hinge pins.
Also at this time drill the screw pilot holes (10 required)
for attaching the overlay panel to the door. Select the size
of the hole from Table B. Be careful not to drill the pilot
holes through the overlay panel but only 1/2” (12.7)mm
deep.
Material Type #8 Wood Screw
Hardwood 3/32” (2.4mm) Diameter. Pilot Hole
Softwood 5/64 (2.0mm) Diameter. Pilot Hole
Table B
If your refrigerator has a door lock proceed to Step 7.
If your refrigerator does not have a door lock proceed
to Step 9.
Step 8: Assemble the lock parts
Two (2) lock extensions are supplied with the lock. Use
the longer extension for a 3/4” thick overlay panel and
the shorter one for a 5/8” thick panel. Assemble the lock
extension, cam stop washer, spring washer, and set screw
to the lock as shown in Figure 6 and 7.
Install this assembly into the overlay panel and secure
with the retaining nut using a 15mm socket. Make sure
the key slot in the lock is vertical.
Step 7: Mark and drill lock hole.
Locate and mark with a pencil the location of the lock
hole on the overlay panel, this is the hole in the top corner of the handle side of the door. Remove the clamp and
remove the overlay panel from the door. On the backside
of the panel where you marked the lock location drill a
13/16” (20.5mm) diameter counterbore 7/16” (11.0mm)
deep into the overlay panel. Drill a 15/32” (12.0mm)
diameter hole through the overlay panel centered on the
counterbore being careful not to splinter the wood on the
face side of the panel. (See Figure 6).
Figure 6
Figure 7
10
Page 12
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
Step 9: Secure overlay panel to the door.
With the #8 wood screws provided fasten the overlay
panel to the door. (See Figure 8).
Step 10: Install lock cam (Models with locks only).
Attach the lock cam to the back of the lock assembly with
the phillips head machine screw provided. Orient the lock
cam vertically when installing on the lock.
Step 11: Install door gasket
Press the door gasket into the door channel. Make
certain the gasket corners are fully inserted. If applicable
insert the key into the lock and make certain the lock
operates properly.
Clearance hole through
door gasket channel
#8 Wood Screw
Back of door
Step 12: Install the door
Install the top and bottom hinge adapter bushings back
into the hinge adapters that were removed in step 6.
Install the door by reversing the procedure from step 2.
Install the top hinge pin so the screw head is flush with
the top surface of the hinge. If applicable insert key into
lock and verify the lock cam works properly with the
catch bracket on the front of the refrigerator cabinet.
Top hinge pin
Top door hinge
adapter
Top hinge adapter
bushing
Bottom door
hinge adapter
Top hinge
Figure 8
Bottom hinge
adapter bushing
Bottom hinge
with cam
Bottom hinge pin
11
Figure 9
Right hand
hinges shown
Page 13
Condenser Air Flow
The machine compartment located beneath the cabinet
does not require frequent cleaning; however, satisfactory
performance depends on adequate ventilation. Be sure
nothing obstructs the required air flow openings in front of
the cabinet. At least once or twice a year, brush or vacuum
lint and dirt from the front grille openings. See Figure 1 on
page 3.
Cabinet
The painted cabinet can be washed with either a mild soap
and water and thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Interior
Wash interior compartment with mild soap and water. Do
NOT use an abrasive cleaner, solvent, polish cleaner or
undiluted detergent.
Care of Unit
Avoid leaning on the door, you may bend the door 1.
hinges or tip the unit.
Exercise caution when sweeping, vacuuming or mop-2.
ping near the front of the unit. Damage to the grille
can occur.
Periodically clean the interior of the unit as needed.3.
Periodically check and/or clean the front grille as 4.
needed.
CARE AND CLEANING
Replacing the light bulb.
Unplug the power cord from the wall receptacle.1.
Open the cabinet door.2.
Remove the 3 screws on the front face of the light lens 3.
using a phillips screwdriver.
Remove the lens.4.
Unscrew the existing bulb and replace with an equiva-5.
lent 15 watt, intermediate base appliance bulb. Do not
replace with a bulb higher than 15 watts.
Reassemble parts and plug in power cord.6.
To clean the light assembly, disconnect the power cord and
wipe the assembly with a mildly damp cloth. Dry the unit
completely before connecting the power cord.
12
Page 14
TROUBLESHOOTING YOUR REFRIGERATOR
Before You Call for Service
If the unit appears to be malfunctioning, read through this
manual first. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and refer
to the cause and its remedy before calling for service. The
problem may be something very simple that can be solved
without a service call. Some remedies listed in the Troubleshooting Guide are very complex. Consulting or contracting
a qualified service technician may be necessary.
If Service is Required:
If the product is within the first year warranty period •
please call Marvel Customer Service at 800.223.3900
for directions on how to obtain warranty coverage in your
area.
If the product is outside the first year warranty period, •
Marvel Customer Service can provide recommendations
of service centers in your area. A listing of authorized service centers is also available at www.marvelrefrigeration.
com under the service and support section.
In all correspondence regarding service, be sure to •
give the model number, serial number, and proof of
purchase.
Try to have information or description of nature of the •
problem, how long the unit has been running, the
room temperature, and any additional information
that may be helpful in quickly solving the problem.
Fill in pertinent information below regarding your •
product for future reference.
For You Records
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Model Number
Date Warranty Card Sent (Must
be within 10 days of purchase).
Electrocution Hazard - Never attempt to repair or perform maintenance on the unit until the main electrical power has
been disconnected.
Problem Possible Cause Remedy
Unit not cold enough
Control set too warm•
Adjust temperature colder. Al-•
low 24 hours for temperature to
Adjust temperatures (See “Set the temperature control” on page 4)
Airflow to front grille blocked.•
stabilize.
Airflow must not be obstructed to •
front grille. See “clearances” on
page 3.
Excessive usage or prolonged door •
openings.
Door gasket not sealing properly.•
Allow temperature to stabilize for •
at least 24 hours.
Adjust or replace door gasket.•
Unit too cold
Adjust temperatures (See “Set the temperature control” on page 4)
No interior light in compartments. Light bulb burned out.• Replace light bulb.•
Light will not go out when door is
closed
Noise or Vibration Unit not level• Level unit, see “Leveling Legs” on •
Unit will not run. Unit turned off•
13
Control set too cold• Adjust temperature warmer. (See •
Door not activating light switch.• Verify cabinet is level, refer to page •
Power cord not plugged in.•
No power at outlet.•
page 4, “set the temperature con-
trol”). Allow 24 hours for tempera-
ture to stabilize.
3 for leveling instructions.
Verify the door is aligned properly, •
refer to page 9 for instructions.
page 3.
Turn unit on. See “Set the tempera-•
ture control” on page 4.
Plug in power cord.•
Check house circuit.•
Page 15
HOUSEHOLD PRODUCT WARRANTY
Entire Product
Limited One Year Parts and Labor Warranty
Marvel warrants that it will supply all necessary parts and
labor to repair or replace in the end user’s home or office,
any component which proves to be defective in material
or workmanship, subject to the condition and exclusions
stated below, for a period of one year from the date of
purchase by the end user.
Additional Second Through Fifth Year
Limited Parts Only Warrranty
During the four years following expiration of the one year
limited warranty, Marvel will supply replacement parts for
the hermetically sealed refrigeration system which consists
of the compressor, condenser, drier, accumulator, bypass
valve, connecting tubing and the evaporator that are
proven to be defective due to workmanship or materials
subject to the conditions and exclusions below.
The above warranties do not cover:
Shipping costs of replacement parts or returned defec-•
tive parts.
Customer education or instructions on how to use the •
appliance.
Any content loss due to product failure.•
Removal or installation of product.•
Nor do the above warranties cover failure of this product or
its components due to:
Transportation or subsequent damages.•
Commercial use or use other than normal household •
or small office.
Improper installation, misuse, abuse, accident or •
alteration, use of wiring not conforming to electrical
codes, low or high voltages, failure to provide necessary maintenance, or other unreasonable use.
Parts or Service
Not Supplied or Designated by Marvel
The above warranties also do not apply if:
The original bill of sale, deliver date, or serial number •
cannot be verified.
Defective parts are not returned for inspection if so •
requested by Marvel.
The refrigeration equipment is not in the possession of •
the original end use purchaser.
The warranties set forth herein are the only warranties
extended by Northland-Marvel. Any implied warranties, including the implied warranty of merchantability, are limited
to the duration of these express warranties. In no event
shall Northland-Marvel be liable for any consequential or
incidental damages or expenses resulting from breach of
these or any other warranties, whether express or implied.
Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied
warranty lasts, so the above exclusion or limitation may not
apply to you. This warranty gives you specific legal rights
and you may have other rights that may vary from state to
state.
No person, firm, or corporation is authorized to make any
other warranty or assume any other obligation for Northland-Marvel. These warranties apply only to products used
in any of the fifty states of the United States and the District
of Columbia.
To obtain performance of this warranty, report any defects
to:
Northland-Marvel
P.O. Box 400
1260 E. Van Deinse St.
Greenville MI 48838
Phone: 800.223.3900
14
Page 16
Northland-Marvel
P.O. Box 400
1260 E. Van Deinse St.
Greenville MI 48838
800.223.3900
www.marvelrefrigeration.com
41011769-EN Rev F
11/10/09
All specifications and product designs subject to change without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions, replacements or compensation for
previously purchased products.
Loading...
