Marvel 80RDEBSFWI Specification Sheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

80RDE-WW-F, 80RDE-BB-F and 80RDE-BS-F

• Dimensions (Actual Size) •

Overall depth NOT including handle:

Recommended minimum opening depth:

• Additional Information •

• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.

• Shipping weight: 195 pounds.

• U.L. Listed.

• Does not accept custom panels.

• MUST be anchored to prevent tipping forward with
drawers extended.

• 80RDE-BB-F : Black cabinet, black full wrap drawer
front.

• 80RDE-WW-F : White cabinet, white full wrap drawer
front.

• 80RDE-BS-F : Black cabinet, stainless full wrap
drawer front.

Accessories:

• Gastronorm Storage System 42245442 Fits top
drawer.

• Gastronorm Storage System 42245443 Fits bottom
drawer.

• Drawer divider for top drawer: 42245446

• Drawer divider for bottom drawer: 42245447

Refrigerated Drawers:

Overall depth including handle:

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Height without legs installed:

Width:

Toe Kick height:

Drawer projection at full extension:

Recommended opening width:

Recommended opening height:

26 1/4"
24 1/4"
22"
35"
34 1/4"
34"
29 7/8"
3"
26"
30"
24"
34 1/2"

35" max

34" min

35" max

34" min

29 7/8"

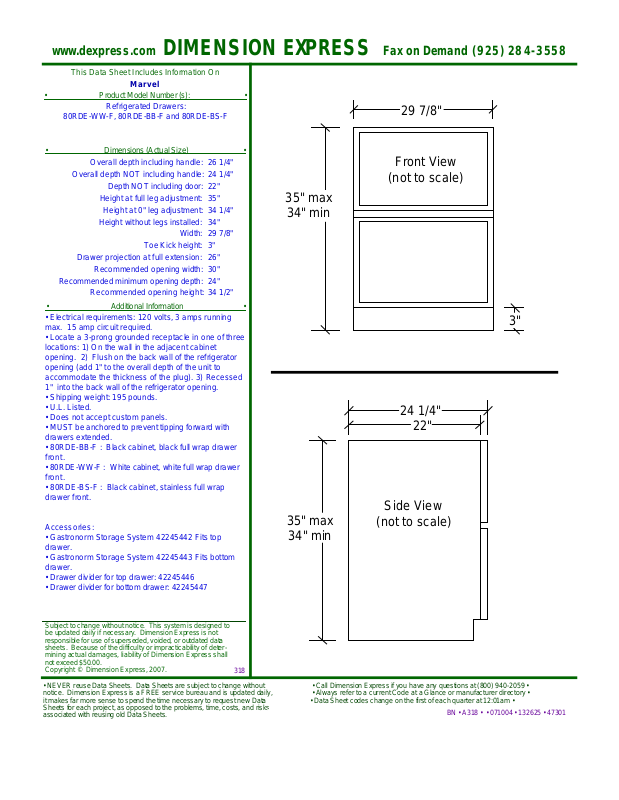

Front View

(not to scale)

3"

24 1/4"

22"

Side View

(not to scale)
