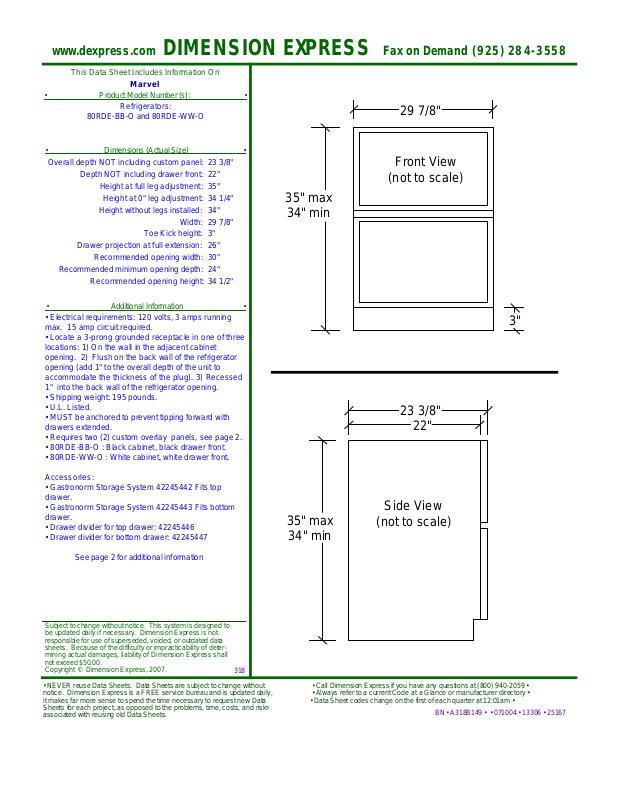

Marvel 80RDEBBOWI Specification Sheet
www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
80RDE-BB-O and 80RDE-WW-O
• Dimensions (Actual Size) •
Overall depth NOT including custom panel:
Depth NOT including drawer front:
Drawer projection at full extension:
Recommended minimum opening depth:
• Additional Information •
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Shipping weight: 195 pounds.
• U.L. Listed.
• MUST be anchored to prevent tipping forward with
drawers extended.
• Requires two (2) custom overlay panels, see page 2.
• 80RDE-BB-O : Black cabinet, black drawer front.
• 80RDE-WW-O : White cabinet, white drawer front.
Refrigerators:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Recommended opening width:
Recommended opening height:
23 3/8"
22"
35"
34 1/4"
34"
29 7/8"
3"
26"
30"
24"
34 1/2"
29 7/8"
Front View
(not to scale)
35" max
34" min
3"
23 3/8"
22"
Accessories:
• Gastronorm Storage System 42245442 Fits top
drawer.
• Gastronorm Storage System 42245443 Fits bottom
drawer.
• Drawer divider for top drawer: 42245446
• Drawer divider for bottom drawer: 42245447
See page 2 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
318
35" max
34" min
Side View
(not to scale)
BN • A318B149 • • 071004 • 13306 • 25167
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:
Custom Overlay Solid
Page 2
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Refrigerators:
80RDE-BB-O and 80RDE-WW-O
15 3/16"
Drawer Front Panel Dimensions
(not to scale)
Two (2) Panels Required Per Unit
29 5/8"
Min. thickness: 5/8"
Front View
Max. thickness: 3/4"
Max . weight: 20 lbs
