Page 1
R
A Division of Northland Corporation
Page 2

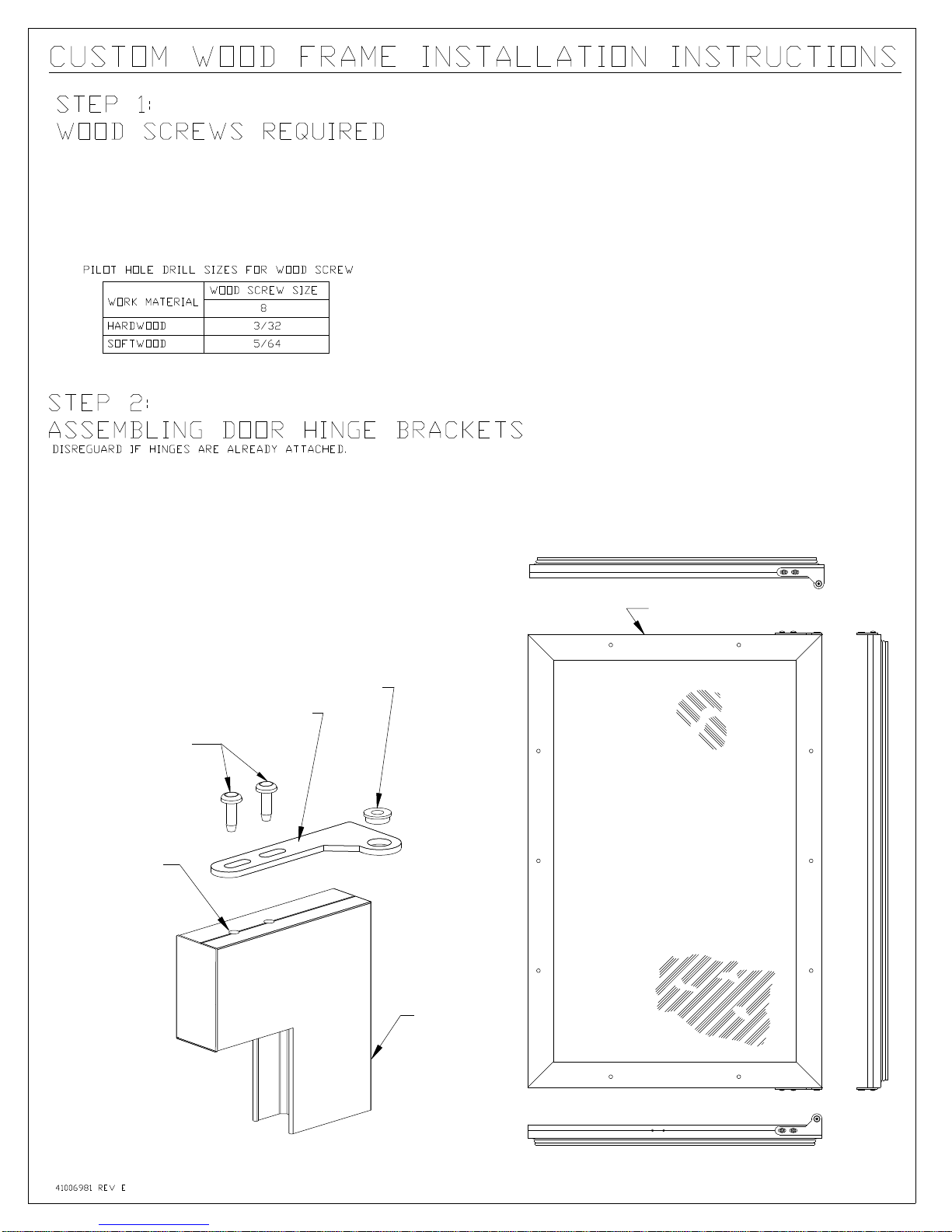

1. A #8 PAN HEAD WOOD SCREW SHOULD BE USED TO PROPERLY SECURE
THE WOOD FRAME. A TOTAL OF 10 SCREWS WILL BE NEEDED FOR
A 3 1/2 INCH TOE KICK OR 8 SCREWS FOR A 4 INCH TOE KICK.
2. USE ONLY PAN HEAD SCREWS
3. DO NOT SELECT A SCREW THAT IS LONGER THAN THE WOOD
THICKNESS AT THE SCREW LOCATIONS.
4. USE RECOMMENDED PILOT HOLES FOR THE FRAME MATERIAL (SEE
CHART BELOW)
1. ATTACH THE TOP AND BOTTOM DOOR HINGES TO THE DOOR WITH THE
10-32 MACHINE SCREWS AND A 1/8 INCH ALLEN HEAD DRIVER AS SHOWN IN
THE FIGURE BELOW.
2. PRESS IN THE SHOULDER BUSHINGS TO THE TOP AND BOTTOM DOOR
HINGES. MAKE CERTAIN THAT THE SHOULDER IS TO THE OUTSIDE OF THE
DOOR AS SHOWN IN THE FIGURE BELOW.
3. TEST FIT THE DOOR TO THE UNIT TO MAKE CERTAIN DOOR WILL HANG
CORRECTLY. THE DOOR IS HUNG CORRECTLY WHEN THE TOP OF THE DOOR
IS PARALLEL TO THE TOP OF THE UNIT. ADJUSTMENTS CAN BE MADE BY
LOOSING THE DOOR HINGE MACHINE SCREWS AND MOVING THE DOOR HINGE
ON THE DOOR.
4. TIGHTEN ALL FOUR MACHINE SCREWS AFTER ADJUSTMENTS HAVE BEEN
MADE.
5. REMOVE THE DOOR FROM THE UNIT BY REMOVING THE UNITS TOP HINGE
SET SCREW AND ANGLING THE DOOR OFF OF THE BOTTOM HINGE PIN.
THIS SURFACE PARALLEL TO THE UNIT.
(RIGHT HAND SWING DOOR SHOWN)
10-32 MACHINE
DOOR HINGE
SCREW HOLES
TYPICAL
TOP AND
BOTTOM
DOOR HINGE
ASSEMBLY
SHOULDER BUSHING
DOOR HINGE
SCREWS
DOOR FRONT
SURFACE
Page 3

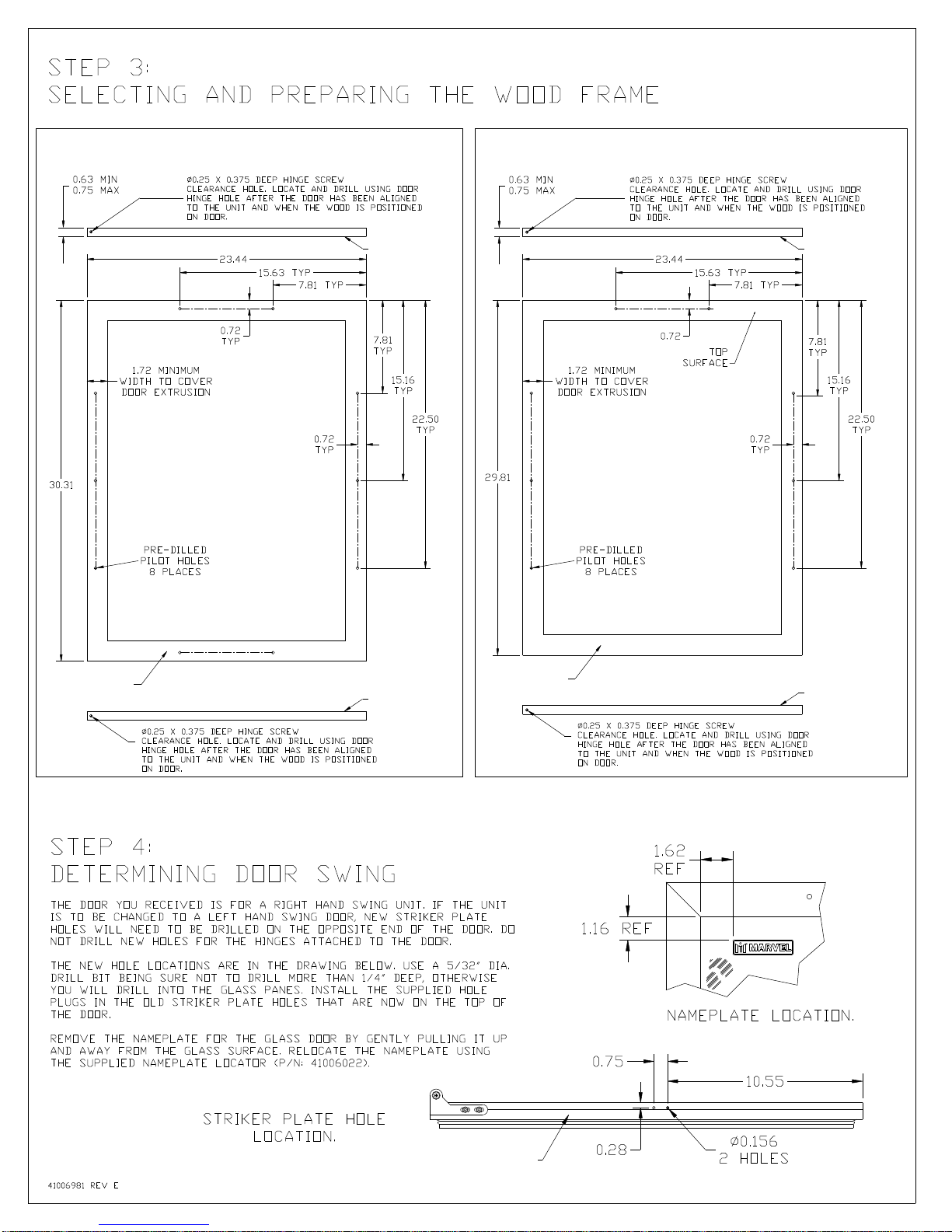

FOR A 3.5 INCH TOE KICK
(COVERS THE ENTIRE DOOR EXTRUSION)
OPTIONAL FOR A 4 INCH TOE KICK
(TO MATCH EXISTING CABINETRY
TOE KICK HEIGHT)
MOUNTING SURFACE
(NON-FACE) SIDE
MOUNTING SURFACE
(NON-FACE) SIDE
MOUNTING SURFACE
(NON-FACE) SIDE
MOUNTING SURFACE
(NON-FACE) SIDE
MOUNTING SURFACE
(NON-FACE) SIDE
MOUNTING SURFACE
(NON-FACE) SIDE
R
NEW DOOR BOTTOM
FOR LEFT HAND
SWING DOOR
Page 4

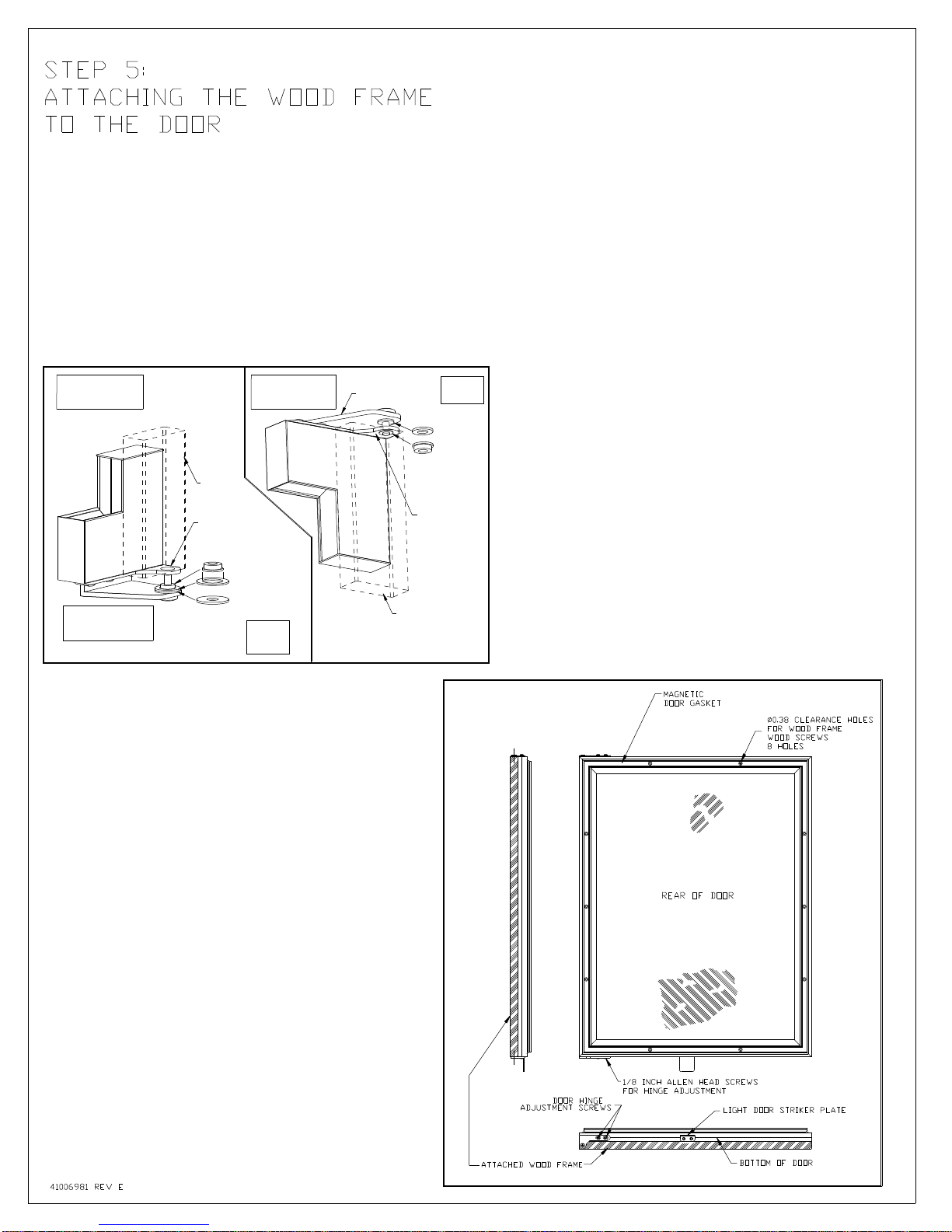

1. IF THE DOOR IS ATTACHED TO THE UNIT, REMOVE IT BY UNSCREWING THE TOP ALLEN HEAD SET SCREW AT
THE TOP HINGE. REMOVE THE DOOR BY ANGLING THE DOOR OFF OF THE BOTTOM HINGE PIN.
2. PEEL BACK DOOR GASKET TO EXPOSE THE SCREW HOLES.
3. SET THE WOOD FRAME FLUSH TO THE FRONT OF THE DOOR IN THE DESIRED LOCATION. CLAMP WOOD FRAME TO
THE DOOR IF NECESSARY.
4. INSERT THE WOOD SCREWS THROUGH THE BACK OF THE DOOR INTO THE PILOT HOLES IN THE WOOD FRAME AND
TIGHTEN.
5. REINSTALL DOOR GASKET BY PRESSING INTO DOOR CHANNEL. MAKE CERTAIN THE CORNERS ARE INSERTED FULLY.
6. INSTALL THE DOOR TO THE UNIT. USE THE SUPPLIED PLASTIC WASHERS AS SHOWN IN THE FIGURE BELOW.
7. REALIGNING THE DOOR MAY BE NECESSARY. ANY FINAL DOOR ADJUSTMENTS CAN BE MADE USING A 1/8 INCH ALLEN
HEAD DRIVER TO ADJUST THE DOOR'S HINGES (SEE FIGURE BELOW).
8. ATTACH THE DOOR LIGHT STRIKER PLATE AS SHOWN USING THE HEX OR PHILLIPS HEAD SCREWS PROVIDED. MAKE
CERTAIN THE LIGHT IS ABLE TO TURN ON AND OFF WHEN THE DOOR IS OPENED AND CLOSED.
9. ATTACH THE DOOR TO THE UNIT BY REVERSING STEP NUMBER 1 ABOVE.
CAUTION
DOOR CAN BECOME
DISENGAGED IF WASHERS
ARE NOT INSTALLED
CAUTION
DOOR MAY NOT SWING
PROPERLY-IF ALL NYLON
COMPONENTS ARE NOT
NOT INSTALLED AS SHOWN
BOTTOM HINGE CORNER
CAUTION
DOOR CAN BECOME
DISENGAGED IF WASHERS
ARE NOT INSTALLED
WOOD
FRAME
DOOR HINGE
SHOULDER BUSHING
.75 OD X .443 ID
WASHER
.75 OD X .257 ID
WASHER
3 NYLON
HARDWARE
COMPONENTS
AT BOTTOM
HINGE
HINGE HARDWARE
INSTALLATION DETAILS.
CABINET HINGE
WOOD
FRAME
TOP HINGE CORNER
2 NYLON
HARDWARE
COMPONENTS
AT TOP HINGE
.625 OD X .218 ID
WASHER
SHOULDER BUSHING
DOOR HINGE
