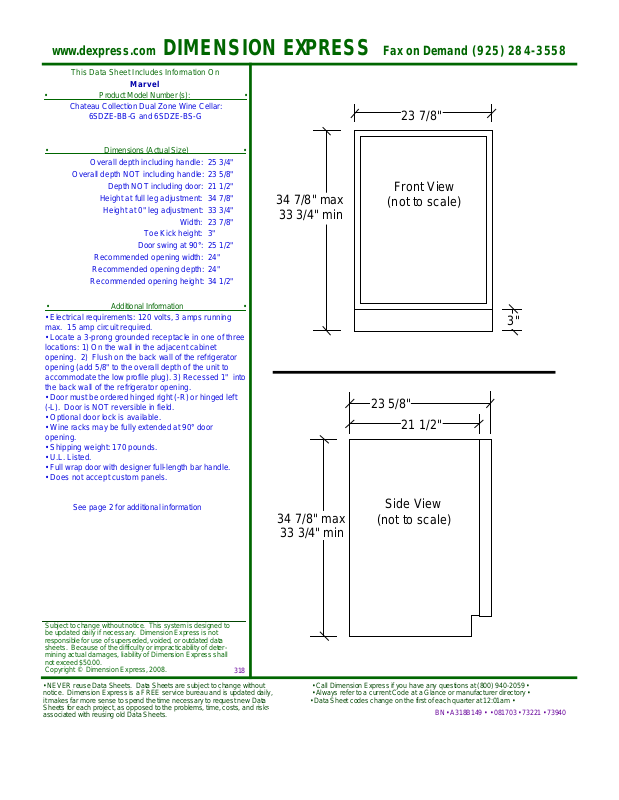

Marvel 6SDZEBSGL, 6SDZEBSGR, 6SDZEBBGLR Specification Sheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Chateau Collection Dual Zone Wine Cellar:

6SDZE-BB-G and 6SDZE-BS-G

• Dimensions (Actual Size) •

Overall depth including handle:

Overall depth NOT including handle:

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

Recommended opening depth:

Recommended opening height:

• Additional Information •

• Electrical requirements: 120 volts, 3 amps running

max. 15 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three

locations: 1) On the wall in the adjacent cabinet opening. 2) Flush on the back wall of the refrigerator opening (add 5/8" to the overall depth of the unit to accommodate the low profile plug). 3) Recessed 1" into the back wall of the refrigerator opening.

• Door must be ordered hinged right (-R) or hinged left

(-L). Door is NOT reversible in field.

• Optional door lock is available.

• Wine racks may be fully extended at 90° door

opening.

• Shipping weight: 170 pounds.

• U.L. Listed.

• Full wrap door with designer full-length bar handle.

• Does not accept custom panels.

Width:

25 3/4" 23 5/8" 21 1/2" 34 7/8" 33 3/4" 23 7/8" 3" 25 1/2" 24" 24" 34 1/2"

34 7/8" max

33 3/4" min

23 7/8"

Front View

(not to scale)

23 5/8"

21 1/2"

See page 2 for additional information

34 7/8" max

Side View

(not to scale)

33 3/4" min

Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00. Copyright © Dimension Express, 2008.

• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 • notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory • it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am • Sheets for each project, as opposed to the problems, time, costs, and risks associated with reusing old Data Sheets.

318

BN • A318B149 • • 081703 • 73221 • 73940

www.dexpress.com

DIMENSION EXPRESS

Fax on Demand (925) 284-3558

Additional Information:

• 6SDZE-BB-G-R : Black cabinet, black frame glass door, high gloss

ebony interior. Shelf fronts are clear, solid maple (unfinished). Door is hinged right.

• 6SDZE-BB-G-L : Black cabinet, black frame glass door, high gloss

ebony interior. Shelf fronts are clear, solid maple (unfinished). Door is hinged left.

• 6SDZE-BS-G-R: Black cabinet, stainless finish frame glass door,

high gloss ebony interior. Shelf fronts are clear, solid maple (unfinished). Door is hinged right.

• 6SDZE-BS-G -L Black cabinet, stainless finish frame glass door, high

gloss ebony interior. Shelf fronts are clear, solid maple (unfinished). Door is hinged left.

Accessories:

• Casters: P/N 42244041.

• Marvel Shelf Front Kits: Prefinished shelf fronts (6) in gloss black,

stainless steel or natural maple.

Page 2
