STARTING OUT

2

Remove Packaging

Your beverage center has been packed for
shipment with all parts that could be damaged by
movement securely fastened. Before using, be sure
all packing materials and tape have been removed.

Important

Keep your carton packaging until your beverage
center has been thoroughly inspected and found to
be in good condition. If there is damage, the
packaging will be needed as proof of damage in
transit.

Note to Customer

This merchandise was carefully packed and
thoroughly inspected before leaving our plant.
Responsibility for its safe delivery was assumed by
the carrier upon acceptance of the shipment. As
directed on the side of your packing carton, claims
for loss or damage sustained in transit must be
made on the carrier as follows:

Exterior Damage

Make thorough damage notation on your
delivery receipt and have driver acknowledge
by signature and date. Send a written request
asking for an inspection report from carrier.
Include the name of carrier representative and
the date the inspection was requested. Retain
inspection report and receipt for filing of a claim.

Concealed Damage

This must be reported to the carrier within fifteen
days. Obtain inspection report from the carrier.
Retain the inspection report for filing the claim.

DO NOT RETURN DAMAGED MERCHANDISE TO
THE MANUFACTURER – FILE THE CLAIM WITH THE
CARRIER.

Undercounter 6SBARE Beverage Specifications

Dimensions WxHxD (in.) 237/8 x 34 x 241/4
Weight 152 lbs.
Temperature 40–65°F
Power Supply 115V

supplied with a 15 amp plug

IT IS IMPORTANT THAT YOU SEND IN
YOUR WARRANTY RECORD CARD
IMMEDIATELY AFTER TAKING DELIVERY
OF YOUR REFRIGERATION APPLIANCE.

INSTALLATION

Select Location

The proper location will ensure peak performance
of your appliance. Choose a location where the
unit will be out of direct sunlight and away from
heat sources. Best performance will be maintained
when installed within the following parameters:

Ideal Ambient Temperature Range

Built-in 65°– 80°F
Free-Standing 65°– 90°F

Cabinet Clearance

Ventilation is required from the bottom front section
of the unit. Keep this area open and clear of any
obstructions.

figure 2

figure 1

Electrical Connection

Use nominal 115 volt, 60 cycle AC only. DO NOT
USE AN EXTENSION CORD.

Grounding Method

This product is factory equipped with a power
supply cord that has a three-pronged, grounded
plug. It must be plugged into a mating grounding
type receptacle in accordance with the National
Electrical Code and applicable local codes and
ordinances (see figure 1). If the circuit does not
have a grounding type receptacle, it is the
responsibility and obligation of the customer to
exchange the existing receptacle in accordance
with the National Electrical Code and applicable
local codes and ordinances. The third ground
prong should not, under any circumstances, be cut
or removed. (See figure 2) All U.L. listed
refrigerated products are equipped with this type of
plug.

3

OPERATION

Start Your Appliance

Your appliance will start upon initial plug-in. The LED
will flash amber upon initial plug-in due to your unit
being powered-on at the factory to verify performance
and then powered-off. The Sentry system senses a
power outage has occurred and relays this
information to you when you initially power-up your
appliance. This is normal and pressing the
“ON/OFF” button will reset this alarm function.

If your appliance’s control has been shut-off i.e., unit
plugged in, interior lights operate, display blank,
unit must be turned on. To turn on your appliance,
push and hold for 5 seconds, the “ON/OFF” button

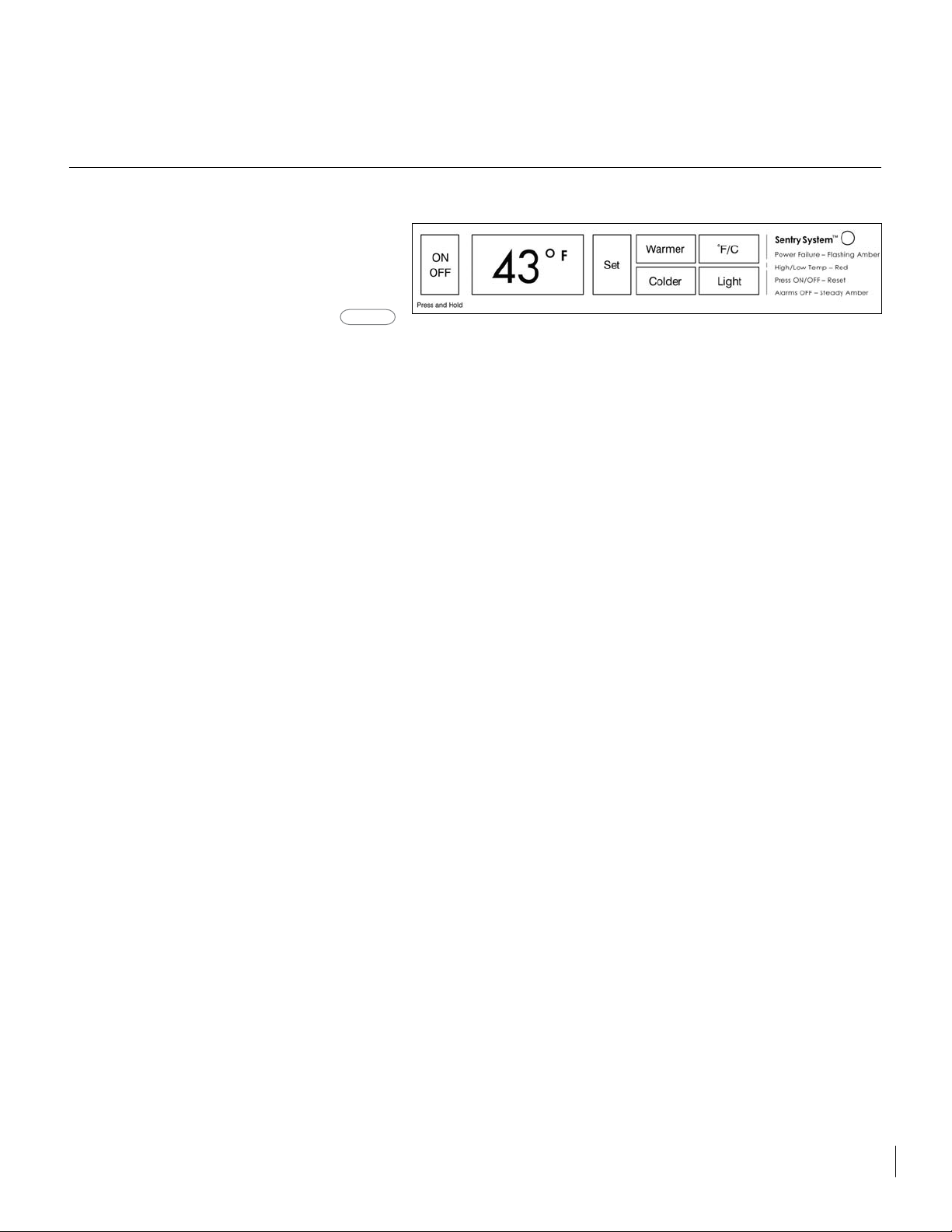

located on the display panel. (See figure 3) Once
loaded with wine bottles, allow at least 48 hours for
the unit to stabilize before making any adjustments
to the initial setting.

Set Your Temperature Mode

This product can display either Fahrenheit or Celsius.
To do this press the ”°F/C“ button on display panel.

Set the Controls

The available temperature range of the unit is from
40° to 65°F. The temperature set-point is initially set
in the factory at 43°F. The temperature set-point can
be lowered or raised by first pushing the “Set” button
on the display pad. A “SET” icon will be displayed.
This icon will turn off 10 second after completing
your adjustments. Pushing either the “Warmer” or
“Colder” buttons located on the inside of the unit on
the display pad will raise or lower the set
temperature by one degree F or C (depending on
your setting). As with any refrigeration product, there
is a slight temperature variance at different locations
within the cabinet.

Adjustable Temperature Control

The temperature control is fully adjustable from 40°
to 65°F. The range allows flexibility of temperature
preferences and provides the ideal wine aging,
storing and serving temperatures. Temperature
range will average between 50 to mid 60’s in the
upper section and 40 to 50’s in the lower section.
Adjusting the “Warmer” or “Colder” buttons will
affect both zones accordingly. The display
temperature will be reflective of temperatures in the

middle section of the unit. See “Loading Tips and
Suggestions” on the next page for information
regarding glass shelf and wine rack configuration.

Interior Light and Switch

The interior light makes it easy to view your wine
labels and enhances the display of your collection.
To engage the display light, press the “Light” button
on the display panel. The light will come on and stay
on with the door closed. To disable the display light,
press the “Light” button again. The light will always
come on when the door is opened.

Warning Alarms

Your beverage center has been fitted with a Sentry
system. This sentry will let you know if your unit is not
functioning properly for optimum wine storage.

Door Ajar Alarm

If the door has been left open for over 5 minutes the
alarm will sound and the LED will flash green. This
will stop as soon as the door is closed.

High and Low Temperature

If your unit reaches temperatures outside normal
operating temperatures for your set point for about
one (1) hour duration, an alarm will sound and the
LED will flash red. This will warn you that your wines
have seen temperatures that may not be conducive
for long term storage.

Power Failure

If your unit experiences a power failure the LED will
flash amber until the alarm is reset.

Reset Alarms

Press the “ON/OFF” button for approximately one
second. This will reset all audible and display alarms.

Sabbath Mode

Your appliance is equipped with a Sabbath mode.
By activating this mode you will be disabling all
displays, audible alarms and lights. The system will
be overridden with a random control. To activate the
Sabbath mode press and hold the “Set” button while
pressing the ”°F/C“ button 7 times within 7 seconds.
To disable the Sabbath mode repeat the process.
The Sabbath mode will deactivate after 96 hours.

4

figure 3

APPLIANCE FEATURES

Insert Wine Bottles

The wine rack roll-out shelf holds eight bottles. See
figure 4 for typical wine bottle orientation. Wine
rack can be located at the middle or bottom part of
the cabinet interior. For red wines, place wine shelf
at bottom shelf position in the cabinet. Then put a
glass shelf in the next higher position. For white
and sparkling wines, put the wine shelf on the
middle shelf position in the cabinet. Place the
remaining shelves as desired. (See figure 5) Also,
there is a fixed, wooden, bottle cradle in the
bottom, step section of the cabinet. Six bottles of
wine may be stored there.

Loading Tips and Suggestions

The glass shelves and fixed position wire rack are
for general beverage storage, such as beer and
soft drinks. Opened wine bottles and tall beverage
containers may be stored on the glass shelf closest
to the cabinet top. Just lift the hinged section of the
fixed position upper wire rack to provide clearance
for the bottles and/or containers to stand upright.

The wooden, bottom bottle cradle may be removed
for storing “jug” wines. Just remove the two screws
that secure the cradle to the cabinet floor.

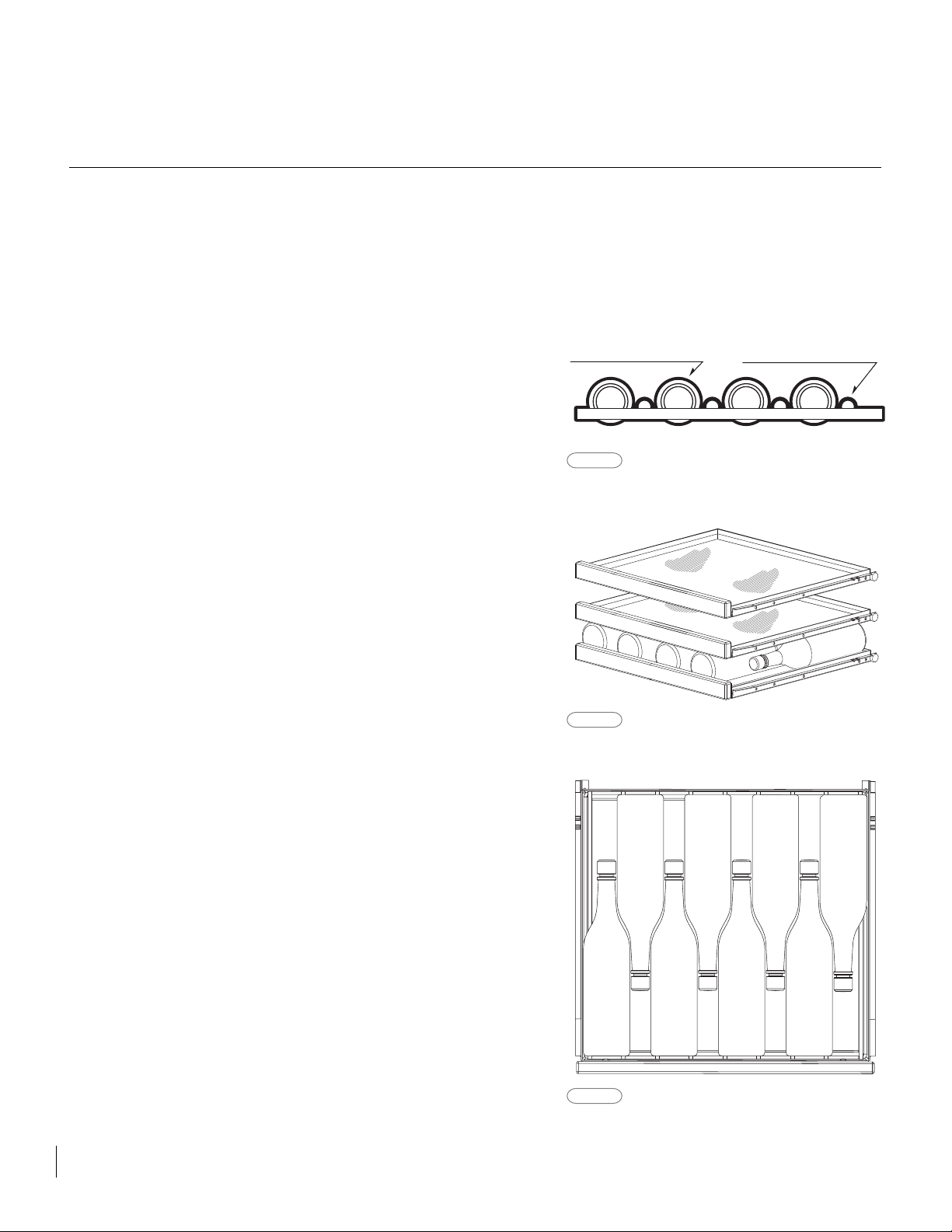

Wine Rack

Because bottles are not stacked on top of each
other, you can easily view and access your
inventory without disturbing other bottles. (See
figure 6)

Front Bottles (Necks Facing Rear)

figure 4

Rear Bottles (Necks Facing Front)

You can store magnum bottles and other large
bottles on any of the shelves (except for the top

figure 5

shelf) by removing the shelf directly above them or
placing the shelf at a position allowing for proper
clearance.

Commodities on the top rack directly under
the light will be exposed to a slightly higher
temperature when the light is on. REMEMBER TO
TURN OFF THE LIGHT WHEN IT IS NO LONGER
NEEDED.

Keep wines that you plan to use for everyday
drinking and entertaining on the front half of the
racks where labels are completely visible. Place
wines for aging or longer term storing in the rear.

Roll-out Shelves

The roll-out shelves may be pulled out
approximately 14 inches to facilitate loading and
retrieval. Do not lean on or press down heavily on
the shelves. Doing so may damage the shelves or
their contents. Pull out shelves gently and carefully

figure 6

to minimize any possible item shifting. To maintain
stability, avoid pulling out more than one shelf at

5

any time.

CARE AND CLEANING OF YOUR BEVERAGE CENTER

6

Condenser

The condenser tubing inside the cabinet does not
require frequent cleaning; however, satisfactory
cooling depends on adequate ventilation over the
coils. Be sure that nothing obstructs the required air
flow openings in front of the cabinet. At least once
or twice a year brush or vacuum lint and dirt from the
condenser for efficient performance by unscrewing
the grille on the bottom front of the cabinet.

Cabinet

The painted cabinet can be washed with mild soap
and water and thoroughly rinsed with clear water.
Never use abrasive scouring cleaners.

Interior

Wash interior compartment with mild soap and
water. Do not use an abrasive cleaner, solvent, polish
cleaner or undiluted detergent.

Glass Door

Use a glass cleaner or mild soap and water and
soft cloth to clean the glass door model. Do not use
any abrasive cleaners.

Door Gasket

The vinyl gasket may be cleaned with mild soap
and water, a baking soda solution or a mild scour­ing powder.

Light Tube Replacement

WARNING! DISCONNECT THE POWER CORD
BEFORE ATTEMPTING LIGHT TUBE REPLACE­MENT. Failure to do so may result in an electrical
shock that could severely injure you.

This product uses two, 6 watt light tubes to illumi­nate the interior of the wine cellar. The light tube is
a very reliable electrical component, but should it
not function properly, please call the dealer you
purchased your wine cellar from for a replacement
light tube. Use only an original equipment light
tube from your dealer or manufacturer.

To replace a light tube, use a hex-head driver,
remove the two hex-head screws that hold a cover
plate over the back section of the light tube. Set the
screws and cover plate aside for re-assembly later.

Using a small flat-blade screwdriver, gently lever
the front section of the light tube down to allow it
to be pulled clear of the light housing.

Disconnect the two insulated electrical connectors
from the cabinet’s electrical cable and discard the
old light tube. Reconnect the electrical connector of
the new light tube to the cabinet’s electrical cable
connectors. Make sure it is secure and fully
installed.

Carefully realign the light tube’s electrical terminal
back into the rear of the light enclosure channel
making sure not to crimp them. Gently insert the
light tube along the length of the light enclosure
channel. Press the light tube gently into the light
enclosure channel. Only a small part of the light
tube should project below the ceiling of the
wine cellar. DO NOT USE A HAMMER TO FIT
THE LIGHT TUBE.

Place the light tube terminal cover plate back in the
original position on the light enclosure’s flange. Re­use the original two screws to secure it in place.
Plug the wine cellar into the electrical socket.
Check to see if the light tubes operate properly.
Your light tube’s replacement is complete.

The light tubes are not covered by your warranty.
Replacement tubes can be obtained from your
service provider or from Marvel Industries.

In the Event of a Power Failure

Most power failures are corrected within two hours
and will not affect the unit’s temperature providing
you minimize the number of door openings while
the power is off. A gradual rise in temperature
should not have any adverse effect on your wine if
power is out for a longer period. If it is extremely
hot, you may want to move your wines to the
coolest location you can find until power is
restored.

TROUBLESHOOTING

Before Calling for Service

Before calling for service, check the trouble­shooting table on this page. This table lists possible
problems that you can remedy without difficulty to
avoid an unnecessary service call.

Problem

Odor in cabinet
Noisy operation

Cabinet vibrates

Cabinet light not working

Appliance will not run

Appliance runs too long

Moisture collects inside

Moisture collects on
outside surface

Interior too hot/too cold

Sentry System activated

Possible Causes/Solutions

•

Interior needs cleaning

•

Cabinet not level

•

Weak floor

•

Cabinet not level

•

Weak floor

•

Tube burned out

•

No power at outlet

•

”ON/OFF” button pressed

•

Line cord not plugged in

•

No power at electrical outlet

•

House fuse blown

•

Prolonged door openings

•

Control set too cold

•

Condenser needs cleaning

•

Too many door openings

•

Prolonged door openings

•

Hot, humid weather increases condensation

•

Control improperly set

•

Hot, humid weather increases condensation. As
humidity decreases, moisture will disappear.

•

Control improperly set

•

Control improperly set

•

Faulty thermometer

•

Relocate thermometer to center of cabinet and
recheck

•

See “Warning Alarms” on page 4

•

See “Alpha Control ‘Quick’ Reference”

•

Temperature alarm may occur after user selected
temperature set-point changes in excess of 10
degrees F, or during heavy usage conditions.
This is normal and not a fault of the appliance.
The Sentry System is monitoring the duration of
large swings in temperature to protect your
contents, and may alert you to this event. See
“Reset Alarms” section on page 4.

Help Prevent Tragedies

Each year children die because they climb inside a
discarded refrigeration product, get trapped inside
and suffocate. Take precautions to prevent such
tragedies by removing the door, taping or chaining
it shut before discarding.

7

If You Do Need Service

If you do need service, contact your dealer or the
manufacturer. In any correspondence, refer to the
model number and serial number of your unit
which is located on the upper left hand side of the
wall liner. Retain you proof of purchase. You may
want to record these numbers in the space below.

How to Obtain Service

Your beverage center requires little service because
the best and most up to date materials, equipment
and quality methods are employed throughout the
manufacturing process.

If trouble occurs during normal operation, first
check the troubleshooting chart on the opposite
page to see if any of these simple steps may correct
the problem. If service becomes necessary:

1. If the product is within the first year warranty
period, please call Marvel Customer Service
at 800-428-6644 for directions on how to
obtain warranty coverage in your area.

2. If the product is outside of the first year
warranty period, Marvel Customer Service
can provide recommendations of service
centers in your area. A listing of authorized
service centers is also available at
www.marvelindustries.com under the service
and support option.

3. In all correspondence regarding service, be
sure to give the model number, serial number
and proof of purchase.

4. Try to have information or description of the
nature of the problem, how long the unit has
been running, the room temperature, water
temperatures, and any additional information
that may be helpful in quickly solving the
problem.

OBTAINING SERVICE

8

For Your Records

Date of purchase

Dealer’s Name

Dealer’s Address

Dealer’s City Dealer’s State Zip

Appliance Serial Number

Model Number Date Warranty Card Sent (Must be within 10 Days of Purchase)

WARRANTY

EEnntt iirree PP rroodd uu cc tt
LLiimmii tt eedd OOnn ee YYee aa rr PP aa rrttss aanndd LLaabboorr
WWaa rrrr aann tt yy

Marvel warrants that it will supply all necessary
parts and labor to repair or replace in the end
user's home or office, any component which proves
to be defective in material or workmanship, subject
to the condition and exclusions stated below, for a
period of one year from the date of purchase by
the end user.

AAdddd iittiioonnaall SSee ccoonndd TT hh rroo uugg hh FF ii fftt hh YYee aarr
LLiimm ii tt eedd PP aa rrttss OOnnllyy WWaa rrrr aa nn tt yy

During the four years following expiration of the
one year limited warranty
replacement parts for the hermetically sealed refrig­eration system which consists of the compressor,
condenser, drier, accumulator, by-pass valve, con­necting tubing and the evaporator that are proven
to be defective due to workmanship or materials
subject to the conditions and exclusions below.

The above warranties do not cover:

• Shipping costs of replacement parts or returned
defective parts.

• Customer education or instructions on how to
use the appliance.

, Marvel will supply

PP aa rrttss oorr SSee rrvvii ccee
NNoo tt SSuu pppplliieedd oorr DD eess iiggnnaatteedd bbyy MMaarrvv ee ll

The above warranties also do not apply if:

The original bill of sale, deliver date or serial num­ber cannot be verified.

Defective parts are not returned for inspection if so
requested by Marvel.

The refrigeration equipment is not in the possession
of the original end use purchaser.

The warranties set forth herein are the only war­ranties extended by Marvel Industries. Any implied
warranties, including the implied warranty of mer­chantability
express warranties. In no event shall Marvel
Industries be liable for any consequential or inci­dental damages or expenses resulting from breach
of these or any other warranties, whether express
or implied.

Some states do not allow the exclusion or limitation
of consequential damages or a limitation on how
long an implied warranty lasts, so the above exclu­sion or limitation may not apply to you. This war­ranty gives you specific legal rights and you may
have other rights that may vary from state to state.

, are limited to the duration of these

• Any content loss due to product failure.

• Removal or installation.

Nor do the above warranties cover failure of this
product or its components due to:

1.Transportation or subsequent damages.

2.Use commercially or use other than normal
household or small office.

3.Improper installation, misuse, abuse, accident or
alteration, use on wiring not conforming to elec­trical codes, low or high voltages, failure to pro­vide necessary maintenance, or other unreason­able use.

9

No person, firm, or corporation is authorized to
make any other warranty or assume any other obli­gation for Marvel Industries. These warranties
apply only to products used in any of the fifty states
of the United States and the District of Columbia.

To obtain performance of this warranty, report any
defects to:

MMaa rrvvee ll IInn dduusstt rr ii eess
PP.. OO.. BBooxx 999977
RRii cc hh mm oonn dd,, IInnddii aann aa 447733 7755-- 00999977
PPhh oo nn ee:: 7766 55--99 6622-- 225522 11

NOTES

Marvel Industries

P.O. Box 997
Richmond, IN
47375-0997

800.428.6644

41010407 Rev. B

www.lifeluxurymarvel.com

All specifications and product designs subject to change without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements
additions, replacements or compensation for previously purchased products.
