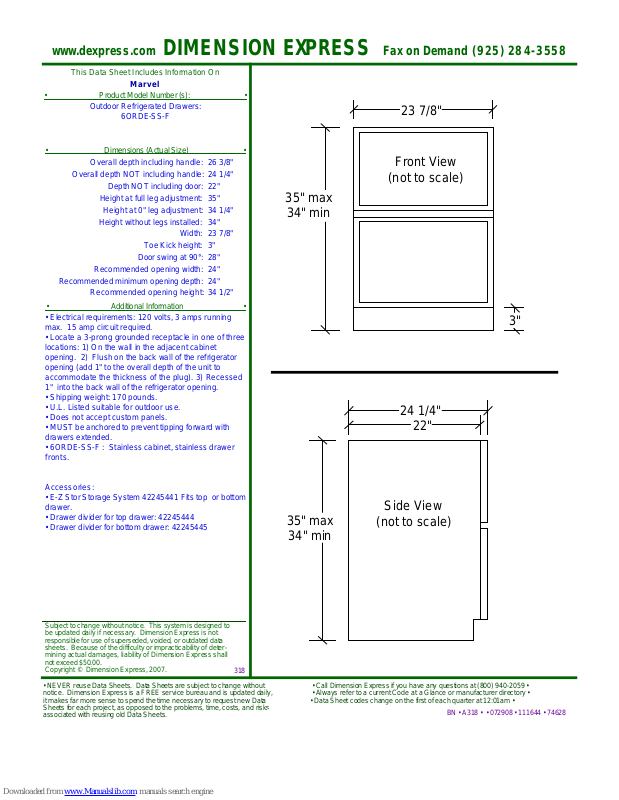

Marvel 6ORDE-SS-F Datasheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Outdoor Refrigerated Drawers:

• Dimensions (Actual Size) •

Overall depth including handle:

Overall depth NOT including handle:

Recommended minimum opening depth:

Recommended opening height:

• Additional Information •

• Electrical requirements: 120 volts, 3 amps running

max. 15 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three

locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.

• Shipping weight: 170 pounds.

• U.L. Listed suitable for outdoor use.

• Does not accept custom panels.

• MUST be anchored to prevent tipping forward with

drawers extended.

• 6ORDE-SS-F : Stainless cabinet, stainless drawer

fronts.

6ORDE-SS-F

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Height without legs installed:

Width:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

26 3/8"
24 1/4"
22"
35"
34 1/4"
34"
23 7/8"
3"
28"
24"
24"
34 1/2"

23 7/8"

Front View

(not to scale)

35" max

34" min

3"

24 1/4"

22"

Accessories:

• E-Z Stor Storage System 42245441 Fits top or bottom

drawer.

• Drawer divider for top drawer: 42245444

• Drawer divider for bottom drawer: 42245445

35" max

Side View

(not to scale)

34" min
