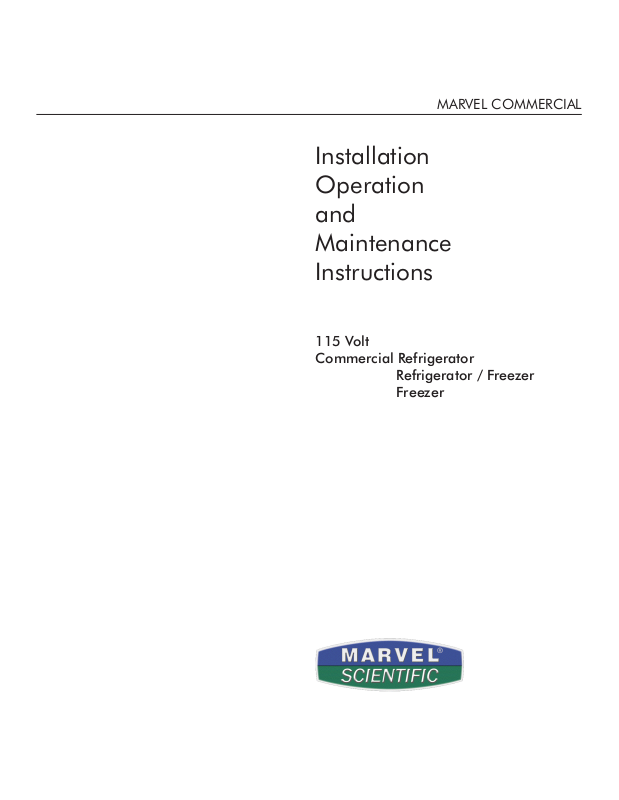

MARVEL 6FAR User Manual

MARVEL COMMERCIAL

Installation
Operation
and
Maintenance
Instructions

115 Volt
Commercial Refrigerator
Refrigerator / Freezer
Freezer

MARVEL COMMERCIAL

UNPACKING YOUR APPLIANCE

Remove Packaging

Your refrigerator has been packed for shipment with all parts
that could be damaged by movement securely fastened. Be­fore using, be sure all packing materials and tape have been
removed.

Important

Keep your carton packaging until your refrigerator has been
thoroughly inspected and found to be in good condition. If
there is damage, the packaging will be needed as proof of
damage in transit.

Note to Customer

This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its safe
delivery was assumed by the carrier upon acceptance of the
shipment. Claims for loss or damage sustained in transit
must be made on the carrier as follows:

Exterior Damage:• Make thorough damage notation on
your delivery receipt and have driver acknowledge by
signature and date. Send a written request asking for an
inspection report from carrier. Include the name of the
carrier representative and the date the inspection was
requested. Retain inspection report and receipt for filing
of a claim.
Concealed Damage:• This must be reported to carrier
within fifteen days. Obtain inspection report from carrier.
Retain the inspection report for filing of the claim.

DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE CARRIER.

1

MARVEL COMMERCIAL

IMPORTANT
SAFETY
INSTRUCTIONS

WARNING- When using this appliance, always exercise

basic safety precautions, including the following:

This refrigerator must be properly installed in accor-•
dance with the installation instructions before it is used.
Never unplug your unit by pulling on the power cord. •
Always grip plug firmly and pull straight out from the
outlet.
Repair or replace immediately all electrical service cords •
that have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage along
its length or at either the plug or connector end.
After your unit is in operation, do not touch the cold •
surfaces, particularly when your hands are damp or wet.
Skin may adhere to these extremely cold surfaces.

Unplug your refrigerator:•
A) Before making any repairs. NOTE: We strongly
recommend any servicing to be performed by a
qualified individual.
B) Before cleaning.
C) Before replacing a burned out light bulb, for
units with optional interior light. Turning the
temperature control to “O” or “OFF” position
does not remove power from the light circuit.

* Do not operate your product in the presence of explosive
fumes.

2

MARVEL COMMERCIAL

INSTALLATION:

Select Location

The proper location will ensure peak performance of your
appliance. Choose a location where the unit will be out of
direct sunlight and away from heat sources.

Do not install the unit where the temperature will go below
60°F, because it will not run often enough to maintain
proper temperatures.

Do install it on a floor strong enough to support a fully
loaded unit.

Cabinet Clearance

Ventilation is required from the bottom front section of the
unit. Keep this area open and clear of any obstructions.

Units with fan cooled condensers can be built in. The adja­cent cabinets and countertop can be built around the unit
as long as no top trim or countertop is installed lower than
the top of the hinge.

Electrical Connection

Check serial plate for correct power supply. Use only elec­trical power supply as specified on your appliance serial
nameplate. DO NOT USE AN EXTENSION CORD.

Grounding Method

This product is factory equipped with a power supply cord
that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in ac­cordance with the National Electrical Code and applicable
local codes and ordinances (see Figure 1). If the circuit
does not have a grounding type receptacle, it is the re­sponsibility and obligation of the customer to exchange the
existing receptacle in accordance with the National Electri­cal Code and applicable local codes and ordinances. The
third ground prong should not, under any circumstances,
be cut or removed. All U.L. listed refrigerated products are
equipped with this type of plug.

Leveling Legs

(If supplied) Adjustable legs at the front corners of the unit
should be set so the unit is firmly positioned on the floor
and the front is raised just enough so the door closes easily
when opened about halfway.

Turn leveling legs clockwise to raise unit, counterclockwise
to lower it.

Power supply cord
with 3 - prong
grounding plug.

Grounding type
wall receptacle

Figure 1

3
