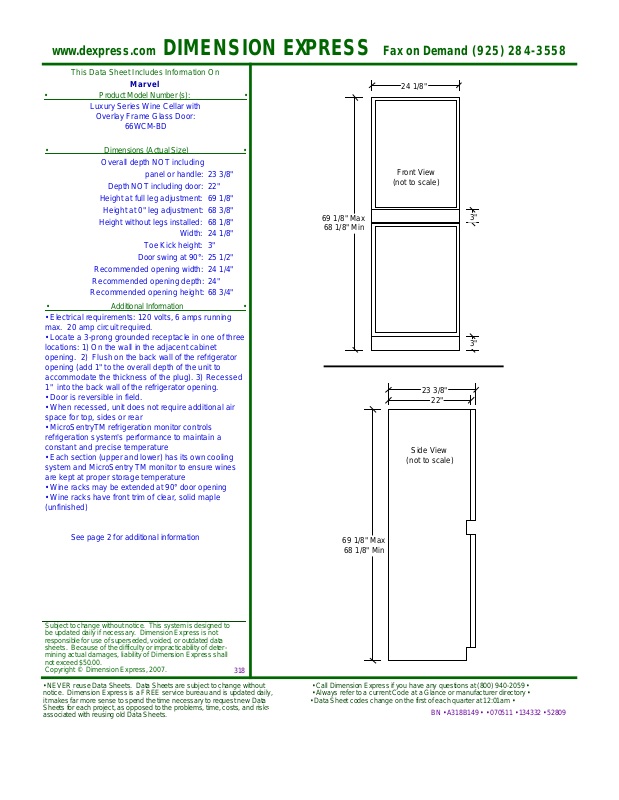

Marvel 66WCMBDL, 66WCMBDR Specification Sheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Luxury Series Wine Cellar with

Overlay Frame Glass Door:

66WCM-BD

• Dimensions (Actual Size) •

Overall depth NOT including

panel or handle:

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Height without legs installed:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

Recommended opening depth:

Recommended opening height:

Width:

23 3/8"
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"

• Additional Information •

• Electrical requirements: 120 volts, 6 amps running

max. 20 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three

locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.

• Door is reversible in field.

• When recessed, unit does not require additional air

space for top, sides or rear

• MicroSentryTM refrigeration monitor controls

refrigeration system's performance to maintain a
constant and precise temperature

• Each section (upper and lower) has its own cooling

system and MicroSentry TM monitor to ensure wines
are kept at proper storage temperature

• Wine racks may be extended at 90° door opening

• Wine racks have front trim of clear, solid maple

(unfinished)

69 1/8" Max

68 1/8" Min

24 1/8"

Front View

(not to scale)

3"

3"

23 3/8"

22"

Side View

(not to scale)

See page 2 for additional information

69 1/8" Max

68 1/8" Min

Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter­mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.

• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.

318

BN • A318B149 • • 070511 • 134332 • 52809

www.dexpress.com

DIMENSION EXPRESS

Fax on Demand [phone]

Additional Information:

• Lighted and inclined display shelf displays up to four wine bottles in

each section.

• Capacity: 90 bottles, including magnums

• Shipping weight: 270 pounds.

• U.L. Listed.

• Accepts custom frame. Custom frame and handle must be supplied

by customer, see below.

• 66WCM-BD: Black cabinet, Designer overlay frame glass door.

REQUIRES 2 DOOR OVERLAY FRAMES.

Accessories:

• Humidrawer Cigar Storage Compartment: P/N 42242728.

Page 2

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Luxury Series Wine Cellar with

Overlay Frame Glass Door:

66WCM-BD

15/32"

1 3/4" min

Custom Overlay Glass Door Frame Dimensions

(not to scale)

23 7/16"

11 23/32"

Optional

Lock

Location

1 3/4" min

Front View

1 3/4" min

30 5/16" for

3 1/2" toe kick

29 13/16" for

4" toe kick

1 3/4"

min

For doors with locks installed (-LR or -LL
included in model number). It will be necessary
to drill a hole in the overlay door frame,
corresponding to the lock location, prior to
assembly. Hole diameter through overlay frame
should be 15/32" with a 13/16" counterbore from
back side of panel, 7/16" deep.

Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
