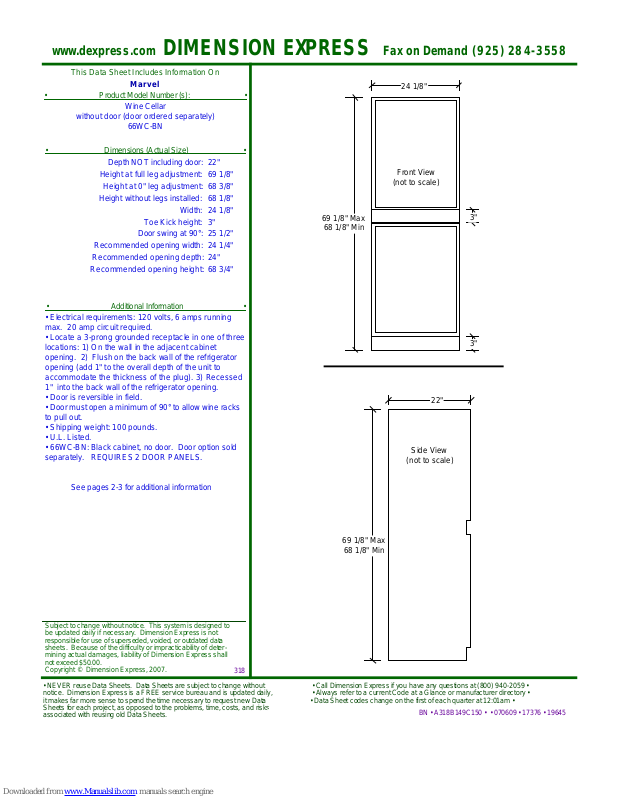

Page 1
www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Wine Cellar
without door (door ordered separately)
66WC-BN
• Dimensions (Actual Size) •
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
Width:
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"
• Additional Information •
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• Door must open a minimum of 90° to allow wine racks
to pull out.
• Shipping weight: 100 pounds.
• U.L. Listed.
• 66WC-BN: Black cabinet, no door. Door option sold
separately. REQUIRES 2 DOOR PANELS.
69 1/8" Max
68 1/8" Min
24 1/8"

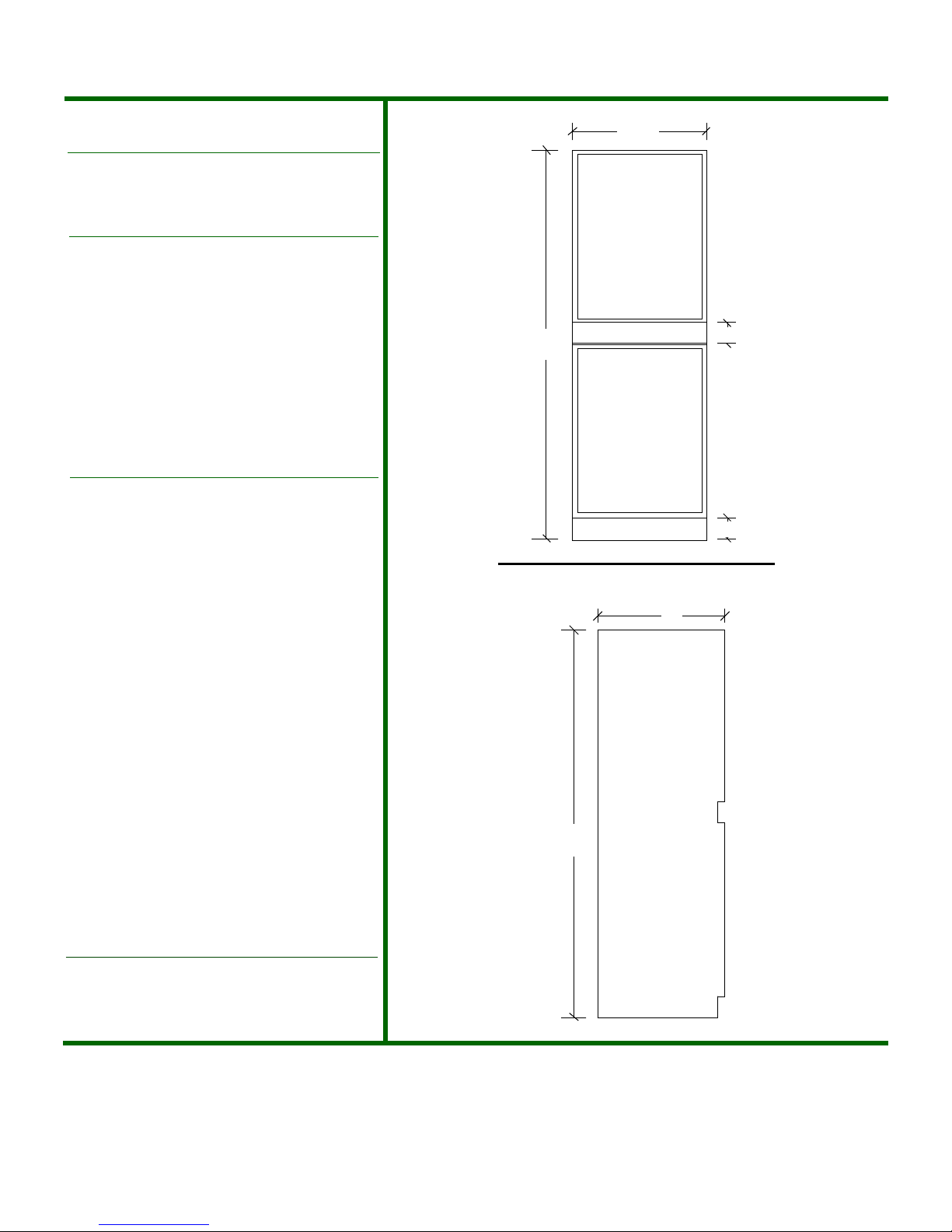

Front View
(not to scale)
3"
3"
22"
Side View
(not to scale)
See pages 2-3 for additional information
69 1/8" Max
68 1/8" Min
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
318
BN • A318B149C150 • • 070609 • 17376 • 19645
Page 2
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:
Door options:
1) Overlay Glass Door Frame (P/N 42244699, accepts customer
supplied wood frame overlay, see below. REQUIRES 2 DOOR
PANELS.). Add 1 3/8" to depth for door without panel or handle.
2) Framed (RPE) Door with black liner (P/N 42243811 white or
42243812 black. Solid painted door has frame to accept 1/4" custom
panel,see page 3, REQUIRES 2 DOOR PANELS).
3) Overlay Solid Door (P/N 42244666 white or 42244667 black.
Accepts overlay panel and door pull supplied by customer, see
page 3. REQUIRES 2 DOOR PANELS.). Add 1 3/8" to depth for door
without panel or handle.
4) Full Wrap Door (P/N 42244670 black with black liner, 42244671
stainless with black liner, 42244673 white with white liner or 42244675
stainless with white liner). Add 2 1/8" to depth for door and 2 1/8" for
professional style bar handle.
Page 2
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Wine Cellar
without door (door ordered separately)
66WC-BN
Accessories:
• Humidrawer Cigar Storage Compartment: P/N 42242728.
• Clip on door handle used with RPE doors: P/N 42241897 white,
42241898 black or 42241257 brushed aluminum.
15/32"
1 3/4" min

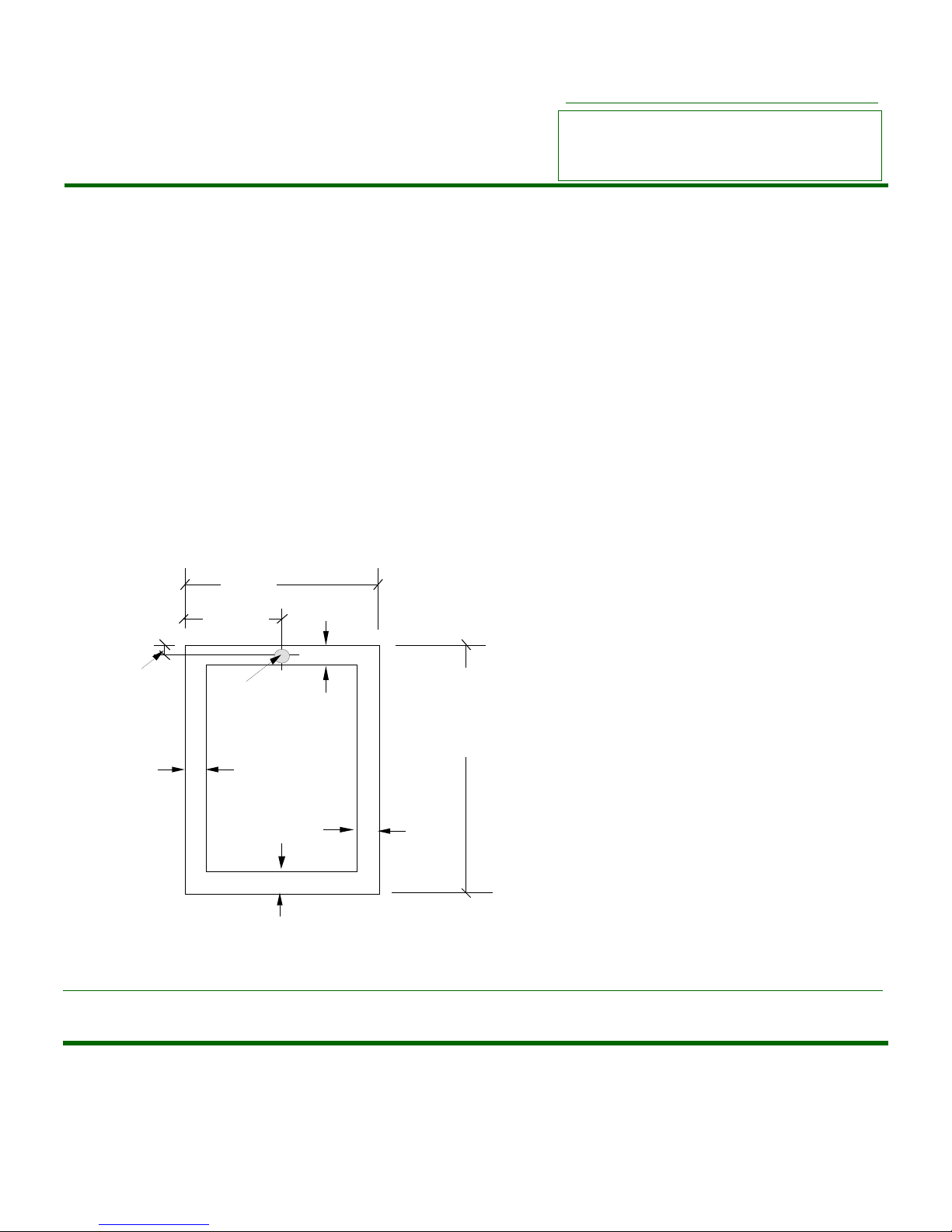

Custom Overlay Glass Door Frame Dimensions
(not to scale)
23 7/16"
11 23/32"
Optional
Lock
Location
1 3/4" min
Front View
1 3/4" min
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
1 3/4"
min
For doors with locks installed (-LR or -LL
included in model number). It will be necessary
to drill a hole in the overlay door frame,
corresponding to the lock location, prior to
assembly. Hole diameter through overlay frame
should be 15/32" with a 13/16" counterbore from
back side of panel, 7/16" deep.
Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
149
BN • A318B149C150 • • 070609 • 17376 • 19645
Page 3
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:

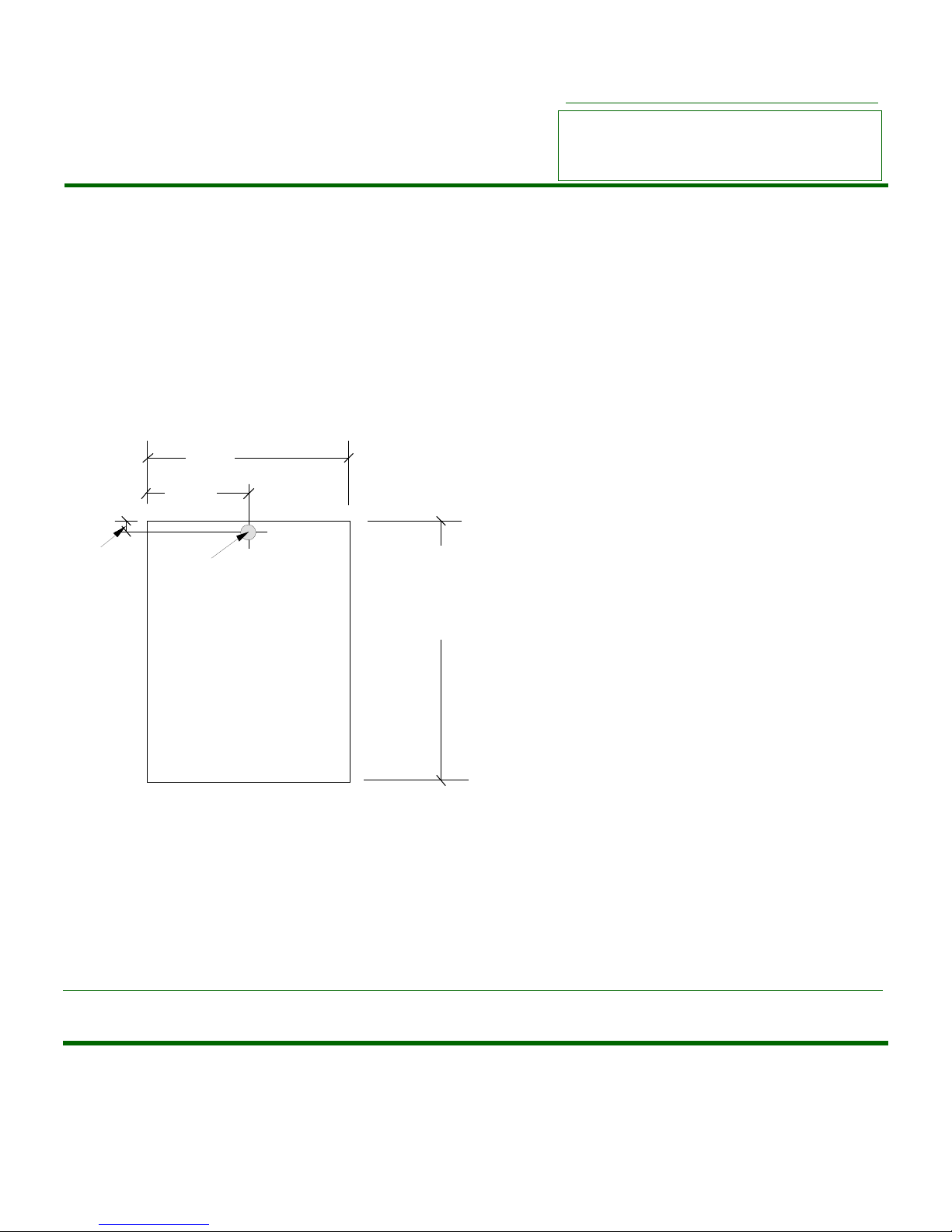

Custom Overlay Solid Door Dimensions
23 3/4"
11 7/8"
Page 3
(not to scale)
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Wine Cellar
without door (door ordered separately)
66WC-BN
7/16"
Optional
Lock
Location
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
For doors with locks installed (-LR or -LL
included in model number). It will be necessary
to drill a hole in the overlay door panel,
corresponding to the lock location, prior to
assembly. Hole diameter through overlay panel
should be 15/32" with a 13/16" counterbore from
back side of panel, 7/16" deep.
Min. thickness: 5/8"
Max. thickness: 3/4"
Max. weight: 20 lbs
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
BN • A318B149C150 • • 070609 • 17376 • 19645
150
