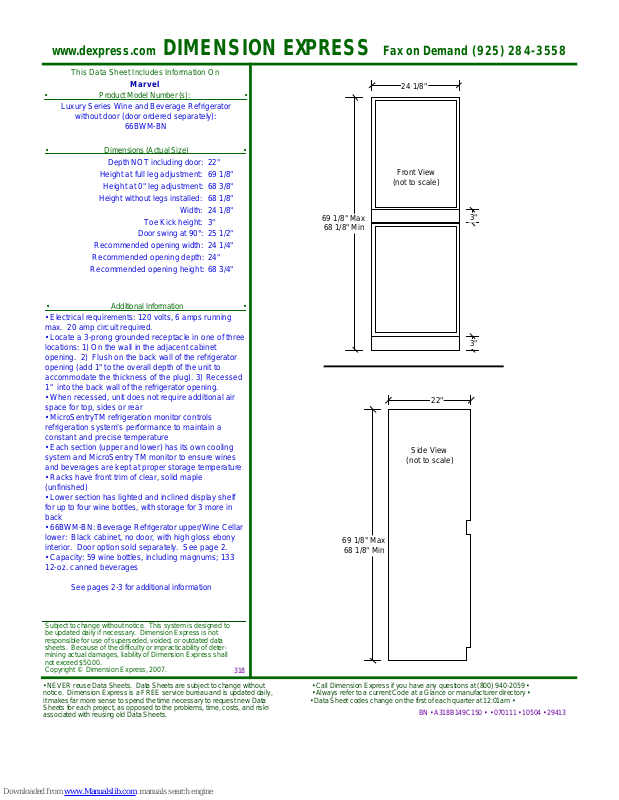

Page 1
www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Luxury Series Wine and Beverage Refrigerator
without door (door ordered separately):
66BWM-BN
• Dimensions (Actual Size) •
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
Width:
22"
69 1/8"
68 3/8"
68 1/8"
24 1/8"
3"
25 1/2"
24 1/4"
24"
68 3/4"
• Additional Information •
• Electrical requirements: 120 volts, 6 amps running
max. 20 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• When recessed, unit does not require additional air
space for top, sides or rear
• MicroSentryTM refrigeration monitor controls
refrigeration system's performance to maintain a
constant and precise temperature
• Each section (upper and lower) has its own cooling
system and MicroSentry TM monitor to ensure wines
and beverages are kept at proper storage temperature
• Racks have front trim of clear, solid maple
(unfinished)
• Lower section has lighted and inclined display shelf
for up to four wine bottles, with storage for 3 more in
back
• 66BWM-BN: Beverage Refrigerator upper/Wine Cellar
lower: Black cabinet, no door, with high gloss ebony
interior. Door option sold separately. See page 2.
• Capacity: 59 wine bottles, including magnums; 133
12-oz. canned beverages
69 1/8" Max
68 1/8" Min
69 1/8" Max
68 1/8" Min
24 1/8"

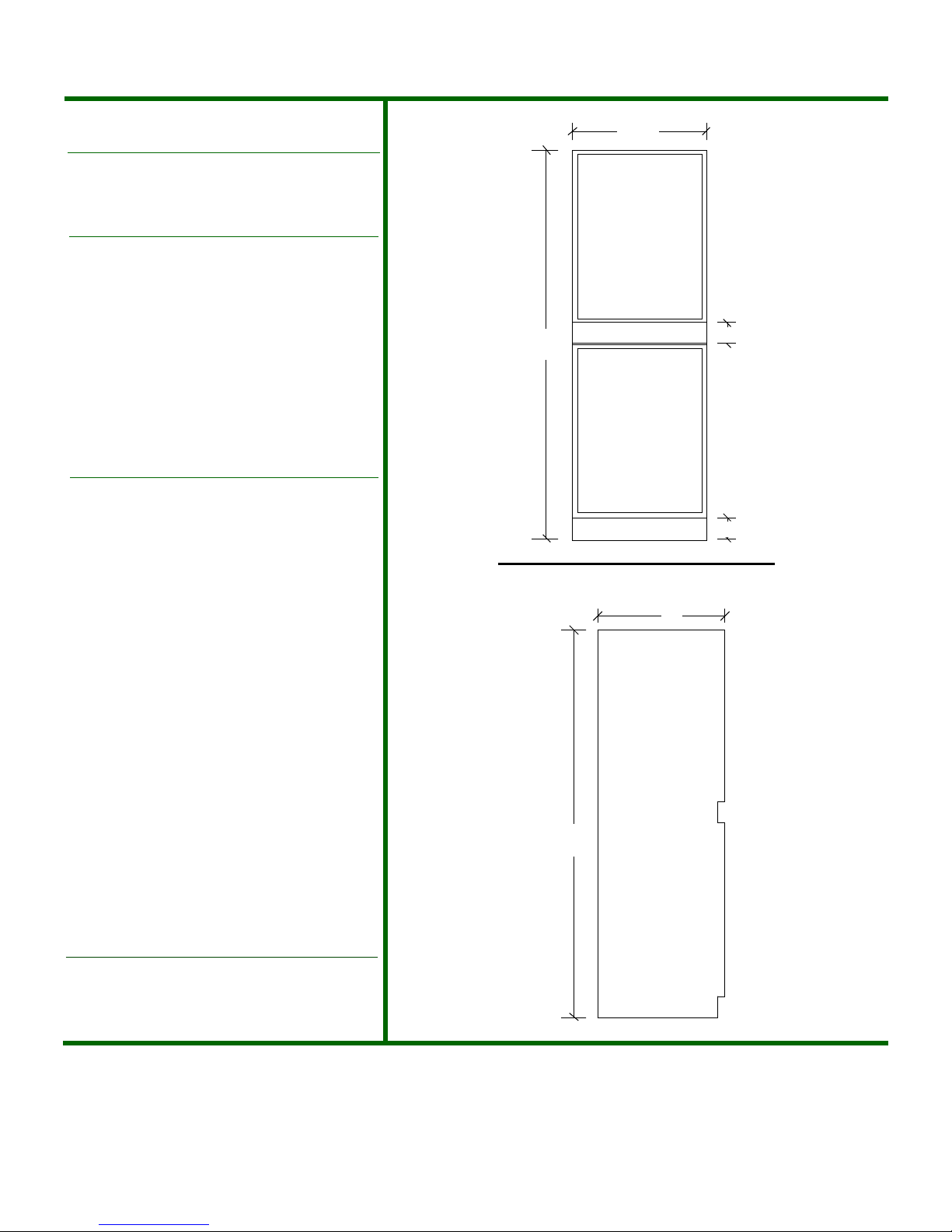

Front View
(not to scale)
3"
3"
22"
Side View
(not to scale)
See pages 2-3 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
318
BN • A318B149C150 • • 070111 • 10504 • 29413
Page 2
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:
• Door is reversible in field.
• Wine racks and beverage shelves may be extended at 90° door
opening.
• Shipping weight: 356 pounds.
• U.L. Listed.
Door options:
1) Overlay Glass Door: P/N 42246488. Accepts customer supplied
wood frame overlay and handle, see below. Unit requires two doors.
Add 1 3/8” to depth for door without wood frame overlay or handle.
2) Overlay Solid Door: P/N 42246489 black with black liner. Accepts
customer supplied wood overlay panel and handle, see page 3. Unit
requires two doors. Add 1 3/8” to depth for door without overlay panel
or handle.
3) Full Wrap Glass Door with professional style bar handle: P/N
42246486 black frame with black handle or P/N 42246487 stainless
frame with stainless handle. Unit requires 2 doors. Add 2 1/4” to depth
for door and 2 1/8” for bar handle.
Page 2
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Luxury Series Wine and Beverage Refrigerator
without door (door ordered separately):
66BWM-BN
Accessories:
• Designer full -length bar handle in stainless steel (P/N 42244405),
black (P/N 42245084) or white (P/N 42245085).
1 3/4" min

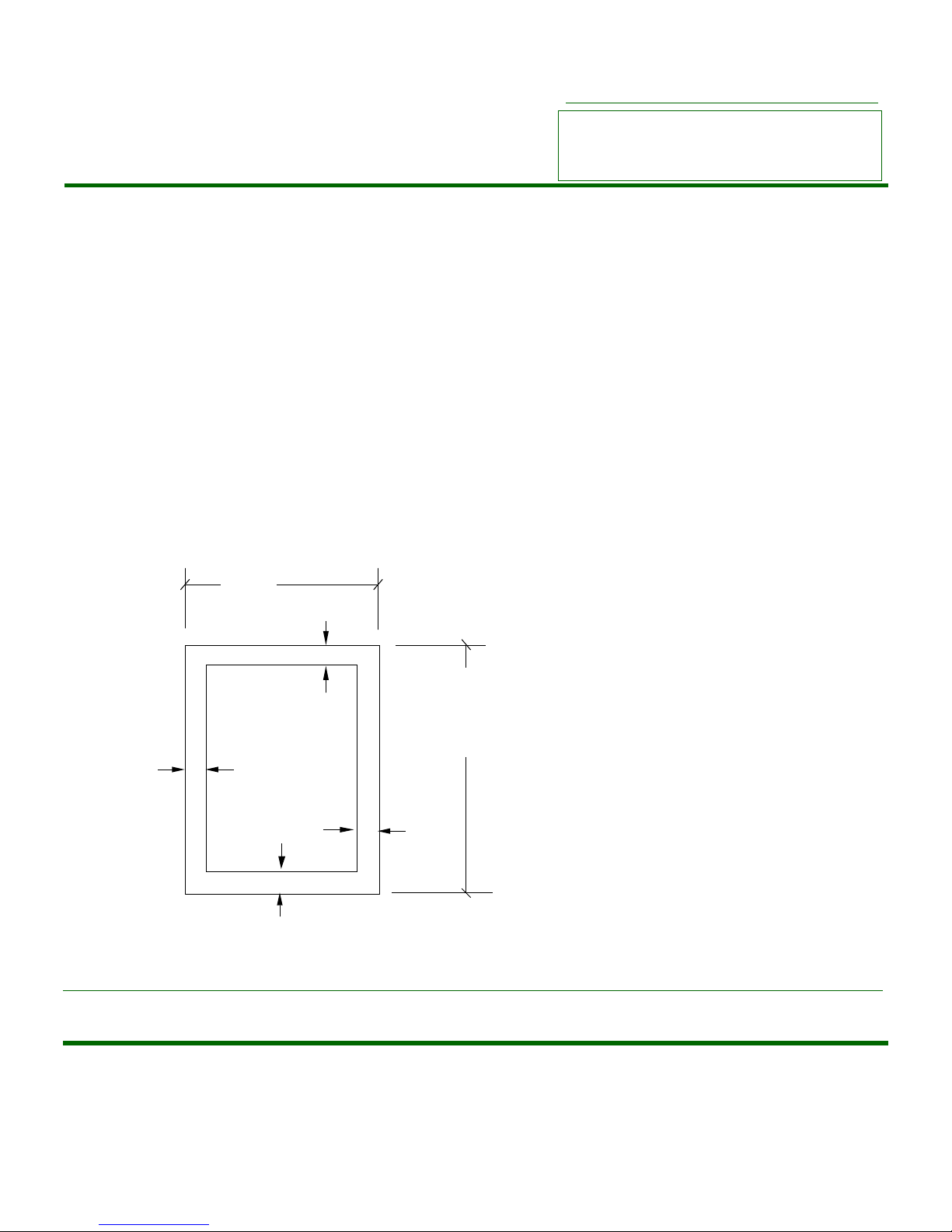

Custom Overlay Glass Door Frame Dimensions
(not to scale)
23 7/16"
1 3/4" min
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
Front View
1 3/4"
min
1 3/4" min
Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
149
BN • A318B149C150 • • 070111 • 10504 • 29413
Page 3
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:

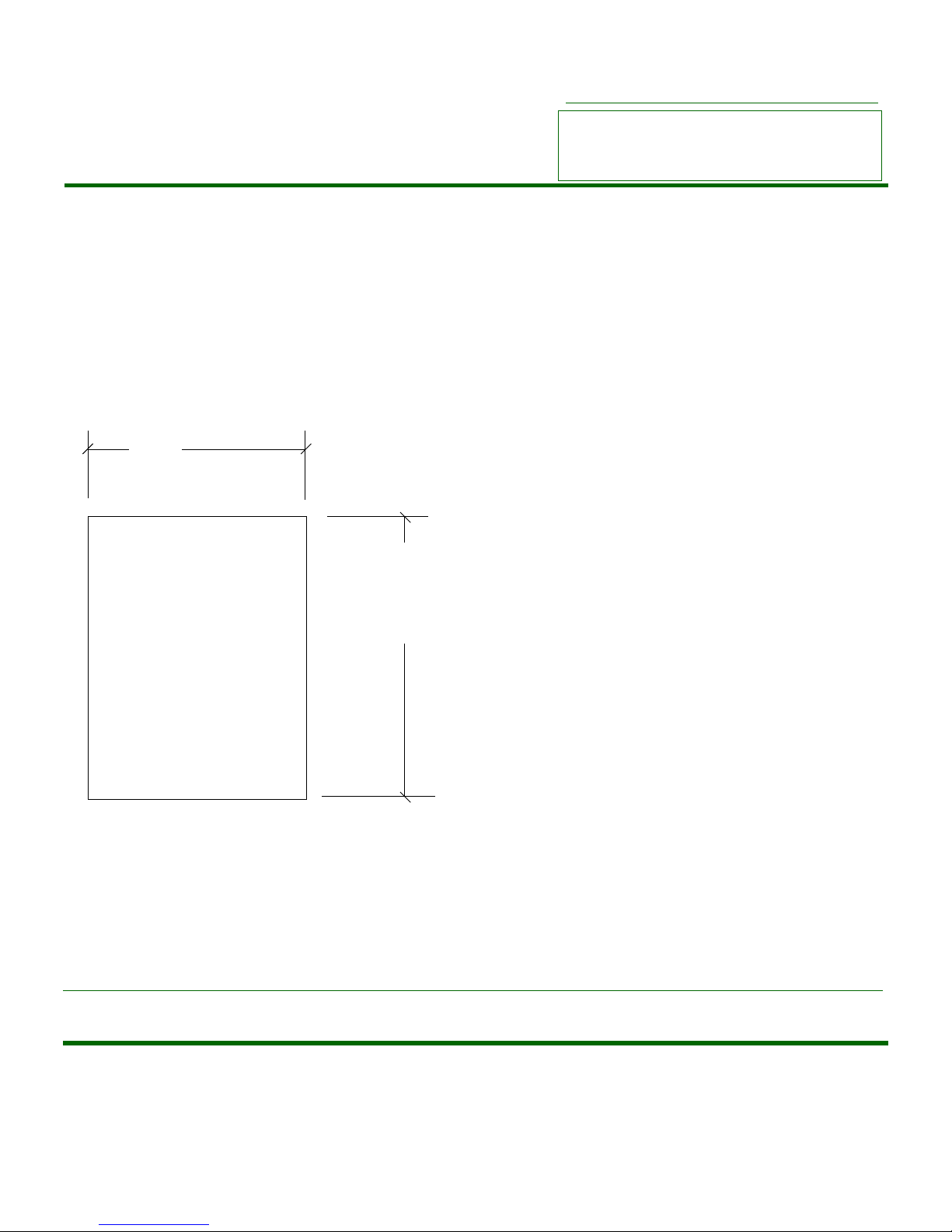

Custom Overlay Solid Door Dimensions
(not to scale)
23 3/4"
Page 3
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Luxury Series Wine and Beverage Refrigerator
without door (door ordered separately):
66BWM-BN
30 5/16" for
3 1/2" toe kick
Min. thickness: 5/8"
Max. thickness: 3/4"
Max. weight: 20 lbs
29 13/16" for
4" toe kick
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
BN • A318B149C150 • • 070111 • 10504 • 29413
150
