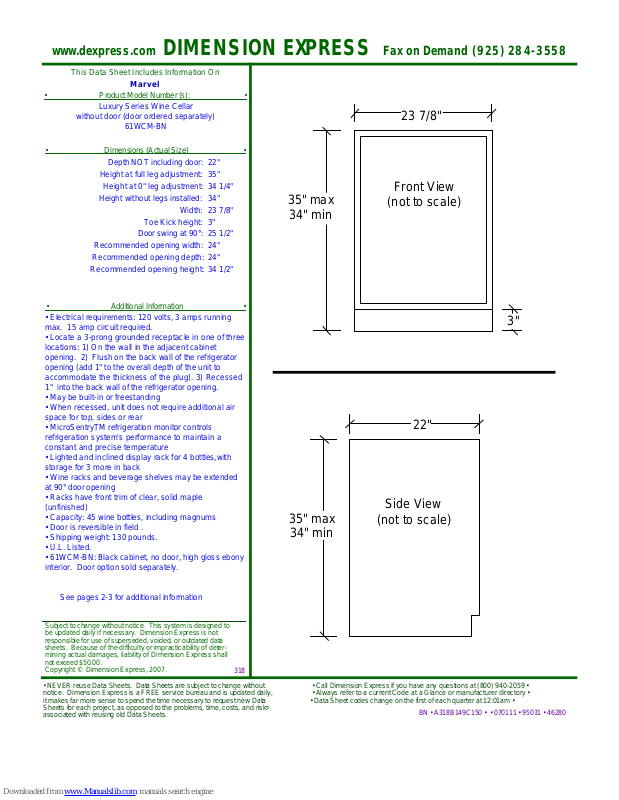

This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Luxury Series Wine Cellar
without door (door ordered separately)
• Dimensions (Actual Size) •
Recommended opening width:
Recommended opening depth:
Recommended opening height:
• Additional Information •
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• May be built-in or freestanding
• When recessed, unit does not require additional air
space for top, sides or rear
• MicroSentryTM refrigeration monitor controls
refrigeration system's performance to maintain a
constant and precise temperature
• Lighted and inclined display rack for 4 bottles,with
storage for 3 more in back
• Wine racks and beverage shelves may be extended
at 90° door opening
• Racks have front trim of clear, solid maple
(unfinished)
• Capacity: 45 wine bottles, including magnums
• Door is reversible in field .
• Shipping weight: 130 pounds.
• U.L. Listed.
• 61WCM-BN: Black cabinet, no door, high gloss ebony
interior. Door option sold separately.
61WCM-BN
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Width:
Toe Kick height:
Door swing at 90°:
22"
35"
34 1/4"
34"
23 7/8"
3"
25 1/2"
24"
24"
34 1/2"
35" max
34" min
35" max
34" min
23 7/8"

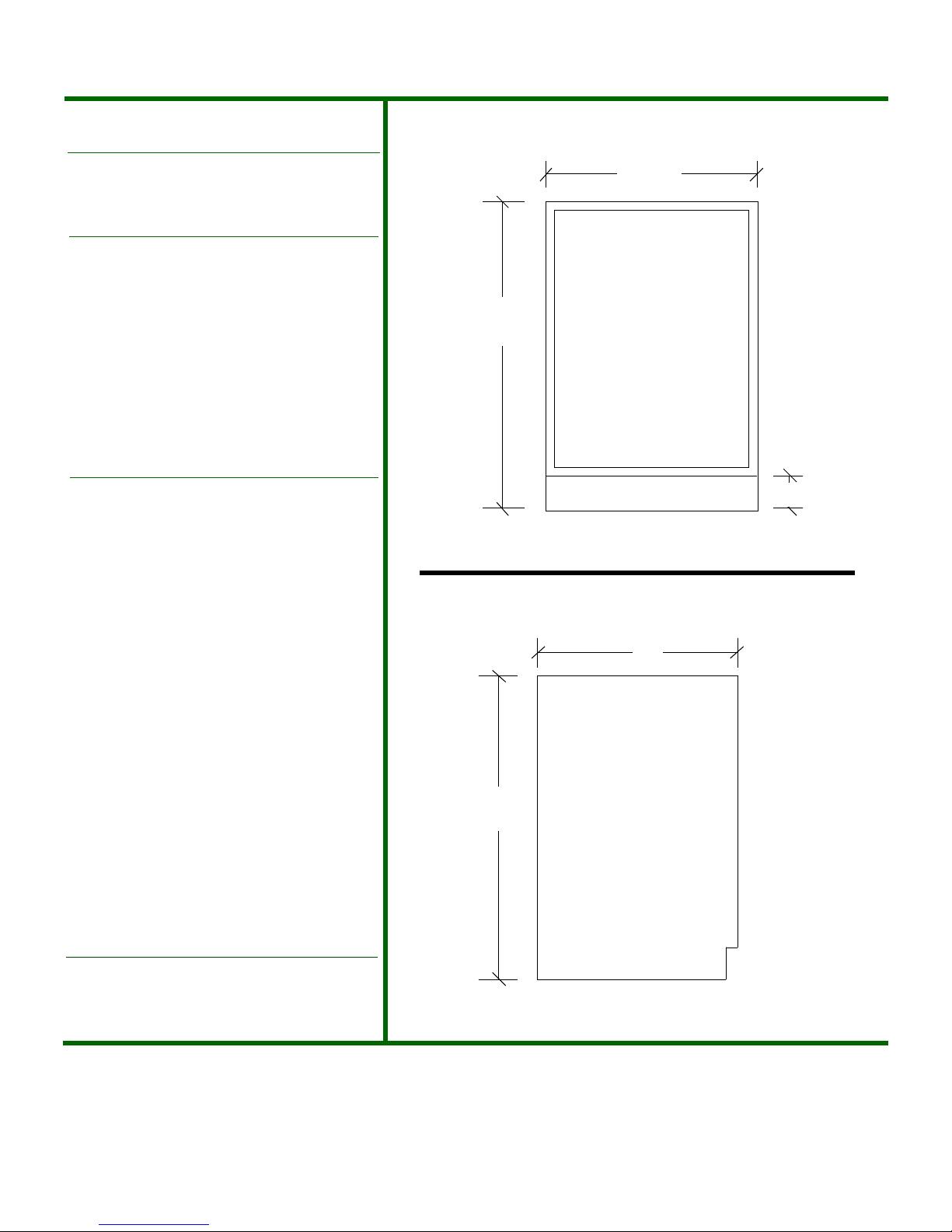

Front View
(not to scale)
3"
22"
Side View
(not to scale)
See pages 2-3 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
318
BN • A318B149C150 • • 070111 • 95031 • 46280
Page 2
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:
Door options:
1) Overlay Glass Door: P/N 42246488. Accepts customer supplied
wood frame overlay and handle, see below. Add 1 3/8” to depth for
door without wood frame overlay or handle.
2) Overlay Solid Door: P/N 42246489 black with black liner. Accepts
customer supplied wood overlay panel and handle, see page 3. Add 1
3/8” to depth for door without overlay panel or handle.
3) Full Wrap Glass Door with professional style bar handle: P/N
42246486 black frame with black handle or P/N 42246487 stainless
frame with stainless handle. Add 2 1/4” to depth for door and 2 1/8” for
bar handle.
Page 2
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Luxury Series Wine Cellar
without door (door ordered separately)
61WCM-BN
Accessories:
• Casters: P/N 42244041.
• Humidrawer Cigar Storage Compartment: P/N 42242728.
1 3/4" min

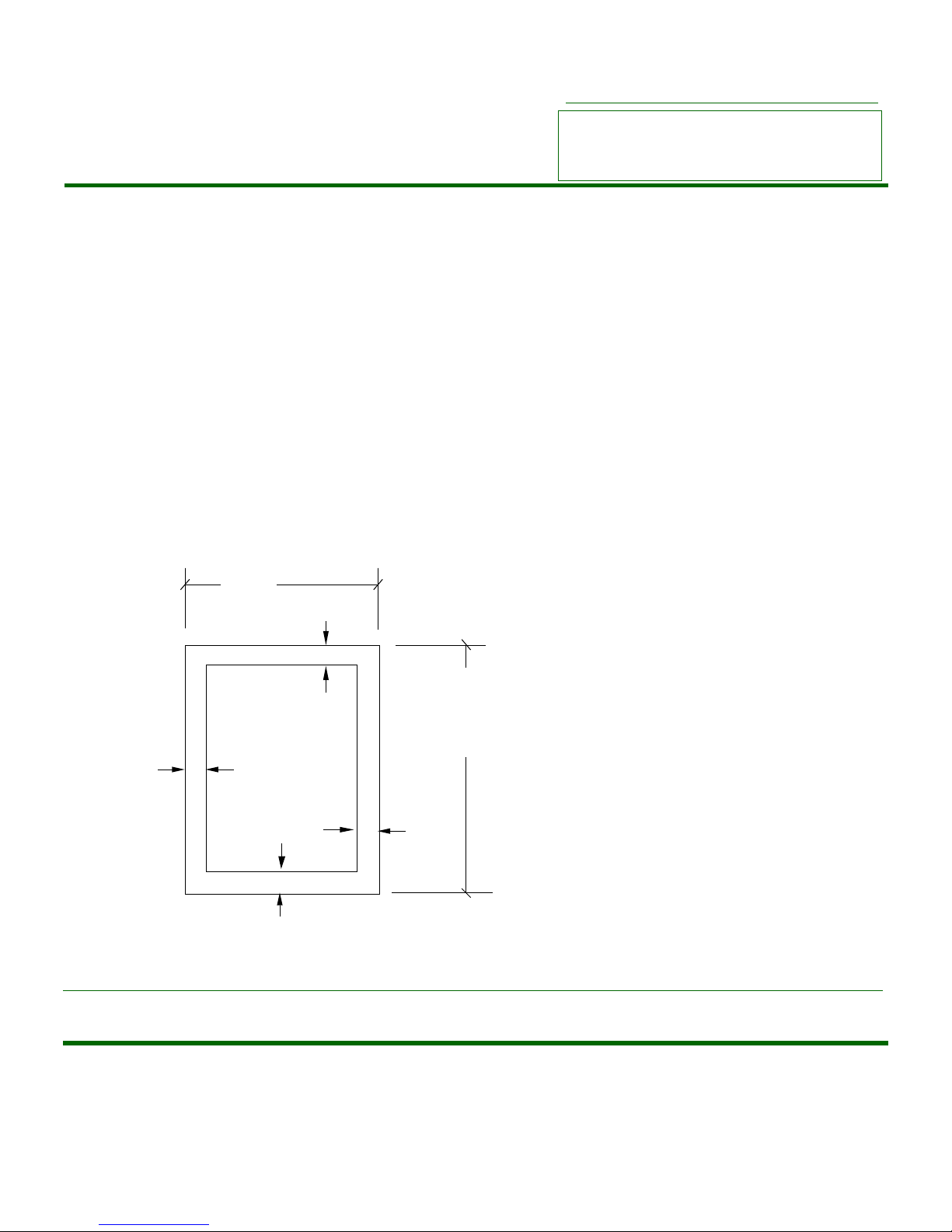

Custom Overlay Glass Door Frame Dimensions
(not to scale)
23 7/16"
1 3/4" min
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
Front View
1 3/4"
min
1 3/4" min
Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
Subject to change without notice. This system is designed to be updated daily if necessary. Dimension Express is not responsible for use of superseded, voided, or
outdated data sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
149
BN • A318B149C150 • • 070111 • 95031 • 46280
Page 3
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:

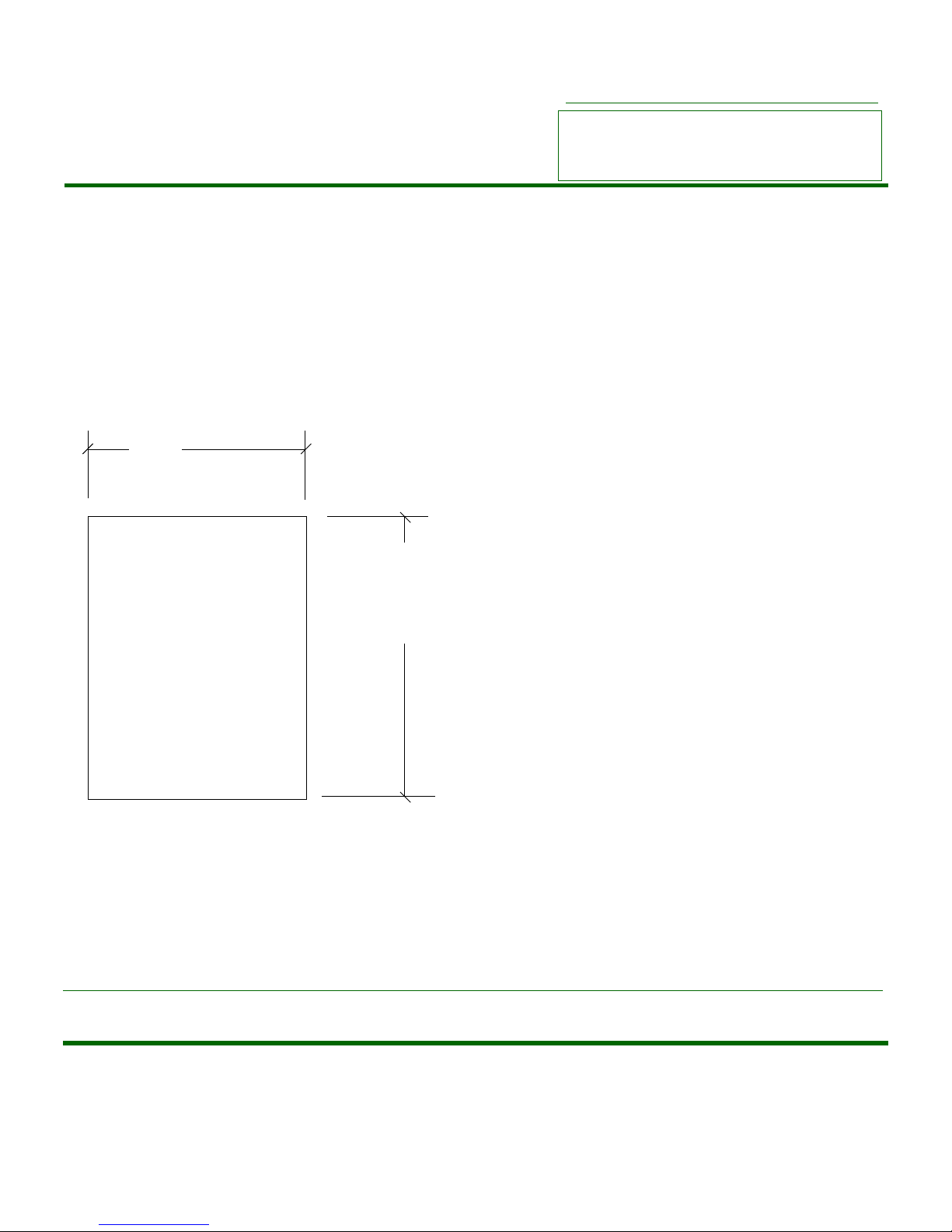

Custom Overlay Solid Door Dimensions
