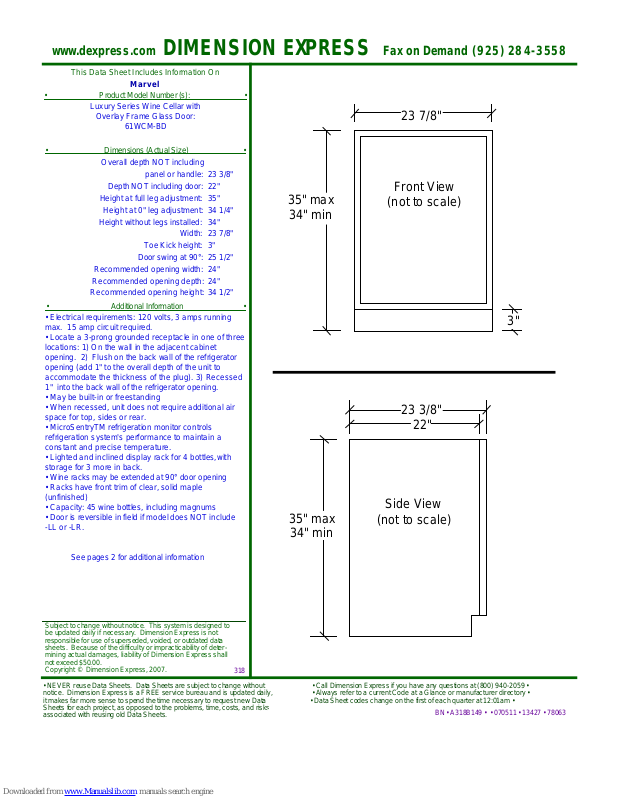

This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Luxury Series Wine Cellar with
Overlay Frame Glass Door:
61WCM-BD
• Dimensions (Actual Size) •
Overall depth NOT including
panel or handle:
Depth NOT including door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
• Additional Information •
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• May be built-in or freestanding
• When recessed, unit does not require additional air
space for top, sides or rear.
• MicroSentryTM refrigeration monitor controls
refrigeration system's performance to maintain a
constant and precise temperature.
• Lighted and inclined display rack for 4 bottles,with
storage for 3 more in back.
• Wine racks may be extended at 90° door opening
• Racks have front trim of clear, solid maple
(unfinished)
• Capacity: 45 wine bottles, including magnums
• Door is reversible in field if model does NOT include
-LL or -LR.
Width:
23 3/8"
22"
35"
34 1/4"
34"
23 7/8"
3"
25 1/2"
24"
24"
34 1/2"
35" max
34" min
35" max
34" min
23 7/8"

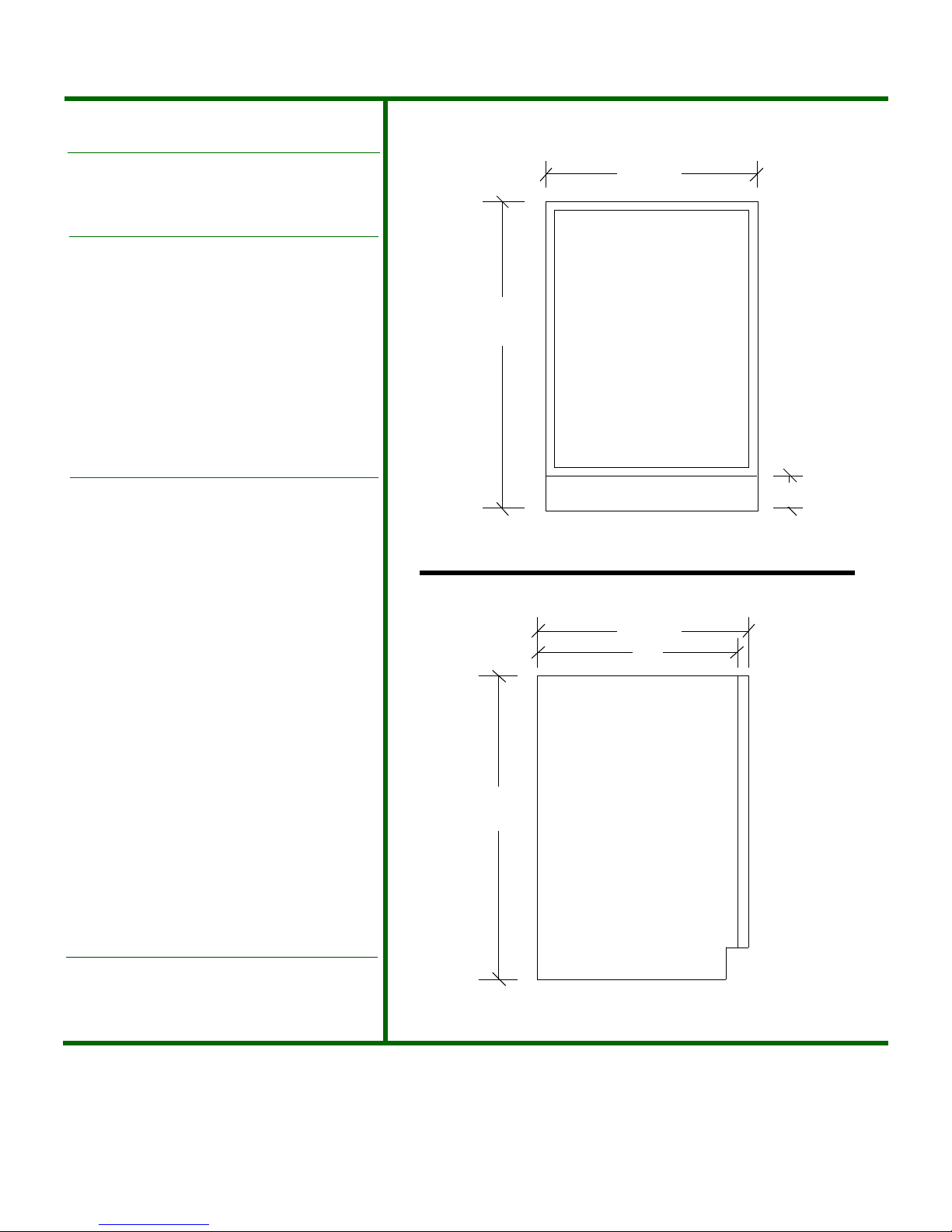

Front View
(not to scale)
3"
23 3/8"
22"
Side View
(not to scale)
See pages 2 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
318
BN • A318B149 • • 070511 • 13427 • 78063
Page 2
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (925) 284-3558
Additional Information:
• Door lock (when -LL, left hand hinge or -LR, right hand hinge is added
to the model number), top center of door. Door with lock is not field
reversible.
• Shipping weight: 130 pounds.
• U.L. Listed.
• Accepts custom frame. Custom frame and handle must be supplied
by customer, see page 2.
• 61WCM-BD: Black cabinet, Designer overlay frame glass door, high
gloss ebony interior.
Accessories:
• Humidrawer Cigar Storage Compartment: P/N 42242728.
• Casters: P/N 42244041.
• Designer full-length bar handle in stainless steel (P/N 42244405),
black (P/N 42245084) or white (P/N 42245085).
Page 2
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Luxury Series Wine Cellar with
Overlay Frame Glass Door:
61WCM-BD
15/32"
1 3/4" min

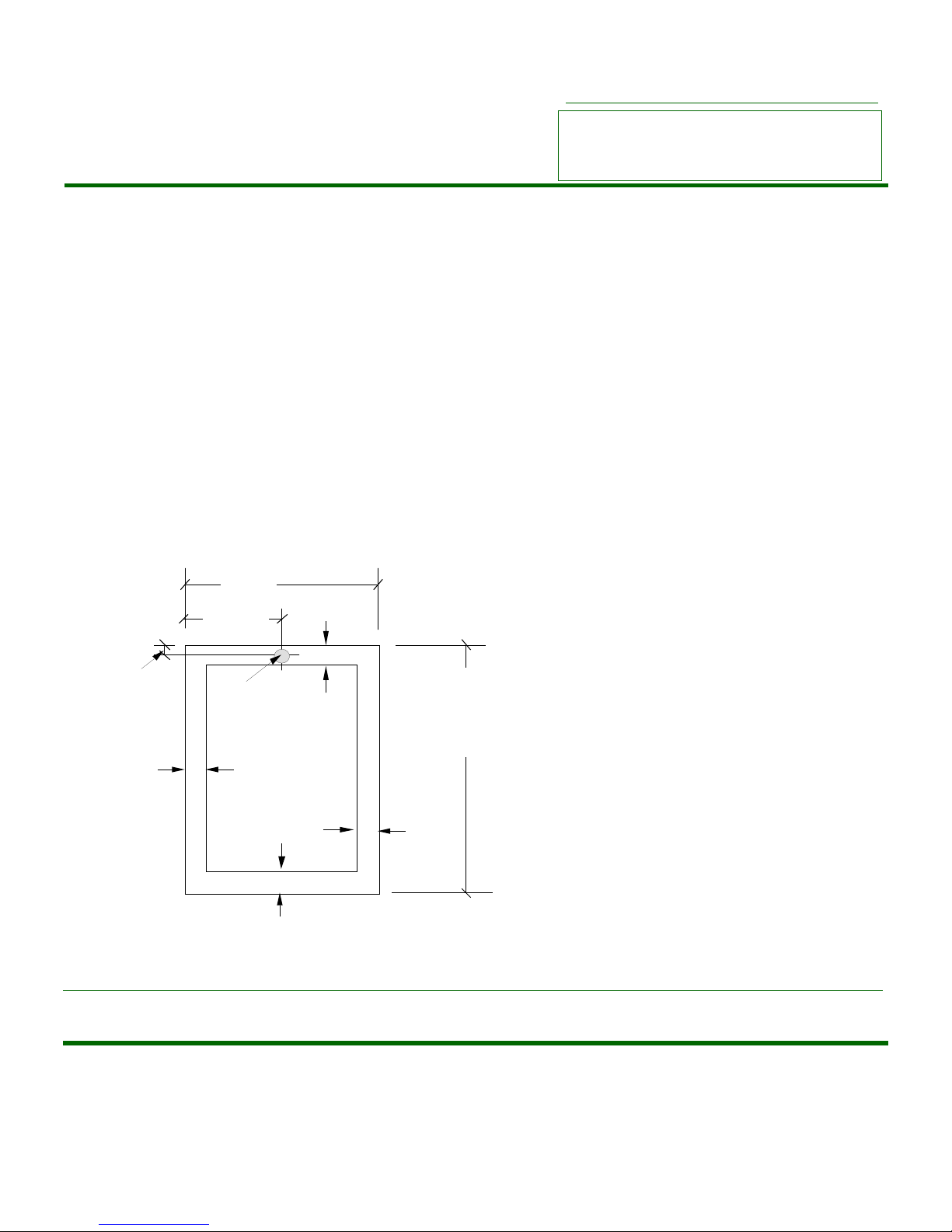

Custom Overlay Glass Door Frame Dimensions
(not to scale)
23 7/16"
11 23/32"
Optional
Lock
Location
1 3/4" min
Front View
1 3/4" min
30 5/16" for
3 1/2" toe kick
29 13/16" for
4" toe kick
1 3/4"
min
For doors with locks installed (-LR or -LL
included in model number). It will be necessary
to drill a hole in the overlay door frame,
corresponding to the lock location, prior to
assembly. Hole diameter through overlay frame
should be 15/32" with a 13/16" counterbore from
back side of panel, 7/16" deep.
Min. thickness of rails and stiles: 5/8"
Max. thickness of rails and stiles: 3/4"
