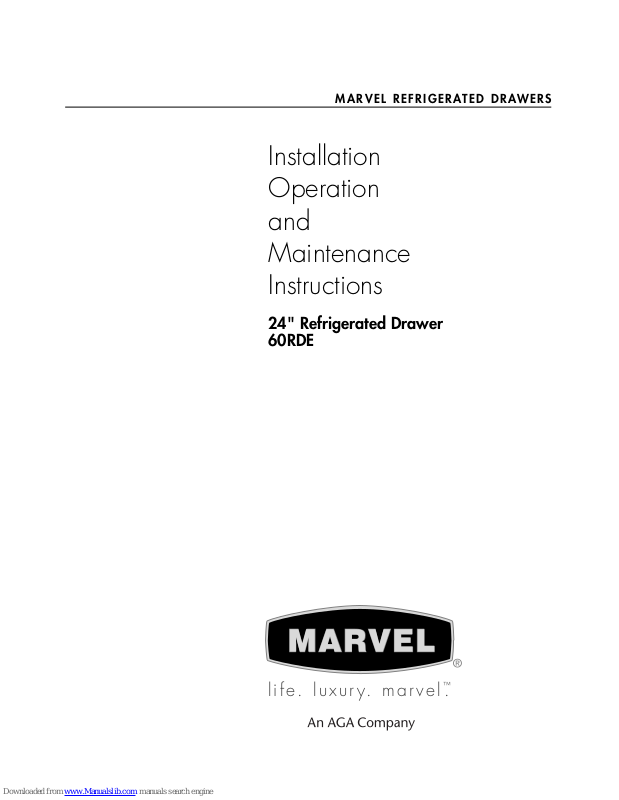

MARVEL REFRIGERATED DRAWERS
life. luxury. marvel™.
Installation
Operation
and
Maintenance
Instructions
24" Refrigerated Drawer
60RDE
Page 2
Page 3
STARTING OUT
2
Remove Packaging
Your refrigerated drawer has been packed for
shipment with all parts that could be damaged by
movement securely fastened. Before installing the
refrigerated drawer, be sure all packing materials
and tape have been removed.
Important
Keep your carton packaging until your refrigerated
drawer has been thoroughly inspected and found to
be in good condition. If there is damage, the
packaging will be needed as proof of damage in
transit.
Note to Customer
This merchandise was carefully packed and
thoroughly inspected before leaving our plant.
Responsibility for its safe delivery was assumed by
the carrier upon acceptance of the shipment. As
directed on the side of your packing carton, claims
for loss or damage sustained in transit must be
made on the carrier as follows:
Exterior Damage
Make thorough damage notation on your delivery
receipt and have driver acknowledge by signature
and date. Send a written request asking for an
inspection report from carrier. Include the name of
carrier representative and the date the inspection
was requested. Retain inspection report and
receipt for filing of a claim.
Concealed Damage
This must be reported to the carrier within fifteen
days. Obtain inspection report from the carrier.
Retain the inspection report for filing the claim.
DO NOT RETURN DAMAGED MERCHANDISE TO
THE MANUFACTURER – FILE THE CLAIM WITH THE
CARRIER.
60RDE Refrigerated Drawer Specifications
Dimensions WxHxD (in.) 237/8 x 34 x 241/4
Weight 170 lbs.
Capacity 5.8 cubic feet
Temperature 33–47°F
Power Supply 115V
supplied with a 15 amp plug
IT IS IMPORTANT THAT YOU SEND IN
YOUR WARRANTY RECORD CARD
IMMEDIATELY AFTER TAKING DELIVERY
OF YOUR REFRIGERATION APPLIANCE.
Normal Responsibilities of the Owner
• All Freight charges
• Damage sustained in transit
• Mileage charge(s) for service calls
• Proper installation including installation
of leveling legs
• Leveling of unit
• Alterations to original equipment
• Cleaning and normal maintenance
outline in this manual
Page 4
Page 5
OPERATION
4
Start Your Appliance
Your appliance will start upon initial plug-in. The LED
will flash amber upon this initial plug-in due to your
unit being powered-on at the factory to verify
performance and then powered-off. The Sentry system
senses a power outage has occurred and relays this
information to you when you initially power-on your
appliance. This is normal and pressing the
“ON/OFF” button will reset this alarm function.

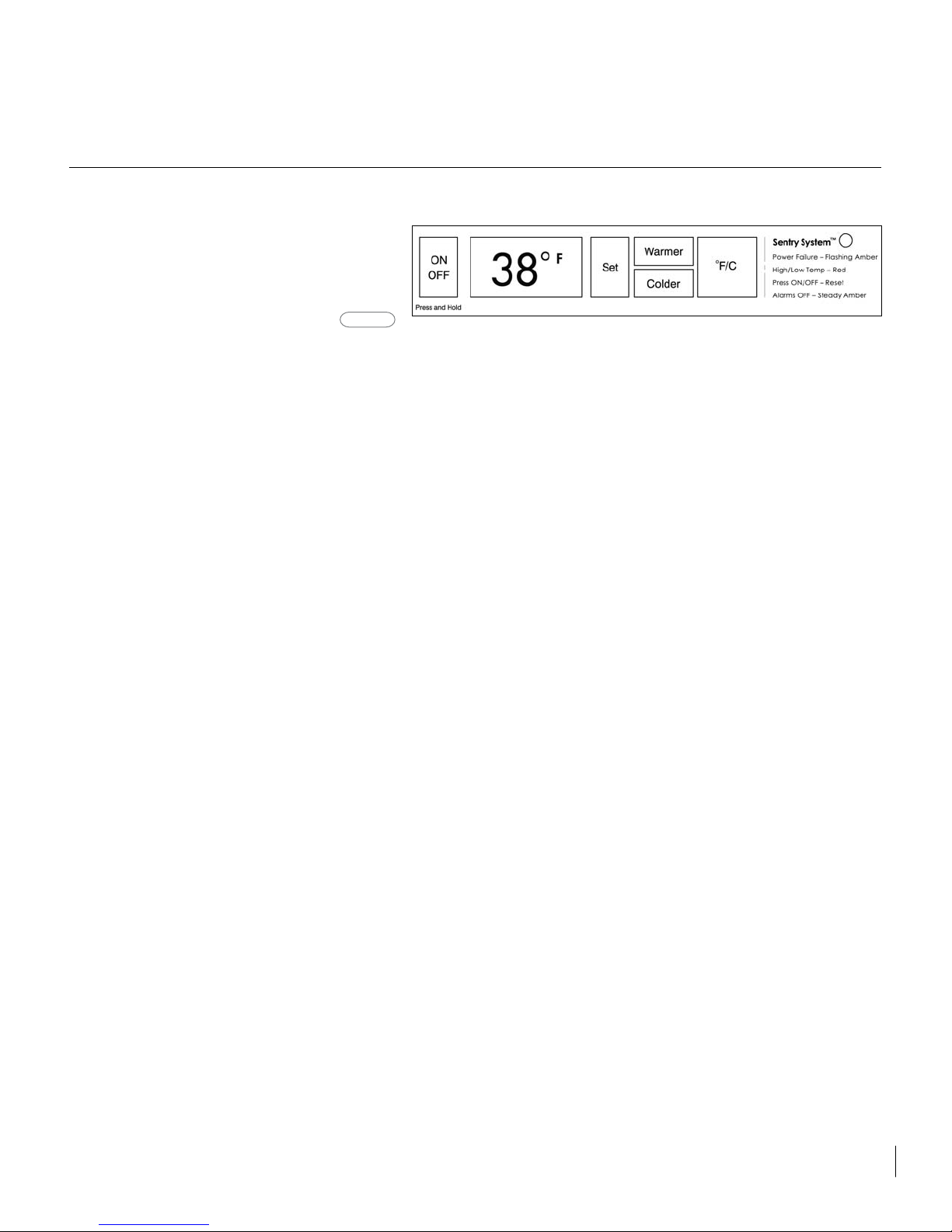

If your appliance’s control has been shut-off i.e., unit
plugged in, interior lights operate, display blank,
unit must be turned on. To turn on your appliance,
push and hold for 5 seconds, the “ON/OFF” button
located on the display panel. (See figure 3) Once
products are loaded, allow at least 48 hours for the
unit to stabilize before making any adjustments to
the initial setting.
Set Your Temperature Mode
This product can display either Fahrenheit or Celsius.
To do this press the ”°F/C“ button on display panel.
Set the Controls
The available temperature range of the unit is from
33° to 47°F. The temperature set-point is initially set
in the factory at 38°F. The temperature set-point can
be lowered or raised by first pushing the “Set” button
on the display pad. A “SET” icon will be displayed.
This icon will turn off 10 second after completing
your adjustments. Pushing either the “Warmer” or
“Colder” buttons located on the inside of the unit on
the display pad will raise or lower the set
temperature by one degree F or C (depending on
your setting). As with any refrigeration product, there
is a slight temperature variance at different locations
within the cabinet.
Adjustable Temperature Control
The temperature control is fully adjustable from 33°
to 47°F. The range allows flexibility of temperature
preferences and provides the ideal storing and
serving temperatures.
Interior Light
The upper and lower interior lights make it easy to
view your food and beverages. The light will always
come on when either drawer is opened.
Warning Alarms
Your unit has been fitted with a Sentry system. This
sentry will let you know if your unit is not functioning
properly for optimum food and beverage storage.
Door Ajar Alarm
If a drawer has been left open for over 5 minutes the
alarm will sound and the LED will flash green. This
will stop as soon as the drawer is closed.
High and Low Temperature
If your unit reaches temperatures outside normal
operating temperatures for your set-point for about
one (1) hour duration, an alarm will sound and the
LED will flash red. This will warn you that your food
and beverages have seen temperatures that may not
be conducive for long term storage.
Power Failure
If your unit experiences a power failure the LED will
flash amber until the alarm is reset.
Reset Alarms
Press the “ON/OFF” button for approximately one
second. This will reset all audible and display alarms.
Sabbath Mode
Your appliance is equipped with a Sabbath mode.
By activating this mode you will be disabling all
displays, audible alarms and lights. The system will
be overridden with a random control. To activate the
Sabbath mode press and hold the “Set” button while
pressing the ”°F/C“ button 7 times within 7 seconds.
To disable the Sabbath mode repeat the process.
The Sabbath mode will deactivate after 96 hours.
figure 3
Page 6
Page 7
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
6
Step 1:
Determine Wood Screw Requirements
1. A #8 pan head wood screw should be used to
properly secure the overlay panel. A total of 8
screws will be needed.
2. Use only pan head screws.
3. Do not select a screw that is longer than the
wood thickness at the screw locations.
4. Use recommended pilot holes for the frame
material (see chart below).
Pilot Hole Drill Sizes for Wood Screws
Material Type Wood Screw Size
Work Material 8
Hardwood 3/32
Softwood 5/64
Step 2
Remove Drawer Fronts
(Note: The overlay panel may be installed without
removing the drawer fronts from the drawer bodies,
but the full drawer assembly is not as easy to
handle as the drawer front alone.)

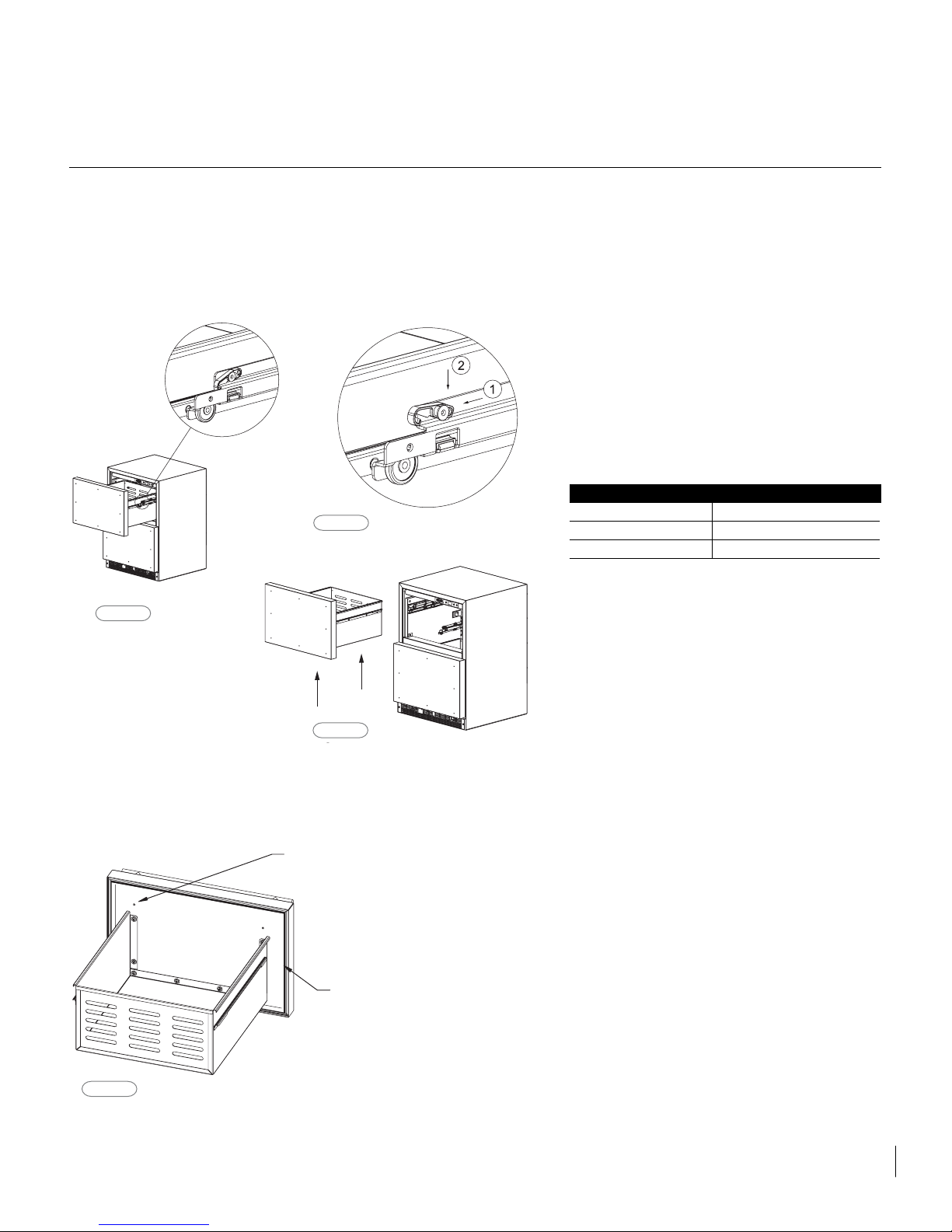

1. Remove drawer from unit. Begin by pulling out
the drawer. Locate the drawer lock which can be
found on the outside of the cabinet slide. (Figure
4) Push the back of the drawer lock forward and
then down, releasing the drawer from the
cabinet slide. (Figure 5) Repeat this on the
opposite side of the drawer. Lift the drawer up
from the slides at a 90° angle to fully extricate
the drawer from the cabinet. (Figure 6)
2. Remove drawer fronts. Do this by removing the
8 phillips screws and washers securing the
drawer front to the drawer body. (Figure 7) Mark
lightly with an erasable marker the position of
the stainless drawer liner as it is secured to the
stainless drawer before removing screws.
3. Remove the gasket from the drawer front. Do this
by pulling the gasket out of the channel that
holds it to the drawer front. This will expose the
clearance holes for mounting the overlay panel.
figure 4
figure 1
figure 5
figure 2
figure 7
figure 6
figure 3
5/16 PHILLIPS HEAD SCREWS
HOLDING DRAWER FRONT
GASKET
Page 8
Page 9
TROUBLESHOOTING
8
Before Calling for Service
Before calling for service, check the troubleshooting table on this page. This table lists possible
problems that you can remedy without difficulty to
avoid an unnecessary service call.
Help Prevent Tragedies
Each year children die because they climb inside a
discarded refrigeration product, get trapped inside
and suffocate. Take precautions to prevent such
tragedies by removing the door, taping or chaining
it shut before discarding.
Possible Causes/Solutions
•
Interior needs cleaning
•
Cabinet not level
•
Weak floor
•
Cabinet not level
•
Weak floor
•
Tube burned out
•
No power at outlet
•
”ON/OFF” button pressed
•
Line cord not plugged in
•
No power at electrical outlet
•
House fuse blown
•
Prolonged door openings
•
Control set too cold
•
Condenser needs cleaning
•
Too many door openings
•
Prolonged door openings
•
Hot, humid weather increases condensation
•
Control improperly set
•
Hot, humid weather increases condensation. As
humidity decreases, moisture will disappear.
•
Control improperly set
•
Control improperly set
•
Faulty thermometer
•
Relocate thermometer to center of cabinet and
recheck
•
See “Warning Alarms” on page 4
•
See “Alpha Control ‘Quick’ Reference”
•
Temperature alarm may occur after user selected
temperature set-point changes in excess of 10
degrees F or during heavy usage conditions.
This is normal and not a fault of the appliance.
The Sentry System is monitoring the duration of
large swings in temperature to protect your
contents, and may alert you to this event. See
“Reset Alarms” section on page 4.
Problem
Odor in cabinet
Noisy operation
Cabinet vibrates
Cabinet light not working
Appliance will not run
Appliance runs too long
Moisture collects inside
Moisture collects on
outside surface
Interior too hot/too cold
Sentry System activated
Page 10
Page 11
WARRANTY
EEnntt iirree PP rroodduu cctt
LLiimmiittee dd OOnnee YYee aa rr PP aa rrtt ss aann dd LLaabboo rr
WWaa rrrr aa nn tt yy
Marvel warrants that it will supply all necessary
parts and labor to repair or replace in the end
user’s home or office, any component which proves
to be defective in material or workmanship, subject
to the condition and exclusions stated below, for a
period of one year from the date of purchase by
the end user.
AAdd ddiittiioonnaall SSee cc oo nn dd TThh rroo uu gghh FFii ff tthh YYee aa rr
LLiimmii ttee dd PP aa rrttss OOnnll yy WWaa rrrr aa nn tt yy
During the four years following expiration of the
one year limited warranty
, Marvel will supply
replacement parts for the hermetically sealed refrigeration system which consists of the compressor,
condenser, drier, accumulator, by-pass valve, connecting tubing and the evaporator that are proven
to be defective due to workmanship or materials
subject to the conditions and exclusions below.
The above warranties do not cover:
• Shipping costs of replacement parts or returned
defective parts.
• Customer education or instructions on how to
use the appliance.
• Any content loss due to product failure.
• Removal or installation.
Nor do the above warranties cover failure of this
product or its components due to:
1.Transportation or subsequent damages.
2.Use commercially or use other than normal
household or small office.
3.Improper installation, misuse, abuse, accident or
alteration, use on wiring not conforming to electrical codes, low or high voltages, failure to provide necessary maintenance, or other unreasonable use.
PP aa rrtt ss oo rr SSee rrvvii cc ee
NN oo tt SSuu ppppll ii eedd oorr DDee ss iiggnnaattee dd bbyy MMaarrvv ee ll
The above warranties also do not apply if:
The original bill of sale, deliver date or serial number cannot be verified.
Defective parts are not returned for inspection if so
requested by Marvel.
The refrigeration equipment is not in the possession
of the original end use purchaser.
The warranties set forth herein are the only warranties extended by Marvel Industries. Any implied
warranties, including the implied warranty of merchantability
, are limited to the duration of these
express warranties. In no event shall Marvel
Industries be liable for any consequential or incidental damages or expenses resulting from breach
of these or any other warranties, whether express
or implied.
Some states do not allow the exclusion or limitation
of consequential damages or a limitation on how
long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may
have other rights that may vary from state to state.
No person, firm, or corporation is authorized to
make any other warranty or assume any other obligation for Marvel Industries. These warranties
apply only to products used in any of the fifty states
of the United States and the District of Columbia.
To obtain performance of this warranty, report any
defects to:
MM aa rrvv ee ll IInndduu ss ttrrii eess
PP..OO.. BB ooxx 999977
RR iicchh mmoonndd,, II nndd iiaannaa 44 77337755 --00 999977
PPhh oo nnee:: 77 6655--9966 22--22 552211
10
Page 12
Loading...
