Marvel Industries 5CAR, 5CAF User Manual

Manual Part No. : 50897001

Rev: 00

Print Date: 02/17/04

Installation and Operation Instructions

P.O. Box 997 Richmond, IN 47375

Phone: [phone] Fax: [phone] Website: www.marvelscientific.com

For Models: 5CAR & 5CAF

Recessable Undercounter Refrigerators & Freezers

PART OF AGAR FOODSERVICE GROUP

Thank you for purchasing a Marvel Scientific Undercounter Refrigerator or Freezer!

This unit has passed our strict Quality Control Inspection and meets the high standards

set by Marvel Scientific. You have made a quality investment that with proper

maintenance will give you years of service.

Please read the following installation and maintenance instructions before installing or

using your unit. If you have any questions, please call our Customer Service

Department at [phone].

IMPORTANT INFORMATION - PLEASE READ

●●

Please read these instructions carefully before installing or using. If recommended

procedures are not followed, warranty claims will be denied.

●●

Your Warranty Registration information is located on the next page of this manual. Please

complete the card and submit it to Marvel Scientific within 10 days of installation.

Failure to properly register equipment can void the warranty.

●●

Marvel Scientific reserves the right to change specifications and product design without

notice. Such revisions do not entitle the buyer to corresponding changes, improvements,

additions or replacements for previously purchased equipment.

THANK YOU

Entire Product - One Year Parts and Labor Warranty.

MARVEL warrants to the original purchaser that it will
supply all necessary parts and labor to repair or replace
in the end user’s establishment, any component which is
found by an authorized representative of MARVEL to be
defective in materials or workmanship, subject to the
conditions and exclusions stated below, for the period of
one year from date of purchase by the end user.

Refrigeration System- Additional Second Through
Fifth Year Parts Only Warranty. During the four years

following expiration of the One Year Warranty, MARVEL
warrants to the original purchaser that it will supply
replacement parts for the hermetically sealed
refrigeration systems which consists of the compressor,
evaporator, condenser, drier, and connecting tubing that
are found by an authorized representative of MARVEL to
be defective in workmanship or materials. Other parts,
labor costs, and freight charges are the responsibility of
the end user.

If MARVEL is unable to repair or replace the defective
product or component, MARVEL shall issue a credit to
the buyer for all or part of the purchase price, as MARVEL
shall determine. The repair, replacement or payment in
the manner described above shall be the sole and
exclusive remedy of buyer for a breach of this warranty.

Buyer must give written notice of any alleged defect in
the product to MARVEL within 30 days after discovery of
the defect by buyer. If notice is not given within such
period, any claim for breach of warranty shall be
conclusively deemed to have been waived, and
MARVEL shall not be liable under these warranties.
MARVEL or its agents shall be entitled to examine the
product. MARVEL shall have the option of requiring the
return of the defective component, transportation
prepaid, to establish the claim. The acceptance by
MARVEL of any component returned shall not be
deemed an admission that the product is defective or in
breach of any warranty and, if MARVEL determines that
the product is not defective, the component shall be
reshipped to the buyer at buyer’s expense. No
component will be returned to MARVEL without its prior
consent.

The above warranties do not cover:

- Shipping costs of replacement parts or returned
defective parts.

- Customer education or instructions on how to use
the refrigerator/freezer.

- Any content loss, or incidental or consequential
damage or loss due to product failure.

- Removal or installation.

Nor do the above warranties cover failure of this product
or its components due to:

- Transportation, damage sustained in transit or sub­sequent damages.

- Use in hostile environments or use for storage of
contents hostile to the product.

- Improper installation, misuse, abuse, accident or
alteration, use on wiring not conforming to electri­cal codes, low voltage, failure to provide necessary
maintenance, or other unreasonable use.

- Parts or service not supplied or designated by
MARVEL.

The above warranties also do not apply if:

- The original Bill of Sale, delivery date or serial
number cannot be verified.

- The refrigeration equipment is not in the possession
of the original end use purchaser.

THE WARRANTIES SET FORTH HEREIN ARE THE
ONLY WARRANTIES EXTENDED BY MARVEL
INDUSTRIES AND ARE IN LIEU OF ALL
WARRANTIES, EXPRESS, IMPLIFIED, STATUTORY
OR OTHERWISE. IN PARTICULAR, MARVEL MAKES
NO WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.

MARVEL’S liability for any defect in the product shall not
exceed the purchase price of the product. MARVEL
SHALL HAVE NO LIABILITY FOR CONSEQUENTIAL
DAMAGES OF ANY KIND WHATSOEVER, INCLUDING,
BUT NOT LIMITED TO, PERSONAL INJURY,
PROPERTY DAMAGE, LOST PROFITS OR OTHER
ECONOMIC INJURY DUE TO ANY DEFECT IN THE
PRODUCT.

No person, firm or corporation is authorized to modify,
expand or extend these warranties, to waive any of the
limitations or exclusions, or to make any other warranty
or assume any other obligation for MARVEL
INDUSTRIES. These warranties apply only to products
used in any of the fifty states of the United States and the
District of Columbia.

To obtain performance of this warranty, report any
defects to:

MARVEL INDUSTRIES
P.O. Box 997
Richmond, Indiana 47375-0997
Phone: [phone] ●●Toll Free: (800) 962- 2521

MARVEL COMMERCIAL REFRIGERATION PRODUCTS

WARRANTY

Proper installation is the first step to operation.

Receiving Shipment

All units are performance tested and thoroughly inspected prior to shipment. Upon leaving the factory, all units are in
perfect condition. Upon receipt, examine the exterior of the shipment packaging for any signs of rough handling. If the
cabinet is damaged, it should be noted on the delivery slip or bill of lading and signed. A claim must be filed immediately
against the carrier indicating the extent and estimated cost of damage incurred.

Uncrating, Installing Adjustable Foot Levelers & Leveling

T

ools Needed : 9/16” Box Wrench or Adjustable Wrench ●●Level●●Wooden Blocks (or equivalent) ●●4 Adjustable Foot Levelers

WARNING: Never lay your refrigerator or freezer down on either its back, front or sides. This allows compressor oil into

the refrigerant lines which can damage the compressor at start-up. If the unit is laid down, it must be set upright for a
minimum of 12 hours before starting the compressor. Failure to adhere to the above recommendation will void the
warranty.

Uncrating

1. Remove and discard all cardboard crating, packaging material, tape and interior components.

2. Move cabinet as close to final location as possible before removing skid.

3. Remove the shipping skid by tipping the cabinet forward. Remove the shipping bolts with 9/16” box wrench while

the cabinet is held in one direction. Repeat this procedure while the cabinet is held in the opposite direction.

4. Use extreme caution when removing the wooden skid, especially when the last bolt is removed. If not properly
blocked, the skid will fall to the floor.

Installing

Adjustable Foot Levelers

Once the uncrating process is complete, make sure the adjustable foot levelers are safely secured on the bottom of the
cabinet for proper support and leveling purposes.

Utilize wooden blocks or equivalent to support the cabinet when placing adjustable foot levelers.

“Adjustable Foot Levelers”

Leveling

Cabinets must be leveled when installed. Failure to level your cabinet may result in doors not sealing, closing properly or
condensate water not draining appropriately.

Locating Your New Undercounter Refrigerator or Freezer

Consider the following when selecting a cabinet location:

1. Clearance - Undercounter refrigerator or freezer cabinets do not require a clearance between the back of the cabinet
and neighboring wall. The front grill is designed to guarantee sufficient air circulation to the condensing unit. However,
it will improve the cabinet's efficiency if there is air flowing through the louvers of the rear grill that conceals the
condensing unit.

2. Floor Load - The floor on which the cabinet will rest must be free of vibration and suitably strong enough to support
the combined weights of the cabinet plus the maximum product load.

3. Ventilation - The air cooled, self-contained refrigeration system requires a sufficient amount of cool, clean air. Avoid
placing the refrigerator or freezer cabinet near heat generating equipment such as ovens, heaters, etc., and out of
direct sunlight. Avoid locating the self-contained refrigerator cabinet in an unheated room, or where the room
temperature may be below 65°F.

INSTALLATION INSTRUCTIONS

Cabinet Cleaning

Prior to placing your new refrigerator or freezer and all shelves into operation, it is advisable that the interior be washed
thoroughly with a mild, non-abrasive detergent and a chlorine free water solution. Rinse with clear water and a sanitizing
solution. Allow cabinet to air dry.

Read “Periodic Maintenance” section for additional cleaning instructions.

Installing Shelves

All cabinets with shelves are supplied with pilasters and shelf clip supports. Shelves are easily installed by inserting the
shelf support clips into the pilasters so they fit tightly. Align the shelf so the smaller fill wires run from front to rear and rest
the shelf on the clips.

Electric Supply

Wiring should be done by a qualified electrician in accordance with local electrical codes. A properly wired refrigerator or
freezer will assure proper operation. Electrical supply requirements are on the cabinet serial/data plate located on the
upper left interior tank wall inside the cabinet. It is recommended that a direct, properly protected line of the proper size
wire be installed from the main supply to your refrigerator or freezer. To assure that the correct voltage is being
supplied, while the refrigerator or freezer is in operation take a voltage reading at the compressor-motor electrical
connections, or as close to the compressor-motor as possible.

All refrigerator or freezer electrical systems are internally grounded.

Temperature Control

Temperature control should be set to maintain a temperature of 36°F (2.2°C) to 38°F (3.3°C) for refrigerators and 0°F
(-17°C) to -5°F (-20.5°C) for freezers.

Installation Checklist

After the cabinet has been installed, leveled and cleaned as described, refer to the following checklist prior to start-up.

Check for proper electrical hook-up.

Check exposed refrigeration line connections for leaks. Make sure refrigeration lines are not dented, kinked or rubbing.

Check condenser fan for freedom to rotate without striking any stationary members.

Check that cabinet is level.

Product Load

After the refrigerator or freezer has been started and reaches the proper storage temperatures, items may be loaded. For

Cabinet Cleaning

Marvel Scientific recommends periodic interior and exterior cleaning as outlined. To maintain the stainless steel finish, keep
cabinet clear of chlorine or chlorinated mixtures. Use non-abrasive cleaners that do not contain chlorine and a soft cloth
or sponge. Below are examples of what can be used.

● Vinegar - Used to clean and polish stainless steel. Moisten soft cloth or sponge with undiluted white or cider vinegar

and wipe clean.

● Baking Soda - Used for die-hard type stains. Mix in one tablespoon of baking soda per one pint of water for recommended

solution.

● Club Soda - Used to remove streaks.

Exterior Cleaning

1. Clean surface with a sponge and cleaning solution.

2. Polish with a soft cloth, wiping with the grain of the metal.

3. Once a week wipe with a film cutting agent to maintain shine.

Interior Cleaning

1. Remove all items and shelves.

2. Discontinue power to refrigeration system by turning temperature control switch (or dial knob) all the way to the
right.

3. Remove loose substances from interior floors, walls and ceiling.

4. Scrub all interior surfaces with warm detergent solution 100°F - 120°F (38°C - 39°C) and a nylon bristled brush.

5. Rinse with clear water and allow to air dry.

6. Reinstall shelves.

7. Restore power to refrigeration system by turning temperature control switch (or dial knob) to the right.

8. Return food to cabinet when temperature indicator reaches safety zone.

Condenser Maintenance

To keep your cabinet running efficiently, it is recommended that you clean the condenser once every three months.

1. Discontinue power to refrigeration system by turning temperature control switch all the way to the left.

2. Make sure all doors and food storage lids are closed.

3. Pull cabinet forward and remove power cord from receptacle.

4. For condensing unit access, remove front and rear grill.

5. Use a vacuum cleaner with proper brush attachments or compressed air to clean the condenser, compressor-motor
and related parts.

6. After cleaning, reassemble cabinet and properly restore power.

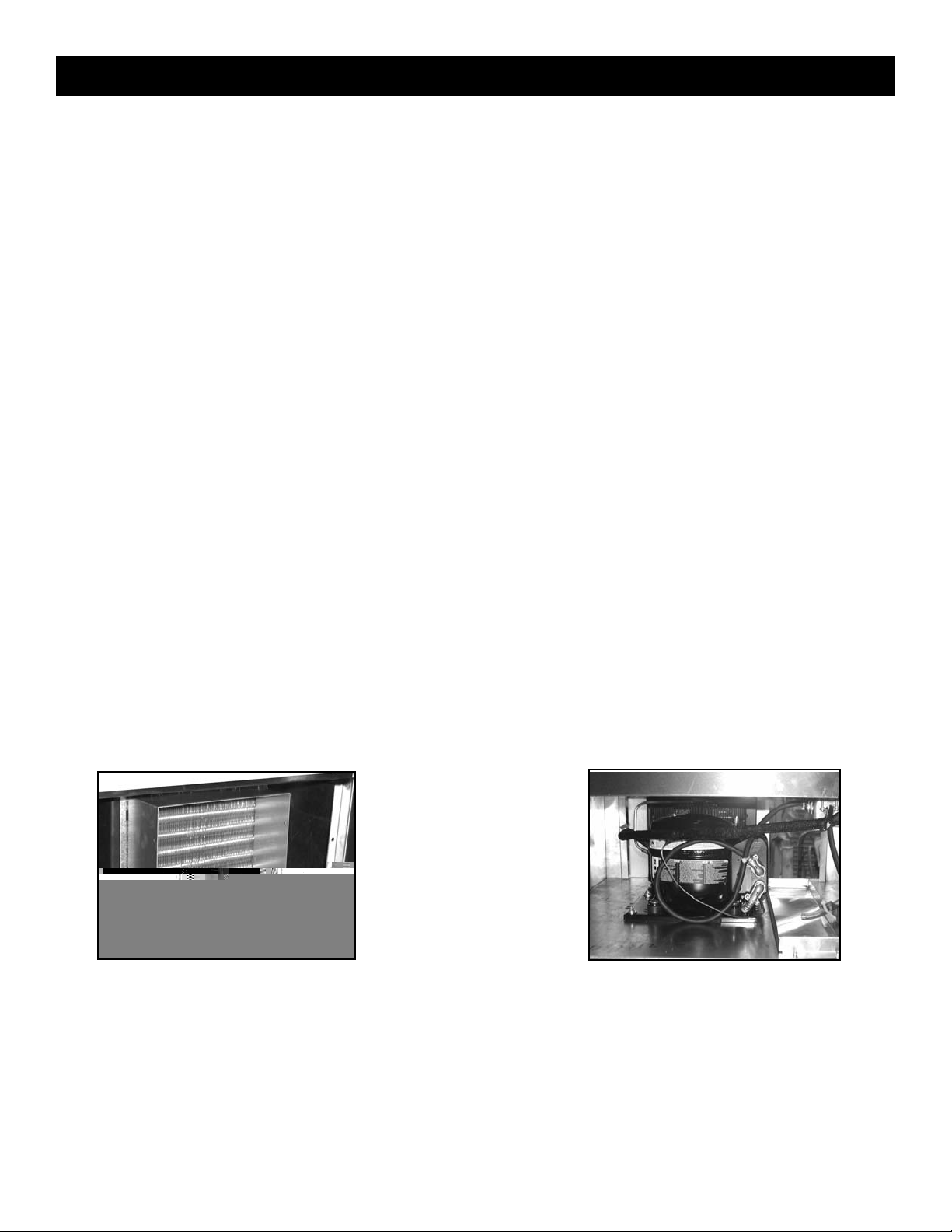

Figure 1 Figure 2

“Condenser Coil” “Compressor”

WARNING: Failure to keep condenser clean may cause premature failure of motor-compressor which

will NOT be covered by warranty.

Lubrication

Unless otherwise specified, all Marvel Scientific refrigerators or freezers are equipped with oilless type motors. The motor­compressor is a sealed unit and is constantly lubricated when in operation. The condenser and the evaporator motors are
equipped with lifetime oiled bearings which never need to be oiled.

PERIODIC MAINTENANCE

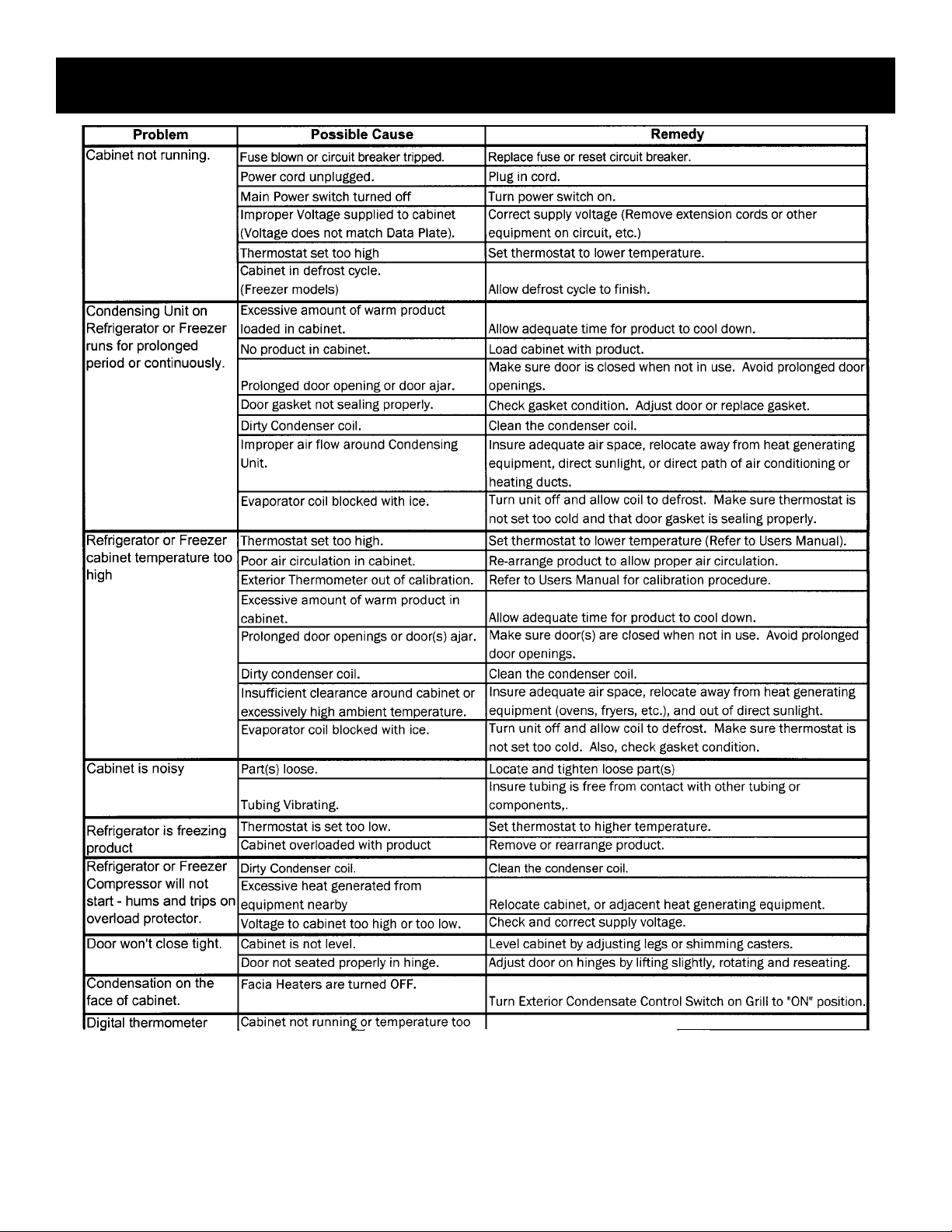

BEFORE CALLING SERVICE GUIDE FOR COMMON PROBLEMS

Caution: Disconnect Power Supply Prior to Attempting Any Service!

REFRIGERATION COMPONENTS:

50599901 COIL, EVAPORATOR (83E18)
50180701 ACCUMULATOR, SUCTION LINE 1/2" X 3/8"
50199001 CAPILLARY TUBING, .042” I.D. x 7’ 8” (Refrigerator)
50793301 CAPILLARY TUBING, .036” I.D. x 7’

50730801 DRIER, FILTER
50792701 CONDENSING UNIT, 1/3 HP (Freezer)
50849801 CONDENSING UNIT, 1/4 HP (Refrigerator)

10724501 HEAT EXCHANGER ASSEMBLY, R134a (Refrigerator)
10744601 HEAT EXCHANGER ASSEMBLY, R404A (Freezer)
10536701 DRAIN PAN ASSEMBLY
50572801 DRAIN LINE, PVC

TEMPERATURE CONTROL:

50186301 REFRIGERATOR TEMPERATURE CONTROL
50317501 FREEZER TEMPERATURE CONTROL

ELECTRICAL COMPONENTS:

50182801 HEATER SAFETY THERMOSTAT (Freezer)
50599501 DEFROST TERMINATION / FAN DELAY THERMOSTAT (Freezer)

50606001 JUNCTION BLOCK, RECEPTACLE (Freezer)
50601202 HEATER, DEFROST (Freezer)
50197302 TIMER, 24 HOUR DEFROST (Freezer)
50639801 MOTOR, EVAPORATOR FAN 115V
50602601 BLADE, EVAPORATOR FAN BLADE 6"
44132301 FAN PANEL ASSEMBLY (Complete)
04060301 BRACKET, FAN MOTOR MOUNTING

50625701 FAN GUARD, PLASTIC
50601001 HEATER WIRE, DOOR FRAME (Refrigerator)

50601002 HEATER WIRE, DOOR FRAME (Freezer)
50584101 CORD & PLUG 15 AMP

CABINET HARDWARE:

50273101 HINGE, DOOR PIECE
50273201 HINGE, FASCIA PIECE

50273401 HINGE COVER
50273501 HINGE CAP
50343401 HINGE SHIM (Fascia)
50551801 HINGE PIN

55104001 HINGE ASSEMBLY, COMPLETE
50590102 FOOT, ADJUSTABLE LEVELER (4 per cabinet)
50022501 CLIP, SHELF SUPPORT (4 per shelf)
50600002 SHELF, EPOXY COATED
03221102 PILASTER, SHELVING

DOORS AND COMPONENTS:

55114003 DOOR ASSEMBLY, LEFT HINGED
55114004 DOOR ASSEMBLY, RIGHT HINGED

50596905 GASKET, DOOR
05091502 LINER, S/S INNER DOOR
50599803 RETAINER, TOP & BOTTOM DOOR GASKET
50599804 RETAINER, SIDE DOOR GASKET

50651102 HANDLE, DOOR

MISCELLANEOUS:

50622601 TRIM STRIP, TOP & BOTTOM
50622701 TRIM STRIP, SIDE
10537701 GRILL, ASSEMBLY, FRONT AIR

Replacement Parts

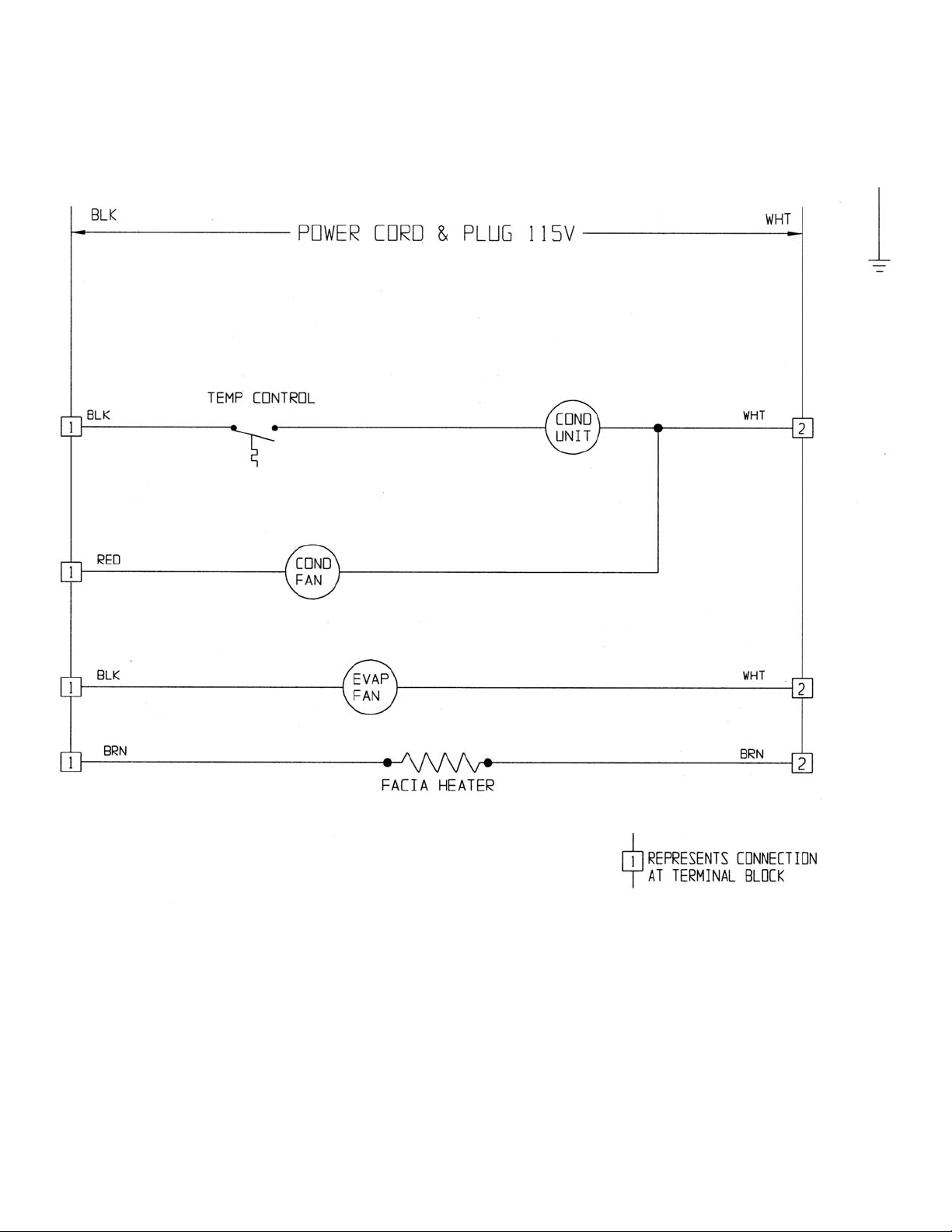

5CAR Wiring Diagram

115V/60HZ/1Ph

5CAF Wiring Diagram

115V/60HZ/1Ph

Marvel Scientific

P.O. Box 997

Richmond, Indiana 47375-0997

Tel: [phone]
Fax: [phone]

Web: www.marvelscientific.com
