MARVEL WINE CELLAR
life. luxury. marvel™.
Installation
Operation
and
Maintenance
Instructions
Refrigerated
Wine Cellar
3SWCE
Page 2
STARTING OUT
2
Remove Packaging
Your wine cabinet has been packed for shipment
with all parts that could be damaged by movement
securely fastened. Before using, be sure all packing
materials and tape have been removed.
Important
Keep your carton packaging until your wine cabinet
has been thoroughly inspected and found to be in
good condition. If there is damage, the packaging
will be needed as proof of damage in transit.
Note to Customer
This merchandise was carefully packed and
thoroughly inspected before leaving our plant.
Responsibility for its safe delivery was assumed by
the carrier upon acceptance of the shipment. As
directed on the side of your packing carton, claims
for loss or damage sustained in transit must be
made on the carrier as follows:
Exterior Damage
Make thorough damage notation on your
delivery receipt and have driver acknowledge
by signature and date. Send a written request
asking for an inspection report from carrier.
Include the name of carrier representative and
the date the inspection was requested. Retain
inspection report and receipt for filing of a claim.
Concealed Damage
This must be reported to the carrier within fifteen
days. Obtain inspection report from the carrier.
Retain the inspection report for filing the claim.
DO NOT RETURN DAMAGED MERCHANDISE TO
THE MANUFACTURER – FILE THE CLAIM WITH THE
CARRIER.
Undercounter 3SWCE Wine Cellar Specifications
Dimensions WxHxD (in.) 147/8 x 341/4 x 235/8
Weight 130 lbs.
Capacity 24 Wine Bottles
Temperature 41–63°F
Power Supply 115V
supplied with a 15 amp plug
IT IS IMPORTANT THAT YOU SEND IN
YOUR WARRANTY RECORD CARD
IMMEDIATELY AFTER TAKING DELIVERY
OF YOUR REFRIGERATION APPLIANCE.
Page 3
Select Location
The proper location will ensure peak performance
of your appliance. Choose a location where the
unit will be out of direct sunlight and away from
heat sources. Best performance will be maintained
when installed within the following parameters:
Ideal Ambient Temperature Range
Built-in 65°– 80°F
Free-Standing 65°– 90°F
Cabinet Clearance
Ventilation is required from the bottom front section
of the unit. Keep this area open and clear of any
obstructions.
INSTALLATION
3
Electrical Connection
Use nominal 115 volt, 60 cycle AC only. DO NOT
USE AN EXTENSION CORD.
Grounding Method
This product is factory equipped with a power
supply cord that has a three-pronged, grounded
plug. It must be plugged into a mating grounding
type receptacle in accordance with the National
Electrical Code and applicable local codes and

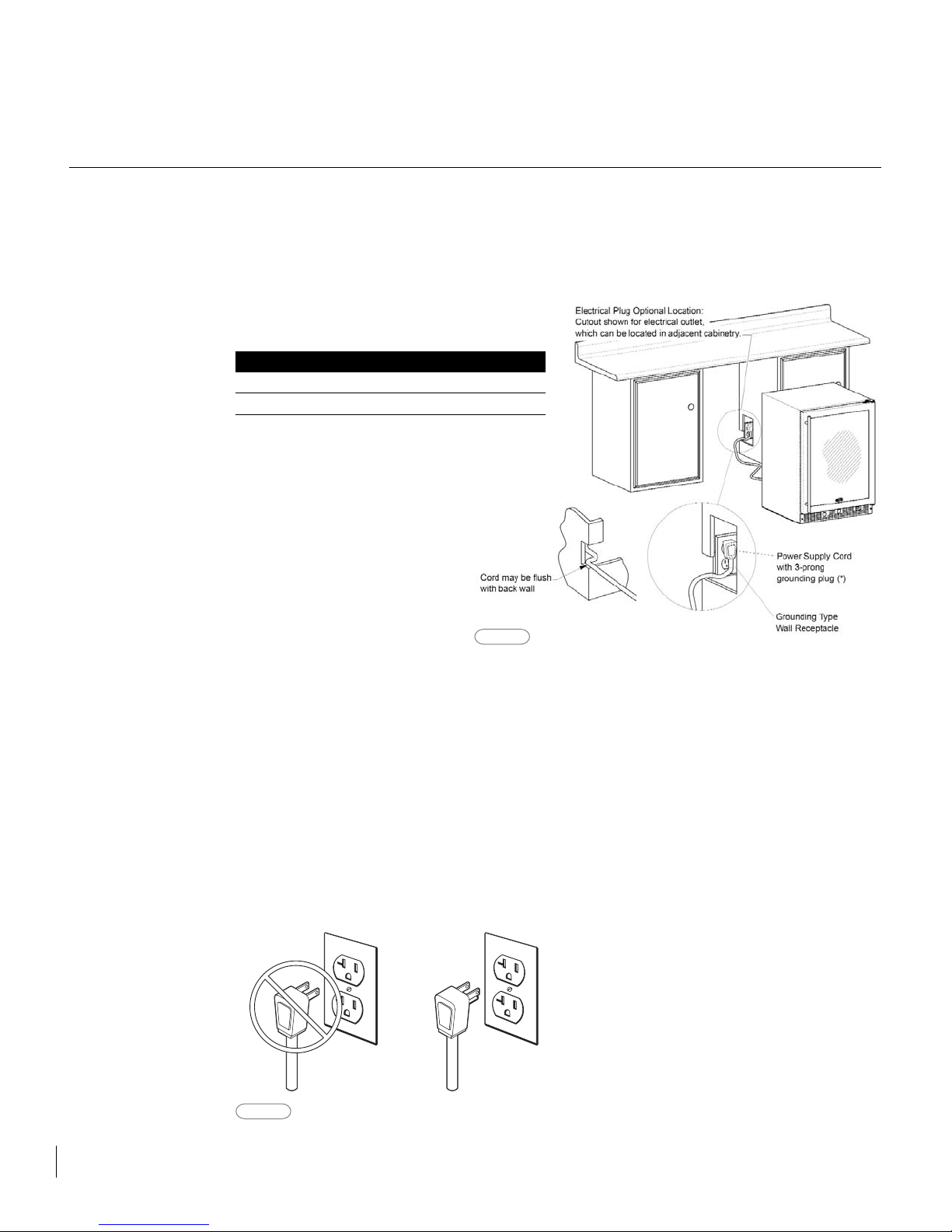

ordinances (see figure 1). If the circuit does not
have a grounding type receptacle, it is the
responsibility and obligation of the customer to
exchange the existing receptacle in accordance
with the National Electrical Code and applicable
local codes and ordinances. The third ground
prong should not, under any circumstances, be cut
or removed. (See figure 2) All U.L. listed
refrigerated products are equipped with this type of
plug.
figure 2
figure 1
Page 4
OPERATION
Start Your Appliance

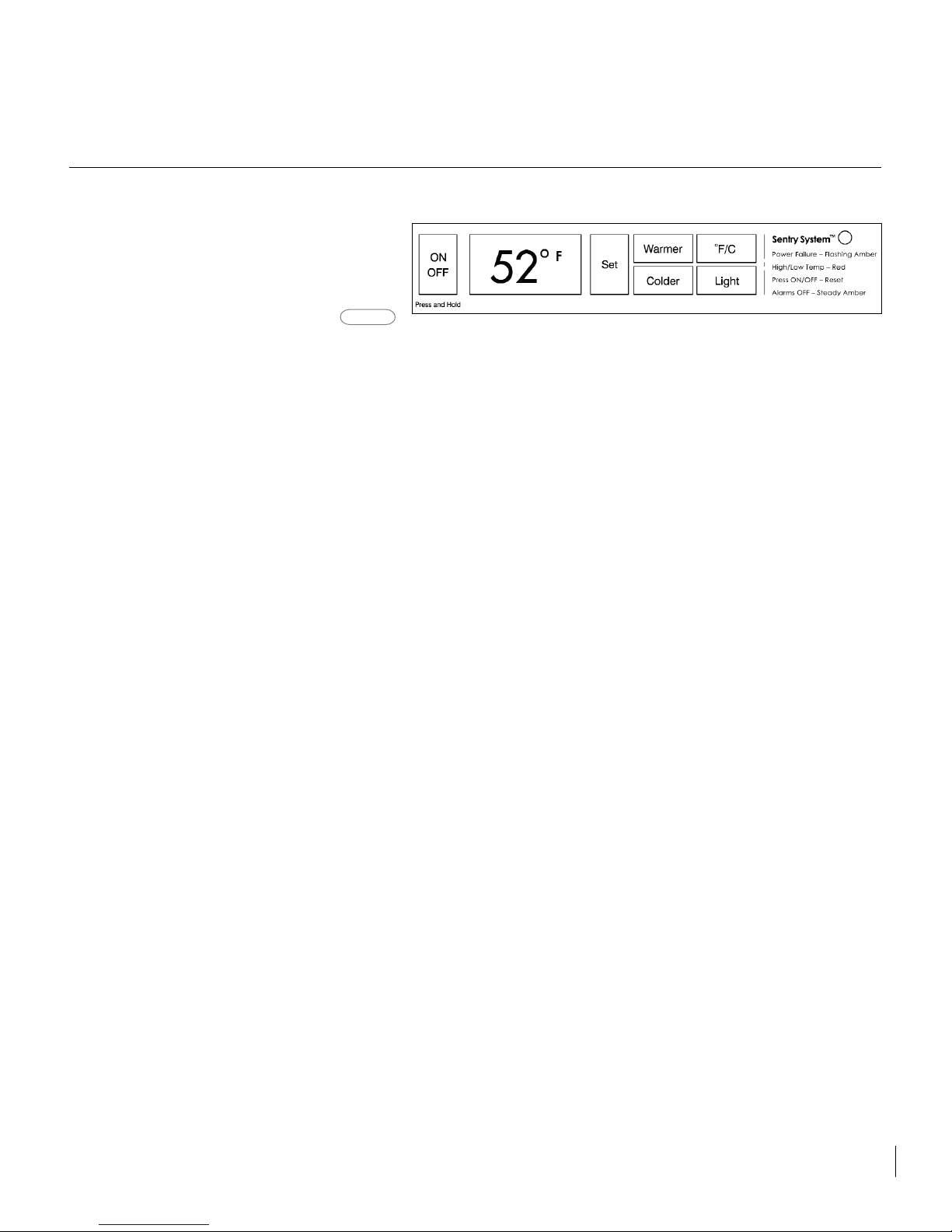

To start your appliance, push and hold for 5
seconds, the “ON/OFF” button located on the
display panel. (See figure 3)
Upon turning the unit on, the display will read the
actual temperature inside of the unit. If the interior
temperature is greater than 99°F, the display will
flash 99 until the temperature drops to 99°F.
Once the bottles are loaded, allow at least 48
hours for the unit to stabilize before making any
adjustments to the initial setting.
Set Your Temperature Mode
This product can display either Fahrenheit or
Celsius. To do this press the ”°F/C“ button on the
display panel.
Set the Controls
The available temperature range of the unit is from
the low forties to the mid sixties. The middle range
on the control is approximately 55°F. The
temperature can be lowered or raised by first
pushing the “Set” button on the display pad. A
“SET” icon will be displayed. This icon will turn off
10 second after completing your adjustments.
Pushing either the “Warmer” or “Colder” buttons
located on the inside of the unit on the display pad
will raise or lower the set temperature by one degree
F or C (depending on your setting). As with any
refrigeration product, there is a slight temperature
variance at different locations within the cabinet.
Adjustable Temperature Control
The temperature control is fully adjustable from the
low forties to the mid sixties. The range allows
flexibility of temperature preferences and provides
the ideal wine aging and storing temperatures.
Interior Light and Switch
The interior light makes it easy to view your wine
labels and enhances the display of your collection.
To engage the display light feature, press the light
button on the display panel. The light will come on
and stay on with the door closed until the light
button is pressed again. The light will also come on
when the door is opened.
Warning Alarms
Your wine cellar has been fitted with a sentry
mode. This sentry will let you know if your cellar is
not functioning properly for optimum wine storage.
Door Ajar Alarm
If the door has been left open for over 5 minutes the
alarm will sound. This will stop as soon as the door
is closed.
High and Low Temperature
If your unit reaches temperatures outside of your set
point an alarm will sound. This will warn you that
your wines have seen temperatures that may not be
conducive for long term storage.
Power Failure
If your unit experiences a power failure the display
will flash until the alarm is reset.
Reset Alarms
Press the “ON/OFF” button for approximately one
second. This will reset all audible and display
alarms.
Sabbath Mode
Your wine cellar is equipped with a Sabbath mode
of operation. By activating this mode you will be
disabling all displays, audible alarms and lights.
The system will be overridden with a random
control. To activate the Sabbath mode press and
hold the “Set” button while pressing the ”°F/C“
button 7 times within 7 seconds. To disable again
press and hold the “Set” button and press the
”°F/C“ button 7 times in 7 seconds. The Sabbath
mode will automatically disable after 96 hours.
4
figure 3
Page 5
Insert Wine Bottles
The six roll-out shelves each hold four bottles. See
figure 4 for typical wine bottle spacing. Tall bottles
should not be loaded on the bottom rack because
they may prevent the door from closing.
Loading Tips and Suggestions
Bottom rack(s) may be removed for storing “jug”
wines. You may store magnums and other large
bottles on any of the racks (except for the top rack)
by removing the rack directly above them. Position
white wines on the middle or lower racks and red
wines on the upper racks. (See figure 5)
The bottles on the top rack directly under the light
will be exposed to a slightly higher temperature
when the light is on. Position your wines
accordingly and REMEMBER TO TURN OFF THE
LIGHT WHEN IT IS NO LONGER NEEDED.
Keep wines that you plan to use for everyday
drinking and entertaining on the front half of the
racks where labels are completely visible. Place
wines for aging or longer term storing in rear.
Roll-out Racks
The six-roll out wine racks may be pulled out
approximately 14 inches to facilitate adding or
removing bottles. Do not lean on or press down
heavily on the wine shelves. Doing so may damage
the shelves and the wine bottles stored on them.
Pull the wine racks out gently and carefully to
minimize unsettling your wine collection. Avoid
pulling out more than one rack at any time to
maintain stability.
Single Bottle Racks
Because bottles are not stacked on top of each
other, you can easily view and access your
inventory without disturbing other bottles. (See
figure 6)
APPLIANCE FEATURES
5
Front Bottles (Necks Facing Rear)
Rear Bottles (Necks Facing Front)
figure 4
figure 5
figure 6
Page 6
CARE AND CLEANING OF YOUR WINE CELLAR
6
Condenser
The condenser tubing inside the cabinet does not
require frequent cleaning; however, satisfactory
cooling depends on adequate ventilation over the
coils. Be sure that nothing obstructs the required air
flow openings in front of the cabinet. At least once
or twice a year brush or vacuum lint and dirt from the
condenser for efficient performance by unscrewing
the grille on the bottom front of the cabinet.
Cabinet
The painted cabinet can be washed with mild soap
and water and thoroughly rinsed with clear water.
Never use abrasive scouring cleaners.
Interior
Wash interior compartment with mild soap and
water. Do not use an abrasive cleaner, solvent, polish
cleaner or undiluted detergent.
Glass Door
Use a glass cleaner or mild soap and water and
soft cloth to clean the glass door model. Do not use
any abrasive cleaners.
Door Gasket
The vinyl gasket may be cleaned with mild soap
and water, a baking soda solution or a mild scouring powder.
Light Tube Replacement
WARNING! DISCONNECT THE POWER CORD
BEFORE ATTEMPTING LIGHT TUBE REPLACEMENT. Failure to do so may result in an electrical
shock that could severely injure you.
This product uses one, 6 watt light tube to illuminate the interior of the wine cellar. The light tube is
a very reliable electrical component, but should it
not function properly, please call the dealer you
purchased your wine cellar from for a replacement
light tube. Use only an original equipment light
tube from your dealer or manufacturer.
To replace the light tube, use a hex-head driver,
remove the two hex-head screws holding the old
light tube in place. Disconnect the electrical plug
from the cabinet’s electrical receptacle and discard
the old light tube. Reconnect the electrical plug of
the new light tube to the cabinet’s electrical receptacle. Make sure it is secure and fully installed.
Using the hex-head driver, resecure the two hexhead screws to secure the light tube in place. Plug
the wine cellar into the electrical socket. Check to
see if the light tube operates properly. Your light
tube’s replacement is complete.
The light tube is not covered by your warranty. A
replacement tube can be obtained from your service provider or from Marvel Industries.
In the Event of a Power Failure
Most power failures are corrected within two hours
and will not affect the unit’s temperature providing
you minimize the number of door openings while
the power is off. A gradual rise in temperature
should not have any adverse effect on your wine if
power is out for a longer period. If it is extremely
hot, you may want to move your wines to the
coolest location you can find until power is
restored.
Page 7
Before Calling for Service
Before calling for service, check the troubleshooting table on this page. This table lists possible
problems that you can remedy without difficulty to
avoid an unnecessary service call.
Help Prevent Tragedies
Each year children die because they climb inside a
discarded refrigeration product, get trapped inside
and suffocate. Take precautions to prevent such
tragedies by removing the door, taping or chaining
it shut before discarding.
Possible Causes/Solutions
•
Interior needs cleaning
•
Cabinet not level
•
Weak floor
•
Cabinet not level
•
Weak floor
•
Tube burned out
•
No power at outlet
•
”ON/OFF” button pressed
•
Line cord not plugged in
•
No power at electrical outlet
•
House fuse blown
•
Prolonged door openings
•
Control set too cold
•
Condenser needs cleaning
•
Too many door openings
•
Prolonged door openings
•
Hot, humid weather increases condensation
•
Control improperly set.
•
Hot, humid weather increases condensation.
As humidity decreases, moisture will
disappear.
•
Control improperly set
•
Control improperly set
•
Faulty thermometer
•
Relocate thermometer to center of cabinet
and recheck
Problem
Odor in cabinet
Noisy operation
Cabinet vibrates
Cabinet light not working
Appliance will not run
Appliance runs too long
Moisture collects inside
Moisture collects on
outside surface
Interior too hot/too cold
TROUBLESHOOTING
7
Page 8
If You Do Need Service
If you do need service, contact your dealer or the
manufacturer. In any correspondence, refer to the
model number and serial number of your unit
which is located on the upper left hand side of the
wall liner. Retain you proof of purchase. You may
want to record these numbers in the space below.
How to Obtain Service
Your refrigerated wine cellar requires little service
because the best and most up to date materials,
equipment and quality methods are employed
throughout the manufacturing process.
If trouble occurs during normal operation, first
check the troubleshooting chart on the opposite
page to see if any of these simple steps may correct
the problem. If service becomes necessary:
1. If the product is within the first year warranty
period, please call Marvel Customer Service
at 800-428-6644 for directions on how to
obtain warranty coverage in your area.
2. If the product is outside of the first year
warranty period, Marvel Customer Service
can provide recommendations of service
centers in your area. A listing of authorized
service centers is also available at
www.marvelindustries.com under the service
and support option.
3. In all correspondence regarding service, be
sure to give the model number, serial number
and proof of purchase.
4. Try to have information or description of the
nature of the problem, how long the unit has
been running, the room temperature, water
temperatures, and any additional information
that may be helpful in quickly solving the
problem.
OBTAINING SERVICE
8
For Your Records
Date of purchase
Dealer’s Name
Dealer’s Address
Dealer’s City Dealer’s State Zip
Appliance Serial Number
Model Number Date Warranty Card Sent (Must be within 10 Days of Purchase)
Page 9
EEnnttiirree PPrroodduucc tt
LLiimmiitteedd OOnnee YYee aarr PP aarrtt ss aanndd LL aabboorr
WWaa rrrraa nn ttyy
Marvel warrants that it will supply all necessary
parts and labor to repair or replace in the end
user's home or office, any component which proves
to be defective in material or workmanship, subject
to the condition and exclusions stated below, for a
period of one year from the date of purchase by
the end user.
AAddddii ttiioonnaall SSeecc oonn dd TThh rroouu gghh FF iiff tthh YYeeaarr
LLii mmii tt eedd PPaarrttss OOnn llyy WWaa rrrr aa nn ttyy
During the four years following expiration of the
one year limited warranty
, Marvel will supply
replacement parts for the hermetically sealed refrigeration system which consists of the compressor,
condenser, drier, accumulator, by-pass valve, connecting tubing and the evaporator that are proven
to be defective due to workmanship or materials
subject to the conditions and exclusions below.
The above warranties do not cover:
• Shipping costs of replacement parts or returned
defective parts.
• Customer education or instructions on how to
use the appliance.
• Any content loss due to product failure.
• Removal or installation.
Nor do the above warranties cover failure of this
product or its components due to:
1.Transportation or subsequent damages.
2.Use commercially or use other than normal
household or small office.
3.Improper installation, misuse, abuse, accident or
alteration, use on wiring not conforming to electrical codes, low or high voltages, failure to provide necessary maintenance, or other unreasonable use.
PP aa rrtt ss oorr SSee rrvv iiccee
NNoott SSuupppplliiee dd oorr DD eess iiggnn aattee dd bbyy MMaarrvv ee ll
The above warranties also do not apply if:
The original bill of sale, deliver date or serial number cannot be verified.
Defective parts are not returned for inspection if so
requested by Marvel.
The refrigeration equipment is not in the possession
of the original end use purchaser.
The warranties set forth herein are the only warranties extended by Marvel Industries. Any implied
warranties, including the implied warranty of merchantability
, are limited to the duration of these
express warranties. In no event shall Marvel
Industries be liable for any consequential or incidental damages or expenses resulting from breach
of these or any other warranties, whether express
or implied.
Some states do not allow the exclusion or limitation
of consequential damages or a limitation on how
long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may
have other rights that may vary from state to state.
No person, firm, or corporation is authorized to
make any other warranty or assume any other obligation for Marvel Industries. These warranties
apply only to products used in any of the fifty states
of the United States and the District of Columbia.
To obtain performance of this warranty, report any
defects to:
MMaarrvv eell II nndduu ss ttrr iiee ss
PP..OO.. BBooxx 999977
RRiicchhmmoonndd,, IInnddii aann aa 4477337755--00999977
PPhh oonn ee:: 7766 55 -- 996622--225522 11
WARRANTY
9
Page 10
41010349 Rev. B
Marvel Industries
P.O. Box 997
Richmond, IN
47375-0997
800.428.6644
www.lifeluxurymarvel.com
All specifications and product designs subject to change without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements
additions, replacements or compensation for previously purchased products.
Loading...
