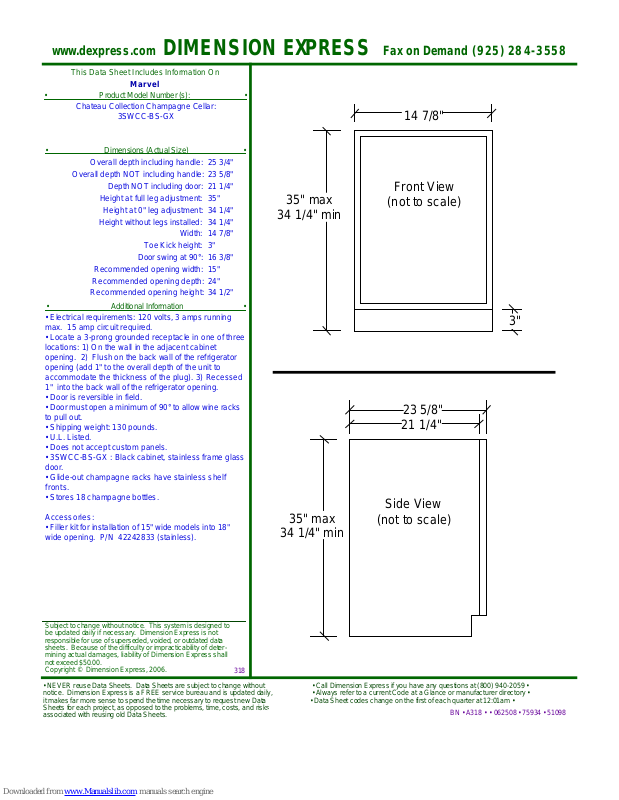

Marvel 3SWCC-BS-GX Datasheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Chateau Collection Champagne Cellar:

• Dimensions (Actual Size) •

Overall depth NOT including handle:

• Additional Information •

• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.

• Door is reversible in field.

• Door must open a minimum of 90° to allow wine racks
to pull out.

• Shipping weight: 130 pounds.

• U.L. Listed.

• Does not accept custom panels.

• 3SWCC-BS-GX : Black cabinet, stainless frame glass
door.

• Glide-out champagne racks have stainless shelf
fronts.

• Stores 18 champagne bottles.
Accessories:

• Filler kit for installation of 15" wide models into 18"
wide opening. P/N 42242833 (stainless).

3SWCC-BS-GX

Overall depth including handle:

Depth NOT including door:

Height at full leg adjustment:

Height at 0" leg adjustment:

Height without legs installed:

Width:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

Recommended opening depth:

Recommended opening height:

25 3/4"
23 5/8"
21 1/4"
35"
34 1/4"
34 1/4"
14 7/8"
3"
16 3/8"
15"
24"
34 1/2"

35" max

34 1/4" min

35" max

34 1/4" min

14 7/8"

Front View

(not to scale)

3"

23 5/8"

21 1/4"

Side View

(not to scale)
