Page 1
Marvel 3SBAR Beverage Center
Installation
Operation &
Maintenance
Instructions
Part of AGA Foodservice Group
Page 2
Inspection
Remove Packaging
Your beverage center has been packed for shipment
with all parts that could be damaged by movement
securely fastened. Before using, be sure all packing
materials and tape have been removed.
Important
Keep your carton packaging until your beverage center
has been thoroughly inspected and found to be in good
condition. If there is damage, the packaging will be
needed as proof of damage in transit.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the carrier upon acceptance of the shipment. As directed on the side of your
packing carton, claims for loss or damage sustained in
transit must be made on the carrier as follows:
Exterior Damage
Make thorough damage notation on your delivery receipt
and have driver acknowledge by signature and date.
Send a written request asking for an inspection report
from carrier. Include the name of carrier representative
and the date the inspection was requested. Retain
inspection report and receipt for filing of a claim.
Concealed Damage
This must be reported to the carrier within fifteen days.
Obtain inspection report from the carrier. Retain the
inspection report for filing the claim. DO NOT RETURN
DAMAGED MERCHANDISE TO MANUFACTURER FILE THE CLAIM WITH THE CARRIER.
How to Install Your
Refrigerated Beverage Center
Select Location: The proper location will ensure peak
performance of your appliance. Choose a location
where the unit will be out of direct sunlight and away
from heat sources. Best performance will be maintained when installed within the following parameters:
Cabinet Clearance: Ventilation is required from the
bottom front section of the unit. Keep this area open
and clear of any obstructions.
Electrical Connection: Use nominal 115 volt, 60
cycle AC only. DO NOTUSE AN EXTENSION CORD
1
Ideal Ambient T emperature Range
Built-in 65° – 80°F
Free-Standing 65° – 90°F
Power Supply Cord
with 3-Prong
Grounding Plug*
Grounding Type
Wall Receptacle
Figure 1
Page 3
Grounding Method: This product is factory
equipped with a power supply cord that has a threepronged grounded plug. It must be plugged into a
mating grounding type receptacle in accordance with
the National Electrical Code and applicable local
codes and ordinances (see figure 1). If the circuit
does not have a grounding type receptacle, it is the
responsibility and obligation of the customer to
exchange the existing receptacle in accordance with
the National Electrical Code and applicable local
codes and ordinances. The third ground prong
should not, under any circumstances, be cut or
removed. All U.L. listed refrigerated products are
equipped with this type of plug.
How to Operate Your
Refrigerated Beverage Center
Set the Control: The total available temperature
range of the unit is from 39°F to the high sixties,
depending on the thermostat setting and location of
the cabinet. The middle range on the control is from
the mid-forties to the mid-fifties depending on ambient
temperature and location of
the cabinet. The temperature can be lowered or
raised by turning the control
clockwise or counterclockwise, respectively. As with
any refrigeration product,
there is a slight temperature variance at different locations within the cabinet. For example, the coolest area
will be in the rear of the lowest two shelves. The items
on the top two shelves will be 5° to 10° warmer. This
is the warmest location. Items in the front of the middle shelves will be 1° to 4° warmer than the rear of the
shelves. Position your wine inventory accordingly on
your wine shelf. To start your appliance, use a screwdriver to turn the control clockwise to the middle thermostat setting (see figure 2). Once the refrigerator is
loaded, allow at least 48 hours for the unit to stabilize
before making any adjustments to the initial setting.

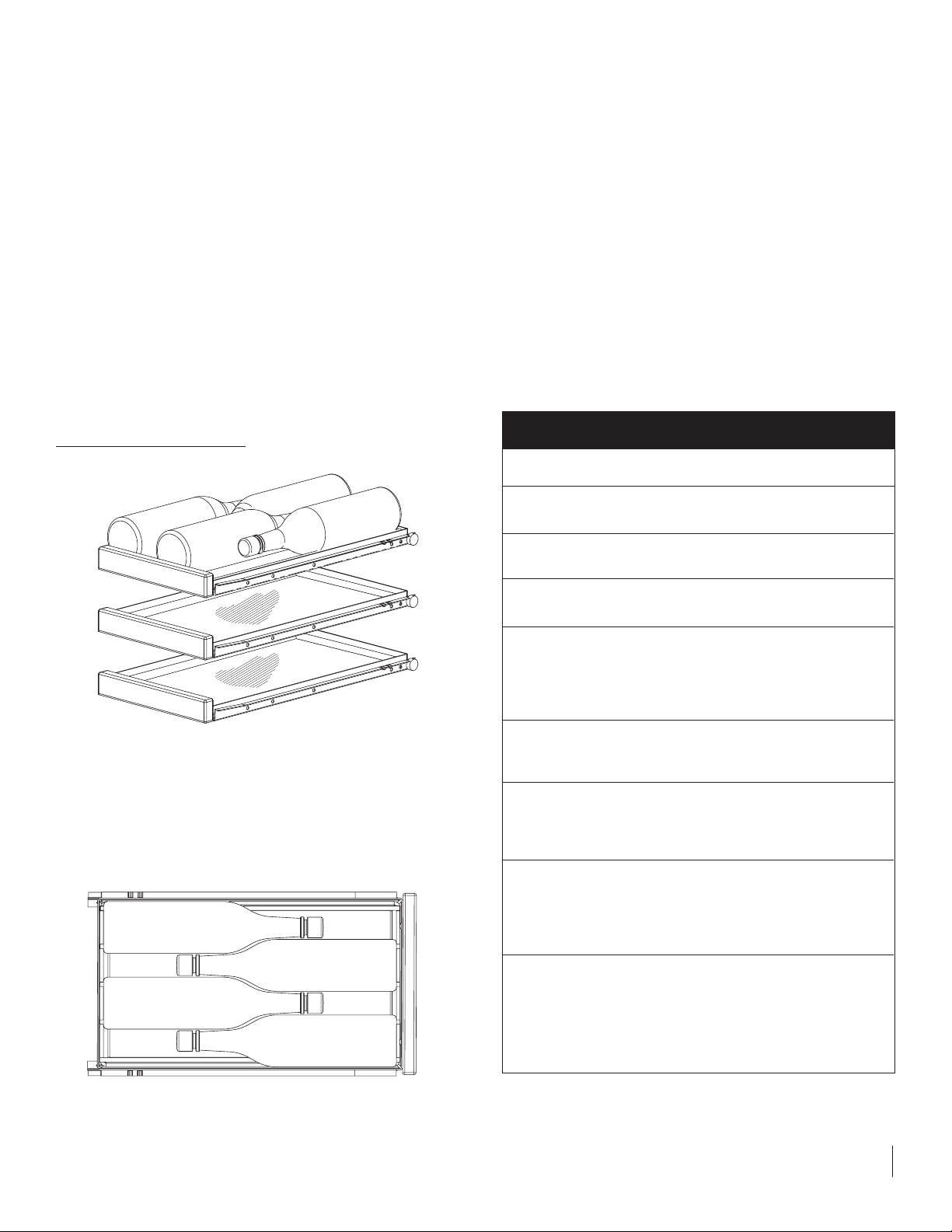

Insert Wine Bottles: The wine rack roll-out shelf
holds four bottles. See figure 3 for typical wine
bottle orientation.
Note: Wine rack can be located at top or bottom
part of cabinet interior. For red wines, place wine
shelf at top shelf position in the cabinet. Then put
a glass shelf in the next lower position. For white
and sparkling wines, put the wine shelf on the
lowest shelf position in the cabinet. Place the
remaining shelves as desired.
Loading Tips and
Suggestions for Wine Rack
Bottom shelves may be removed for storing "jug" wines.
You can store magnum bottles and other large bottles
on any of the shelves (except for the top shelf) by
removing the shelf directly above them or placing the
shelf at a higher position.
Locate white wines on the middle or lower shelf positions and red wines on the upper position.
The bottles on the top rack directly under the light will
be exposed to a slightly higher temperature when the
light is on. Position you wines accordingly and
REMEMBER TO TURN OFF THE LIGHT WHEN IT IS
NO LONGER NEEDED.
Keep wines that you plan to use for everyday drinking
and entertaining on the front half of the racks where
labels are completely visible. Place wines for aging or
longer term storing in rear.
2
Figure 2
Control Knob
(At bottom right
section of grille)
Front Bottles (Necks Facing Rear)
Rear Bottles (Necks Facing Front)
Figure 3
Page 4
How to Clean and
Maintain Your beverage center
Condenser: The condenser tubing inside the cabinet
does not require frequent cleaning; however, satisfactory cooling depends on adequate ventilation over
the coils. Be sure that nothing obstructs the required
air flow openings in front of the cabinet. At least once
or twice a year brush or vacuum lint and dirt from the
condenser for efficient performance by unscrewing
the grille on the bottom front of the cabinet.
Cabinet: The painted cabinet can be washed with
mild soap and water and thoroughly rinsed with clear
water. Never use abrasive scouring powders.
Interior: Wash interior compartment with mild soap
and water. Do not use an abrasive powder, solvent,
polish cleaner or undiluted detergent.
Glass Door: Use a glass cleaner or mild soap and
water and soft cloth to clean the glass door model.
Do not use any abrasive powders.
Door Gasket: The vinyl gasket may be cleaned with
mild soap and water, a baking soda solution or a mild
scouring powder.
Light T ube Replacement: WARNING! DISCONNECT
THE POWER CORD BEFORE ATTEMPTING LIGHT
TUBE HOUSING ASSEMBLY REPLACEMENT.
Failure to do so may result in an electrical shock that
could severely injure you.
This product uses one, 6 watt light tube to illuminate
the interior of the beverage center. The light tube is a
very reliable electrical component, but should it not
function properly , please call the dealer you purchased
your beverage center from for a replacement light tube
housing assembly. Use only an original equipment
light tube housing assembly from your dealer or manufacturer.
Using a
5
/16” hex-head driver, remove the two hex-
head screws holding the old light tube housing
assembly in place. Disconnect the electrical plug
from the cabinet’s electrical receptacle and discard
the old light tube housing assembly. Reconnect the
electrical plug of the new light tube housing assembly to the cabinet’s electrical receptacle. Make sure
it is secure and fully inserted.
Using the
5
/16” hex-head driver, resecure the two
hex-head screws back into their original positions to
fasten the light tube housing assembly to the top of
the cabinet.
Re-use the original two screws to secure the light tube
housing in place. Plug the beverage center into the
electrical socket. Check to see if the light tubes operate properly . Your light tube’ s replacement is complete.
The light tubes are not covered by your guarantee. A
replacement light tube housing can be obtained from
your service provider or from Marvel Industries.
What to do in
the Event of a Power Failure
Most power failures are corrected within two hours
and will not affect the unit’s temperature providing you
minimize the number of door openings while the
power is off. A gradual rise in temperature should not
have any adverse effect on your wine if power is out
for a longer period. If it is extremely hot, you may
want to move your wines to the coolest location you
can find until power is restored.
Appliance Features
Adjustable Temperature Control: Please see “how
to Operate Your Refrigerated Beverage Center” on
page two.
Interior Light and Switch: The interior light makes it
easy to view the contents of your refrigerator. When the
switch is in the “OFF”
position, the light will
come on when the door
is opened. When the
switch is pushed such
that the “red” portion of
the rocker is showing, the
switch is in the “on” position and the interior light will
stay on continuously. Remember to turn the off the light
when it is no longer needed.
3
Page 5
4
Roll-out Shelves: The roll-out shelves may be pulled
out approximately 14 inches to facilitate product loading
and retrieval. Do not lean on or press down heavily on
the shelves, doing so may damage the shelves or their
content. Pull out shelves gently to minimize any possible
item shifting. To maintain stability, avoid pulling out more
than one shelf at any time.
The roll-out shelves are equipped with a removable
center section that allows you to customize the storage capability of your refrigerator. Your unit is shipped
with three glass shelves and one wine rack, but for
added versatility, additional center sections are available. You may purchase an optional open bottle cradle
that allows storage of opened wine or champagne bottles. Please contact dealer or see Marvel’s website at
www
.marvelindustries.com for ordering.
Single Bottle Racks: Because bottles are not stacked
on top of each other, you can easily view and access
your inventory without disturbing other bottles.
Before Calling for Service
Before calling for service, check the trouble shooting
table on this page. This table lists possible problems
that you can remedy without difficulty to avoid an unnecessary service call.
If you do need service, contact your dealer or the manufacturer. In any correspondence, refer to the model
number and serial number of your unit which is located
on the lower front cabinet flange. Retain you proof of
purchase. You may want to record these numbers in the
space provided on this page. Follow the procedure outlined on page 5.
Problem
Odor in cabinet
Noisy operation
Cabinet vibrates
Cabinet light not working
Appliance will not run
Appliance runs too long
Moisture collects inside
Moisture collects on outside
surface
Interior too hot/too cold
Possible
Causes/Solutions
•Interior needs cleaning
•Cabinet not level
•Weak floor
•Cabinet not level
•Weak floor
•Tube burned out
•No power at outlet
•Temperature control turned
to “OFF”
•Line cord not plugged in
•No power at electrical outlet
•House fuse blown
•Prolonged door openings
•Control set too cold
•Condenser needs cleaning
•Too many door openings
•Prolonged door openings
•Hot, humid weather
increases condensation
•Hot, humid weather
increases condensation. As
humidity decreases,
moisture will disappear.
•Control improperly set.
•Control improperly set
•Faulty thermometer
•Relocate thermometer to
center of cabinet and
recheck
Page 6
If You Do Need Service
In the event that you do need service, be sure to report the
model number, serial number and proof of purchase to your
service representative. Model number and serial number
are found on the serial plate which is located on the lower
front cabinet flange. For your convenience you may want to
record the following information for your records.
Date of purchase
Dealer’s Name
Dealer’s Address
Dealer’s City
Dealer’s State Zip
Appliance Serial Number
Model Number
Date Warranty Card Sent (Must be within 10 Days of Purchase)
How to Obtain Service
Your refrigerated beverage center requires little service
because the best and most up to date materials, equipment and quality methods are employed throughout the
manufacturing process.
If trouble occurs during normal operation, first check the
troubleshooting chart on page 4 to see if any of these
simple steps may correct the problem. If service
becomes necessary:
Contact the dealer where your appliance was purchased
or the manufacturer for the name of your nearest
authorized service representative. The service representatives will have full authority tom make any repair
deemed necessary.
If you are in an area where there is no service representative, write or call the manufacturer directly. We
will make recommendations as to the proper procedure for correction. Service work and replacement parts, if required, will be provided as covered by your
limited warranty.
IT IS IMPORTANT THAT YOU SEND IN YOUR WARRANTY RECORD CARD IMMEDIATELY AFTER TAKING
DELIVERY OF YOUR REFRIGERATION APPLIANCE.
Every new refrigeration appliance that leaves the factory
contains this Owner's Guide in a safe place for convenient reference.
Normal Responsibilities
of the Owner Include
All freight charges.
Damage sustained in transit (see page 1)
Mileage charge(s) for service calls.
Proper installation.
Alterations to original equipment.
Removal or installation of additional equipment.
5
Under Counter Beverage Center Specifications
Dimensions W x H x D (in.) 147/8 x 34 x 241/4
Weight 112 lbs.
Temperature 39-69°F
Power Supply 115V
supplied with a 15 amp plug
Page 7
Marvel Household Refrigeration
Products Limited Warranty
Entire Product - Limited One Year Parts and Labor
Warranty. MARVEL warrants that it will supply all necessary parts and labor to repair or replace in the end
user's home or office, any component which proves to
be defective in materials or workmanship, subject to the
condition and exclusions stated below, for period of one
year from date of purchase by the end user.
Additional Second Through Fifth Year Limited Parts Only
Warranty. During the four years following expiration of
the One Year Limited Warranty, MARVEL will supply
replacement parts for the hermetically sealed refrigeration system which consists of the compressor, condenser, drier, connecting tubing and the evaporator that are
proven to be defective due to workmanship or materials
subject to the conditions and exclusions below.
The above warranties do not cover:
- Shipping costs of replacement parts or returned
defective parts.
- Customer education or instructions on how to use
the refrigerator/freezer.
- Any content loss due to product failure. - Removal
or installation.
Nor do the above warranties cover failure of this product
or its components due to:
- Transportation or subsequent damages.
- Use commercially or use other than normal household or office.
- Improper installation, misuse, abuse, accident or
alteration, use on wiring not confirming to electrical
codes, low voltage, failure to provide necessary
maintenance, or other unreasonable use.
- Parts or service not supplied or designated by MARVEL.
The above warranties also do not apply if:
- The original Bill of Sale, deliver date or serial number cannot be verified.
- Defective parts are not returned for inspection if so
requested by MARVEL.
- The refrigeration equipment is not in the posses-
sion of the original end use purchaser.
THE WARRANTIES SET FORTH HEREIN ARE THE
ONLY WARRANTIES EXTENDED BY MARVEL INDUSTRIES. ANY IMPLIED WARRANTIES, INCLUDING THE
IMPLIED WARRANTY OF MERCHANTABILITY, ARE
LIMITED TO THE DURATION OF THESE EXPRESS
WARRANTIES. IN NO EVENT SHALL MARVEL INDUSTRIES BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES OR EXPENSES RESULTING
FROM BREACH OF THESE OR ANY OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED.
Some states do not allow the exclusion or limitation of
consequential damages or limitations on how long an
implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
which may vary from state to state.
No person, firm or corporation is authorized to make
any other warranty or assume any other obligation for
MARVEL INDUSTRIES. These warranties apply only to
products used in any of the fifty states of the United
States and the District of Columbia.
To obtain performance of this warranty, report any
defects to:
MARVEL INDUSTRIES
PO.Box997
Richmond, Indiana 47375-0997
Phone: 765-962-2521
IN NO EVENT SHALL THE COMPANY BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES
INCLUDING, BUT NOT LIMITED TO, CONTENT LOSS.
Some states do not allow limitations on length of time
implied warranty may last, so the above limitations may
not apply to you.
This warranty gives you specific legal rights. You may
also have other rights which very from state to state.
Help prevent tragedies
Each year children die because they climb inside a
discarded refrigeration product, get trapped inside
and suffocate. Take precautions to prevent such
tragedies by removing the door, taping or chaining it
shut before discarding.
6
Page 8
41008945 Rev A
WWW.MARVELINDUSTRIES.COM
Phone: (765) 962-2521 Fax: (765) 962-2493
Marvel Industries
Part of AGA Foodservice Group
233 Industrial Parkway
P.O. Box 997
Richmond, IN 47375-0997
Loading...
