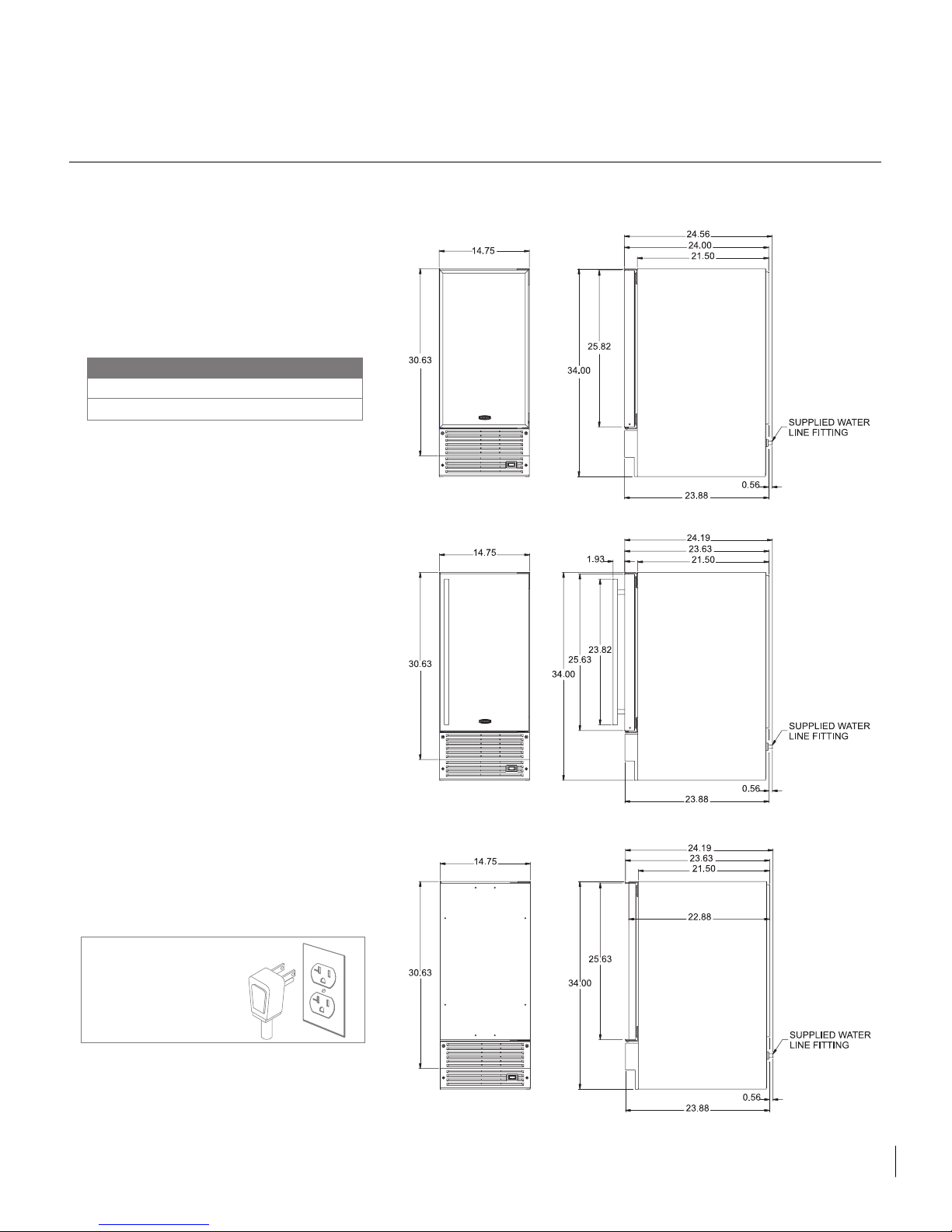

Select Location
The proper location will ensure peak performance of your ice machine. Choose a location
away from heat and out of direct sunlight. Best
performance will be maintained when installed
within the following parameters:
Cabinet Clearance
Ventilation is required for the bottom front section
of the unit where the grille is located. Keep this
area open and clear of any obstructions.
Adjacent cabinets and countertop can be built
around the unit as long as no top trim or countertop is installed lower than the top of the hinge.
Make certain that the glides supplied with the ice
machine are installed according to instructions.
Make certain your ice machine is level. Leveling
adjustments can be made by raising or lowering
the glides on the bottom of the unit.
Electrical Connection
Check the serial nameplate for the correct power
supply. Use only the electrical power supply
specified on the serial nameplate on the back of
the door. Do not use an extension cord.
Grounding Method
This ice machine is equipped with a power supply
cord with ground. It must be plugged into a mating
grounding type receptacle in accordance with the
National Electrical Code and applicable local
codes and ordinances.
THIS UNIT SHOULD NOT, UNDER ANY
CIRCUMSTANCES, BE UNGROUNDED.
4
INSTALLATION
Note: The plug shown is
for 115VAC unit. The
prongs on your model
may vary from that
shown if your unit is
other than 115VAC.
Ideal Ambient Temperature Range*
built-in
freestanding
* Ice Machine will not perform correctly in ambient temperatures less than 55°F.
55-80°F
55-90°F
Framed,
Panel Ready
Style Door
Full Wrap,
MetalStyle
Door
Full Wrap,
Overlay Style
Door
Page 6
Page 7
Water Supply
This ice machine must be connected to a potable,
active cold water supply line delivering water
pressure at a minimum of 20 psi and maximum of
120 psi.

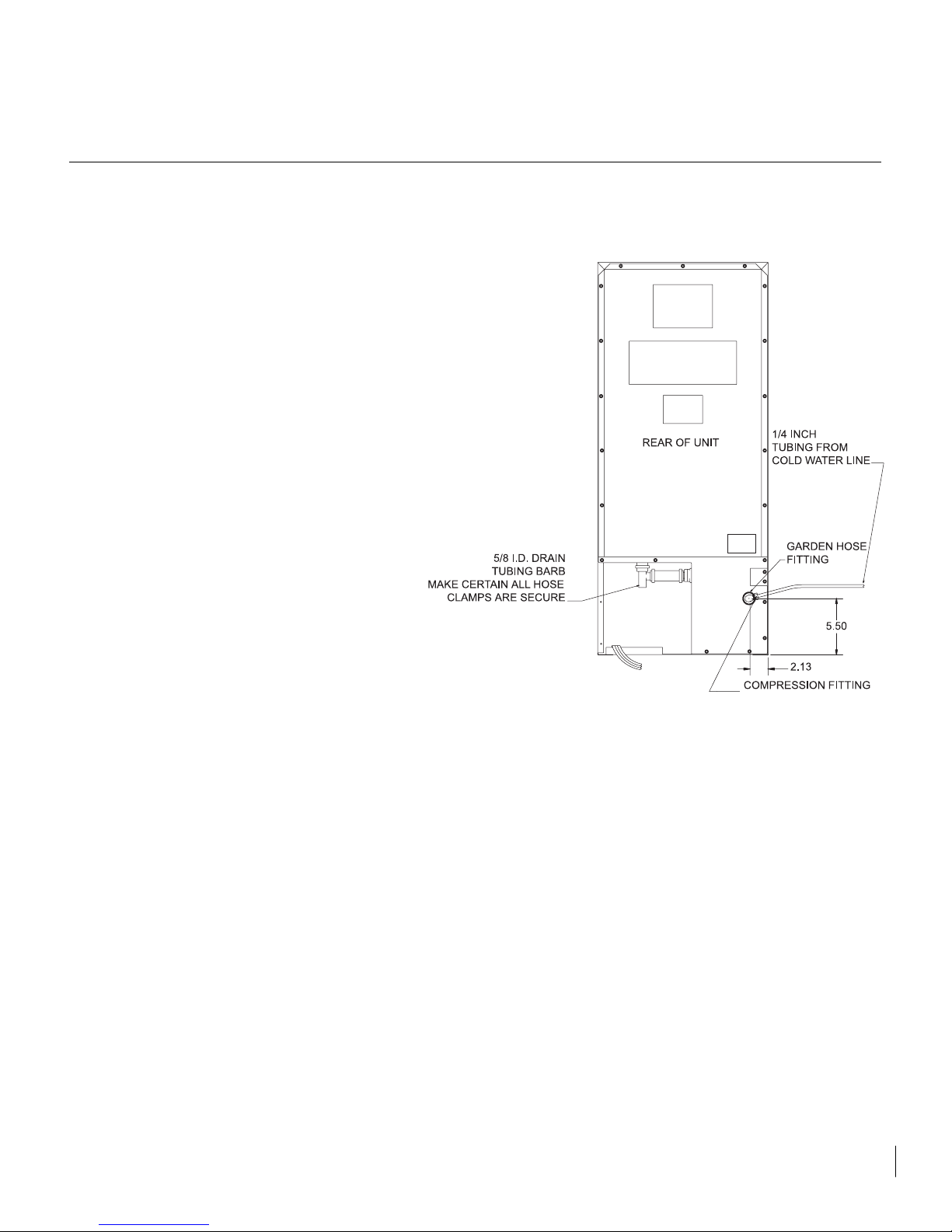

• Water connection is made through a right angle
garden hose fitting supplied with ice machine.
See garden hose fitting for detailed instruction
sheet. Do not use any thread sealers.
• A water filter can be used with this unit. A quality
filter can help remove particles as well as remove
taste and odors from water.
• Do not use a “reverse osmosis” filtering device.
• Softened water is not recommended. This will
produce soft, cloudy ice cubes that will stick
together.
• De-ionized water is not recommended. This
water will not form solid ice cubes.
• A water specialist can recommend proper water
treatment.
• After installation of water line, turn on water and
check for any leaks. Additional tightening may be
needed.
• Allow for extra water line for built-in installations
for easy removal of unit and to help prevent the
water line from kinking.
Operation
Your ice machine is unique in forming ice. It uses
fractional freezing to form a slab of ice that is clear
and has less mineral content than the water it is
produced from. This is accomplished by running
water over the cold evaporator plate which gradually freezes the water to produce the ice slab.
Mineral deposits are left in the reservoir.
When the ice slab reaches the correct thickness
determined by the temperature of the evaporator
plate, the electronic control switches to the harvest cycle to harvest the ice. During the harvest
cycle, the ice slab falls from the evaporator to the
ice grid cutter. Here, the ice slab is cut into 3/4"
squares by the grid cutter's heated wires. During
the harvest cycle, the drain valve will remain open
for 45 seconds to drain the reservoir of remaining
deposits. After that, the water valve open will open
for 2 minutes providing 2 quarts of water to the
reservoir for the next ice production cycle.
The ice machine will keep producing ice until the
ice machine's bin is full and will restart automatically when ice needs to be replenished in the bin.
621
WATER SUPPLY
Page 8
Page 9
Cleaning Your Ice Machine
Some impurities will remain and build up in the ice
machine and stick to the ice machine's parts over
time. This build-up must be removed for proper ice
production, ice quality, and ice machine life. Your
ice machine is equipped with a cleaning mode that
will help in cleaning out these impurities.
The impurities will need to be cleaned of this buildup regularly (at the very least, annually), depending on use and water hardness. You can use an
acid such as one specified for ice machine cleaning or you can use citric acid to remove the buildup. To clean the ice machine:
1. Switch the selector switch to the "OFF"
position.
2. Remove the drain plug at the bottom of the
reservoir to drain any remaining water and
then reinstall.
3. Add the recommend cleaner solution to the
reservoir of the ice machine. Access to the
reservoir can be obtained by removing the
front panel screws and the front panel.
Determine the proper amount of cleaner
from the ice machine cleaner manufacturer's
mixture ratio based on 3 quarts of water
(refer to manufacturer's directions).
4. Replace the front cover panel and close the
door.
5. Switch the selector switch on the grille of the
ice machine to the clean position. Three
quarts of water will automatically be added
to the cleaning solution.
6. The total cleaning time will end in 49 minutes. The cleaning cycle will automatically
rinse the evaporator plate and also drain the
cleaning solution and rinse water.
7. After the cleaning cycle has ended, remove
the front panel again and check that the
build-up has been removed. The evaporator
plate should be clean, shiny, and smooth to
the touch. If build-up is still visible, repeat
the cleaning cycle above. If build-up is
removed, continue below.

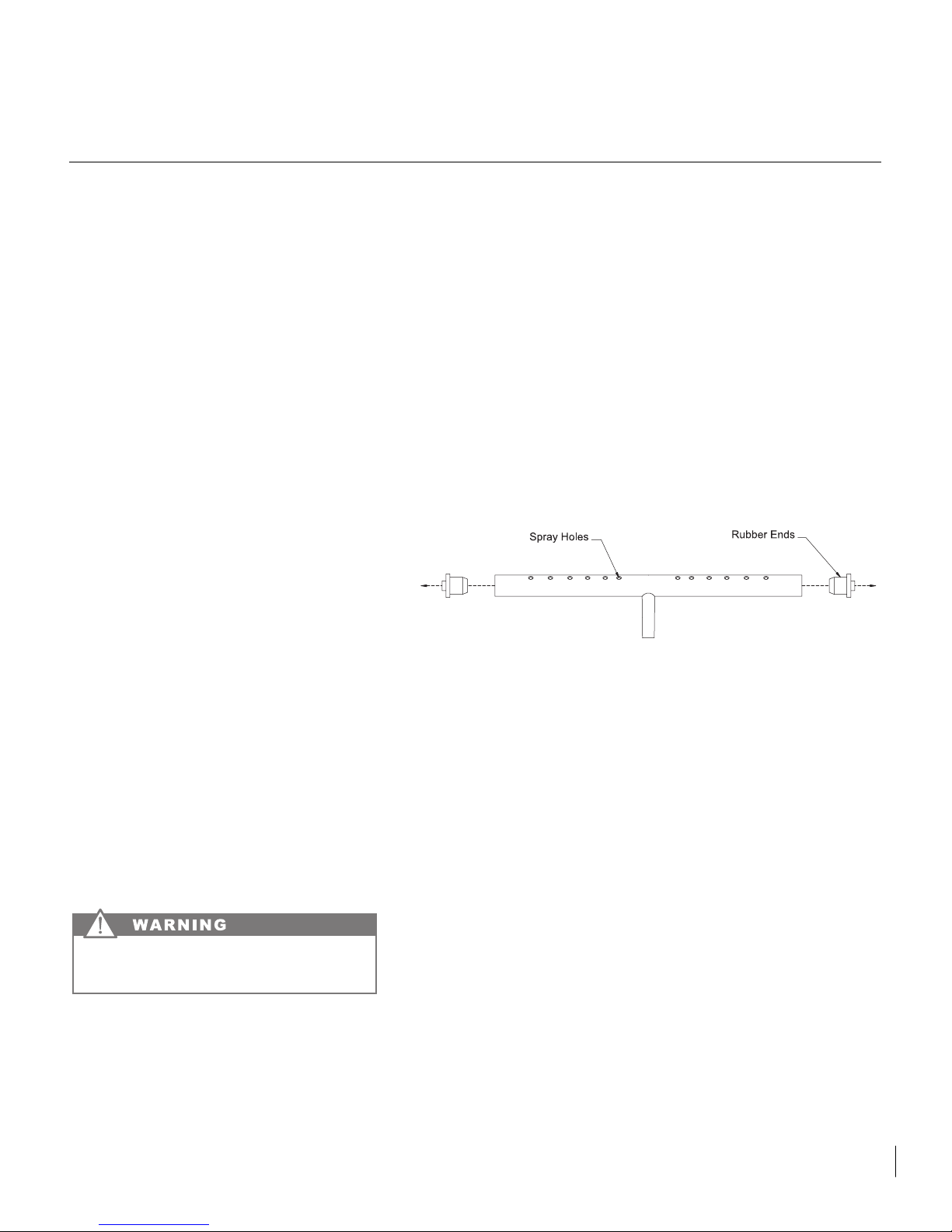

8. Remove the distributor tube, hose clamp,
hose and its rubber ends.
9. Thoroughly clean the inside of the distributor tube and the spray holes. You can use
the same cleaning solution as before and an
old toothbrush to reach the inside of the distributor tube.
10. Reinstall the rubber ends, hose, and hose
clamp to the distributor and then reinstall the
distributor tube to the evaporator with the
spray holes pointed to the bottom of the
evaporator plate. Reinstall the front cover
panel with the two front panel screws.
11. Clean the ice machine's interior, ice scoop,
interior door panel and door gasket with mild
soap and water. Using two tablespoons of
baking soda in one quart of warm water
while cleaning will help remove odors. Rinse
with fresh water. Do not use any abrasive
cleaning products.
Your ice machine is now clean and sanitized and
may be put back into operation by switching the
selector switch to the "ON" position.
8
CARING FOR YOUR ICE MACHINE
Read manufacturer's warnings on ice machine
cleaner products. Personal injury can result.
Page 10
Page 11
Optional Door Handle Installation for Panel
Ready Doors (for units without door handle
attached)
The door handle for certain doors may be packed
inside your ice machine and can be mounted on
the top or side of your refrigerator door. Locate the
handle where it is convenient for you. You will
need a 1/4" hex head driver to install the handle.
Place the handle on the outside surface of the
door. Push gently inward toward the door until the
handle snaps in place. Use the two screws supplied to secure the handle to the door frame by
tightening the screws into the holes on the backside of the handle. Tighten the screws until the tips
of the screws touch the bottom of the backside of
the door frame. Your installation is complete.
Reversing the Door
You may want to change the side on which the
door opens and closes. This can be changed by
the following steps.
1. Remove the door by removing the top hinge
pin and angling the door off of the bottom
hinge pin.
2. Gently pry out the hole plugs on the side
which the hinges will be mounted. A thin
knife will usually allow the hole plug to be
removed just enough to pull the rest of the
way out by hand. Do not destroy these plugs
because they will be used on the other side
of the unit.
3. Remove the hinges from the unit.
4. Remove the hinge pin from the bottom hinge
that was removed. Install this pin on the
other hinge that was also removed.
5. Install the hinges on the desired side of the
unit.
6. Install the door by inserting the bottom door
bushing with the bottom hinge pin and
angling door in until top door bushing and
hinge line up. Install the upper hinge pin.
7. Install the hole plugs from step 2 in holes.
DOOR ALTERATIONS
10
Page 12
Page 13
Entire Product
Limited One Year Parts and Labor Warranty
Marvel warrants that it will supply all necessary
parts and labor to repair or replace in the end
user's home or office, any component which
proves to be defective in material or workmanship,
subject to the condition and exclusions stated
below, for a period of one year from the date of
purchase by the end user.
Additional Second Through Fifth Year
Limited Parts Only Warranty
During the four years following expiration of the
one year limited warranty, Marvel will supply
replacement parts for the hermetically sealed
refrigeration system which consists of the compressor, condenser, drier, accumulator, by-pass
valve, connecting tubing and the evaporator that
are proven to be defective due to workmanship or
materials subject to the conditions and exclusions
below.
The above warranties do not cover:
• Shipping costs of replacement parts or returned
defective parts.
• Customer education or instructions on how to
use the appliance.
• Any content loss due to product failure.
• Removal or installation.
Nor do the above warranties cover failure of this
product or its components due to:
1.Transportation or subsequent damages.
2.Use commercially or use other than normal
household or small office.
3.Improper installation, misuse, abuse, accident
or alteration, use on wiring not conforming to
electrical codes, low or high voltages, failure to
provide necessary maintenance, or other unreasonable use.
Parts or Service
Not Supplied or Designated by Marvel
The above warranties also do not apply if:
The original bill of sale, deliver date or serial number cannot be verified.
Defective parts are not returned for inspection if so
requested by Marvel.
The refrigeration equipment is not in the possession of the original end use purchaser.
The warranties set forth herein are the only warranties extended by Marvel Industries. Any implied
warranties, including the implied warranty of merchantability, are limited to the duration of these
express warranties. In no event shall Marvel
Industries be liable for any consequential or incidental damages or expenses resulting from
breach of these or any other warranties, whether
express or implied.
Some states do not allow the exclusion or limitation of consequential damages or a limitation on
how long an implied warranty lasts, so the above
exclusion or limitation may not apply to you. This
warranty gives you specific legal rights and you
may have other rights that may vary from state to
state.
No person, firm, or corporation is authorized to
make any other warranty or assume any other
obligation for Marvel Industries. These warranties
apply only to products used in any of the fifty
states of the United States and the District of
Columbia.
To obtain performance of this warranty, report any
defects to:
Marvel Industries
P.O. Box 997
Richmond, Indiana 47375-0997
Phone: 765-962-2521
12
WARRANTY
Page 14
Page 15
PROBLEM
Ice cubes are too small (less than
1/2 inch thick).
Ice cubes are too big (greater than
3/4 inch thick).
Hollow ice slab.
14
TROUBLESHOOTING TWO
POSSIBLE CAUSE
Low ice consumption.
Not enough water in reservoir.
Distributor tube is restricted.
Build up of deposits on evaporator plate.
Inadequate drain system.
Leaking drain valve.
Room temperature is too warm.
Ice slab not releasing.
Condenser fan air flow is restricted.
Room temperature is too warm.
Distributor tube is restricted.
Build up of deposits on evaporator plate.
Low water level in reservoir.
CORRECTION
Ice is slowly melting in the ice bin and will affect the size of
the ice cube. This is normal operation. When the ice bin
needs to be replenished, cubes will return to regular size.
Make sure that the reservoir drain plug is installed properly.
Check the water line to the unit to make sure there are no
restrictions or kinks in the line. Check all filters to make
sure they are not restricted or plugged.
See "CLEANING YOUR ICE MACHINE" section for cleaning the unit for proper operation.
See "CLEANING YOUR ICE MACHINE" section for cleaning the unit for proper operation and cube size.
Restriction in drain lines will cause ice in the bin to melt to a
thinner cube. If using a gravity drain, make certain there are
no kinks or restrictions in the drain lines. If using a drain
pump, check the inlet screen, discharge line, and vent line
for any build-up or restrictions.
See "CLEANING YOUR ICE MACHINE" section for cleaning the unit. This will also dissolve and flush out foreign
material in the drain valve causing it to leak.
Move to an area where temperature is below 90° F.
See "CLEANING YOUR ICE MACHINE" section for cleaning the unit for proper operation and cube size.
Make certain the grille in the front of the unit is free and
open for proper air circulation. Check and clean the condenser coil by removing the grille in the front of the unit.
Clean the condenser with a vacuum and brush attachment.
Move to an area where temperature is below 90° F.
See "CLEANING YOUR ICE MACHINE" section for cleaning the unit for proper operation.
See "CLEANING YOUR ICE MACHINE" section for cleaning the unit for proper operation and cube size.
Make sure that the reservoir drain plug is installed properly.
Check the water line to the unit to make sure there are no
restrictions or kinks in the line. Check all filters to make
sure they are not restricted or plugged.
Page 16
Page 17
PROBLEM
Ice cubes are sticking together.
Ice level is too high.
Ice level is too low.
Water keeps backing up into the ice
bin (gravity drain).
Water keeps backing up into the ice
bin (drain pump).
The drain pump cycles on and off
erratically.
16
TROUBLESHOOTING FOUR
POSSIBLE CAUSE
Ice consumption is low.
Room temperature is too warm.
The ice machine is not level.
Room temperature is too warm.
Ice deflector is not in place or secured
properly.
Bin level sensing tube needs adjusted.
The ice machine is not level.
Room temperature is too cold.
The selector switch is not in the "ON"
position
Inadequate drain system.
Foreign material in ice bin drain.
Drain pump tubing kinked or restricted.
Inlet screen to the drain pump is restricted
or blocked.
Drain pump and/or the ice machine are not
level.
Vent line to the drain pump is restricted or
kinked.
Discharge line is restricted or kinked.
The drain pump is not level.
CORRECTION
Use the ice in the bin frequently. Ice will stick together if left
in insulated bin over long periods of time.
Move the unit to an area where temperature is below 90° F.
Use a level to check the unit for level from side to side and
front to rear.
Move the unit to an area where temperature is below 90° F.
Check to see that the ice deflector is in place and secured
below the grid-cutter.
You can adjust the bin level sensing tube by simply pressing directly down on the tube 5 inches from the front of the
tube to get a desired bin level.
Use a level to check the unit for level from side to side and
front to rear.
Move the unit to an area where temperature is above 55° F.
Set the rocker switch on the grille of the ice machine to the
"ON" position.
Restriction or improperly installed drain lines will cause
water to back up into the ice bin. Make certain there are no
kinks or restrictions in the drain lines. If necessary, consult
a qualified plumber.
Foreign material is restricting or blocking the ice bin drain
located at the right rear corner of the ice bin. The drain will
need to be cleared.
Check inlet, discharge, and vent line tubing for any kinks or
restrictions and repair as necessary.
Clean the inlet screen to the drain pump.
Check and level if necessary the drain pump as well as the
ice machine.
Check the vent line for any restrictions or kinks and repair
as necessary.
Check the discharge line and connection to the desired
drain for any restrictions or kinks and repair as necessary.
The drain pump must be level. Check for level on the top of
the drain pump case and adjust the tubing or use shims to
level.
Page 18
Page 19
Illus. No. Description Qty. Req. Part No. Service Assembly
1 Serial Nameplate 1 various Location Only
2 Hole Plug 6 41001929 42242085
3 Screw 2 41004079 42242989
4 Escutcheon 1 41007277 42242989
5A Grille White 1 41006376 42243390
5B Grille Black 1 41006274 42243391
5C Grille Stainless Steel (Upper) 1 41008735 42246381
5D Grille Stainless Steel (Lower 1 41008534 42246382
6A On-Off-Clean Switch, Black 1 41005824 42242992
6B On-Off-Clean Switch, White 1 41006045 42243097
7A Screw, Grille White 4 41005486 42243390
7B Screw, Grille Black 4 08205072 42243391
7C Screw, Grille Stainless Steel 2 41006774 42246381 & 42246382
7D Star Washer, Stainless Steel 1 41006775 42246382
8 Leveling Legs 1 52415809 42246384
9 Stainless Steel Panel Assembly (optional) 1 42284093 42244709
10 Screw (optional) 2 08204920 42244709
Items Not Shown Qty. Req. Part No. Service Assembly
Door Assembly, complete 1 various See Fig. #4
Hinge Screws 6 various See Fig. #4
Hinges (upper & lower) 1 various See Fig. #4
Hinge Pin 2 41004106 42246217
18
SERVICE PARTS LIST ONE
Page 20
Page 21
Illus. No. Description Qty. Req. Part No. Service Assembly
1 Distributor Tube End 2 41005705 42242977
2 Distributor Tube 1 41005515 42242976
3 Tubing 1 41005042 42242976
4 Evaporator Assembly 1 42052559 42242978
5 Screw 4 08204920 42242978
6 Clamp 1 41006002 42242978
7 Hose Clamp 1 41006126 42242976
8 Washer 2 08205068 42242981
9 Screw 2 08204920 42242980
10 Circulation Pump 1 41005537 42242980
11 Reservoir 1 41005345 42242981
12 Spacer 2 41004366 42242981
13 Screw 2 41005773 42242981
14 Clamp 1 1150003A 42242986
15 Sleeve w/ thermistor 1 42156278 42246385
16 Screw 2 08204920 42246385
17 Screw 4 08204920 42242984
18 Drain Plug 1 41005859 42242982
19 Grid-Cutter Assembly 1 42412615 42242984
20 Deflector 1 41006040 42242985
21 Screw 4 08204920 42242985
22 Wellnut 20 41005503 42242987
23 Screw 1 41004079 42246353
24 Thermistor Honeywell 1 41050005 42246353
25 Retainer Clip 1 41006042 42242975
26 Screw 2 08204920 42242975
27 Ice Scoop 1 41005536 42242993
28 Washer 2 08205068 42242984
20
SERVICE PARTS LIST TWO
Page 22
Page 23
Illus. No. Description Qty. Req. Part No. Service Assembly
1 Condenser 1 41003609 42243035
2 Pop Rivet, Steel 4 41003962 42243035
3 Coil Retainer 1 41003662 42241490
4 Solenoid Coil 1 41003601 42242141
5 Hot Gas Valve 1 41003914 42242020
6 Drier Assembly 1 42102389 42242961
7 Speed Nut 1 41000153 42244701
8A Fan Shroud 1 41006282 42244704
8B Fan Shroud, Outdoor 1 41008531 42245202
9 Fan Blade 1 41003616 42242015
10 Silencer, Spacer 1 M000101A 42244701
11 Locknut 5 41006874 42244701
12 Fan Motor Assembly 1 42183571 42244701
13 Carriage Bolt 5 1130006A 42244701
14 Carriage Bolt 2 08205050 42243194
15 Carriage Bolt 1 1130006A 42242900
16 Sleeve, Compressor 2 41008199 42243194
17 Grommet, Compressor 4 41008198 42243194
18 Locknut 1 41006874 42242900
19 Lock Washer 1 41005417 42242900
20 Ground Wire, Compressor 1 41001401 42242900
21 Lock Washer 1 08205116 42242900
22 Screw 1 08205200 42242900
23 Washer 2 08204877 42243194
24 Locknut 2 08205051 42243194
25 Compressor Assembly 1 41008182 42243194
26 Compressor PTC Starter 1 41008200 42244702
27A Back Panel 1 41009202 42242962
27B Back Panel, Outdoor 1 42104901 42245203
28 Power Cord Clamp 1 41006046 42242963
29 Locknut 1 41006874 42242963
30 Carriage Bolt 1 1130006A 42242963
31 Baseplate 1 41006276 42242964
32 Water Valve Assembly 1 42262644 42242965
33 Drain Valve 1 41005530 42242966
34 Screw 2 08204928 42242965
35 Screw 2 08204928 42242966
36 Tee Fitting/Flow Restrictor Assembly 1 42283196 42242967
37 Hose Clamp 4 41006769 42242967
38 Power Cord 1 41006733 42242963
39 Bracket, Saturn Control 1 44000580 42246367
40A Screw 24 08204928 42245416
40B Screw-Stainless Steel, Outdoor 24 41005076 42245203
41 Electronic Control, Saturn 1 41050002 42246366
42 Transformer 1 41005681 42242973
43 Screw 6 41005086 42242971
44 Terminal Block 1 41005078 42242971
45 U-Clip 1 41005945 42243015
46A Access panel assembly 1 41005943 42243016
46B Access panel assembly-Stainless Steel, Outdoor 1 41008533 42245204
47 Compressor Overload 1 41008201 42245580
* Power Wire Harness 1 41050001 42246383
* Not Shown
22
SERVICE PARTS LIST THREE
Page 24
Page 25
Illus. No. Description Qty. Req. Part No. Service Assembly
1A Handle, Blk. Complete 1 41007478 42246368
1B Handle, S.S. Complete 1 41007480 42246370
1C Handle, Wht. Complete 1 41007479 42246369
2A Standoffs, Blk. 2 41007390 42245356
2B Standoffs, S.S. 2 41005804 42245358
2C Standoffs, Wht. 2 41007389 42245357
3A Set Screw, Blk. 2 41006026 42245356
3B Set Screw, S.S. 2 41006026 42245358
3C Set Screw, Wht. 2 41006026 42245357
4A Screw, Blk. 2 08204920 42245356
4B Screw, S.S. 2 08204920 42245358
4C Screw, Wht. 2 08204920 42245357
5A Nylon Spacer, Blk. 2 41007003 42244435
5B Nylon Spacer, S.S. 2 41007003 42244436
5C Nylon Spacer, Wht. 2 41007003 42244437
6A Hinge Adapter, Blk. Complete 1 41008152 42244914
6B Hinge Adapter, S.S. Complete 1 41007800 42244915
6C Hinge Adapter, Wht. Complete 1 41008153 42245258
7A Door Assembly, Blk. complete 1 42034148 42244435
7B Door Assembly, S.S. complete 1 42034150 42244436
7C Door Assembly, Wht. complete 1 42034149 42244437
8A Screw, Blk. 4 41007007 42244914
8B Screw, S.S. 4 41007518 42244915
8C Screw, Wht. 4 41009409 42245258
9A Hinge Adapter, Blk. Complete 1 41007006 42244914
9B Hinge Adapter, S.S. Complete 1 41007517 42244915
9C Hinge Adapter, Wht. Complete 1 41007515 42245258
10A Hinge Bushing, Blk. 2 41007005 42244914
10B Hinge Bushing, S.S. 2 41007005 42244915
10C Hinge Bushing, Wht. 2 41007005 42245258
11 Hinge Pin, Zinc 2 41004106 42246217
12A Hinges (upper & lower), Blk. 1 52417485 42244947
12B Hinges (upper & lower), Chrome 1 52417484 42244356
12C Hinges (upper & lower), Wht. 1 52417486 42246371
13A Hinge Screws, Blk. 6 41007599 42245718
13B Hinge Screws, Zinc 6 41007598 42245719
13C Hinge Screws, Wht. 6 41007600 42245720
14 Gasket, Wht. 1 41006285 42243388
15 Marvel Nameplate 1 41004477 42243063
24
SERVICE PARTS LIST FOUR
Page 26
Page 27
Page 28
Loading...
