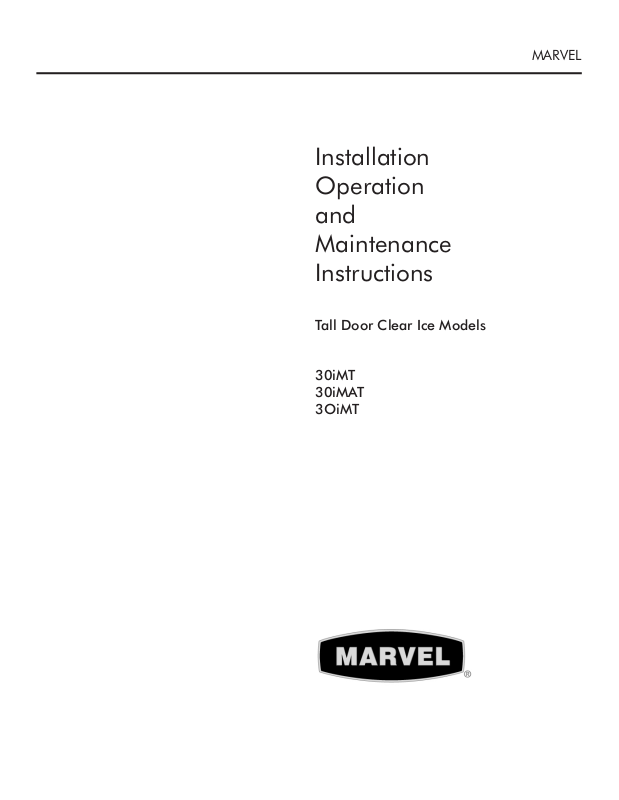

Installation
Operation
and
Maintenance
Instructions
Tall Door Clear Ice Models
MARVEL
30iMT
30iMAT
3OiMT
Page 2
TABLE OF CONTENTS
Unpacking your ice machine.........................
Removing the packaging......................
Warranty Registration .....................
Installing your ice machine......................
Selecting the location..........................
Outdoor Installation ....................................
Cabinet Clearances ....................................
Leveling legs .....................................
Grounding method..............................
Electrical Requirements........................
Installing the drain ...........................................
Optional drain pump installation......................
Connecting the water supply.............................
Dimensions for 30iMT & 3OiMT solid door.......
Recommended Rough in Opening Dimensions
for 30iMT & 3OiMT solid door......................
Dimensions for 3oiMT solid overlay door.
Recommended Rough in Opening Dimensions
for 30iMT solid overlay door........
Dimensions for 30iMAT solid door...................
Recommended Rough in Opening Dimensions
for 30iMAT solid door..................................
Dimensions for 30iMAT solid overlay door.......
Recommended Rough in Opening Dimensions
for 30iMAT solid overlay door......
Full Overlay Panel Installation Instructions....
Operation, Care, and Cleaning......................................15
Operation (Turning on the ice machine)........
Care of the Ice machine...............................
Cleaning the Ice Machine............................................15
Ice Production (Things to Remember)..............
Filler panel kit installation instructions (optional)...
Troubleshooting Guide.........................
Preparing the ice machine for storage............
Obtaining Service ..............................
Household Product Warranty................
............
...............
.................
...............
......
............
.................2
.......
..............
........
..............
..............
............
......................
..........
..............3
...........
........
....................
.........
.......
.............3
............
.............
..............
..............
...............8
...............9
.................9
.............
..............
.............
...............11
.................
.............
...........
............
..........
.............
.............
....................24
...
2
....
.2
..3
..3
..3
...
.3
...3
..4
..5
.7
..8
. 10
.10
..11
.12
...15
....15
..16
.17
......18
.....22
...
..23
1
Page 3
UNPACKING YOUR ICE MACHINE
NOTE
Important Safety Instructions
Warnings and safety instructions appearing in this
guide are not meant to cover all possible conditions and situations that may occur. Common sense,
caution, and care must be exercised when installing,
maintaining, or operating this appliance.
Recognize Safety Symbols,
Words, and Labels.
CAUTION-Hazards or unsafe practices which could
result in personal injury or property or product damage.
WARNING-Hazards or unsafe practices which could
result in personal injury.
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its safe
delivery was assumed by the retailer upon acceptance of the
shipment. Claims for loss or damage sustained in transit
must be made to the retailer.
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.
If the unit was shipped or has been laying on its back for
any period of time allow the ice machine to sit upright for a
period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the ice machine
in immediately may cause damage to internal parts.
Warranty Registration
It is important you send in your warranty registration card
immediately after taking delivery of your ice machine or you
can register online at www.marvelrefrigeration.com.
NOTE-Important information to make a problem free
installation.
Remove Packaging
Your ice machine has been packed for shipment with
all parts that could be damaged by movement securely
fastened. Cut the banding material at the bottom of the
carton, unfold the cartoning at the bottom and remove
the carton from the appliance. Remove the plastic bag,
styrofoam corner posts and any tape holding the door
closed and internal components in place.
The owners manual is shipped inside the ice machine in
a plastic bag along with the warranty registration card.
Important
Keep your carton packaging until your ice machine has
been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed
as proof of damage in transit. Afterwards please dispose
of all items responsibly in particular the plastic bags
which can be a suffocation hazard.
The following information will be required when registering
your unit.
Model Number
Serial Number
Date of Purchase
Dealers name and address
The model number and serial number can be found on the
serial plate which is located inside the ice machine at the
bottom of the cabinet.
Help Prevent Tragedies
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still dangerous. Even if they sit out for “just a few days”.
If you are getting rid of your old refrigerator, please follow
the instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
Take off the doors or remove the drawers.•
Leave the shelves in place so children may not easily •
climb inside.
2
Page 4
INSTALLING YOUR ICE MACHINE
Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
assure your product performs to specifications the recommended installation location temperature range is from 55
to 80°F (13 to 27°C) for indoor built in units, 55 to 90°F
(13 to 32°C) for indoor freestanding units.
Outdoor Installation
Only the 3OiMT model is suitable for outdoor installations.
A ground fault circuit interrupter electrical receptacle is to
be used to supply electrical power to the refrigerator for
outdoor applications. Contact an electrician if you need
to install one to supply electrical power to your outdoor
wine cellar. Do not install in an environment where the unit
will be exposed to direct sun exposure as this may result in
unsatisfactory performance.
Cabinet Clearance
Ventilation is required from the bottom front section of the
unit. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the unit as long as the grille and door access remain unobstructed.
Leveling Legs
Adjustable legs at the front and rear corners of the unit
should be set so the unit is firmly positioned on the floor
and level from side to side and front to back. Turn leveling
legs clockwise to raise unit, counterclockwise to lower it.
(See Figure 1).
Do not splash or spray water from a hose on the ice •
machine. Doing so may cause an electrical shock,
which may result in severe injury or death.
This unit should not, under any circumstances, be •
ungrounded.
Grounding Method
This product is factory equipped with a power supply cord
that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 2). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to exchange the existing
receptacle in accordance with the National Electrical Code
and applicable local codes and ordinances. The third
ground prong should not, under any circumstances, be cut
or removed.
Front Grille
Do not obstruct the front grille. The openings within the
front grille provide air to flow into and exit from the refrigerator condenser. For this reason it is important this area to
not be obstructed and be kept clean. Marvel does not recommend the use of custom made grilles as air flow may be
restricted because of inadequate openings. (See Figure 1).
Front Grille,
keep this
area open.
Figure 1
Leveling Legs
3
Electrical Connection
115 volts, 3 amps running max. 15 amp dedicated circuit
required. 3 prong grounded receptacle required.
Do not use an extension cord
with this appliance.
Figure 2
Page 5
Drain Plumbing
Your ice machine uses a gravity drain (Figure 3) that requires 5/8” I.D. tubing from the back of the ice machine
to a plumbed connection to a sanitary sewer. Remove the
access panel to plumb in drain connection. Gravity drain
location for built-in units can be within the area shown
in Figure 5. An optional drain pump (Figure 4) can be
purchased for your ice machine if a gravity drain is not accessible. See page 5 for optional drain pump installation.
Observe and follow all local codes when installing ice
machine.
Failure to use adequate drainage system will result in
surrounding water damage and/or poor ice production.
INSTALLING THE DRAIN PLUMBING
Figure 3
1-1/2” Drain pipe
Access
panel
Figure 4
Access
panel
Figure 5
Drain
Access
4
Page 6
OPTIONAL DRAIN PUMP INSTALLATION
The Marvel Drain Pump is designed to remove drain water
from ice machines installed in areas without direct drainage access. The sealed reservoir pump collects the melted
ice water and pumps it to a maximum lift of eight (8) feet
through 3/8” I.D. vinyl tubing to a drain.
This pump has been evaluated for use with water
only.
NOTE: Despite the ease of installation, reasonable care
and safe methods should be practiced. Do NOT work
with energized electrical equipment in a wet area. Read
and follow the installation instructions listed in this
manual.
Risk of electric shock - This pump is supplied with a
grounding conductor and grounding-type attachment
plug. To reduce the risk of electric shock, be certain that
it is connected only to properly grounded, groundingtype receptacle.
Maintenance
The following items require review on a regular basis.
Check that the inlet tubing from the ice machine 1.
drain to the drain pump is open and is free of foreign
material. Inspect the screen at the top of the inlet tube
to ensure there is nothing blocking water flow to the
pump.
Check that the vent line is open, free of kinks/sharp 2.
bends, so that air flows freely from the pump reservoir.
Check that the discharge tubing is free of foreign ma-3.
terial (algae, etc.) and kinks/bends. Confirm that the
check valve is operational by observing that the water
flow is evident in one (1) direction only - out of the
pump. Remove and clean as required.
Troubleshooting
NOTICE: If the drain pump reservoir (not the ice machine
bin) reaches overfill condition, the power to the ice machine will be shut off.
Materials Supplied
1- Marvel 115VAC/60Hz Drain Pump
1- 20 ft. x 3/8 in. I.D. Discharge Tubing
1- 18 in. x 3/8 in. I.D. Vent Tubing
1- Installation Kit (contents below)
1- 1-3/4 in. x 5/8 in. I.D. Inlet Tubing
1- 8 in. x 5/8 in. I.D. Inlet Tubing
2- Tubing Clips (secures vent tubing to back of ice
machine)
2- Small Tubing Clamps (secures vent and discharge
tubing)
2- Large Tubing Clamps (secures inlet tubing)
2- #8 x 3/8” Screws
Tools Required
Pliers
Phillips Screwdriver
Flat Blade Screwdriver
5/16” Hex Head Driver
If the ice machine is not working, check the following:
Make sure there is power at the receptacle.•
Make sure the ice machine is turned on.•
Make sure the ice bin is not full.•
Then check the drain pump:
The pump does not run:
Make sure the pump is plugged in and there is power •
to the receptacle.
Check the inlet screen for debris and clean as needed.•
Make certain the vent line is free of kinks/sharp bends •
or restrictions.
Make certain there is enough water to activate the •
drain pump. It will take at least one (1) quart of water
to activate the drain pump.
The pump runs, but no water is pumped out:
Check that the vent is clear and free of restrictions.•
Check the discharge line to make certain there are no •
restrictions.
Make sure that the discharge tubing has not exceeded •
the maximum lift of eight (8) feet and the horizontal
run is not greater than twenty (20) feet.
The pump runs and then quickly turns off repeatedly:
Check to make certain the drain pump is level.•
Check that the vent is clear and free of restrictions.•
5
Page 7
30iM Installation
NOTE
Turn the ice machine to gain access to the rear of the 1.
unit. Remove the access panel by removing the ten
(10) screws (see Figure 6).
Plug the ice machine’s power plug into the outlet on 2.
the drain pump. Place the drain pump in the left, rear
opening of the ice machine with the inlet, vent, and
discharge fittings to the rear of the unit (see Figure 7).
Install 1-3/4 in. x 5/8 in. I.D. inlet tubing to drain 3.
barb on ice machine and then on the inlet of the drain
pump. Clamp both ends of the tube with the large
tubing clamps.
Connect the 18 in. x 3/8 in. I.D. formed vent tube to 4.
the vent on the drain pump and secure with one (1) of
the small tubing clamps.
Route a short section of the 20 ft. x 3/8 in. I.D. tube 5.
through the opening in the access panel and connect
it to the discharge of the drain pump. Secure with the
small tubing clamp.
Route the vent tube and the drain pump power cord 6.
through the remaining openings in the access panel as
shown in Figure 8. Reinstall the panel and secure.
Secure the vent tube to the back of the ice machine 7.
using the supplied tubing clips and screws as shown in
Figure 8.
The vent tube must be attached and secured or water
damage may occur. Make certain there are no kinks in
the tube. The drain pump will not operate correctly with
a partially blocked vent line.
Connect the discharge tube to a suitable drain. Cut 8.
excess tubing as needed. Do NOT allow sags or kinks
in the tubing that will restrict flow.
Make certain that the drain pump is level in the ice 9.
machine’s rear opening.
Plug the power cord of the drain pump into a properly 10.
grounded 115VAC receptacle.
Test the drain pump by slowly pouring water into the 11.
ice machine ice storage bin. Approximately one (1)
quart of water is required to activate the drain pump.
Test the operation of the safety switch by turning the ice 12.
machine on and completely restricting the discharge
line while the pump is operating. Pour more water into
the ice machine’s ice storage bin until the ice machine
turns off. The drain pump will continue to operate.
Remove the discharge tube restriction and allow the
water to be pumped out. The power to the ice machine will be restored when the water in the pump
returns to normal.
Place the ice machine in the installed location. En-13.
sure that all tubing and power cords are not pinched,
kinked, or disturbed.
OPTIONAL DRAIN PUMP INSTALLATION
Access Panel
Screws
Figure 6
Towards the Rear
of the Ice Machine
Receptacle for
Ice Machine’s Plug
Vent Tube
Screws
Tubing Clips
Drain Pump’s
Power Cord
To Wall Receptacle
Figure 7
Access Panel
Figure 8
Inlet Tube
Fitting
Discharge
Tube Fitting
Vent Tube
Fitting
To Drain
6
Page 8
CONNECTING THE WATER SUPPLY
NOTE
Water Supply
The ice machine must be connected to a potable, active
cold water supply line delivering water pressure at a minimum of 20 psi and a maximum of 120 psi.
Water connection is made through a right angle •
garden hose fitting supplied with the ice machine. See
Figure 10 for detailed instructions. DO NOT USE ANY
THREAD SEALERS.
A water filter can be used with this unit. A quality filter •
can help remove particles as well as remove taste and
odors from water.
DO NOT USE A “REVERSE OSMOSIS” FILTERING •
DEVICE.
Softened water is not recommended. This will produce •
soft, cloudy ice cubes that will stick together.
De-ionized water is not recommended. This water will •
not form solid ice cubes.
A water specialist can recommend proper water treat-•
ment.
After installation of water line, turn on water and check •
for any leaks. Additional tightening may be needed.
Allow for extra water line for built-in installations for •
easy removal of unit and to help prevent the water line
from kinking.
1/4 inch
Tubing from
Cold Water Line
Garden Hose
Fitting
2-7/32” (57mm)
Compression Fitting
5-1/2”
(140mm)
Figure 9
The water line fitting supplied with your icemaker is to be used
on a 1/4 inch copper water supply line only. Do not attach a
plastic supply line using this fitting.
Rubber Washer
Adapter
Compression Fitting
Compression Nut
Fitting Valve
1/4 inch Copper
Water Supply Line (*)
From Water Supply
to Ice Maker
7
Figure 10
(*) Supplied by Customer
Page 9
14-7/8”
(37.8cm)

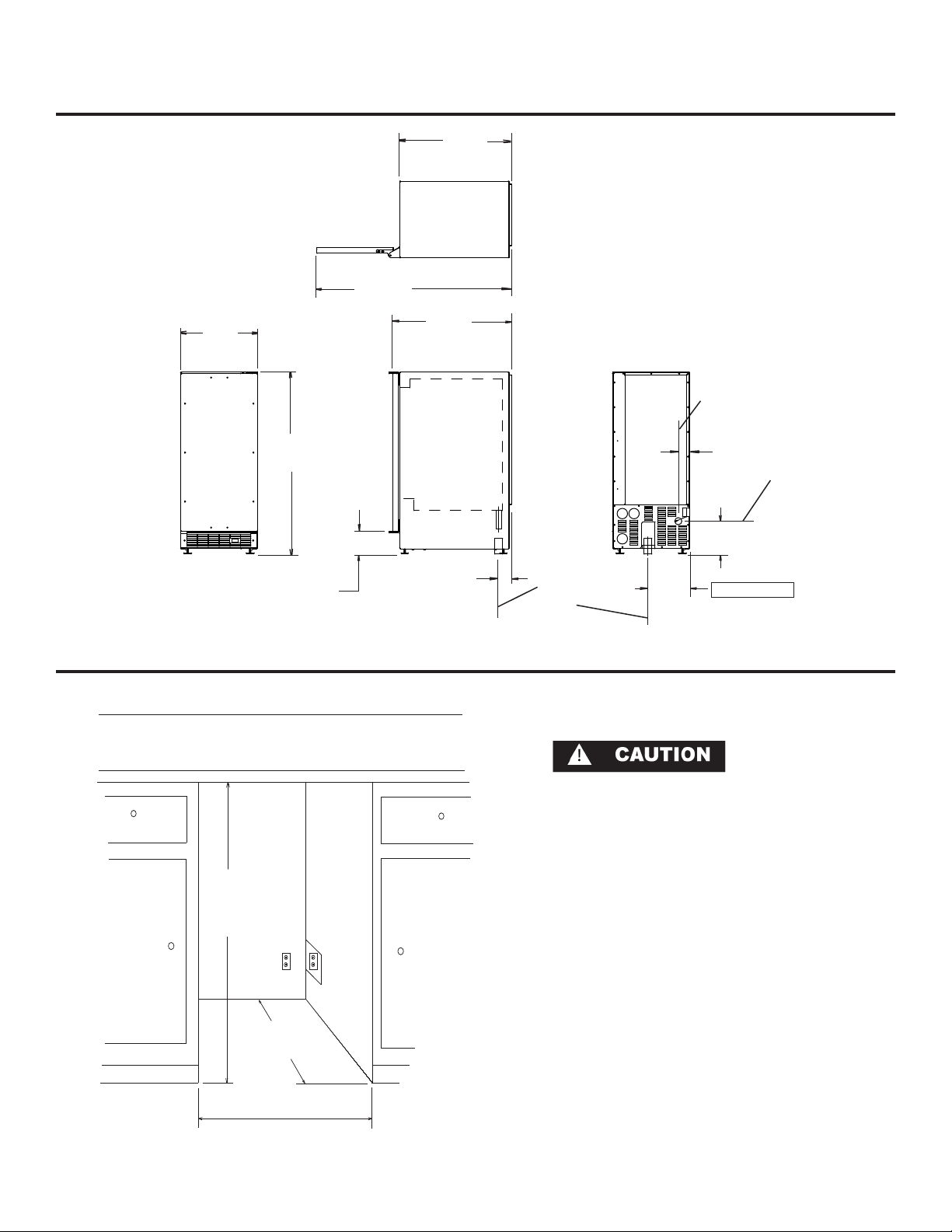

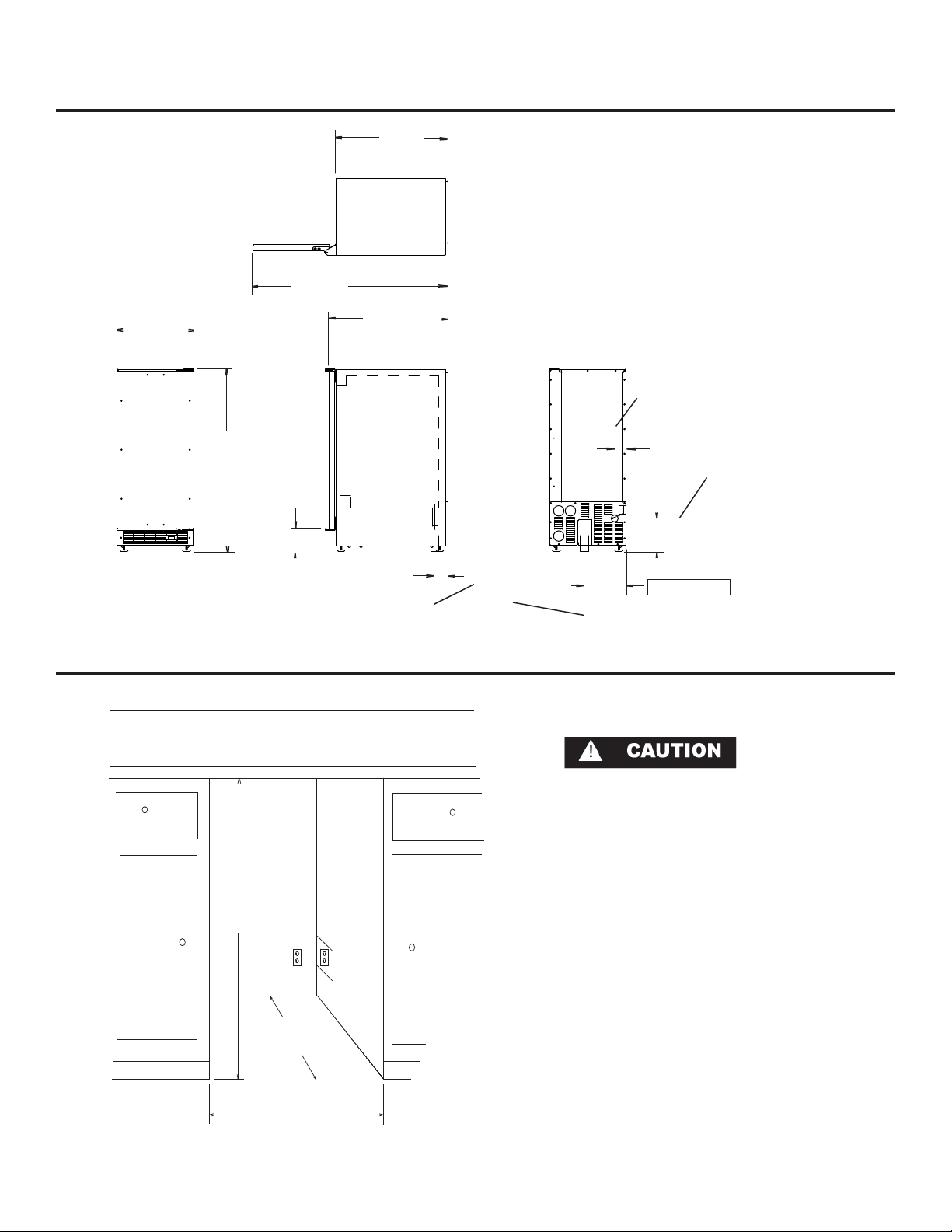

DIMENSIONS FOR 30iMT & 3OiMT SOLID DOOR
21-1/2”
(54.61cm)
37-1/16”
(95.4cm)
25-1/2”
(64.77cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
CL water supply
2” (5.08cm)
CL water supply
6” (15.24cm)
CL gravity
3” to 3-1/4”
(7.62 to 8.26cm)
2” (5.08cm)
23-5/8”
(60cm)
drain
8” (20.32cm)
Rough In Opening Dimensions, for 30iMT & 3OiMT Solid Door
Electrical Requirements: 115 volts,
3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
15” (38.1 cm)
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 100 lbs. (45.5 kg.)
depth
* Depth dimension may vary depending on
each individual installation.
8
Page 10

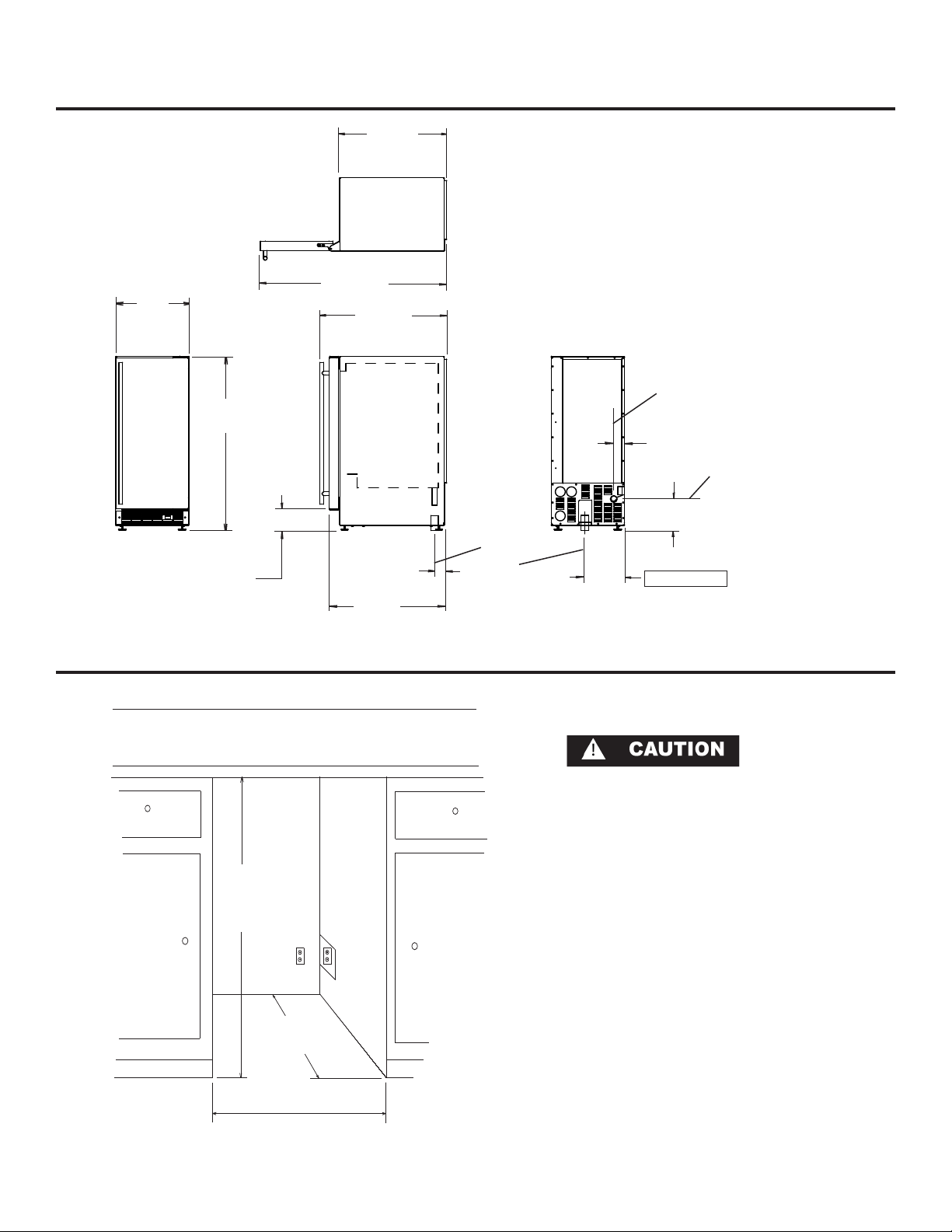

DIMENSIONS FOR 30iMT SOLID OVERLAY DOOR
21-1/2”
(54.61cm)
14-7/8”
(37.8cm)
37-1/16”
(95.4cm)
22-7/8”
(58.11cm)
CL water supply
34-1/4” to 34-1/2”
(87 to 87.6cm)
3” to 3-1/4”
(7.62 to 8.26cm)
2” (5.08cm)
CL gravity
drain
Rough In Opening Dimensions, for 30iMT Solid Overlay Door
Electrical Requirements: 115 volts,
3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
34-1/2”
(87.6 cm)
*24” (61 cm)
standard cabinet
depth
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 100 lbs. (45.5 kg.)
2” (5.08cm)
CL water supply
6” (15.24cm)
8” (20.32cm)
15” (38.1 cm)
each individual installation.
9
* Depth dimension may vary depending on
Page 11
14-7/8”
(37.8cm)
DIMENSIONS FOR 30iMAT SOLID DOOR
21-1/2”
(54.61cm)
37-1/16”
(95.4cm)
25-1/2”
(64.77cm)
31-5/8” to 31-7/8”
(80.31 to 80.98cm)
3” to 3-1/4”
(7.62 to 8.26cm)
CL water supply
2” (5.08cm)
CL water supply
6” (15.24cm)
CL gravity
2” (5.08cm)
23-5/8”
(60cm)
drain
8” (20.32cm)
Rough In Opening Dimensions, for 30iMAT Solid Door
Electrical Requirements: 115 volts,
3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
32-1/2”
(82.6 cm)
*24” (61 cm)
standard cabinet
15” (38.1 cm)
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 100 lbs. (45.5 kg.)
depth
* Depth dimension may vary depending on
each individual installation.
10
Page 12
DIMENSIONS FOR 30iMAT SOLID OVERLAY DOOR
21-1/2”
(54.61cm)
14-7/8”
(37.8cm)
37-1/16”
(95.4cm)
22-7/8”
(58.11cm)
CL water supply
31-5/8” to 31-7/8”
(80.31 to 80.98cm)
3” to 3-1/4”
(7.62 to 8.26cm)
2” (5.08cm)
CL gravity
drain
2” (5.08cm)
6” (15.24cm)
8” (20.32cm)
Rough In Opening Dimensions, for 30iMAT Solid Overlay Door
Electrical Requirements: 115 volts,
3 amps running max. 15 amp
dedicated circuit required. 3 prong
grounded receptacle required.
32-1/2”
(82.6 cm)
*24” (61 cm)
standard cabinet
depth
Power outlet can be located in the
back wall behind unit. Add 1” to
depth for thickness of plug, or recess
outlet 1” into the wall. Power outlet
can also be installed in adjacent
cabinetry with a cutout for routing of
power cord. Follow all local building
codes when installing electrical and
unit.
Product weight = 100 lbs. (45.5 kg.)
CL water supply
11
15” (38.1 cm)
* Depth dimension may vary depending on
each individual installation.
Page 13
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
NOTE
NOTE

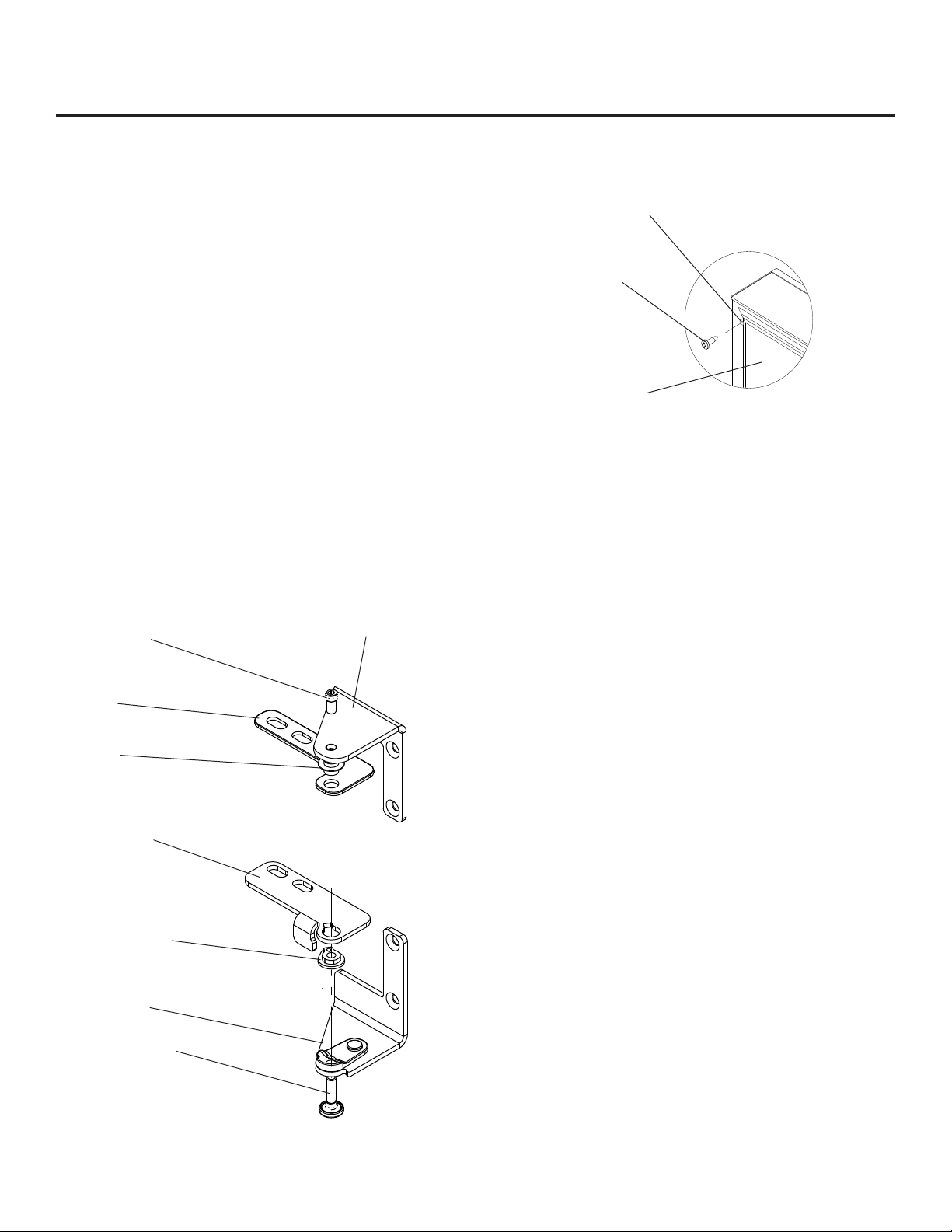

Step 1: Verify door alignment
The door should be parallel to the sides and top of the
refrigerator. If alignment is necessary the door may be
adjusted by loosening the 2 screws which secure the
hinge adapter brackets to the door and adjusting the
door side to side. Use a 5/32” allen wrench for this procedure. (See Figure 11 below).
Top hinge pin
Hinge adapter screws loosen these to adjust door, on
remove to remove
the door.
the top and bottom of the
door
9/32”
(7mm)

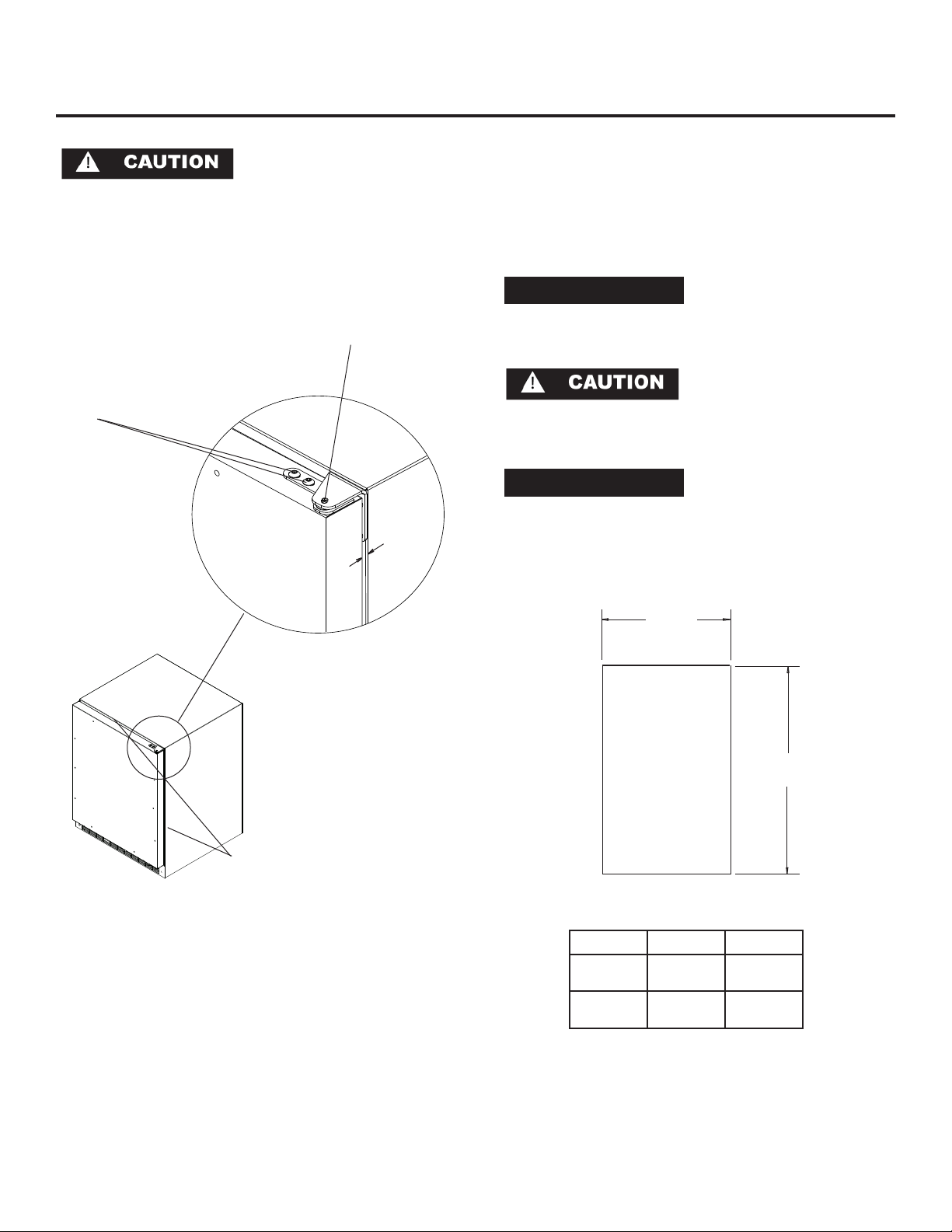

Step 4: Cut overlay panel
Depending on the refrigerator model cut the overlay
panel to the dimensions shown in Figure 12 and Table A
below.
For overlay with lock option panel thickness to be
3/4” (19mm) maximum to 5/8” (16mm) minimum.
Weight of the overlay panel should not exceed 20 pounds
(9.1 kilograms).
For the door closer to work properly it is necessary to
maintain a minimum space of 9/32” (7mm) between the
door and cabinet flange as shown . This space can be
adjusted by adjusting the top and bottom hinge adapters.
W
Door must be
parallel to top
Figure 11
and sides of
refrigerator
Step 2: Remove door
Remove the top hinge pin from the hinge with an 1/8”
allen wrench. Remove the door by angling the top of the
door outward and lifting the door off the bottom hinge.
(See detail in Figure 11).
Step 3: Remove gasket
Lay the door on its front being careful not to scratch it.
Remove the door gasket by peeling up and out of the
channel.
Front of
overlay
panel
H
Figure 12
Model W H
30iMT
30iMAT
14-5/8”
(37.13cm)
14-5/8”
(37.13cm)
30-5/16”
(76.99cm)
27-11/16”
(70.33cm)
Table A
Step 5: Clamp panel to door
Set the overlay panel on the door front, align the edges,
and clamp together. Clamp the panel firmly but be careful not to crush the foam in the door or scratch the door.
12
Page 14
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
NOTE
SECTION A-A
SCALE 1 : 1

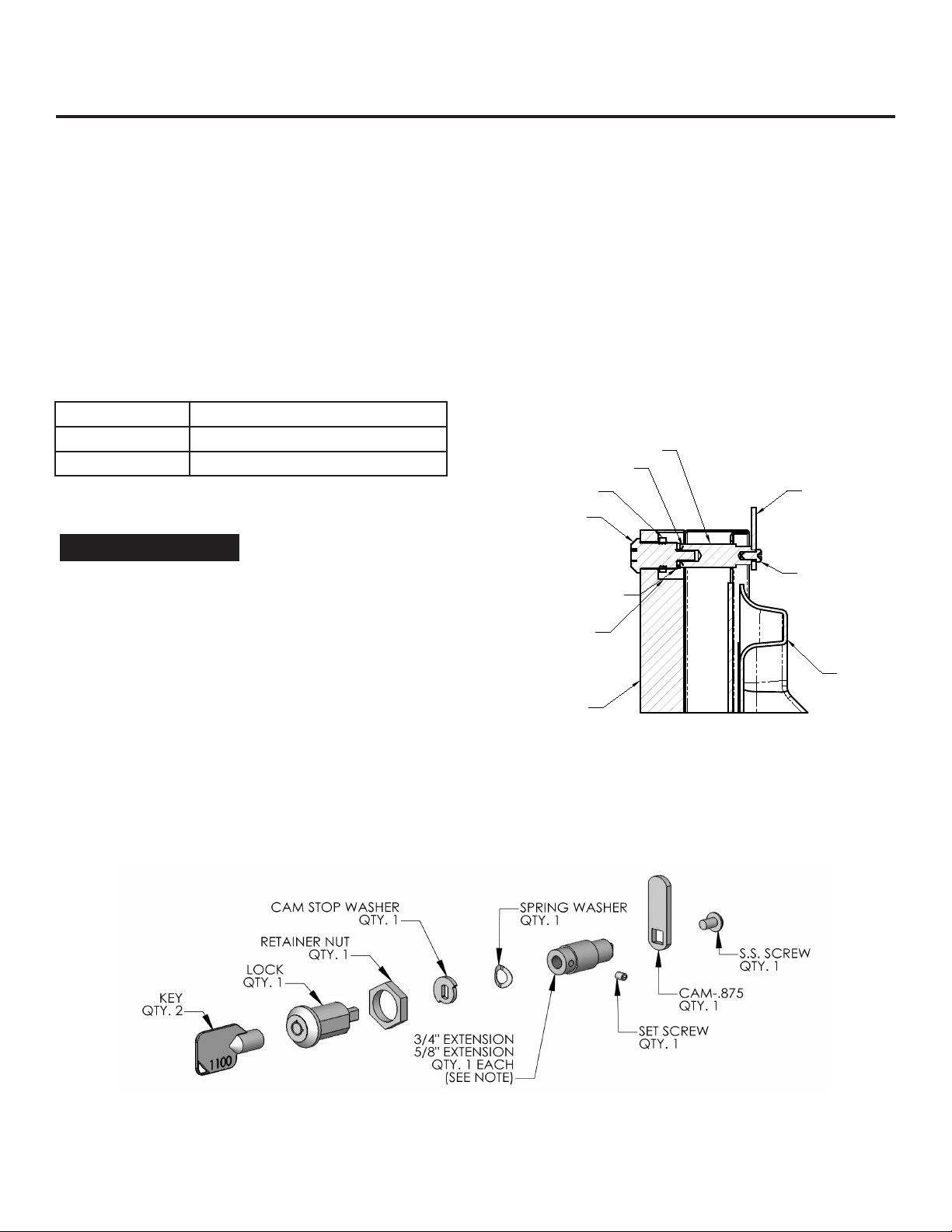

LOCK
NUT
BRASS EXTENSION
CAM
PHILLIPS SCREW
13/16 COUNTER
BORE 7/16 DEEP
15/32 HOLE
3/4 INCH
WOOD PANEL
SPRING WASHER
INNER
DOOR
Step 6: Drill holes in overlay panel
Remove the hinge adapter bushings from the top and
bottom door hinge adapters. (See Figure 16).Using the
holes in the hinge adapters drill 5/16” (8mm) diameter
clearance holes into the overlay panels 3/4” (20mm)
deep. These will be clearance holes for the top and bottom hinge pins.
Also at this time drill the screw pilot holes (10 required)
for attaching the overlay panel to the door. Select the size
of the hole from Table B. Be careful not to drill the pilot
holes through the overlay panel but only 1/2” (12.7)mm
deep.
Material Type #8 Wood Screw
Hardwood 3/32” (2.4mm) Diameter. Pilot Hole
Softwood 5/64 (2.0mm) Diameter. Pilot Hole
Table B
If your refrigerator has a door lock proceed to Step 7.
If your refrigerator does not have a door lock proceed
to Step 9.
Step 8: Assemble the lock parts
Two (2) lock extensions are supplied with the lock. Use
the longer extension for a 3/4” thick overlay panel and
the shorter one for a 5/8” thick panel. Assemble the lock
extension, cam stop washer, spring washer, and set screw
to the lock as shown in Figure 13 and 14.
Install this assembly into the overlay panel and secure
with the retaining nut using a 15mm socket. Make sure
the key slot in the lock is vertical.
Step 7: Mark and drill lock hole.
Locate and mark with a pencil the location of the lock
hole on the overlay panel, this is the hole in the top
corner of the handle side of the door. Remove the clamp
and remove the overlay panel from the door. On the
backside of the panel where you marked the lock location
drill a 13/16” (20.5mm) diameter counter bore 7/16”
(11.0mm) deep into the overlay panel. Drill a 15/32”
(12.0mm) diameter hole through the overlay panel centered on the counter bore being careful not to splinter the
wood on the face side of the panel. (See Figure 13).
Figure 13
13
Figure 14
Page 15
FULL OVERLAY PANEL INSTALLATION INSTRUCTIONS
Step 9: Secure overlay panel to the door.
With the #8 wood screws provided fasten the overlay
panel to the door. (See Figure 15).
Step 10: Install lock cam (Models with locks only).
Attach the lock cam to the back of the lock assembly with
the phillips head machine screw provided. Orient the lock
cam vertically when installing on the lock.
Step 11: Install door gasket
Press the door gasket into the door channel. Make
certain the gasket corners are fully inserted. If applicable
insert the key into the lock and make certain the lock
operates properly.
Clearance hole through
door gasket channel
#8 Wood Screw
Back of door
Step 12: Install the door
Install the top and bottom hinge adapter bushings back
into the hinge adapters that were removed in step 6.
Install the door by reversing the procedure from step 2.
Install the top hinge pin so the screw head is flush with
the top surface of the hinge. If applicable insert key into
lock and verify the lock cam works properly with the
catch bracket on the front of the refrigerator cabinet.
Top hinge pin
Top door hinge
adapter
Top hinge adapter
bushing
Bottom door
hinge adapter
Top hinge
Figure 15
Bottom hinge
adapter bushing
Bottom hinge
with cam
Bottom hinge pin
Figure 16
Right hand
hinges shown
14
Page 16
OPERATION, CARE, AND CLEANING OF YOUR ICE MACHINE
Operation (Turning on the ice machine)
Once the drain and water supply are hooked up, and the
ice machine is in place and leveled plug in the service cord.
The ice machine is shipped with the selector switch in the
“OFF” position. Place the switch to the “ON” position to
turn on the ice machine. The switch is located in the front
grille, see page 16 Figure 18 for location.
Your ice machine is unique in how it forms ice with fractional freezing to form a slab of ice that is clear and has less
mineral content than the water it is produced from. This is
accomplished by running water over the cold evaporator
plate which gradually freezes the water to produce the ice
slab. Mineral deposits are left in the reservoir.
When the ice slab reaches the correct thickness determined by the temperature of the evaporator plate, the
electronic control switches to the harvest cycle to harvest
the ice. During the harvest cycle, the ice slab falls from the
evaporator to the ice grid cutter. Here, the ice slab is cut
into 3/4” squares by the grid cutter’s heated wires. During
the harvest cycle, the drain valve will remain open for 45
seconds to drain the reservoir of remaining deposits. After
that, the water valve will open for two (2) minutes providing
two (2) quarts of water to the reservoir for the next production cycle.
The ice machine will keep producing ice until the ice machine’s bin is full and will restart automatically when ice
needs to be replenished in the bin.
Care of the Ice Machine
Avoid leaning on the cabinet door. You may bend the 1.
door hinge or tip the unit.
Exercise caution when sweeping, vacuuming or mop-2.
ping near the front of the unit. Damage to the grille
and/or switch can occur.
Periodically clean the inside of the ice machine compo-3.
nents and inside of the unit.
Periodically check and/or clean the front grille and 4.
condenser coils as needed.
If your ice machine has either a stainless steel door 5.
and/or cabinet, to keep it looking its best, we recommend periodically applying a stainless steel cleaner
and a non-abrasive stainless steel polish. This is especially important for outdoor applications and locations
near salt-water environments.
Cleaning the Ice Machine
Some impurities will remain and build up in the ice machine and stick to the ice machine’s parts over time. This
build-up must be removed for proper ice production, ice
quality, and ice machine life. Your ice machine is equipped
with a cleaning mode that will help in cleaning out these
impurities.
The impurities will need to be cleaned of this build-up
regularly (at the very least, annually), depending on use
and water hardness. Use a nickel safe ice machine cleaner,
including but not limited to the following brands. Ice machine
cleaners are available at most appliance retailers or through
the cleaner manufacturers website.
Kirby’s Certified ice machine cleaner, 100% nickel safe
Nu-Calgon nickel safe ice machine cleaner
Franklin Machine Products nickel safe ice machine cleaner
To clean the ice machine:
Switch the selector switch to the “OFF” position.1.
Remove the drain plug at the bottom of the reservoir to 2.
drain any remaining water and then reinstall.
Access to the reservoir can be obtained by removing the 3.
front panel screws and the front panel. Determine the
proper amount of cleaner from the ice machine cleaner
manufacturer’s mixture ratio based on three (3) quarts
of water (refer to the manufacturer’s directions). Add the
recommended cleaning solution to the reservoir of the
ice machine.
Replace the front cover panel and close the door.4.
Switch the selector switch on the grille of the ice machine 5.
to the “CLEAN” position. Three (3) quarts of water will
automatically be added to the cleaning solution.
The total cleaning time will end in 49 minutes. The 6.
cleaning cycle will automatically rinse the evaporator
plate and also drain the cleaning solution and rinse the
reservoir with water.
7. After the cleaning cycle has ended, remove the front panel again and check that the build-up has been removed.
The evaporator plate should be clean, shiny, and smooth
to the touch. If build-up is still visible, repeat the cleaning cycle above. If build-up is removed, continue below.

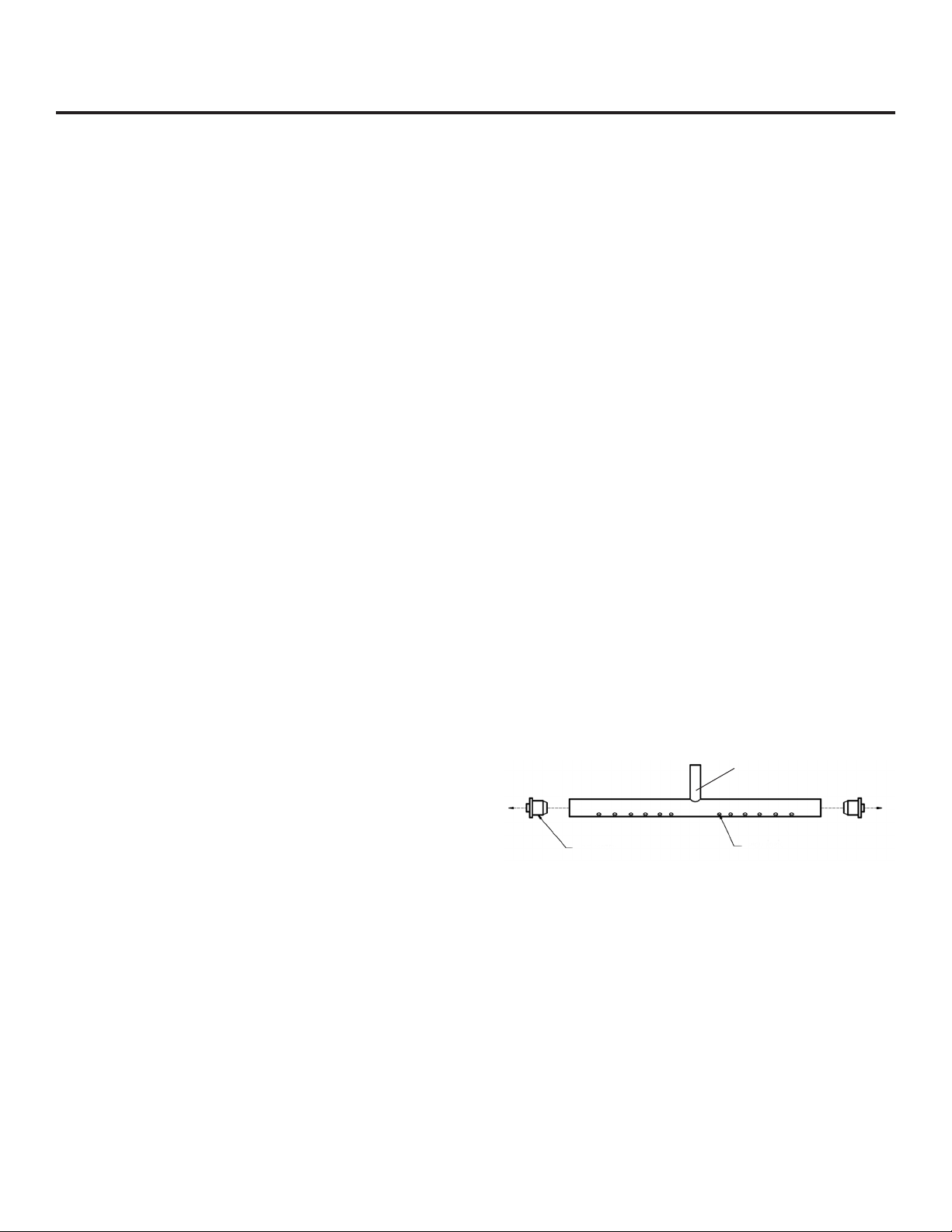

Distributor tube
Rubber ends Spray Holes
Figure 17
8. Remove the distributor tube, hose clamp, hose and its
rubber ends.
9. Thoroughly clean the inside of the distributor tube and
the spray holes. You can use the same cleaning solution
as before and an old toothbrush to reach the inside of
the distributor tube.
10. Reinstall the rubber ends, hose, and hose clamp to the
distributor and then reinstall the distributor tube to the
evaporator with the spray holes pointed to the bottom of
the evaporator plate. Reinstall the front cover panel with
the two (2) front panel screws.
15
Page 17
OPERATION, CARE, AND CLEANING OF YOUR ICE MACHINE
11. Clean the ice machine’s interior, ice scoop, interior
door panel and door gasket with mild soap and water.
Using two (2) tablespoons of baking soda in one (1)
quart of warm water while cleaning will help remove
odors. Rinse with fresh water. DO NOT USE ANY
ABRASIVE CLEANING PRODUCTS.
Your ice machine is now clean and sanitized and may be
put back into operation by switching the selector switch to
the “ON” position.
Things to Remember
Allow your ice machine to run for 24-48 hours to ac-•
cumulate ice in the ice machine’s bin.
Unit will cycle often between ice production and ice •
harvest cycles.
Your unit will automatically shut down when the ice bin •
is full.
Unplug your ice machine before working on the unit.•
Keep your ice machine clean for proper ice quality, •
production, and unit life.
Room and water temperatures will greatly affect the •
output of ice in your unit (see Table C). Ice will also
melt away, especially at the start of an empty bin, but
will slow down as ice accumulates.
Production Rate
(LB/Day)*
Water Temperature °F
50 70
70 34 32
80 30 27
90 23 20
Room Temperature °F
*Note: Due to variables in installation and use. Individual results may vary.
Approximate Time
To Fill Bin
(Hours)*
Water Temperature °F
50 70
70 31 34
80 41 58
90 60 82
Room Temperature °F
Table C

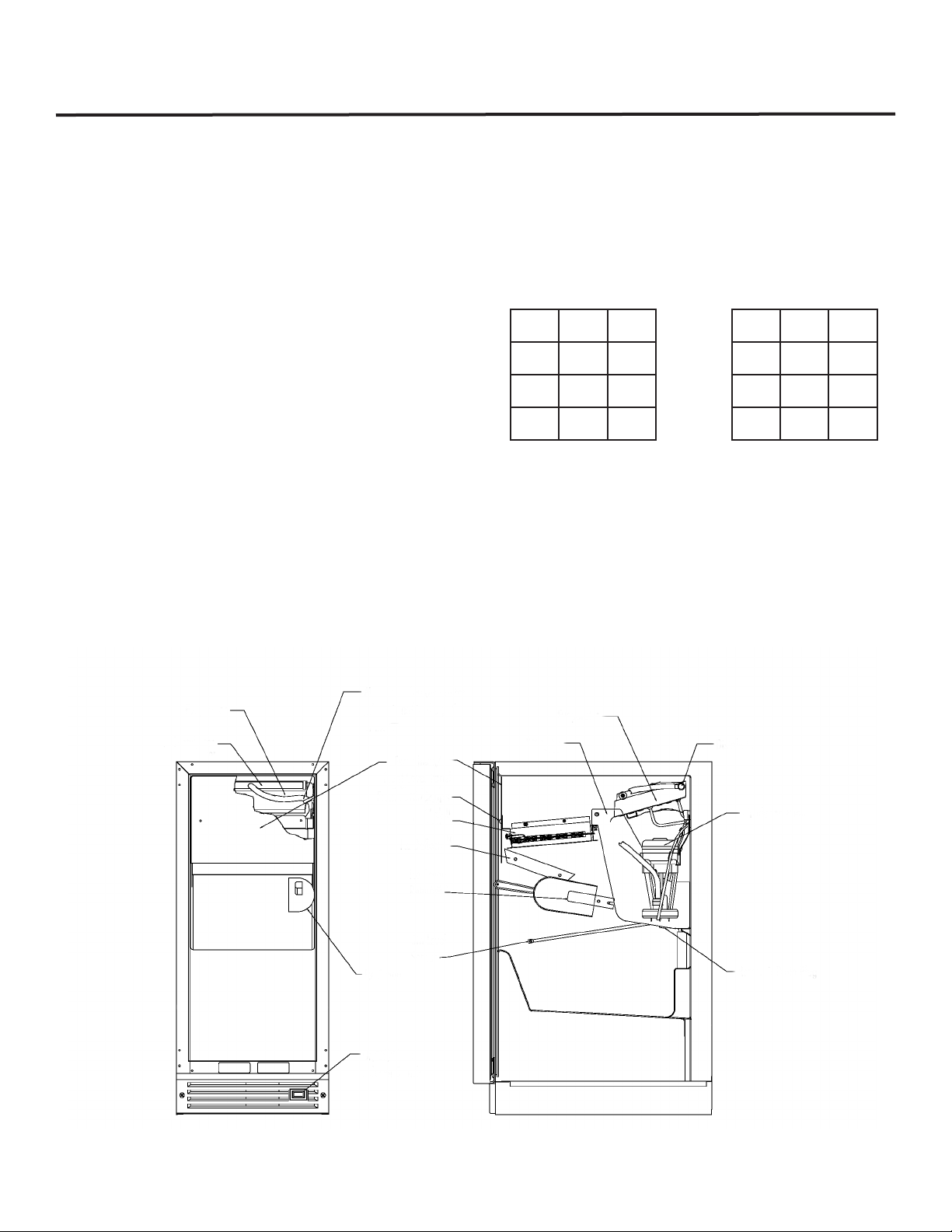

Evaporator
Distributor
Make sure the distributor
tubing is not in the path
of the ice slab.
Escutcheon
Front Cover Screws
Grid Cutter
Ice Deflector
Ice Scoop
Retainer
Bin Level
Sensor
Ice Scoop
On/Off/Clean
Selector Switch
Evaporator
Reservoir
Distributor
Circulation Pump
Reservoir Drain Plug
Figure 18
16
Page 18
FILLER PANEL KIT INSTALLATION INSTRUCTIONS (Optional)
This Filler Panel Kit will add 3 inches to the width of the
ice maker for installation into an 18 inch wide opening.
Order one of the following part numbers for the color
you require:
P/N 42242831 White Filler Panel Kit
P/N 42242832 Black Filler Panel Kit
P/N 42242833 Stainless Steel Filler Panel Kit
Optional Filler Panel kit includes the following:
quantity. 2 Cabinet Extensions
quantity. 2 Kick plate Extensions
quantity. 6 #10 x .50” sheet metal screws
To install the filler Panel kit:
Hold one cabinet extension to side of unit, keeping the 1/2” diameter holes to the outside. Line up the top and front 1.
of the cabinet extension with the top and front of the unit. Mark the 3 hole locations with the scribe.
Drill the scribed hole locations with the 1/8” diameter drill bit. 2. DRILL ONLY ENOUGH TO GO THROUGH THE
CABINETS OUTER SKIN. Do not drill past this point or you will drill to the inside of the unit.
Reposition the cabinet extension to unit and screw in place with 3 of the sheet metal screws. 3. DO NOT OVER TIGHT-
EN THE SCREWS.
Repeat steps 1 through 3 for the other side of the unit.4.
Remove the screws securing the grille to the bottom of the unit. Slide the kick plate extensions behind the grille 5.
as shown. Replace the screws and tighten.
The following tools are needed:
Phillips screwdriver
Scribe or sharp pointed object
Sharp 1/8” diameter. drill bit and drill.
17

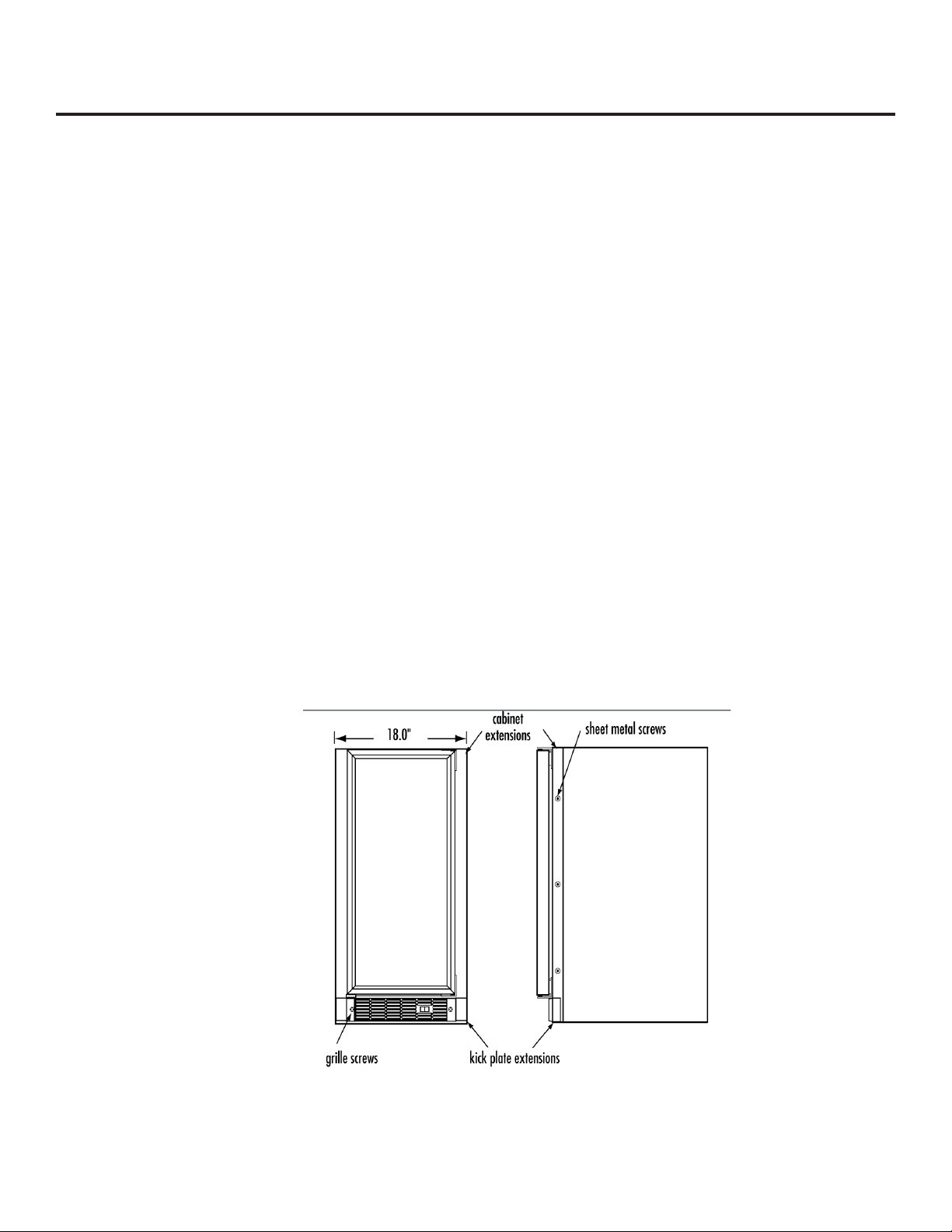

Figure 19
Page 19
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTION
1. The unit is unplugged. Plug in the unit.
Reset breaker or replace fuse. Check to make sure
there is not a short in the electrical circuit.
Set the rocker switch on the grille of the ice machine to
the “ON” position.
Ice produced when the unit is initially started will melt off
in the bin. Ice will accumulate in the bin. In 6 hours,
there can be a few cubes in the bin. This is normal
operation.
Check the unit in 24 hours for ice accumulation in the
bin.
Set the rocker switch on the grille of the ice machine to
the “ON” position.
Make sure that the reservoir drain plug is installed.
Check the water line to the unit to make sure it is on and
that there are no restrictions or kinks in the line. Check
all filters to make sure they are not restricted or plugged.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit for proper operation.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit for proper operation.
Make certain the grille in the front of the unit is free and
open for proper air circulation. Check and clean the
condenser coil by removing the grille in the front of the
unit.
Clean the condenser with a vacuum and brush attachment. Move the unit to an area where ambient temperature is below 90 degrees F. The unit should not be
placed next to a heat source such as an oven. Check
for cold water connection.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit. This will also dissolve and flush out
foreign material in the drain valve causing it to leak.
Restriction in drain lines will cause ice in the bin to melt.
If using a gravity drain, make certain there are no kinks
or restrictions in the drain lines. If using a drain pump,
check the inlet screen, discharge line, and vent line for
any build-up or restrictions.
Plug in the grid cutter so that ice slabs can be cut into
cubes.
Plug in the circulation pump so that water from the reservoir can be circulated over the evaporation plate.
Unit does not operate.
Unit operates but does
not produce ice.
2. Breaker is tripped or fuse is blown.
3. Ice machine selector switch is in
the “OFF” position.
1. The unit has just been started and
it has been less than 6 hours.
2. Typical ice production cycle can
take up to 1.5 hours. Initial start-up
cycles can be longer.
3. The selector switch is in he “OFF”
or “CLEAN” position.
4. No water in the reservoir.
5. Distributor tube is restricted.
6. Build-up of deposits on evaporator
plate.
7. Condenser fan air flow is restricted.
8. Room and/or water temperature is
too warm.
9. Leaking drain valve.
10. Inadequate drain system.
11. Grid cutter is unplugged.
12. Circulation pump is unplugged.
18
Page 20
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTION
1. Low ice consumption.
2. Not enough water in reservoir.
3. Distributor tube is restricted.
Ice cubes are too small
(less than 1/2 inch
thick).
Ice cubes are too big
(greater than 3/4 inch
thick).
Hollow ice slab.
4. Build-up of deposits on evaporator
plate.
5. Inadequate drain system.
6. Leaking drain valve.
7. Room temperature is too warm.
1. Ice slab not releasing.
2. Condenser fan air flow is restricted.
3. Room temperature is too warm.
1. Distributor tube is restricted.
2. Build-up of deposits on evaporator
plate.
3. Low water level in reservoir.
Ice is slowly melting in the ice bin and will affect the
size of the ice cubes. This is normal operation. When
the ice bin needs to be replenished, cubes will return to
regular size.
Make sure that the reservoir drain plug is installed properly. Check the water line to the unit to make sure there
are no restrictions or kinks in the line. Check all filters
to make sure they are not restricted or plugged.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit for proper operation.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit for proper operation.
Restriction in the drain lines will cause the ice in the bin
to melt to a thinner cube. If using a gravity drain, make
certain there are no kinks or restrictions in the drain
lines. If using a drain pump, check the inlet screen,
discharge line, and vent line for any build-up or restrictions.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit. This will also dissolve and flush out
foreign material in the drain valve causing it to leak.
Move to an area where temperature is below 90 degrees F.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit for proper operation and cube size.
Make certain the grille in the front of the unit is free and
open for proper air circulation. Check and clean the
condenser coil by removing the grille in the front of the
unit. Clean the condenser with a vacuum and brush
attachment.
Move to an area where temperature is below 90 degrees F.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit for proper operation.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit for proper operation.
Make sure that the reservoir drain plug is installed properly. Check the water line to the unit to make sure there
are no restrictions or kinks in the line. Check all filters
to make sure they are not restricted or plugged.
19
Page 21
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTION
Make sure that the reservoir drain plug is installed properly. Check the water line to the unit to make sure there
are no restrictions or kinks in the line. Check all filters
to make sure they are not restricted or plugged.
Make certain that the water line is not connected to the
water softener.
Move the unit to an area where room temperature is
above 55 degrees F.
Make sure that the reservoir drain plug is installed properly.
Check the water line to the unit to make sure there are
no restrictions or kinks in the line. Check all filters to
make sure they are not restricted or plugged.
See “CLEANING YOUR ICE MACHINE” section for
cleaning the unit for proper operation.
Restriction in drain lines will cause ice in the bin to melt.
If using a gravity drain, make certain there are no kinks
or restrictions in the drain lines. If using a drain pump,
check the inlet screen, discharge line, and vent line for
any build-up or restrictions.
Make certain the grille in the front of the unit is free and
open for proper air circulation. Check and clean the
condenser coil by removing the grille in the front of the
unit. Clean the condenser with a vacuum and brush
attachment.
The unit will automatically shut down when ice reaches
the sensing tube.
The unit will automatically shut down when ice reaches
the sensing tube and has completed the harvest of the
ice slab.
Move the unit to an area where room temperature is
below 90 degrees F.
Use a level to check the unit for level from side to side
and front to rear.
Set the rocker switch on the grille of the ice machine to
the “ON” position.
Remove the escutcheon panel and plug the grid-cutter
into the receptacle on the side of the line.
It can take up to 35 minutes to cut through a harvested
ice slab. This is normal operation.
Ice is not clear.
Low ice production.
Unit is running, has run
over a 48 hour period,
and there is little ice in
the bin.
Unit continues to run
and produce ice.
Grid-cutter is not cutting the ice slab.
1. Low water level in reservoir.
2. Softened water supply.
3. Room temperature is too cold.
1. Low water level in reservoir.
2. Distributor tube is restricted.
3. Build-up of deposits on evaporator
plate.
4. Inadequate drain system.
5. Condenser fan air flow is restricted.
1. Ice bin is not full.
2. Ice bin is full.
3. Room temperature is too warm.
4. Ice machine is not level.
1. The selector switch is not in the
“ON” position.
2. The grid-cutter is not plugged into
the receptacle.
3. Time to cut through the slab.
20
Page 22
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTION
Ice cubes are sticking
together.
Ice level is too high.
Ice level is too low.
Water keeps backing up into the ice bin
(gravity drain).
Water keeps backing up into the ice bin
(drain pump).
The drain pump cycles
on and off erratically.
1. Ice consumption is low.
2. Room temperature is too warm.
1. The ice machine is not level.
2. Room temperature is too warm.
3. Ice deflector is not in place or
secured properly.
4. Bin level sensing tube needs adjusted.
1. The ice machine is not level.
2. Room temperature is too cold.
3. The selector switch is not in the
“ON” position.
1. Inadequate drain system.
2. Foreign material in ice bin drain.
1. Drain pump tubing kinked or
restricted.
2. Inlet screen to the drain pump is
restricted or blocked.
3. Drain pump and/or the ice machine are not level.
1. Vent line to the drain pump is
restricted or kinked.
2. Discharge line is restricted or
kinked.
3. The drain pump is not level.
Use the ice in the bin frequently. Ice will stick together if
left in insulated bin over long periods of time.
Move the unit to an area where temperature is below 90
degrees F.
Use a level to check the unit for level from side to side
and front to rear.
Move the unit to an area where temperature is below 90
degrees F.
Check to see that the ice deflector is in place and secured below the grid-cutter.
You can adjust the bin level sensing tube by simply
pressing directly down on the tube 5 inches from he
front of the tube to get a desired bin level.
Use a level to check the unit for level from side to side
and front to rear.
Move the unit to an area where temperature is above 55
degrees F.
Set the rocker switch on the grille of the ice machine to
the “ON” position.
Restriction or improperly installed drain lines will cause
water to back up into the ice bin. Make certain there
are no kinks or restrictions in the drain lines. If necessary, consult a qualified plumber.
Foreign material is restricting or blocking the ice bin
drain located at the right rear corner of the ice bin. The
drain will need to be cleared.
Check inlet, discharge, and vent line tubing for any
kinks or restrictions and repair as necessary.
Check the inlet screen to the drain pump.
Check and level, if necessary, the drain pump as well as
the ice machine.
Check the vent line for any restrictions or kinks and
repair as necessary.
Check the discharge line and connection to the desired
drain for any restrictions or kinks and repair as necessary.
The drain pump must be level. Check for level on the
top of the drain pump case and adjust the tubing or use
shims to level.
21
Page 23
PREPARING THE ICE MACHINE FOR STORAGE
If the ice machine is moved, not used for an extended
period of time, or will be in an area that will be near freezing temperatures, it is necessary to remove any remaining
water in the ice-making system.
This ice machine must have all water drained and removed
to prevent ice machine damage as well as possible water
damage to the surrounding area in freezing conditions.
These damages are not covered under warranty.
Do not use any type of anti-freeze or other solution as a
substitution for properly draining the ice machine.
12. Leave the water supply line disconnected or reconnect
the supply line and leave it shut off. Do NOT turn the
water on and allow water to enter back into the water
valve.
Draining Water for Optional Drain Pump Applications
13. Remove the drain pump from the ice machine (refer to
Drain Pump Installation Instructions on page 5).
14. Drain the water in the drain pump’s reservoir by turning the pump upside down and allowing water to drain
through the pump’s inlet and vent tube fittings.
15. After all water is drained, reinstall the drain pump.
Make certain all tubing is installed and all hose clamps
are tight (refer to Drain Pump Installation Instructions
on page 5).
Clean the Ice Machine
Cleaning the ice machine will help prevent mold and mildew growth as well as sanitize the unit for storage or when
it is put back into service. See page 15 for instructions for
cleaning the ice machine.
Draining and Removing Water from the Ice-Making
System
Turn off water supply to the ice machine.1.
Disconnect the water supply fitting at the inlet of the 2.
water valve.
Switch the rocker switch to CLEAN for approximately 3.
one (1) minute. This will energize and open the water
valve and remove most of the water from the water
valve and the water valve’s outlet water line to the
reservoir.
Switch the rocker switch to OFF position. This will en-4.
ergize and open the drain valve to drain the reservoir
and the ice machine drain system.
Unplug the unit from the electrical outlet.5.
Remove the back panel from the rear of the unit.6.
Disconnect the water valve’s outlet water line to the res-7.
ervoir and drain the remaining water left in the water
line trap area.
Reconnect the water valve outlet water line and tighten 8.
the compression nut to a watertight seal.
9. Reinstall the unit’s back panel.
10. Clean and dry the ice machine’s storage bin.
11. Prop the door open for air circulation to prevent mold
and mildew.
To Restart the Ice Machine
With the rocker switch in the OFF position, plug the 1.
unit into an electrical outlet.
Reconnect or turn on the water supply line.2.
Reconnect drain tubing if removed.3.
Turn the rocker switch to the ON position.4.
Check the water inlet, drain lines, and fittings for any 5.
water leaks.
Check drain pump (if equipped) operation by pouring 6.
approximately two (2) quarts of water into the ice storage bin. The drain pump should activate and discharge water (refer to Drain Pump Installation Instructions on page 5). Check for water leaks at all hose
connections.
22
Page 24
OBTAINING SERVICE
Before Calling for Service
Before calling for service, check the following items:
Make sure unit is plugged into outlet.•
Check the outlet for power. Test outlet with lamp to •
make certain outlet has power.
Make sure ice machine’s switch is in the “ON” position.•
Make sure that there is cold water supplied to the ice •
machine.
Make sure drain plug on bottom of reservoir is in-•
serted.
Make certain unit is level from front to back and side to •
side.
Make certain that the drain line to the ice machine is •
not restricted or kinked.
If you are not able to correct the problem, contact your
dealer or the manufacturer. Be sure to have the model
number and the serial number handy before you call. The
model and the serial number are located on the lower front
part of the ice machine’s cabinet.
If You Do Need Service
If you do need service, contact your dealer or NorthlandMarvel. In any correspondence, refer to the model number
and serial number of your unit which is located on the
upper left hand side of the wall liner. Retain your proof of
purchase. You may want to record these numbers in the
space below.
For Your Records
Date of Purchase
Dealer’s Name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip
Appliance Serial Number
Model Number
Date Warranty Card Sent
(Must be within 10 Days of
Purchase)
How to Obtain Service
Your ice machine requires little service because the best
and most up to date materials, equipment and quality methods are employed throughout the manufacturing
process.
If trouble occurs during normal operation, first check the
troubleshooting chart on the previous page to see if any
of these simple steps may correct the problem. If service
becomes necessary:
If the product is within the first year warranty period, 1.
please call Marvel Customer Service at 800.223.3900
for directions on how to obtain warranty coverage in
your area.
If the product is outside of the first year warranty 2.
period, Marvel Customer Service can provide recommendations of service centers in your area. A listing
of authorized service centers is also available at www.
marvelrefrigeration.com under the service and support
section.
In all correspondence regarding service, be sure to 3.
give the model number, serial number, and proof of
purchase.
Try to have information or description of the nature 4.
of the problem, how long the unit has been running,
the room temperature, water temperatures, and any
additional information that may be helpful in quickly
solving the problem.
23
Page 25
Entire Product
Limited One Year Parts and Labor Warranty
Marvel warrants that it will supply all necessary parts and
labor to repair or replace in the end user’s home or office,
any component which proves to be defective in material
or workmanship, subject to the condition and exclusions
stated below, for a period of one year from the date of
purchase by the end user.
Additional Second Through Fifth Year
Limited Parts Only Warrranty
During the four years following expiration of the one year
limited warranty, Marvel will supply replacement parts for
the hermetically sealed refrigeration system which consists
of the compressor, condenser, drier, accumulator, bypass
valve, connecting tubing and the evaporator that are
proven to be defective due to workmanship or materials
subject to the conditions and exclusions below.
The above warranties do not cover:
Shipping costs of replacement parts or returned defec-•
tive parts.
Customer education or instructions on how to use the •
appliance.
Any content loss due to product failure.•
Removal or installation.•
Nor do the above warranties cover failure of this product or
its components due to:
Transportation or subsequent damages.•
Commercial use or use other than normal household •
or small office.
Improper installation, misuse, abuse, accident or •
alteration, use on wiring not conforming to electrical
codes, low or high voltages, failure to provide necessary maintenance, or other unreasonable use.
HOUSEHOLD PRODUCT WARRANTY
Parts or Service
Not Supplied or Designated by Marvel
The above warranties also do not apply if:
The original bill of sale, deliver date, or serial number •
cannot be verified.
Defective parts are not returned for inspection if so •
requested by Marvel.
The refrigeration equipment is not in the possession of •
the original end use purchaser.
The warranties set forth herein are the only warranties
extended by Northland-Marvel. Any implied warranties, including the implied warranty of merchantability, are limited
to the duration of these express warranties. In no event
shall Northland-Marvel be liable for any consequential or
incidental damages or expenses resulting from breach of
these or any other warranties, whether express or implied.
Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied
warranty lasts, so the above exclusion or limitation may not
apply to you. This warranty gives you specific legal rights
and you may have other rights that may vary from state to
state.
No person, firm, or corporation is authorized to make any
other warranty or assume any other obligation for Northland-Marvel. These warranties apply only to products used
in any of the fifty states of the United States and the District
of Columbia.
To obtain performance of this warranty, report any defects
to:
Northland-Marvel
P.O. Box 400
1260 E. Van Deinse St.
Greenville MI 48838
Phone: 800.223.3900
24
Page 26
NOTES
25
Page 27
NOTES
26
Page 28
Northland-Marvel
P.O. Box 400
1260 E. Van Deinse St.
Greenville MI 48838
800.223.3900
www.marvelrefrigeration.com
41011765-EN Rev E
11/19/09
All specifications and product designs subject to change without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions, replacements or compensation for
previously purchased products.
Loading...
