www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558

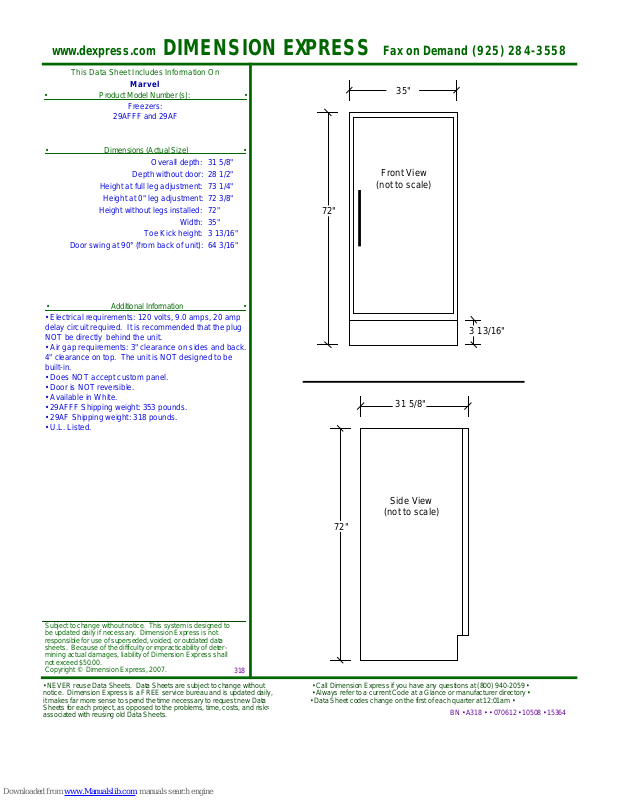

This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Freezers:
29AFFF and 29AF
• Dimensions (Actual Size) •
Overall depth:
Depth without door:
Height at full leg adjustment:
Height at 0" leg adjustment:
Height without legs installed:
Toe Kick height:
Door swing at 90° (from back of unit):
• Additional Information •
• Electrical requirements: 120 volts, 9.0 amps, 20 amp
delay circuit required. It is recommended that the plug
NOT be directly behind the unit.
• Air gap requirements: 3" clearance on sides and back.
4" clearance on top. The unit is NOT designed to be
built-in.
• Does NOT accept custom panel.
• Door is NOT reversible.
• Available in White.
• 29AFFF Shipping weight: 353 pounds.
• 29AF Shipping weight: 318 pounds.
• U.L. Listed.
Width:
31 5/8"
28 1/2"
73 1/4"
72 3/8"
72"
35"
3 13/16"
64 3/16"
35"
Front View
(not to scale)
72"
3 13/16"
31 5/8"
Side View
(not to scale)
72"
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2007.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
318
BN • A318 • • 070612 • 10508 • 15364
