Maruson Technology Corporation ULTIMA SERIES 1K-3KVA | 2012 Jan.
ULTIMA SERIES 1K-3KVA
On-Line UPS
USER MANUAL
Maruson Technology Corporation
18557 East Gale Avenue
City of Industry, California 91748, U.S.A.
Tel: +1-626-912-8388 Fax: +1-626-912-8680 Toll Free: 1-888-MARUSON
E-Mail: [email protected]
Website: www.MarusonUSA.com
*All trademarks are the property of their respective owners.
Page 2
Maruson Technology Corporation 1 ULTIMA SERIES 1K-3KVA | 2012 Jan.
Table of Contents
1. IMPORTANT SAFETY WARNING....................................................................................2
1-1. Transportation................................................................................................ 2
1-2. Preparation.................................................................................................... 2
1-3. Installation.....................................................................................................2
1-4. Operation ......................................................................................................3
1-5. Maintenance, Service, and Faults...................................................................... 3
2. INSTALLATION AND SETUP ..........................................................................................5
2-1. Rear Panel View ............................................................................................. 5
2-2. Setup the UPS................................................................................................6
3. OPERATIONS............................................................................................................8
3-1. Buttons Operation...........................................................................................8
3-2. LCD Panel......................................................................................................8
3-3. Audible Alarm............................................................................................... 10
3-4. LCD Display Wording Index............................................................................ 10
3-5. UPS Setting..................................................................................................10
3-6. Operating Mode Description........................................................................... 12
3-7. Faults Reference Code................................................................................... 13
3-8. Warning Indicators ....................................................................................... 13
4. TROUBLESHOOTING .................................................................................................14
5. STORAGE AND MAINTENANCE....................................................................................16
6. SPECIFICATIONS .....................................................................................................17
Page 3
Maruson Technology Corporation 2 ULTIMA SERIES 1K-3KVA | 2012 Jan.
1. Important Safety Warning
Please comply with all warnings and operating instructions in this manual strictly. Save this
manual properly and carefully read the following instructions before installing the unit. Do not
operate this unit before reading through all safety information and operating instructions
carefully.
1-1. Transportation
l Please transport the UPS system only in the original packaging to protect against
shock and impact.
1-2. Preparation
l Condensation may occur if the UPS system is moved directly from cold to warm
environment. The UPS system must be absolutely dry before being installed. Please
allow at least two hours for the UPS system to acclimate to the environment.
l Do not install the UPS system near water or in moist environments.
l Do not install the UPS system where it would be exposed to direct sunlight or near a
heater.
l Do not block ventilation holes in the UPS housing.
1-3. Installation

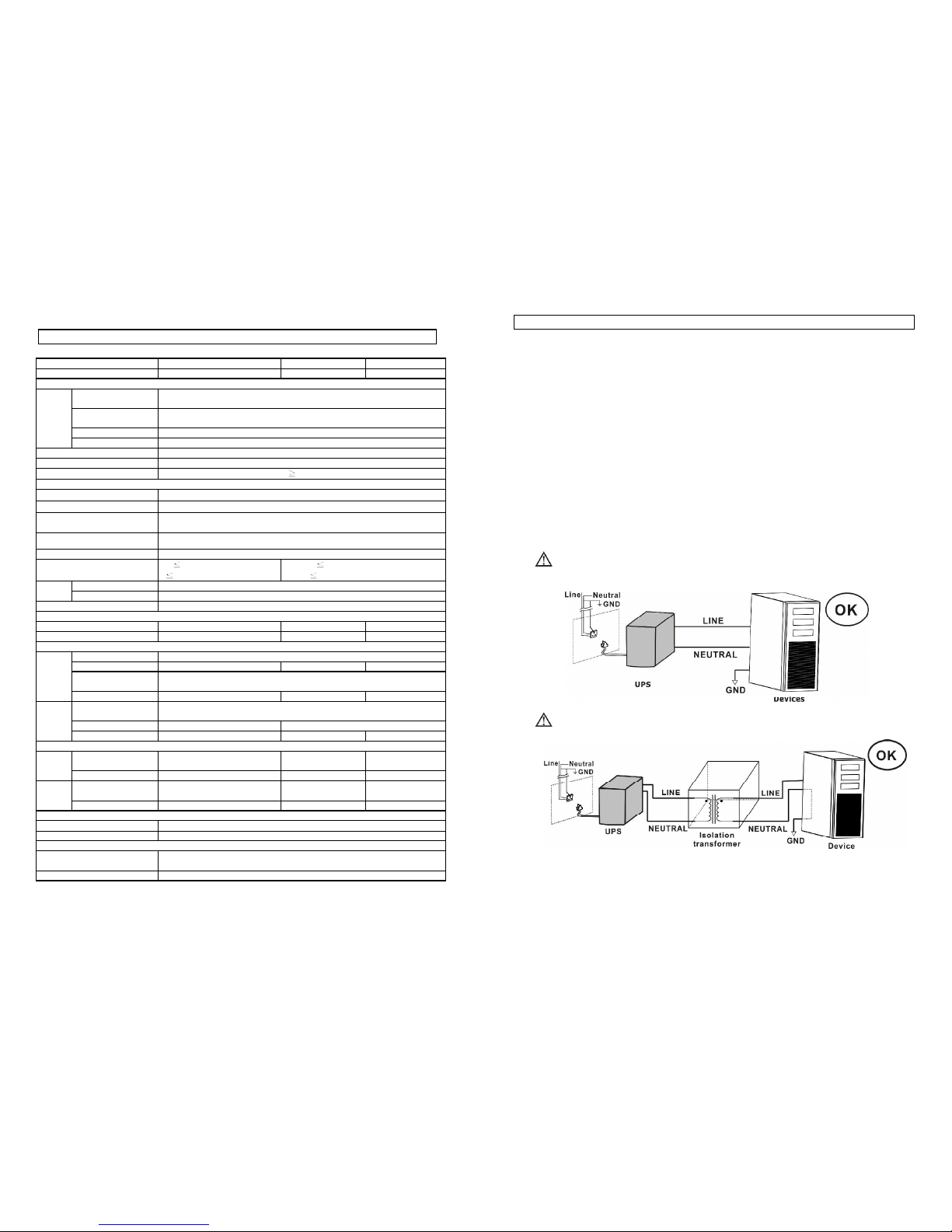

To guarantee UPS normal operation, before connecting devices to the UPS, please
verify that ground and neutral lines of the connected devices are not short circuited.
(see Figure 1)
Figure 1
If neutral line and ground line are short circuited, please add isolation transformer
between UPS and devices. (see Figure 2)
Figure 2
Maruson Technology Corporation 17 ULTIMA SERIES 1K-3KVA | 2012 Jan.
6. Specifications
MODEL ULT-1K(L) ULT-2K(L) ULT-3K(L)
CAPACITY* 1000 VA / 800 W 2000 VA / 1600 W 3000 VA / 2400 W
INPUT
Low Line Transfer
160VAC/140VAC/120VAC/110VAC ± 5% or 80VAC/70VAC/60VAC/50 VAC ± 5%
( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)
Low Line Comeback
168VAC/148VAC/128VAC/118VAC ± 5 % or 84VAC/74VAC/64VAC/54 VAC ± 5 %
( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % -
0)
High Line Transfer 300 VAC ± 5 % or 150 VAC ± 5 %
Voltage
Range
High Line Comeback 290 VAC ± 5 % or 145 VAC ± 5 %
Frequency Range 40 ~ 70 Hz (Auto sensing)
Phase Single phase with ground
Power Factor
0.98
OUTPUT
Output voltage 208/220/230/240VAC or 110/115/120/127VAC
AC Voltage Regulation ± 1%
Frequency Range
(Synchronized Range)
47 ~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
Current Crest Ratio 3:1
Harmonic Distortion
3 % THD (Linear Load)
6 % THD (Non-linear Load)
4 % THD (Linear Load)
7 % THD (Non-linear Load)
AC Mode to Batt. Mode
Zero Transfer
Time
Inverter to Bypass 4 ms (Typical)
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode 88.5 % (89% peak) 89.3 % (90% peak) 87%
Battery Mode 83.7 % (86% peak) 88.2 % (89% peak) 85%
BATTERY
Battery Type 12V / 9Ah
Battery Numbers 2 4 6
Charging Current
(max.)
1.0 A
Standard
Model
Charging Voltage 27.4 VDC ± 1% 54.7 VDC ± 1% 82.1 VDC ± 1%
Battery Type &
Numbers
Depending on the capacity of external batteries
Charging Current
1A / 2A / 5 A (Default) 1A / 2A / 4A / 8A (Default)
Long
Runtime
Model
Charging Voltage 27.4 VDC ± 1% 54.7 VDC ± 1% 82.1 VDC ± 1%
PHYSICAL
Dimensions
(DxWxH)(mm)
400 X 146 X 205 397 x 145 x 220 421 x 190 x 318 Standard
Model
Net Weight (kgs) 9.3 17.8 28.8
Dimensions
(DxWxH)(mm)
400 X 146 X 205 397 x 145 x 220 421 x 190 x 318
Long
Runtime
Model
Net Weight (kgs) 4.8 7.4 13.5
ENVIRONMENT
Operation Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 45dBA @ 1 Meter
MANAGEMENT
Smart RS-232 Port/Card
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and
MAC
Intelligent Slot Power management from SNMP manager and web browser
* Derate capacity to 80% when the output voltage is adjusted to 208VAC.
Page 4
Maruson Technology Corporation 16 ULTIMA SERIES 1K-3KVA | 2012 Jan.
5. Storage and Maintenance
Operation
The UPS system contains no user-serviceable parts. If the battery service life (3~5 years
at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this
case, please contact your dealer.
Storage
Before storing, charge the UPS for minimum 5 hours. Store the UPS covered and upright in
a cool, dry location. During storage, recharge the battery in accordance with the following
table:
Storage Temperature Recharge Frequency Charging Duration
-25°C - 40°C Every 3 months 1-2 hours
40°C - 45°C Every 2 months 1-2 hours
Be sure to deliver the used battery to a recycling facility or ship it to your
dealer in the replacement battery packing material.
Maruson Technology Corporation 3 ULTIMA SERIES 1K-3KVA | 2012 Jan.

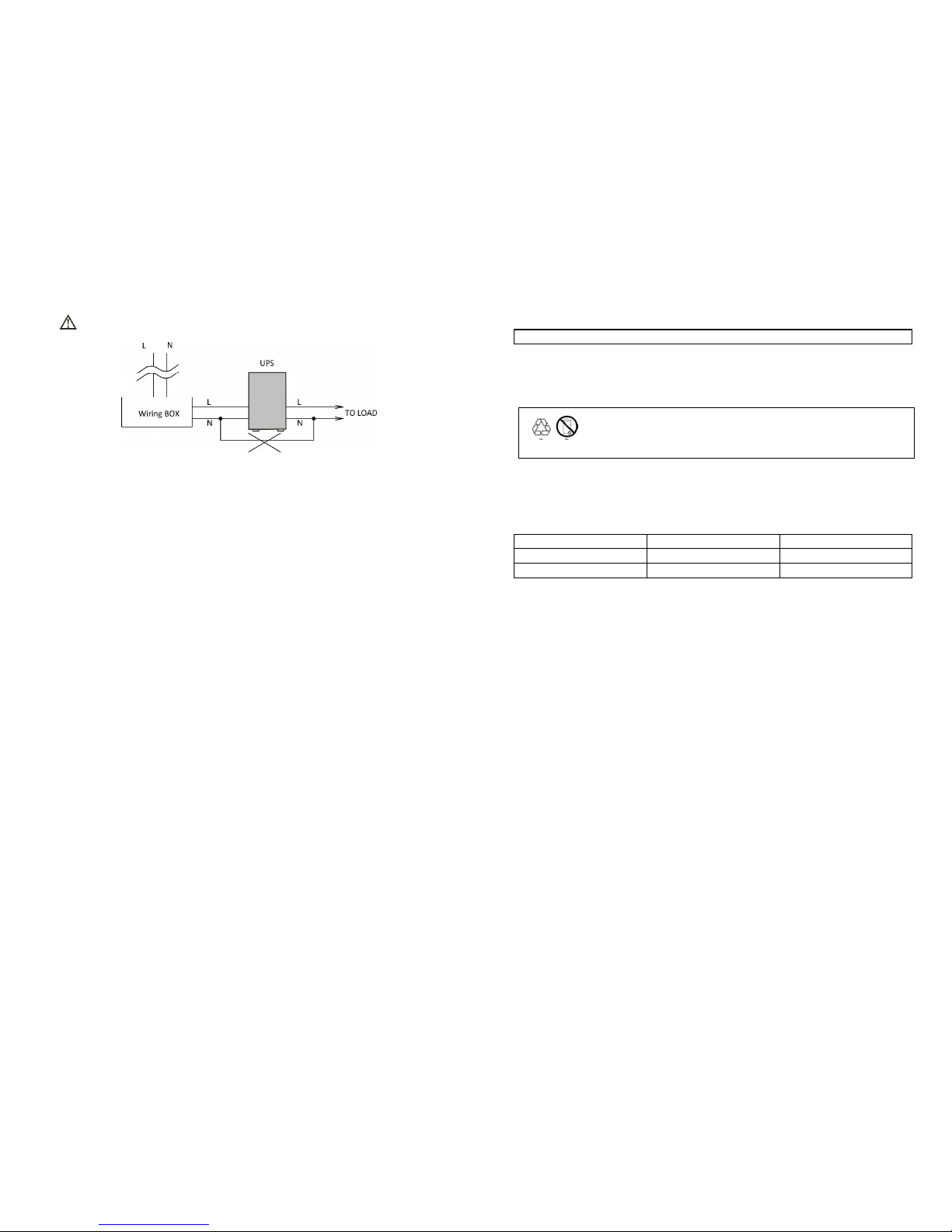

Never connect neutral line of input to neutral line of output. Otherwise, it will cause
the damage of the UPS. (see Figure 3)
Figure 3
l Do not connect appliances or devices which would overload the UPS system to the
UPS output sockets.
l Place cables in such a way that no one can step on or trip over them.
l The UPS can be operated by any individuals with no previous experience.
l Connect the UPS system only to an earthed shockproof outlet which must be easily
accessible and close to the UPS system.
l Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your
computer) to connect the UPS system to the building wiring outlet (shockproof
outlet).
l Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS
system.
l When installing the equipment, make sure the sum of the leakage current of the UPS
and the connected devices does not exceed 3.5mA.
1-4. Operation
l Do not disconnect the mains cable on the UPS system or the building wiring outlet
(shockproof socket outlet) during operations since this would cancel the protective
earthing of the UPS system and of all connected loads.
l The UPS system features its own internal current source (batteries). The UPS output
sockets and output terminals block may be electrically live even if the UPS system is
not connected to the building wiring outlet.
l In order to fully disconnect the UPS system, first press the OFF/Enter button to
disconnect the mains.
l Prevent fluids and other foreign objects from entering the inside of the UPS system.
1-5. Maintenance, Service, and Faults
l The UPS system operates with hazardous voltages. Repairs may be carried out only
by qualified maintenance personnel.
l Caution - risk of electric shock. Even after the unit is disconnected from the mains
(building wiring outlet), components inside the UPS system are still connected to the
battery and electrically live and dangerous.
l Before carrying out any kind of service and/or maintenance, disconnect the batteries
and verify that no current is present and no hazardous voltage exists in the terminals
of high capability capacitor such as BUS-capacitors.
l Only persons adequately familiar with batteries and with the required precautionary
measures may replace batteries and supervise operations. Unauthorized persons
must be kept well away from the batteries.
Page 5
Maruson Technology Corporation 4 ULTIMA SERIES 1K-3KVA | 2012 Jan.
l Caution - risk of electric shock. The battery circuit is not isolated from the input
voltage. Hazardous voltages may occur between the battery terminals and the
ground. Before touching, please verify that no voltage is present!
l Batteries may cause electric shock and have a high short-circuit current. Please take
the precautionary measures specified below and any other measures necessary when
working with batteries:
Remove wristwatches, rings, and other metal objects
Use only tools with insulated grips and handles.
l When changing batteries, install the same number and same type of batteries.
l Do not attempt to dispose of batteries by burning them. This could cause battery
explosion.
l Do not open or destroy batteries. Escaping electrolyte can cause serious injury to the
skin and eyes and may be toxic.
l Please replace the fuse only with the same type and amperage in order to avoid fire
hazards.
l Do not dismantle the UPS system.
Maruson Technology Corporation 15 ULTIMA SERIES 1K-3KVA | 2012 Jan.

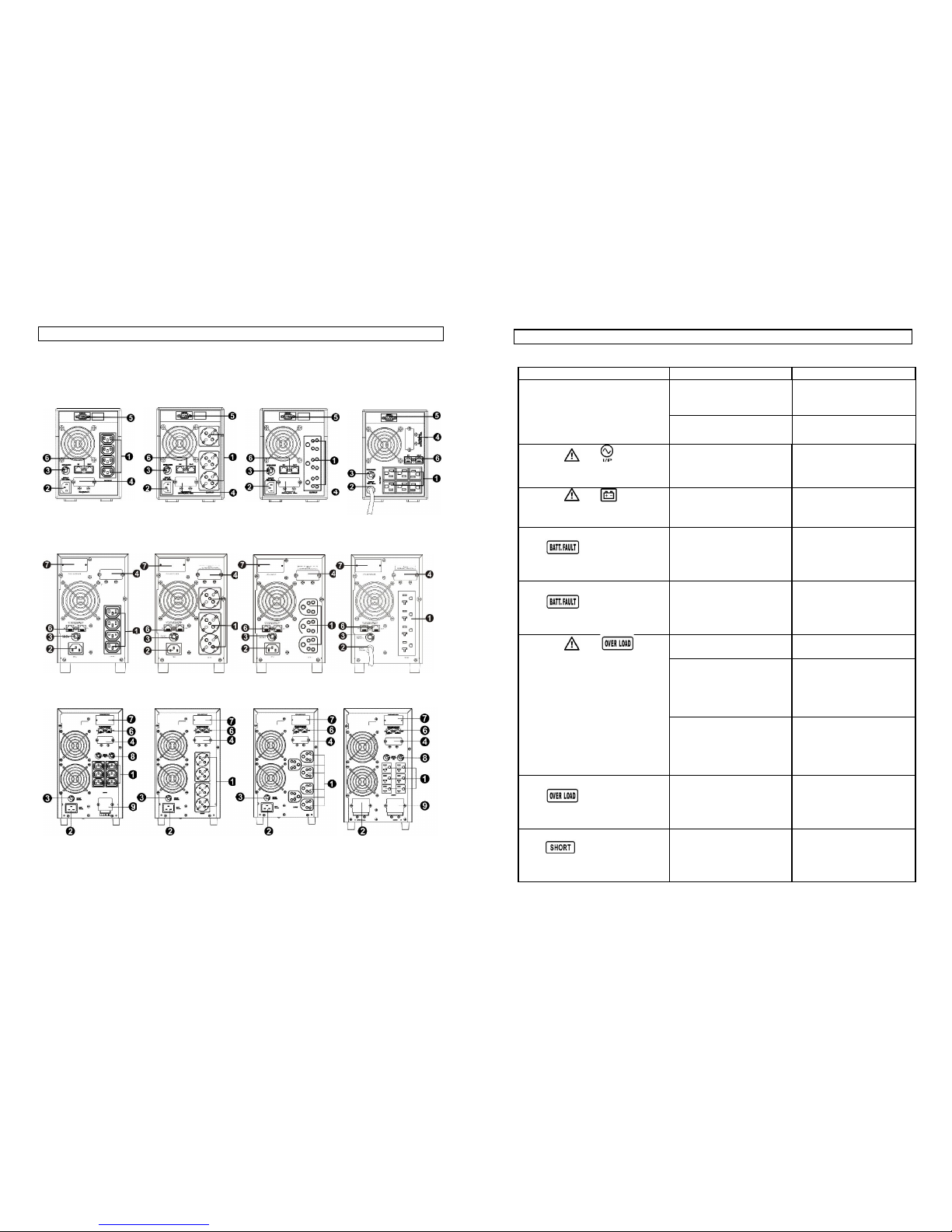

Symptom Possible Cause Remedy
Fault code is shown as 1, 2, 3, 4,
11, 12, 13 and 41 on LCD display
and alarm is continuously
sounding.
A UPS internal fault has
occurred. There are two
possible causes:
1. The load is still supplied,
but directly from AC power
via bypass.
2. The load is no longer
supplied by power.
Contact your dealer.
Batteries are not fully
charged
Charge the batteries for at
least 5 hours and then
check capacity. If the
problem still persists,
consult your dealer.
Battery backup time is shorter
than nominal value
Batteries defect Contact your dealer to
replace the battery.
Page 6
Maruson Technology Corporation 14 ULTIMA SERIES 1K-3KVA | 2012 Jan.
4. Troubleshooting
If the UPS system does not operate correctly, please solve the problem by using the table
below.
Symptom Possible Cause Remedy
The AC input power is not
connected well.
Check if input power cord
firmly connected to the
mains.
No indication and alarm even
though the mains is normal.
The AC input is connected
to the UPS output.
Plug AC input power cord
to AC input correctly.
The icon and flashing on
LCD display and alarm is sounding
every second.
Line and neutral
conductors of UPS input
are reversed.
Rotate mains power socket
by 180° and then connect
to UPS system.
The icon and flashing
on LCD display and alarm is
sounding every second.
The external or internal
battery is incorrectly
connected.
Check if all batteries are
connected well.
Fault code is shown as 27 and the
icon is lighting on LCD
display and alarm is continuously
sounding.
Battery voltage is too high
or the charger is fault.
Contact your dealer.
Fault code is shown as 28 and the
icon is lighting on LCD
display and alarm is continuously
sounding.
Battery voltage is too low
or the charger is fault.
Contact your dealer.
UPS is overloaded. Remove excess loads from
UPS output.
UPS is overloaded. Devices
connected to the UPS are
fed directly by the
electrical network via the
Bypass.
Remove excess loads from
UPS output.
The icon and is
flashing on LCD display and alarm
is sounding twice every second.
After repetitive overloads,
the UPS is locked in the
Bypass mode. Connected
devices are fed directly by
the mains.
Remove excess loads from
UPS output first. Then shut
down the UPS and restart
it.
Fault code is shown as 43 and The
icon is lighting on LCD
display and alarm is continuously
sounding.
The UPS shut down
automatically because of
overload at the UPS
output.
Remove excess loads from
UPS output and restart it.
Fault code is shown as 14 and the
icon is lighting on LCD
display and alarm is continuously
sounding.
The UPS shut down
automatically because
short circuit occurs on the
UPS output.
Check output wiring and if
connected devices are in
short circuit status.
Maruson Technology Corporation ULTIMA SERIES 1K-3KVA | 2012 Jan.
2. Installation and Setup
NOTE: Before installation, please inspect the unit. Be sure nothing inside the package is
damaged. Please keep the original package in a safe place for future use.
2-1. Rear Panel View
ULT-1K(L)
IEC Type Schuko Type India Type NEMA Type
ULT-2K(L)
IEC Type Schuko Type India Type NEMA Type
ULT-3K(L)
IEC Type Schuko Type India Type NEMA Type
1. Output receptacles
2. AC input
3. Input circuit breaker
Page 7
Maruson Technology Corporation 6 ULTIMA SERIES 1K-3KVA | 2012 Jan.
4. External battery connection (only available for “L” models)
5. RS-232 communication port
6. Modem/Phone line/Network surge protection
7. Intelligent slot
8. Output circuit breaker
9. Output terminal
2-2. Setup the UPS
Step 1: UPS Input Connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension
cords. The input plug is a #18*3C for 1K/2K and 1.5mm2 *3C or 14*3C for 3K.
Step 2: UPS Output Connection
Simply plug devices to output sockets. During power failure, UPS will provide power to
connected devices.
Step 3: Communication Connection
Communication port:
To allow for unattended UPS shutdown/start-up and status monitoring, connect one end of the
communication cable to the RS-232 port and the other to the communication port of your PC.
With the monitoring software installed, you can schedule UPS shutdown/start-up and monitor
UPS status through the PC.
The 2K(L) model is equipped with intelligent slot for SNMP, RS-232, USB, or AS-400 card. When
installing with the communication card in the UPS, it will provide advanced communication and
monitoring options.
Step 1:
Step 2:
Step 3:
Remove cover of intelligent
slot.
Insert communication card
into the slot
Screw card tightly and
complete installation.
Step 4: Network Connection
Connect a single modem/phone/fax line into surge-protected IN outlet on the back panel of the
UPS unit. Connect from OUT outlet to the equipment with another modem/fax/phone line
cable.

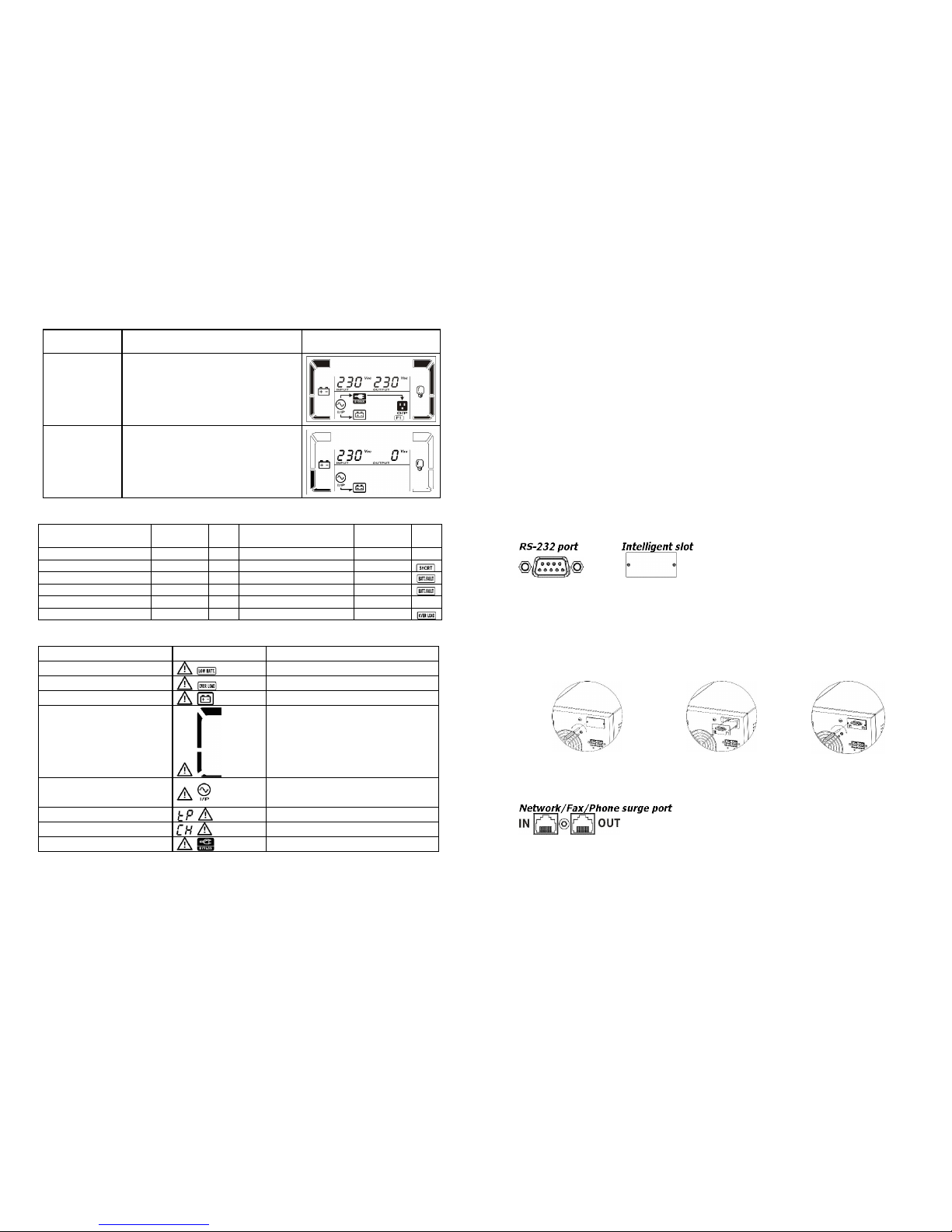

Maruson Technology Corporation 13 ULTIMA SERIES 1K-3KVA | 2012 Jan.
Operating
Mode
Description
LCD Display
Bypass mode When input voltage is within acceptable
range but UPS is overload, UPS will enter
bypass mode or bypass mode can be set
by front panel. Alarm will sound every 10
seconds.
Standby mode UPS is powered off and no output supply
power, but can still charge batteries.
3-7. Faults Reference Code
Fault Event Fault
Code
Icon Fault Event Fault
Code
Icon
Bus start fail 01 x Inverter voltage Low 13 x
Bus over 02 x Inverter output short 14
Bus under 03 x Battery voltage too high 27
Bus unbalance 04 x Battery voltage too low 28
Inverter soft start fail 11 x Over temperature 41 x
Inverter voltage high 12 x Over load 43
3-8. Warning Indicators
Warning Icon (flashing) Alarm
Low battery
Sounding every second
Overload
Sounding twice every second
Battery is not connected
Sounding every second
Overcharge
Sounding every second
Site wiring fault
Sounding every second
Over temperature
Sounding every second
Charger failure
Sounding every second
Out of bypass voltage range
Sounding every second
Page 8
Maruson Technology Corporation 12 ULTIMA SERIES 1K-3KVA | 2012 Jan.
l 05: Bypass Mode Enable/Disable
Interface Setting
ENA: Bypass mode enabled
DIS: Bypass mode disabled
l 06: Bypass Voltage Range Setting
Interface Setting
Press the Down key or Up key to set the acceptable high
voltage point and acceptable low voltage point:
HLS: Bypass high voltage point
LLS: Bypass low voltage point
For 208/220/230/240 VAC models:
230-264: setting the high voltage point from 230Vac to
264Vac
170-220: setting the low voltage point from 170Vac to
220Vac
For 110/115/120/127 VAC models:
120-132: setting the high voltage point from 120Vac to
132Vac
85-115: setting the low voltage point from 85Vac to
115Vac
l 00: Exit Setting
3-6. Operating Mode Description
Operating
Mode
Description
LCD Display
Online mode When the input voltage is within
acceptable range, UPS will provide pure
and stable AC power to output. The UPS
will also charge the battery at online
mode.
ECO mode Energy saving mode:
When the input voltage is within voltage
regulation range, UPS will bypass
voltage to output for energy saving.
Battery mode When the input voltage is beyond the
acceptable range or power failure and
the alarm is sounding every 4 seconds;
UPS will backup power from battery.
Maruson Technology Corporation 7 ULTIMA SERIES 1K-3KVA | 2012 Jan.

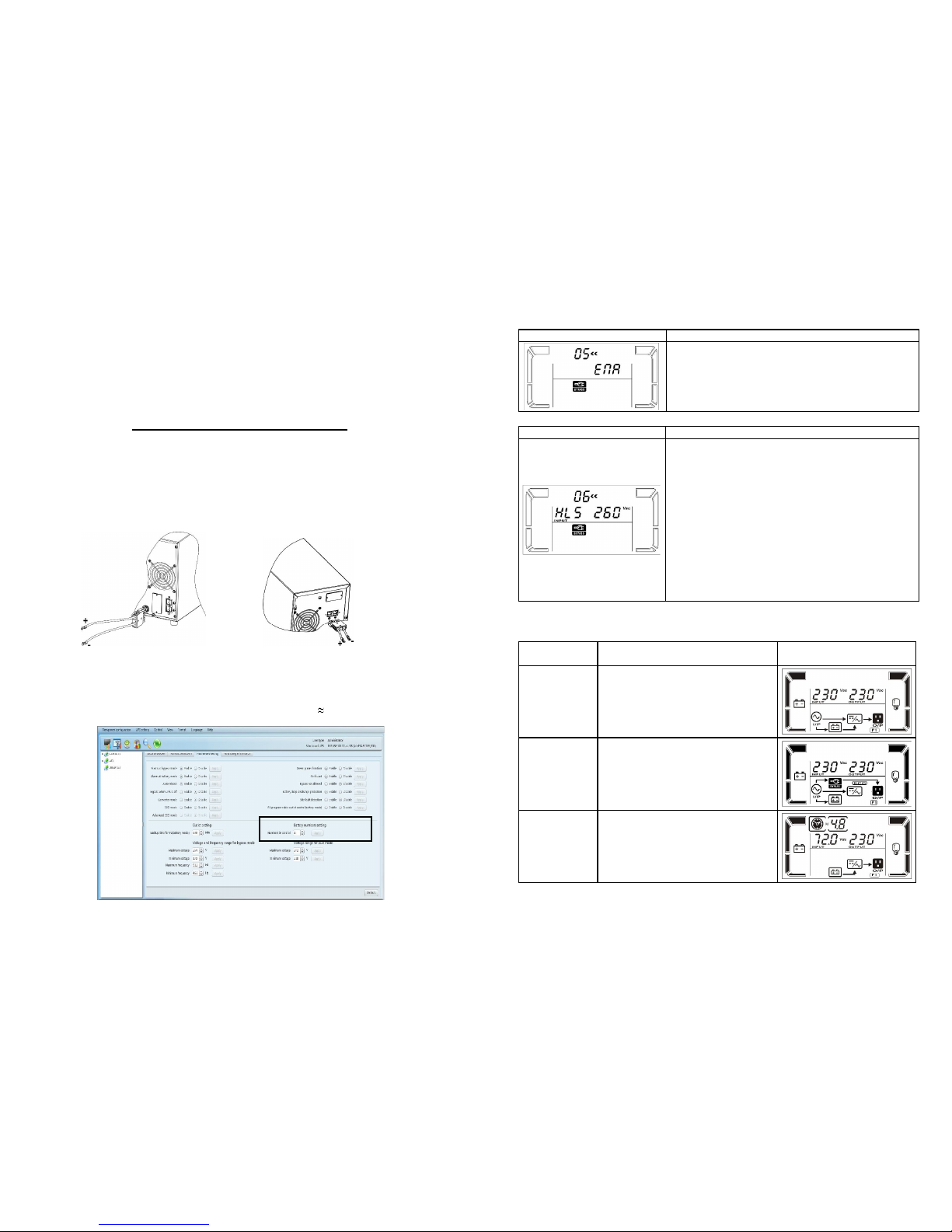

Step 5: Turn On the UPS
Press the ON/Mute button on the front panel for two seconds to power on the UPS.
Note: The battery charges fully during the first five hours of normal operation. Do not
expect full battery run capability during this initial charge period.
Step 6: Install Software
For optimal computer system protection, install UPS monitoring software to fully configure UPS
shutdown. You may insert provided CD into CD-ROM to install the monitoring software. If not,
please follow steps below to download and install monitoring software from the internet:
1. Go to the website http://www.power-software-download.com
2. Click the ViewPower software icon and then choose your required OS to download the
software.
3. Follow the on-screen instructions to install the software.
4. When your computer restarts, the monitoring software will appear as an orange plug icon
located in the system tray near the clock.
Step 7: External Battery Connection
Follow the below chart to make external battery connection.
Step 8: External Battery Capacity Configuration in Software
To calculate accurate backup time of external batteries, it’s necessary to configure battery
numbers in software. The standard calculated capacity for one battery is 9Ah. If connecting
to 100Ah batteries, then it’s equal to 11 in parallel (100Ah / 9Ah 11 sets).
To external
battery
To external
battery
Page 9
Maruson Technology Corporation 8 ULTIMA SERIES 1K-3KVA | 2012 Jan.
3. Operations
3-1. Buttons Operation
Button Function
ON/Mute Button
¯ Turn on the UPS: Press and hold ON/Mute button for at least 2
seconds to turn on the UPS.
¯ Mute the alarm: After the UPS is turned on in battery mode, press
and hold this button for at least 5 seconds to disable or enable the
alarm system. But it’s not applied to the situations when warnings or
errors occur.
¯ Down key: Press this button to display previous selection in UPS
setting mode.
¯ Switch to UPS self-test mode: Press ON/Mute buttons simultaneously
for 5 seconds to enter UPS self-testing while in AC mode.
OFF/Enter Button
¯ Turn off the UPS: Press and hold this button at least 2 seconds to turn
off the UPS in battery mode. UPS will be in standby mode under
normal power or transfer to Bypass mode if the Bypass enable setting
by pressing this button.
¯ Confirm selection key: Press this button to confirm selection in UPS
setting mode.
Select Button
¯ Switch LCD message: Press this button to change the LCD message
for input voltage, input frequency, battery voltage, output voltage
and output frequency. It will return back to default display when
pausing for 10 seconds.
¯ Setting mode: Press and hold this button for 5 seconds to enter UPS
setting mode when UPS is in standby mode or bypass mode.
¯ Up key: Press this button to display next selection in UPS setting
mode.
ON/Mute + Select
Button
¯ Switch to bypass mode: When the main power is normal, press
ON/Mute and Select buttons simultaneously for 5 seconds. Then UPS
will enter to bypass mode. This action will be ineffective when the
input voltage is out of acceptable range.
3-2. LCD Panel
Maruson Technology Corporation 11 ULTIMA SERIES 1K-3KVA | 2012 Jan.

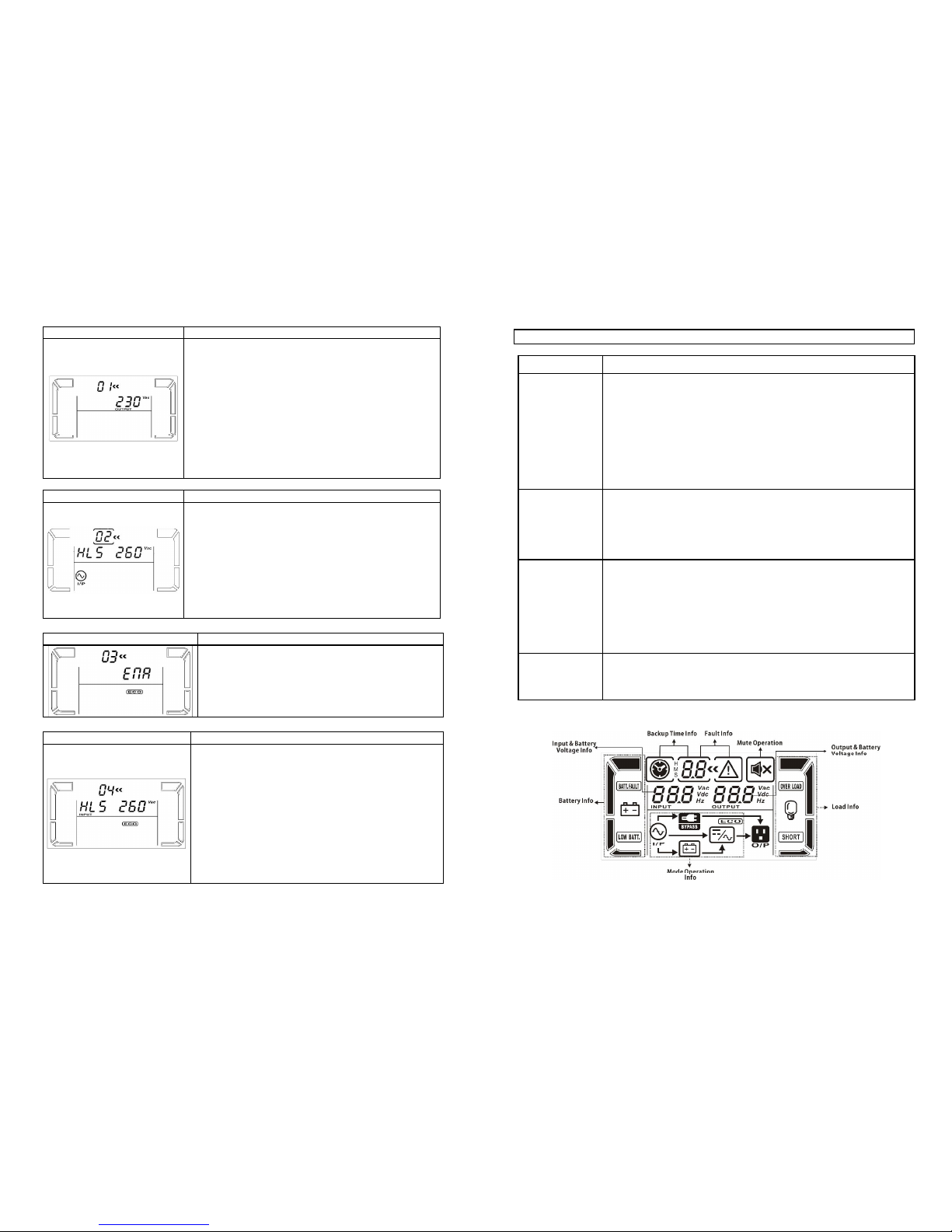

l 01: Output Voltage Setting
Interface Setting
For 208/220/230/240 VAC models, you may choose the
following output voltage:
208: present output voltage is 208Vac
220: present output voltage is 220Vac
230: present output voltage is 230Vac
240: present output voltage is 240Vac
For 110/150/120/127 VAC models, you may choose the
following output voltage:
110: present output voltage is 110Vac
115: present output voltage is 115Vac
120: present output voltage is 120Vac
127: present output voltage is 127Vac
l 02: Input Acceptable Voltage Range Setting
Interface Setting
Press the Down key or Up key to set the acceptable high
point and acceptable low point of input voltage:
HLS: High loss voltage in Line mode (For 208/220/230/240
VAC models, the setting range is from 260V to 300V. For
110/115/120/127 VAC models, the setting range is from
130V to 150V.
LLS: Low loss voltage in Line mode (For 208/220/230/240
VAC models, the setting range is from 160V to 190V. For
110/115/120/127 VAC models, the setting voltage is from
80V to 95V )
l 03: ECO Enable/Disable
Interface Setting
ENA: ECO mode enabled
DIS: ECO mode disabled
l 04: ECO Voltage Range Setting
Interface Setting
Press the Down key or Up key to set the acceptable high
point and acceptable low point of input voltage:
HLS: High loss voltage in ECO mode (For
208/220/230/240 VAC models, the setting range is from
+7V to -24V of the nominal voltage. For 110/115/120/127
VAC models, the setting range is from +3V to -12V of the
nominal voltage).
LLS: Low loss voltage in ECO mode (For 208/220/230/240
VAC models, the setting range is from -7V to -24V of the
nominal voltage. For 110/115/120/127 VAC models, the
setting voltage is from +3V to -12V of the nominal
voltage)
Page 10
Maruson Technology Corporation 10 ULTIMA SERIES 1K-3KVA | 2012 Jan.

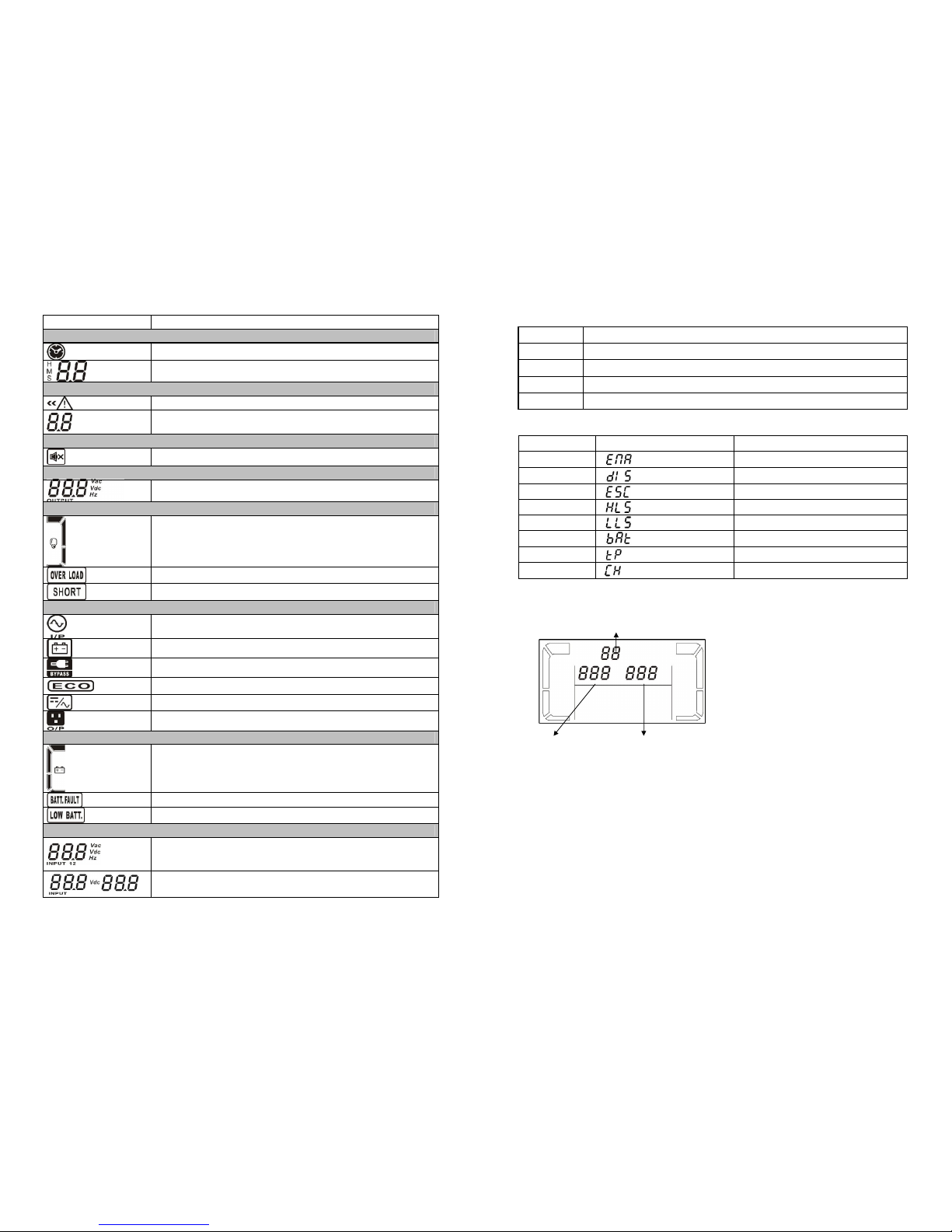

3-3. Audible Alarm
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously sounding
Bypass Mode Sounding every 10 seconds
3-4. LCD Display Wording Index
Abbreviation Display Content Meaning
ENA
Enabled
DIS
Disabled
ESC
Escape
HLS
High loss
LLS
Low loss
BAT
Battery
TP
Temperature
CH
Charger
3-5. UPS Setting
There are three parameters to set up the
UPS.
Parameter 1: For program alternatives.
There are 6 programs to set up. Refer to
below table.
Parameter 2 and Parameter 3 are the
setting options or values for each
program.
Parameter 1
Parameter 2 Parameter 3
Maruson Technology Corporation 9 ULTIMA SERIES 1K-3KVA | 2012 Jan.
Display Function
Backup time information
Indicates the backup time in pie chart.
Indicates the backup time in numbers.
H: hours, M: minute, S: second
Fault information
Indicates that the warning and fault occurs.
Indicates the warning and fault codes (the codes are listed in
details in 3-5 section).
Mute operation
Indicates that the UPS alarm is disabled.
Output & battery voltage information
Indicates the output voltage, frequency, or battery voltage.
Vac: output voltage, Vdc: battery voltage, Hz: frequency
Load information
Indicates the load level by 0-25%, 26-50%, 51-75%, and
76-100%.
Indicates overload.
Indicates the load or the UPS output is short circuit.
Mode operation information
Indicates the UPS connected to the mains.
Indicates the battery is working.
Indicates the bypass circuit is working.
Indicates the ECO mode is enabled.
Indicates the Inverter circuit is working.
Indicates the output is working.
Battery information
Indicates the Battery level by 0-25%, 26-50%, 51-75%, and
76-100%.
Indicates the battery is fault.
Indicates low battery level and low battery voltage.
Input & battery voltage information
Indicates the input voltage or frequency.
Indicates battery voltage in 1K model.
Vac: Input voltage, Hz: input frequency, Vdc: battery voltage
Indicates battery charge/discharge voltage and current (A) (only
available for 2K model)
Loading...
