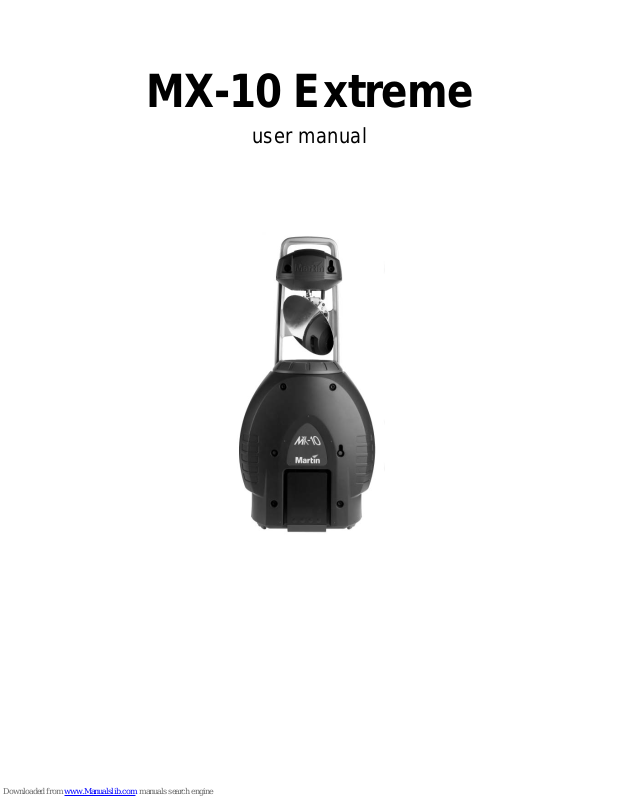

Martin Professional MX-10 Extreme User Manual

MX-10 Extreme

user manual

735

340 98 217

©2002 Martin Professional A/S, Denmark.

All rights reserved. No part of this manual may be
reproduced, in any form or by any means, without
permission in writing from Martin Professional A/S,
Denmark.

Printed in Denmark.

P/N 35000117, Rev. E

cooling fan

mounting
bracket

AC & data
sockets

pan/tilt arm

control panel

front cover bolts

3

Introduction.................................................................................................................................4

Features ............................... ................................ ................................. ................................. 4

About this manual ............................................. ... .... ................................................... .... .. .....4

Safety.............................................................................................................................................5

Safety precautions ......................................... .................................................... ... ... ... .... .. .....5

Setup..............................................................................................................................................6

Unpacking ............................ .............................................................. ....................................6

Lamp installation ....................................................................................................................6

AC power ...............................................................................................................................8

Installation ............................ ................................ ................................. .................................9

Connecting the serial data link .............................................................................................10

Control Panel............................................................................................................................11

Menu navigation ..................................................................................................................11

Address selection .................................................................................................................11

Tailoring performance ..........................................................................................................12

Information readouts ...... ... ... ... .... ................................................... .... ... ... ... .........................13

Test and service utilities .......................................................................................................13

DMX-512 control......................................................................................................................15

Lamp power .........................................................................................................................15

Effect position ......................................................................................................................15

Speed control .......................................................................................................................16

Optical configuration.............................................................................................................17

Gobos .................................................................................................................................. 17

Color filters ...........................................................................................................................19

Prism ................................. ............................. ............................. ............................. ............20

Service.........................................................................................................................................21

Lamp replacement ...............................................................................................................21

Mirror replacement ...............................................................................................................21

Cleaning ............................... ................................ ................................. ...............................21

Lubrication ........................................................................................................................... 22

Replacing fuses ...................................................................................................................22

Updating software ................................................................................................................23

DMX protocol ...........................................................................................................................................24

Control menu ...........................................................................................................................................28

Error messages ......................................................................................................................................31

Troubleshooting ....................................................................................................................................32

PCB connections ..................................................................................................................................33

Specifications - MX-10 .......................................................................................................................34

4 MX-10 Extreme

I

NTRODUCTION

Features

Thank you for selecting the Martin MX-10 Extreme. Some of the many features include:

• efficient, 2000 hour, 250 watt discharge lamp

• 12 interchangeable dichroic colors

• 8 interchangeable indexed-rotation gobos

• interchangeable 3-facet rotating prism

• motorized focus

• full-range dimming

• fast blackout and strobe effects

• fast and accurate 16-bit mirror movement

• advanced low-noise motor control

• coated optics

• user-installable firmware

• switch-selectable power supply settings

• power factor correction

• integrated mounting bracket and floor stand

• easy-to-clean cooling fan

About this manual

Please check the Martin web site at http://www.martin.dk for the latest product software and documentation.
Comments or suggestions regarding this document may be e-mailed to [e-mail] or posted to

Martin Professional A/S
Olof Palmes Allé 18
DK-8200 Aarhus N, Denmark
Attn: Service Department

Please review the important safety precautions in this manual before installing and operating the fixture.

Safety 5

S

AFETY

Warning! This product is for professional use only. It is not for household use.

This product presents risks of lethal or severe injury due to fire and heat, electric shock, ultraviolet radiation, lamp
explosion, and falls. Read this manual before powering or installing the fixture, follow the safety precautions listed
below and observe all warnings in this manual and printed on the fixture. If you have questions about how to operate
the fixture safely, please contact your Martin dealer or call the Martin 24-hour service hot line at [phone].

Safety precautions

PROTECTION FROM ELECTRIC SHOCK

• Disconnect the fixture from AC power before removing or installing the lamp, fuses, or any part, and when not in use.

• Always ground (earth) the fixture electrically.

• Use only a source of AC power that complies with local building and electrical codes and has both overload and
ground-fault protection.

• Do not expose the fixture to rain or moisture.

• Refer any service operation not described in this manual to a qualified technician.

PROTECTION FROM UV RADIATION AND LAMP EXPLOSION

• Never operate the fixture with missing or damaged lenses and/or covers.

• When replacing the lamp, allow the fixture to cool for at least 15 minutes before opening the fixture or removing the
lamp. Protect your hands and eyes with gloves and safety glasses.

• Do not stare directly into the light. Never look at an exposed lamp while it is lit.

• Replace the lamp if it becomes defective or worn out, or before usage exceeds the maximum service life .

PROTECTION FROM BURNS AND FIRE

• Never attempt to bypass the thermostatic switch or fuses. Always replace defective fuses with ones of the specified
type and rating.

• Keep all combustible materials (for example fabric, wood, paper) at least 0.1 meter (4 inches) away from the fixture.
Keep flammable materials well away from the fixture.

• Do not illuminate surfaces within 0.3 meters (12 inches) of the fixture.

• Provide a minimum clearance of 0.1 meters (4 inches) around fans and air vents.

• Never place filters or other materials over the lens or mirror.

• The exterior of the fixture can get very hot. Allow the fixture to cool for at least 5 minutes before handling.

• Do not modify the fixture or install other than genuine Martin parts.

• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

PROTECTION FROM INJURY DUE TO FALLS

• When suspending the fixture, verify that the structure can hold at least 10 times the weight of all installed devices.

• Verify that all external covers and rigging hardware are securely fastened and use an approved means of secondary
attachment such as a safety cable.

• Block access below the work area whenever installing or removing the fixture.

6 MX-10 Extreme

S

ETUP

Unpacking

The MX-10 Extreme comes with:

• MSD 250/2 lamp (not installed)

• 3-meter, 3-wire IEC power cable

•user manual

Important! Cut and remove the cable tie from the tilt motor bracket before operating.

The packing material is carefully designed to protect the fixture during shipment - always use it or a custom flight case
to transport the fixture.

Lamp installation

A lamp must be installed prior to initial operation.

COMPATIBLE LAMPS

A Philips MSD 250/2 lamp is included. The MX-10 Extreme lamp options are shown in the table below. Installing any
other lamp may damage the fixture.

Lamp Average life Replace before Color Temp. Output P/N

Osram HSD 250 2000 hr 2500 hr 6000K 68 lm/W 97010103
Philips MSD 250/2 2000 hr 2200 hr 6500K 72 lm/W 97010100
Philips MSD 200 2000 hr 2200 hr 5600K 67 lm/W 97010106

Table 1: Lamp comparison

Setup 7

TO INSTALL A LAMP

WARNING! When replacing the lamp, disconnect the fixture from AC power and allow the lamp to cool

for at least 15 minutes before proceeding. Wear safety goggles to protect your eyes.

1 Remove the 2 screws labelled “Lamp replacement” and pull out the lamp

socket.

2 If changing the lamp, remove the old lamp from the socket.
3 Pre-adjust the lamp socket by turning the 3 lamp adjustment screws to the

middle of their range. There should be 2 mm between each cap nut and the
fixed disk.

4 Holding the new lamp by its ceramic base (do not touch the glass), align the

small pin on the lamp with the small hole in the socket and insert the lamp
squarely. Make sure that the 4 small projections on the base contact the face
of the socket.

5 Clean the glass bulb with the cloth supplied with the lamp, particular ly if your

fingers touched the glass. A clean, lint-free cloth wetted with alcohol may also
be used.

6 Insert the tip of the lamp into the fixture with as litt le twist in the lamp wires as po ssible. When the base of

the lamp is inside the fixture, turn the lamp assembly so that the arrow points towards the control panel.
Carefully locate the reflector opening, which is deep within the lamp chamber, and fully insert the lamp.

7 Align the screw holes and fasten the lamp access plate with 2 screws.
8 If replacing the lamp, reset the lamp hour and lamp strike counters as described on page 13.
9 Strike the lamp (after setup is complete) and ad just i t for optimum performance by turning the 3 adjustment

screws one at a time until the brightest part of the beam is centered.

Figure 1: Lamp installation

2mm

8 MX-10 Extreme

AC power

Warning! For protection from electric shock, the fixture must be grounded (earthed). The power

supply shall have overload and ground-fault protection.

Important! Verify that power supply settings match the local AC supply before use.

The MX-10 Extreme is factory configured for 230 V / 50 Hz operation. If your AC power
supply is different, the fixture must be configured for the local voltage and frequency.
Always use the voltage settings that are equal to or next highest to your AC supply.

TO CONFIGURE FOR LOCAL AC POWER

1 Disconnect the fixture from power.
2 Remove the 4 cover screws with a 5 mm hex key. Lift off the front cover.
3 Locate the selection switches and the settings label, which is by the color wheel. Move the voltage switch to

the setting that is equal to or higher than the local AC voltage. If your voltage falls between 2 settings,
always select the higher voltage. For example, if the AC voltage is 215 V, use the 230 V setting instead of
210 V.

4 Move the frequency switch to the setting that matches the local AC frequency: 50 or 60 Hz.
5 Replace the cover.

Figure 2: Power supply settings

voltage

f

r

e

q

u

e

n

c

y

Setup 9

TO INSTALL A PLUG ON THE POWER CABLE

The power cable must be fitted with a grounding-type cord cap that fits your power distribution system. Consult an
electrician if you have any doubts about proper installation.

• Following the cord cap manufacturer’ s instructions, connect the yellow and green wire to ground (earth), the
brown wire to live, and the blue wire to neutral. The table below shows some pin identification schemes.

TO APPLY POWER

Warning! The power cables must be undamaged and

rated for the electrical requirements of all
connected devices.

Important! Powering through a dimmer system can

damage the fixture.

1 Verify that the supply cable is undamaged and rated

for the current requirements of all connected devices.

2 Plug the prepared power cable into the AC socket and

a grounded AC power supply.

Installation

LOCATION AND ORIENTATION

The MX-10 Extreme may be installed in any orientation. It can be fastened directly to a suitable surface, hung with a
rigging clamp, or placed directly on a level surface.

For safe operation, install the MX-10 Extreme in a location where

• the mirror is at least 0.3 meters (12 inches) away from any illuminated surface

• the fixture is at least 0.1 meters (4 inches) away from combustible materials

• the fixture is protected from rain and moisture

• there is at least 0.1 meters (4 inches) clearance around the fan and control panel

• there are no flammable materials nearby

TO RIG OR MOUNT THE MX-10 EXTREME

Warning! Block access below the work area before proceeding.
Warning! Always use a secure means of secondary attachment.

1 If using a rigging clamp (not included), verify that it is undamaged and can bear at least 10 times the fixture’s

weight. Bolt the clamp securely to the bracket with a grade 8.8 (minimum) M12 bolt and lock nut, or as
recommended by the clamp manufacturer, through the 13 mm hole in the center of the mounting bracket.

2 If fastening the fixture directly, verify that the hardware (not included) and mounting surface can bear at least

10 times the fixture’s weight. The four 6.2 mm holes and/or the 13 mm hole in the mounting bracket may be
used to fasten the fixtures.

3 Verify that the structure can suppor t at least 10 times the weight of all installed fixtures, clamps, cables,

auxiliary equipment, etc.

4 Working from a stable platform, clamp or fasten the fixture to the structure.

Wire Pin Marking Screw color

brown live “L” yellow or brass

blue neutral “N” silver

yellow/green ground green

Table 2: Plug wiring

AC input & fuse holder
Data input
Data output

10 MX-10 Extreme

5 Install a safety cable that can hold at least 10 times the weight of the fixture through/over the suppor t and

anywhere through the aluminum pan/tilt arm that does not interfere with mirror movement.

6 Loosen the swivel locks and tilt the fixture to the desired angle. Turn the swivel locks clockwise to tighten.

When a handle reaches its limit, pull it out, turn counterclockwise, release, and continue tightening.

7 Verify that the fixture meets the location requirements listed previously.

Connecting the serial data link

The MX-10 Extreme has locking 3-pin data input and output sockets that are wired for use with DMX devices

with pin 1 to shield, pin 2 to cold (-) and pin 3 to hot (+). As some devices have 5-pin connectors, or 3-pin connectors
with reversed polarity on pins 2 and 3, the following adaptor cables may be required.

1 Connect the controller’s output to the fixture’s data

input. For a DMX controller with 5-pin output, use a
cable with a 5-pin male and a 3-pin female XLR
connector.

2 Connect the output of the fixture closest to the

controller to the input of the next fixture. If connecting a
fixture with pin 3 hot to a fixture with pin 3 cold, use a
phase-reversing adaptor.

3 To terminate the link, insert a male 120 Ω XLR

termination plug in the output of the last fixture.

TIPS FOR BUILDING A SERIAL LINK

• Use shielded twisted-pair cable designed for RS-485 devices:
standard microphone cable cannot transmit DMX data reliably over long runs. For links up to 300 meters (1000 ft.)
long, you can use 24 A WG, low capacitance, 85-150 ohm characteristic impedance, shielded cable with 1 or more
twisted pairs. For runs up to 500 meters (1640 ft.) use 22 AWG cable. Use an amplifier if the serial link exceeds 500
meters.

• Never use a “Y” connector to split the link. To split the serial link into branches use a splitter such as the Martin
4-Channel Opto-Isolated RS-485 Splitter/Amplifier.

• Do not overload the link. Up to 32 devices may be connected on a serial link.

• Terminate the link by installing a termination plug in the output socket of the last fixture on the link. The termination
plug, which is simply a male XLR connector with a 120 ohm, 0.25 watt resistor soldered between pins 2 and 3, “soaks
up” the control signal so it does not reflect back down the link and cause interference. If a splitter is used, terminate
each branch of the link.

Phase-Reversing

Adaptor

Male Female

1
2
3

1
2
3

3-pin to 3-pin

P/N 11820006

Adaptor

Male Female

1
2
3
4
5

1
2
3

5-pin to 3-pin

P/N 11820005

Adaptor

Male Female

1
2
3

1
2
3
4
5

3-pin to 5-pin

P/N 11820004

Figure 3: Cable adaptors

AC input & fuse holder
Data input
Data output

Control Panel 11

C

ONTROL

P

ANEL

You set the address and personalities, read out data, and execute service utilities from the control panel. Settings can
also be changed remotely via the serial link with the Martin MP-2 uploader .

There are four small symbols that can appear in the control panel display:

Menu navigation

See also the control menu table starting on page 28.
The DMX address and any error messages are displayed after the fixture resets. To enter the menu, press [menu]. Use

the [up] and [down] keys to mo v e within the menu. To select a function or submenu, press [enter]. To escape a function
or menu, press [menu].

Address selection

The MX-10 Extreme requires 13 channels for DMX control. The address, also known as the start channel, is the first
channel used to receive instructions from the controller. For independent control, each fixture must be assigned its own

Tick/check Power is on and the fixture is ready

Disc

The fixture is writing to memory. Do not power off the fixture
while this symbol is lit.

Network The fixture is receiving DMX
Wrench/spanner Error

PATI

AddR

dMXL UTIL

Address/

Messages

STCO
SHUT

....

EFSP

AdJ

PCbT
UPLd

TSEQ

SWAP

PINV
TINV

PTSP

NORM

FAST

PERS dFSE INFO

SCUT

dISP
dINT

dLOF

ALON

FACT

CAL

dFOF

TIME

HRS
L HR
L ST

VER

dRES

Figure 4: MX-10 Extreme menu

RST
L ON
LoFF

GOBO

SHUT

dIM

COL

FOC

PAN

TILT

I/S

RPRI

RATE
qUAL

PRIS

MAN

EFFbRUN

PINV

12 MX-10 Extreme

address and non-overlapping control channels. Two MX-10 Extremes can share the same address if they are to respond
identically: they will receive the same instructions and individual control will not be possible.

TO SET THE DMX ADDRESS

1 Apply power to the MX-10 Extreme. Press [menu] to enter the main menu.
2 Select AddR using the [up] and [down] keys. Press [enter].
3 Select an address (start channel) from 1 to 500 using the [up] and [down] keys. Press [enter]. Press [menu]

to return to the main menu.

Tailoring performance

MOVEMENT

The MX-10 Extreme provides the three options for optimizing movement to suit different applications.

PATI, the pan and tilt inv ert menu, allo ws you to swap the pan and tilt channel s (SWAP>ON), invert pan movement

(

PINV>ON), and invert tilt movement (TINV>ON). These options can be useful in situations where you want

some fixtures to mirror the performance of others with the same DMX address, or when fixtures are not oriented as
programmed.

PTSP, the pan/tilt speed menu, provides 2 settings: FAST and NORM. NORM is best for most applications.
FAST provides better performance in applications where speed is most important.

SCUT, the shortcuts setting, determines whether the color and gobo wheels scroll past open when changing positions.

When set to

ON, the wheels can “take a shortcut” and scroll through open when this is the shortest path to the next

position. The wheels do not scroll past open when

SCUT is set to OFF.

DISPLAY

The display menu (PERS>dISP) determines whether the display remains lit or not. Select ON to have the display
remain lit, or OFF to extinguish the display two minutes afte r the last key press.

To flip the display for easier reading, press [up] and [down] simultaneously .
The display intensity setting (

PERS>dINT) controls display brightness. You can select AUTO for automatic

dimming of the display using the built-in light sensor, or manually select an intensity level from 10 to 100.

LAMP POWER

There are two settings that modify lamp control: Automatic Lamp On (PERS>ALON) and DMX Lamp-Off
(

PERS>DLoF).

There are three options for automatic lamp control: ON, OFF, and DMX. When ALON is OFF, the lamp remains
off until a lamp-on command is received from the controller. When

ALON is ON, the lamp strikes automatically after

the fixture is powered on. When

ALON is set to DMX, the lamp strikes automatically when the f ixtur e rece ives DMX

data, and it extinguishes automatically 15 minutes after DMX data is lost. When ALON is either ON or DMX, lamp
strike timing is determined by the fixture address to prevent all lamps from striking at once.

The DMX Lamp-Off setting effects ho w the lamp can be turned of f. When

dLOF is ON, lamp power can be switched

off by sending a DMX value from 248 to 255 on channel 1 for five seconds. When

dLOF is OFF, the lamp-off

command will not work unless special conditions are met. Refer to the DMX protocol.

RESET

The fixture can be reset from the controller if DMX reset (PERS>dRES) is ON. If DMX reset is OFF, this
command will not work unless special conditions are met. Refer to the DMX protocol.

DEFAULT SETTINGS

The fixture can be reset to its factory default settings by selecting dFSE>FACT>LOAd.

Control Panel 13

Information readouts

POWER-ON HOURS

Read the total number of hours the fixture has been on since fabrication (INFO>TIME>HRS>TOTL), and the
number of hours on since the counter was last reset (

INFO>TIME>HRS>RSET). This can be used to track

maintenance intervals. Press [up] for 5 seconds while displayed to reset.

LAMP HOURS

Read the total number of lamp hours since fabrication (INFO>TIME>L HR>TOTL), and the number of lamp
hours since the counter was last reset (

INFO>TIME>L HR>RSET). Reset this counter after installing a new

lamp. Press [up] for 5 seconds while displayed to reset.

LAMP STRIKES

Read the total number of lamp strikes (INFO>TIME>L ST>TOTL), and the numbe r of lamps strikes since
the counter was last reset (

INFO>TIME>L ST>RSET). Reset this counter when installing a new lamp. Press

[up] for 5 seconds while displayed to reset.

FIRMWARE VERSION

INFO>VER

displays the firmware version number. The firmware version is also displayed briefly at startup.

Test and service utilities

DMX READOUT

The DMX log (dMXL) menu provides useful information for troubleshooting control problems.

RATE displays the DMX refresh rate in packets per second. Values lower than 10 or higher than 44 may result in

erratic performance, especially when using tracking control.

qUAL displays the quality of the received DMX data as a percentage of packets received. Values much below 100

indicate interference, poor connections, or other problems with the serial data link that are the most common cause of
control problems.

STCO displays the DMX start code. Packets with a start code other than 0 may cause irregular performance.

The remaining options under

dMXL display the DMX values received on each of the 13 channels, from SHUT

(shutter, channel 1) to EFSP (effect speed, channel 13). If the fixture does not behave as expected, reading the DMX
values can help you troubleshoot the problem.

MANUAL CONTROL

The manual control menu (MAN) provides commands for turning the lamp on (LON), turning the lamp off (LoFF),
and resetting the fixture (

RST). It also permits you to position and move individual effects.

EFFECTS TEST

The test sequence (TSEQ>RUN) runs through all effects to provide a quick check of fixture performance. Note: the
test sequence does not automatically strike the lamp. Use

MAN>LON and MAN>LoFF to control lamp power.

Press [menu] to stop the test.

FEEDBACK TOGGLE

Magnetic sensors monitor the positions of the color wheel, gobo wheel, and rotating gobos. If they detect an error, the
shutter closes while the effect resets. This feature can be disabled by turning effects feedback off
(

UTIL>EFFb>OFF).

ADJUSTMENT POSITIONS

The adjustment menu (UTIL>AdJ) provides commands for positioning effects during mechanical adjustment.

14 MX-10 Extreme

EFFECT CALIBRATION

With the calibration menu (UTIL>CAL), effect positions can be fine-tuned with a software-defined offset value to
compensate for small misalignments or diffe rences between fixtures.

The default offset command (

UTIL>dFOF) erases any offsets stored in memory.

CIRCUIT BOARD TEST

UTIL>PCBT

executes a routine designed for testing the main circuit board. For service use only.

UPLOAD MODE

The upload mode command (UTIL>UPLd) prepares the fixture for a software update. This command is not
necessary, however, as upload mode is engaged automatically by the uploader.

DMX-512 control 15

DMX-512

CONTROL

This section briefly describes the DMX-controllable effects. See also the DMX table starting on page 24 and the DMX
chart on the back cover.

Lamp power

LAMP-ON

Unless automatic lamp strike is enabled, lamp power remains off until a lamp-on c ommand is sent from the co ntrol ler.
Note: A peak of electric current that can be many times the operating current is drawn for an instant when striking a

discharge lamp. Striking many lamps at once may cause a voltage drop large enough to prevent lamps from striking or
draw enough current to trip circuit breakers. If sending lamp-on commands to multiple fixtures, program a sequence
that strikes lamps one at a time at 5 second intervals.

LAMP-OFF

The lamp can be turned off from the controller by sending the lamp-off command on channel 1 for 5 seconds. The
lamp cannot be restruck for 8 minutes after being turned off. Note that the lamp-off command may

be disabled by the DMX Lamp-Off personality setting.

Effect position

RESET

If an effect loses its indexing and fails to move to programmed positions, the fixture can be reset from the controller b y
sending the “Reset” command on channel 1 for 5 seconds. Note that the DMX reset feature may be disabled by the
DMX Reset personality setting.

DIMMER / SHUTTER

The mechanical dimmer/shutter system provides full, high-resolution dimming, “instant” open and blackout, random
and variable strobe effects, and random and variable pulses in which the dimmer snaps open and slowly dims or snaps
closed and slowly opens. Shutter, strobe, and pulse effects are selected on channel 1. The intensity level is selected on
channel 2.

COLOR

The color wheel can be scrolled continuously - allowing for split color effects - or in steps, and rotated randomly or
continuously in both directions at different speeds.

GOBO ROTATION AND SELECTION

The MX-10 Extreme has 8 indexed-rotation gobo positions plus an open po sition . Gobos can be inde xed (positioned at
a defined angle), rotated continuously, or rotated and shaken (bounced). The gobo and the type of movement are
selected on channel 4 and the index angle or rotation speed are selected on channel 5.

The gobo wheel also rotates continuously in both directions at variable speed.

FOCUS

The beam may be focused from approximately 2 meters (6.5 feet) to infinity.

ROTATING PRISM

The prism may be inserted and removed from the light path. It rotates in both directions at varying speeds.

16 MX-10 Extreme

PAN AND TILT

Mirror pan and tilt are controlled on channels 8 to 11. The course control channel sets first 8 bits (the most significant
byte or MSB), and the fine channel sets the second 8 bits (the least significant byte or LSB) of the 16-bit control byte.
In other words, the fine channel fine-tunes the position set by the course channel.

Speed control

TRACKING CONTROL

Tracking control is enabled by setting the speed channels (12 and 13) to one of the tracking values listed in the DMX
table, typically 0.

With tracking control, the speed at which effects move is determined by the cross-fade time between two positions or
scenes. The controller divides the move into steps and updates the fixture with small changes at the rate required to
achieve the fade. The fixture “tracks” the changes and averages them with a digital filter algorithm to provide smooth
movement.

VECTOR CONTROL

With vector control, movement speed is determined by the speed values on channels 12 and 13. This provides a way to
control speed on controllers without cross-faders. Vector control also provides smoother movement, particularly at
slow speeds, with controllers that send slow or irregular tracking updates.

When using vector control, the cross-fade time must be 0.

BLACKOUT

When “blackout while moving” is selected on channels 12 or 13, the shutter closes when the effect moves to make the
transition invisible. The sh utte r o pens when the movement is complete.

PERSONALITY OVERRIDES

Channel 12 provides tracking values that allow you to override the pan/tilt speed personality setting. Channel 13
provides tracking values that allow you to ov e rride the shortcuts setting. See the DMX table for details.

Optical configuration 17

O

PTICAL CONFIGURATION

Gobos

The MX-10 Extreme accepts eight metal or glass gobos with an outside diameter of 22.5 mm and a maximum image
diameter of 17 mm. Complete gobo specifications are listed on page 35.

STANDARD GOBO CONFIGURATION

The MX-10 Extreme provides 8 gobos as shown below.

CUSTOM GOBOS

For optimum performance, custom glass gobos for the MX-10 Extreme should be made with the text, logo, and similar
artwork reversed on the coated side. Gobo types and dimensions are specified on page34.

TO REPLACE A GOBO

1 Disconnect the fixture from AC power and allow it to cool.
2 Remove the front cover.
3 Tur n the gobo wheel to access the desired position. Squeeze the

ends of the retention spring together and remove. Push the gobo out
from the back and remove.

4 Orient the gobo as shown in Figure 6 and inser t. Secure the gobo

with the retention spring.

5 Replace the cover before applying power.

1

2

3

4

5

6

7

8

.

Position Gobo

1 Eclipse
2 Shark bar
3 Phat fan
4 Tail spin
5Sun
6 Triangle
7Oriental fire
8Paint mix

Table 3: Standard gobos

Figure 4: MX-10 Extreme gobo

Figure 5: Gobo replacement

18 MX-10 Extreme

GOBO ORIENTATION

Figure 6 shows the correct orientation for different gobo types. When in doubt, install gobos with the more reflective
side towards the lamp.

Coated Glass Gobos

Uncoated side towards stageCoated side towards lamp

When an object is held up to the
coated side there is no space between
the object and its reflection. The back
edge of the gobo cannot be seen
when looking through the coated side.

When an object is held up to the
uncoated side there is a space between
the object and its reflection. The back
edge of the gobo can be seen when
looking through the uncoated side.

Textured side towards stage

Textured Glass Gobos

Smooth side towards lamp

Metal Gobos

Reflective side towards lamp Black side towards stage

Image/text Gobos

Reversed image towards lamp True image towards stage

Figure 6: Gobo orientation

Optical configuration 19

Color filters

STANDARD CONFIGURATION

The MX-10 Extreme provides 12 dichroic color filters as shown below.

TO REPLACE A COLOR FILTER

1 Disconnect the fixture from AC power and allow it to cool.
2 Remove the front cover.
3 Tur n the color wheel to access the desired color filter. Press the

filter forwards slightly to release it and then grasp it by the edges
and remove.

4 To insert a filter, slide it under the retention spring until it snaps into

place.

5 Replace the front cover.

2

1

3

4

5

6

7

8

9

10

11

12

Position Color

1CTC
2 Yellow 603
3 Blue 104
4 Pink 312
5 Green 206
6 Blue 108
7 Red 301
8 Magenta 507

9 Blue 101
10 Orange 306
11 Dark green
12 Purple 502

Table 4: Standard colors

Figure 6: MX-10 Extreme color

A

B

Figure 7: Filter replacement

20 MX-10 Extreme

Prism

The standard 3-facet prism can be replaced with optional five- and nine-facet prisms. See Accessories on page 35 for
part numbers.

TO REPLACE THE PRISM

1 Disconnect the fixture from AC power and allow it to cool.
2 Remove the front cover.
3 Remove the three prism module screws. There

are two screws on the color wheel side and one
screw on the gobo wheel side.

4 Unfold the flexible wire retainers on each side of

the chassis, just behind the prism module.
5 Unplug the color wheel sensor cable.
6 Lift the prism module out of the chassis. When

the lower prism motor nears the color wheel

sensor, tilt the prism module forward to avoid

damaging the sensor connection pins.
7 Unplug the motors and remove the prism

rotation belt.
8 Working through the round hole, lift the retention

spring off the back of the prism holder.
9 Rock the prism gently from side to side while

pulling lightly to work the prism out of the

bearing. Do not use force. If the holder gets

stuck, press it back into the bearing and try

again.
10 Gently insert the replacement prism into the

rotation bearing. Install the prism rotation belt.
11 Place the module prism-down on a clean surface

with the prism centered in the round hole. Hold

the unbent end of the retention spring in the

prism holder groove with one hand and work the

spring into the groove with your other hand.
12 Plug in the prism motors: the longer of the two

cables is for the larger of the two motors.
13 Tilt the bottom motor away from the color wheel

sensor as you insert the module into the fixture.

When the motor is clear of the sensor

connection pins, bring the module back to

vertical and press it down into position so that

the module tabs seat in the chassis slots.
14 Fold the flexible wire retainers ov er the cables on

each side. Reconnect the color wheel sensor

cable.
15 Fasten the prism module to the chassis with

three screws.
16 Replace the front cover before applying power.

Service 21

S

ERVICE

The MX-10 Extreme requires regular maintenance to keep performing at their peak. Excessive dust, grease, and smok e

fluid buildup degrades performance and causes overheating and damage that is not covered by the warranty. The

maintenance schedule will depend on the application and should be discussed with your Martin distributor. Refer any

service that is not described here to a professional technician.

Warning! Removing covers while the fixture is powered on exposes dangerous live electrical

circuits, hot surfaces, and a lamp under high pressure. Disconnect the fixture from AC

power and allow it to cool before removing any cover.

Lamp replacement

Lamp life will vary; the rated life is an average figure that is based on the manufacturer’s test cycle. For maximum

lamp life, avoid excessive strikes and always allow the lamp to b urn for at least 5 minutes before turning it off.

T o reduce the risk of lamp e xplosion, which may damage the f ixture, never exceed the lamp’s rated life (2000 hours) by

more than 25 percent.

Replace the lamp when:

• it strikes with difficulty or not at all, or is in any other way defective

• usage exceeds the manufacturer’ s “replace before” hours. See Table 1.
Refer to page 7 for the lamp replacement procedure.

Mirror replacement

No adjustment is required after replacing the mirror as long as you do not loosen the tilt motor shaft adaptor.

TO REPLACE THE MIRROR

1 Remove the two screws that fasten the mirror bracket to

the tilt motor shaft adaptor with a 3 mm hex key and
remove the mirror.

2 Apply a drop of threadlock such as Loctite 243 to each

screw.

3 Place the new mirror assembly on the shaft adaptor and

fasten securely.

Cleaning

OPTICAL COMPONENTS

Use care when cleaning optical components. The surface on dichroic filters is achieved by means of special multi-layer
coatings and even small scratches may be visible. Residues from cleaning fluids can bake onto components and ruin
them.

1 Allow the components to cool completely.
2 Wash dirty lenses and filters with isopropyl alcohol. A generous amount of regular glass cleaner may also

be used, but no residues may remain.

3 Rinse with distilled water. Mixing the water with a small amount of wetting agent such as Kodak Photoflo will

help prevent streaking and spotting.

22 MX-10 Extreme

4 Dry with a clean, soft and lint-free cloth or blow dry with compressed air.

FAN

To maintain adequate cooling it is important that the fan be
cleaned regularly.

1 Remove the fan by pulling out the locking pins on each

side.

2 Clean with a soft brush, vacuum, or compressed air.
3 Place the fan back in position and press in the locking pins

to secure.

Lubrication

Use only silicone lubricant, Martin P/N 37302003 (500 ml) or P/N 37302004 (200 ml, in applicator bottle). No other
lubricant is approved for use. When applying lubricant, always remove excess and do not get oil on other parts.

1 Check the focus mechanism and apply a drop of lubricant to the 3 metal slides if movement is rough.
2 Lubricate the rotating-gobo bearings if movement is rough on slow rotation or if they become noisy. Apply a

few drops of oil to each bearing from the lamp side of the wheel.

Replacing fuses

MAIN FUSE

The main fuse holder is built in to the mains input socket.
Never replace the fuse with one of a differ ent rating!

1 Unplug the mains cable from the input socket.
2 Pry open the fuse holder and remove the fuse.
3 Replace the fuse with one of the same type and rating.

The fuse rating is listed on serial number label.

4 Close the fuse holder and replace the mains cable.

POWER SUPPLY FUSES

There are two fuses for the low-voltage power supplies located on the printed circuit board. If one or more of the green
LEDs on the PCB does not light, one of these fuses may be blown. If all three LEDs are lit, the low-voltage power
supplies are functioning correctly.

Have the fixture serviced by a Martin service technician if the
problem persists.

1 Disconnect the fixture from AC power.
2 Remove the front cover.
3 Remove the four screws that fasten the control panel

assembly. Move the display assembly out of the way to
access the PCB.

4 Carefully remove and check the two fuses located in the

top-left corner of the PCB (see page 33). Replace as
necessary with fuses of the same size and rating (see
page 34).

5 Install the control panel and the front cover.

AC input & fuse holder
Data input
Data output

Service 23

Updating software

The latest MX-10 Extreme firmware is av ailable from the support area of the Martin web site at www.martin.dk. It can
be installed via the serial data link using a supported Martin uploader such as the MP-2, or via a LightJockey 4064 ISA
DMX interface.

Note: Intermediate control systems such as the Martin Lighting Director (MLD) and the Martin Matrix must be
bypassed when updating fixture software via the DMX link. These systems do not relay the update code correctly
because it is not a DMX-compliant signal.

NORMAL UPDATE

To update fixture software, connect an upload device to the fixture just as you would connect a DMX controller and
perform a DMX mode upload as described in the uploader’s documentation. There is no need to isolate the MX-10
Extreme fixtures from other types of fixture on the serial link.

When the upload is completed (and when booting up) the MX-10 Extreme performs a check-sum test of the flash
memory and then resets. If the firmware is corrupted a check-sum error (

CSER) occurs. A few seconds later the

fixture displays

UPLd and is ready for a new DMX-mode upload.

In the unlikely event that a software upload is interrupted, the fixture must be powered off for at least 10 seconds to
force the check-sum test. You can repeat the DMX-mode upload as soon as

UPLd is displayed.

BOOT SECTOR UPDATE

If the normal update procedure fails or the software update notes call
for a boot-sector update, install new software as follows.

1 Disconnect the fixture from AC power.
2 Remove the front cover.
3 Remove the four screws that fasten the display assembly. Move

the display assembly out of the way to access the PCB.

4 The boot sector jumper is located next to the plug for the control

panel data cable. Move the jumper to the Init setting. Verify that
the Flash Write jumper is in the Enable position. See the
diagram on page 33.

5 Perform a boot-mode upload as described in the uploader

manual.

6 Disconnect the fixture from AC power. Move the jumper back to

the Lock setting.

7 Install the control panel and the front cover.

InitLock

front

24 MX-10 Extreme

DMX

PROTOCOL

A

Channel Value Percent Function

1

1

If this command is disabled

in the menu, it can be

executed only if the CTC

filter, prism with no rotation,

and open gobo are selected.

0 - 19
20 - 49
50 - 72
73 - 79
80 - 99

100 - 119
120 - 127
128 - 147
148 - 167
168 - 187
188 - 190
191 - 193
194 - 196
197 - 199
200 - 202
203 - 207
208 - 217
218 - 227
228 - 237
238 - 247
248 - 255

0 - 7

8 - 19
20 - 28
29 - 31
31 - 39
39 - 47
47 - 50
50 - 58
58 - 65
66 - 73
74 - 75
75 - 76
76 - 77
77 - 78
78 - 79
80 - 81
82 - 85
85 - 89
89 - 93
93 - 97

97 - 100

Shutter, Strobe, Reset, Lamp
On/Off

Shutter closed
Shutter open
Strobe, fast!slow
Shutter open
Opening pulse, fast !slow
Closing pulse, fast !slow
Shutter open
Random strobe, fast
Random strobe, medium
Random strobe, slow
Shutter open
Random opening pulse, fast
Random opening pulse, slow
Random closing pulse, fast
Random closing pulse, slow
Shutter open
Reset fixture: time > 5 seconds, see note 1
Shutter open
Lamp on
Shutter open
Lamp off: time > 5 seconds, see note 1

2

0 - 255 0 - 100

Dimmer

Closed ! open

Service 25

3

0
12
24
36
48
60
72
84
96

108
120
132
144

156 - 159
160 - 163
164 - 167
168 - 171
172 - 175
176 - 179
180 - 183
184 - 187
188 - 191
192 - 195
196 - 199
200 - 203
204 - 207

208 - 226
227 - 245

246 - 248
249 - 251
252 - 255

0
5

9
14
19
23
28
33
37
42
47
42
56

61 - 63
63 - 64
64 - 65
66 - 67
67 - 68
69 - 70
70 - 72
72 - 73
74 - 75
75 - 76
77 - 78
78 - 79
80 - 81

82 - 88
89 - 96

96 - 97
98 - 98

99 - 100

Color

Continuous Scroll: full color positions:
White
CTC
Yellow 603
Blue 104
Pink 312
Green 206
Blue 108
Red 301
Magenta 507
Blue 101
Orange 306
Dark green
Purple 502

Stepped Scroll
Purple 502
Dark green
Orange 306
Blue 101
Magenta 507
Red 301
Blue 108
Green 206
Pink 312
Blue 104
Yellow 603
CTC
White

Continuous Rotation
CW, fast ! slow
CCW, slow ! fast

Random color
Fast
Medium
Slow

Channel Value Percent Function

26 MX-10 Extreme

4

0 - 4

5 - 9
10 - 14
15 - 19
20 - 24
25 - 29
30 - 34
35 - 39
40 - 44

45 - 49
50 - 54
55 - 59
60 - 64
65 - 69
70 - 74
75 - 79
80 - 84
85 - 89

90 - 104
105 - 119
120 - 134
135 - 149
150 - 164
165 - 179
180 - 194
195 - 209

210 - 232
233 - 255

0 - 1
1 - 3
3 - 5
6 - 7
7 - 9

9 - 11
11 - 13
13 - 15
15 - 17

17 - 19
19 - 21
21 - 23
23 - 25
25 - 27
27 - 29
29 - 31
31 - 33
33 - 35

35 - 40
41 - 46
47 - 52
53 - 58
59 - 64
65 - 70
70 - 76
76 - 82

82 - 91

91 - 100

Gobo selection and shake

Indexing: set position on channel 5
Open gobo
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8

Rotation: set velocity on channel 5
Open gobo
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8

Rotation with shake, slow ! fast: set velocity on ch. 5
Gobo 8
Gobo 7
Gobo 6
Gobo 5
Gobo 4
Gobo 3
Gobo 2
Gobo 1

Continuous scroll: set velocity of gobo rotation on ch. 5
CW slow ! fast
CCW fast ! slow

5

0 - 255

0 - 2

3 - 127
128 - 252
253 - 255

0 - 100

0 - 1

1 - 50

50 - 98

99 - 100

Gobo rotation (select gobo on channel 4)

Index position
0 - 395°

Continuous rotation (direction and speed)
No rotation
CW, slow ! fast
CCW, fast ! slow
No rotation

6

0 - 255 0 - 100

Focus

Infinity ! 2 meters

7

0 - 19
20 - 79
80 - 89

90 - 149

150 - 215

216 - 220
221 - 225
226 - 230
231 - 235
236 - 240
241 - 245
246 - 250
251 - 255

0 - 7

8 - 31
31 - 35
35 - 58
59 - 84

84 - 86
87 - 88
89 - 90
91 - 92
93 - 94
95 - 96
96 - 98

98 - 100

Prism

Prism off
Rotating prism, CCW fast ! slow
No rotation
Rotating prism, CW slow ! fast
Prism off

Prism/Gobo Macros
Macro 1
Macro 2
Macro 3
Macro 4
Macro 5
Macro 6
Macro 7
Macro 8

8

0 - 255 0 - 100

Pan
Left ! right (128 = neutral)

9

0 - 255 0 - 100

Pan Fine (LSB)
Left ! right

Channel Value Percent Function

Service 27

10

0 - 255 0 - 100

Tilt
Up ! down (128 = neutral)

11

0 - 255 0 - 100

Tilt Fine (LSB)
Up ! down

12

0 - 2

3 - 245
246 - 248
249 - 251
252 - 255

0 - 1

1 - 96
96 - 97
98 - 98

99 - 100

Pan/Tilt Speed

Tracking
Fast ! slow
Tracking, PTSP NORM (menu override)
Tracking, PTSP FAST (menu override)
Blackout while moving

13

0 - 2

3 - 245
246 - 251
252 - 255

0 - 2

3 - 245
246 - 248
249 - 251
252 - 255

0 - 245
246 - 248
249 - 251
252 - 255

0 - 2

3 - 245
246 - 251
252 - 255

0 - 251

252 - 255

0 - 1

1 - 96

96 - 98

99 - 100

0 - 1

1 - 96
96 - 97
98 - 98

99 - 100

0 - 96
96 - 97
98 - 98

99 - 100

0 - 1

1 - 96
96 - 98

99 - 100

0 - 98

99 - 100

Effects Speed

Dimmer, focus
Tracking mode
Fast ! slow
Tracking
Maximum speed

Color
Tracking mode
Speed, fast ! slow
Tracking, SCUT OFF (menu override)
Tracking, SCUT ON (menu override)
Blackout while moving

Gobo selection
Normal (no blackout)
Normal, SCUT OFF (menu override)
Normal, SCUT ON (menu override)
Blackout while moving

Indexed gobo rotation
Tracking mode
Fast ! slow
Tracking
Blackout while moving

Prism
Normal (no blackout)
Blackout while moving

Channel Value Percent Function

28 MX-10 Extreme

C

ONTROL MENU

B

Menu Item Options Notes (Default settings in bold print)

AddR - 1-512

DMX address

PATI

SWAP

ON

Map DMX pan control to tilt channel and vice versa.

OFF

Normal pan and tilt control

PINV

ON

Reverse DMX pan control, right ! left

OFF

Normal pan control, left ! right

TINV

ON

Reverse DMX tilt control, down ! up

OFF

Normal tilt control, up ! down

PTSP -

NORM

Default pan/tilt speed

FAST

Maximum pan/tilt speed (position may be less precise)

PERS

dISP

ON

Display remains on

OFF

Display extinguishes 2 minutes after last key press

dINT

AUTO

Automatic display dimming

10-100

Set display intensity manually

dLOF

ON

Enable DMX lamp off command

OFF

Disable DMX lamp off command

dRES

ON

Enable DMX reset command

OFF

Disable DMX reset command

ALON

ON

Lamp strikes automatically within 90 seconds of power on

OFF

No automatic lamp strike

dMX

Lamp strikes if DMX is present, douses 15 mins. after it’s missing

SCUT

ON

Effect wheels turn shortest distance

OFF

Effect wheels do not cross open position

dFSE FACT LOAD

Return all personality settings (not calibrations) to factory defaults

INFO

TIME/HRS

TOTL

Total hours of operation since fabricated

RSET

Hours of operation since counter reset. To reset, display counter
and press [up] for 5 seconds.

TIME/L HR

TOTL

Total hours of operation with lamp on since fabricated

RSET

Lamp hours since counter reset. To reset, display counter and
press [up] for 5 seconds.

TIME/L ST

TOTL

Total number of lamp strikes since fabricated

RSET

Number of lamp strikes since counter reset. To reset, display
counter and press [up] for 5 seconds.

VER -

CPU firmware version

dMXL -

RATE

DMX packets per second

qUAL

Percentage of data received without errors

STCO

Decimal value of the DMX start code.

SHUT..EFSP

DMX value (from 0 - 255) received for each channel.

Table 5: Control menu

Service 29

MAN

RST -

Reset fixture

L ON -

Lamp on

LoFF -

Lamp off

SHUT

OPEN

Open shutter

CLOS

Close shutter

STRF

Fast strobe

STRM

Medium strobe

STRS

Slow strobe

dIM 0-255

Dimmer

COL

OPEN

Color wheel in open position.

C1-C12

Color wheel positions 1 > 12.

CW F

Clockwise rotation - fast

CCWF

Counter-clockwise rotation - fast

CW M

Clockwise rotation - medium

CCWM

Counter-clockwise rotation - medium

CW S

Clockwise rotation - slow

CCWS

Counter-clockwise rotation - slow

RNdF

Random color - fast

RNdM

Random color - medium

RNdS

Random color - slow

gObO

OPEN

Gobo wheel in open position

g1 I-g7 I

Indexed gobos 1-7

g1 R-g7 R

Rotating gobos 1-7

g1RS-g7RS

Rotating gobo shake 1-7

CW F

Clockwise rotation, fast

CCWF

Counter-clockwise rotation, fast

CW M

Clockwise rotation, medium

CCWM

Counter-clockwise rotation, medium

CW S

Clockwise rotation, slow

CCWS

Counter-clockwise rotation - slow

I/S 0-255

Clockwise rotation of gobo wheel. Slow - fast.

PRIS

ON

Prism in

OFF

Prism out

RPRI 0-255

Rotate prism, slow - fast

FOC 0-255

Focus, Infinity→Near

PAN 0-255

Pan, Left→Right

TILT 0-255

Tilt, Up→Down

TSEQ - RUN

Run a general test of all effects

Menu Item Options Notes (Default settings in bold print)

Table 5: Control menu

30 MX-10 Extreme

UTIL

(Press
and hold
Enter for a
few
seconds)

EFFb

ON

Enable on the fly reset of magnetically indexed effects

OFF

Disable on the fly reset of magnetically indexed effects

Adj -

Not implemented

CAL -

Not implemented

dFOF SURE

Return all offsets to the default settings

PCbT LEd

PCB test for service use only.

UPLd SURE

Manually set fixture to software update mode

Menu Item Options Notes (Default settings in bold print)

Table 5: Control menu

Service 31

E

RROR MESSAGES

C

Display readout Appears if... What to do

MERR (Memory error) ...the EEPROM memory cannot be read. • Contact service technician.
CSER (Check-sum error) ...a software upload is unsuccessful. • Reload software, see page23.

****

... there is no communication between the
control panel and motherboard. This
appears briefly when switching on the
fixture.

• Check fuses.

• Check cable between control panel and
motherboard.

• Reinstall software.

• Contact service technician.

COER (Color wheel time-out)
rgER (Rot. gobo time-out)
goER (Gobo index time out)

...the magnetic-indexing circuit
malfunctions (e.g. sensor defective or
magnet missing).

• After the time-out, the effect in question
stops in a random position.

• Contact service technician.

Table 6: Error messages

T

ROUBLESHOOTING

D

Problem Probable cause(s) Remedy

One or more of the fixtures is
completely dead.

No power to fixture.

• Check that power is switched on and cables are
plugged in.

Primary fuse blown. • Replace fuse.
Secondary fuse(s) blown (located on PCB

inside base).

• Check fuses on PCB and replace.

Fixtures reset correctly but all
respond erratically or not at all
to the controller.

The controller is not connected. • Connect controller.
XLR pin-out of the controller does not

match pin-out of the first fixture on the link
(i.e. signal is reversed).

• Install a phase-reversing cable between the con­troller and the first fixture on the link.

Fixtures reset correctly but
some respond erratically or
not at all to the controller.

Poor data quality

• Check data quality (page 13). If much under 100
percent, the problem may be a bad data link con­nection, poor quality or broken cabling, missing
termination, or a defective fixture disturbing the
link.

Bad data link connection

• Inspect connections and cables. Correct poor
connections. Repair or replace damaged cables.

Data link not terminated with 120Ω
termination plug.

• Insert termination plug in output jack of the last
fixture on the link.

Incorrect addressing of the fixtures. • Check address setting.

One of the fixtures is defective and disturbs
data transmission on the link.

• Bypass one fixture at a time until normal opera­tion is regained: unplug both connectors and con­nect them directly together.

• Have the defective fixture serviced by a qualified
technician.

XLR pin-out on fixtures does not match
(pins 2 and 3 reversed).

• Install a phase-reversing cable between the fix­tures or swap pins 2 and 3 in the fixture that
behaves erratically.

Shutter closes suddenly.

The color wheel, gobo wheel, or a gobo has
lost its index position and the fixture is
resetting the effect.

• Contact Martin technician for service if the prob­lem persists.

No light and “LERR” error
message displayed.

The power supply settings do not match
local AC voltage and frequency.

• Disconnect fixture. Check settings (page 8) and
correct if necessary.

Lamp missing or blown • Disconnect fixture and replace lamp.

Lamp cuts out intermittently.

Fixture is too hot.

• Allow fixture to cool.

• Clean fan.

• Make sure air vents at control panel and front lens
are not blocked.

• Turn up the air conditioning.

The power supply settings do not match
local AC voltage and frequency.

• Disconnect fixture. Check settings (page 8) and
correct if necessary.

Table 7: Troubleshooting

PCB

CONNECTIONS

E

S

PECIFICATIONS

- MX-10 E

XTREME

PHYSICAL

Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .735 mm (29.0 in)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .340 mm (13.4 in)

Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .315 mm (12.4 in)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 kg (48.4 lbs)

AC POWER

Operating range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 250 V, 50/60 Hz

AC input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-prong IEC male socket

MAXIMUM POWER AND CURRENT

100 V, 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350 W, 4.2 A

120 V, 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340 W, 3.2 A

208 V, 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350 W, 2.1 A

230 V, 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360 W, 1.8 A

250 V, 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350 W, 1.6 A

100 V, 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340 W, 4.1 A

120 V, 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340 W, 2.9 A

208 V, 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340 W, 1.8 A

230 V, 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350 W, 1.6 A

250 V, 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 350 W, 1.5 A

THERMAL

Maximum ambient temperature (Ta) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40° C (104° F)

Maximum surface temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50° C (122° F)

INSTALLATION

Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .any

Minimum distance to flammable materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1 m (4 in)

Minimum distance to illuminated surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 m (12 in)

FUSES

Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3 A / 250 V, time-delay

Fuse F1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3 A / 250 V, time-delay

Fuse F2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0 A / 250 V, time-delay

LAMPS

Osram HSD 250. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 hr, 6000K, 250 W, 68 lm/W

Philips MSD 250/2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 hr, 6500K, 250 W , 72 lm/W

Philips MSD 200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 hr, 5600K, 200 W, 67 lm/W

PHOTOMETRICS

Beam angle: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18°

Pan/tilt range: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230° / 75°

Light output (w/ Philips MSD250/2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3,757 lumens

Maximum illuminance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120,000 Cd

GOBOS

Outside diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22.5 mm + 0/- 0.3 mm (0.886 in. +0/- 0.012 in)

Maximum image diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 mm (0.669 in)

Maximum thickness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8 mm (0.071 in)

Glass type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .high temperature Borofloat or better

Glass coating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dichroic or enhanced aluminum

Metal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . aluminum (steel okay for short use)

CONTROL AND PROGRAMMING

Data input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . locking 3-pin XLR male socket

Data output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . locking 3-pin XLR female socket

Data pinout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pin 1 shield, pin 2 cold (-), pin 3 hot (+)

Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Opto-isolated RS-485

Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USITT DMX-512 (1990)

DMX Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

DESIGN STANDARDS

Canadian safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CSA C22.2 NO 166

EU EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 50 081-1, EN 50 082-1

EU safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 60598-1, EN 60598-2-17

US safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ANSI/UL 1573

ORDERING INFORMATION

MX-10 Extreme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90145400

ACCESSORIES

5-facet prism in holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611062

9-facet prism in holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611063

Replacement mirror assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62333029

G-clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602003

Half-coupler clamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602005

← continuous ccw rotation continuous cw rotation→

st

GOBO ROTATION

INDEXED GOBO SELECTION

0* 1 2

GOBO SHAKE

G 8

4

5

st

→

G 7

90 104→105 119

G 6

→

120 134

G 5

→

135 149

G 4

→

150 164

G 3

→

165 179

G 2

→

180 194

G 1

→

195 209

CONTINUOUS ROTATION

cw ccw

210 → 232 233 ← 255

3 128 252

* Set ch. 3, 4, and 7 to value marked to override disabled function.
T = tracking mode (0-2 & 246-251)
S = normal PTSP / shortcuts off (Overrides personality setting)
F = fast PTSP / shortcuts on (Overrides personality setting)
«·» = blackout speed (252-255)
← = variable speed, points to fast

PANleft right

TILT FINE (LSB)up down

3 fast slow 245

T PAN/TILT SPEED

PAN FINE (LSB)left right

TILTup down

8

9
10
11

12

P

/

T

TST

F

«·»

2

019

closed

20 49

open

S

TROBE O

P
E
N

80 ← 99

DIMMER PULSE

opening closing

128 187

RANDOM STROBE

med slow

RND PULSE

217208

RESET

237228

LAMP

ON

255248

SHUTTER

fast

147 148 168167

LAMP

OFF*

O
P
E
N

O

P
E

N

O
P
E
N

OPEN

50 ← 72

open close

f

*

100 ← 119 238247

OPEN

> 5 sec.

227218

CHANNEL

T

E

FFECTS SPEED

216

DIMMER closed open

STEPPED COLOR SCROLL CONTINUOUS ROTATION

cw ccw

168

208 ← 226

RND

C

OLOR

FOCUSinfinity 2 meters

P

RISM

out

01919

cw rotation

20 ← 79

stop*

80 89

ccw rotation out

150 215

MACROS

1212345678

221 226 231 236 241 246 251

3

fdimmer, focus

no changegobo selection
no changerotating prism

3

colors

245

SF

«·»

251

T

245

0

245

0

172 176 180 184 188 192 196 200 204

1

3

6

7

13

s

9876 432*05

227 → 245

f s

90 → 149

MX-10 Extreme DMX

Start code = 0
Implemented from CPU 1.2

←
←

0 14412 24 36 48 60 84 108 120

fs

25 50 75 100 125 150 175 200 225 250

L

I
G
H
T

C

L
R

G

O

B

O

S

F
X

T

TST

F

«·»
«·»

white C 12C 1 C 2 C 3 C 4 C 5 C 7 C 9 C 11

156 160 164

12 11 10

132

C 10

96

C 8

72

C 6

10 20 30 40 50 60 70 80 90

CONTINUOUS COLOR SCROLL

m

25 50 75 100 125 150 175 200 225 250

10 20 30 40 50 60 70 80 90

25 50 75 100 125 150 175 200 225 250

10 20 30 40 50 60 70 80 90

25 50 75 100 125 150 175 200 225 250

S

P
E
E
D

34 5 6 7 8

R

OTATING GOBO SELECTION

0* 1 2 34 8 5 67

127

indexing

0° 395°

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85

T

3

gobo indexing

«·»245

← T
