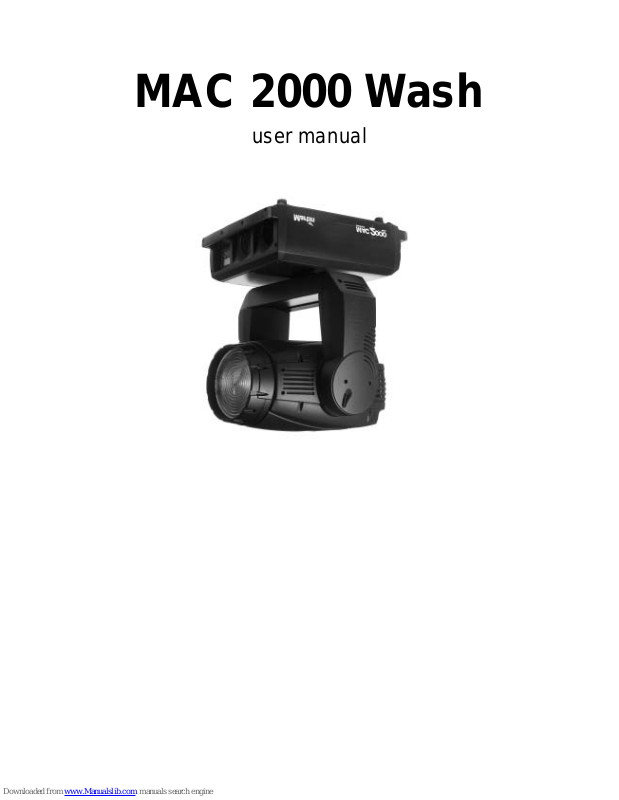

MAC 2000 Wash

user manual

750

613

488

171

408

28°

133½°133½°

280

765

270°270°

490

562

?

min c/c

14°

© 2001-2004 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any

means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark.

P/N 35000114 Rev. H

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

MAC 2000 Wash safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TRANSPORTATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Included items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Transport locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cardboard box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Single flight case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Double flight case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

AC POWER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Reduced power function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connecting fixtures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

RIGGING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

DMX address and protocol setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Tailoring performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Readouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Service messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Service utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

EFFECTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Dimming and strobe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Color temperature correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Motorized zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Beam angles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Motorized barn-doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Aperture adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Pan and tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Speed control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

OPTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Color wheels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the front lens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing the aperture ring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Installing the optional dimmer wheel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

ROUTINE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

The lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Firmware installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

DMX PROTOCOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

16-bit protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8-bit protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

CONTROL MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

ADJUSTMENT SUBMENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

DISPLAY MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

CIRCUIT BOARD CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

4 MAC 2000 Wash

I

NTRODUCTION

Thank you for selecting the MAC 2000 Wash. The MAC 2000 Wash is a 1200 Watt moving head wash light
that provides CMY color mixing, color correction (CTC), two color wheels (each with four removable colors),
a combined dimmer/shutter. 540° of pan and 267° of tilt. A motorized barn-door system and optional
dimmer wheel are available as a separately orderable accessory.

The MAC 2000 Wash has a Fresnel lens fitted as standard, and is also supplied with a PC len s and a
super-wide-angle lens. A motorized zoom provides beam angle ranges of 11° through to 40° (in the
standard Fresnel configuration), 12° through to 34° (with the PC lens fitted ), or 66° through to 80° (with the
super-wide-angle lens fitted).

The MAC 2000 Wash is fitted with an electronic ballast that provides flicker-free operation and an
economical power-saving mode. The power supply unit is switchable to match 100 - 130 V or 200 - 250 V
local power supplies.

Note: This manual describes functionality available from version 1.7 of the MAC 2000 Wash

firmware. For the latest firmware updates, documentation, and other information about
this and all Martin Professional products, please visit the Martin web site at
http://www.martin.com.

MAC 2000 Wash safety information

Warning! This product is for professional use only. It is not for household use.

This product presents risks of lethal or severe injury due to fire and heat, electric shock, ultraviolet radiation,
lamp explosion, and falls. Read this manual before powering or installing the fixture, follow the safety
precautions listed below and observe all warnings in this manual and printed on the fixture. If you have
questions about how to operate the fixture safely, please contact your Martin dealer or call the Martin
24-hour service hot line at [phone].

Protection from electric shock

• Disconnect the fixture from AC power before removing or installing the lamp, fuses, or any part, and when
not in use.

• Always ground (earth) the fixture electrically.

• Use only a source of AC power that complies with local building and electrical codes and has both overload
and ground-fault protection.

• Do not expose the fixture to rain or moisture.

• Refer any service operation not described in this manual to a qualified technician.

Protection from UV radiation and lamp explosion

• Never operate the fixture with missing or damaged lenses and/or covers.

• When replacing the lamp, allow the fixture to cool for at least 15 minutes before opening the fixture or
removing the lamp. Protect your hands and eyes with gloves and safety glasses.

• Do not stare directly into the light. Never look at an exposed lamp while it is lit.

• Replace the lamp if it becomes defective or worn out, or before usage exceeds the maximum service life.

Protection from burns and fire

• Never attempt to bypass the thermostatic switch or fuses. Always replace defective fuses with ones of the
specified type and rating.

• Keep all combustible materials (for example fabric, wood, paper) at least 1 meter (39 inches) away from the
fixture. Keep flammable materials well away from the fixture.

• Do not illuminate surfaces within 3 meters (10 feet) of the fixture.

• Provide a minimum clearance of 0.1 meters (4 inches) around fans and air vents.

• Never place filters or other materials over the lens.

Introduction 5

• The exterior of the fixture can get very hot. Allow the fixture to cool for at least 5 minutes before handling.

• Do not modify the fixture or install other than genuine Martin parts.

• Do not operate the fixture if the ambient temperature (T

a

) exceeds 40° C (104° F).

Protection from injury due to falls

• Do not lift or carry the fixture alone.

• When suspending the fixture, verify that the structure can hold at least 10 times the weight of all installed
devices.

• Verify that all external covers and rigging hardware are securely fastened and use an approved means of
secondary attachment such as a safety cable.

• Block access below the work area whenever installing or removing the fixture.

6 MAC 2000 Wash

T

RANSPORTATION

Important! Release the transport locks before operating the fixture.

Included items

The MAC 2000 Wash is shipped in a cardboard box or in a
1 or 2 unit flight case that contains the following items.

• User manual

• 2 x 20 A main fuses (for use with 100-130 V local power
supply)

• 2 x 15 A main fuses (for use with 200-250 V local power
supply)

• 2 clamp attachment brackets

• XLR cable

Transport locks

The head and yoke may be locked for transportation and
service. The locks are shown in Figure 1. The fixture must be unlocked before operation.

Cardboard box

Instructions for removing models that have been shipped in a cardboard box are printed on the outside of
the box. The cardboard box is not designed for repeated use and for transportation of the fixture we strongly
recommend the use of one of our flight cases.

Single flight case

Unpacking the fixture

1 Remove the top of the flight case.
2 With one person on each side, lift the fixture out of the

bottom of the flight case.

3 Release the pan and tilt locks before operating.

Packing the fixture

1 Disconnect the fixture from power and allow it to cool.
2 Lock the head and yoke in the position shown in Figure 2.
3 Place the fixture in the bottom of the flight case. Place the

top section over the fixture without forcing.

Figure 1: Pan and tilt locks

Figure 2: Single unit transport position

Transportation 7

Double flight case

Unpacking

1 Open the flight case and pull the drawer all the way out.
2 Release the head (tilt) transport lock.
3 Install rigging hardware as described on page 11.
4 With one person on each side, lift the fixture out of the flight

case.

Packing

1 Disconnect the fixture from power and allow it to cool.
2 Turn the yoke parallel to the sides of the base with the tilt

lock closest to the back of the base.

3 Pull the transport drawer all the way out. With one person

on each side, place the fixture on the drawer with the
‘Front’ arrow pointing into the flight case.

4 Remove and stow rigging hardware. Coil and stow the

power cord in the door.

5 Tilt the head so that the lens points away from the door as

shown in Figure 3. Lock the head in the horizontal position.
Do not lock the yoke.

6 Slide the drawer all the way in without forcing. Close the flight case.

Setup for flight case testing

The double flight case has two slide-out arms from which the fixture can hang for testing and setting.
Though unnecessary, the pan and tilt reset can be cancelled by pressing [Menu] and [Enter] at the same
time.

1 Open the flight case and pull the drawer all the way out. Release the transport locks.
2 Pull the test arms out. Tilt the fixture up and over the test arms so that the handle cross-braces that are

second from the back rest on the arms. The fixture should rest at an angle .

3 Push the transport drawer into the flight case.

FRONT

Figure 3: Double unit transport position

8 MAC 2000 Wash

AC

POWER

WARNING! For protection from electric shock, the fixture must be grounded (earthed). The AC mains

supply shall be fitted with a fuse or circuit breaker and ground-fault protection.

Power supply

The MAC 2000 Wash is shipped configured for 200 - 250 V at 50/60 Hz, but can be manually switched to
accept either 100 - 130 V or 200 - 250 V power supplies.

Switching to match local power supply voltage

1 Ensure the fixture is not connected to power.

Lock the head vertically

2 Remove the four screws in the corners of the

display-side top panel and lift the panel clear.
Avoid strain on the panel ground (earth) cable
by supporting the panel.

3 The power supply switch is located in the

base unit at the end furthest from the display
(see Figure 5).

4 Set the switch to 115 V for a 100 - 130 V AC

power supply. Set the switch to 230 V for a
200 - 250 V AC power supply.

5 Replace the panel and screws. Remember to

unlock the head before using the fixture.

Figure 4: Removing display side top panel

230

115

Figure 5: Power supply switch

AC power 9

Fuses

The MAC 2000 Wash is supplied with:

• two 20 AT (time delay) main fuses for use with AC supplies of 100 - 130 volts.

• two 15 A main fuses for use with AC supplies of 200 - 250 volts.
Install the appropriate fuses in the holders near the power switch.

Power connection

Important! Connect the MAC 2000 Wash directly to AC power. Do not connect it to a dimmer system;

doing so may damage the fixture.

You may need to install a cord cap that fits your supply on the power cable. A 3-prong grounding-type plug
must be installed following the manufacturer’s instructions. The table shows some possible pin identification
schemes; if the pins are not clearly identified, or if you have any doubts about proper installation, consult a
qualified electrician.

To apply power, set the power switch on the base to the “I” position.

Reduced power function

The MAC 2000 Wash has an automatic power reduction function, which reduces the consumptio n to 700W
if the shutter/dimmer is closed for more than 10 seconds. This not only increases the lamp life, but also
further decreases the overall noise emission of the fixture.

Wire Color Pin Symbol Screw (US)

brown live L yellow or brass
blue neutral N silver
yellow/green ground green

Table 1: Cord cap connections

10 MAC 2000 Wash

D

ATA

Important! Never connect more than 1 data input and 1 data output.

The MAC 2000 Wash has both 3-pin and 5-pin XLR sockets for DMX input and output. The pin-out on all
sockets is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). There is no connection to pins 4 and 5.

The sockets are wired in parallel: both inputs connect to both outputs. For reliable data transmission and to

avoid damage to the fixture, however, use one input and one output!

Connecting fixtures

• Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot transmit
control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft). Heavier
gauge cable and/or an amplifier is recommended for longer runs.

• Never use both outputs to split the link. To split the serial link into branches use a splitter such as the Martin
4-Channel Opto-Isolated RS-485 Splitter/Amplifier.

• Do not overload the link. Up to 32 devices may be connecte d on a serial link.

• Terminate the link by installing a termination plug in the output socket of the last fixture. The termination
plug, which is a male XLR plug with a 120 ohm, 0.25 watt resistor soldered between pins 2 and 3, “soaks
up” the control signal so it does not reflect and cause interference. If a splitter is used, terminate each
branch of the link.

• Martin fixtures introduced before 1997 have reversed polarity data sockets (pin 2 hot and pin 3 cold). The
socket polarity is labelled. Use a phase-reversing cable (see “Accessories” on page 47) between the MAC

2000 Wash and any Martin device with reversed polarity.

Connecting the data link

1 Connect the DMX data cable from the controller to the MAC 2000 Wash’s 3-pin or 5-pin input (male) socket.
2 Using the sockets that match your data cable, connect the output of the fixture closest to the controller to

the input of the next fixture.

3 Insert a male 120 Ω XLR termination plug in the 3-pin or 5-pin output of the last fixture on the link.

Rigging 11

R

IGGING

The MAC 2000 Wash can be placed on stage or clamped to a truss in any orientation. The Fast-Lock
system enables quick and easy fastening of the clamp brackets in 4 positions as shown Figure 6.

Warning! Always use 2 clamps to rig the fixture. Lock each clamp with both 1/4-turn fasteners. The

fasteners are locked only when turned fully clockwise.

Warning! Attach an approved safety cable to the attachment hole in the base. Never use the carrying

handles for secondary attachment.

Clamping the fixture to a truss

1 Verify that the rigging clamps (not included) are undamaged and can bear at least 10 times the weight of the

fixture. Verify that the structure can bear at least 10 times the weight of all installed fixtures, clamps, cables,
auxiliary equipment, etc.

2 Bolt each clamp securely to a clamp bracket with an M12 bolt (grade 8.8 or better) and lock nut.
3 Align a clamp with 2 mounting points in the base. Insert the fasteners into the base and turn both levers a

full 1/4-turn clockwise to lock. Install the second clamp.

4 If the truss can be lowered, fixtures can be clamped on directly from the double flig ht case. If the fixture

must be lifted, block access under the work area. Working safely from a stable platform, hang the fixture on
the truss with the arrow towards the area to be illuminated. Tighten the rigging clamps.

5 Install a safety wire that can bear at least 10 times the weight of the fixture. The attachment point is

designed to fit a caribiner clamp.

6 Verify that the pan and tilt locks are released. Verify that there are no combustible materials or surfaces to

be illuminated within 1 meter (39 inches) of the fixture, and that there are no flammable materials nearby.

256

256

256

256

Figure 6: Clamp bracket positions

FRONT

Figure 7: Rigging hardware installation

12 MAC 2000 Wash

C

ONTROL PANEL

The LED control panel is used to set the address and personalities, read lamp hours and other information,
calibrate effects, and run a test routine. Most of these functions may be performed remotely via the serial
link with the Martin MP-2 Uploader.

Navigation

The DMX address and any messages (see page 41) are displayed when the MAC 2000 Wash is turned on.
To enter the menu, press [Menu]. Press [Up] and [Down] to move within the menu. To select a function or
submenu, press [Enter]. To escape a function or menu, press [Menu].

See “Control menu” on page 36 for a complete list of the menu items.
Note: [Enter] must be pressed and held for a few seconds to enter the utilities menu.

DMX address and protocol setting

The DMX address, also known as the start channel, is the first channel used to receive instructions from the
controller. For independent control, each fixture must be assigned its own control channels. Two MAC 2000
Washs may share the same address, however, if identical behavior is desired. Address sharing can be
useful for diagnostic purposes and symmetric control, particularly when combined with the inverse pan and
tilt options.

Two DMX protocols, 8-bit and 16-bit, are available. The 8-bit mode uses 19 control cha nnels and provi des
full basic control. The 16-bit mode uses 2 additional channels to provide finer pan/tilt positioning.

Setting the DMX address and protocol

1 Press [Menu] to enter the main menu.
2 Press [Up] until

AddR is displayed. Press [Enter]. To snap to channel 1, press [Enter] and [Up]. Scroll to

the desired channel and press [Enter].

3 Select

PSET from the main menu and press [Enter]. Select 8bit or 16bt and press [Enter].

Tailoring performance

Movement

The MAC 2000 Wash provides six options for optimizing movement for different applications. The:

• Protocol setting (

PSET)setting selects 8-bit or finer 16-bit control of pan and tilt.

• Pan and tilt invert (

PATI)menu swaps and/or inverts pan and tilt.

• Pan/tilt speed (

PTSP) menu provides 3 settings: FAST, NORM, and SLOW. NORM is best for most

applications.

FAST provides better performance in applications where speed is most important. SLOW

provides the smoothest movement and is best in long-throw applications with slow movements through
narrow angles.

• Studio mode (

STUd) setting optimizes all effects besides pan and tilt for speed or quietness.

• Shortcuts (

SCUT)setting determines whether the color wheels always take the shortest path between two

static positions or oscillate between outer positions.

Tracking Response

The MAC 2000 Wash has a filter algorithm that looks at several position updates in tracking control mode
and calculates the ideal response for smooth movement. Tracking response is adjustable to compensate for
variations in controller performance. In most cases the default settings work well.

Control panel 13

If tracking mode movement is not satisfactory there are 2 parameters that can be adjusted. The first is
selected under

PERS/TRAC/MOdE. The default, MOd1, is the best choice with controllers that

calculate intermediate positions at a steady rate. Begin by selecti ng the alternative,

MOd2, which is better

if the intermediate positions stray significantly from the line of travel.
The second parameter is the number of position updates used to calculate speed. The level is adjustable

between 1 and 10 under

PERS/TRAC/CAL. Increasing the number of samples increases the distance

over which speed is calculated, making movement smoother but less responsive to sudden changes.
Experiment for best results.

Display

The display intensity (dINT) setting controls display brightness. The display on/off setting (dISP)
determines whether the display remains on or extinguishes two minutes after the last key-press. To flip the
display, press [Up] and [Down] simultaneously.

Lamp

There are two settings that modify lamp control: Automatic Lamp On (ALON) and DMX Lamp Off (DLoF).
When ALON is off, the lamp remains off until a “lamp on” command is received from the controller. When

ALON is on, the lamp strikes automatically after the fixture is powered on. When ALON is set to DMX, the

lamp strikes automatically when the fixture receives DMX data, and it extinguishes 15 minutes after DMX
data is lost.

When

ALON is set to either ON or DMX, the automatic lamp strike timing is staggered to prevent all lamps

from striking at once. The delay is determined by the fixture address.
If striking lamps from the controller, note that striking many lamps at once may cause a voltage drop large

enough to prevent lamps from striking or trip the main circuit breaker. Avoid this by programming a “lamp
on” sequence that strikes lamps one at a time at 5 second intervals.

Power to the lamp can be turned off from the controller if DMX Lamp Off (

dLOF) is on.

Shutter dimming curves

Two dimming curves are available for the mechanical shutter system for adjusting intensity
(

PERS/dICU). The default, dimmer curve 1, simulates the dimming of a tungsten lamp. Dimmer curve 2

applies a linear algorithm to intensity adjustment, that results in even adjustment across the whole dimming
range. Note that this setting has no effect on the optional dimming wheel, that uses a logarithmic dimming
curve.

DMX reset

The fixture can be reset from the controller if DMX reset (PERS/dRES) is ON.

Custom settings

The custom configuration function allows you to save and recall three sets of fixture settings. The savable
settings are DMX mode, pan/tilt speed, pan/tilt inverse and swap, DMX lamp off and reset, display settings,
shortcuts, studio mode, automatic lamp on, effects feedback, tracking algorithm, and tracking samples.

Readouts

Note: The MP-2 Uploader provides commands to display the time, temperatu re, and version readouts on
the fixture control panel.

Time

INFO/TIME provides readouts of fixture hours (HRS), lamp hours (L HR), and lamp strikes (L ST).

Under each item is a resettable (

RSET) increment counter and a non-resettable counter for total

accumulated hours/strikes since fabrication (

TOTL). To reset an increment coun ter, display it and then

press [Up] until it reads 0. (This may also be done remotely using the MP-2 Uploader.)

14 MAC 2000 Wash

Temperature

INFO/TEMP provides readouts of the head and base temperature in Celsius and Fahrenheit.

Firmware version

INFO/VER displays the version number of the installed firmware. The firmware version is also displayed

briefly at startup.

DMX

The DMXL menu shows the DMX start code (STCO) and DMX values received for each effect.

Service messages

The Service LED on the control panel lights under conditions that require fixture service, and there is a
message describing the service required. To display the message, select

SMSG in the main menu. This

item is available only when the LED is lit. There are two service messages.

Replace lamp is displayed when the lamp counter exceeds 750 hours, which is the rated average life

for the HMI 1200 W/S lamp. The maximum service life is 125% of the average life, or 940 hours.

Fixture overheating is displayed when the head temperature exceeds 120° C (248° F).

Overheating is typically caused by dirty air filters, fans, or air vents; incorrect power supply settings, or a
defective fan.

Service utilities

Important! Enter must be held for several seconds to access the utilities menu.

Test sequences

TSEQ provides a general test of all effects that can be run without a controller. UTIL/PCBt provides

routines for circuit board testing that are for service use only.

Feedback toggles

An on-the-fly position correction system monitors the color wheels. If a position error is detected, the shutter
closes while the effect resets. This feature can be disabled by turning effects feedback (

UTIL/EFFb) off.

The automatic pan/tilt position correction system may be temporarily turned off under UTIL/FEbA. The
off setting, however, is not saved and the system will be re-enabled the next time the fixture starts. If the
system cannot correct the pan/tilt position within 10 seconds, feedback is automatically disabled .

Adjustment

The adjustment menu (UTIL/Adj) provides manual control for making mechanical adjustments and is
used by Martin service technicians.

Calibration

The calibration menu (UTIL/CAL) provides utilities to define offsets in software that are relative to the
mechanical reset or home positions. This allows you to fi ne tune optical alignment an d achieve uniform
performance between fixtures. Dimmer and zoom are calibrated to defined points. The other effects are
calibrated relative to an arbitrary reference fixture.

Default offset settings may be restored by selecting default offsets (

UTIL/dFOF).

Calibrating effects

1 Apply power and strike the lamp.

Control panel 15

2 To calibrate the zoom, select UTIL/CAL/ZOOF and press [Enter]. The default value of 128 can be

adjusted up or down to move the diffuser lens relatively forward or back. Make any necessary ad justments
and press [Enter] to save the setting.

3 To calibrate the color wheels to an offset from their mechanically indexed position, select

UTIL/CAL/C1OF and press [Enter]. The default value of 128 can be adjusted up or down to move the

color wheel relatively forward or back from its indexed position. Make any necessary adjustments and press
[Enter] to save the setting. Repeat this procedure if necessary for color wheel 2 (C2OF).

4 To calibrate the optional dimmer wheel to an offset from its mechanically indexed position, select

UTIL/CAL/DIMW and press [Enter]. The default value of 128 can be adjusted up or down to move the

dimmer wheel relatively forward or back from its indexed position. Make any necessary adjustments and
press [Enter] to save the setting.

5 Pan calibration is most useful when multiple fixtures are stacked vertically. To calibrate, set zoo m, iris, and

tilt position for easy one-over-the-other comparison and set each fixture to the same pan DMX value. Select
one fixture to be the reference fixture. On the other fixtures, select

UTIL/CAL/P OF and press [Enter].

Adjust the offset as necessary to align the beam with the reference beam. Press [Enter] to save the setting.

6 Tilt calibration is most useful when multiple fixtures are arranged horizontally. To calibrate, set zoom, iris,

and pan position for easy side-by-side comparison and set each fixture to the same tilt DMX value. Select
one fixture to be the reference fixture. On the other fixtures, select

UTIL/CAL/T OF and press [Enter].

Adjust the offset as necessary to align the beam with the reference beam. Press [Enter] to save the setting.

7 To calibrate the dimmer, select

UTIL/CAL/D OF and press [Enter]. Hold a piece of paper over the

lens. Set the offset to 0 and then increase it until light is clearly projected onto the paper. Press [Enter] to
save the setting. Remove the paper.

8 To calibrate color mixing flags (cyan, magenta, yellow, and color temperature correction), project white

beams with no dimming and position them for easy comparison. On each fixture, including the reference,
select

UTIL/CAL/C OF and press [Enter]. (This adds a defined amount of cyan.) Select one fixture to

be the reference. Adjust the offsets on the other fixtures to match the reference color. Press [Enter] to save
the setting. Repeat for

M OF (magenta), Y OF (yellow), and CTOF (CTC).

Software upload

The software update mode is normally engaged automatically by the upload device. If this does not occur,
see “Firmware installation” on page 27.

16 MAC 2000 Wash

E

FFECTS

The MAC 2000 Wash is compatible with USITT DMX512 controllers. The fixture has two DMX operating
modes, 8-bit and 16-bit.16-bit mode requires two more DMX channels than 8-bit mode but provides more
precise pan/tilt positioning. All other functions are identical. See “DMX protocol” on page 29.

Color

The color mixing system uses continuous dichroic cyan, magenta, and yellow (CMY) color filters. It is a
subtractive system that removes color from white light. Inserting all three filters results in loss of light: for
maximum brightness, mix 2 colors at a time.

In addition, two color wheels are provided, each with four removable positions for d ichroic glass color filters
and a position for a direct pass through of the beam.

Dimming and strobe

Two dimming systems are available - a built-in mechanical dimmer/shutter and an optional dimmer wheel
(orderable separately).

Shutter

The mechanical shutter system provides full-range 100 percent dimming, instant open and blackout,
random and variable strobe effects up to 10 Hz, and random and variable pulses in which the dimmer snaps
open and slowly dims or snaps closed and slowly opens. Two dimming curves are available; one that
simulates a tungsten lamp and another that provides linear dimming (see “Shutter dimming curves” on
page 13).

Optional dimmer wheel

A separately orderable dimmer wheel (P/N 62324018) that provides enhanced dimming can be in stalled in
place of color wheel 2. The dimmer wheel uses a logarithmic algorithm that, compared with the dimming
available from the shutter system, enables much finer and smoother dimming at the bottom end of the
dimming range.

If you use the dimmer wheel, it is recommended that you do not use the shutter system to control intensity,
and that the shutters be set to fully open (ensure that 255 is the default DMX value issued on the sh utter
intensity channel from your controller). You can continue to use other shutter effects, such as the strobe.

The wheel is detected automatically by the fixture when installed. The installation procedure is d escribed in
“Installing the optional dimmer wheel” on page 22.

Color temperature correction

The color temperature correction (CTC) system uses a continuous 0 - 178 mireds color filter that lowers the
color temperature from 6000 K to 2900 K.

Motorized zoom

The zoom lens widens the beam from 11° at full spot to 40° at full flood with the standard lens and aperture
ring fitted.

Effects 17

Beam angles

The following tables list the beam angles available with the standard 50 mm (2 in) aperture ring fitted. Note
that narrower beam angles can be achieved by fitting smaller aperture rings. Note that light buster mode
provides a high intensity spot with no diffusion and is engaged when the zoom channel is set to 100%.

For information about changing the lens see “Changing the front lens” on page 21.

Motorized barn-doors

A motorized barndoor system that attaches to the front of the fixture is available as a separately orderable
accessory. These barndoors can be rotated, or opened and closed using DMX control signals. Five DMX
channels are allocated for barndoor control irrespective of whether or not the y are conne cted to the fixtu re.
We have done this to cover the possibility that you rig and begin programming your MAC 2000 Wash and
add barndoors to it later. If the DMX channels were not already assigned, you would have to re-patch your
console and therefore would lose any programming already completed.

Aperture adjustment

A 50 mm (2 in) aperture is fitted as standard in the optical path of the fixture just behind the zoom lens. This
works well with the standard Fresnel lens.

Inside the head of the fixture, three additional aperture rings are secured to the chassis by a thumbscrew.
When using the PC lens, the best beam characteristic is achieved by attaching the 45 mm aperture ring. For
instructions on changing the aperture ring see “Changing the aperture ring” on page 22.

Pan and tilt

The yoke pans 540° and the head tilts 267°. For maximum position ing accuracy, select 16-bit mode.
The pan/tilt speed (fast, norm, or slow) may be selected on the pan/tilt speed channel. Setting the pan/tilt

speed channel to “blackout” causes the shutter to black out the light while the head is moving.

Speed control

There are two ways to control the speed at which effects move from one static position to another. These
are known as tracking control and vector control and are selected on the Pan/Tilt Speed and Effect Speed

Standard Fresnel lens Beam angle

Light buster mode 11°
Zoom narrow 15°
Zoom wide 40°

PC lens Beam angle

Light buster mode 12°
Zoom narrow 12°
Zoom wide 34°

Super-wide-angle lens Beam angle

Light buster mode 66°
Zoom narrow 70°
Zoom wide 80°

18 MAC 2000 Wash

Channels. These channels are independent so you may, for example, combine a vector control pan
movement with a tracking control color fade.

In tracking mode, speed is determined by the cross-fade time. The controller continuously sends small
position changes that the fixture “tracks.” To enable tracking mode, set the relevant speed channel to a
tracking value. Note that in addition to enabli ng tracking control, some tracking values al so provide
overrides of the menu settings.

In vector mode, speed is set directly on a speed channel. The cross-fade time must be 0. Vector control
provides a way to set speed on controllers that do not have programmable fade times and results in smooth
movement regardless of the cross-fade time or the controller’s processing power.

Optics 19

O

PTICS

This chapter describes the elements of the optical path and changes that can be made to them. It covers
the:

• Color wheel and filters, below

• Front lenses, on page 21

• Aperture rings, on page 22

• Optional dimmer wheel, on page 22

Color wheels

The following is a view of the color wheels as seen from the lamp.

Color wheel 1

Color wheel 1 provides the following four removable dichroic color filters and an open position.

1 Position 1 - Green 203 (P/N 46402006)
2 Position 2 - Blue 108 (P/N 46402007)
3 Position 3 - UV Transmitter (P/N 46402008)
4 Position 4 - Half Minus Green (P/N 46402009)
5 Position 5 - Open

Color wheel 2

Color wheel 2 provides the following four removable dichroic color filters and an open position:

1 Position 1 - Red 308 (P/N 46402005)
2 Position 2 - Orange 306M (P/N 46402004)
3 Position 3 - Green 208 (P/N 46402002)
4 Position 4 - Blue 102 (P/N 46402001)
5 Position 5 - Open

Fixture top

Fixture bottom

Wheel 1

Wheel 2

1

2

3

4

1

2

3

4

Open

20 MAC 2000 Wash

Changing color filters

Additional color filters can be ordered from Martin.
To ensure the best performance, lenses must be fitted with the coated surface away from the lamp.
To change a color filter:

1 Disconnect the fixture from power and allow it to cool.
2 Lock the head horizontally with the top cover up.
3 Remove the top cover of the fixture using a flathead screwdriver to unlock the four quarter-turn screws.

4 Remove the two screws holding the color wheel module in place using a Philips screwdriver. Disconnect the

cables and lift the whole module out of the fixture.

5 Remove filters using your fingers and a soft cloth to protect the lens.

TOP

TOP

29 / 28

10

9

Cable connections

Optics 21

6 To install a filter, use a small flathead screwdriver to lift the filter support leaves on the color wheel.

7 Reinsert the color wheel module, screw it into place, and connect the cables.
8 Replace the fixture cover and apply power.

Changing the front lens

The MAC 2000 Wash has a Fresnel lens fitted as standard, and is also supplied with a PC lens, and a
super-wide-angle lens.

Note that when using the Fresnel lens the 50 mm (2 in) aperture ring provides the highest light output.
When the PC lens is fitted we recommend the use of the 45 mm (1.8 in) aperture ring (see “Changing the
aperture ring” on page 22).

Warning The front lens is very heavy. Ensure that it is secured to the MAC 2000 Wash with the

internal safety cable provided.

To change the lens:

1 Remove the lens using a flathead screwdriver to unlock the four quarter-turn screws.

2 Detach the safety cable from the thumb screw and then perform this process in reverse to attach a different

lens. Note that when you attach the safety cable it is very important to keep the cable out of the optical path
(see the following illustration).

22 MAC 2000 Wash

Changing the aperture ring

The MAC 2000 Wash comes factory fitted with a 50 mm (2 in) aperture ring (identified by 5 small holes), and
3 optional rings:

• 30 mm (1.2 in) - identified by 3 small holes

• 40 mm (1.6 in) - identified by 4 small holes

• 45 mm (1.8 in) - identified by 4 small holes and a half-crescent
Use of the smaller apertures will result in less light output and a narrower beam angle.

To change aperture ring:

1 Disconnect the fixture from power and allow it to cool.
2 Lock the head horizontally with the top cover up.
3 Remove the top cover of the fixture using a flathead screwdriver to unlock the four quarter-turn screws.

4 The additional aperture rings can be found secured to the chassis with a thumb screw just behind the front

lens (see the following illustration). Remove the thumb screw and select the appropriate aperture ring.

5 Remove the currently installed aperture ring, from just behind the zoom lens, by pushing and twisting it.
6 Install the replacement aperture ring, lock the others in place behind the front lens using the thumb screw,

and replace the fixture cover.

Installing the optional dimmer wheel

An optional dimmer wheel (orderable separately and supported from firmware version 1.6) can be installed
in place of color wheel 2.

To install the dimmer wheel:

1 Disconnect the fixture from power and allow it to cool.
2 Lock the head horizontally with the top cover up.

TOP

TOP

Optics 23

3 Remove the top cover of the fixture using a flathead screwdriver to unlock the four quarter-turn screws.

4 Remove the two screws holding the color wheel module in place using a Philips screwdriver. Disconnect the

cables and lift the whole module out of the fixture.

5 Remove color wheel 2 using a Philips screwdriver.

6 Attach the dimmer wheel in place of the color wheel. Ensure that the indexing magnet on the wheel rim i s

aligned with the sensor on the color wheel module.
The dimmer wheel will be automatically detected by the MAC 2000 Wash when the fixture is powered

on/reset. When the dimmer wheel is installed, the DMX channel 2 (Intensity) must be maintained at 100%.

TOP

TOP

29 / 28

10

9

Cable connections

24 MAC 2000 Wash

R

OUTINE MAINTENANCE

This chapter contains the following sections:

• “The lamp” on page 24

• “Cleaning” on page 26

• “Firmware installation” on page 27
Refer all service not described here to a qualified Martin technician.

Warning! Disconnect the fixture from power before removing any cover.

The lamp

The MAC 2000 Wash comes with a double-ended lamp
installed. This is one of two models:

• Up to the middle of 2004 the lamp will be an OSRAM HMI
1200 W/S discharge lamp.

• During 2004 the Philips MSI 1200 discharge lamp will be
phased into being supplied with the MAC 2000 Wash.

The lamps are both high-efficiency short-arc sources
providing an exceptionally stable 6000K color temperature,
respective color rendering indexes of 90 (OSRAM) and 85
(Philips), and an average life of 750 hours.

Both lamps are capable of hot restrike.
The ends of the lamp have specially developed keys, as

shown in Figure 10, to ensure proper installation.

Note: Do not use OSRAM HMI 1200 W/S lamps with the

non-keyed SFc 10-4 base.

Warning! Installing any other lamp may create a safety

hazard or damage the fixture!

The lamp has an average life of 750 hours. To reduce the
risk of explosion, replace the lamp before usage exceeds
125% of the average life, i.e., before it exceeds 940 hours.
To read lamp hours from the control panel, please refer to
“Readouts” on page 13.

For optimum performance, avoid turning off the lamp
before it has warmed up fully.

TOP

TOP

Figure 8: Lamp access

Routine maintenance 25

Replacing the lamp

Important! Do not touch the quartz bulb with bare fingers.

Replacement lamps are available from your Martin dealer.
Please order:

• OSRAM HMI 1200 W/S

• Philips MSI 1200
The clear quartz bulb must be clean and free of any oils

from your fingers. Clean the lamp with an alcohol wipe and
polish it with a dry cloth, particularly if you accidentally
touch the bulb.

To replace the lamp:

1 Disconnect the fixture from power and allow it to cool. Lock

the head horizontally with the top up.

2 See Figure 8. Release the 4 quarter-turn fasteners marked

with arrows on the rear plate. Pull the lamp assembly
straight back as far as it goes and let it rest on its retaining
pins.

3 See Figure 9. Pull the retention spring on the left end up

and then swing the end of the lamp out. Pull the other end out of the socket.

4 See Figure 10. With the nipple on the bulb facing the back,

insert the right end of the new lamp in the socket. Pull up
on the left spring and snap the other end into place.

5 Lift the lamp assembly so that the lamp is level with the

center of the reflector. Push the assembly straight in until it
seats, making sure the lamp passes through the reflector
opening. Lock the 4 quarter-turn fasteners.

6 When installing a new lamp, reset the lamp hour and lamp

strike counters as described in “Time” on page 13.

Figure 9: Lamp removal

Figure 10: Lamp insertion

26 MAC 2000 Wash

Aligning the lamp

To align the lamp:

1 Switch on the MAC 2000 Wash and allow it to reset. Using

either a controller or the control module, turn on the lamp
and project an open white beam on a flat surface.

2 Center the hot spot vertically using the top Allen-head

adjustment screw in the center of the rear plate.

3 If there is a significant hot spot, turn the bottom adjustment

screw counterclockwise until the light is evenly distributed.
If the light is brighter around the edge than it is in the
center, or if light output is low, turn the bottom adjustment
screw clockwise until the light is bright and evenly
distributed.

4 Repeat step 2.

Cleaning

The MAC 2000 Wash requires routine cleaning. The schedule depends heavily on the operating
environment; please consult a Martin service technician for recommendations.

Important! Excessive dust, smoke fluid, and particle buildup degrades performance, leads to

overheating and causes damage to the fixture that is not covered by the warranty.

Use care when cleaning optical components and work in a clean, well lit area. The coated surfaces are
fragile and easily scratched. Do not use solvents that can damage plastic or painted surfaces.

Inspect the air filters regularly and clean before they be co me clog ged . Repla ce the air filters wi th new ones
when replacing the lamp.

To maintain adequate cooling, dust must be cleaned from the fa ns and air vents periodically.

Optical components

1 Disconnect the fixture from power and allow the components to cool completely. Remove the head cover.
2 Vacuum or gently blow away dust and loose particles with compressed air.
3 Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled

water. Do not rub the surface: lift the particles off with a soft repeated press.

4 Remove smoke and other residues with cotton swabs or unscented tissues moistened with isopropyl

alcohol. A commercial glass cleaner may be used, but residues must be removed with distilled water. Clean
with a slow circular motion from center to edge. Dry with a clean, soft and lint-free cloth or compressed air.

The fan and air vents

Remove dust from the fans and air vents with a soft brush, cotton swab, vacuum, or compressed air.

Figure 11: Lamp adjustment

Routine maintenance 27

Cleaning or replace the air filters

1 Disconnect the fixture from power. On each side of the head, remove the 2 screws that hold the side cover

using a Torx-20 screwdriver. Slide the cover forward to remove. Lift the filter off of the cover.

2 Clean the filters with a vacuum or compressed air, or replace them. If they are saturated with smoke residue

or other contaminants, soak them in warm soapy water and blot dry.

3 Place the filters on the covers and replace the covers.

Firmware installation

The factory installed firmware version is indicated on the serial number label. The installed firmware version
number is displayed in the control panel during power-on, duri ng reset and under the Info/Ver menu.
Firmware updates are released when features are added.

The latest firmware is available from the support area of the Martin web site at http://www.martin.com. It can
be installed using an MP-2, or via a PC serial data link using a hardware interface supported by the
Software Uploader shareware (also available from the Martin web site). The following devices are currently
supported (in Version 5.5):

• DABS 1 (presently available with the MUM software package)

• ShowDesigner PCI DMX Interface Card (2048 channel version)

• LightJockey PCI DMX Interface Card (512 and 2048 channel versions)

• LightJockey PCMCIA DMX Interface

• LightJockey 4064 ISA DMX Interface Card (DJ and Club versions)
Note: Intermediate control systems such as the Martin Lighting Director (MLD) and the Martin Matrix must

be bypassed when updating fixture software via the DMX link. These systems do not relay the update code
correctly because it is not a DMX-compliant signal.

Requirements

Firmware is installed using one of the following hardware devices, hereafter referred to as the “Uploader”:

• Martin MP-2 Uploader

• PC using any DMX interface that supports the Software Uploader program (for example a Martin
LightJockey or DABS 1 interface)

The following are required in order to install software:

• The MAC 2000 Wash update file, available for download from the User Support Area of the Martin web site
(http://www.martin.com).

• The Software Uploader program, version 5.5 or later - supplied with the MUM, DABS1, Martin MP-2,
LightJockey, or available for download from the support pages for these products in the User Support Area
of the Martin web site.

Standard firmware installation

For guidance on preparing and using a LightJockey, MP-2 or Software Uploader refer to the user
documentation and/or online help for these products.

28 MAC 2000 Wash

What to do if the standard firmware installation fails

If the normal upload procedure does not work, or if the software update notes call for a boot sector update,
move the boot sector jumper at PL16 to the BOOT position before uploading software.

Setting the boot sector jumper

1 Disconnect the fixture from power.
2 Remove the top screws from the ends of the front side panel and tilt

the panel down to expose the main circuit board.

3 Using the diagram in “Circuit board connections” on page 44 or the

label inside the base, locate the BOOT jumper (PL16). Move the
jumper to the “BOOT” position.

4 Perform a boot mode upload. When the upload is complete,

disconnect the fixture from power and move the jumper back to the
“NORM” position.

Preventing firmware updates

Firmware updates are enabled by default, but you can disable this by setting the Write jumper (see “Circuit
board connections” on page 44) to disable.

DMX protocol 29

DMX

PROTOCOL

This section contains two DMX protocols (both apply to MAC 2000 Wash firmware version 1.7):

• “16-bit protocol” on page 30

• “8-bit protocol” on page 33
The fixture is set up to use the 16-bit DMX protocol by default. To modify this, use the control menu. For

more information see “Control menu” on page 36.
Ensure that you have the latest firmware installed. For the latest firmware updates, documentation, and

other information about this and all Martin Professional products, please visit the Martin web site at
http://www.martin.com.

30 MAC 2000 Wash

16-bit protocol

DMX channel Value Percent Function (Start code=0)

1

NOTE!

Lamp Off is only

allowed with

SPEC→Loff set

"On" or with

SPEC→Loff set to

"OFF", Cyan &

Magenta & Yellow

= 255 and Ch. 1

between 248-255

(Lamp Off).

Reset is only

allowed with

SPEC→dRES set

"On" or with

SPEC→dRES set

to "OFF", Cyan &

Magenta & Yellow

= 255 and Ch. 1

between 208-217

(Reset Fixture).

0 - 19

20 - 49
50 - 72
73 - 79
80 - 99

100 - 119
120 - 127
128 - 147

148 - 167
168 - 187

188 - 190
191 - 193

194 - 196
197 - 199
200 - 202

203 - 207
208 - 217
218 - 227
228 - 237
238 - 247
248 - 255

0 - 7

8 - 19
20 - 28
29 - 31
32 - 39

40 - 47
48 - 50
51 - 57

58 - 65
66 - 73

74 - 74

75
76
77

78 - 79
80 - 81
82 - 85
86 - 89
90 - 93
94 - 97

98 - 100

Shutter, Strobe, Reset, Lamp On/Off

Shutter Closed (lamp reduced to 700 W (E-ballast) after 10 sec.)
No function (Shutter Open)

Strobe on fast → slow
Shutter open, lamp reduced to 700 W (E-ballast)
Pulse opening fast → slow

Pulse closing fast → slow
No function
Random Strobe Fast

Random Strobe Medium
Random Strobe Slow

No function
Random pulse opening fast

Random pulse opening slow
Random pulse closing fast
Random pulse closing slow

No function
Reset Fixture
No function
Lamp On (Power On)
No Function
Lamp Off (Power Off) Note: Time >5 seconds

2

0 - 255 0 - 100

Intensity (Dimmer Blades)

0 → 100% (When the optional dimmer wheel is installed this must
be set to 100%)

3

0 - 255

0

1 - 127

128 - 254

255

0 - 100

0

1 - 49
50 - 99

100

Cyan

White → Cyan
Random color (if selected on channel 7)

Normal (full range)
Minimum cyan setting (127 = full cyan)
Maximum cyan setting (128 = no cyan)
Normal (full range)

4

0 – 255

0

1 - 127

128 - 254

255

0 - 100

0

1 - 49
50 - 99

100

Magenta

White → Magenta
Random color (if selected on channel 7)

Normal (full range)
Minimum magenta setting (127 = full magenta)
Maximum magenta setting (128 = no magenta)
Normal (full range)

5

0 – 255

0

1 - 127

128 - 254

255

0 - 100

0

1 - 49
50 - 99

100

Yellow

White → Yellow
Random color (if selected on channel 7)

Normal (full range)
Minimum yellow setting (127 = full yellow)
Maximum yellow setting (128 = no yellow)
Normal (full range)

DMX protocol 31

6

0 – 255 0 - 100

CTC

White → CTC

7

0

1 - 31

32

33 - 63

64

65 - 95

96

97 - 127

128

129 - 159

160

161 - 165
166 - 170
171 - 175
176 - 180
181 - 185

186 - 214
215 - 243

244 - 247
248 - 251
252 - 255

0

1 - 12

13

14 - 24

25

26 - 36

37

38 - 49

50

51 - 61

62

63 - 64
65 - 66
67 - 68
69 - 70
71 - 72

73 - 83
84 - 95

96

97 - 98

99 - 100

Color Wheel 1 (Multi Color)

White
White → Color 1,1
Color 1,1
Color 1,1 →Color 1,2
Color 1,2
Color 1,2 → Color 1,3
Color 1,3
Color 1,3 → Color 1,4
Color 1,4
Color 1,4→White
White

Fixed colors on wheel 1

Color 1,4
Color 1,3
Color 1,2
Color 1,1
White

Continuous color wheel 1 scroll

fast → slow CW
slow → fast CCW

Random Color CMY (set min. or max. CMY limits on channels 3-5)
Random color fast
Random color medium
Random color slow

8

(if color wheel 2 is

installed)

0

1 - 31

32

33 - 63

64

65 - 95

96

97 - 127

128

129 - 159

160

161 - 165
166 - 170
171 - 175
176 - 180
181 - 185

186 - 214
215 - 243

244 - 255

0

1 - 12

13

14 - 24

25

26 - 37

38

39 - 50

51

52 - 62

63

64 - 65
66 - 66
67 - 68
69 - 70
71 - 72

73 - 84
85 - 95

96 - 100

Color Wheel 2 (Multi Color, MCW) - if installed

White
White → Color 2, 1
Color 2, 1
Color 2, 1 → Color 2, 2
Color 2, 2
Color 2, 2 → Color 2, 3
Color 2,3
Color 2, 3 → Color 2, 4
Color 2, 4
Color 2, 4 → White
White

Fixed colors on wheel 2

Color 2, 4
Color 2, 3
Color 2, 2
Color 2, 1
White

Continuous color wheel 2 scroll

fast → slow CW
slow → fast CCW

No Function

8

(if Dimmer Wheel

is installed)

0-255 0-100

Intensity - (Dimmer Wheel) - if installed

0 → 100% (see “Optional dimmer wheel” on page 16)

9

0 - 244
245 - 251
252 - 255

0 - 95

96 - 98

99 - 100

Zoom

Zoom: wide → narrow
No changes
Open (Power mode)

10

0 - 255 0 - 100

Barndoor 1 (Upper)

Out → In

DMX channel Value Percent Function (Start code=0)

32 MAC 2000 Wash

11

0 - 255 0 - 100

Barndoor 2 (Lower)

Out → In

12

0 - 255 0 - 100

Barndoor 3 (Left)

Out → In

13

0 - 255 0 - 100

Barndoor 4 (Right)

Out → In

14

0 - 255 0 - 100

Rotate Barndoors

Right → Center → Left (Center = 127)

15

0 - 20
21 - 40
41 - 60
61 - 80

81 - 100
101 - 120
121 - 255

0 - 7

8 - 15
16 - 23
24 - 31
32 - 39
40 - 48

49 - 100

MACRO functions (Barndoors)

No Macro Action
All doors at 50%
No Macro Action
Large doors at 80% and small doors at 0%
No Macro Action
Small doors at 80% and large doors at 0%
No Macro Action

16

0
127
255

0

50

100

Pan coarse (most significant byte)

Max Left
Neutral
Max Right

17

0
127
255

0

50

100

Pan fine (least significant byte)

Max Left
Neutral
Max Right

18

0
127
255

0

50

100

Tilt coarse (most significant byte)

Max Up
Neutral
Max Down

19

0
127
255

0

50

100

Tilt fine (least significant byte)

Max Up
Neutral
Max Down

20

0 - 2

3 – 236
237 – 239
240 – 242
243 – 245
246 – 248

249 – 251
252 – 255

0 - 1

2 - 92

93
94
95

96 - 97

98

99 - 100

Speed: Pan/Tilt Movement

Tracking
Speed Fast → Slow
Tracking (Slow speed - Overriding the PTSP menu setting)
Tracking (Normal speed - Overriding the PTSP menu setting)
Tracking (Fast speed - Overriding the PTSP menu setting)
Fan speed (Regulation, min. noise level - Overriding the FAN menu

setting)
Fan speed (Full speed, max. cooling - Overriding the FAN menu

setting)
No function

21

0 – 2
3 – 239
240 – 242

243 – 245
246 – 248

249 – 251
252 – 255

0 – 2

3 – 239

240 – 242
243 – 245
246 – 248

249 – 251
252 – 255

0

1 - 93

94 - 95

96

97 - 98

99

100

0

1 - 93

94 - 95

96

97 - 98

99

100

Speed: Dimmer, Cyan, Magenta, Yellow, CTC, Zoom.

Tracking
Speed Fast → Slow
Tracking (Studio mode disabled – Overriding the MOdE menu

setting)
Tracking (Studio mode enabled – Overriding the MOdE menu

setting)
Tracking (Shortcuts disabled - Overriding the SCUT menu setting)
Tracking (Shortcuts enabled - Overriding the SCUT menu setting)
Fast Speed

Speed: Color 1, Color 2, Barndoor.

Tracking
Speed Fast → Slow
Tracking (Studio mode disabled – Overriding the MOdE menu

setting)
Tracking (Studio mode enabled – Overriding the MOdE menu

setting)
Tracking (Shortcuts disabled - Overriding the SCUT menu setting)
Tracking (Shortcuts enabled - Overriding the SCUT menu setting)
No function

DMX channel Value Percent Function (Start code=0)

DMX protocol 33

8-bit protocol

DMX channel Value Percent Function (Start code=0)

1

NOTE!

Lamp Off is only

allowed with

SPEC→Loff set

"On", or with

SPEC→Loff set to

"OFF", Cyan &

Magenta & Yellow

= 255 and Ch. 1

between 248-255

(Lamp Off).

Reset is only

allowed with

SPEC→dRES set

"On". or with

SPEC→dRES set

to "OFF", Cyan &

Magenta & Yellow

= 255 and Ch. 1

between 208-217

(Reset Fixture).

0 - 19

20 - 49
50 - 72
73 - 79
80 - 99

100 - 119
120 - 127
128 - 147

148 - 167
168 - 187

188 - 190
191 - 193

194 - 196
197 - 199
200 - 202

203 - 207
208 - 217

218 - 227
228 - 237
238 - 247
248 - 255

0 - 7

8 - 19
20 - 28
29 - 31
32 - 39

40 - 47
48 - 50
51 - 57

58 - 65
66 - 73

74 - 74

75
76
77

78 - 79
80 - 81
82 - 85

86 - 89
90 - 93
94 - 97

98 - 100

Shutter, Strobe, Reset, Lamp On/Off

Shutter Closed (lamp reduced to 700 W (E-ballast) after 10 sec.)
No function (Shutter Open)

Strobe on fast → slow
Shutter open, lamp reduced to 700 W (E-ballast)
Pulse opening fast → slow

Pulse closing fast → slow
No function
Random Strobe Fast

Random Strobe Medium
Random Strobe Slow

No function
Random pulse opening fast

Random pulse opening slow
Random pulse closing fast
Random pulse closing slow

No function
Reset Fixture

No function
Lamp On (Power On)
No Function
Lamp Off (Power Off) Note: Time > 5 seconds

2

0 - 255 0 - 100

Intensity (Dimmer blades)

0 → 100% (When the optional dimmer wheel is installed this must
be set to 100%)

3

0 - 255

0

1 - 127

128 - 254

255

0 - 100

0

1 - 49
50 - 99

100

Cyan

White → Cyan
Random color (if selected on channel 7)

Normal (full range)
Minimum cyan setting (127 = full cyan)
Maximum cyan setting (128 = no cyan)
Normal (full range)

4

0 – 255

0

1 - 127

128 - 254

255

0 - 100

0

1 - 49
50 - 99

100

Magenta

White → Magenta
Random color (if selected on channel 7)

Normal (full range)
Minimum magenta setting (127 = full magenta)
Maximum magenta setting (128 = no magenta)
Normal (full range)

5

0 – 255

0

1 - 127

128 - 254

255

0 - 100

0

1 - 49
50 - 99

100

Yellow

White → Yellow
Random color (if selected on channel 7)

Normal (full range)
Minimum yellow setting (127 = full yellow)
Maximum yellow setting (128 = no yellow)
Normal (full range)

6

0 – 255 0 - 100

CTC

White → CTC

34 MAC 2000 Wash

7

0

1 - 31

32

33 - 63

64

65 - 95

96

97 - 127

128

129 - 159

160

161 - 165
166 - 170
171 - 175
176 - 180
181 - 185

186 - 214
215 - 243

244 - 247
248 - 251
252 - 255

0

1 - 12

13

14 - 24

25

26 - 36

37

38 - 49

50

51 - 61

62

63 - 64
65 - 66
67 - 68
69 - 70
71 - 72

73 - 83
84 - 95

96

97 - 98

99 - 100

Color Wheel 1 (Multi Color)

White
White → Color 1,1
Color 1,1
Color 1,1 → Color 1,2
Color 1,2
Color 1,2 → Color 1,3
Color 1,3
Color 1,3 → Color 1,4
Color 1,4
Color 1,4→White
White

Fixed Colors 1

Color 1,4
Color 1,3
Color 1,2
Color 1,1
White

Continuous Color 1 Scroll

fast → slow CW
slow → fast CCW

Random Color CMY (set min. or max. CMY limits on channels 3-5)
Random color fast
Random color medium
Random color slow

8

(if color wheel 2 is

installed)

0

1 - 31

32

33 - 63

64

65 - 95

96

97 - 127

128

129 - 159

160

161 - 165
166 - 170
171 - 175
176 - 180
181 - 185

186 - 214
215 - 243

244 - 255

0

1 - 12

13

14 - 24

25

26 - 37

38

39 - 50

51

52 - 62

63

64 - 65
66 - 66
67 - 68
69 - 70
71 - 72

73 - 84
85 - 95

96 - 100

Color Wheel 2 (Multi Color, MCW) - if installed

White
White → Color 2, 1
Color 2, 1
Color 2, 1 → Color 2, 2
Color 2, 2
Color 2, 2 → Color 2, 3
Color 2,3
Color 2, 3 → Color 2, 4
Color 2, 4
Color 2, 4 → White
White

Fixed Colors 2

Color 2, 4
Color 2, 3
Color 2, 2
Color 2, 1
White

Continuous Color 2 Scroll

fast → slow CW
slow → fast CCW

No Function

8

(if Dimmer Wheel

is installed)

0-255 0-100

Intensity - (Dimmer Wheel) - if installed

0 → 100% (see “Optional dimmer wheel” on page 16)

9

0 - 244
245 - 251
252 - 255

0 - 95

96 - 98

99 - 100

Zoom

Zoom: wide → narrow
No Changes.
Open (Light buster mode)

10

0 - 255 0 - 100

Barndoor 1 (Upper)

Out → In

11

0 - 255 0 - 100

Barndoor 2 (Lower)

Out → In

DMX channel Value Percent Function (Start code=0)

DMX protocol 35

12

0 - 255 0 - 100

Barndoor 3 (Left)

Out → In

13

0 - 255 0 - 100

Barndoor 4 (Right)

Out → In

14

0 - 255 0 - 100

Rotate Barndoors

Right → Center → Left (Center = 127)

15

0 - 20
21 - 40
41 - 60
61 - 80

81 - 100
101 - 120
121 - 255

0 - 7

8 - 15
16 - 23
24 - 31
32 - 39
40 - 48

49 - 100

MACRO functions (Barndoors)

No Macro Action
All doors at 50%
No Macro Action
Large doors at 80% and small doors at 0%
No Macro Action
Small doors at 80% and large doors at 0%
No Macro Action

16

0
127
255

0

50

100

Pan

Max Left
Neutral
Max Right

17

0
127
255

0

50

100

Tilt

Max Up
Neutral
Max Down

18

0 - 2

3 - 236
237 - 239
240 - 242
243 - 245
246 - 248

249 - 251
252 - 255

0 - 1

2 - 92

93 - 94

95
96
97

98

99 - 100

Speed: Pan/Tilt Movement

Tracking
Speed Fast → Slow
Tracking (Slow speed - Overriding the PTSP menu setting
Tracking (Normal speed - Overriding the PTSP menu setting
Tracking (Fast speed - Overriding the PTSP menu setting
Fan speed (Regulation, min. noise level – Overriding the FAN menu

setting
Fan speed (Full speed, max. cooling – Overriding the FAN menu

setting
No function

19

0 - 2

3 - 239
240 - 242

243 - 245
246 - 248

249 - 251
252 - 255

0 - 2

3 - 239
240 - 242

243 - 245
246 - 248

249 - 251
252 - 255

0 - 1

2 - 93

93 - 94
95 - 96

97
98

99 - 100

0 - 1

2 - 93

93 - 94
95 - 96

97
98

99 - 100

Speed: Dimmer, Cyan, Magenta, Yellow, CTC, Zoom

Tracking
Speed Fast → Slow
Tracking (Studio mode disabled – Overriding the MOdE menu

setting)
Tracking (Studio mode enabled – Overriding the MOdE menu

setting)
Tracking (Shortcuts disabled - Overriding the SCUT menu setting)
Tracking (Shortcuts enabled - Overriding the SCUT menu setting)
Fast Speed

Speed: Color 1, Color 2, Barndoor

Tracking
Speed Fast → Slow
Tracking (Studio mode disabled – Overriding the MOdE menu

setting)
Tracking (Studio mode enabled – Overriding the MOdE menu

setting)
Tracking (Shortcuts disabled - Overriding the SCUT menu setting)
Tracking (Shortcuts enabled - Overriding the SCUT menu setting)
No function

DMX channel Value Percent Function (Start code=0)

36 MAC 2000 Wash

C

ONTROL MENU

This control menu applies to version 1.7 of the MAC 2000 Wash firmware. For the latest firmware updates,
please visit the Martin web site at http://www.martin.com.

Default values are in bold.

Menu Item Options Notes (Default settings in bold print)

AddR - 1-512 DMX address.
PSET - 16bt Full control with fine pan, tilt and gobo indexing.

8bt Full control with coarse pan, tilt and gobo indexing.

PATI SWAP ON Map DMX pan control to tilt channel and vice versa.

OFF Normal pan and tilt control.

PINV ON Reverse DMX pan control, right ! left.

OFF Normal pan control, left ! right.

TINV ON Reverse DMX tilt control, down ! up.

OFF Normal tilt control, up ! down.

PTSP - NORM Medium pan/tilt speed.

FAST Optimize movement for speed.
SLOW Optimize movement for smoothness.

Stud - ON Optimize effects for silence.

OFF Optimize effects for speed.

PERS dISP ON Display remains on.

OFF Display extinguishes 2 minutes after last key press.
dINT 10-100 Adjust display intensity.
dLOF ON Enable DMX lamp off command.

OFF Disable DMX lamp off command.

dRES OFF Disable DMX reset command.

ON Enable DMX reset command.

ALON OFF No automatic lamp strike.

ON Lamp strikes automatically within 90 seconds of power on.

dMX Lamp strikes if DMX is present. Lamp automatically switches

off after 15 mins if there is no DMX signal.

SCUT ON Color wheels (1&2) turn shortest distance.

OFF Color wheel paths oscillate.
TRAC MOdE Tracking modes

- MOd2 Real delta value algorithm

- MOd1 Absolute delta value algorithm (for most controllers)

CAL 1-10.

Tracking samples. Increase if pan/tilt is not smooth.

(Default = 6).

dICU dIM2 Dimmer curve 2 - linear. This has no influence on the optional

dimmer wheel.

dIM1 Dimmer curve 1 - simulated tungsten. This has no influence on

optional dimmer wheel.

CMYb ON Enable CMY blackout, 3 seconds after the shutter has closed

to 0%

OFF Disable CMY blackout.

Control menu 37

dFSE FACT LOAD Return all settings (not calibrations) to factory defaults.

CUS1,CUS2,
CUS3

LOAd Load custom configuration.

SAVE Save current configuration.

INFO TIME/HRS TOTL Total hours of operation since fabricated.

RSET Hours of operation since counter reset. To reset, display

counter and press [↑] for 5 seconds.

TIME/L HR TOTL Total hours of operation with lamp on since fabricated.

RSET Lamp hours since counter reset. To reset, display counter and

press [↑] for 5 seconds.

TIME/L ST TOTL Total number of lamp strikes since fabricated.

RSET Number of lamp strikes since counter reset. To reset, display

counter and press [↑] for 5 seconds.

TEMP HEAd Head temperature.

bASE Base temperature.
VER - CPU firmware version.
bVER - Barndoor CPU firmware version displayed. This is only

available when the barndoor unit is installed.

dMXL - STCO Decimal value of the DMX start code. The start code must be 0

for the MAC 2000 Wash to function properly.

dIM..EFSP DMX value (from 0 - 255) received for each chann el.

MAN RST - Reset fixture.

L ON - Lamp on.
LoFF - Lamp off.
SHUT OPEN Open shutter.

CLOS Close shutter.

STRF Fast strobe.

STRM Medium strobe.

STRS Slow strobe.
dIM 0-255 Dimmer.
CYAN, MAG,YEL 0-255 White →Cyan/Magenta/Yellow.
CTC 0-255 Color temperature correction. Cold →Warm (0-178 mireds).
COL1 OPEN Color wheel 1. Open position.

COL1 Color wheel 1. Color position 1.

COL2 Color wheel 1. Color position 2.

COL3 Color wheel 1. Color position 3.

COL4 Color wheel 1. Color position 4.

CW F Color wheel 1. Clockwise wheel rotation - fast.

CCWF Color wheel 1. Counter clockwise wheel rotation - fast.

CW M Color wheel 1. Clockwise wheel rotation - medium.

CCWM Color wheel 1. Counter clockwise wheel rotation - medium.

CW S Color wheel 1. Clockwise wheel rotation - slow.

CCWS Color wheel 1. Counter clockwise wheel rotation - slow.

RNDF Random CMY color - fast.

RNDM Random CMY color - medium.

RNDS Random CMY color - slow.

Menu Item Options Notes (Default settings in bold print)

38 MAC 2000 Wash

MAN
cont.

COL2

(available if
color wheel 2
is installed)

OPEN Color wheel 2. Open position.

COL1 Color wheel 2. Color position 1.

COL2 Color wheel 2. Color position 2.

COL3 Color wheel 2. Color position 3.

COL4 Color wheel 2. Color position 4.

CW F Color wheel 2. Clockwise wheel rotation - fast.

CCWF Color wheel 2. Counter clockwise wheel rotation - fast.

CW M Color wheel 2. Clockwise wheel rotation - medium.

CCWM Color wheel 2. Counter clockwise wheel rotation - medium.

CW S Color wheel 2. Clockwise wheel rotation - slow.

CCWS Color wheel 2. Counter clockwise wheel rotation - slow.
DIMW

(available if
optional
dimmer wheel
is installed)

0 - 255 Dimmer wheel.

ZOOM 0 - 255 Zoom: Narrow - Floodspot.
b1IO 0 - 255 Barndoor 1. Move in/out. Only available when barndoo rs are

installed.

b2IO 0 - 255 Barndoor 2. Move in/out. Only available when barndoo rs are

installed.

b3IO 0 - 255 Barndoor 3. Move in/out. Only available when barndoo rs are

installed.

b4IO 0 - 255 Barndoor 4. Move in/out. Only available when barndoo rs are

installed.

PAN 0-255 Pan - Left/Right
TILT 0-255 Tilt - Up/Down

TSEQ - RUN Run a general test of all effects

Menu Item Options Notes (Default settings in bold print)

Control menu 39

UTIL

(Press
and hold
Enter for
a few
seconds
to use
this
menu)

FEbA ON Enable pan/tilt position correction system.

OFF Disable pan/tilt feedback. Setting not saved.
EFFb ON Enable on the fly reset of color wheels.

OFF Disable on the fly reset of color wheels.
Adj - See “Adjustment submenu” on page 40.
CAL/P OF 1 - 255 Pan offset (default is 127).
CAL/T OF 1 - 255 Tilt offset (default is 127).
CAL/d OF 1 - 255 Dimmer offset (default is 127).
CAL/C OF 1 - 255 Cyan offset (default is 127).
CAL/M OF 1 - 255 Magenta offset (default is 127).
CAL/Y OF 1 - 255 Yellow offset (default is 127).
CAL/CTOF 1 - 255 CTC offset (default is 127).
CAL/C1OF 1 - 255 Color wheel 1 offset (default is 127).
CAL

- C2OF, or

- DIMW

1 - 255 Color wheel 2 or Dimmer wheel offset (default is 127).

CAL/ZOOF 1 - 255 Zoom offset (default is 127).
dFOF SURE Return all offsets to the default settings.
PCbT LEd PCB test for service use onl y.
FANS VREG Variable fan regulation. Runs the fans at a minimum noise

level. Switches off the head fans and reduces the base fans
when lamp is OFF. Enabling this option increases the
operating temperature and thus increases the wear on

components.
FULL Operate cooling fans at full speed.
REG Regulate the effect cooling fans for quieter performance.

Enabling this option increases the operating temperature and

thus increases wear on the components.

UPLd SURE Manually set fixture to software update mode.

SMSG Replace lamp Displayed when lamp hours exceed average life (750 hours).

Replace lamp.

Fixture overheating Displayed if head temperature exceeds 120° C (248° F). This

indicates that the fixture is overheating.

Menu Item Options Notes (Default settings in bold print)

40 MAC 2000 Wash

A

DJUSTMENT SUBMENU

This functions are used by Martin service technicians to adjust the fixture. This menu is located under

UTIL/Adj.

Menu Item Options Notes

RST - - Reset fixture .
L ON - - Strike lamp.
LoFF - - Douse lamp.
HEAd dIM OPEN Open dimmer.

Adj Turn dimmer to adjustment position (closed mechanical

stop).

CLOS Close dimmer.
STRO Strobe.

CYAN, MAG,
YEL, CTC

ON S
MIN
MAX

Switch test position.
Color flags out.
Color flags in.

ZOOM NARR Zoom to spot (narrow beam).

WIdE Zoom to flood (wide beam).

Bd 1..4 CLOS Barndoor 1..4 closed position.

AdJ Barndoor 1..4 closed adjust position (no power).

1..255 Barndoor 1..4 vertical adjust position.

Bd R SW P Barndoor rotation, switch position.

CW Barndoor CW position.
CCW Barndoor CCW position.

PATI - NEUT Move pan and tilt to neutral positions.

PNTd Pan neutral, tilt down.
PNTU Pan neutral, tilt up.
PLTN Pan left, tilt neutral.
PRTN Pan right, tilt neutral.
PLTd Pan left, tilt down.
PRTU Pan right, tilt up.

Display messages 41

D

ISPLAY MESSAGES

Message Appears when... What to do

RST (Reset) ... the fixture is indexing effects at

startup.

Wait for reset to complete.

SRST (Serial reset) ... the fixture has received a reset

command from the controller.

Wait for reset to complete. Set
PERS/dRES to OFF to prevent
accidental reset commands.

HOME ... the effects have been indexed and are

moving to their default positions.

Wait a few moments.

OPEN ...the lamp access cover is not fully

closed.

Verify that the lamp access cover is
locked in place.

LERR (Lamp error) ... the lamp does not ignite within 10

minutes of receiving the ‘Lamp ON’
command. Likely reasons are a missing
or defective lamp, or insufficient AC
voltage.

Check the lamp. Check that the
voltage and frequency settings match
the local supply.

MERR (Memory error) ...the EEPROM memory cannot be read. Contact Martin service personnel for

assistance.

ShER (Short error) ... the fixture detects the lamp is ON but

no ‘Lamp ON’ command has been
received. This can occur if the lamp relay
is stuck or if the lamp-power feedback
circuit fails. The fixture may be operated
but remote lamp on/off may be affected.

Contact Martin service personnel for
assistance.

bTER (Base temperature error)
HTER (Head temperature error)

... there is a fault with the temperature
sensor in the base or head.

Contact Martin service personnel for
assistance.

FbEP (Feedback error pan)
FbET (Feedback error tilt)
FbER (Feedback error pan/tilt)

...pan (FbEp), tilt (FbET) or both (FbER)
feedback circuits are malfunctioning. It is
still possible to operate the fixture,
although it switches to “safe” mode with
reduced maximum speed, thus
preventing the fixture from losing track of
its home position (losing step).

Contact Martin service personnel for
assistance.

PAER (Pan time-out)
TIER (Tilt time-out)
CYER (Cyan time-out)
MAER (Magenta time-out)
YEER (Yellow time-out)
CTER (CTC time-out)
C1ER (Color wheel 1)
C2ER (Color wheel 2/Dimmer

wheel time-out)
ZOER (Zoom time-out)

...the electric indexing circuit is
malfunctioning. The fixture will, after the
time-out, establish a mechanical stop,
and continue to work normally.

Reset fixture. Contact Martin service
personnel if problem continues.

RBER ...the barndoor rotation mechanism is

malfunctioning.

Reset fixture. Contact Martin service
personnel if problem continues.

S3SC
S4SC
S5SC
S6SC
S7SC
S8SC
S9SC

S10S
S11S
S12S

...an effect does not move a way from th e
index position under reset, a sensor or
micro-switch circuit is shorted, or a
micro-switch is stuck or connected
incorrectly.

Contact Martin service personnel for
assistance.

RAME ...there is an onboard RAM memory

error.

Contact Martin service personnel for
assistance.

OPER ...there is an onboard programming

error.

Contact Martin service personnel for
assistance.

Table 2: Display messages

42 MAC 2000 Wash

LTER ...lamp temperature error. Set the fan speed to FULL using the

UTIL menu and restart the fixture.
Contact Martin service personnel if
problem persists.

Message Appears when... What to do

Table 2: Display messages

Troubleshooting 43

T

ROUBLESHOOTING

If the service lamp is lit, check the SMSG menu using the control panel.

Problem Probable cause(s) Remedy

One or more of the fixtures
is completely dead.

No power to fixture. Check that power is switched on and cables

are plugged in.

Primary fuse blown (located near mains
inlet).

Disconnect fixture and replace fuse.

Secondary fuse(s) blown (located on
PCB inside base).

Disconnect fixture. Check fuses on PCB and
replace.

Fixtures reset correctly but
respond erratically or not at
all to the controller.

Bad data link. Inspect connections and cables. Correct poor

connections. Repair or replace damaged
cables.

Data link not terminated. Insert termination plug in output jack of the

last fixture on the link.
Incorrect addressing of the fixtures. Check fixture address and protocol settings.
One of the fixtures is defective and

disturbs data transmission on the link.

Bypass one fixture at a time until normal

operation is regained: unplug the XLR in and

out connectors and connect them directly

together. Have the fixture serviced by a

qualified technician.
XLR pin-out on fixtures does not match

(pins 2 and 3 reversed).

Install a phase-reversing cable between the

fixtures or swap pins 2 and 3 in the fixture that

behaves erratically.

No light and “LERR” error
message displayed.

The power supply setting does not
match local AC voltage.

Disconnect fixture. Check the fixture’s internal

power supply switch is set to the correct AC

supply voltage.
Lamp blown Disconnect fixture and replace lamp.
Lamp not installed Disconnect fixture and install lamp.
Lamp access safety switch open Verify that lamp access plate is fully seated

and locked in place.
Lamp too hot to strike Send a lamp off command. Allow the lamp to

cool for 5 - 10 minutes and try again.

Lamp cuts out intermittently. Fixture is too hot. Allow fixture to cool.

Clean air filters.

Reduce ambient room temperatur e.
The power supply setting does not

match local AC voltage.

Disconnect fixture. Check the fixture’s internal

power supply switch is set to the correct AC

supply voltage.

44 MAC 2000 Wash

C

IRCUIT BOARD CONNECTIONS

PL 12

PL 3

PL 4

PL 46

PL 27

PL 35

PL 36

PL 19

PL 22PL 25

J6 J8

J4J5

PL215

PL 58

PL 51

PL 54

PL 56

PL 57

Color Wheel #1

Color Wheel #1

Color Wheel #2

Color Wheel #2

Barn Door #1 / #2

Barn Door #1 / #2

Dimmer

CTC

CYAN

MAGENTA

YELLOW

Base Display Side Fan

Base Display Side Fan

Pl 11

ELEC. BALLAST

ELEC. BALLAST

BLACK

BROWN

(BLUE)

(BLUE)

P/N 33120039-B

PL 5

PL 7

PL 31

12

PL 23

PL 24

PL 29

PL 34

PL 44

PL 2

PL 17

PL 9

PL 15

Barn Door Power

Barn Door Power

Barn Door #3 / #4

Barn Door #3 / #4

Zoom

Barn Door

Barn Door

PL 36

PL 21

13

14

15

16

17

18

19

20

21

22

PL 52

PL 53

F6

Base Power Fan

Base Power Fan

F5

Head Bottom Fan

Head Bottom Fan

F4

Head Top Fan

Head Top Fan

F3

Head Right Fan

Head Right Fan

F2

Head Left Fan

Head Left Fan

F1

E. Ballast Fan

E. Ballast Fan

F7

PL 45

PL 33

PL 42

Light Sensor

Light Sensor

41

Display

CPU

10

9

8

7

6

5

4

3

2

1

36

42

31

34

PL 14

CMY Switch

Barn Doors Sensor

Barn Doors Sensor

Head Temp.

Lamp Housing Temp.

Lamp Housing Temp.

2726

30

P / T Switch

2928

Color Wheel Sensor

Color Wheel Sensor

Power

Pl 8

Pl 6

25

PAN Feedback

PAN Feedback

24

TILT Feedback

33

PAN

32

TILT

PL 48PL 50

PL 26PL 28PL 30PL 32

PL 64

Receive

Receive / Send

Door Switch

Door Switch

23

Disable

Enable

Norm

Boot

Boot

Pl 16

Pl 20

3635

Zoom Sensor

Zoom Sensor

Rotation

Whrite

Specifications 45

S

PECIFICATIONS

Physical

Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408 mm (16.0 in)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490 mm (19.3 in)

Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750 mm (29.5 in)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 kg (74.8 lbs)

Installation

Minimum distance to combustible materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 m (39 in)

Minimum distance to illuminated surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 m (10 ft)

Minimum distance around fans and vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.1 m (4 in)

Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .any

Source

Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200 W short arc discharge

Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Double-ended SFc 10-4 with key

Approved models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Osram HMI 1200 W/S, Philips MSI 1200

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .automatic and remote, hot re-strike

Ballast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . electronic

Electrical

AC input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 m trailing cable w/o cord cap

Operating ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-130 V/200-250 V (switchable), 50/60 Hz

Main fuses (x 2 - when local AC supply is 200 - 250 V). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 A

Main fuses (x 2 - when local AC supply is 100 - 120 V). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T 20 A

Fuse F101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T 6.3 A

Fuse F102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T 10 A

Fuse F103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T 3.15 A

Fuse F104 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T 3.15 A

Ballast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . electronic

Maximum power and current

100 V @ 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1530 W, 20.9 A

100 V @ 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1570 W, 20.9 A

120 V @ 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1520 W, 18 A

120 V @ 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1520 W, 17.7 A

208 V @ 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1450 W, 10.4 A

208 V @ 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1450 W, 10.2 A

230 V @ 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1450 W, 9.5 A

230 V @ 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1460 W, 9.4 A

250 V @ 50 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1450 W, 8.8 A

250 V @ 60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1460 W, 8.6 A

Thermal

Maximum ambient temperature (Ta) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° C (104° F)

Maximum surface temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140° C (284° F)

Total heat dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ca. 5120 Btu/hr

Photometrics (Standard Fresnel lens)

Measurement conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard Fresnel lens, 50 mm aperture ring

Light buster mode (no diffuser) . . . . . . . . . . . . . . 31300 lumens, beam angle 11° (measured at 7.6 meters)

Zoom narrow . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21130 lumens, beam angle 15° (measured at 7.6 meters)

Zoom wide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32027 lumens, beam angle 40° (measured at 3.8 meters)

Measurement source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Osram HMI 1200 W/S

46 MAC 2000 Wash

Photometrics (PC lens)

Measurement conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PC lens, 50 mm aperture ring

Light buster mode (no diffuser) . . . . . . . . . . . . . . 33125 lumens, beam angle 12° (measured at 7.6 meters)

Zoom narrow . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23421 lumens, beam angle 12° (measured at 7.6 meters)

Zoom wide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32550 lumens, beam angle 34° (measured at 2.3 meters)

Measurement source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Osram HMI 1200 W/S

Photometrics (Optional super-wide-angle lens)

Measurement conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Super-wide-angle lens, 50 mm aperture ring

Light buster mode (no diffuser) . . . . . . . . . . . . . . . . . . . . . . . . . . beam angle 66° (measured at 2.4 meters)

Zoom narrow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . beam angle 70° (measured at 1.7 meters)

Zoom wide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . beam angle 80° (measured at 1.7 meters)

Measurement source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Osram HMI 1200 W/S

Control and programming

Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USITT DMX-512

Control channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 or 21

Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Opto-isolated RS-485

Data I/O . . . . . . . . . . . . . . . . . . . . . . . . . .locking 3-pin & 5-pin XLR, pin 1 shield, pin 2 cold (-), pin 3 hot (+)

Setting and addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LED control panel, remote w/ MP-2 uploader

Pan/tilt resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8- or 16-bit

Movement control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .tracking and vector

Software installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .serial upload (MUF)

Electromechanical effects

Cyan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 100%

Magenta. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 100%

Yellow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 100%

Color correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 178 mireds

Color wheels (1 or 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 removable positions plus open

Dimmer/shutter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . full range dimming, variable speed flash

Motorized zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .see photometric data for zoom beam angles

Light buster mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .narrow beam with diffuser removed

Pan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540°

Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267°

Color filters

Shape. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .hexangular

Thickness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2 mm

Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .dichroic

Design standards

EU EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 50 081-1, EN 50 082-1

EU safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 60598-1, EN 60598-2-17

Canadian safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CSA C22.2 No. 166

US safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ANSI/UL 157

Listings

CE . . . . . . . . . . . . . . EN 55015:2000, EN 55103-1:1996, EN 61547:1995, EN 60598-2-17 + Corr.,A2:1989

Construction

Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .UV-resistant fiber-reinforced composite

Colors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .black

Protection factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IP 20

Installation

Mounting points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 pairs of 1/4-turn locks, offset 45°

Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . any

Specifications 47

Ordering information

MAC 2000 Wash in 2-unit flight case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90203000

MAC 2000 Wash E in single-unit flight case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90203010

MAC 2000 Wash E (in a cardboard packing case) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90203015

Included items

2 x Omega bracket, 1/4-turn
PC lens
Fresnel lens
Super-wide-angle lens
User manual
30 mm (1.2 in), 40 mm (1.6 in), 45 mm (1.8 in) and 50 mm (2 in) aperture rings

Accessories

DABS1 USB-XLR interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611144

MP-2 Uploader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90758420

G-clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602003

Half-coupler clamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602005

The Wife DMX Tester. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611038

MAC 2000 Wash Dimmer Wheel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62324018

MAC 2000 Wash Barndoors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611059

MAC 2000 Double Flight Case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91510017

OSRAM HMI1200 W/S lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 97010309

Philips MSI 1200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .refer to your Martin Dealer
