Martin Professional MAC 2000 Profile User Manual

MAC 2000 Profile

user manual

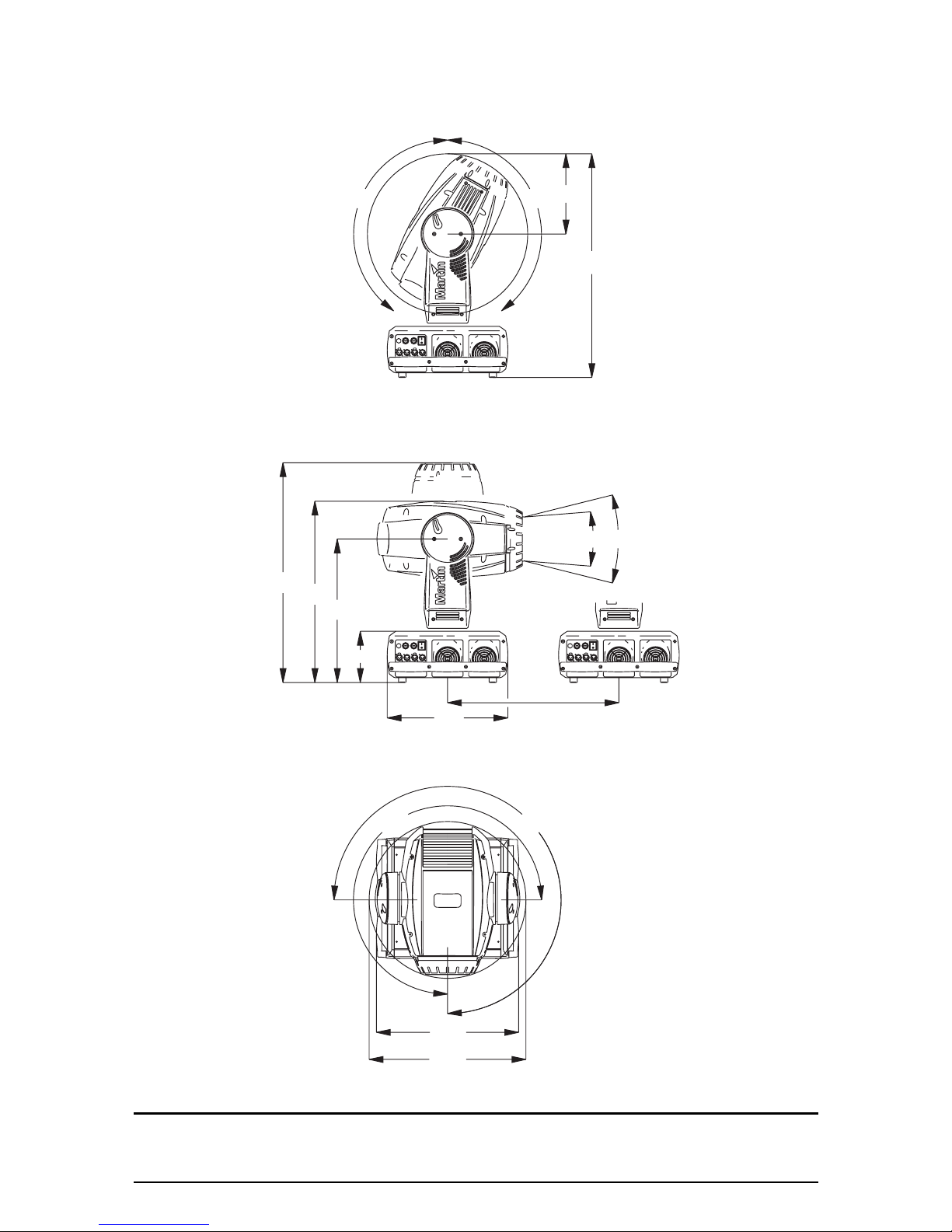

743

613

488

171

408

10° 28°

133½°133½°

271

759

270°270°

490

530

545

min c/c

min c/c

© 2000 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any

means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark.

P/N 35000090 Rev. H

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

MAC 2000 Profile safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

TRANSPORTATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Included items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Transport locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Single flight case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Double flight case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

About the HMI 1200 W/S lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Lamp replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

AC POWER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Power supply settings for magnetic ballast version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power supply settings for electronic ballast version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Power connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Connecting fixtures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

RIGGING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

DMX address and protocol setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Tailoring performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Readouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Service messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Service utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

OPTICAL CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Gobos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Rotating gobo wheels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Color/gobo wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Effect wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

EFFECTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Dimming and strobe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Color mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Color temperature correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Random color mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Fixed colors and gobos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Gobos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Effect wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Iris. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Focus and zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Pan and tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Speed control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

ROUTINE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

DMX PROTOCOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

CONTROL MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ADJUSTMENT SUBMENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

DISPLAY MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

CIRCUIT BOARD CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

4 MAC 2000 Profile

I

NTRODUCTION

Thank you for selecting the MAC 2000 Profile. This extraordinary 1200 watt luminaire from Martin Professional
provides CMY color mixing, continuous 0 - 178 mireds color correction, a color/gobo wheel with 4 dichroic color
filters and 3 fixed glass gobos, 10 indexed-rotation gobos on 2 wheels, a 2-position rotating-effect wheel with 3-facet
prism, beam shaper, and variable frost; combined full-range dimmer and shutter, iris, zoom, focus, 540° of pan, and
267° of tilt. It is available with a magnetic or electronic ballast.

For the latest firmware updates, documentation, and other information about this and all Martin Professional products,
please visit the Martin web site at http://www.martin.dk.

MAC 2000 Profile safety information

Warning! This product is for professional use only. It is not for household use.

This product presents risks of lethal or severe injury due to fire and heat, electric shock, ultraviolet radiation, lamp
explosion, and falls. Read this manual before powering or installing the fixture, follow the safety precautions listed
below and observe all warnings in this manual and printed on the fixture. If you have questions about how to operate
the fixture safely, please contact your Martin dealer or call the Martin 24-hour service hot line at [phone].

TO PROTECT YOURSELF AND OTHERS FROM ELECTRIC SHOCK

• Disconnect the fixture from AC power before removing or installing the lamp, fuses, or any part, and when not in use.

• Always ground (earth) the fixture electrically.

• Use only a source of AC power that complies with local building and electrical codes and has both overload and
ground-fault protection.

• Do not expose the fixture to rain or moisture.

• Refer any service operation not described in this manual to a qualified technician.

TO PROTECT YOURSELF AND OTHERS FROM UV RADIATION AND
LAMP EXPLOSION

• Never operate the fixture with missing or damaged lenses and/or cover s.

• When replacing the lamp, allow the fixture to cool for at least 15 minutes before opening the fixture or removing the
lamp. Protect your hands and eyes with gloves and safety glasses.

• Do not stare directly into the light. Never look at an exposed lamp while it is lit.

• Replace the lamp if it becomes defective or worn out, or before usage exceeds the maximum service life.

TO PROTECT YOURSELF AND OTHERS FROM BURNS AND FIRE

• Never attempt to bypass the thermostatic switch or fuses. Always replace defective fuses with ones of the specified
type and rating.

• Keep all combustible materials (for example fabric, wood, paper) at least 1.0 meter (39 inches) away from the fixture.
Keep flammable materials well away from the fixture.

• Do not illuminate surfaces within 1.0 meter (39 inches) of the fixture.

• Provide a minimum clearance of 0.1 meters (4 inches) around fans and air vents.

• Never place filters or other materials over the lens.

• The exterior of the fixture can get very hot. Allow the fixture to cool for at least 5 minutes before handling.

• Do not modify the fixture or install other than genuine Martin parts.

• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

TO PROTECT YOURSELF AND OTHERS FROM INJURY DUE TO FALLS

• Do not lift or carry the fixture alone.

• When suspending the fixture, verify that the structure can hold at least 10 times the weight of all installed de vic es.

• Verify that all external covers and rigging hardware are securely fastened and use an approved means of secondary
attachment such as a safety cable.

• Block access below the work area whenever installing or removing the fixture.

Transportation 5

T

RANSPORTATION

Important! Release the transport locks before operating the fixture.

Included items

The MAC 2000 Profile is shipped in a 1 or 2 unit flight case that
contains the following items.

• User manual

• 2 clamp attachment brackets

Transport locks

The head and yoke may be locked for transportation and service.
The locks are shown in Figure 1. The fixture must be unlocked
before operation.

Single flight case

To unpack the fixture

1 Remove the top of the flight case.
2 With one person on each side, lift the fixture out of the

bottom of the flight case.

3 Release the pan and tilt locks before operating.

To pack the fixture

1 Disconnect the fixture from power and allow it to cool.
2 Lock the head and yoke in the position shown in Figure 2.
3 Place the fixture in the bottom of the flight case. Place the

top section over the fixture without forcing.

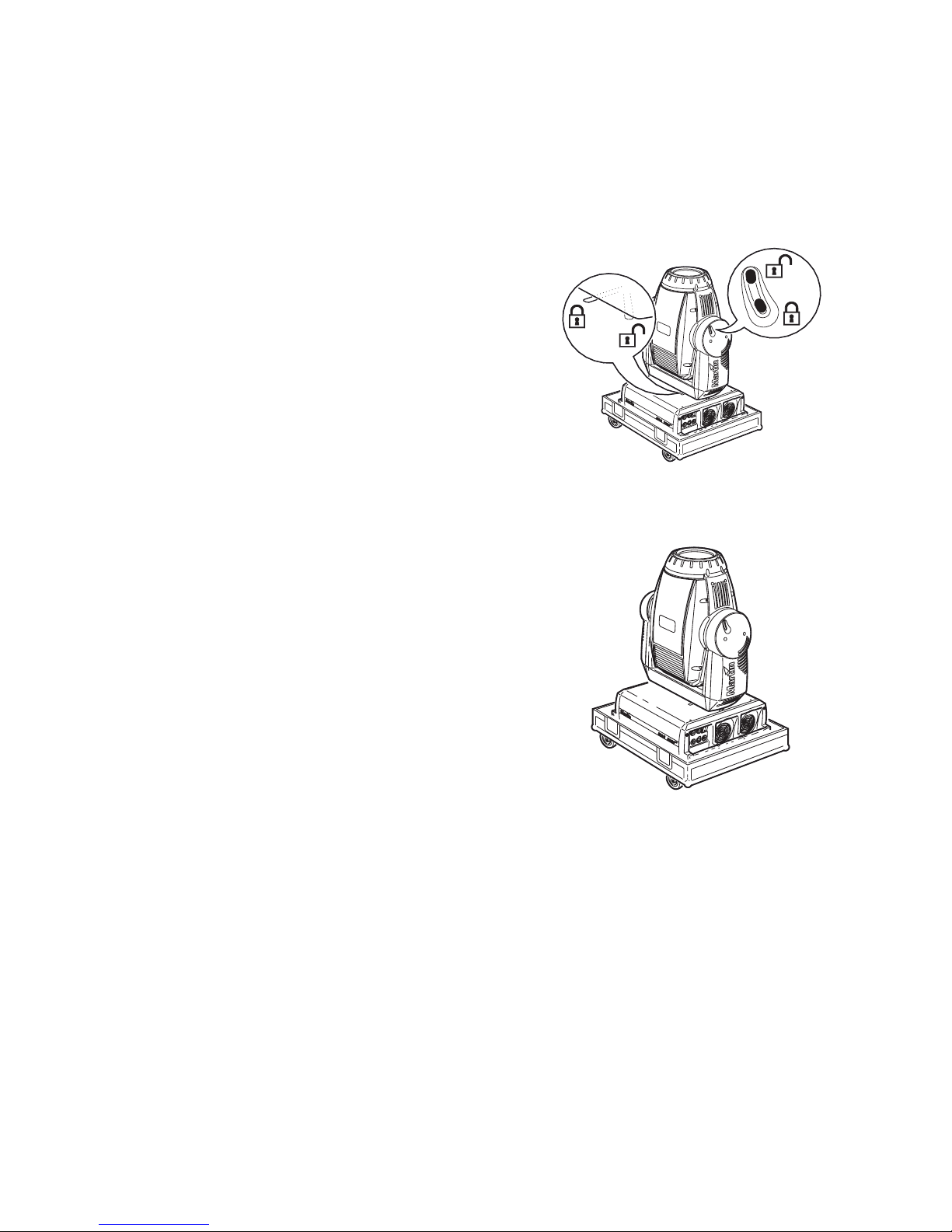

Figure 1: Pan and tilt locks

Figure 2: Single unit transport position

6 MAC 2000 Profile

Double flight case

To unpack

1 Open the flight case and pull the drawer all the way out.
2 Release the head (tilt) transport lock.
3 Install rigging hardware as described on page 12.
4 With one person on each side, lift the fixture out of the flight

case.

To pack

1 Disconnect the fixture from power and allow it to cool.
2 Turn the yoke parallel to the sides of the base with the tilt

lock closest to the back.

3 Pull the transpor t drawer all the way out. With one person

on each side, place the fixture on the drawer with the arrow
pointing in.

4 Remove and stow rigging hardware. Coil and stow the

power cord in the door.

5 Tilt the hea d so that the lens points away from the door as

shown in Figure 3. Lock the head in the horizontal position.
Do not lock the yoke.

6 Slide the drawer all the way in without forcing. Close the

flight case.

To setup for flight case testing

The double flight case has two slide-out arms from which the fixture can hang for testing and setting. Though
unnecessary, the pan and tilt reset can be cancelled by pressing [Menu] and [Enter] at the same time.

1 Open the flight ca se and pull the drawer all the way out. Release the transport locks.
2 Pull the test arms all out. Tilt the fixture up and over the slide arms so that the handle cross-braces that are

second from the back rest on the arms. The fixture should rest at an angle.

3 Push the transport drawer into the flight case.

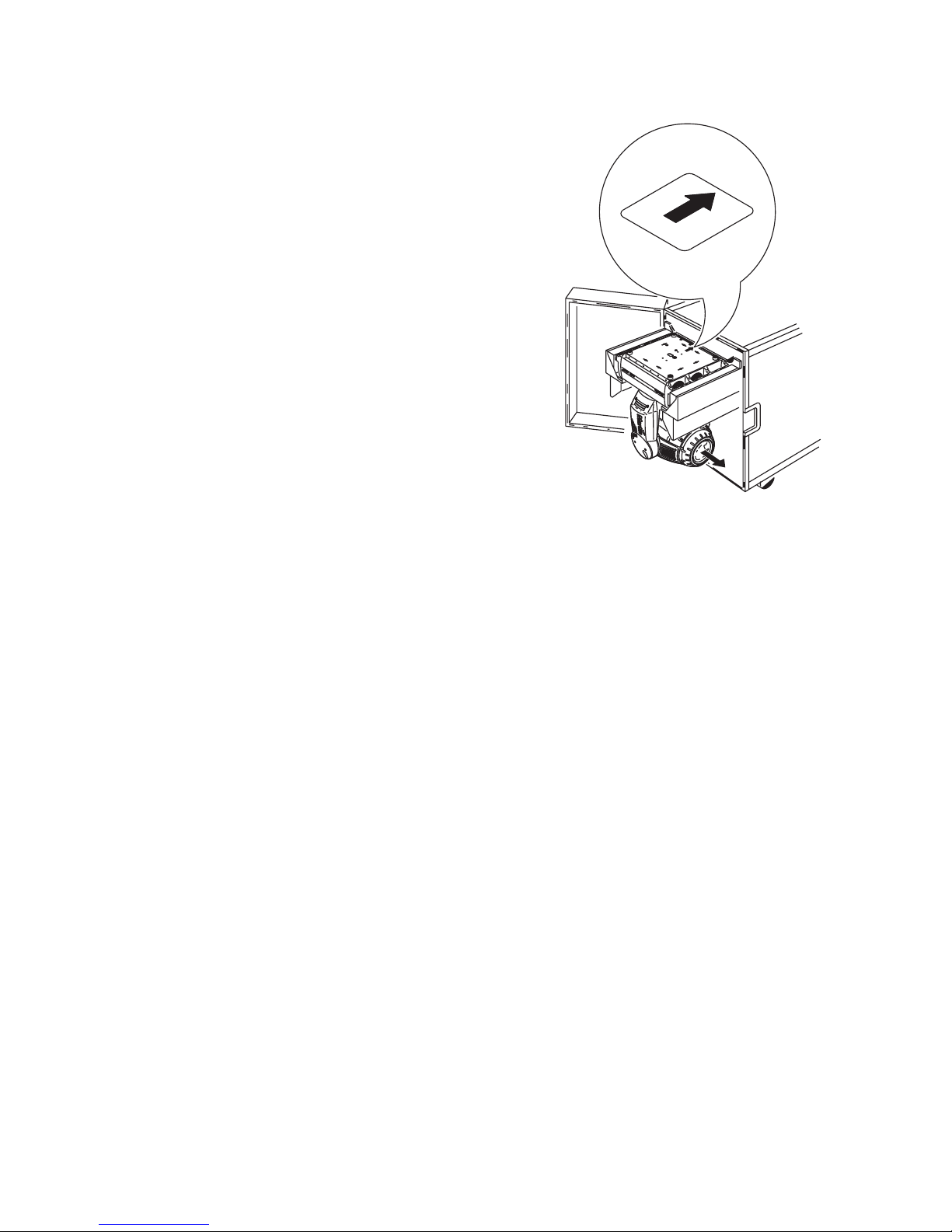

Figure 3: Double unit transport position

FRONT

Lamp 7

L

AMP

About the HMI 1200 W/S lamp

The MAC 2000 Profile comes with a double-ended OSRAM
HMI 1200 W/S discharge lamp installed. This highly-efficient
short-arc source provides an exceptionally stable 6000K color
temperature, a color rendering index greater than 90, and an
average life of 750 hours.

The lamp is capable of hot restrike. This feature, howev er, is only
supported by the MAC 2000 Profile with electronic ballast.

The ends of the lamp have specially-developed keys, shown in
Figure 6, to ensure proper installation. Do not use HMI 1200 W/S
lamps with the non-keyed SFc 10-4 base.

Warning! Installing any other lamp may create a safety

hazard or damage the fixture!

The lamp has an average life of 750 hours. To reduce the risk of
explosion, replace the lamp before usage exceeds 125% of the
average life, i.e., before it exceeds 940 hours. To read lamp hours
from the control panel, please refer to “Readouts” on page 15.

For optimum performance, avoid turning off the lamp before it
has warmed up fully.

Lamp replacement

Important! Do not touch the quartz bulb with bare fingers.

Replacement lamps are available from your Martin dealer. Please
order Martin P/N 97010304.

The clear quartz bulb must be clean and free of any oils from
your fingers. Clean the lamp with an alcohol wipe and polish it
with a dry cloth, particularly if you accidentally touch the bulb.

To replace the lamp

1 Disconnect the fixture from power and allow it to cool. Lock

the head horizontally with the top up.

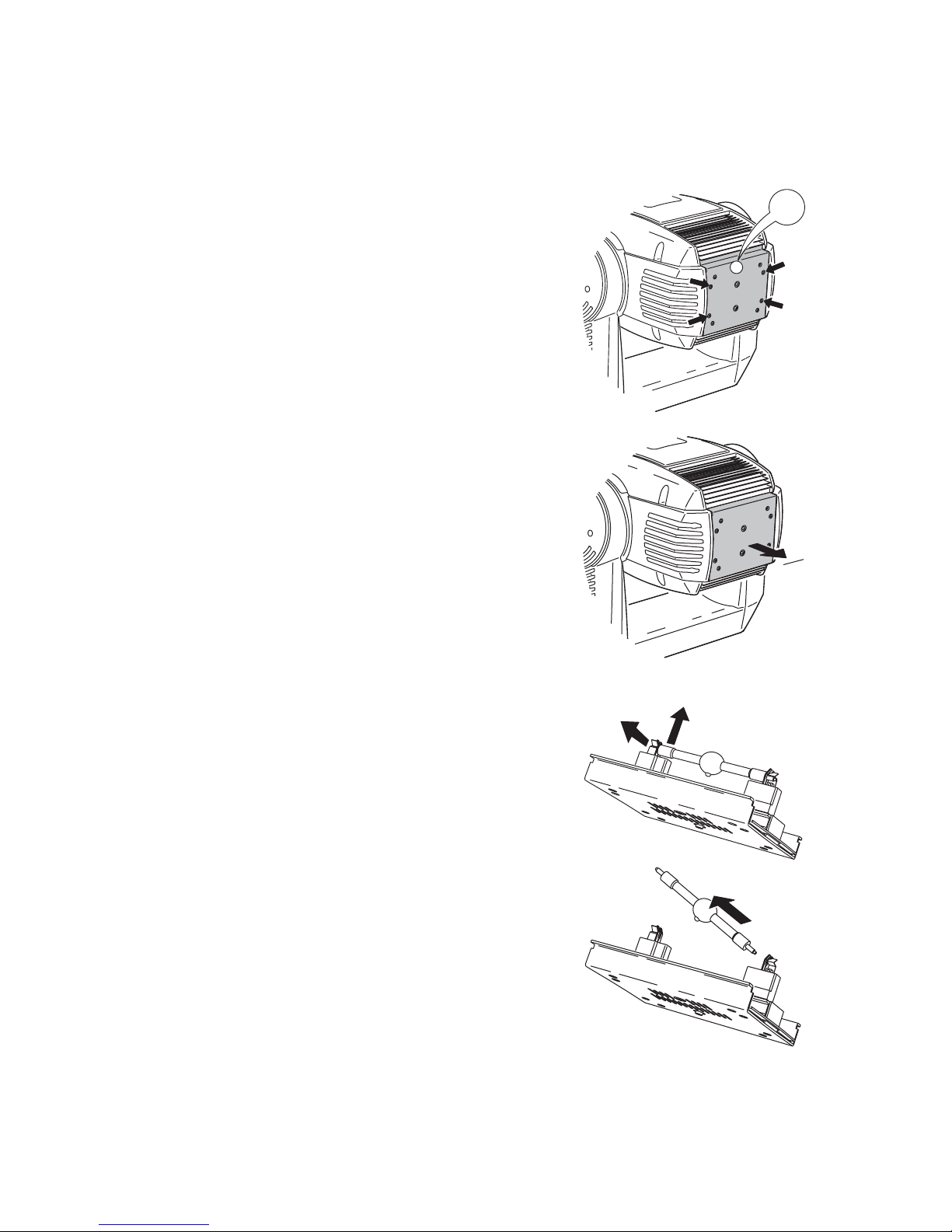

2 See Figure 4. Release the 4 quarter-turn fasteners marked

with arrows on the rear plate. Pull the lamp assembly
straight back as far as it goes and let it rest in place.

3 See Figure 5 . Pull the retention spring on the left end up

and then swing the end of the lamp out. Pull the other end
out of the socket.

TOP

TOP

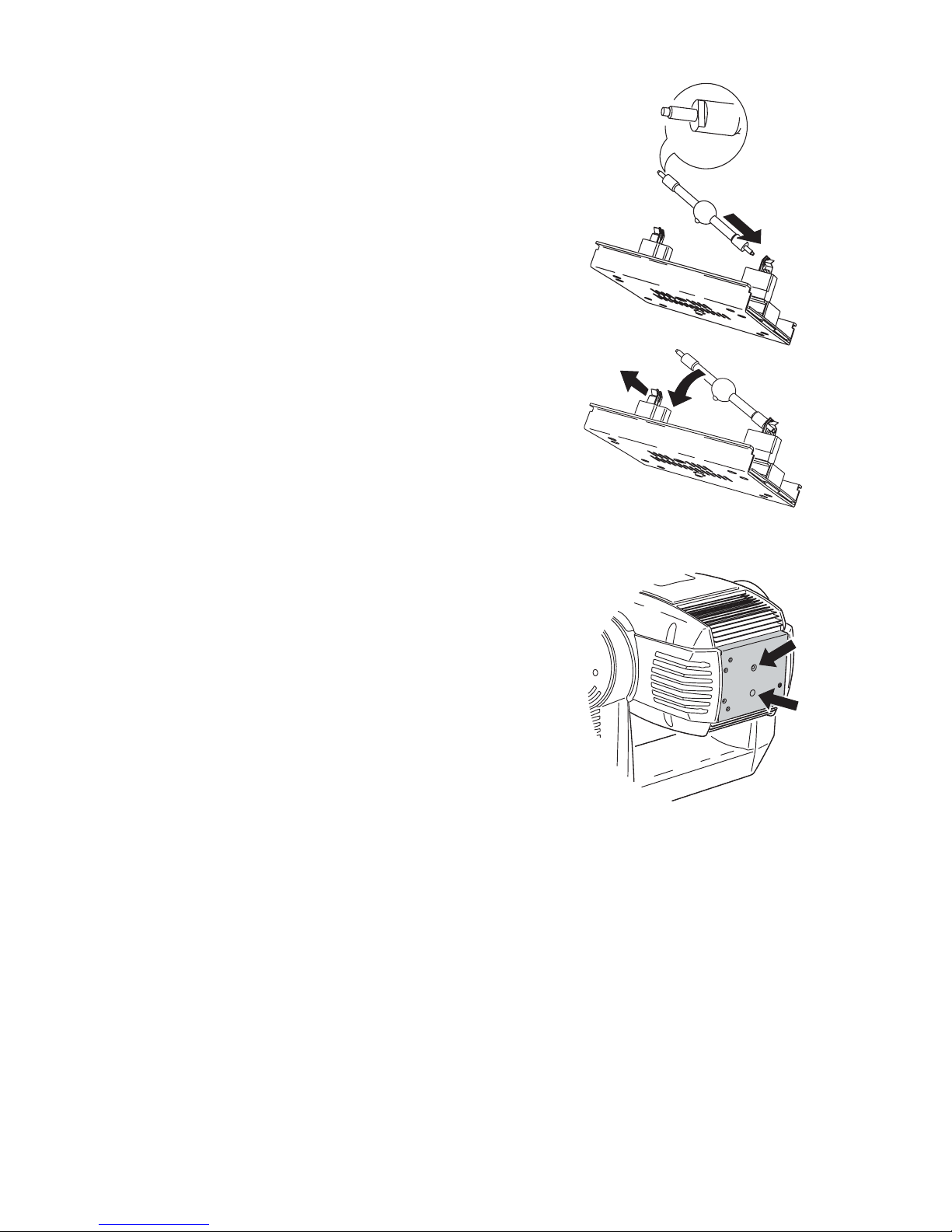

Figure 4: Lamp access

Figure 5: Lamp removal

8 MAC 2000 Profile

4 See Figure 6. With th e nipple on the bulb facing the back,

insert the right end of the new lamp in the socket. Pull up
on the left spring and snap the other end into place.

5 Lift the lamp assembly so that lamp is level with the center

of the reflector. Push the assembly straight in until it seats,
making sure the lamp passes through the reflector opening.
Lock the 4 quarter-turn fasteners.

6 When installing a new lamp, reset the lamp hour and lamp

strike counters as described on page 15.

To align the lamp

1 Switch on the MAC 2000 Profile and allow it to reset. Using

either a controller or the control module, turn on the lamp
and project an open white beam on a flat surface.

2 Center the hot spot vertically using the top Allen-head

adjustment screw in the center of the rear plate.

3 If there is significant hot sp ot, turn the bottom adjustment

screw counterclockwise until the light is evenly distributed.
If the light is brighter around the edge than it is in the
center, or if light output is low, turn the bottom adjustment
screw clockwise until the light is bright and evenly
distributed.

4 Repeat step 2.

Figure 6: Lamp insertion

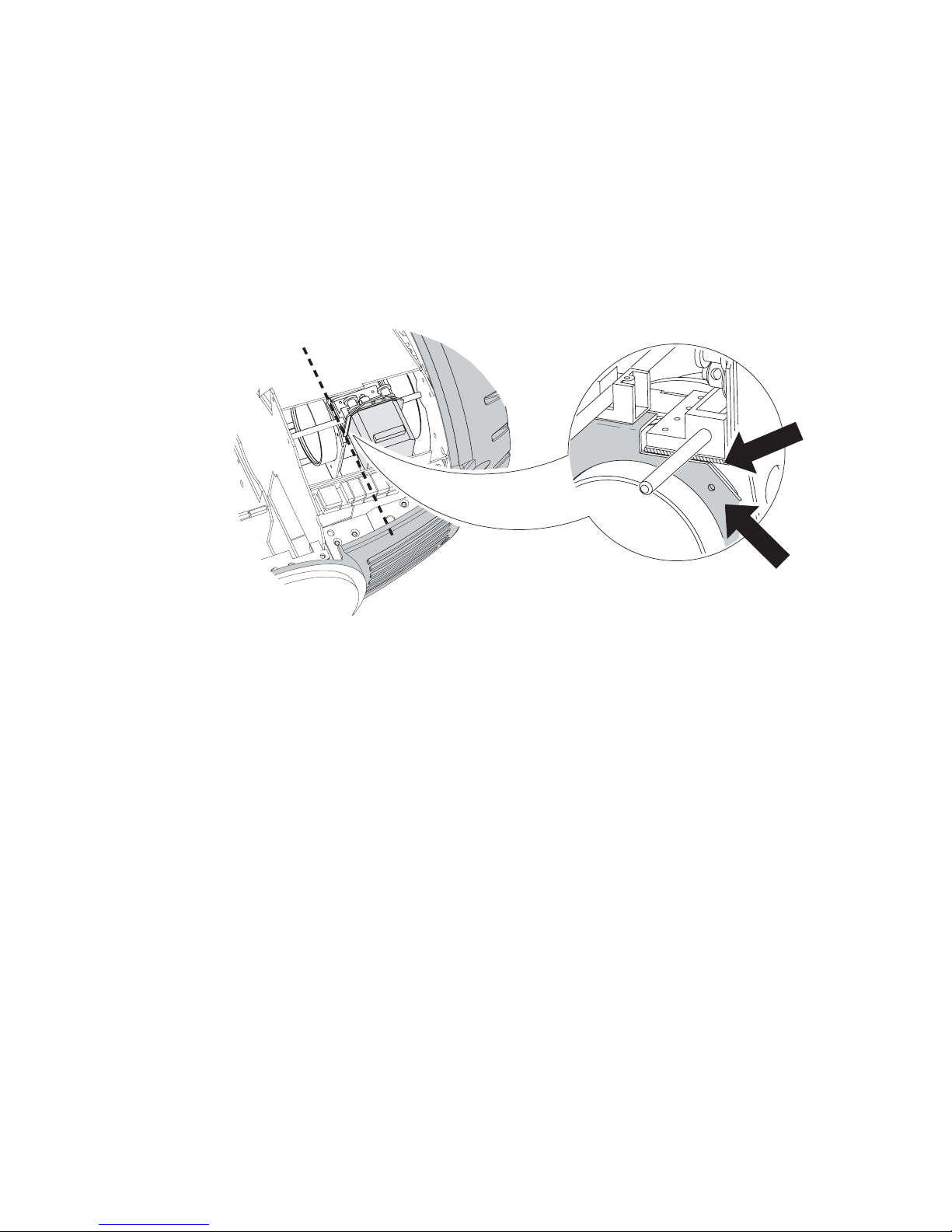

Figure 7: Lamp adjustment

AC power 9

AC

POWER

WARNING! For protection from electric shock, the fixture

must be grounded (earthed). The AC mains supply
shall be fitted with a fuse or circuit breaker and
ground-fault protection.

Important! Verify the power supply settings before applying

power.

Power supply settings for magnetic ballast
version

In the MAC 2000 Profile with magnetic ballast, both the
transformer and the ballast must be tapped correctly for the local
AC voltage and frequency. The wrong setting can cause
overheating, damage, and poor performance. The factory settings
are printed on the serial number label. Note: The 100 and 120 V
transformer settings are not used in the magnetic ballast version.

To change the power supply settings

1 Disconnect the fixture from AC power. Remove the rear

base cover as shown in Figure 8.

2 Find the transformer setting in Table 1. Move the brown

wire on the transformer connection block to the position
shown in Figure 9.

3 To expose the ballast connection block, remove the screws

from each end of the side plate and tilt it down (Figure 8).

4 Find the ballast setting in Table 2. Move the brown wire on the ballast connection block to the position shown

Figure 9.

5 Close the base before applying power.

AC frequency AC voltage Setting

50 - 60 Hz 200 - 218 V 208 V
50 - 60 Hz 219 - 240 V 230 V
50 - 60 Hz 241 - 250 V 250 V

Table 1: Transformer settings (magnetic ballast model)

AC frequency AC voltage Setting

50 Hz

200 - 218 V 208 V / 50 Hz
219 - 238 V 230 V / 50 Hz
239 - 250 V 245 V / 50Hz

60 Hz

200 - 218 V 208 V / 60 Hz
219 - 241 V 230 V / 60 Hz

Table 2: Magnetic ballast settings

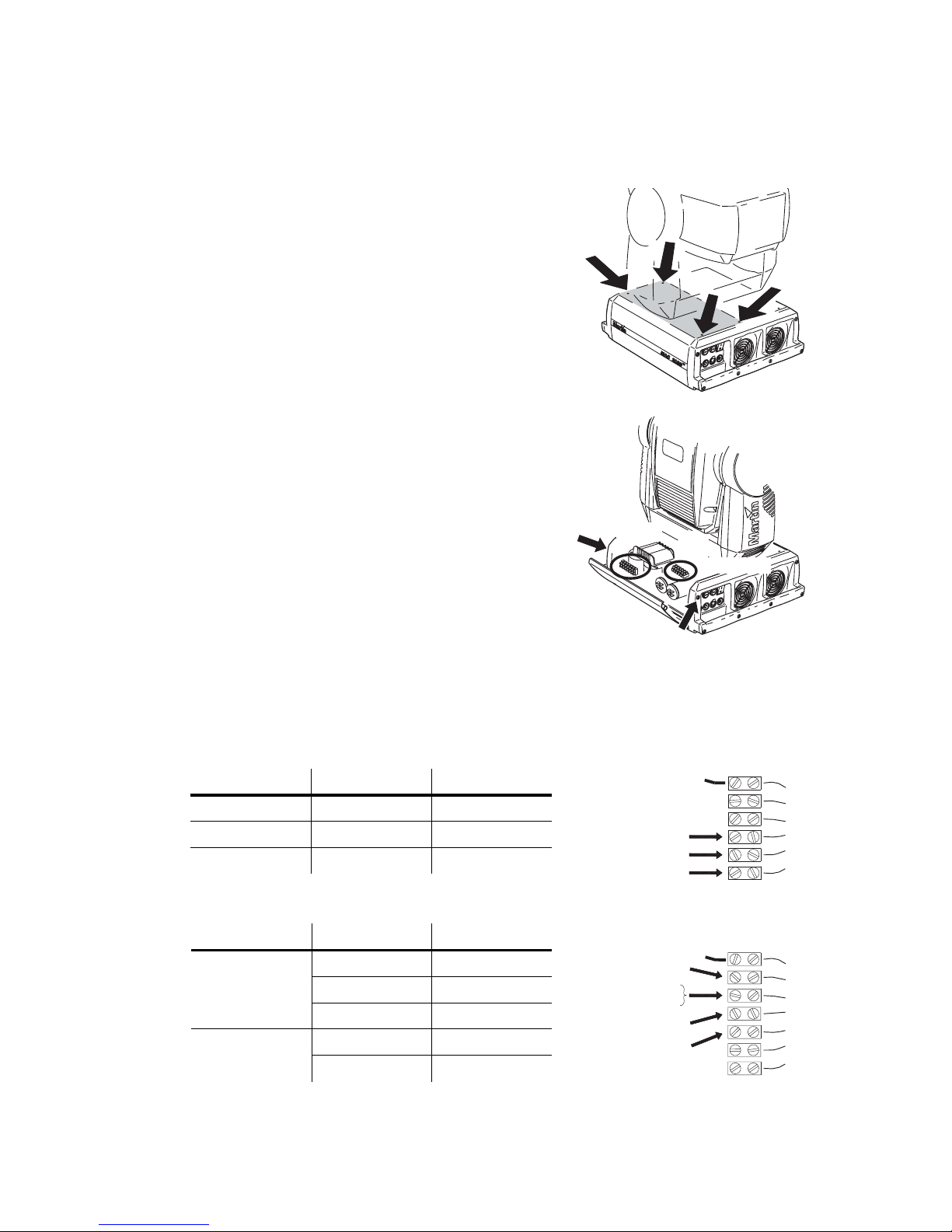

Figure 8: Power supply access

ballast

transformer

230V/60Hz

230 V / 60 Hz

230V/50Hz

230 V / 50 Hz

245V/50Hz

245 V / 50 Hz

208V/60Hz

208 V / 60 Hz

208V/50Hz

208 V / 50 Hz

208 V

208 V

250 V

250 V

230 V

230 V

Figure 9: Transformer and ballast

connections

ballast

transformer

10 MAC 2000 Profile

Power supply settings for electronic ballast version

In the MAC 2000 Profile with electronic ballast, the transformer must be tapped correctly for the local AC voltage. The
electronic ballast automatically adapts to the line voltage and frequency. The wrong transformer setting, though, can
cause overheating, damage, and poor performance. The factory setting is printed on the serial number label.

FUSES

Electronic ballast models that come factory set for 100 V or 120 V have two 20 A T (time delay) main fuses, which are
located near the power switch. Units set at 210 V and above have two 15 A main fuses installed.

If you change the voltage settings, alternate fuses are supplied in bag packed together with this user manual. Use:

• 15 A main fuses when the transformer is set at 208, 230, or 250 V

• 20 A T fuses when it is set at 100, or 120 V

To change the transformer setting

1 Disconnect the fixture from AC power. Remove the rear base cover as shown in Figure 8.
2 Find the transfor mer setting in Table 3. Move the brown wire on the transformer connection block to the

position shown in Figure 10.

3 Close the base before applying power.

Power connection

Important! Connect the MAC 2000 Profile directly to AC

power. Do not connect it to a dimmer system;
doing so may damage the fixture.

You may need to install a cord cap that fits your supply on the
power cable. A 3-prong grounding-type plug must be installed following the manufacturer’s instructions. The table
shows some possible pin identification schemes; if the pins are not clearly identified, or if you have any doubts about
proper installation, consult a qualified electrician.

To apply power, set the power switch on the base to the “I” position.

AC frequency AC voltage Setting

50 - 60 Hz 98 - 105 V 100 V
50 - 60 Hz 115 - 126 V 120 V
50 - 60 Hz 200 - 218 V 208 V
50 - 60 Hz 219 - 240 V 230 V
50 - 60 Hz 241 - 250 V 250 V

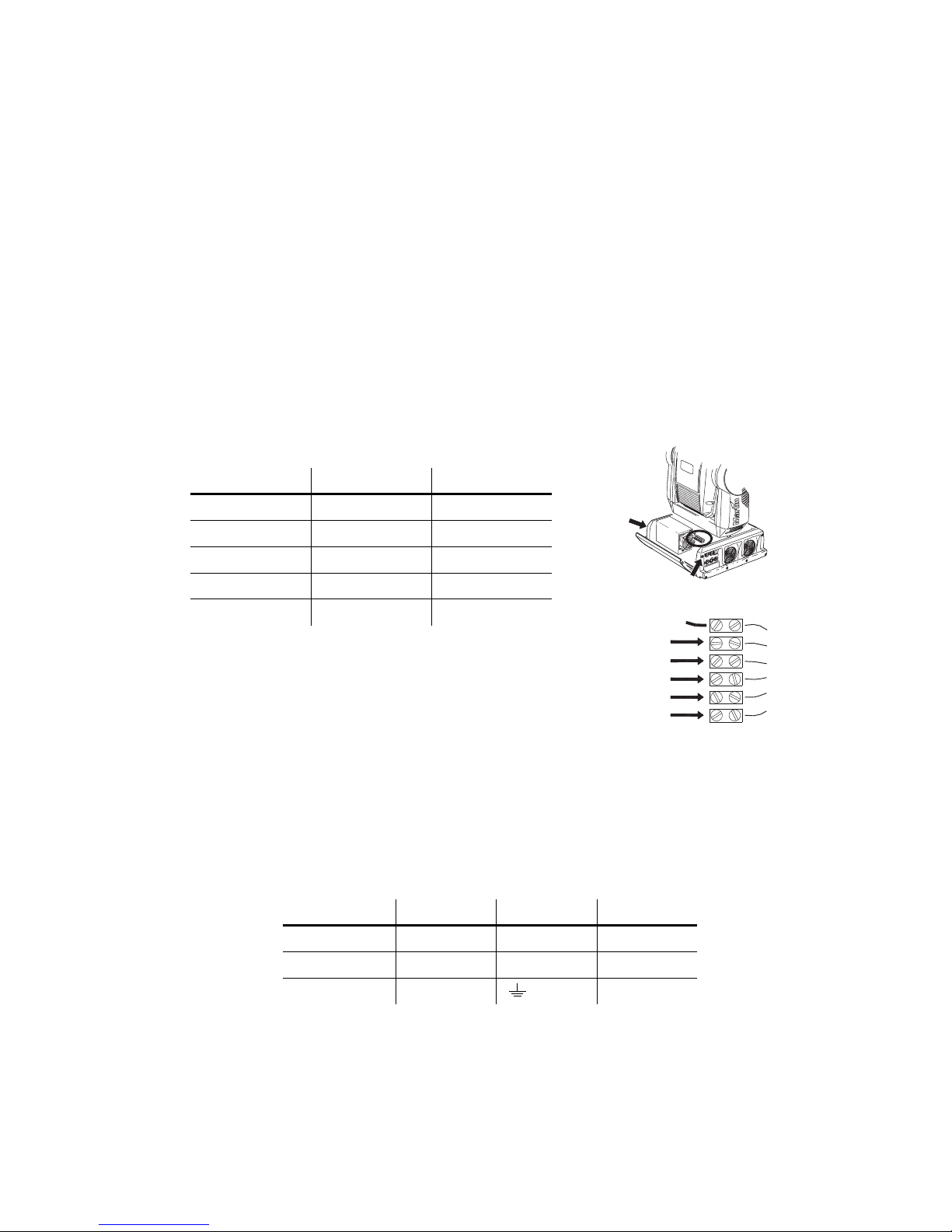

Table 3: Transformer settings, electronic ballast model

Wire Color Pin Symbol Screw (US)

brown live L yellow or brass
blue neutral N silver
yellow/green ground green

Table 4: Cord cap connections

Figure 10: Transformer connections

208 V

208 V

250 V

250 V

230 V

230 V

120 V

120 V

100 V

100 V

Data 11

D

ATA

Important! Never connect more than 1 data input and 1 data output.

The MAC 2000 Profile has both 3-pin and 5-pin XLR sockets for DMX input and output. The pin-out on all sockets is
pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). There is no connection to pins 4 and 5.

The sockets are wired in parallel: both inputs connect to both outputs. For reliable data transmission and to avoid

damage to the fixture, however, use one input and one output!

Connecting fixtures

• Use shielded twisted-pa ir cable designed for RS-485 devices: standard microphone cable cannot transmit
control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft). Heavier
gauge cable and/or an amplifier is recommended for longer runs.

• Never use both outputs to split the link. To split the serial link into branches use a splitter such as the Martin
4-Channel Opto-Isolated RS-485 Splitter/Amplifier.

• Do not overload the link. Up to 32 devices may be connected on a serial link.

• Terminate the link by installing a termination plug in the output socket of the last fixture. The termination
plug, which is a male XLR plug with a 120 ohm, 0.25 watt resistor soldered between pins 2 and 3, “soaks
up” the control signal so it does not reflect and cause interference. If a splitter is used, terminate each
branch of the link.

• Martin fixtures introduced before 1997 have reversed polarity data sockets (pin 2 hot and pin 3 cold). The
socket polarity is labelled. Use a phase-reversing cable between the MAC 2000 Profile and any Martin

device with reversed polarity.

To connect the data link

1 Connect the DMX data input from the controller to the MAC 2000 Profile’ s 3-pin or 5-pin input (male) socket.
2 Using the sockets that match your data cable, connect the output of the fixture closest to the controller to the

input of the next fixture.

3 Insert a male 120 Ω XLR termination plug in the 3-pin or 5-pin output of the last fixture on the link.

12 MAC 2000 Profile

R

IGGING

The MAC 2000 Profile can be placed on stage or clamped to a truss in any orientation. The Fast-Lock system enables
quick and easy fastening of the clamp brackets in 4 positions as shown Figure 11.

Warning! Always use 2 clamps to rig the fixture. Lock each clamp with both 1/4-turn fasteners. The

fasteners are locked only when turned fully clockwise.

Warning! Attach an approved safety cable to the attachment hole in the base. Never use the carrying

handles for secondary attachment.

To clamp the fixture to a truss

1 V erify that the rigging clamps (not included) are undamaged and can bear at least 10 times the weight of the

fixture. Verify that the structure can bear at least 10 times the weight of all installed fixtures, clamps, cables,
auxiliary equipment, etc.

2 Bolt each clamp securely to a clamp bracket with an M12 bolt (grade 8.8 or better) and lock nut.
3 Align a clamp with 2 mounting points in the base. Insert the fasteners into the base and tur n both levers a

full 1/4-turn clockwise to lock. Install the second clamp.

4 If the truss can be lowered, fixtures can be clamped on directly from the double flight case. If the fixture must

be lifted, block access under the work area. Working safely from a stable platform, hang the fixture on the
truss with the arrow towards the area to be illuminated. Tighten the rigging clamps.

5 Install a safety wire that can bear at least 10 times the weight of the fixture. The attachment point is

designed to fit a caribiner clamp.

6 Verify that the pan and tilt locks are released. Verify that there are no combustible materials or surfaces to

be illuminated within 1 meter of the fixture, and that there are no flammable materials nearby.

256

256

256

256

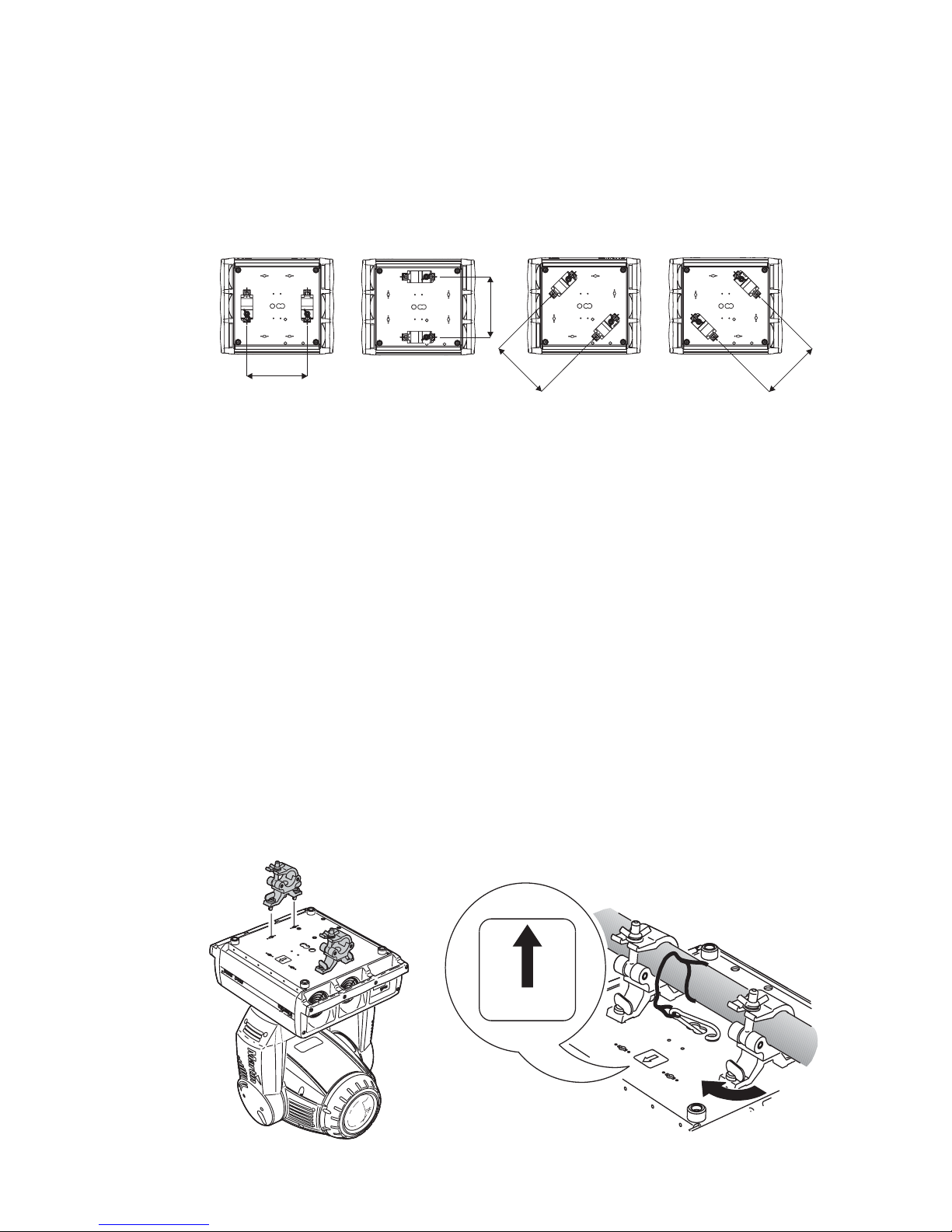

Figure 11: Clamp bracket positions

FRONT

Figure 12: Rigging hardware installation

Control panel 13

C

ONTROL PANEL

The LED control panel is used to set the address and personalities, read lamp hours and other information, calibrate
effects, and run a test routine. Most of these functions may be performed remotely via the serial link with the Martin
MP-2 Uploader.

Navigation

The DMX address and any messages (see page 34) are displayed when the MAC 2000 Profile is turned on. To enter the
menu, press [Menu]. Press [Up] and [Down] to move within the menu. To select a function or submenu, press [Enter].
To escape a function or menu, press [Menu].

Note: [Enter] must be pressed and held for a few seconds to enter the utilities menu.
See Table 6 on page 28 for a complete list of the menu items.

DMX address and protocol setting

The DMX address, also known as the start channel, is the fi rst channel used to receive instructions from the controller.
For independent control, each fixture must be assigned its own control channels. Two MAC 2000 Profiles may share
the same address, however, if identical behavior is desired. Address sharing can be useful for diagnostic purposes and
symmetric control, particularly when combined with the inverse pan and tilt options.

Two DMX protocols, 8-bit and 16-bit, are available. The 8-bit mode uses 20 control channels and provides full basic
control. The 16-bit mode uses 4 additional channels to provide finer gobo and pan/tilt positioning.

To set the DMX address and protocol

1 Press [Menu] to enter the main menu.
2Press [Up] until

AddR is displayed. Press [Enter]. To snap to channel 1, press [Enter] and [Up ]. Scroll to

the desired channel and press [Enter].

3 Select

PSET from the main menu and press [Enter]. Select 8bit or 16bt and press [Enter].

PSET

PATI

STUd

PERS dFSE INFO

AddR

MANdMXL UTIL

Address/

Messages

SCUT

dISP
dINT

dLOF

TRAC

ALON

FACT
CUS1

CUS3

CUS2

STCO

dIM

....

E SP

FEbA
EFFb

PCbT
UPLd

MOdE
CAL

Adj

RST
L ON
LoFF
HEAd
PATI

TSEQ

SWAP

PINV
TINV

TIME

HRS
L HR
L ST

TEMP

bASE
HEAd

VER

dRES

PTSP

NORM

FAST

SLOW

PERS dFSE INFO dMXL UTIL

SCUT

dISP
dINT

dLOF

TRAC

ALON

FACT
CUS1

CUS3

CUS2

STCO

dIM

....

E SP

FEbA
EFFb

CAL

dFOF

MOdE
CAL

TSEQ

TIME

HRS
L HR
L ST

TEMP

bASE
HEAd

VER

dRES

Figure 13: MAC 2000 Profile menu

SMSG

RST
L ON
LoFF

MAG

YEL

CTC

SHUT

dIM

CYAN

I/S1

gOb2

I/S2

FOC

ZOOM

PAN

EFF
I/SE
IRIS

COL
gOb1

TILT

14 MAC 2000 Profile

Tailoring performance

MOVEMENT

The MAC 2000 Profile provides six options for optimizing movement for different applications.

• The protocol setting (PSET)setting selects 8-bit or finer 16-bit control of pan, tilt, and gobo index.

• The pan and tilt invert (

PATI)menu swaps and/or inverts pan and tilt.

• The pan/tilt speed (

PTSP) menu provides 3 settings: FAST, NORM, and SLOW. NORM is best for most

applications.

FAST provides better performance in applications where speed is most important. SLOW provides the

smoothest movement and is best in long-throw applications with slow movements through narrow angles.

• The studio mode (

STUd) setting optimizes all effects besides pan and tilt for speed or quietness.

• The shortcuts (

SCUT)setting determines whether the color, gobo, and effect wheels always take the shortest path

between two static positions or oscillate between outer positions.

TRACKING RESPONSE

The MAC 2000 Profile has a filter algorithm that looks at several position updates in tracking control mode and
calculates the ideal response for smooth movement. Tracking response is adjustable to compensate for variations in
controller performance. In most cases the default settings work well.

If tracking mode movement is not satisfactory there are 2 parameters that can be adjusted. The first is selected under

PERS/TRAC/MOdE. The default, MOd1, is the best choice with controllers that calculate intermediate

positions at a steady rate. Begin by selecting the alternative,

MOd2, which is better if the intermediate positions stray

significantly from the line of travel.
The second parameter is the number of position updates used to calculate speed. The level is adjustable between 1 and

10 under

PERS/TRAC/CAL. Increasing the number of samples increases the distance over which speed is

calculated, making movement smoother but less responsive to sudden changes. Experiment for best results.

DISPLAY

The display intensity (dINT) setting controls display brightness. The display on/off setting (dISP) determines
whether the display remains on or extinguishes two minutes after the last key-press. To flip the display, press [Up] and
[Down] simultaneously.

LAMP

There are two settings that modify lamp control: Automatic Lamp On (ALON) and DMX Lamp Off (DLoF).
When ALON is off, the lamp remains off until a “lamp on” command is received from the controlle r. When ALON is

on, the lamp strikes automatically after the fixture is powered on. When

ALON is set to DMX, the lamp strikes

automatically when the fixture receives DMX data, and it e xtinguishes 15 minutes after DMX data is lost.
When

ALON is set to either ON or DMX, the automatic lamp strike timing is staggered to prevent all lamps from

striking at once. The delay is determined by the fixture address.
If striking lamps from the controller, note that striking many lamps at once may cause a voltage drop large enough to

prevent lamps from striking or trip the main circuit breaker. Avoid this by programming a “lamp on” sequence that
strikes lamps one at a time at 5 second intervals.

Power to the lamp can be turned off from the controller if DMX Lamp Off (

dLOF) is on. If dLOF is off, a DMX

lamp off command is executed only if position 7 is selected on the color wheel and gobo 5 is selected on both gobo
wheels. Be careful: with the magnetic ballast model, it is not possible to restrike the lamp until it has cooled for a few
minutes. (The electronic ballast model provides hot restrike.)

DMX RESET

The fixture can be reset from the controller if DMX reset (PERS/dRES) is ON. If DMX reset is OFF, the reset
command can only be executed if position 7 is selected on the color wheel and gobo 5 is sele cted on both gobo wheels.

CUSTOM SETTINGS

The custom configuration function allows you to save and recall three sets of fixture settings. The savable settings are
DMX mode, pan/tilt speed, pan/tilt inverse and swap, DMX lamp off and reset, display settings, shortcuts, studio
mode, automatic lamp on, effects feedback, tracking algorithm, and tracking samples.

Control panel 15

Readouts

Note: The MP-2 Uploader provides commands to display the time, temperature, and version readouts on the fixture
control panel.

TIME

INFO/TIME

provides readouts of fixture hours (HRS), lamp hours (L HR), and lamp strikes (L ST). Under

each item is a resettable (

RSET) increment counter and a non-resettable counter for total accumulated hours/strikes

since fabrication (

TOTL). T o reset an increment counter , display it and then press [Up] until it reads 0. (This may also

be done remotely using the MP-2 Uploader.)

TEMPERATURE

INFO/TEMP

provides readouts of the head and base tempe rature in Celsius and Fahrenheit.

FIRMWARE VERSION

INFO/VER

displays the version number of the installed firmw are. The f irmwa re version is also displayed briefly at

startup.

DMX

The DMXL menu shows the DMX start code (STCO) and DMX values received for each effect.

Service messages

The Service LED on the control panel lights under conditions that require fixture service, and there is a message
describing the service required. To display the message, select

SMSG in the main menu. This item is available only

when the LED is lit. There are two service messages.

Replace lamp is displayed when the lamp counter exceeds 750 hours, which is the rated average life for the

HMI 1200 W/S lamp. The maximum service life is 125% of the average life, or 940 hours.

Fixture overheating is displayed when the head temperature exceeds 120° C (248° F). Overheating is

likely due to dirty air filters, fans, or air vents; incorrect power supply settings, or a defective fan.

Service utilities

Important! Enter must be held for several seconds to access the utilities menu.

TEST SEQUENCES

TSEQ

provides a general test of all effects that can be run without a controller. UTIL/PCBt provides routines

for circuit board testing that are for service use only.

FEEDBACK TOGGLES

An on-the-fly position correction system monitors the color wheel, gobo wheels, gobos, rotating effects, and effect
wheel. If a position error is detected, the shutter closes while the effect resets. This feature can be disabled by turning
effects feedback (

UTIL/EFFb) off.

The automatic pan/tilt position correction system may be temporarily turned off under UTIL/FEbA. The off
setting, however, is not saved and the system will be re-enabled the next time the fixture starts. If the system cannot
correct the pan/tilt position within 10 seconds, feedback is automatically disabled.

ADJUSTMENT

The adjustment menu (UTIL/Adj) provides manual control for making mechanical adjustments. See page 33.

16 MAC 2000 Profile

CALIBRATION

The calibration menu (UTIL/CAL) provides utilities to define offsets in software that are relative to the
mechanical reset or home positions. This allows you to fine tune optical alignment and achieve uniform performance
between fixtures. Dimmer and zoom are calibrated to defined points. The other effects are calibrated relative to an
arbitrary reference fixture.

Default offset settings may be restored by selecting default offsets (

UTIL/dFOF).

To calibrate effects

1 Apply power but do not strike the lamp until zoom has been calibrated.
2 To calibrate zoom, first remove the bottom head cover. Select

UTIL/CAL/ZOOF and press [Enter].

Adjust the offset until the face of the zoom lens plate is flush with the back edge of the focus plate (Figure

14). Press [Enter] to save the setting. Replace the bottom head cover.

3 Pan calibration is most useful when multiple fixtures are stacked vertically. To calibrate, set zoom, focus, iris,

and tilt position for easy one-over-the-other comparison and set each fixture to the same pan DMX value.
Select one fixture to be the reference fixture. On the other fixtures, select

UTIL/CAL/P OF and press

[Enter]. Adjust the offset as necessary to align the beam with the reference beam. Press [Enter] to save the
setting.

4 Tilt calibration i s most u seful when multiple fixtures a re arranged hor izontally. To calibrate, set zoom, focus,

iris, and pan position for easy side-by-side comparison and set each fixture to the same tilt DMX value.
Select one fixture to be the reference fixture. On the other fixtures, select

UTIL/CAL/T OF and press

[Enter]. Adjust the offset as necessary to align the beam with the reference beam. Press [Enter] to save the
setting.

5 To calibrate the dimmer, select

UTIL/CAL/D OF and press [Enter]. Hold a piece of paper over the

lens. Set the offset to 0 and then increase it until light is clearly projected onto the paper. Press [Enter] to
save the setting. Remove the paper.

6 To calibrate color mixing flags (cyan, magenta, yellow, and color temperature correction), project white

beams with no dimming and position them for easy comparison. On each fixture, including the reference,
select

UTIL/CAL/C OF and press [Enter]. (This adds a defined amount of cyan.) Select one fixture to

be the reference. Adjust the offsets on the other fixtures to match the reference color. Press [Enter] to save
the setting. Repeat for

M OF (magenta), Y OF (yellow), and CTOF (CTC).

7 Focus calibration is useful when two or more fixtures are the same distance from a projection surface. To

calibrate focus, set up all fixtures with the same focus, zoom, dimming, iris, and gobo values. Select a
focussed fixture to be the reference. On the other fixtures, select UTIL/CAL/FOOF and press [Enter].
Adjust the offset to focus the image. Press [Enter] to sav e the setting.

SOFTWARE UPLOAD

The software update mode is normally engaged automatically by the upload device.

Figure 14: Zoom calibration point

Optical configuration 17

O

PTICAL CONFIGURATION

Gobos

SPECIFICATIONS

All gobo slots including the seven color/gobo wheel positions accept round theatrical size-E glass gobos. Aluminum
gobos are suitable for short-term use only. For best results, custom gobos should meet the following criteria.

Outside diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37.5 +0/-0.3 mm (1 15/32 +0/-0.01 in.)

Maximum image diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mm (1 3/16 in.)

Material: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .High temperature Borofloat or better glass

Coating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dichroic or enhanced aluminum

The color/gobo wheel accepts 1.1 mm thick gobos and color filters. Thinner gobos must be secured with a drop or tw o
of glue. Use a high-temperature silicone adhesive such as Dow Corning’s 732 Multi-Purpose Sealant.

The rotating-gobo wheel positions hold gobos up to 3 mm thick with the gobo retention spring. Gobos thicker than 3
mm must be glued in the holder.

ORIENTATION

Coated gobos are inserted with the coating against the rim of the holder (away from the spring). Textured gobos are
inserted with the smooth side against the spring. This provides the best results when combining rotating gobos.

Rotating gobo wheels

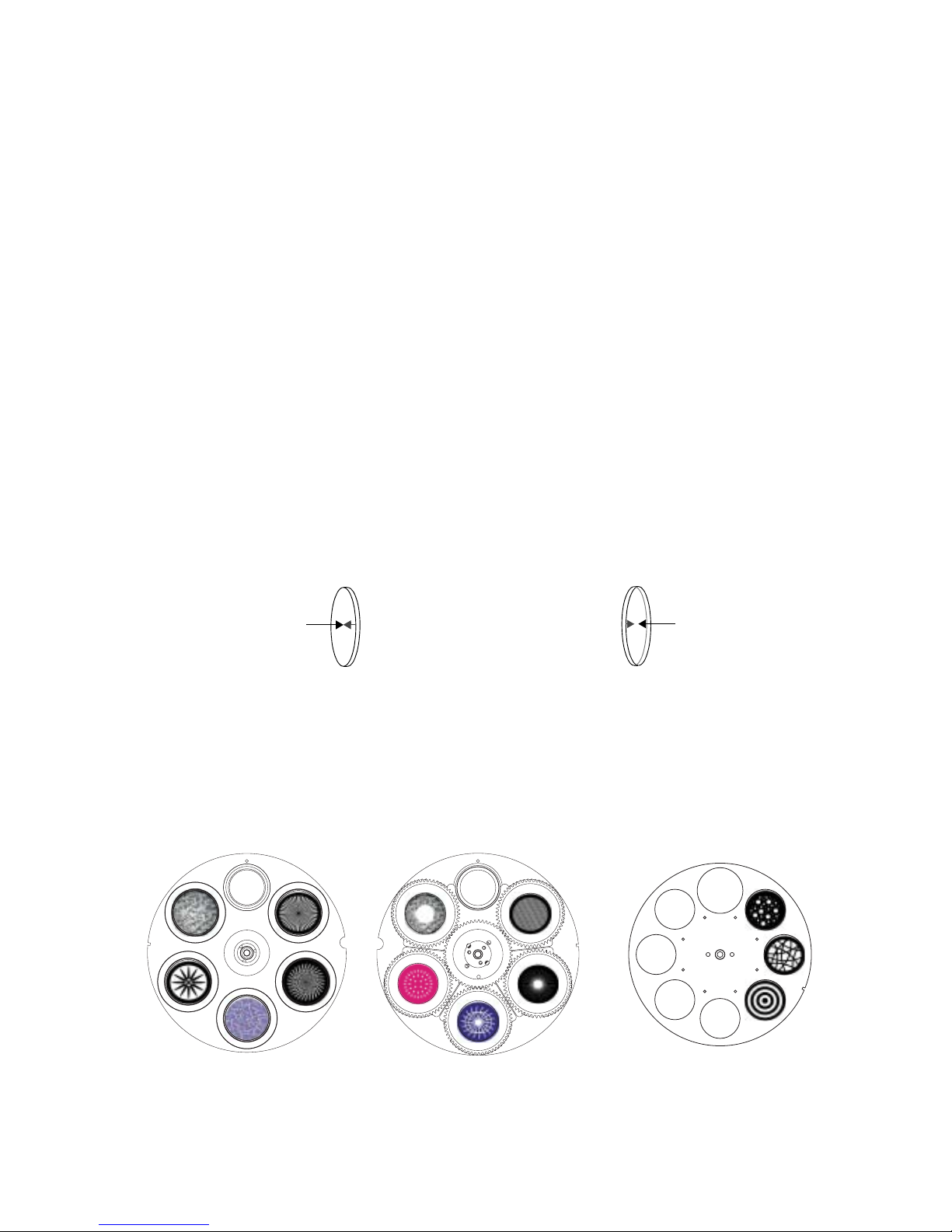

Figure 16 shows the standard gobo configuration.

Uncoated sideCoated side

When an object is held up to the coated side
there is no space between the object and its
reflection. The back edge of the gobo cannot
be seen when looking through the coated
side.

When an object is held up to the uncoated
side there is a space between the object and
its reflection. The back edge of the gobo can
be seen when looking through the uncoated
side.

Figure 15: Finding the coated side

1

2

3

4

5

6

7

4

5

3

2

1

1

2

4

5

3

Gobo wheel 1 Color/gobo wheelGobo wheel 2

Figure 16: Standard gobo configuration as seen from lamp

red

green

blue

UV

18 MAC 2000 Profile

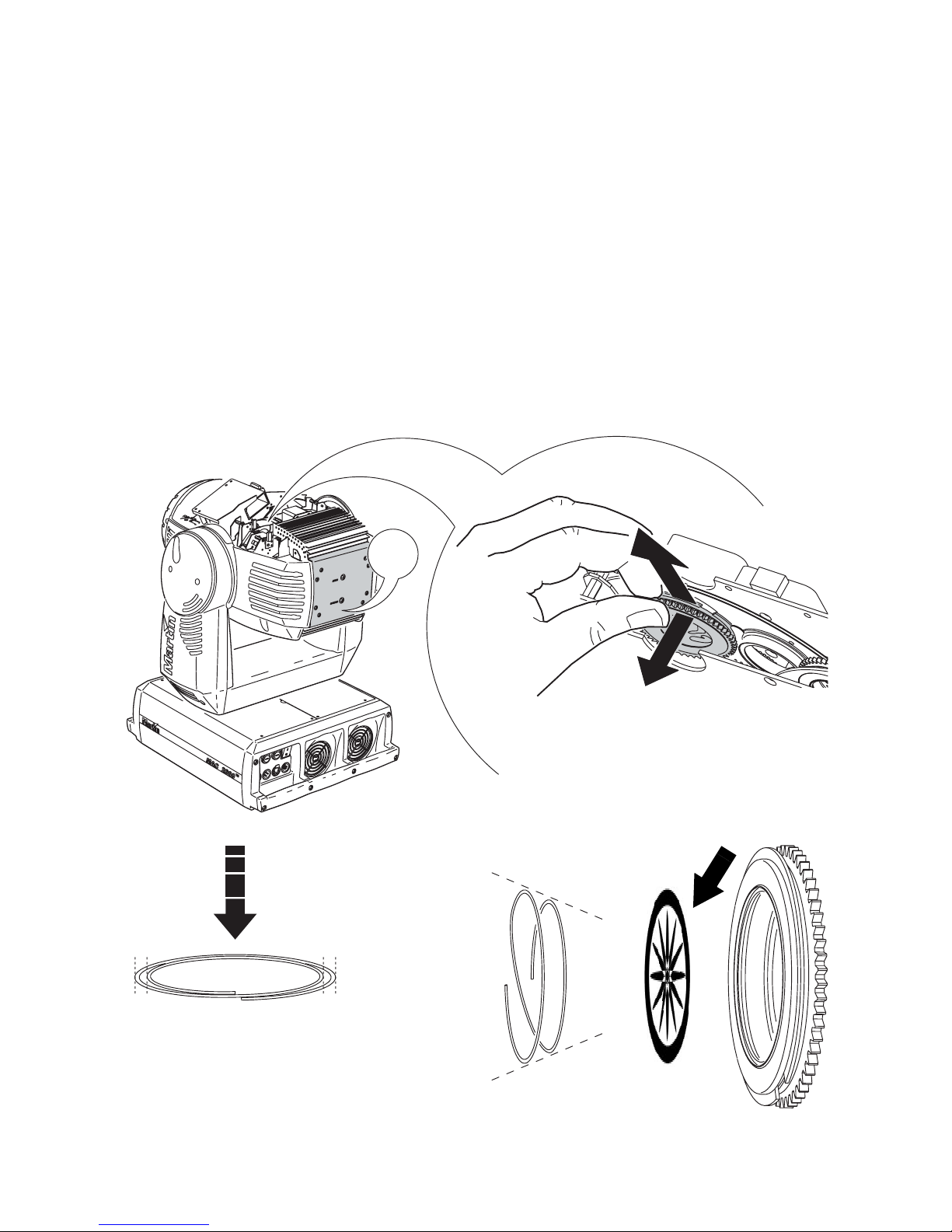

To replace rotating gobos

Important! The gobo can fall out if the spring is inserted backwards.

1 Disconnect the fixture from power and allow it to cool.
2 See Figure 17 . Lock the head in the upside down position and remove the bottom cover. Turn the gobo

wheels as required to access the desired position. Pull the gobo holder away from the wheel slightly to
release. Remove the gobo holder.

3 Remove the gobo retention spring from the gobo holder and drop the gobo out of the holder. Insert the new

gobo in the holder. Insert the spring with the narrow end against the gobo. To identify the narrow en d, press
the spring flat: the narrow end is on the inside. Push the end of the spring in under the lip of the holder.

4 Work the rim of the gobo h older under bo th clips and snap the gobo holder back into posi ti on. If necessary,

a small screwdriver or similar tool may be used to pry the clips away from the wheel.

5 Replace th e bottom cover and release the pan and/or tilt locks before operating.

TOP

Figure 17: Replacing rotating gobos

Access gobos from the bottom of the head. Tilt out and remove
the holder.

The narrow end is on the inside when
the spring is pressed flat.

Insert spring with narrow end against gobo.

coated side

Optical configuration 19

Color/gobo wheel

The color/gobo wheel houses four dichroic glass color filters and three static gobos as shown in Figure 16. These are
normally installed with the coated side in towards the wheel.

To replace color filters or gobos

1 Disconnect the fixture from power and allow it to cool.
2 Lock the head in the upside d own position and remove the bottom cover. Tur n the color/gobo wheel as

required to access the desired position.
3 To remove, press the filter or gobo from the lamp side to release it. Remove from wheel.
4 To insert, work the filter or gobo under the retention sprin g and posi tion it between th e pins. The long edge

of the six-sided color filters must be precisely aligned with the inside of the hub in order to fit.
5 Replace th e bottom cover and unlock the head before operating.

Effect wheel

The effect wheel provides two positions for rotating effects. Effects are glued into holders and are changed by

replacing the assembled effect and holder .

To replace rotating effects

1 Disconnect the fixture from power and allow it to cool.
2 Lock the head in the upside down position and remove the bottom cover. Turn the effect wheel so that the

locking plate is under the sensor bracket.
3 To remove, hold the rim of the effect holder and pull back on the locking plate. Remove effect from wheel.
4 To insert, pull back on the locking plate. If both effects are removed, pull straight back on both tabs. Position

the groove in the effect holder over the fixed plate. Release the locking plate and verify that the effect is

properly seated.
5 Replace th e bottom cover and unlock the head before operating.

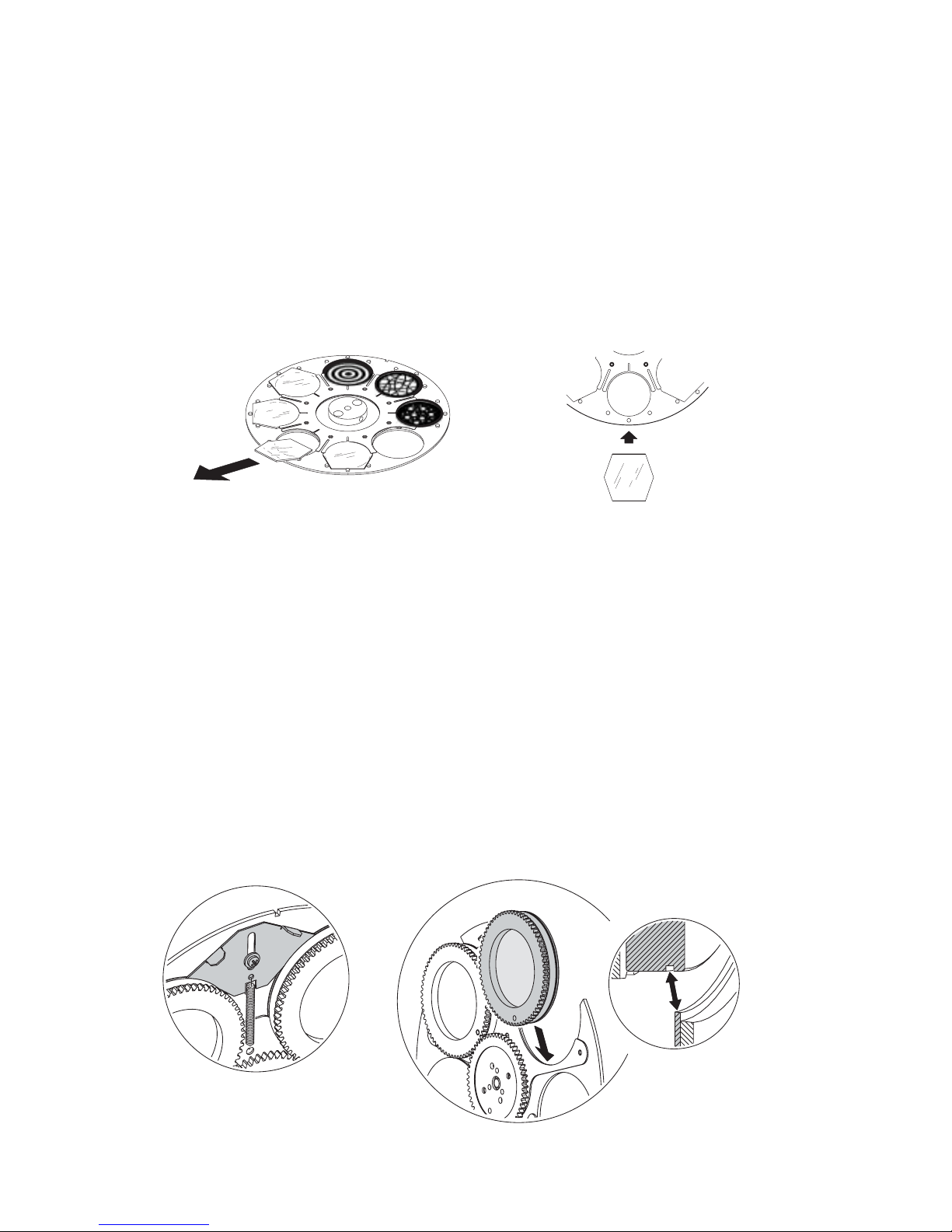

Figure 18: Replacing color filters and fixed gobos

Install filters and
gobos with
coating down,
towards the
lamp.

Locking plate

Position the effect holder
groove over the fixed plate.

Figure 19: Replacing rotating effects

20 MAC 2000 Profile

E

FFECTS

The MAC 2000 Profile is compatible with USITT DMX512 controllers. The fixture has two DMX operating modes,

8-bit and 16-bit.16-bit mode requires four more DMX channels than 8-bit mode but provides more precise gobo

indexing and pan/tilt positioning. All other functions are identic al. The complete DMX protocol begins on page 24.

Dimming and strobe

The mechanical dimmer/shutter system provides smooth, high-resolution 100 percent dimming, instant open and

blackout, random and variable strobe effects up to 10 Hz, and random and variable pulses in which the dimmer snaps

open and slowly dims or snaps closed and slowly opens.

Color mixing

The color mixing system uses continuous dichroic cyan, magenta, and yellow (CMY) color filters. It is a subtractive

system that removes color from white light. Inserting all three filters results in loss of light: for maximum brightness,

mix 2 colors at a time.

Color temperature correction

The color temperature correction (CTC) system uses a continuous 0 - 178 mireds color filter that lowers the color

temperature from 6000 K to 2900 K.

Random color mixing

Variable speed random color mixing using the CMY filters may be selected at the top of channel 7. When selected,

channels 3 - 5 set the maximum or minimum amount of each color in the mix. Values up to 127 set a minimum

amount: the color is randomly inserted from the selected value up to 100%. Values over 127 set a maximum amount:

the color is inserted from 0% up to the selected value. To use the full range of a color in the random mix, select a

minimum value of 0% or a maximum value of 100%. To exclude a color from the random mix, select a maximum

value of 0%.

Fixed colors and gobos

The color/gobo wheel provides seven slots with four dichroic color f ilt ers and thre e glass gobos. To change the color or

gobo, see “To replace color filters or gobos” on page 19.

The wheel can be scrolled, allowing for split color effects, snapped to fixed positions, and continuously rotated in both

directions at different speeds. When the effects speed channel is set from 252 to 255, the dimmer automatically closes

while the color wheel is moving between static positions.

Gobos

Two overlapping gobo wheels provide room for 10 glass gobos. See page 17 to change gobos.

Gobos may be rotated and shaken at varying speeds and indexed to any position. Extremely accurate positioning is

available in 16-bit mode.

For each wheel, the gobo and type of rotation (indexed or continuous, with or without shake) are selected on the

wheel’s Gobo & Function Channel, which also provide commands for continuous wheel rotation. The gobo position

index and rotation speed are selected on its Position/Velocity Channel. In 16-bit mode, the position is further adjusted

on the wheel’s Fine Position Channel.

Effects 21

Effect wheel

The effect wheel provides a variable frost f ilter and two rotating slots that house a beam shaper an d a three-fa cet prism.

The position and velocity of the rotating slots are selected on the effect wheel’s Position / Velocity Channel.

The effect wheel channel also provides eight preprogrammed effect combinations.

Iris

The iris closes down to 15 percent of its full-open diameter with high, 200-step resolution. The Iris Channel also

provides random and variable speed pulsating iris ef fects.

Focus and zoom

The focus lens focusses the beam from approximately 2 meters (6.5 feet) to infinity. The zoom lens widens the beam

from approximately 10° at full spot to 28° at full flood.

Pan and tilt

The yoke pans 540° and the head tilts 267°. For maximum positioning accuracy, select 16-bit mode.

The pan/tilt speed (fast, norm, or slow) may be selected on the pan/tilt speed channel. Setting the pan/tilt spee d chan nel

to “blackout” causes the shutter to black out the light while the head is moving.

Speed control

There are two ways to control the speed at which effects move from one static position to another. These are known as

tracking control and vector control and are selected on the Pan/Tilt Speed and Effect Speed Channels. These channels

are independent so you may, for example, combine a vector control pan movement with a tracking control color fade.

In tracking mode, speed is determined by the cross-fade time. The controller continuously sends small position

changes that the fixture “tracks.” To enable tracking mode, set the relevant speed channel to a tracking value. Note that

in addition to enabling tracking control, some tracking values also provide overrides of the menu settings.

In vector mode, speed is set directly on a speed channel. The cross-fade time must be 0. Vector control provides a way

to set speed on controllers that do not have programmable fade times and results in smooth move ment re gardless of the

cross-fade time or the controller’s processing power.

To open the iris slowly in tracking mode, for example, you program a scene with the iris fully closed and a second

scene with the iris fully open. Then you set a cross-fade time between the two scenes of, say, 10 seconds. The

controller gradually changes the iris position value from 199 (closed) to 0 (open).

To open the iris slowly in vector mode, you program the iris closed and open as before. Then you set the cross-fade

time to 0 and program a slow speed, in the second scene, on the Effect Speed Channel.

22 MAC 2000 Profile

R

OUTINE MAINTENANCE

The MAC 2000 Profile requires routine cleaning. The schedule depends heavily on the operating environment; please

consult a Martin service technician for recommendations.

Refer all service not described here to a qualified Martin technician.

Important! Excessive dust, smoke fluid, and particulate buildup degrades performance and causes

overheating and damage to the fixture that is not covered by the warranty.

Warning! Disconnect the fixture from power before removing any cover.

Cleaning

Use care when cleaning optical components and work in a clean, well lit area. The coated surfaces are fragile and

easily scratched. Do not use solvents that can damage plastic or painted surfaces.

Inspect the air filters regularly and clean before they become clogged. Replace the air filters with new ones when

replacing the lamp.

To maintain adequate cooling, dust must be cleaned from the fans and air vents periodically.

To clean optical components

1 Disconnect the fixtur e from power and allow the components to cool completely. Remove the head cover.
2 Vacuum or gently blow away dust and loose particles with compressed air.
3 Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled

water. Do not rub the surface: lift the particles off with a soft repeated press.
4 Remove smoke and other residues with cotton swabs or unscented tissues moistened with isopropyl

alcohol. A commercial glass cleaner may be used, but residues must be removed with distilled water. Clean

with a slow circular motion from center to edge. Dry with a clean, soft and lint-free cloth or compressed air.

To clean the fan and air vents

• Remove dust from the fans and air vents with a soft brush, cotton swab, vacuum, or compressed air.

To clean or replace the air filters

1 Disconnect th e fixture from power. On each side of the head, remove the 2 screws that hold the side cover

using a Torx-20 screwdriver. Slide the cover forward to remove. Lift the filter off of the cover.
2 Clean the fi lters with a vacuum or compressed air, or replace them. If they are saturated with smoke fluid,

etcetera, soak them in warm soapy water and blot dry.
3 Place the filters on the covers and replace the covers.

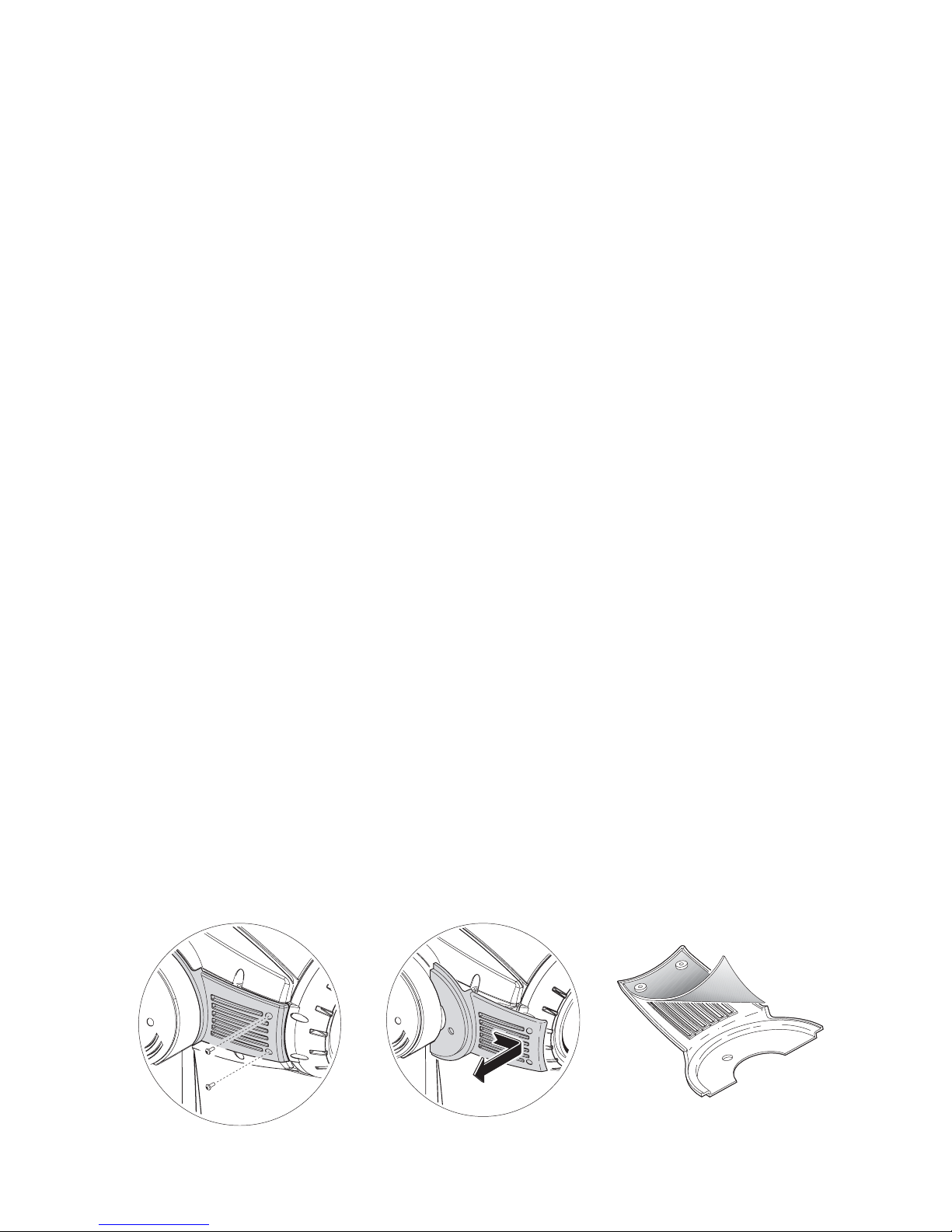

Figure 20: Removing air filters

Routine maintenance 23

Software installation

Software updates are installed in the MAC 2000 Profile using a Martin MP-2 Uploader or a LightJockey 4064 DMX

interface card. The procedure is found in the MP-2 user manual and the Martin Software Uploader online help file.

REQUIREMENTS

The following are required in order to install software.

• The MAC 2000 Profile update file, available for download from the User Support Area of the Martin web site
(http://www.martin.dk).

• The Martin Software Uploader program, version 4.0 or later , a vailable for do wnlo ad from the User Support Area of the
Martin web site.

• A Martin MP-2 Uploader connected to a Windows 95/98 PC, or a LightJockey Controller (DJ or Club) with 4064
DMX Interface card.

BOOT SECTOR JUMPER

If the normal upload procedure does not work, or if the software update notes call for a boot sector update, move the
boot sector jumper at PL103 to the BOOT position before uploading software.

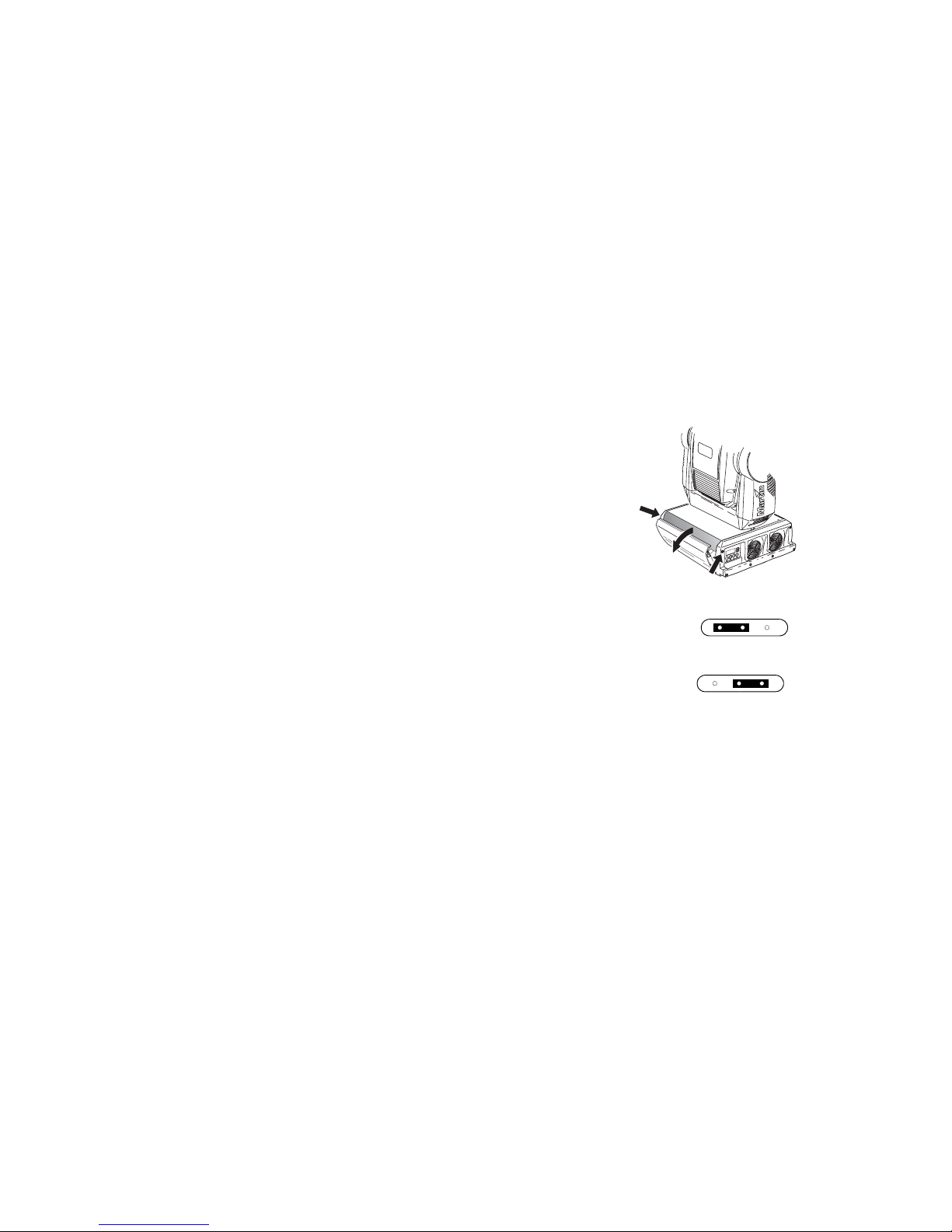

To set the boot sector jumper

1 Disconnect the fixture from power.

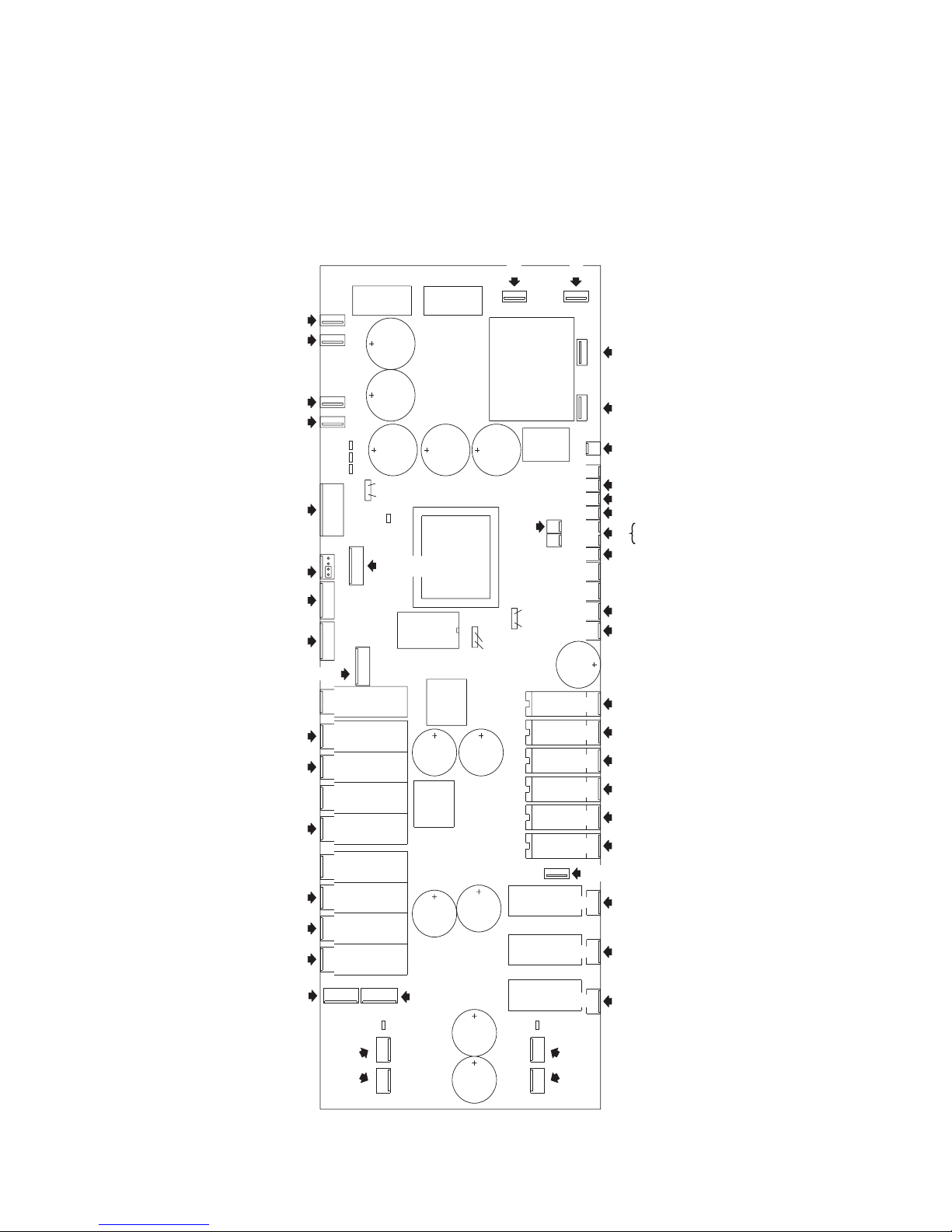

2 Remove the top screws from the ends of the front side panel and tilt the

panel down to expose the main circuit board (Figure 21).

3 Using the diagram on page 36 or the label inside the base, locate PL103.

Move the jumper to the “BOOT” position.

4 Perform a boot mode upload. When the upload is complete, disconnect the

fixture from power and move the jumper back to the “LOCK” position.

PL103

LOCK setting (default)

PL103

Boot setting

Figure 21: Setting the boot sector

jumper

24 MAC 2000 Profile

DMX

PROTOCOL

DMX channel Start code = 0

8-bit 16-bit Value Percent Function

1

0 - 19
20 - 49
50 - 72
73 - 79
80 - 99

100 - 119
120 - 127
128 - 147
148 - 167
168 - 187
188 - 190
191 - 193
194 - 196
197 - 199
200 - 202
203 - 207
208 - 217
218 - 227
228 - 237
238 - 247
248 - 255

0 - 7

8 - 19
20 - 28
29 - 31
31 - 39
39 - 47
47 - 50
50 - 58
58 - 65
66 - 73
74 - 75
75 - 76
76 - 77
77 - 78
78 - 79
80 - 81
82 - 85
85 - 89
89 - 93
93 - 97

97 - 100

Shutter, Strobe, Reset, Lamp On/Off

Shutter closed
Shutter open
Strobe, fast!slow
Shutter open, lamp power reduced (MAC 2000 E only)

Opening pulse, fast !slow
Closing pulse, fast !slow
Shutter open
Random strobe, fast
Random strobe, medium
Random strobe, slow
Shutter open
Random opening pulse, fast
Random opening pulse, slow
Random closing pulse, fast
Random closing pulse, slow
Shutter open
Reset fixture

1

Shutter open
Lamp power on
Shutter open
Lamp power off (hold 5 seconds)

2

2

0 - 255 0 - 100

Intensity

0 ! 100%

3

0 - 255

0 - 127

128 - 255

0 - 100

0 - 50

50 -100

Cyan

White ! Cyan

Cyan limit for random CMY color
At least 0 ! 100%
At most 0 ! 100%

4

0 - 255

0 - 127

128 - 255

0 - 100

0 - 50

50 -100

Magenta

White ! Magenta

Magenta limit for random CMY color
At least 0 ! 100%
At most 0 ! 100%

5

0 - 255

0 - 127

128 - 255

0 - 100

0 - 50

50 -100

Yellow

White ! Yellow

Yellow limit for random CMY color
At least 0 ! 100%
At most 0 ! 100%

6

0 - 255 0 - 100

CTC

Cold ! Warm (0-178 mireds)

Table 5: DMX protocol

1

If reset is disabled, i.e., dRES=OFF,
the command executes only when
position 7 is selected on the color
wheel and gobo 5 is selected on both
gobo wheels.

2

If lamp off is disabled, i.e.,

dLOF=OFF, the command executes

only when position 7 is selected on the
color wheel and gobo 5 is selected on
both gobo wheels.

DMX protocol 25

7

0 - 20
20 - 40
40 - 60
60 - 80

80 - 100
100 - 120
120 - 140
140 - 160

160 - 163
164 - 167
168 - 171
172 - 175
176 - 179
180 - 183
184 - 187
188 - 191

192 - 217

218- 243

244 - 247
248 - 251
252 - 255

0 - 7

7 - 16
16 - 23
23 - 31
31 - 39
39 - 47
47 - 55
55 - 63

63 - 64
64 - 65
66 - 67
67 - 68
69 - 70
70 - 72
72 - 73
74 - 75

75 - 85
85 - 95

96 - 97
97 - 98

99 - 100

Color/Gobo Wheel

Continuous scroll
White ! Position 1
Position 1 ! Position 2
Position 2 ! Position 3
Position 3 ! Position 4
Position 4 ! Position 5
Position 5 ! Position 6
Position 6 ! Position 7
Position 7 ! Open

Stepped scroll
Position 7 (Dots)
Position 6 (Highways)
Position 5 (Triple Cone)
Position 4 (UV)
Position 3 (Blue 111)
Position 2 (Green 201)
Position 1 (Red 308)
Open

Continuous rotation
CW, fast ! slow
CCW, slow ! fast

Random CMY color (set limits on ch. 3 - 5)
Random color, fast
Random color, medium
Random color, slow

8

0 - 9

10 - 14
15 - 19
20 - 24
25 - 29
30 - 34

35 - 39
40 - 44
45 - 49
50 - 54
55 - 59

60 - 74
75 - 89

90 - 104
105 - 119
120 - 134

135 - 149
150 - 164
165 - 179
180 - 194
195 - 209

210 - 232
233 - 255

0 - 3

3 - 5
5 - 7
7 - 9

9 - 11

11 - 13

13 - 15
15 - 17
17 - 19
19 - 21
21 - 23

23 - 29
29 - 35
35 - 40
41 - 46
47 - 52

53 - 58
59 - 64
65 - 70
70 - 76
76 - 82

82 - 91

91 - 100

Gobo Wheel 1, Gobo & Function

Open

Indexed gobo rotation
Gobo 1 (Jet Fan)
Gobo 2 (Pipe Dreams)
Gobo 3 (Double Worms)
Gobo 4 (Inverted King Star)
Gobo 5 (Limbo)

Continuous gobo rotation
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5

Indexed gobo shake
Gobo 1, shake slow ! fast
Gobo 2, shake slow ! fast
Gobo 3, shake slow ! fast
Gobo 4, shake slow ! fast
Gobo 5, shake slow ! fast

Rotating gobo shake
Gobo 1, shake slow ! fast
Gobo 2, shake slow ! fast
Gobo 3, shake slow ! fast
Gobo 4, shake slow ! fast
Gobo 5, shake slow ! fast

Gobo wheel rotation
CW, slow ! fast
CCW, fast ! slow

DMX channel Start code = 0

8-bit 16-bit Value Percent Function

Table 5: DMX protocol

Set position / velocity on
next channel. Fine
position on ch. 10
(16-bit).

26 MAC 2000 Profile

99

0 - 255

0 - 2

3 - 127
128 - 252
253 - 255

0 - 100

0 - 1

1 - 50

50 - 98

99 - 100

Gobo Wheel 1, Position/Velocity

Coarse Position (MSB), Min ! Max

Rotation velocity
No rotation
CCW, slow ! fast
CW, fast ! slow
No rotation

-10
0 - 255 0 - 100

Gobo Wheel 1, Fine Position

Fine Position (LSB), Min ! Max

10 11

0 - 9

10 - 14
15 - 19
20 - 24
25 - 29
30 - 34

35 - 39
40 - 44
45 - 49
50 - 54
55 - 59

60 - 74
75 - 89

90 - 104
105 - 119
120 - 134

135 - 149
150 - 164
165 - 179
180 - 194
195 - 209

210 - 232
233 - 255

0 - 3

3 - 5
5 - 7
7 - 9

9 - 11

11 - 13

13 - 15
15 - 17
17 - 19
19 - 21
21 - 23

23 - 29
29 - 35
35 - 40
41 - 46
47 - 52

53 - 58
59 - 64
65 - 70
70 - 76
76 - 82

82 - 91

91 - 100

Gobo Wheel 2, Gobo & Function

Open

Indexed gobo rotation
Gobo 1 (Limbo Donut)
Gobo 2 (Triangle Cones)
Gobo 3 (Congo Star)
Gobo 4 (Space Sun)
Gobo 5 (Waves)

Continuous gobo rotation
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5

Indexed gobo shake
Gobo 1, shake slow ! fast
Gobo 2, shake slow ! fast
Gobo 3, shake slow ! fast
Gobo 4, shake slow ! fast
Gobo 5, shake slow ! fast

Rotating gobo shake
Gobo 1, shake slow ! fast
Gobo 2, shake slow ! fast
Gobo 3, shake slow ! fast
Gobo 4, shake slow ! fast
Gobo 5, shake slow ! fast

Gobo wheel rotation
CW, slow ! fast
CCW, fast ! slow

11 12

0 - 255

0 - 2

3 - 127
128 - 252
253 - 255

0 - 100

0 - 1

1 - 50

50 - 98

99 - 100

Gobo Wheel 2, Position/Velocity

Coarse Position (MSB), Min ! Max

Rotation velocity
No rotation
CCW, slow ! fast
CW, fast ! slow
No rotation

-13
0 - 255 0 - 100

Gobo Wheel 2, Fine Position

Fine Position (LSB), Min ! Max

DMX channel Start code = 0

8-bit 16-bit Value Percent Function

Table 5: DMX protocol

Set position / velocity on
next channel. Fine
position on ch. 13
(16-bit).

DMX protocol 27

12 14

0

1 - 175

176 - 183
184 - 191
192 - 199
200 - 207
208 - 215

216 - 220
221 - 225
226 - 230
231 - 235
236 - 240
241 - 245
246 - 250
251 - 255

0

1 - 68
69 - 72
72 - 75
75 - 78
78 - 81
81 - 84

85 - 86
87 - 88
89 - 90
91 - 92
92 - 94
94 - 96
96 - 98

98 - 100

Effect Wheel Selection and Macros

Effect selection
Open
Variable frost, 0 ! 100%
Effect 1, indexed rotation
Effect 2, indexed rotation
Effect 1, continuous rotation
Effect 2, continuous rotation
Open

Macro selection
1
2
3
4
5
6
7
8

13 15

0 - 255

0 - 2

3 - 127
128 - 252
253 - 255

0 - 100

0 - 1

1 - 50

50 - 98

99 - 100

Effect Wheel, Position / Velocity

Position, Min ! Max

Rotation velocity
No rotation
CCW, slow ! fast
CW, fast ! slow
No rotation

14 16

0 - 199
200 - 215
216 - 229
230 - 243
244 - 246
247 - 249
250 - 252
253 - 255

0 - 78
78 - 84
85 - 90
90 - 95
96 - 96
97 - 98
98 - 99

99 - 100

Iris

Open ! closed
Closed
Pulse opening, fast !slow
Pulse closing, fast !slow
Random pulse opening, fast
Random pulse opening, slow
Random pulse closing, fast
Random pulse closing, slow

15 17

0 - 255 0 - 100

Focus

Infinity ! near

16 18

0 - 255 0 - 100

Zoom

Flood ! spot

17 19

0 - 255 0 - 100

Pan Coarse (MSB)
Left ! right (128 = neutral)

-20
0 - 255 0 - 100

Pan Fine (LSB)
Left ! right

18 21

0 - 255 0 - 100

Tilt Coarse (MSB)
Up ! down (128 = neutral)

-22
0 - 255 0 - 100

Tilt Fine (LSB)
Up ! down

19 23

0 - 2

3 - 242
243 - 245
246 - 248
249 - 251
252 - 255

0

1 - 95
95 - 96
96 - 97

98

99 - 100

Pan/Tilt Speed

Tracking
Fast ! slow
Tracking, PTSP = SLOW (slow pan/tilt speed)
Tracking, PTSP = NORM (normal pan/tilt speed)
Tracking, PTSP = FAST (fast pan/tilt speed)
Blackout

20 24

0 - 2

3 - 239
240 - 242
243 - 245
246 - 248
249 - 251
252 - 255

0 - 1

1 - 94
94 - 95
95 - 96
96 - 97
98 - 98

99 - 100

Effect Speed (Dimmer, Color, Gobos, Effects,
Indexed Rotation, Iris, Focus, and Zoom)

Tracking
Fast ! slow
Tracking, STUd = OFF (studio mode off)
Tracking, STUd = ON (studio mode on)
Tracking, SCUT = OFF (shortcuts off)
Tracking, SCUT = ON (shortcuts on)
Fast. Blackout “speed” for color wheel

DMX channel Start code = 0

8-bit 16-bit Value Percent Function

Table 5: DMX protocol

Set position / velocity
on next channel.

28 MAC 2000 Profile

C

ONTROL MENU

Menu Item Options Notes (Default settings in bold print)

AddR - 1-512

DMX address

PSET -

8bit

Full control with coarse pan, tilt, and gobo indexing

16bt

Full control with fine pan, tilt, and gobo indexing

PATI

SWAP

ON

Map DMX pan control to tilt channel and vice versa.

OFF

Normal pan and tilt control

PINV

ON

Reverse DMX pan control, right ! left

OFF

Normal pan control, left ! right

TINV

ON

Reverse DMX tilt control, down ! up

OFF

Normal tilt control, up ! down

PTSP -

NORM

Medium pan/tilt speed

FAST

Optimize movement for speed

SLOW

Optimize movement for smoothness

Stud -

OFF

Optimize effects for speed

ON

Optimize effects for silence

PERS

dISP

ON

Display remains on

OFF

Display extinguishes 2 minutes after last key press

dINT 10-100

Adjust display intensity

dLOF

ON

Enable DMX lamp off command

OFF

Disable DMX lamp off command

dRES

ON

Enable DMX reset command

OFF

Disable DMX reset command

ALON

ON

Lamp strikes automatically within 90 seconds of power on

OFF

No automatic lamp strike

dMX

Lamp strikes if DMX is present, douses 15 mins. after it’s missing

SCUT

ON

Color, gobo, and effect wheels turn shortest distance

OFF

Color, gobo, and effect wheel paths oscillate

TRAC

MOdE

MOd1: Absolute delta value algorithm (for most controllers)
moD2: Real delta value algorithm

CAL

1-10.

Tracking samples. Increase if pan/tilt is not smooth.

(Default = 6)

CSPd

NORM

Normal color/gobo wheel speed.

FAST

Increases gobo/color wheel acceleration to maximum and provides
faster color bumps. Note that gobo/color wheel step loss my occur
under low power or high temperature conditions that decrease
motor torque. The NORM option is slower, but less prone to step
loss.

dFSE

FACT LOAD

Return all personality settings (not calibrations) to factory defaults

CUS1,CUS2,
CUS3

LOAd

Load custom configuration

SAVE

Save current configuration

Table 6: Control menu

Control menu 29

INFO

TIME/HRS

TOTL

Total hours of operation since fabricated

RSET

Hours of operation since counter reset. To reset, display counter
and press [↑] for 5 seconds.

TIME/L HR

TOTL

Total hours of operation with lamp on since fabricated

RSET

Lamp hours since counter reset. To reset, display counter and
press [↑] for 5 seconds.

TIME/L ST

TOTL

Total number of lamp strikes since fabricated

RSET

Number of lamp strikes since counter reset. To reset, display
counter and press [↑] for 5 seconds.

TEMP

HEAd

Head temperature

bASE

Base temperature

VER -

CPU firmware version

dMXL -

STCO

Decimal value of the DMX start code. The start code must be 0 for
the MAC 2000 Profile to function properly.

dIM..E SP

DMX value (from 0 - 255) received for each channel.

Menu Item Options Notes (Default settings in bold print)

Table 6: Control menu

30 MAC 2000 Profile

MAN

RST -

Reset fixture

L ON -

Lamp on

LoFF -

Lamp off

SHUT

OPEN

Open shutter

CLOS

Close shutter

STRF

Fast strobe

STRM

Medium strobe

STRS

Slow strobe

dIM 0-255

Dimmer

CYAN,
MAG,YEL

0-255

White →Cyan/Magenta/Yellow

CTC 0-255

Color temperature correction. Cold →Warm (0-178 mireds)

COL

OPEN

Color wheel in open position.

C1-C7

Color wheel positions 1 →7.

CW F

Clockwise rotation - fast

CCWF

Counter clockwise rotation - fast

CW M

Clockwise rotation - medium

CCWM

Counter clockwise rotation - medium

CW S

Clockwise rotation - slow

CCWS

Counter clockwise rotation - slow

RNdF

Random color - fast

RNdM

Random color - medium

RNdS

Random color - slow

gOb1

OPEN

Gobo wheel 1. Open position

g1 I-g5 I

Gobo wheel 1. Indexed gobos 1→5

g1 g-g5 R

Gobo wheel 1. Rotating gobos 1→5

g1IS-g5IS

Gobo wheel 1. Indexed gobo shake 1→5

g1RS-g5RS

Gobo wheel 1. Rotating gobo shake 1→5

CW F

Gobo wheel 1. Clockwise rotation - fast

CCWF

Gobo wheel 1. Counter clockwise rotation - fast

CW M

Gobo wheel 1. Clockwise rotation - medium

CCWM

Gobo wheel 1. Counter clockwise rotation - medium

CW S

Gobo wheel 1. Clockwise rotation - slow

CCWS

Gobo wheel 1. Counter clockwise rotation - slow

I/S1 0-255

Clockwise rotation of gobo wheel 1. Slow→fast.

Menu Item Options Notes (Default settings in bold print)

Table 6: Control menu

Control menu 31

MAN
cont.

gOb2

OPEN

Gobo wheel 2. Open position

g1 I-g5 I

Gobo wheel 2. Indexed gobos 1→5

g1 g-g5 R

Gobo wheel 2. Rotating gobos 1→5

g1IS-g5IS

Gobo wheel 2. Indexed gobo shake 1→5

g1RS-g5RS

Gobo wheel 2. Rotating gobo shake 1→5

CW F

Gobo wheel 2. Clockwise rotation - fast

CCWF

Gobo wheel 2. Counter clockwise rotation - fast

CW M

Gobo wheel 2. Clockwise rotation - medium

CCWM

Gobo wheel 2. Counter clockwise rotation - medium

CW S

Gobo wheel 2. Clockwise rotation - slow

CCWS

Gobo wheel 2. Counter clockwise rotation - slow

I/S2 0-255

Clockwise rotation of gobo wheel 2. Slow→fast.

EFF

F 0-F175

Effects. Variable frost 0→100%

E1 I-E2 I

Effect 1 or 2 - indexed rotation.

E1 R-E2 R

Effect 1 or 2 - continuous rotation.

I/SE

STOP

Effect wheel - no rotation.

R 1-R125

Effect wheel - clockwise rotation. Slow→fast.

L125-L 1

Effect wheel - counter clockwise rotation. Fast→slow.

STOP

Effect wheel - no rotation.

IRIS

I 0-I199

Iris - Open→Closed

POUT

Pulse opening

P IN

Pulse closing

RNdO

Random pulse opening

RNdI

Random pulse closing

FOC 0-255

Focus - Infinity→Near

ZOOM 0-255

Zoom - Flood→spot

PAN 0-255

Pan - Left→Right

TILT 0-255

Tilt - Up→Down

TSEQ - RUN

Run a general test of all effects

Menu Item Options Notes (Default settings in bold print)

Table 6: Control menu

32 MAC 2000 Profile

UTIL

(Press
and hold
Enter for a
few
seconds
to use this
menu)

FEbA

ON

Enable pan/tilt position correction system

OFF

Disable pan/tilt feedback. Setting not saved.

EFFb

ON

Enable on the fly reset of color, gobo, and effect wheels

OFF

Disable on the fly reset of color, gobo, and effect wheels

Adj -

See Table 7

CAL/P OF 1-255

Pan offset

CAL/T OF 1-255

Tilt offset

CAL/d OF 1-255

Dimmer offset

CAL/C OF 1-255

Cyan offset

CAL/M OF 1-255

Magenta offset

CAL/Y OF 1-255

Yellow offset

CAL/CTOF 1-255

CTC offset

CAL/COOF 1-255

Color wheel offset

CAL/G1OF 1-255

Gobo wheel 1 offset

CAL/G2OF 1-255

Gobo wheel 2 offset

CAL/EFOF 1-255

Effect wheel offset

CAL/IROF 1-255

Iris offset

CAL/FOOF 1-255

Focus offset

CAL/ZOOF 1-255

Zoom offset

dFOF SURE

Return all offsets to the default settings

PCbT LEd

PCB test for service use only.

UPLd SURE

Manually set fixture to software update mode

SMSG

Replace lamp

Displayed when lamp hours exceed average life (750 hours)

Fixture overheating

Displayed if head temperature exceeds 120° C (248° F)

Menu Item Options Notes (Default settings in bold print)

Table 6: Control menu

Adjustment submenu 33

A

DJUSTMENT SUBMENU

This menu is located under UTIL/Adj.

Menu Item Options Notes

RST - -

Reset fixture

L ON - -

Strike lamp

LoFF - -

Douse lamp

HEAd

dIM

Adj

Turn dimmer to adjustment position (closed mechanical stop)

OPEN

Open dimmer

CLOS

Close dimmer

STRO

Strobe

CYAN, MAG,
YEL, CTC

MIN

Color flags out

MAX

Color flags in

COL

OPEN

Turn color wheel to open position

Adj

Turn color wheel to adjustment position

C1-C7

Select color

GOb1, GOb2

OPEN

Turn gobo wheel to open position

Adj

Turn gobo wheel 1 to adjustment position

G1 I-G5 I

Turn gobos to index position

G1-G5LS

Select and rotate gobos

EFF

OPEN

Turn effect wheel to open position

Adj

Turn effect wheel to adjustment position

FROS

Turn effect wheel to maximum frost position

EFF1-E2LS

Select and rotate effects

IRIS

Adj

Set iris to adjustment position (open mechanical stop)

OPEN

Open iris

CLOS

Close iris

FOCU

NEAR

Move focus lens to front

FAR

Move focus lens to back

ZOOM

NARR

Zoom to full spot

WIdE

Zoom to full flood

PATI -

NEUT

Move pan and tilt to neutral positions

PNTd

Pan neutral, tilt down

PNTU

Pan neutral, tilt up

PLTN

Pan left, tilt neutral

PRTN

Pan right, tilt neutral

PLTd

Pan left, tilt down

PRTU

Pan right, tilt up

Table 7: Adjustment menu

34 MAC 2000 Profile

D

ISPLAY MESSAGES

Message Appears when... What to do

RST (Reset) ... the fixture is indexing effects at startup. Wait for reset to complete.

SRST (Serial reset)

... the fixture has received a reset command
from the controller.

Wait for reset to complete. Set
PERS/dRES to off to prevent accidental
reset commands.

HOME

... the effects have been indexed and are
moving to their default positions.

Wait a few moments.

OPEN

...the lamp access cover is not fully closed.

Verify that the lamp access cover is loc ked
in place.

LERR (Lamp error)

... the lamp doesn’t ignite within 10 minutes of
receiving the ‘Lamp ON’ command. Likely
reasons are a missing or defective lamp, or
insufficient AC voltage.

Check the lamp. Check that the voltage
and frequency settings match the local
supply .

MERR (Memory error) ...the EEPROM memory cannot be read.

Contact Martin service personnel for
assistance.

ShER (Short error)

... the fixture detects the lamp is ON but no
‘Lamp ON’ command has been received. This
can occur if the lamp relay is stuck or if the
lamp-power feedback circuit fails. The fixture
may be operated but remote lamp on/off may
be effected.

Contact Martin service personnel for
assistance.

bTER (Base temperature error)
HTER (Head temperature error)

... there is a fault with the temperature sensor
in the base or head.

Contact Martin service personnel for
assistance.

FbEP (Feedback error pan)
FbET (Feedback error tilt)
FbER (Feedback error pan/tilt)

...pan (FbEp), tilt (FbET) or both (FbER)
feedback circuits are malfunctioning. It will still
be possible to operate the fixture, though it
goes into a “safe” mode where maximum
speed is reduced, thus preventing the fixture
from losing track of its home position (losing
step).

Contact Martin service personnel for
assistance.

PAER (Pan time-out)
TIER (Tilt time-out)
CYER (Cyan time-out)
MAER (Magenta time-out)
YEER (Yellow time-out)
CTER (CTC time-out)
FOER (Focus time-out)
ZOER (Zoom time-out)

...the electric indexing circuit is
malfunctioning. The fixture will, after the
time-out, establish a mechanical stop, and
continue to work normally.

Reset fixture again. Contact Martin
service personnel if problem continues.

COER (Color wheel time-out)
g1ER (Gobo wheel 1 time-out)
R1ER (Gobo wh. 1 index time-out)
g2ER (Gobo wheel 2 time-out)
R2ER (Gobo wh. 2 index time-out)
EFER (Effect wheel time-out)
REER (Effect wheel index time-out)

...the magnetic-indexing circuit malfunctions
(e.g. sensor defective or magnet missing).
After the time-out, the effect in question stops
in a random position.

Reset fixture again. Contact Martin
service personnel if problem continues.

S3SC (Gobo wh. sensor short)
S4SC (Gobo rot. sensor short)
S5SC (Effect wh. sensor or

zoom/focus switch short)

S6SC (Color wh. or effect rot.

sensor short)

S7SC (Yellow or CTC switch short)
S8SC (Cyan or magenta switch

short)

...an effect does not move awa y from the index
position under reset, a sensor or micro-switch
circuit is shorted, or a micro-switch is stuck or
connected incorrectly.

Contact Martin service personnel for
assistance.

Table 8: Display messages

Troubleshooting 35

T

ROUBLESHOOTING

Problem Probable cause(s) Remedy

One or more of the fixtures is
completely dead.

No power to fixture.

Check that power is switched on and cables are

plugged in.
Primary fuse blown (located near mains inlet). Disconnect fixture and replace fuse.
Secondary fuse(s) blown (located on PCB

inside base).

Disconnect fixture. Check fuses on PCB and

replace.

Fixtures reset correctly but
respond erratically or not at all
to the controller.

Bad data link.

Inspect connections and cables. Correct poor

connections. Repair or replace damaged cables.
Data link not terminated.

Insert termination plug in output jack of the last

fixture on the link.
Incorrect addressing of the fixtures. Check fixture address and protocol settings.

One of the fixtures is defective and disturbs
data transmission on the link.

Bypass one fixture at a time until normal operation

is regained: unplug the XLR in and out connectors

and connect them directly together. Hav e the fixture

serviced by a qualified technician.
XLR pin-out on fixtures does not match (pins

2 and 3 reversed).

Install a phase-reversing cable between the fixtures

or swap pins 2 and 3 in the fixture that behaves

erratically.

Magnetically indexed effect
resets correctly but wanders
after fixture reaches operating
temperature.

Effect wheel requires mechanical adjustment.

Disable effects feedback (page15). Contact Martin

technician for service.

Mechanical effect loses
position.

The transformer setting does not match local
voltage.

Disconnect fixture. Check transformer setting and

correct if necessary.
Mechanical train requires cleaning,

adjustment, or lubrication.

Contact Martin technician for service.

No light and “LERR” error
message displayed.

The ballast and transformer settings do not
match local AC voltage and frequency.

Disconnect fixture. Check ballast and transformer

settings and correct if necessary.
Lamp blown Disconnect fixture and replace lamp.
Lamp not installed Disconnect fixture and install lamp.

Lamp access safety switch open

Verify that lamp access plate is fully seated and

locked in place.
Lamp too hot to strike

Send a lamp off command. Allow the lamp to cool

for 5 - 10 minutes and try again.

Lamp cuts out intermittently.

Fixture is too hot.

Allow fixture to cool.

Clean air filters.

Reduce ambient room temperature.
The ballast and transformer settings do not

match local AC voltage and frequency.

Disconnect fixture. Check ballast and transformer

settings and correct if necessary.

Table 9: Troubleshooting

36 MAC 2000 Profile

C

IRCUIT BOARD CONNECTIONS

PL1182

PL401 PL402

PL805

PL804

PL704

PL1001

PL1002

PL1009

PL1101

PL403

PL404

PL1109

PL501

PL503

PL502

PL603

PL602

PL601

PL605

PL604

PL701

PL203PL202

PL108

PL206

PL903

PL901

PL904

PL905

F902 F901

PL214 PL212

PL211PL213

PL215

PL309

PL308

PL307

PL306

PL303

PL304

PL305

PL104

PL105

PL106

PL107

PL102

PL103

PL302 PL301

1 (EFFECT WHEEL)

1 (EFFECT WHEEL)

2 (ROT.EFFECT)

2 (ROT.EFFECT)

7 (IRIS)

7 (IRIS)

8 (GOBO 2)

8 (GOBO 2)

5 (GOBO 1)

5 (GOBO 1)

6 (COLOR)

6 (COLOR)

10 (ROT. GOBO 2)

10 (ROT. GOBO 2)

4 (ROT. GOBO 1)

4 (ROT. GOBO 1)

12 (DIMMER)

12 (DIMMER)

16 (CYAN)

16 (CYAN)

14 (MAGENTA)

14 (MAGENTA)

13 (YELLOW)

13 (YELLOW)

15 (CTC)

15 (CTC)

9 (FOCUS)

9 (FOCUS)

3 (ZOOM)

3 (ZOOM)

24 (LIGHT SENSOR)

24 (LIGHT SENSOR)

PL201

PL204

21 (P/T SWITCH)

21 (P/T SWITCH)

22 (OPTO 1)

22 (OPTO 1)

23 (OPTO 2)

23 (OPTO 2)

PL902

TILT

PAN

GND

DISPLAY

F1 (FAN HEAD SMALL)

F1 (FAN HEAD SMALL)

(FAN HEAD SMALL)

(FAN HEAD SMALL)

F2 (FAN HEAD LARGE)

F2 (FAN HEAD LARGE)

(FAN HEAD LARGE)

(FAN HEAD LARGE)

FAN BASE

FAN BASE

FAN BASE

FAN BASE

ELEC. BALLAST

ELEC. BALLAST

BLACK

BROWN

(BLUE)

(BLUE)

6.3 AT 4.0 AT

12V AC ORA.

12V AC ORA.

12V AC YEL.

24V AC BLACK

24V AC BLACK

24V AC RED

24V AC RED

LINK

PL103

TRANSMISION ENA.

TRANSMISION DISA.

UPLOAD ENA.
UPLOAD DISA.

LOCK

BOOT

(DOOR
SWITCH)

HEAD TEMP. SENSOR

HEAD TEMP. SENSOR

FUSEFUSE

25

25 26

26

P/N 33120024-B

MADE IN DENMARK BY

MARTIN PROFESSIONAL A/S

(C) 2000 01001513C

11

19 (EFFECT, ROT.

19 (EFFECT, ROT.

EFFECT SENSOR)

20 (GOBO SENSOR)

20 (GOBO SENSOR)

18 (CMY SWITCH)

18 (CMY SWITCH)

CPU

D

+30V

+12V

+5V

LD402LD401

+5V ISO

Specifications 37

S

PECIFICATIONS

PHYSICAL

Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408 mm (16.0 in)

Width:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490 mm (19.3 in)

Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 743 mm (29.3 in)

W eight, w/ electronic ballast:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 kg (89 lbs)

W eight, w/ magnetic ballast: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47 kg (103 lbs)

SOURCE

Lamp: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200 W short arc discharge

Base:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Double-ended SFc 10-4 with key

Approved models: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Osram HMI 1200 W/S Short-Arc

Control: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . automatic and remote, hot re-strike w/ electronic ballast

THERMAL

Maximum ambient temperature (Ta):. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° C (104° F)

Maximum surface temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140° C (284° F)

CONTROL AND PROGRAMMING

Protocol: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USITT DMX-512 (1990)

Receiver:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Opto-isolated RS-485

Control channels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 or 24

Data I/O: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . locking 3-pin & 5-pin XLR, pin 1 shield, pin 2 cold (-), pin 3 hot (+)

ELECTRICAL

AC input: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 m trailing cable w/o cord cap

Wiring options, magnetic ballast: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208, 230, 245 V / 50 Hz; 208, 230 V / 60 Hz

Wiring options, electronic ballast: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100, 120, 210, 230, 250 V / 50-60 Hz

Main fuses (2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T 20 A, 250 V

Fuse F901 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T 4 A, 250 V

Fuse F902 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T 6.3 A, 250 V

MAXIMUM POWER AND CURRENT, MAGNETIC BALLAST

208 V / 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600 W, 10.0 A

230 V / 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500 W, 8.3 A

245 V / 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1560 W, 7.9 A

MAXIMUM POWER AND CURRENT, ELECTRONIC BALLAST

100 V / 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1560 W, 18.2 A

120 V / 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1510 W, 15.0 A

210 V / 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500 W, 9.7 A

230 V / 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1540 W, 9.2 A

250 V / 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1540 W, 8.3 A

DESIGN STANDARDS

EU EMC: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 50 081-1, EN 50 082-1

EU safety:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 60598-1, EN 60598-2-17

Canadian safety: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CSA C22.2 No. 166

US safety: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ANSI/UL 1573

CONSTRUCTION

Housing: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UV-resistant fiber-reinforced composite

Protection factor: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IP 20

38 MAC 2000 Profile

INSTALLATION

Mounting points: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 pairs of 1/4-turn locks, offset 45°

Orientation:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . any

ACCESSORIES

MP-2 Uploader: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90758420

G-clamp:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602003

Half-coupler clamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602005
