Martin Professional MAC 2000 Performance II User Manual

Download

Page 1

MAC 2000

Performance II

user manual

Page 2

743

613

488

171

408

10° 28°

133½°133½°

271

759

270°270°

490

530

545

min c/c

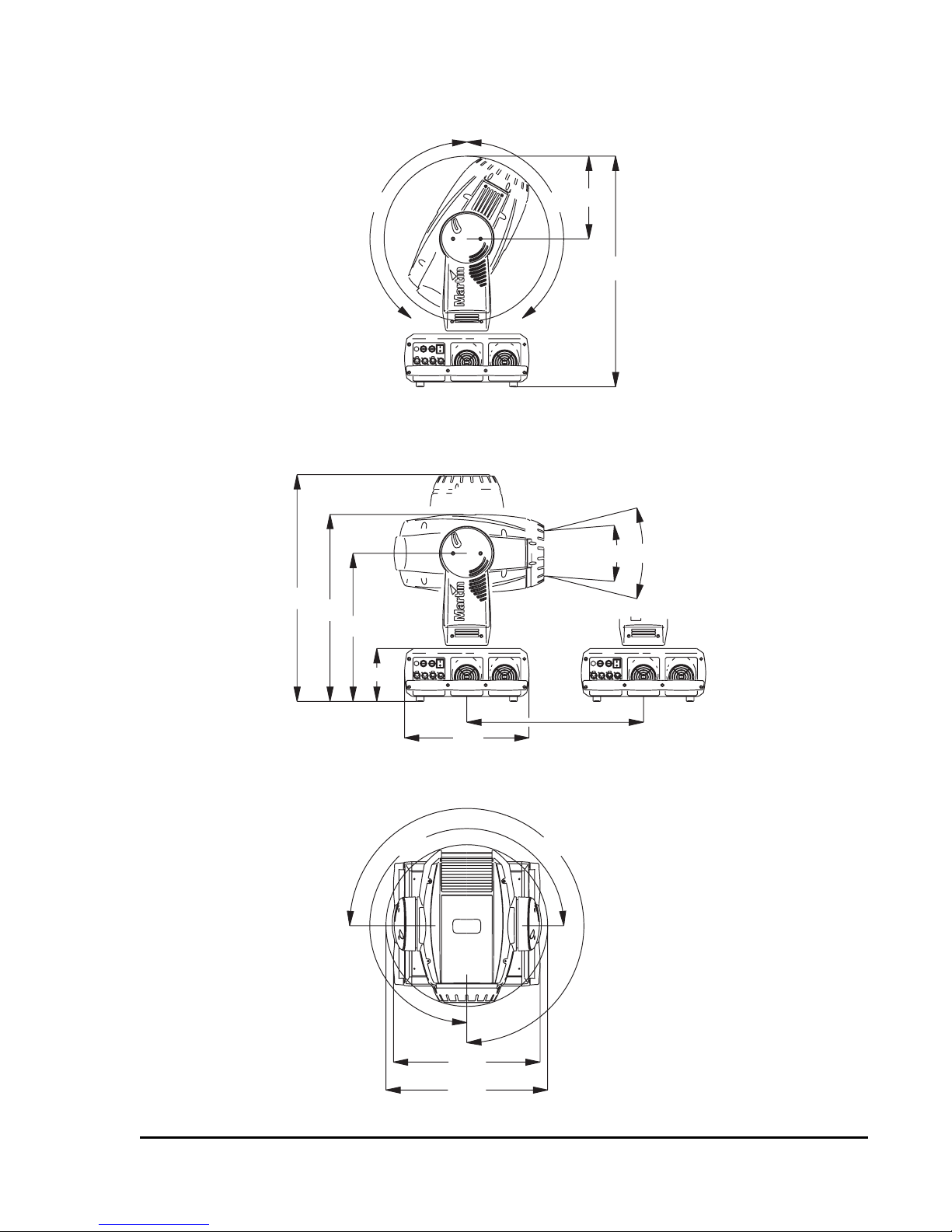

Dimensions

All dimensions are in millimeters

means, without permission in writing from Martin Professional A/S, Denmark. Information subject to change without notice. Martin

Professional A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or eco-

nomic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual.

P/N 35000103 Rev. H

Page 3

ONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TRANSPORTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Included items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Transport locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Single flight case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Double flight case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

LAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Lamp replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Replacing the lamp socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

AC POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Power supply adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Power connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Reduced power function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting fixtures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

RIGGING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DMX address and protocol setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Tailoring performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Readouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Service messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Service utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

EFFECTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Framing shutters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Gobos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Gobo animation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Dimming and strobe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Color mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Color temperature correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Effect wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Iris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Focus and zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Pan and tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Speed control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ANIMATION GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

General animation tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Animation discs and their uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Effects ideas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

OPTICAL CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Rotating gobo wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Effect wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Gobo animation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

ROUTINE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

DMX PROTOCOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

16-bit protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

8-bit protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Page 4

CONTROL MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

ADJUSTMENT SUBMENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

DISPLAY MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

CIRCUIT BOARD CONNECTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

SPECIFICATIONS

MAC 2000 PERFORMANCE II. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Page 5

NTRODUCTION

Thank you for selecting the MAC 2000 Performance II. The MAC 2000 Performance II is a 1200 W moving head spotlight that provides CMY color mixing, continuous color correction (CTC), four-blade framing system, motorized iris, gobo wheel with five indexable rotating gobos, indexable gobo animation wheel, effect wheel with 3 effects (wide-angle converter lens, non-rotating nine-facet prism and variable frost), combined dimmer/shutter, focus, zoom, 540° of pan, and 267° of tilt. The MAC 2000 Performance II has an electronic ballast that provides flicker-free operation, an economic power-saving mode. and an auto-ranging switch-mode power supply (SMPS) that removes the need for manual adjustments to the transformer or ballast.

For the latest firmware updates, documentation, and other information about this and all Martin Professional products, please visit the Martin web site at http://www.martin.com.

Safety information

Warning! This product is for professional use only. It is not for household use.

This product presents risks of lethal or severe injury due to fire and heat, electric shock, ultraviolet radiation, lamp explosion, and falls. Read this manual before powering or installing the fixture, follow the safety precautions listed below and observe all warnings in this manual and printed on the fixture. If you have questions about how to operate the fixture safely, please contact your Martin dealer or call the Martin 24-hour service hot line at +45 70 200 201.

P r o t e c t i o n f r o m e l e c t r i c s h o c k

• Disconnect the fixture from AC power before removing or installing the lamp, fuses, or any part, and when not in use.

• Always ground (earth) the fixture electrically.

• Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault protection.

• Do not expose the fixture to rain or moisture.

• Refer any service operation not described in this manual to a qualified technician.

P r o t e c t i o n f r o m U V r a d i a t i o n a n d l a m p e x p l o s i o n

• Do not operate the luminaire with missing or damaged covers, shields, lenses or ultraviolet screens: an unshielded discharge lamp emits UV radiation that can cause burns and eye damage.

• Do not stare directly into the light output. Never look at an exposed lamp while it is lit.

• A hot discharge lamp is under pressure and can explode without warning. Allow the luminaire to cool for at least 20 minutes and protect yourself with safety glasses and safety gloves before replacing the lamp or servicing the luminaire internals.

• If the quartz envelope of a discharge lamp is broken, the lamp releases a small quantity of mercury and other toxic gases. If a discharge lamp explodes in a confined area, evacuate the area and ventilate it thoroughly. Wear non-porous safety gloves when handling a broken discharge lamp. Treat broken or used discharge lamps and used safety gloves as hazardous waste and send to a specialist for disposal.

• Replace the lamp if it becomes visually deformed, damaged or in any way defective

• Replace the lamp when it reaches the limit of its average life as specified in this manual or by the lamp manufacturer.

• Install only an approved lamp.

Page 6

P r o t e c t i o n f r o m b u r n s a n d f i r e

• Never attempt to bypass the thermostatic switch or fuses. Always replace defective fuses with ones of the specified type and rating.

• Keep all combustible materials (for example fabric, wood, paper) at least 1.0 meter (39 inches) away from the fixture. Keep flammable materials well away from the fixture.

• Do not illuminate surfaces within 1.0 meter (39 inches) of the fixture.

• Provide a minimum clearance of 0.1 meters (4 inches) around fans and air vents.

• Never place filters or other materials over the lens.

• The exterior of the fixture can get very hot. Allow the fixture to cool for at least 5 minutes before handling.

• Do not modify the fixture or install other than genuine Martin parts.

• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

P r o t e c t i o n f r o m i n j u r y d u e t o f a l l s

• Do not lift or carry the fixture alone.

• When suspending the fixture, verify that the structure can hold at least 10 times the weight of all installed devices.

• Verify that all external covers and rigging hardware are securely fastened and use an approved means of secondary attachment such as a safety cable.

• Block access below the work area whenever installing or removing the fixture.

Page 7

RANSPORTATION

Important! Release the transport locks before operating the fixture.

Included items

The MAC 2000 Performance II is shipped in a cardboard carton or 1 or 2 unit flight case that contains the following items.

• User manual

• 2 x 20 A main fuses (for use with 100-130 V local power supply)

• 2 x 15 A main fuses (for use with 200-250 V local power supply)

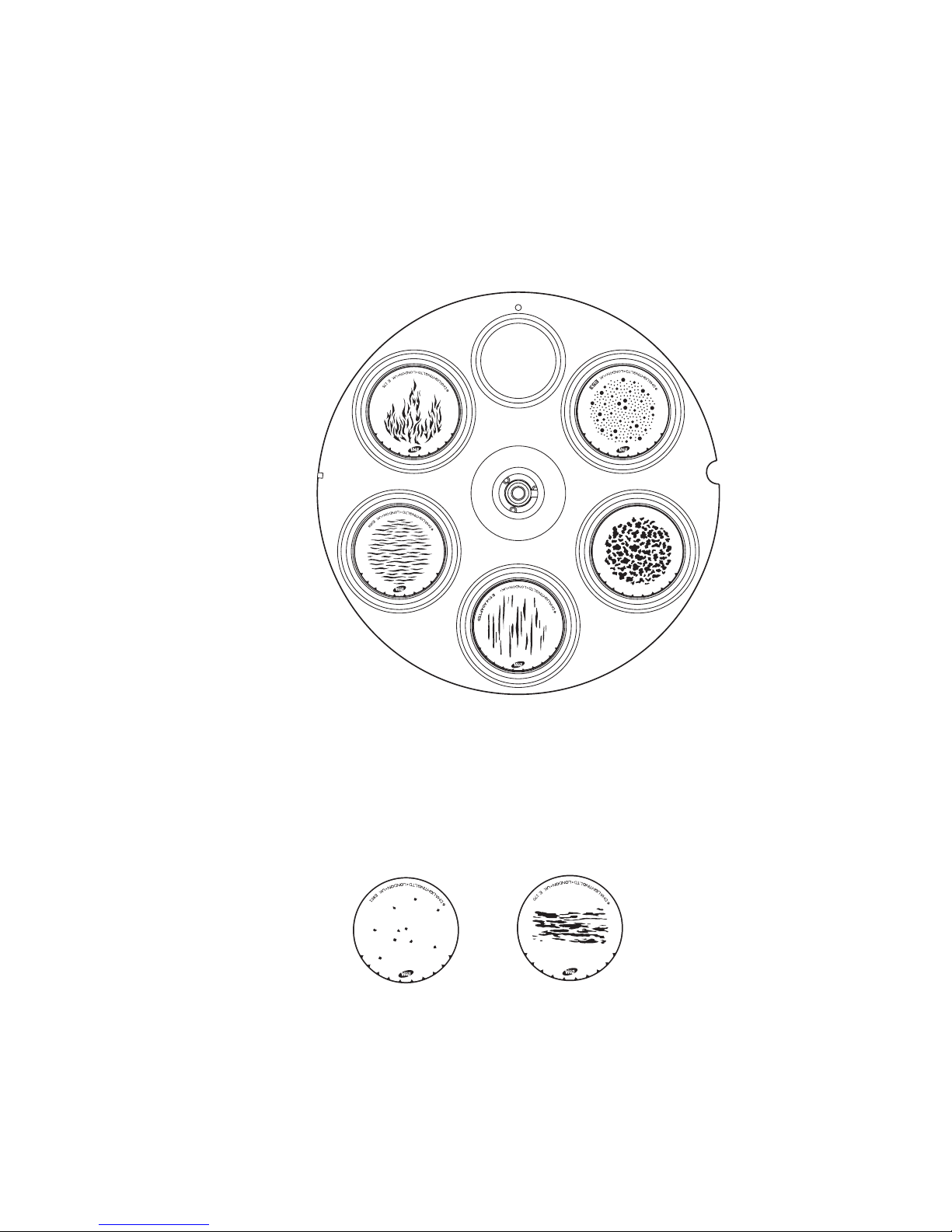

• 4 additional animation wheels

• 2 aluminium gobos

• 2 clamp attachment brackets

Transport locks

The head and yoke may be locked for transportation and service. The locks are shown in Figure 1. The fixture must be unlocked before operation.

Single flight case

U n p ac k i n g t h e f i x t u r e

1 Remove the top of the flight case.

2 With one person on each side, lift the fixture out of the bottom of

the flight case.

3 Release the pan and tilt locks before operating.

P ac k i n g t h e f i x t u r e

1 Disconnect the fixture from power and allow it to cool.

2 Lock the head and yoke in the position shown in Figure 2.

3 Place the fixture in the bottom of the flight case. Place the top

section over the fixture without forcing.

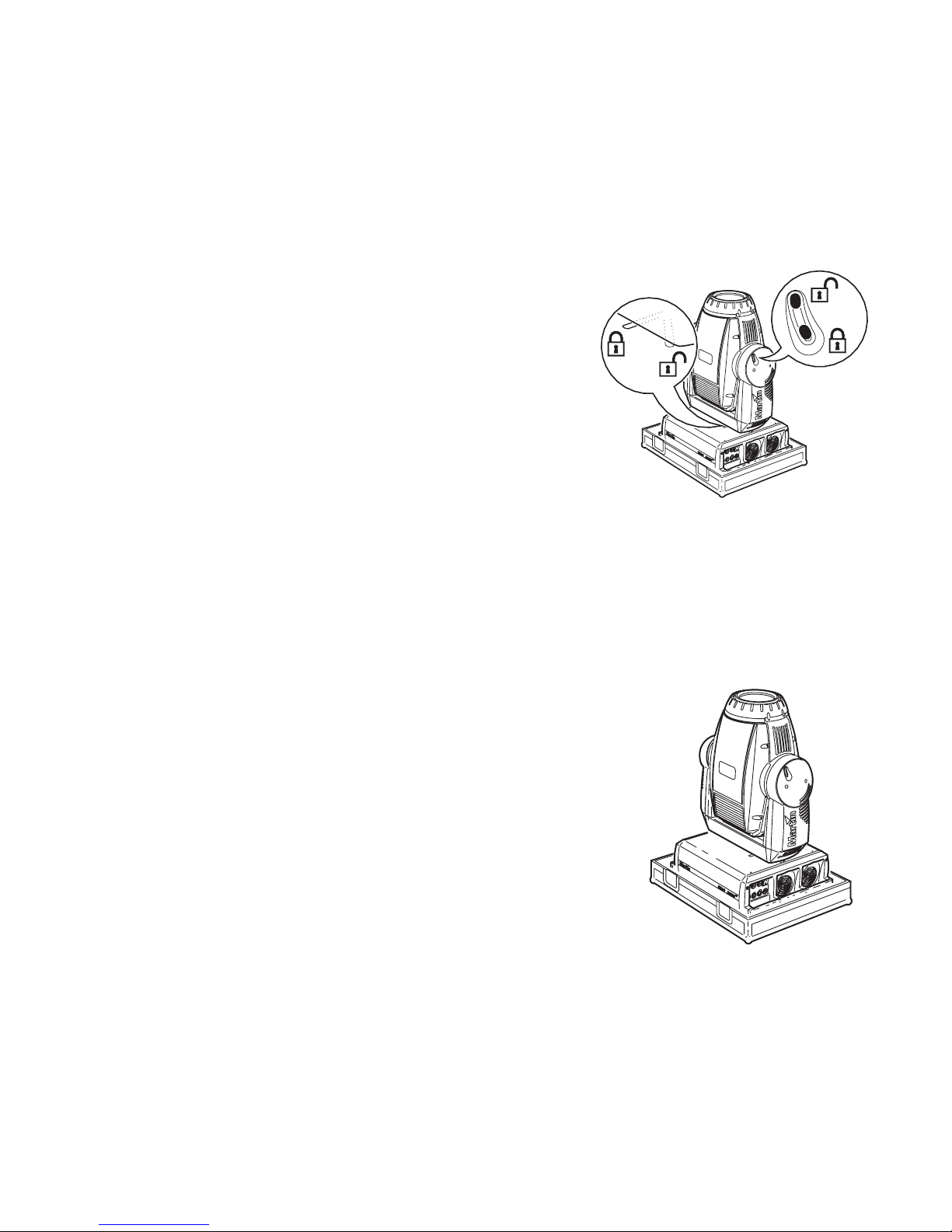

Figure 1: Pan and tilt locks

Figure 2: Single unit transport position

Page 8

Double flight case

U n p ac k i n g

1 Open the flight case and pull the drawer all the way out.

2 Release the head (tilt) transport lock.

3 Install rigging hardware as described on page 11.

4 With one person on each side, lift the fixture out of the flight

case.

P ac k i n g

1 Disconnect the fixture from power and allow it to cool.

2 Turn the yoke parallel to the sides of the base with the tilt

lock closest to the back.

3 Pull the transport drawer all the way out. With one person

on each side, place the fixture on the drawer with the arrow pointing in.

4 Remove and stow rigging hardware. Coil and stow the

power cord in the door.

5 Tilt the head so that the lens points away from the door as

shown in Figure 3. Lock the head in the horizontal position. Do not lock the yoke.

6 Slide the drawer all the way in without forcing. Close the

flight case.

S et u p f o r f l i g h t c a s e t e s t i n g

The double flight case has two slide-out arms from which the fixture can hang for testing and setting. Though unnecessary, the pan and tilt reset can be cancelled by pressing [Menu] and [Enter] at the same time when powering on.

1 Open the flight case and pull the drawer all the way out. Release the transport locks.

2 Pull the test arms all out. Tilt the fixture up and over the slide arms so that the handle cross-braces that are

second from the back rest on the arms. The fixture should rest at an angle.

3 Push the transport drawer into the flight case.

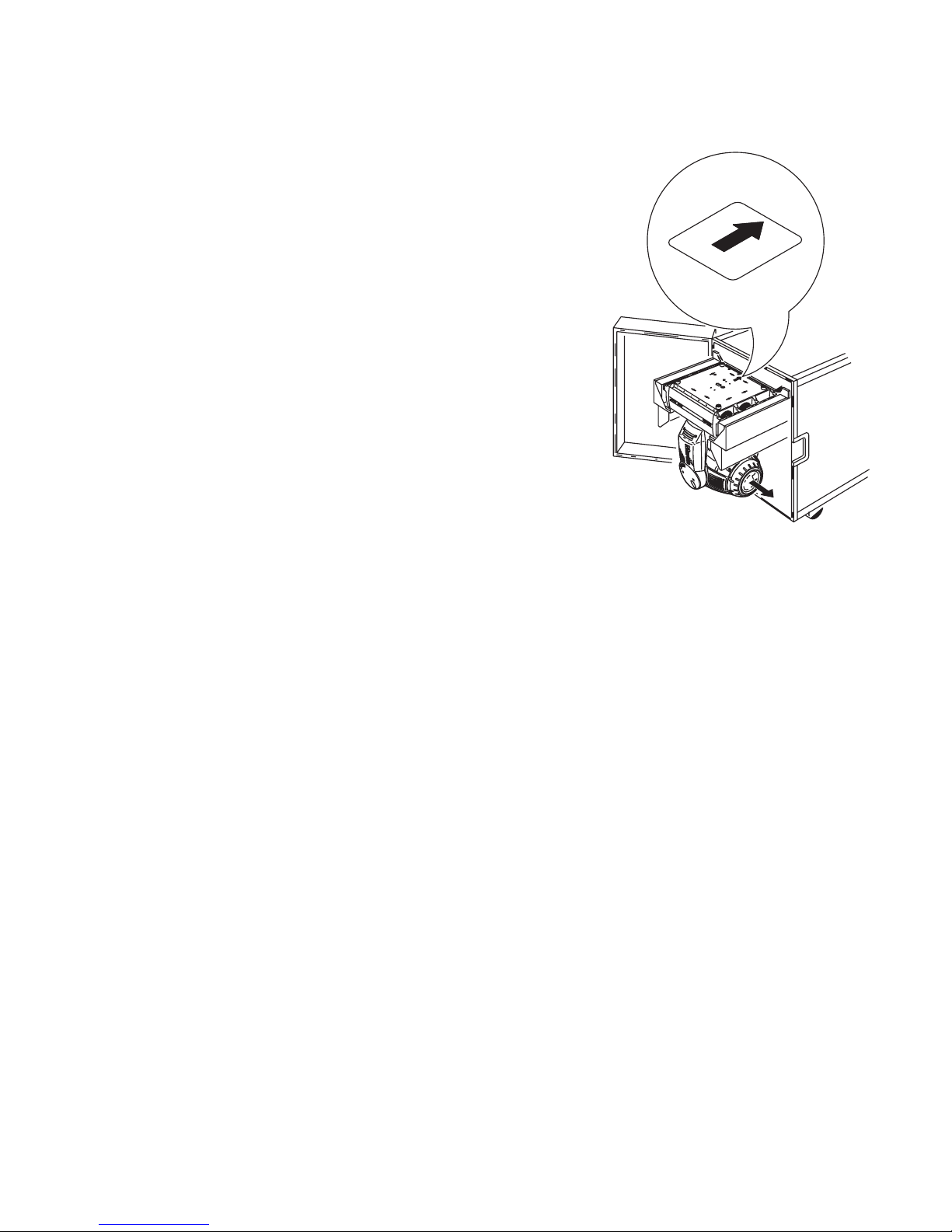

FRONT

Figure 3: Double unit transport position

Page 9

POWER

WARNING! For protection from electric shock, the fixture must be grounded (earthed). The AC mains

supply shall be fitted with a fuse or circuit breaker and ground-fault protection.

Important! Verify the power supply settings before applying power.

The chapter describes:

• Installing fuses

• Power supply adjustments for the various MAC 2000 Performance II models

• Connection to a power supply (see page 9)

• The reduced power function (see page 9)

Fuses

The MAC 2000 Performance II comes with two:

• 20 AT (time delay) main fuses for use with AC supplies of 100 - 120 volts.

• 15 A main fuses for use with AC supplies of 200 - 250 volts.

Install the appropriate fuses in the holders near the power switch.

Power supply adjustments

The MAC 2000 Performance II (identified as such by the label on the base of the product) comes with an electronic ballast and an auto-sensing, auto-ranging switch-mode power supply. Manual adjustments to the transformer or ballast are not necessary as the MAC 2000 Performance II automatically adapts to the mains voltage and frequency.

Note that MAC 2000 fixtures from S/N 4006756001 to S/N 4017886000 manufactured from mid-2003 to mid-2004 contained a power supply unit that needed to be switched to match AC power voltages below 130 V or above 200 V.

Power connection

Important! Connect the MAC 2000 Performance II directly to AC power. Do not connect it to a dimmer

system; doing so may damage the fixture.

You may need to install a cord cap that fits your supply on the power cable. A 3-prong grounding-type plug must be installed following the manufacturer’s instructions. The table shows some possible pin identification schemes; if the pins are not clearly identified, or if you have any doubts about proper installation, consult a qualified electrician.

To apply power, set the power switch on the base to the “I” position.

Reduced power function

The MAC 2000 Performance II has an automatic power reduction function, which reduces the consumption to 700W if the shutter/dimmer is closed for more than 10 seconds. This not only increases the lamp life, but also further decreases the overall noise emission of the fixture.

Wire Color Pin Symbol Screw (US)

brown live L yellow or brass

blue neutral N silver

yellow/green ground green

Table 1: Cord cap connections

Page 10

ATA

Important! Never connect more than 1 data input and 1 data output.

The MAC 2000 Performance II has both 3-pin and 5-pin XLR sockets for DMX input and output. The pin-out on all sockets is pin 1 to shield, pin 2 to cold (-), and pin 3 to hot (+). There is no connection to pins 4 and 5.

The sockets are wired in parallel: both inputs connect to both outputs. For reliable data transmission and to avoid

damage to the fixture, however, use one input and one output!

Connecting fixtures

• Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot transmit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft). Heavier gauge cable and/or an amplifier is recommended for longer runs.

• Never use both outputs to split the link. To split the serial link into branches use a splitter such as the Martin 4-Channel Opto-Isolated RS-485 Splitter/Amplifier.

• Do not overload the link. Up to 32 devices may be connected on a serial link.

• Terminate the link by installing a termination plug in the output socket of the last fixture. The termination plug, which is a male XLR plug with a 120 ohm, 0.25 watt resistor soldered between pins 2 and 3, “soaks up” the control signal so it does not reflect and cause interference. If a splitter is used, terminate each branch of the link.

• Martin fixtures introduced before 1997 have reversed polarity data sockets (pin 2 hot and pin 3 cold). The

socket polarity is labelled. Use a phase-reversing cable between the MAC 2000 Performance II and any

Martin device with reversed polarity.

C o n n e c t i n g t h e d a t a l i n k

1 Connect the DMX data input from the controller to the MAC 2000 Performance II’s 3-pin or 5-pin input

(male) socket.

2 Using the sockets that match your data cable, connect the output of the fixture closest to the controller to the

input of the next fixture.

3 Insert a male 120 Ω XLR termination plug in the 3-pin or 5-pin output of the last fixture on the link.

Page 11

IGGING

The MAC 2000 Performance II can be placed on stage or clamped to a truss in any orientation. The Fast-Lock system enables quick and easy fastening of the clamp brackets in 4 positions as shown Figure 4.

Warning! Always use 2 clamps to rig the fixture. Lock each clamp with both 1/4-turn fasteners. The

fasteners are locked only when turned fully clockwise.

Warning! Attach an approved safety cable to the attachment hole in the base. Never use the carrying

handles for secondary attachment.

C l a m p i n g t h e f i x t u r e t o a t r u s s

1 Verify that the rigging clamps (not included) are undamaged and can bear at least 10 times the weight of the

fixture. Verify that the structure can bear at least 10 times the weight of all installed fixtures, clamps, cables, auxiliary equipment, etc.

2 Bolt each clamp securely to a clamp bracket with an M12 bolt (grade 8.8 or better) and lock nut.

3 Align a clamp with 2 mounting points in the base. Insert the fasteners into the base and turn both levers a

full 1/4-turn clockwise to lock. Install the second clamp.

4 If the truss can be lowered, fixtures can be clamped on directly from the double flight case. If the fixture must

be lifted, block access under the work area. Working safely from a stable platform, hang the fixture on the truss with the arrow towards the area to be illuminated. Tighten the rigging clamps.

5 Install a safety wire that can bear at least 10 times the weight of the fixture. The attachment point is

designed to fit a caribiner clamp.

6 Verify that the pan and tilt locks are released. Verify that there are no combustible materials or surfaces to

be illuminated within 1 meter of the fixture, and that there are no flammable materials nearby.

256

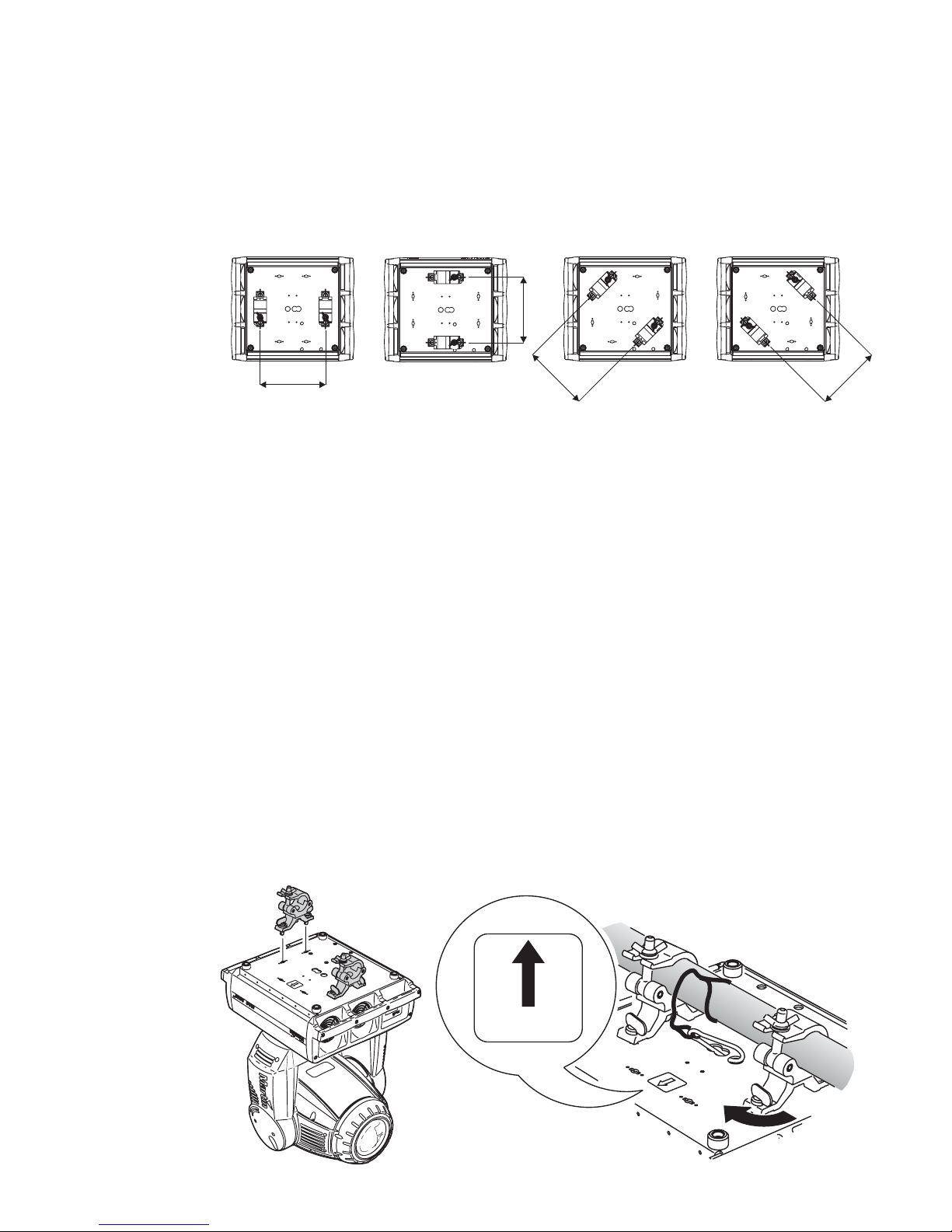

Figure 4: Clamp bracket positions

FRONT

Figure 5: Rigging hardware installation

Page 12

ONTROL PANEL

The LED control panel is used to set the address and personalities, read lamp hours and other information, calibrate effects, and run a test routine. Most of these functions may be performed remotely via the serial link with the Martin MP-2 Uploader.

Navigation

The DMX address and any messages (see page 51) are displayed when the MAC 2000 Performance II is turned on. To enter the menu, press [Menu]. Press [Up] and [Down] to move within the menu. To select a function or submenu, press [Enter]. To escape a function or menu, press [Menu]. See Table 2 on page 45 for a complete list of the menu items.

Note: [Enter] must be pressed and held for a few seconds to enter the utilities menu.

DMX address and protocol setting

The DMX address, also known as the start channel, is the first channel used to receive instructions from the controller. For independent control, each fixture must be assigned its own control channels. Two MAC 2000 Performance IIs may share the same address, however, if identical behavior is desired. Address sharing can be useful for diagnostic purposes and symmetric control, particularly when combined with the inverse pan and tilt options.

Two DMX protocols, 8-bit and 16-bit, are available. The 8-bit mode uses 28 control channels and provides full basic control. The 16-bit mode uses 3 additional channels to provide finer gobo and pan/tilt positioning.

S e t t i n g t h e D M X a d d r e s s a n d p r o t o c o l

1 Press [Menu] to enter the main menu.

2 Press [Up] until

! " " # is displayed. Press [Enter]. To snap to channel 1, press [Enter] and [Up]. Scroll to

the desired channel and press [Enter].

3 Select

$ % & ' from the main menu and press [Enter]. Select ( ) * + or , - ) + and press [Enter].

Tailoring performance

M o v e m e n t

The MAC 2000 Performance II provides six options for optimizing movement for different applications.

• The protocol setting (

$ % & ' ) setting selects 8-bit or finer 16-bit control of pan, tilt, and gobo index.

• The pan and tilt invert (

$ ! ' . ) menu swaps and/or inverts pan and tilt.

• The pan/tilt speed (

$ ' % $ ) menu provides 3 settings: / ! % ', 0 1 # 2 , and % 3 1 4. 0 1 # 2 is best for most

applications.

/ ! % ' provides better performance in applications where speed is most important. %3 1 4 provides the

smoothest movement and is best in long-throw applications with slow movements through narrow angles.

• The studio mode (

% ' 5 " ) setting optimizes all effects besides pan and tilt for speed or quietness.

• The shortcuts (

% 6 5 ' ) setting determines whether the gobo, and effect wheels always take the shortest path between

two static positions or oscillate between outer positions.

T r a c k i n g R e s p o n s e

The MAC 2000 Performance II has a filter algorithm that looks at several position updates in tracking control mode and calculates the ideal response for smooth movement. Tracking response is adjustable to compensate for variations in controller performance. In most cases the default settings work well.

If tracking mode movement is not satisfactory there are 2 parameters that can be adjusted. The first is selected under

$ & # % 7 ' # ! 6 7 2 1 " & . The default, 2 1 " , , is the best choice with controllers that calculate intermediate

Page 13

positions at a steady rate. Begin by selecting the alternative, 21 " 8 , which is better if the intermediate positions stray significantly from the line of travel.

The second parameter is the number of position updates used to calculate speed. The level is adjustable between 1 and 10 under

$ & # % 7 ' # ! 6 7 6 ! 3 . Increasing the number of samples increases the distance over which speed is

calculated, making movement smoother but less responsive to sudden changes. Experiment for best results.

D i s p l a y

The display intensity (" . 0 ' ) setting controls display brightness. The display on/off setting (" . % $ ) determines whether the display remains on or extinguishes two minutes after the last key-press. To flip the display, press [Up] and [Down] simultaneously.

L a m p

There are two settings that modify lamp control: Automatic Lamp On (!3 1 0 ) and DMX Lamp Off (9 3 : / ).

When

! 3 1 0 is off, the lamp remains off until a “lamp on” command is received from the controller. When !3 1 0 is

on, the lamp strikes automatically after the fixture is powered on. When

! 3 1 0 is set to 9 2 ; , the lamp strikes

automatically when the fixture receives DMX data, and it extinguishes 15 minutes after DMX data is lost.

When

! 3 1 0 is set to either 1 0 or 9 2 ; , the automatic lamp strike timing is staggered to prevent all lamps from

striking at once. The delay is determined by the fixture address.

If striking lamps from the controller, note that striking many lamps at once may cause a voltage drop large enough to prevent lamps from striking or trip the main circuit breaker. Avoid this by programming a “lamp on” sequence that strikes lamps one at a time at 5 second intervals.

Power to the lamp can be turned off from the controller if DMX Lamp Off (

" 3 1 / ) is on.

D M X r e s e t

The fixture can be reset from the controller if DMX reset ($& # % →" # & % ) is ON.

C u s t o m s e t t i n g s

The custom configuration function allows you to save and recall three sets of fixture settings. The savable settings are DMX mode, pan/tilt speed, pan/tilt inverse and swap, DMX lamp off and reset, display settings, shortcuts, studio mode, automatic lamp on, effects feedback, tracking algorithm, and tracking samples.

Readouts

Note: The MP-2 Uploader provides commands to display the time, temperature, and version readouts on the fixture control panel.

T i m e

. 0 / 1 →' . 2 & provides readouts of fixture hours (< # % ), lamp hours (3 = < # ), and lamp strikes (3 = % ' ). Under

each item is a resettable (

# % & ' ) increment counter and a non-resettable counter for total accumulated hours/strikes

since fabrication (

' 1 ' 3 ). To reset an increment counter, display it and then press [Up] until it reads 0. (This may also

be done remotely using the MP-2 Uploader.)

T e m p e r a t u r e

. 0 / 1 →' & 2 $ provides readouts of the head and base temperature in Celsius and Fahrenheit.

F i r m w a r e v e r s i o n

. 0 / 1 →> & # displays the version number of the installed firmware. The firmware version is also displayed briefly

at startup.

D M X

The 9 2 ; 3 menu shows the DMX start code (%' 6 1 ) and DMX values received for each effect.

Page 14

Service messages

The Service LED on the control panel lights under conditions that require fixture service, and there is a message describing the service required. To display the message, select

% 2 % ? in the main menu. This item is available only

when the LED is lit. There are two service messages.

# & $ 3 ! 6 & = 3 ! 2 $ is displayed when the lamp counter exceeds 750 hours, which is the rated average life for the

HMI 1200 W/S lamp. The maximum service life is 125% of the average life, or 940 hours.

/ . ; ' 5 # & =1 > & # < & ! ' . 0 ? = is displayed when the head temperature exceeds 120° C (248° F). Overheating is

likely due to dirty air filters, fans, or air vents; incorrect power supply settings, or a defective fan.

Service utilities

Important! Enter must be held for several seconds to access the utilities menu.

T e s t s e q u e n c e s

' % & @ provides a general test of all effects that can be run without a controller. 5 ' . 3 → $ 6 A + provides routines

for circuit board testing that are for service use only.

F e e d b a c k t o g g l e s

An on-the-fly position correction system monitors the gobo wheel, gobos, and effect wheel. If a position error is detected, t he shutter closes while t he effect resets. This feature can be disabled by t urning effects feedback (

5 ' . 3 →& / / ) ) off.

The automatic pan/tilt position correction system may be temporarily turned off under 5 ' . 3 →/ & ) ! . The off setting, however, is not saved and the system will be re-enabled the next time the fixture starts. If the system cannot correct the pan/tilt position within 10 seconds, feedback is automatically disabled.

A d j u s t m e n t

The adjustment menu (5' . 3 →! " B ) provides manual control for making mechanical adjustments. See page 49.

C a l i b r a t i o n

The calibration menu (5 ' . 3 →6 ! 3 ) provides utilities to define offsets in software that are relative to the mechanical reset or home positions. This allows you to fine tune optical alignment and achieve uniform performance between fixtures. Dimmer and zoom are calibrated to defined points. The other effects are calibrated relative to an arbitrary reference fixture.

Default offset settings may be restored by selecting default offsets (

5 ' . 3 →" / 1 / ).

Cal ib r a t i n g e f f e c t s

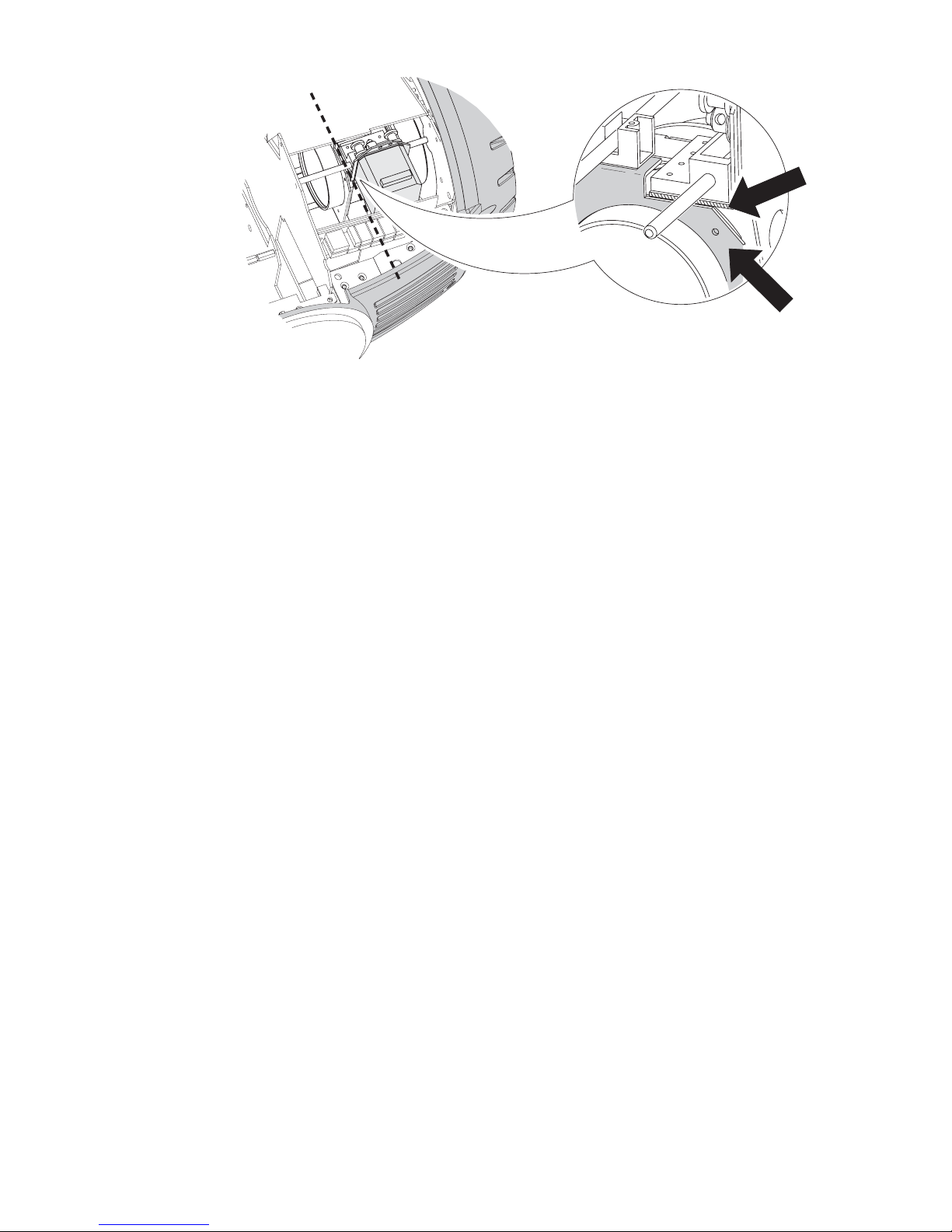

1 Apply power but do not strike the lamp until zoom has been calibrated.

2 To calibrate zoom, first remove the bottom head cover. Select

5 ' . 3 →6 ! 3 →C 1 1 / and press [Enter].

Adjust the offset until the face of the zoom lens plate is flush with the back edge of the focus plate (Figure 6). Press [Enter] to save the setting. Replace the bottom head cover.

3 Pan calibration is most useful when multiple fixtures are stacked vertically. To calibrate, set zoom, focus, iris,

and tilt position for easy one-over-the-other comparison and set each fixture to the same pan DMX value. Select one fixture to be the reference fixture. On the other fixtures, select

5 ' . 3 →6 ! 3 →$ = 1 / and press

[Enter]. Adjust the offset as necessary to align the beam with the reference beam. Press [Enter] to save the setting.

4 Tilt calibration is most useful when multiple fixtures are arranged horizontally. To calibrate, set zoom, focus,

iris, and pan position for easy side-by-side comparison and set each fixture to the same tilt DMX value. Select one fixture to be the reference fixture. On the other fixtures, select

5 ' . 3 →6 ! 3 →' = 1 / and press

[Enter]. Adjust the offset as necessary to align the beam with the reference beam. Press [Enter] to save the setting.

Page 15

5 To calibrate the dimmer, select 5 ' . 3 →6 ! 3 →9 = 1 / and press [Enter]. Hold a piece of paper over the

lens. Set the offset to 0 and then increase it until light is clearly projected onto the paper. Press [Enter] to save the setting. Remove the paper.

6 To calibrate color mixing flags (cyan, magenta, yellow, and color temperature correction), project white

beams with no dimming and position them for easy comparison. On each fixture, including the reference,

select

5 ' . 3 →6 ! 3 →6 =1 / and press [Enter]. (This adds a defined amount of cyan.) Select one fixture to

be the reference. Adjust the offsets on the other fixtures to match the reference color. Press [Enter] to save the setting. Repeat for

2 = 1 / (magenta), D = 1 / (yellow), and 6 ' 1 / (CTC).

7 Focus calibration is useful when two or more fixtures are the same distance from a projection surface. To

calibrate focus, set up all fixtures with the same focus, zoom, dimming, iris, and gobo values. Select a focussed fixture to be the reference. On the other fixtures, select

5 ' . 3 →6 ! 3 →/ 1 1 / and press [Enter].

Adjust the offset to focus the image. Press [Enter] to save the setting.

S o f t w a r e u p l o a d

The software update mode is normally engaged automatically by the upload device.

Figure 6: Zoom calibration point

Page 16

FFECTS

The MAC 2000 Performance II is compatible with USITT DMX512 controllers. The fixture has two DMX operating modes, 8-bit and 16-bit. 16-bit mode requires three more DMX channels than 8-bit mode but provides more precise gobo indexing and pan/tilt positioning. All other functions are identical. The complete DMX protocol begins on page 38.

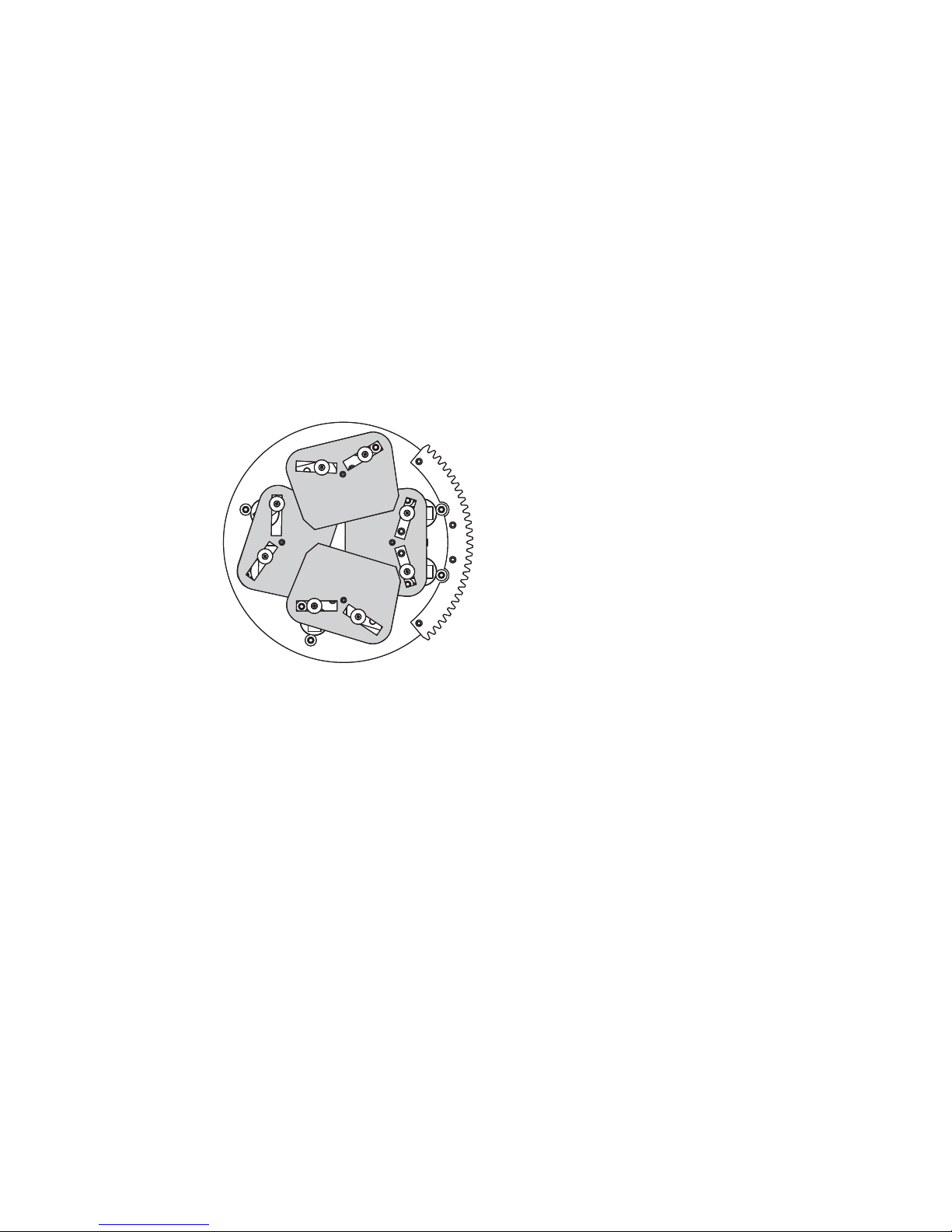

Framing shutters

Optimized for use in theater, the MAC 2000 Performance II features a fully automated, micro-adjusting framing shutter blade system. For accurate illumination of stage props and scenery, this framing system slices the beam into angled shapes.

The system comprises four shutter blades, arranged in two layers. With this 2-layer system, the MAC 2000 Performance II has been designed to project shapes with crisp, sharp edges.

Each blade can be swiveled +/- 30 degrees, and the entire module rotates 90 degrees. We recommend that the angle of each blade, and the alignment of the entire module be set to 50% of their DMX value. This will set the frame positioning upright, and the shutter blades at right angles. Refer to the “DMX protocol” on page 38 for the specific channels.

Directly attached to the framing system is the iris. You can use either the iris or the framing system, or both together.

Gobos

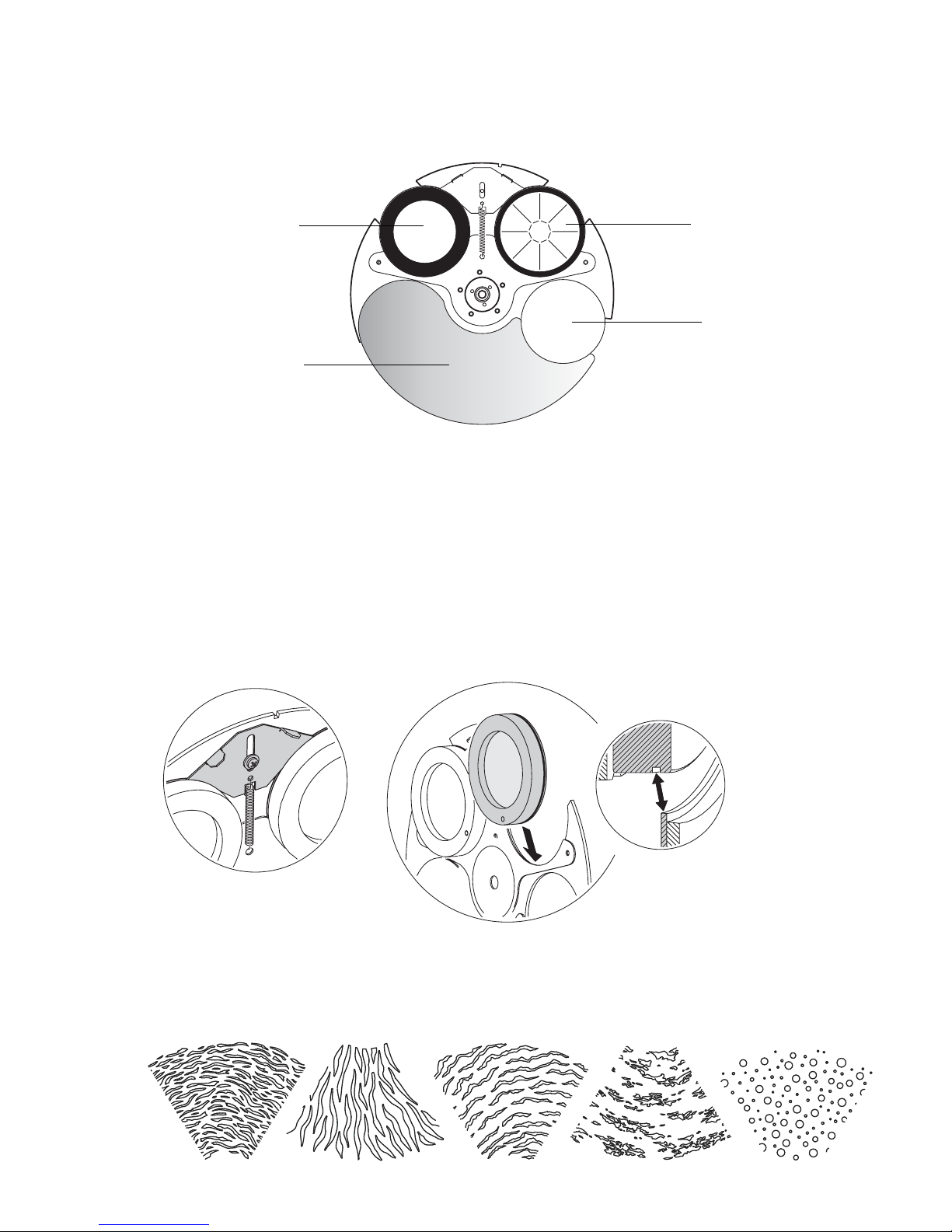

The gobo wheel provides room for 5 gobos. See page 29 to change gobos.

Gobos may be rotated and shaken at varying speeds and indexed to any position. Extremely accurate positioning is available in 16-bit mode.

The gobo and type of rotation (indexed or continuous, with or without shake) are selected on the wheel’s Gobo & Function Channel, which also provide commands for continuous wheel rotation. The gobo position index and rotation speed are selected on its Position/Velocity Channel. In 16-bit mode, the position is further adjusted on the wheel’s Fine Position Channel.

Gobo animation system

The gobo animation system is designed to create animated effects such as flames, sky and water imaging. The MAC 2000 Performance II comes with 5 replaceable gobo animation wheels, which are magnetically attached to the motor

Page 17

shaft, and which can be quickly changed. The gobo animation wheel pivots to allow horizontal, vertical, and angled effects, such as rising flames or windswept clouds.

Via your DMX controller, you can control both the starting position of the animation disc and its rotation direction and speed. The animation disc can be set to run continuously or to run in an indexing mode, which will be of great use if you are using custom animation discs with text or company logos. You are also able to choose the angle at which the disc has its starting position, be it horizontally aligned, vertically aligned, or anywhere in between.

For information about:

• Using the gobo animation effects, see “Animation guide” on page 19

• Changing the installed gobo animation wheel, see “Gobo animation” on page 32

Dimming and strobe

The mechanical dimmer/shutter system provides smooth, high-resolution 100 percent dimming, instant open and blackout, random and variable strobe effects up to 10 Hz, and random and variable pulses in which the dimmer snaps open and slowly dims or snaps closed and slowly opens.

Color mixing

The color mixing system uses continuous dichroic cyan, magenta, and yellow (CMY) color filters. It is a subtractive system that removes color from white light. Inserting all three filters results in loss of light: for maximum brightness, mix 2 colors at a time.

Color temperature correction

The color temperature correction (CTC) system uses a continuous 0 - 178 mireds color filter that lowers the color temperature from 6000 K to 2900 K.

Effect wheel

The effect wheel provides a variable frost filter and two slots that house a wide angle converter lens (beam expander) and a nine-facet prism.

Iris

The iris closes down to 15 percent of its full-open diameter with high, 200-step resolution. The Iris Channel also provides random and variable speed pulsating iris effects.

Focus and zoom

The focus lens focusses the beam from approximately 2 meters (6.5 feet) to infinity. The zoom lens widens the beam from approximately 10° at full spot to 28° at full flood.

Pan and tilt

The yoke pans 540° and the head tilts 267°. For maximum positioning accuracy, select 16-bit mode.

Page 18

The pan/tilt speed (fast, norm, or slow) may be selected on the pan/tilt speed channel. Setting the pan/tilt speed channel to “blackout” causes the shutter to black out the light while the head is moving.

Speed control

There are two ways to control the speed at which effects move from one static position to another. These are known as tracking control and vector control and are selected on the Pan/Tilt Speed and Effect Speed Channels. These channels are independent so you may, for example, combine a vector control pan movement with a tracking control color fade.

In tracking mode, speed is determined by the cross-fade time. The controller continuously sends small position changes that the fixture “tracks.” To enable tracking mode, set the relevant speed channel to a tracking value. Note that in addition to enabling tracking control, some tracking values also provide overrides of the menu settings.

In vector mode, speed is set directly on a speed channel. The cross-fade time must be 0. Vector control provides a way to set speed on controllers that do not have programmable fade times and results in smooth movement regardless of the cross-fade time or the controller’s processing power.

To open the iris slowly in tracking mode, for example, you program a scene with the iris fully closed and a second scene with the iris fully open. Then you set a cross-fade time between the two scenes of, say, 10 seconds. The controller gradually changes the iris position value from 199 (closed) to 0 (open).

To open the iris slowly in vector mode, you program the iris closed and open as before. Then you set the cross-fade time to 0 and program a slow speed, in the second scene, on the Effect Speed Channel.

Page 19

NIMATION GUIDE

This chapter is designed to help you get as much as possible from the gobo animation system in your MAC 2000 Performance II. It contains a section on general animation tips, an overview of the animation disc designs available, and a number of examples of different effects that can easily be created using your animation system.

To achieve most of the effects you will use both an animation disc and a regular gobo. Throughout this guide we have used DHA Lighting in the United Kingdom as the reference for the regular gobos. All of the gobo numbers and designs mentioned belong to the standard range available from DHA Lighting. Their contact details are:

DHA Lighting Limited 284-302, Waterloo Road London, SE1 8RQ United Kingdom

Tel: +44 207 771 2900 Fax: +44 207 771 2901

Internet: www.dhalighting.co.uk E-mail: sales@dhalighting.co.uk

Martin Professional A/S are extremely grateful to DHA Lighting for allowing us to use material previously published by them.

Note that there may be some small differences between the graphical images that you see in this guide and the final animation wheel or gobo designs when you use them, due to the difference in scale. However, we have tried to be as accurate as possible.

General animation tips

C h o i c e o f g o b o

The gobo is the basis of the moving image and should be chosen first. It is worth noting, however, that useful and interesting effects can often be achieved with the most unlikely gobos, by projecting them out of focus.

F o c u s

With the gobo in hard focus the animation will not be optimized, movement is minimal and results will almost always be disappointing. Similarly with the animation disk in hard focus, you will see a far greater movement, but the gobo pattern will be lost. It is essential therefore to experiment with the focus in order to achieve the best effect. The precise quality of the result and the impression of the motions direction will also depend on the position of the focus.

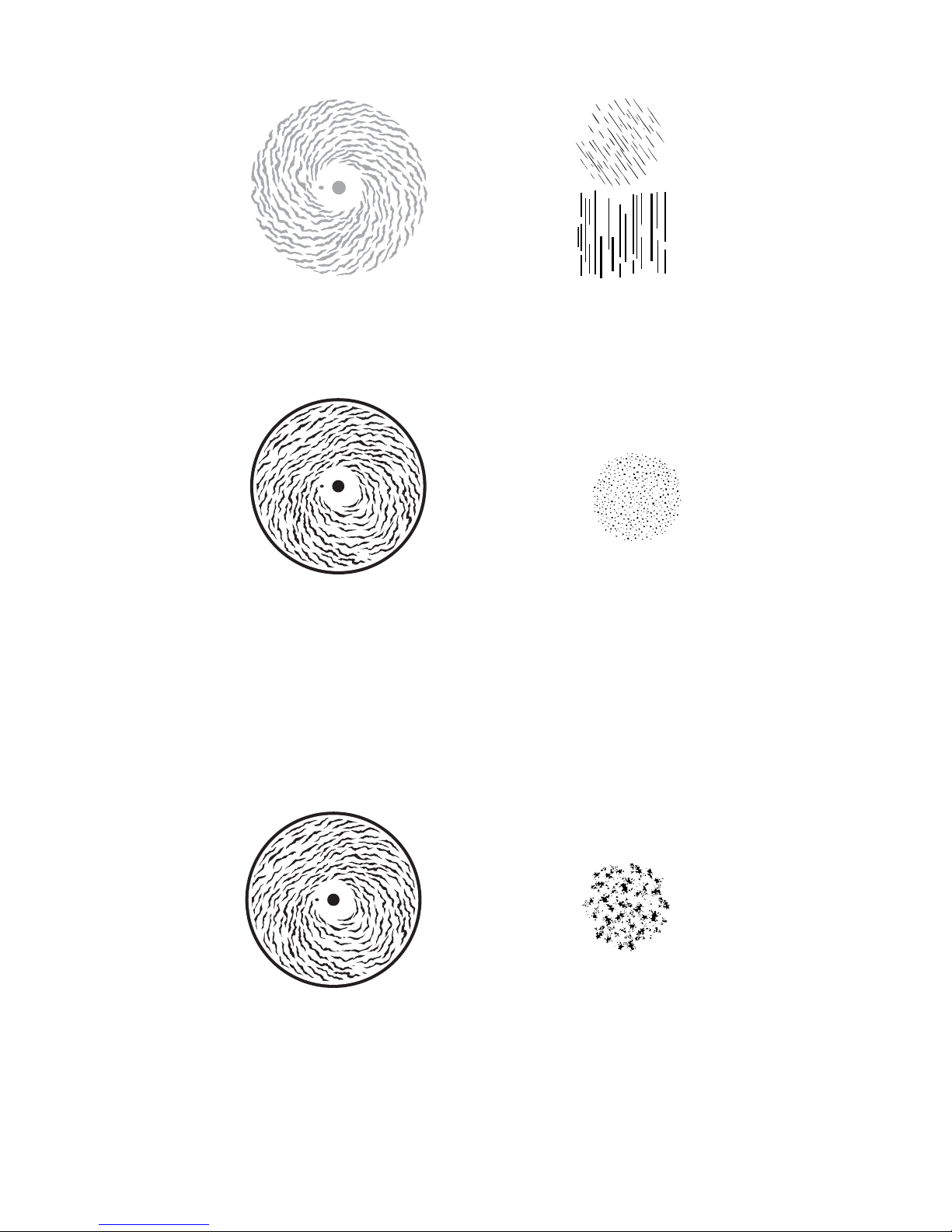

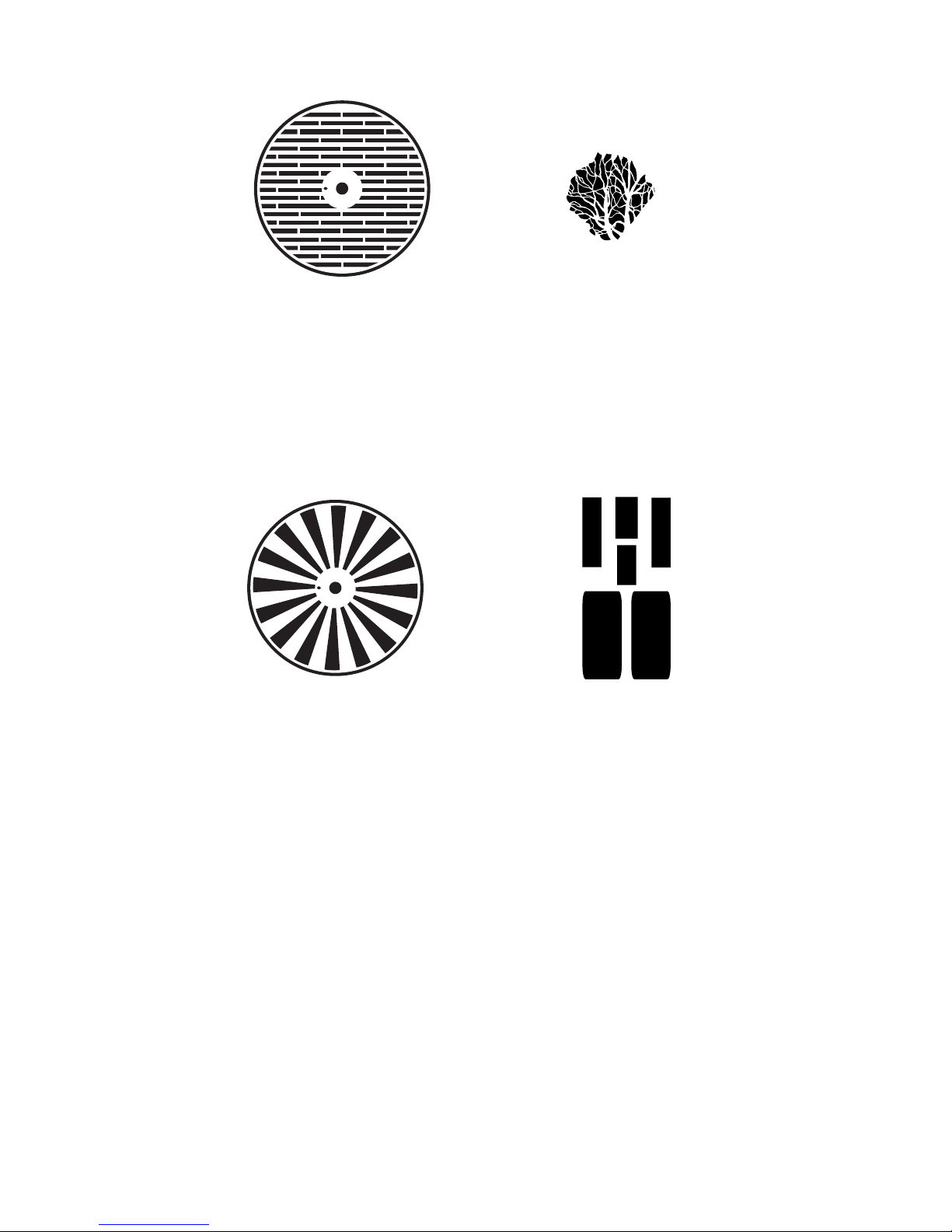

A n i m a t i o n d i s c p a t t e r n s

“Effects ideas” on page 22 describes the variations on the basic effect that individual disc patterns can produce.

D i r e c t i o n o f m o v e m e n t

The flexible mounting system for the animation discs inside the MAC 2000 Performance II allow you, through DMX control, to position the wheel at any position through a 90 degree section of the disc. This means that effects can be produced with a horizontal movement - such as clouds, with a vertical movement - such as rising flames, or at any angle in between - such as driving rain. The angle of the rotation can be changed during your show via the DMX control of the fixture.

Note that for some animation effects, which are not strictly horizontal or vertical, you may find it necessary to flip the orientation of the complete head via the pan and tilt control channels to give your desired angle of animation. This will

Page 20

depend on the orientation of the head when you began programming your fixture. If you find, for example, that your 'driving rain' effect is not driving the correct way, flip the orientation and if necessary, rotate the animation wheel in the opposite direction.

Through the DMX control you can select the wheel to operate in indexing mode, rather than continuously rotating. This is useful for any custom animation wheels that you may have made with text or logos. Custom animation wheels are available from the major gobo manufacturers, such as DHA Lighting in London.

S p e e d

The apparent speed of image movement depends not only on the disc rotation speed, but on the complexity of both the gobo and the disc patterns. Speeds suggested in the examples in this handbook are guidelines and are only intended as a starting point.

C o l o r

The use of the dichroic CMY color changing system of the MAC 2000 Performance II can greatly enhance your animation effects. The system has been designed so that refraction across the beam will give slight variants in color, adding depth to your animations, particularly when using multiple dichroic colors. Some color tips are given in the 'EFFECTS IDEAS' section.

Animation discs and their uses

Five gobo animation wheels are supplied as standard with the MAC 2000 Performance II. The others mentioned here can be ordered from your Martin dealer.

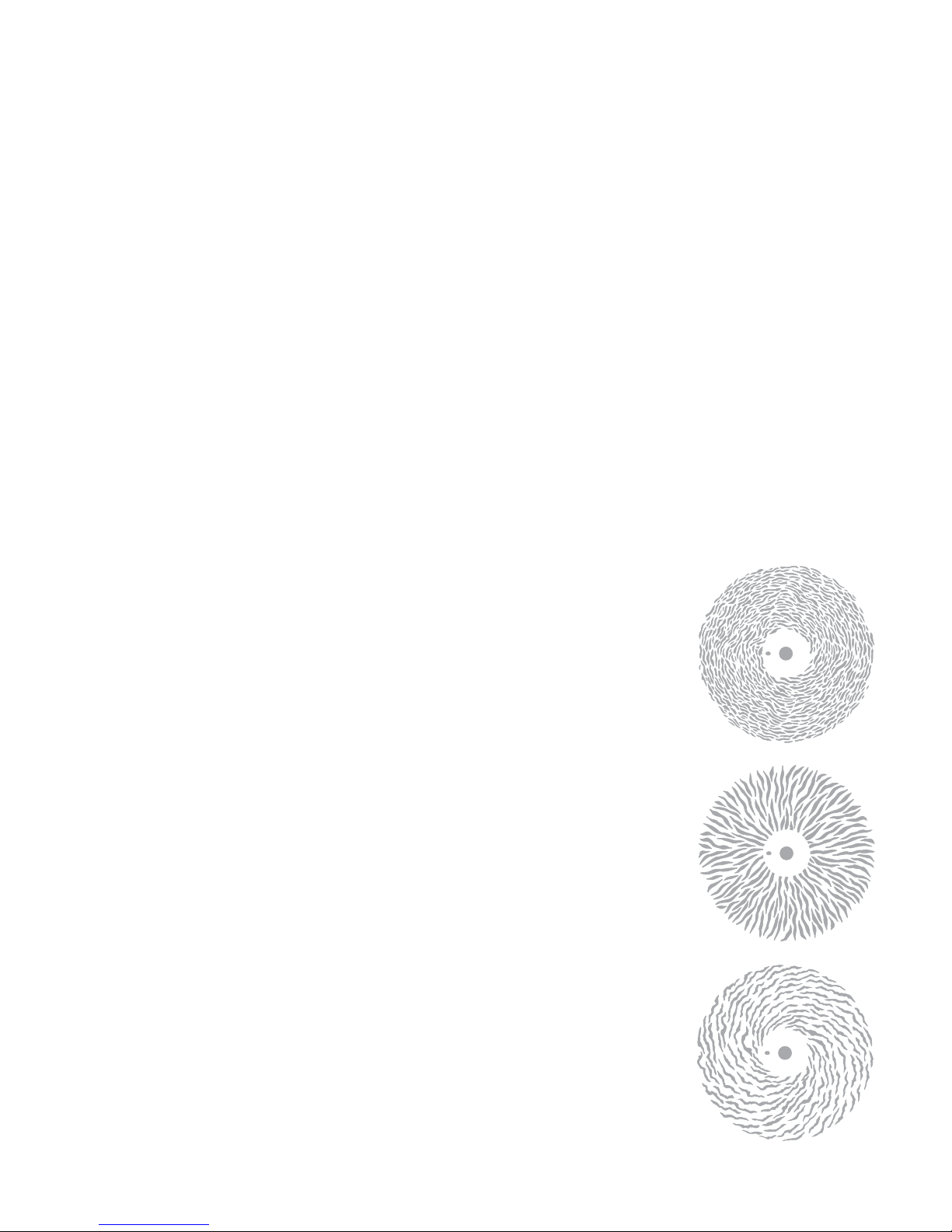

T a n g e n t i a l b r e a k u p

The Tangential Breakup disc (P/N 62400215) produces a subtle rippling motion, particularly when moving parallel with the lines of the gobo. It is the most suitable for rising flames, flowing water and other effects where a single direction of movement is required.

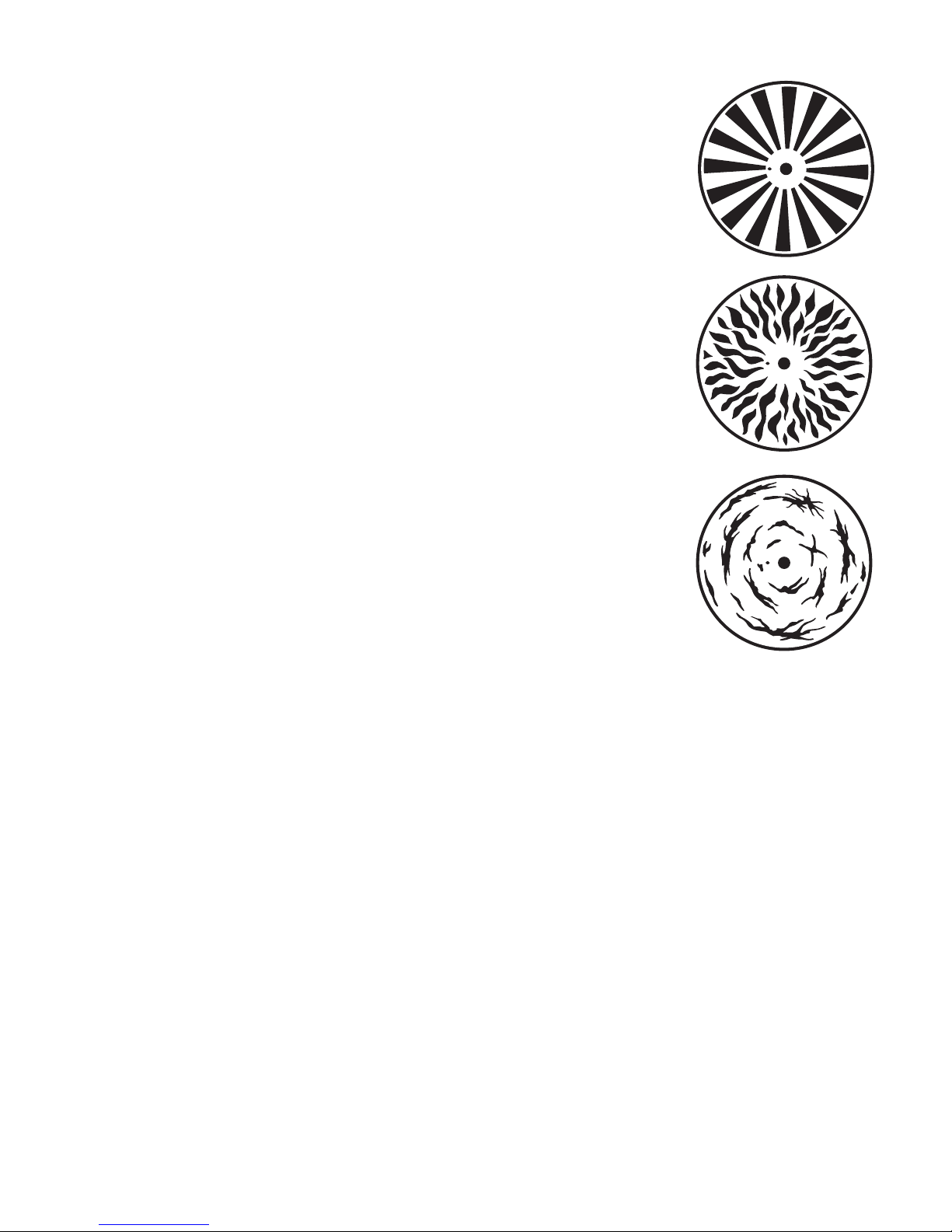

This animation wheel is supplied as standard with your MAC 2000 Performance II.

R a d i a l b r e a k u p

The Radial Breakup disc (P/N 62400211) is perfect for providing a strong regular movem ent s uitable for fli ckering flames, water ri pples, refle cted wa ter and shimmers for heat haze or mirage effects.

This animation wheel is supplied as standard with the MAC 2000 Performance II.

S p i r a l b r e a k u p

The Spiral Breakup disc (P/N 62400216) pattern is very similar to the Radial Breakup disc, but has some movement at right angles to the main motion, as is seen in wind blown rain, snow, or flames. It is particularly worth experimenting with the angle of the gobo and the orientation of the disc to achieve all the possibilities with this pattern.

This animation wheel is supplied as standard with the MAC 2000 Performance II.

Page 21

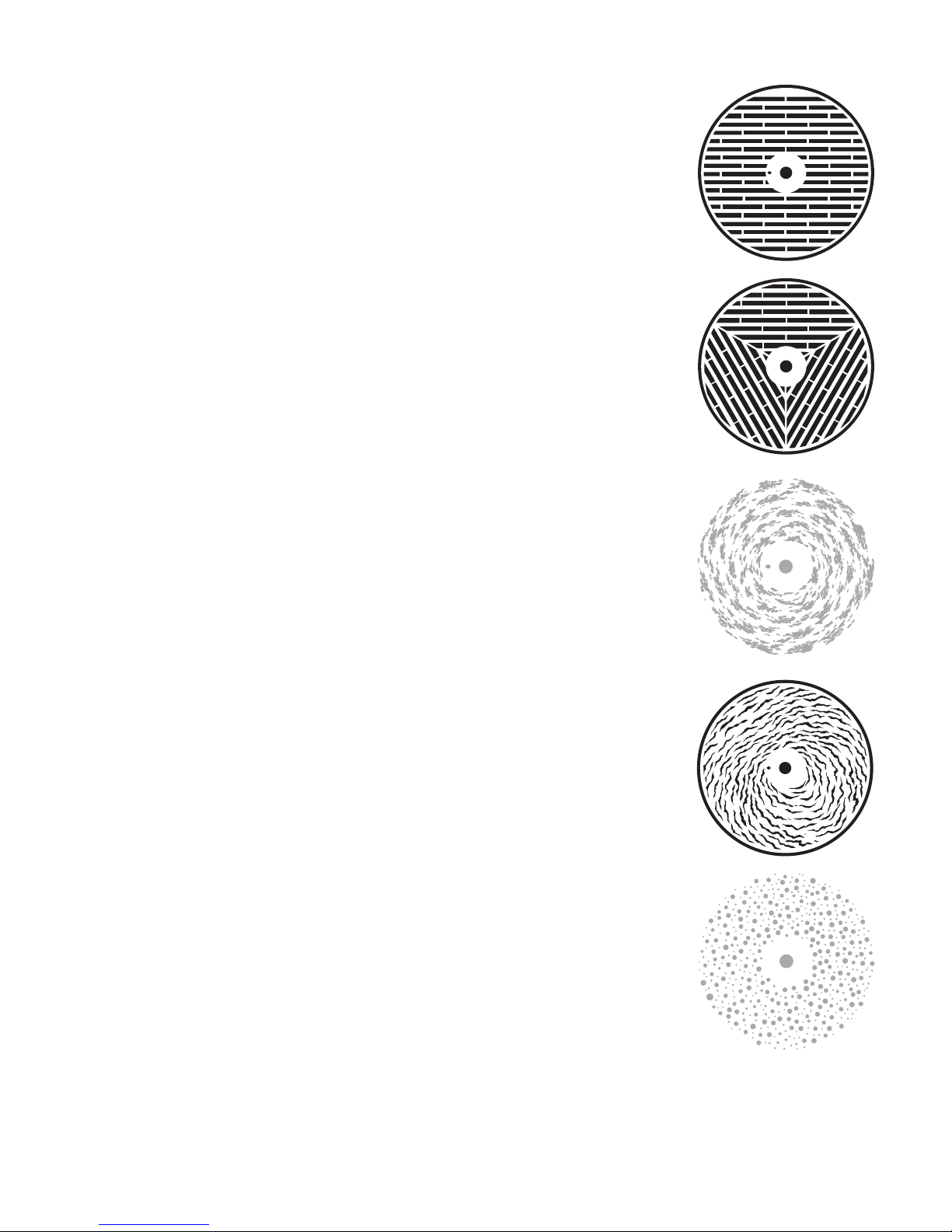

L i n e a r b r e a k u p

The Linear Breakup disc (P/N 62400223) provides rhythmic movement and can be used to simulate a breeze through the branches of a tree or the rhythmic undulations of sea waves.

T r i a n g l e b r e a k u p

The Triangle Breakup disc (P/N 62400225) gives a more pronounced and rapid rhythmic effect than the Linear Breakup disc, and is suitable for use as psychedelic effects or for a rough sea effect.

C l o u d b r e a k u p

The Cloud Breakup disc (P/N 62400213) is designed for a softer directional movement particularly at slow or very slow speeds. It is suitable for cloud effects with cloud gobos or for a soft slow-flowing stream effect.

This animation wheel is supplied as standard with the MAC 2000 Performance II.

E l l i p t i c a l b r e a k u p

The Elliptical Breakup disc (P/N 62400221) produces a bidirectional movement similar to the Spiral Breakup, but with constantly changing direction of movement. This is specifically useful for snow or similar effects where flurries of movement would be expected.

D o t b r e a k u p

The Dot Breakup disc (P/N 62400214) gives you the opportunity to cause motion while maintaining a more focused projection of the gobo image. It is suggested for effects such as falling leaves or rising bubbles.

This animation wheel is supplied as standard with the MAC 2000 Performance II.

DHA 14

DHA 15

DHA 17

Page 22

F l i c k e r w h e e l

The Flicker Wheel (P/N 62400222) provides a different kind of effect and can be used a t high speed for moti on effects, such as passing trains. It can a ls o be effectively used for just breaking up the beam of a fixture and for an organic strobe effect.

C o a r s e r a d i a l b r e a k u p

The Coarse Radial Breakup disc (P/N 62400224) is particularly effective for animating light from a non-focused source whilst providing a minimal loss in intensity due to the high 'white to black' ratio of the radial pattern. It is also effective for similar uses to the Radial Breakup disc.

C o a r s e t a n g e n t i a l b r e a k u p

The Coarse Tangential Breakup disc (P/N 62400226) can be used on its own in an unfocused form to give the image of flames. It can also be combined with gobos to give a drifting image to the projection.

Effects ideas

The ideas outlined here are intended as suggestions only. The precise look of any effect will depend on many factors including the focus setting of your MAC 2000 Performance II, the projection surface onto which the image is directed and any color mixing effects that you choose.

This section is divided into four:

• “Water effects” on page 23

• “Fire effects” on page 25

• “Clouds, rain and snow” on page 26

• “Other effects” on page 27

DHA 19

DHA 20

DHA 21

Page 23

W a t e r e f f e c t s

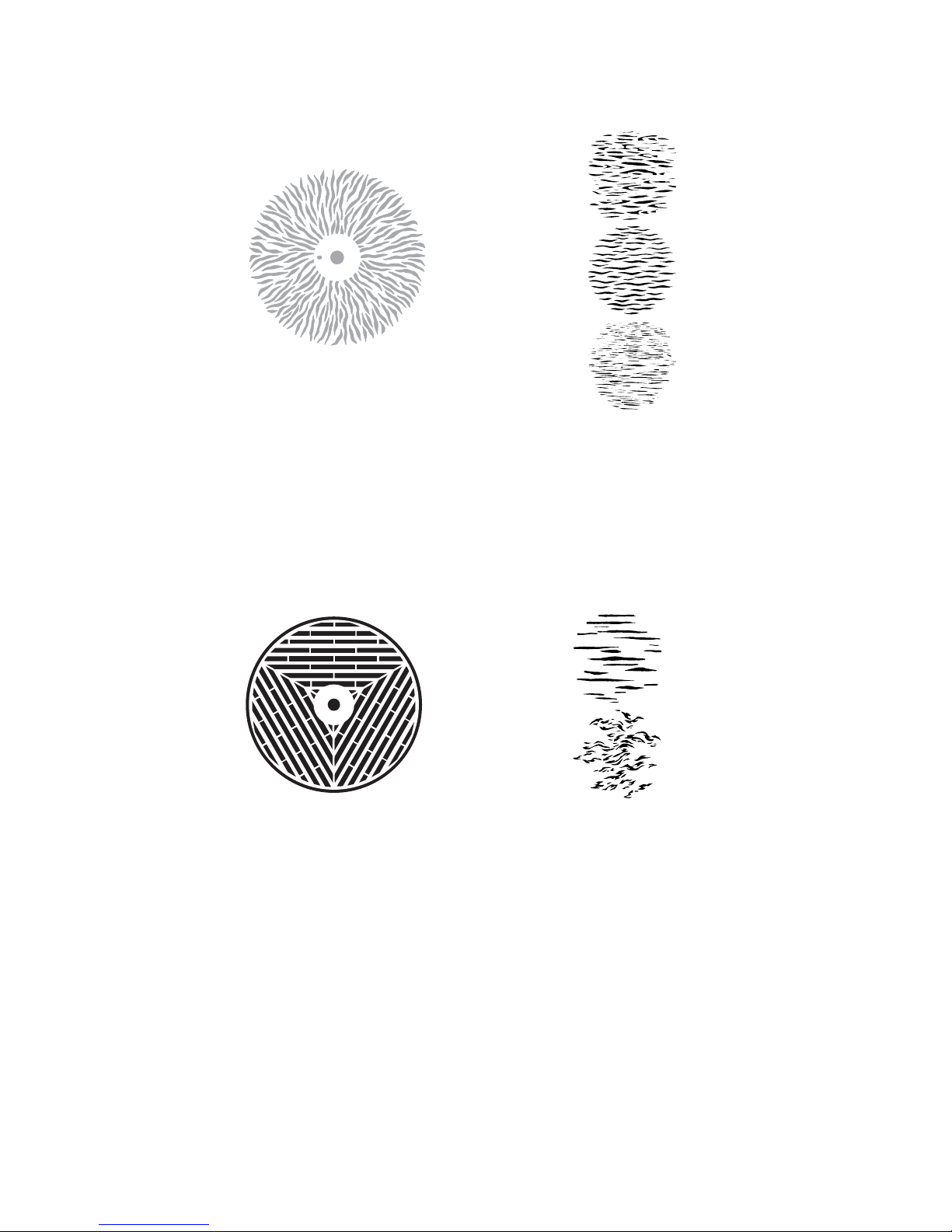

RIPPLING WATER

Use slower speeds for gentler or more distant movement. For rough water, substitute a more 'wavy' gobo design such as DHA Lighting’s 'Reflected Water 906', 'Flames-4 960', or 'Fire/Waves 238-275' and use the Coarse Radial Breakup animation disc or the Elliptical Breakup animation disc (for an irregular movement) combined with a higher rotation speed.

AVES

As with any animation effect, the rotation speed and image focus will have a great effect on the final projection, so these parameters should be experimented with. With all water effects, it is possible to add an amount of cyan from the color mixing system, which will diffract to give both cyan and white color shifts as the image animates.

Alternative gobos: Alternative animation discs:

Linear Breakups 401, 402, 501, 504 Coarse Radial Breakup gives a bolder movement

Shower 882 Spiral Breakup adds some flowing movement

Alternative gobos: Alternative animation discs:

Linear Breakups 401, 402, 501, 504 Linear Breakup

Reflected Water 906 Elliptical Breakup gives an irregular rhythm

Gobo 955

Gobo 833

Gobo 958

Radial breakup disc

and one of the

following

Gobo 504

Gobo 238-275

Triangle breakup disc

and one of the

following

DHA 15

Page 24

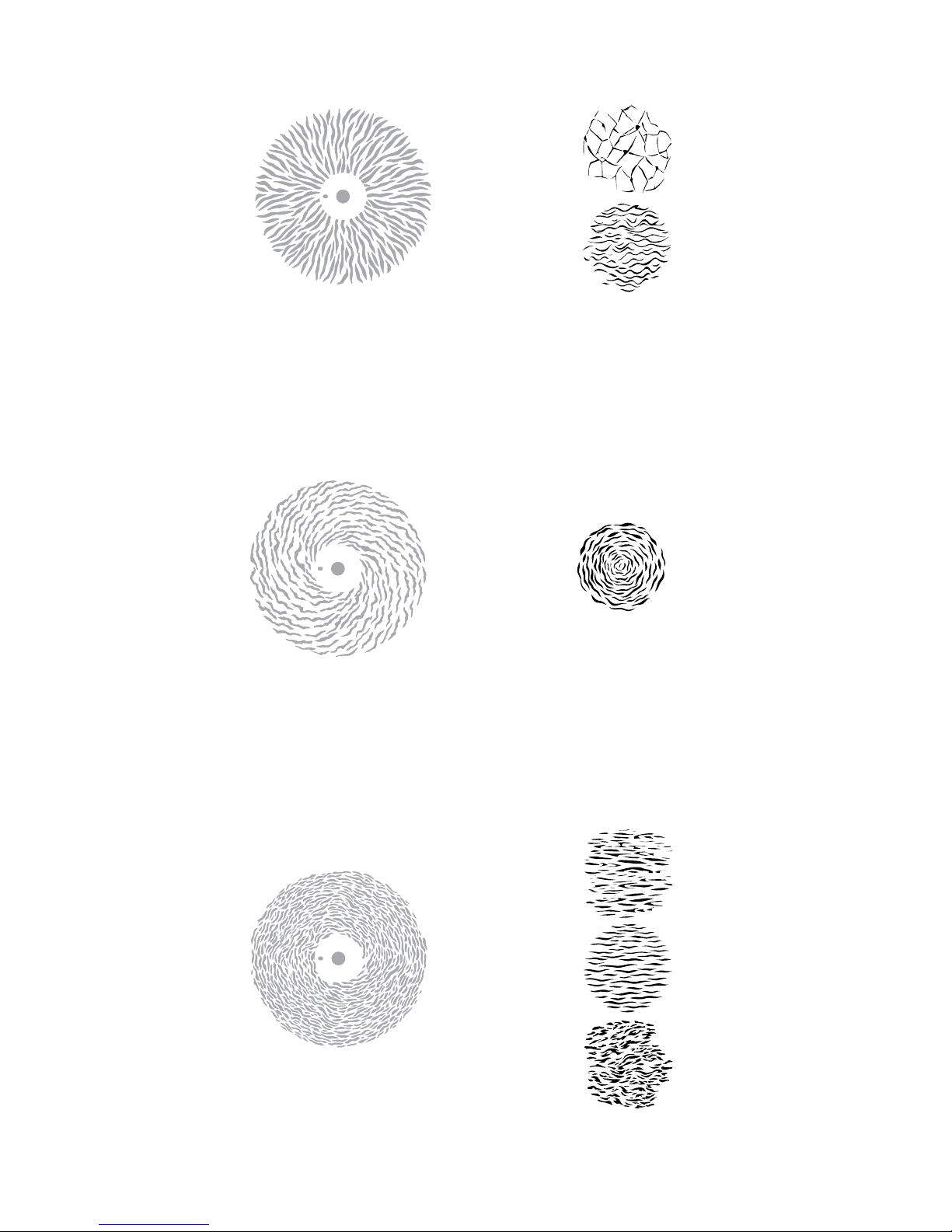

REFLECTED WATER

HIRLPOOL

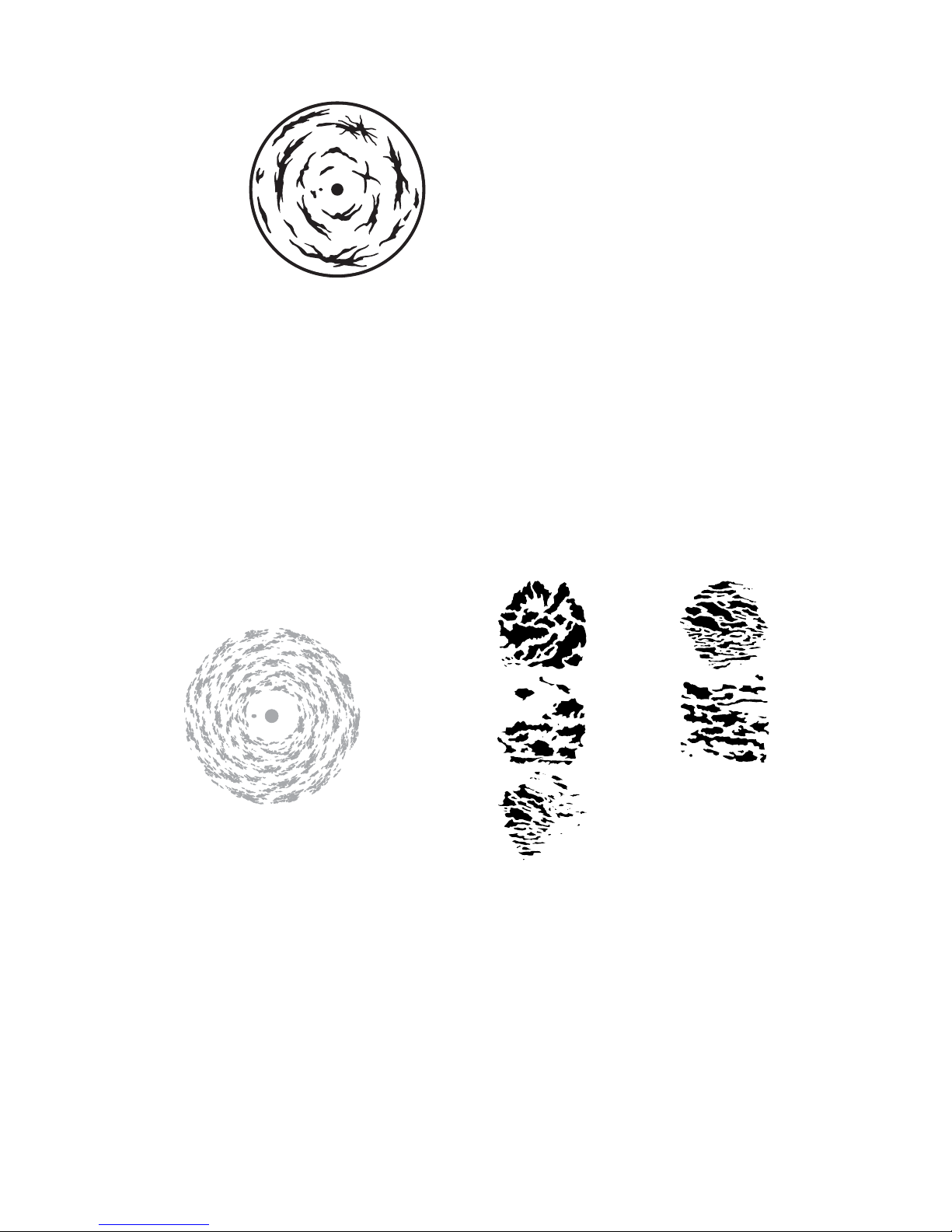

A whirlpool effect can be created effectively by leaving the gobo in a static position and just rotating the animation wheel. However, to give a more dynamic whirlpool effect, the gobo for this combination should also be rotated, in a counter direction to the animation wheel. Again differences in the focus and in particular with the speeds on this effect will give you a variety of different options. With all water effects, it is possible to add an amount of cyan from the color mixing system, which will diffract to give both cyan and white color shifts as the image animates.

LOWING WATER

Alternative animation disc:

Elliptical Breakup gives an irregular movement

Gobo 906

Gobo 903

Radial breakup disc

and one of the

following

Gobo 893

Spiral breakup disc

and

Gobo 955

Gobo 960

Gobo 958

Tangential breakup disc

and one of the

following

Page 25

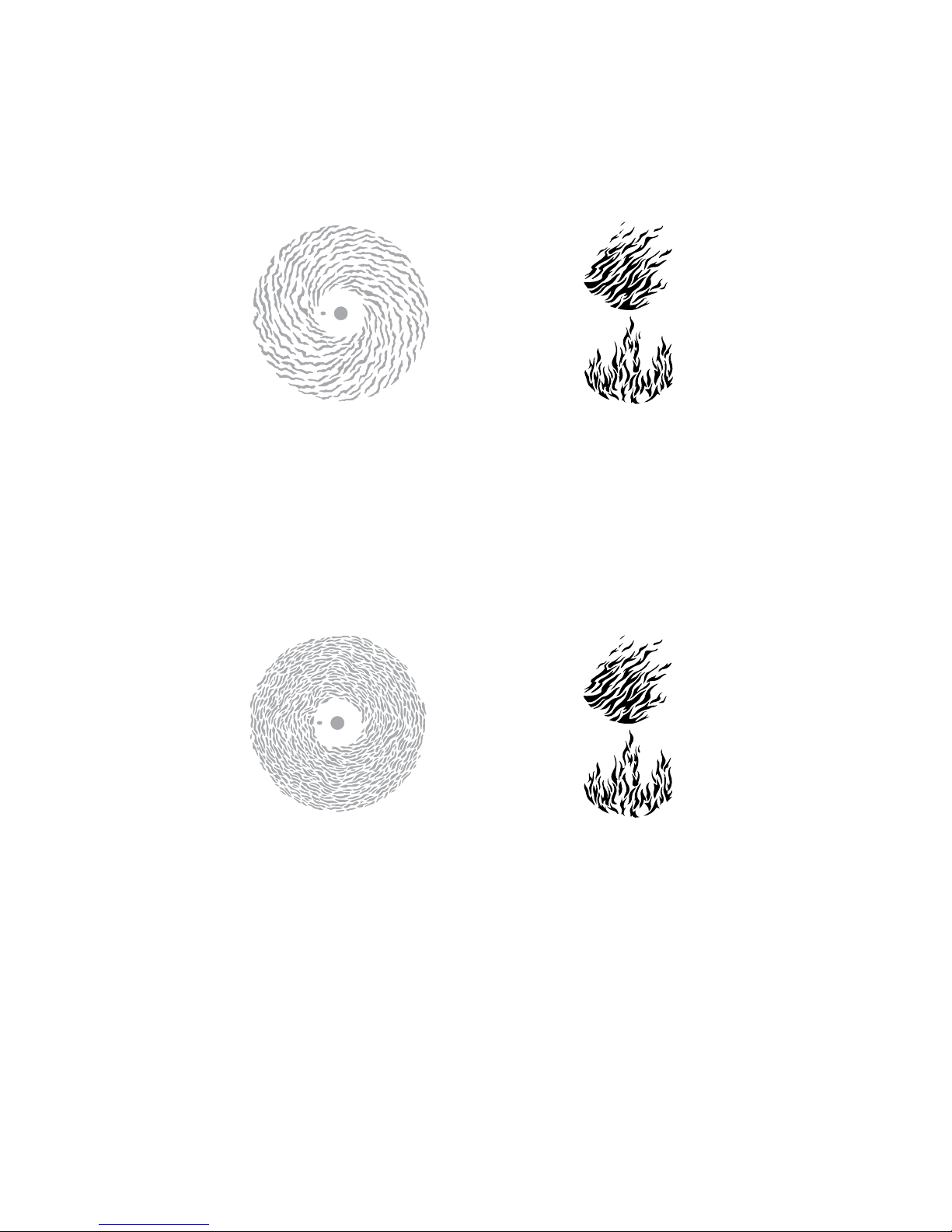

F i r e e f f e c t s

The range of animation wheels available for the MAC 2000 Performance II is very versatile in producing fire and flame effects. Good results may be obtained from many of the designs together with any standard flame or fire gobo designs.

Here are a few ideas to get you started:

LOWING FLAMES

As with any animation effect, the rotation speed and image focus will have a great effect on the final projection, so these parameters should be experimented with. With all fire and flame effects, it is possible to add an amount of magenta (approximately 70%) and yellow (approximately 90%) from the color mixing system, which will diffract to give orange, yellow and red color shifts as the image animates.

ISING FLAMES 1

Alternative gobos: Alternative animation discs:

Any of the fire or flame gobos from the standard range could be used in substitution for the above suggestions.

Elliptical Breakup gives an irregular movement

Dot Breakup

Alternative gobos:

Any of the fire or flame gobos from the standard range could be used in substitution for the above suggestions.

Gobo 175

Gobo 176

Spiral breakup disc

and one of the

following

Tangential breakup disc

and one of the

following

Gobo 175

Gobo 176

Page 26

RISING FLAMES 2

Different to above, this animation gives a much stronger image of rising flames with the broader pattern on the disc. For this animation, it is possible to use the animation disk on its own to create the rising flame effect. You will need to set the focus away from the disk itself to enhance the effect. To give a different image, you could also add one of the standard fire or flame gobo designs.

C l o u d s , r a i n a n d s n o w

The versatility that you can achieve with the animation system of the MAC 2000 Performance II makes this an ideal tool for creating all sorts of weather effects.

LOUDS

Once again, the speed and focus come greatly into play when creating your final effect, whether you wish to create soft flowing clouds on a summers night or gathering thunder clouds about to explode.

Alternative gobos:

Any of the fire or flame gobos from the standard range can be used.

Alternative gobos:

Use any non-meshed cloud gobo to create the desired effect that you need. You should choose your gobo based on the type and density of your desired effect.

Coarse tangential breakup disc

DHA 21

Gobo 163

Gobo 167

Gobo 164

Cloud breakup disc

and one of the

following

Gobo 168

Gobo 170

Page 27

RAIN

For driving rain, you should angle the gobo first using the indexing control and then align the animation wheel anywhere between the horizontal and vertical axis to provide the desired effect.

NOW

This is a simple effect to set up, but looks excellent. The use of the prism on the effect wheel of the MAC 2000 Performance II will help diffuse the image, creating a more random effect, which adds a new dimension to the animation and is very effective in some situations.

O t h e r e f f e c t s

Here are some further examples of different animations that can be achieved with the MAC 2000 Performance II.

IGHT THROUGH TREES

It is possible to use almost any of the animation discs to animate a breakup gobo such as this one. There is a wide range of breakup gobos available to choose from on the market today.

By using a combination of the cyan and yellow color mixing flags, you can create various shades of green which will diffract to give a variety of shades. You should adjust the values proportionately to give darker or lighter shades of green to your image.

Gobo 503

Gobo 882

Spiral breakup disc

and one of the

following

Gobo 884

Elliptical breakup disc

and

DHA 17

Gobo 405

Elliptical breakup disc

and

DHA 17

Page 28

TREE IN BREEZE

ASSING TRAIN

Adjusting the rotation speed of the animation wheel will give you a faster or slower 'flicker' effect depending on the speed of your train.

Alternative gobos:

There are a wide range of tree, branch and foliage gobos available which can all be animated to give very distinctive effects.

Gobo 110

Linear breakup disc

and

DHA 14

Gobo 902

Gobo 901

Flicker wheel

and one of the

following

DHA 19

Page 29

PTICAL CONFIGURATION

Rotating gobo wheel

The MAC 2000 Performance II is supplied with 5 rotating gobos installed. Figure 7 shows the standard gobo configuration with the gobo positions marked.

The rotating gobos are magnetically indexed with a special indexing gobo holder in position 2 (the Soft Breakup gobo). The indexing gobo holder, which has a small magnet, must always be in position 2. If it is placed in a different position, the gobos will not index correctly. The indexing gobo holder accepts the same gobos as normal holders; any gobo suitable for the MAC 2000 may be placed in position 2.

Two additional aluminum gobos are supplied.

Figure 7: Standard rotating gobo wheel configuration as seen from lamp

1 - Dot breakup

2 - Soft breakup

3 - Linear

4 - Water

5 - Flames

Open

Realistic stars Clouds

Page 30

G o b o s p e c i f i c a t i o n s

All gobo slots accept round theatrical size-E glass gobos. The rotating-gobo wheel positions hold gobos up to 3 mm thick with the gobo retention spring. Gobos thicker than 3 mm must be glued in the holder.

For the best results, custom glass gobos that meet the following criteria should be used:

Outside diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37.5 +0/-0.3 mm (1 15/32 +0/-0.01 in.)

Maximum image diameter:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 mm (1 3/16 in.)

Material: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High temperature Borofloat or better glass

Coating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dichroic or enhanced aluminum

Although glass gobos are generally the most durable, satisfactory results can be obtained in many applications at less expense with aluminum gobos. Our experience with the MAC 2000 Performance II, which is supplied with aluminum gobos, shows that aluminum can hold up to the heat very well. Custom stainless steel gobos can also be used, however they can warp, losing sharpness, in a matter of hours in the MAC 2000 Performance II. The useful life will depend on the gobo pattern and the projection cycle. Consult your gobo supplier for more information.

O r i e n t a t i o n

GLASS GOBOS

Coated glass gobos are inserted with the coating against the rim of the holder (away from the spring). Textured gobos are inserted with the smooth side against the spring. This provides the best results when combining rotating gobos.

ETAL GOBOS

For correct projection, install metal custom gobos with the true image facing the lamp. The false-image side (which faces away from the lamp) should be coated with a suitable high-temperature black paint to reduce reflections.

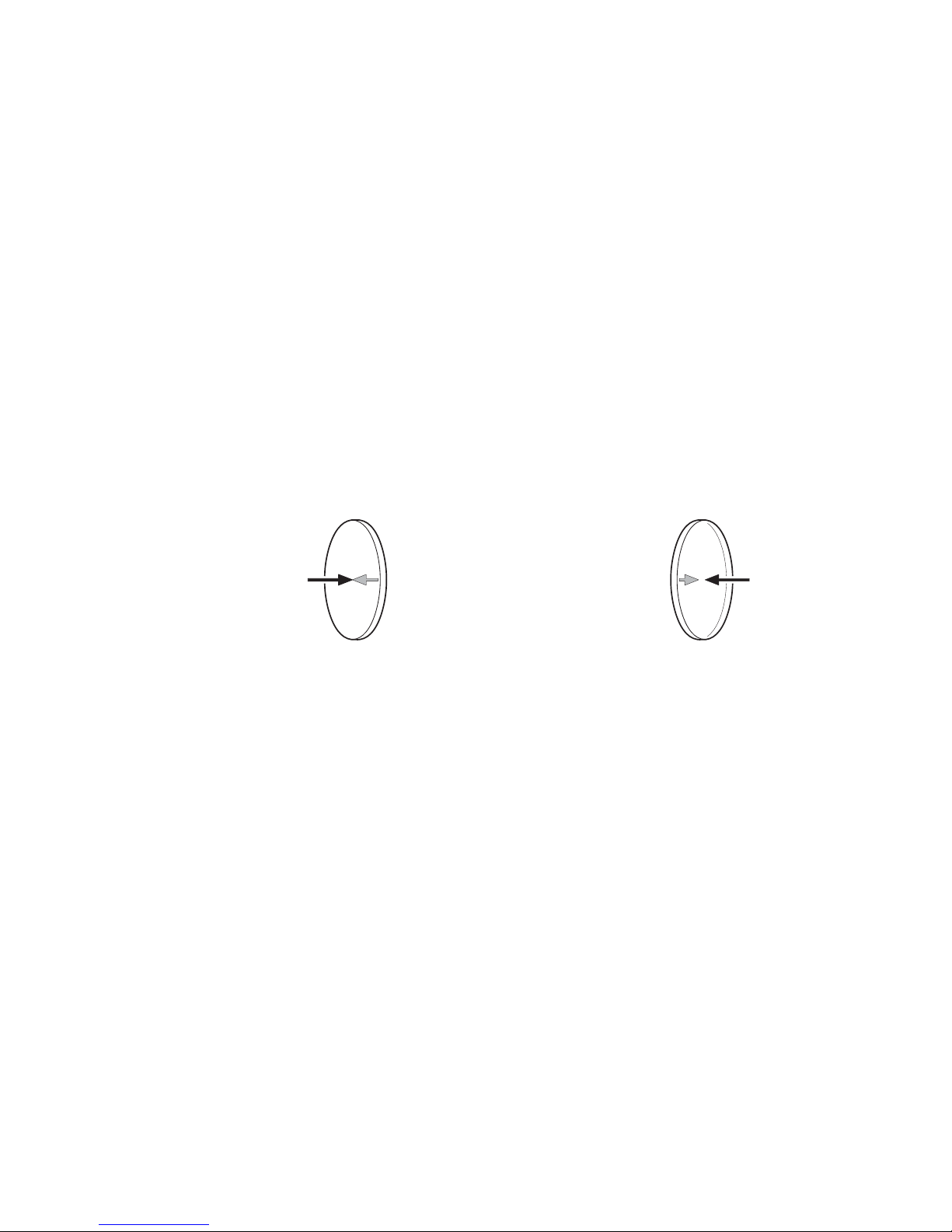

When an object is held up to the coated side there is no space between the object and its reflection. The back edge of the gobo cannot be seen when looking through the coated side.

When an object is held up to the uncoated side there is a space between the object and its reflection. The back edge of the gobo can be seen when looking through the uncoated side.

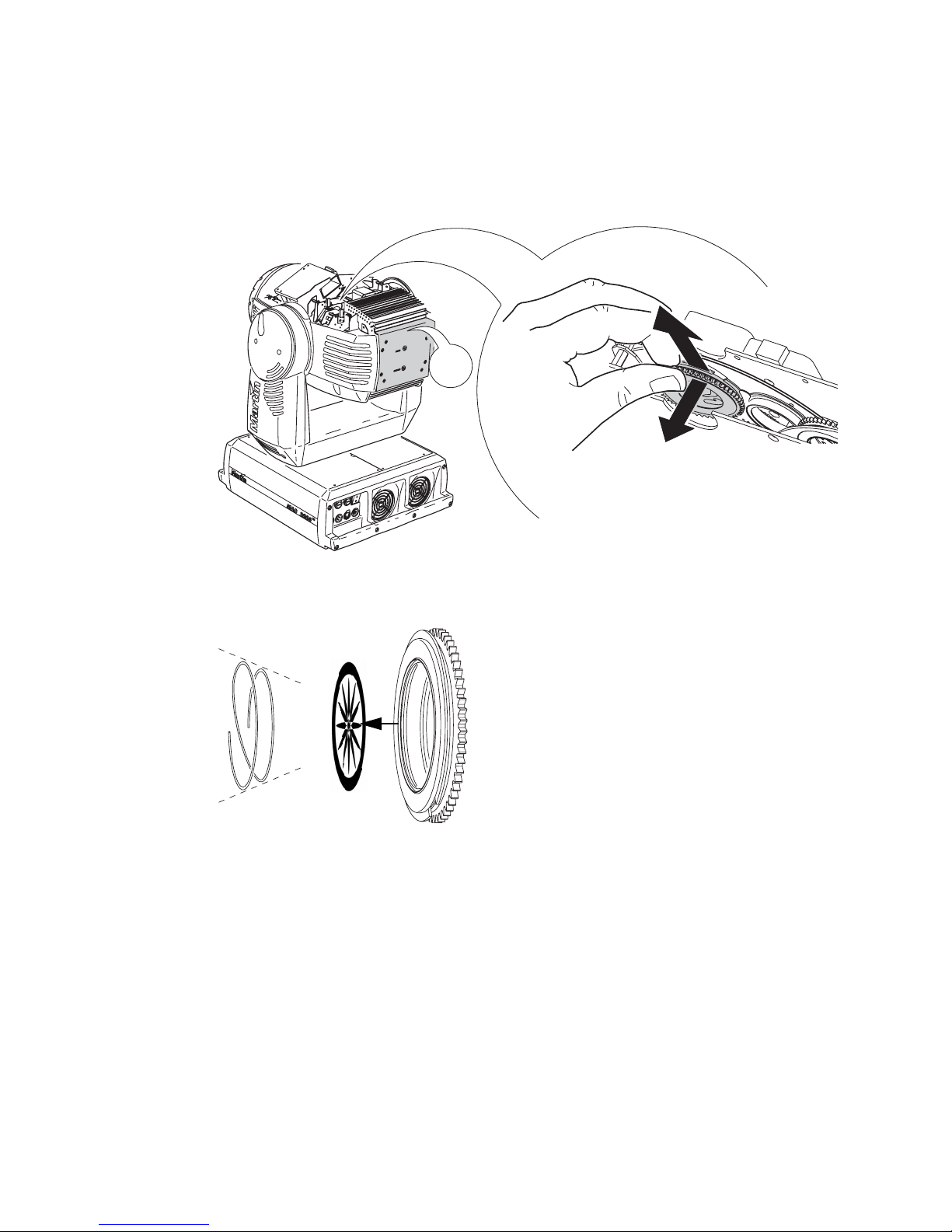

Figure 8: Finding the coated side

Coated side

Uncoated side

Page 31

R e p l a c i n g r o t a t i n g g o b o s

Important! The gobo can fall out if the spring is inserted backwards.

1 Disconnect the fixture from power and allow it to cool.

2 Lock the head in the top side up position and remove the top cover. Turn the gobo wheels as required to

access the desired position. Pull the gobo holder away from the wheel slightly to release. Remove the gobo holder.

3 Remove the gobo retention spring from the gobo holder and drop the gobo out of the holder. Insert the new

gobo in the holder. Insert the spring with the narrow end against the gobo. To identify the narrow end, press

the spring flat: the narrow end is on the inside. Push the end of the spring in under the lip of the holder.

4 Work the rim of the gobo holder under both clips and snap the gobo holder back into position. If necessary,

a small screwdriver or similar tool may be used to pry the clips away from the wheel.

5 Replace the cover and release the pan and/or tilt locks before operating.

Coated side

Page 32

Effect wheel

The effect wheel provides a variable frost filter and two positions for effects. The MAC 2000 Performance II comes with a wide angle lens and a nine-fact prism installed in these positions.

R e pla c i n g e f f e c t s

1 Disconnect the fixture from power and allow it to cool.

2 Lock the head in the upside down position and remove the bottom cover. Turn the effect wheel so that the

locking plate is under the sensor bracket.

3 To remove, hold the rim of the effect holder and pull back on the locking plate. Remove effect from wheel.

4 To insert, pull back on the locking plate. If both effects are removed, pull straight back on both tabs. Position

the groove in the effect holder over the fixed plate. Release the locking plate and verify that the effect is properly seated.

5 Replace the bottom cover and unlock the head before operating.

Gobo animation

The following gobo animation wheel patterns are supplied with the MAC 2000 Performance II.

Open position

9-facet prism

Wide angle lens (beam expander)

Variable frost filter

Locking plate

Position the effect holder

groove over the fixed plate.

DHA 18DHA 13DHA 12 (installed)DHA 11

DHA 16

Tangential breakup Cloud breakup Dot breakup

Radial breakup

Spiral breakup

Page 33

For information about using the gobo animation effects, see “Animation guide” on page 19.

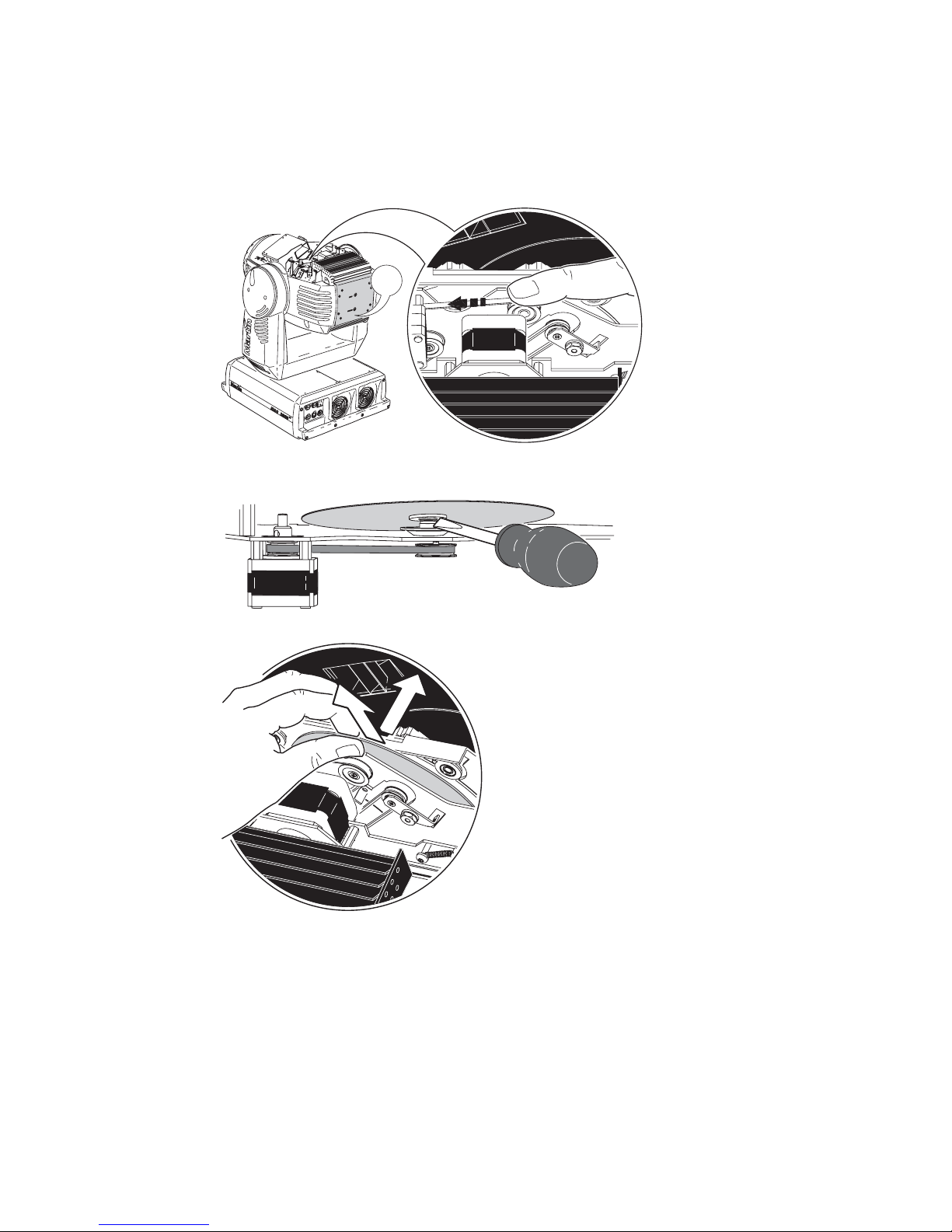

R e p l a c i n g t h e g o b o a n i m a t i o n w h e e l

1 Disconnect the fixture from power and allow it to cool.

2 Lock the head in the upside down position and remove the bottom cover.

3 Using a finger or thumb (as illustrated), move the installed animation wheel up.

4 The animation wheels are made of thin aluminum, so use a screw driver to release the wheel from the

magnetic mount.

5 Take the wheel out by hand.

6 To insert a new wheel, place it over the mount, ensuring that the magnet that is fitted to the animation wheel

is facing the mount. There is a small indexing position hole in each animation wheel and the indexing pin on the mount must be positioned in this hole.

7 Replace the bottom cover and unlock the head before operating

TOP

Page 34

OUTINE MAINTENANCE

Warning! Disconnect the fixture from power and allow to cool before removing any cover. Important! Excessive dust, smoke fluid, and particulate buildup degrades performance and causes

overheating and damage to the fixture that is not covered by the warranty.

The MAC 2000 Performance II requires routine cleaning. To maximize the life of the product and protect the investment it represents, clean the fixture regularly – especially the cooling systems. It is essential to follow the guidelines given later in this section.

Refer any service operation that is not described here to a qualified Martin technician.

It is Martin policy to use the best-quality materials and coatings available to ensure optimum performance and the longest possible component lifetimes. However, optical components in all lighting fixtures are subject to wear and tear over the life of the fixture, resulting in gradual changes in color rendition of dichroic filters or the specular properties of reflectors, for example.

The extent of wear and tear depends heavily on operating conditions, maintenance and environment, so it is impossible to specify precise lifetimes for optical components. However, you will eventually need to replace optical components if their characteristics are affected by wear and tear after an extended period of use and if you require fixtures to perform within very precise optical and color parameters.

Lamp

The MAC 2000 Performance II is supplied with a Philips MSR 1200 SA/DE GOLD 1200 W discharge lamp installed. This source has a color temperature of 6000 K, a color rendering index greater than 85, and an average life of 750 hours.

The lamp is capable of hot restrike. This feature, however, is only supported by the MAC 2000 Performance II with electronic ballast.

The ends of the lamp are profiled with special keys, as shown in Figure 11, to ensure proper installation. Do not use lamps with keys in a non-keyed SFc 10-4 socket.

Warning! Install only an approved lamp (see “Source” on

page 54). Installing any other lamp may create a safety hazard or damage the fixture!

The lamp should be replaced when it has reached the limit of its 750 hour average life. To reduce the risk of explosion, never exceed 125% of the lamp’s average life, i.e. 940 hours. To read lamp hours from the control panel, please refer to “Readouts” on page 13.

For optimum performance, avoid turning off the lamp before it has warmed up fully.

TOP

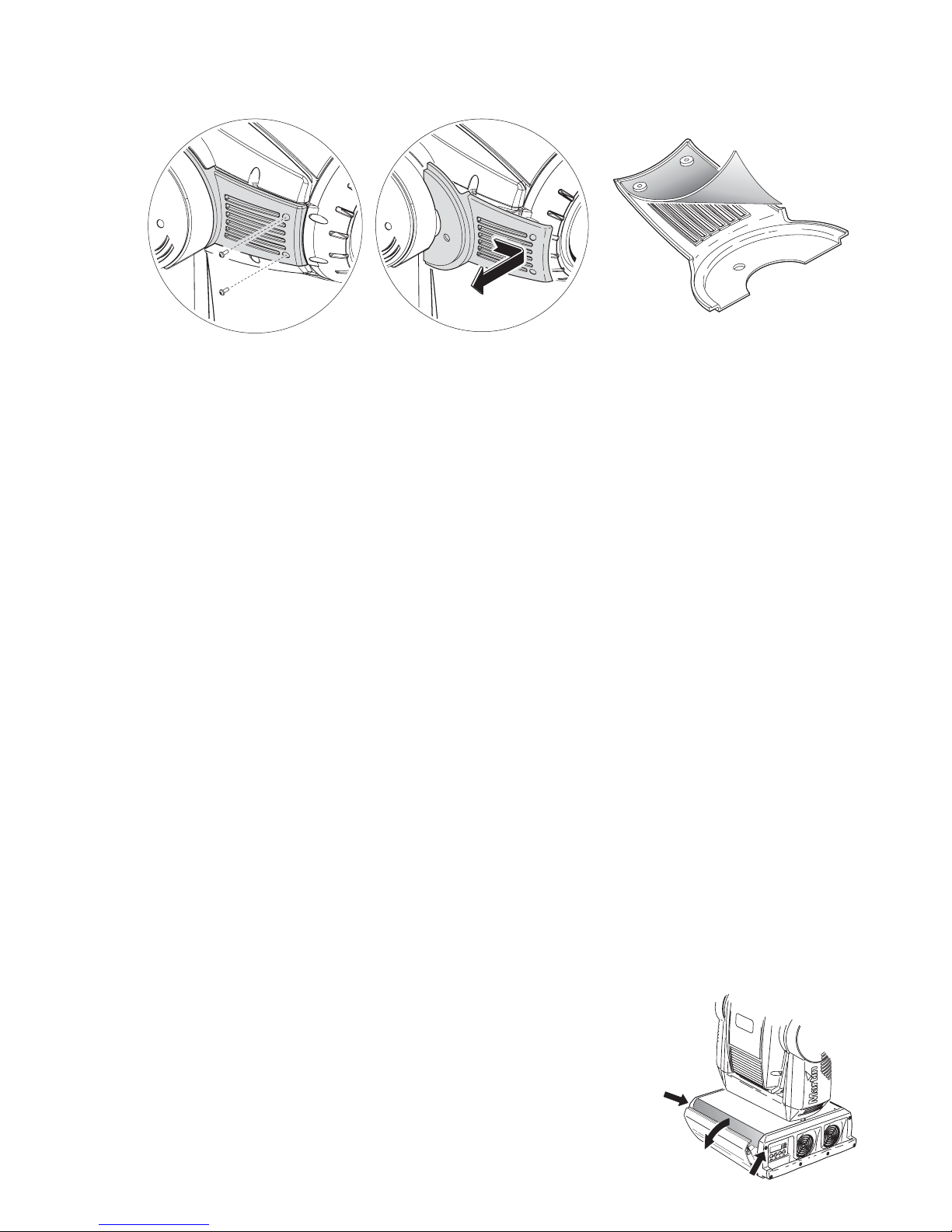

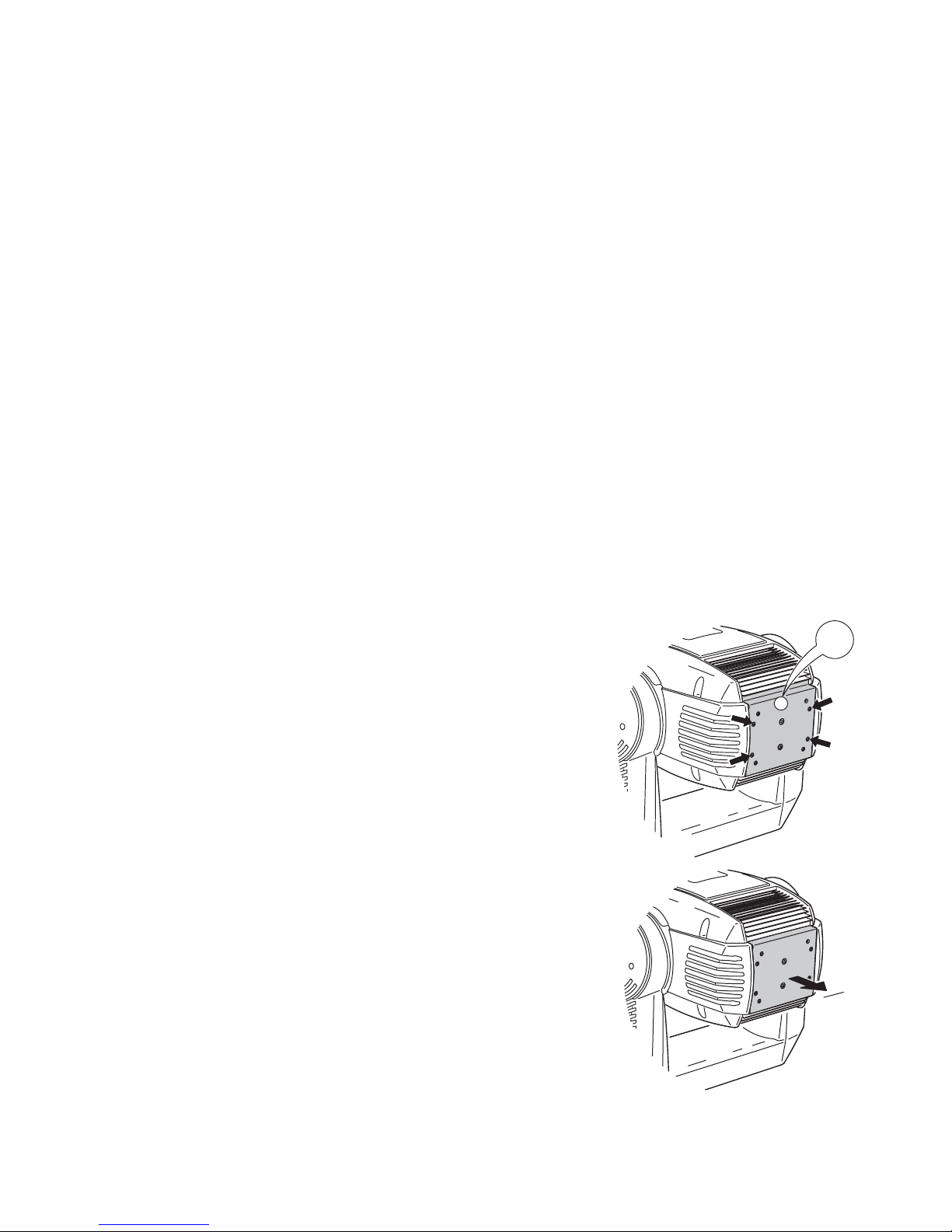

Figure 9: Lamp access

Page 35

L a m p r e p l a c e m e n t

Important! Do not touch the quartz bulb with bare fingers.

The lamp can be replaced with either a Philips MSR 1200 SA/DE GOLD (Martin P/N 97010310), or an OSRAM HMI 1200 W/S (Martin P/N 97010304). Both lamps are available from your Martin dealer.

The clear quartz bulb must be clean and free of any oils from your fingers. Clean the lamp with an alcohol wipe and polish it with a dry cloth, particularly if you accidentally touch the bulb.

To replace the lamp:

1 Disconnect the fixture from power and allow it to cool. Lock

the head horizontally with the top up.

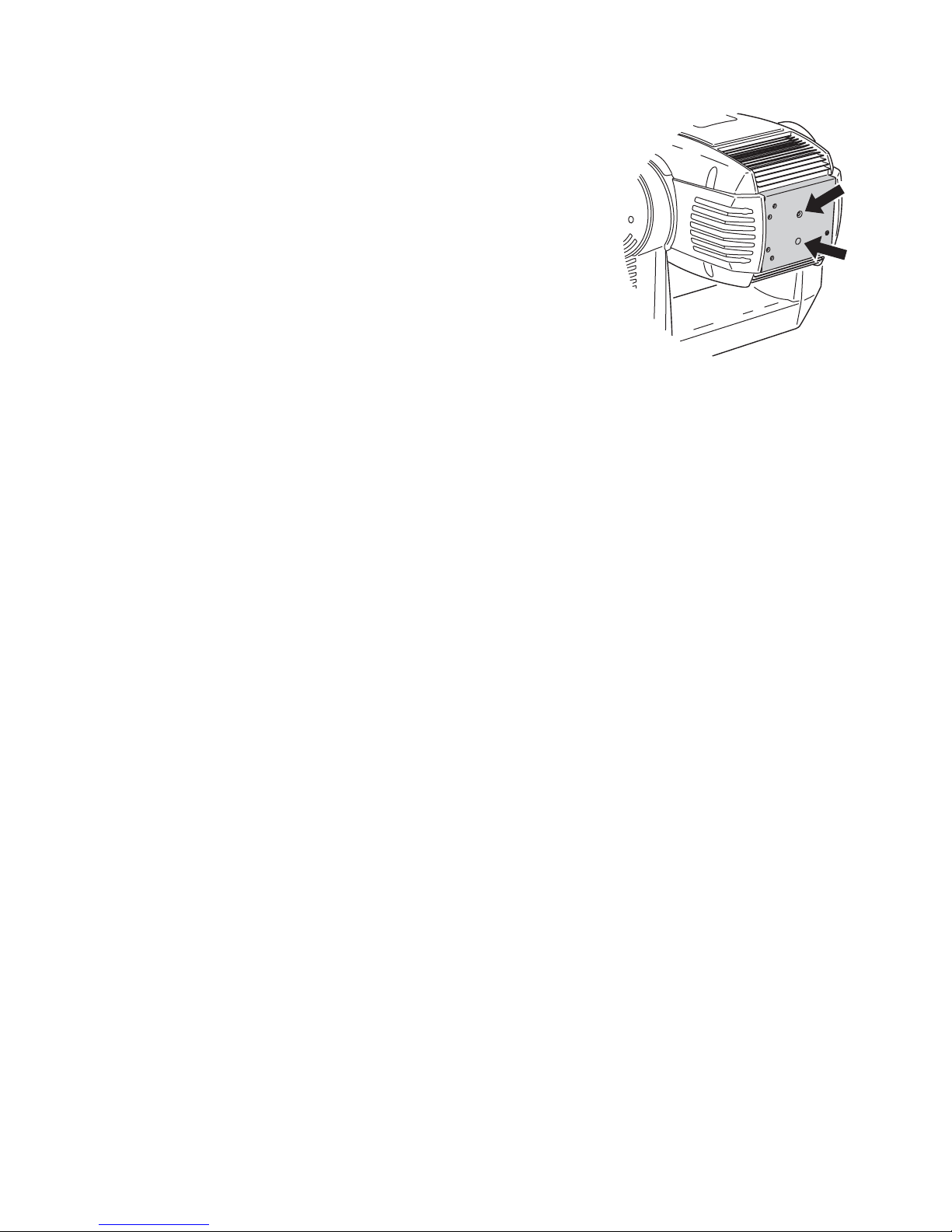

2 See Figure 9. Release the 4 quarter-turn fasteners marked

with arrows on the rear p late. Pull the lamp assembly straight back as far as it goes and let it rest in place.

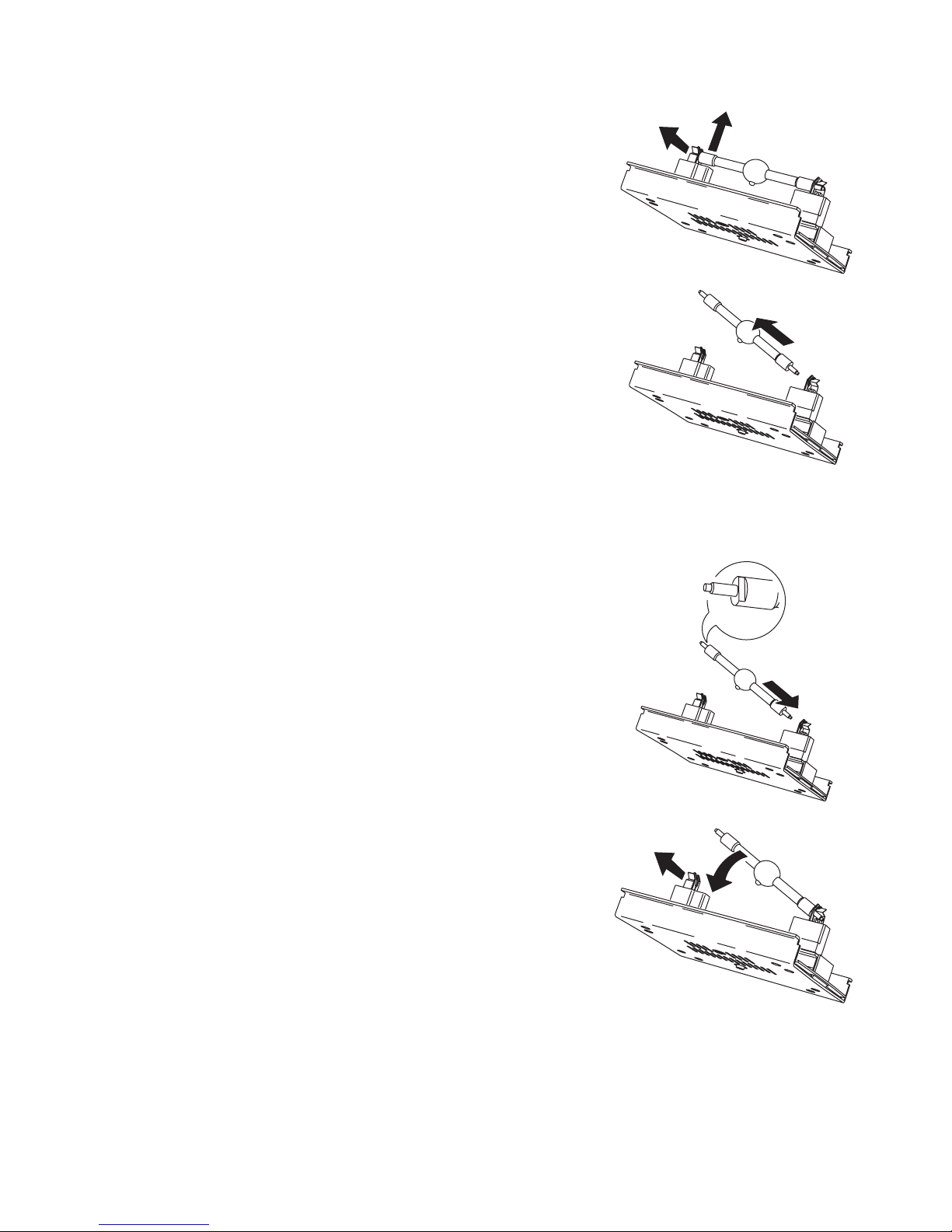

3 See Figure 10. Pull the retention spring on the left-hand

end of the lamp socket up and then swing the end of the lamp out. Pull the other end out of the socket.

4 Inspect the socket for corrosion (see “Replacing the lamp

socket” on page 35) and replace if necessary.

5 See Figure 11. With the nipple on the bulb facing the back,

insert the right end of the new lamp in the socket. Pull up on the left spring and snap the other end into place.

6 Lift the lamp assembly so that lamp is level with the center

of the reflector. Push the assembly straight in until it seats, making sure the lamp passes through the reflector opening. Lock the 4 quarter-turn fasteners.

7 When installing a new lamp, reset the lamp hour and lamp

strike counters as described in “Time” on page 13.

R e p l a c i n g t h e l a m p s o c k e t

Th e l a mp hold e r u sed in th e M AC 2 0 0 0 Perfo r m ance II eventually wears out due to the high voltages that pass through the contacts.

Wear begins to show up as discoloration at the contact surfaces. When this happens, resistance increases and the lamp becomes harder to strike. If this process is allowed to continue, the lamp is likely to fail prematurely.

Each time the lamp is replaced, inspect the lamp holder and have it replaced by a qualified technician as soon as there are signs of discoloration or pitting at the contact surfaces. We recommend routine replacement of the socket after maximum 4000 hours of use (replace one socket for every five lamps). Damage caused by failure to replace a worn and/or discolored lamp holder is not covered by the product warranty.

Figure 10: Lamp removal

Figure 11: Lamp insertion

Page 36

A l i g n i n g t h e l a m p

1 Switch on the MAC 2000 Performance II and allow it to

reset. Using either a controller or the control module, turn on the lamp and project an open white beam on a flat surface.

2 Center the hot spot vertically using the top Allen-head

adjustment screw in the center of the rear plate.

3 If there is significant hot spot, turn the bottom adjustment

screw counterclockwise until the light is evenly distributed. If the light is brighter around the edge than it is in the center, or if light output is low, turn the bottom adjustment scr e w c l ockwis e unti l the ligh t is bright and ev enly distributed.

4 Repeat step 2.

Cleaning

Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog fluid residues, etc. degrades the fixture’s light output and cooling ability.

Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the MAC 2000 Performance II. Cooling fans suck in airborne dust and smoke particles, and in extreme cases fixtures may require cleaning after surprisingly few hours of operation. Environmental factors that may result in a need for frequent cleaning include:

• Use of smoke or fog machines.

• High airflow rates (near air conditioning vents, for example).

• Presence of cigarette smoke.

• Airborne dust (from stage effects, building structures and fittings or the natural environment at outdoor events, for example).

If one or more of these factors is present, inspect fixtures within their first 25 hours of operation to see whether cleaning is necessary. Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your Martin dealer about a suitable maintenance schedule.

Use care when cleaning optical components and work in a clean, well lit area. The coated surfaces are fragile and easily scratched. Do not use solvents that can damage plastic or painted surfaces.

To maintain adequate cooling, dust must be cleaned from the fans and air vents periodically. Inspect the air filters regularly and clean before they become clogged. Replace the air filters with new ones when replacing the lamp.

C l e a n i n g o p t i c a l c o m p o n e n t s

1 Disconnect the fixture from power and allow the components to cool completely. Remove the head cover.

2 Vacuum or gently blow away dust and loose particles with compressed air.

3 Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled

water. Do not rub the surface: lift the particles off with a soft repeated press.

4 Remove smoke and other residues with cotton swabs or unscented tissues moistened with isopropyl

alcohol. A commercial glass cleaner may be used, but residues must be removed with distilled water. Clean with a slow circular motion from center to edge. Dry with a clean, soft and lint-free cloth or compressed air.

C l e a n i n g t h e f a n a n d a i r v e n t s

Remove dust from the fans and air vents with a soft brush, cotton swab, vacuum, or compressed air.

Figure 12: Lamp adjustment

Page 37

C l e a n i n g o r r e p l a c i n g t h e a i r f i l t e r s

1 Disconnect the fixture from power. On each side of the head, remove the 2 screws that hold the side cover

using a Torx-20 screwdriver. Slide the cover forward to remove. Lift the filter off of the cover.

2 Clean the filters with a vacuum or compressed air, or replace them. If they are saturated with smoke fluid,

etcetera, soak them in warm soapy water and blot dry.

3 Place the filters on the covers and replace the covers.

Software installation

Software updates are installed in the MAC 2000 Performance II using a Martin MP-2 Uploader or a LightJockey 4064 DMX interface card. The procedure is found in the MP-2 user manual and the Martin Software Uploader online help file.

R e q u i r e m e n t s

The following are required in order to install software.

• The MAC 2000 Performance II update file, available for download from the User Support Area of the Martin web site (http://www.martin.dk).

• The Martin Software Uploader program, version 4.0 or later, available for download from the User Support Area of the Martin web site.

• A Martin MP-2 Uploader connected to a Windows 95/98/ME/2000/XP PC, or a LightJockey Controller (DJ or Club) with 4064 DMX Interface card.

Preventing software updates

Software updates are enabled by default, but you can disable this by setting the Write jumper (see “Circuit board connections” on page 53) to disable.

Boot sector jumper

If the normal upload procedure does not work, or if the software update notes call for a boot sector update, move the boot sector jumper on the printed circuit board to the BOOT position before uploading software.

E T TI N G T H E B O OT S E CT O R J U MP E R

1 Disconnect the fixture from power.

2 Remove the top screws from the ends of the front side panel and tilt the

panel down to expose the main circuit board.

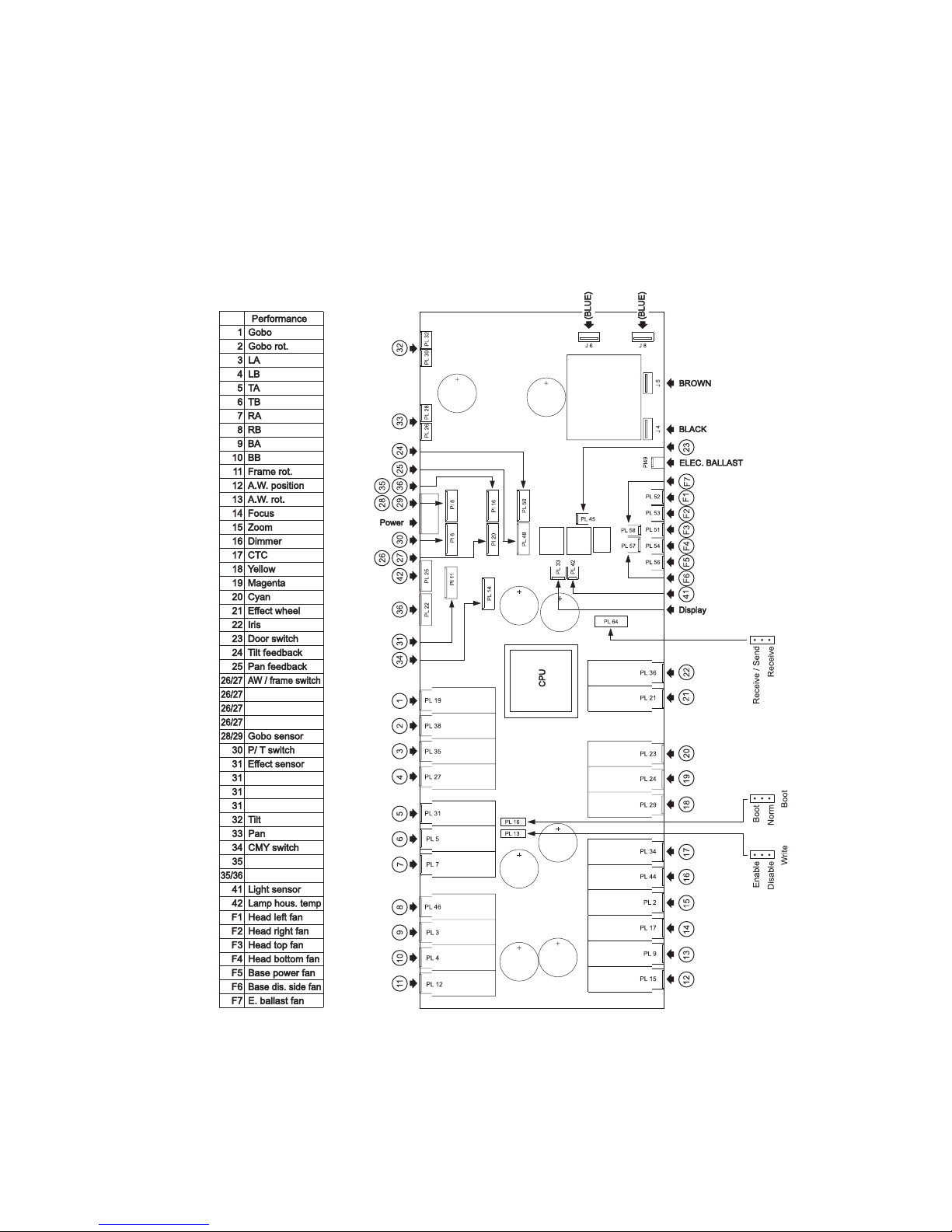

3 Using the appropriate diagram in “Circuit board connections” on page 53 or

the label inside the base, locate the BOOT jumper (PL16). Move the jumper

to the “BOOT” position.

4 Perform a boot mode upload. When the upload is complete, disconnect the

fixture fro m power and move the jumper back to the locked or nor mal

position.

Page 38

DMX

PROTOCOL

This section contains two DMX protocols (both from protocol version 1.0A):

• “16-bit protocol” on page 39

• “8-bit protocol” on page 42

The 16-bit is the default protocol that is used. To modify this use the control menu. For more information see “Control menu” on page 45.

Page 39

16-bit protocol

DMX channel Value Percent Function Start code = 0

0 - 19 20 - 49 50 - 72 73 - 79 80 - 99

100 - 119 120 - 127 128 - 147 148 - 167 168 - 187 188 - 190 191 - 193 194 - 196 197 - 199 200 - 202 203 - 207 208 - 217 218 - 227 228 - 237 238 - 247 248 - 255

0 - 7

8 - 19 20 - 28 29 - 31 32 - 39 40 - 47 48 - 50 51 - 57 58 - 65 66 - 73 74 - 74

75 76

77 78 - 79 80 - 81 82 - 85 86 - 89 90 - 93 94 - 97

98 - 100

Shutter, Strobe, Reset, Lamp On/Off Shutter Closed (lamp reduced to 700 W (E-ballast) after 10 sec.) No function (Shutter Open) Strobe on fast→slow Shutter open, lamp reduced to 700 W (E-ballast) Pulse opening fast →slow Pulse closing fast →slow No function Random Strobe Fast Random Strobe Medium Random Strobe Slow No function Random pulse opening fast Random pulse opening slow Random pulse closing fast Random pulse closing slow No function Reset Fixture No function Lamp On (Power On) No Function Lamp Off (Power Off) Note: T > 5 seconds

0 - 255 0 - 100

Intensity

0 – 100%

0 - 255 0 - 100

Cyan

White → Cyan

0 - 255 0 - 100

Magenta

White → Magenta

0 - 255 0 - 100

Yellow

White → Yellow

0 - 255 0 - 100

CTC

White → CTC

0 - 9 10 - 14 15 - 19 20 - 24 25 - 29 30 - 34

35 - 39 40 - 44 45 - 49 50 - 54 55 - 59

60 - 74 75 - 89

90 - 104 105 - 119 120 - 134

135 - 149 150 - 164 165 - 179 180 - 194 195 - 209

210 - 232 233 - 255

0 - 3 4 - 5 6 - 7

8 - 9 10 - 11 12 - 13

14 - 15 16 - 17 18 - 19 20 - 21 22 - 23

24 - 29 30 - 35 36 - 41 42 - 46 47 - 52

53 - 58 59 - 64 65 - 70 71 - 67 77 - 82

83 - 91

92 - 100

Rotating gobo 1 selection

Open gobo Gobo 1 – Indexing (set index on channel 8) Gobo 2 – Indexing (set index on channel 8) Gobo 3 – Indexing (set index on channel 8) Gobo 4 – Indexing (set index on channel 8) Gobo 5 – Indexing (set index on channel 8)

Gobo 1 – Cont. Rotation (set dir/speed on channel 8) Gobo 2 – Cont. Rotation (set dir/speed on channel 8) Gobo 3 – Cont. Rotation (set dir/speed on channel 8) Gobo 4 – Cont. Rotation (set dir/speed on channel 8) Gobo 5 – Cont. Rotation (set dir/speed on channel 8)

Gobo shake (indexing)

Gobo 1 slow → fast Gobo 2 slow → fast Gobo 3 slow → fast Gobo 4 slow → fast Gobo 5 slow → fast

Gobo shake (continuous gobo rotation)

Gobo 1 slow → fast Gobo 2 slow → fast Gobo 3 slow → fast Gobo 4 slow → fast Gobo 5 slow → fast

Gobo wheel continuous rotation (continuous gobo rotation)

CW slow → fast CCW fast → slow

Page 40

0 - 255

0 - 2

3 - 127 128 - 252 253 - 255

0 - 100

1 - 50

51 - 99

100

Rotating gobo 1 index coarse, MSB (Set gobo selection on channel 7) Index min. → max

Rotating gobo 1 cont. rotation (Set gobo selection on channel 7) Static CCW slow → fast CW fast → slow Static

0 - 255

0 - 100

Rotating gobo 1 index fine, LSB (Set gobo selection on channel 7) Index min. → max

Rotating gobo 1 cont. rotation (Set gobo selection on channel 7) No function

0 - 9 10 - 19 20 - 29 30 - 39 40 - 49

50 - 139

140 - 229

230 - 235

236 - 239 240 - 243 244 - 247 248 - 251 252 - 255

0 - 3 4 - 7

8 - 11 12 - 15 16 - 19 20 - 54

55 - 89

90 - 92

94 - 95

97 - 98

99 - 100

Gobo Animation wheel position

No Effect Vertical position – Indexing (set index on channel 10) Horizontal position – Indexing (set index on channel 10) Vertical position – Cont. Rotation (set dir/speed on channel 10) Horizontal position – Cont. Rotation (set dir/speed on channel 10) Animation wheel scroll position (Vertical → Horizontal) – Indexing (set index

on channel 11) Animation wheel scroll position (Horizontal → Vertical) – Cont. Rot. (set

dir/speed on channel 11) No Effect

Gobo Animation MACROS

Macro 1 Macro 2 Macro 3 Macro 4 Macro 5

0 - 255

0 - 2

3 - 127 128 - 252 253 - 255

0 - 100

1 - 50

51 - 99

100

Gobo Animation wheel index (Set position on channel 10) Index min. → max

Gobo Animation wheel cont. rotation (Set position on channel 10) Static CCW slow → fast CW fast → slow Static

1 - 234 235 - 242 243 - 250 251 - 255

1 - 91 92 - 95 96 - 98

99 - 100

Effect selection

Open Variable Frost min. → max. Effect 1 Effect 2 Open

0 - 199 200 - 215 216 - 229 230 - 243 244 - 246 247 - 249 250 - 252 253 - 255

0 - 77 78 - 84 85 - 89 90 - 94 95 - 96

98 - 99

100

Iris

Open → close Close Pulse opening fast → slow Pulse closing fast → slow Random pulse opening fast Random pulse opening slow Random pulse closing fast Random pulse closing slow

14 0 - 2

3 - 255

0 - 1

2 - 100

Framing MACRO functions

No Macro Reserved for macros

0 - 255 0 - 100

Focus

Focus far → near

0 - 255 0 - 100

Zoom

Zoom wide → narrow

0 - 255 0 - 100

Framing shutter 1

Out → In

0 - 126 127 - 128 129 - 255

0 - 49

51 - 100

Framing shutter 1

Angle – Parallel Angle +

0 - 255 0 - 100

Framing shutter 2

Out → In

DMX channel Value Percent Function Start code = 0

Page 41

0 - 126

127-128

129 - 255

100

Framing shutter 2

Angle – Parallel Angle +

0 - 255 0 - 100

Framing shutter 3

Out → In

0 - 126 127 - 128 129 - 255

100

Framing shutter 3

Angle – Parallel Angle +

0 - 255 0 - 100

Framing shutter 4

Out → In

0 - 126 127 - 128 129 - 255

100

Framing shutter 4

Angle – Parallel Angle +

0 - 255 0 - 100

Rotate framing shutters

Right → Center → Left

0 127 255

100

Pan coarse

Max Left Neutral Max Right

0 127 255

100

Pan fine

Max Left Neutral Max Right

0 127 255

100

Tilt coarse

Max Up Neutral Max Down

0 127 255

100

Tilt fine

Max Up Neutral Max Down

0 - 2

3 - 236 237 - 239 240 - 242 243 - 245 246 - 248 249 - 251 252 - 255

0 - 1

2 - 92

93 94 95

96 - 97

99 - 100

Speed: Pan/Tilt Movement

Tracking Speed Fast → Slow Tracking (Slow speed – overrides the

$ ' % $ menu setting)

Tracking (Normal speed – overrides the

$ ' % $ menu setting)

Tracking (Fast speed – overrides the

$ ' % $ menu setting)

Fan speed (Regulation, min. noise level – overrides the

/ ! 0 menu setting)

Fan speed (Full speed, max. cooling – overrides the

/ ! 0 menu setting)

Blackout while moving

0 - 2 3 - 239 240 - 242 243 - 245 246 - 248 249 - 251 252 - 255

0 - 2

3 - 239 240 - 242 243 - 245 246 - 248 249 - 251 252 - 255

1 - 93

94 - 95

97 - 98

100

1 - 93

94 - 95

97 - 98

100

Speed: Dimmer, Cyan, Magenta, Yellow, CTC, Effect, Iris, Focus, Zoom

Tracking Speed Fast → Slow Tracking (Studio mode disabled – overrides the

2 1 " & menu setting)

Tracking (Studio mode enabled – overrides the

2 1 " & menu setting)

Tracking (Shortcuts disabled – overrides the

% 6 5 ' menu setting)

Tracking (Shortcuts enabled – overrides the

% 6 5 ' menu setting)

Fast Speed

Speed: Gobo 1, Framing, Animation wheel pos., Animation wheel rot.

Tracking Speed Fast → Slow Tracking (Studio mode disabled – overrides the

2 1 " & menu setting)

Tracking (Studio mode enabled – overrides the

2 1 " & menu setting)

Tracking (Shortcuts disabled – overrides the

% 6 5 ' menu setting)

Tracking (Shortcuts enabled – overrides the

% 6 5 ' menu setting)

Blackout while moving

DMX channel Value Percent Function Start code = 0

Page 42

8-bit protocol

DMX channel Value Percent Function Start code = 0

0 - 19 20 - 49 50 - 72 73 - 79 80 - 99

100 - 119 120 - 127 128 - 147 148 - 167 168 - 187 188 - 190 191 - 193 194 - 196 197 - 199 200 - 202 203 - 207 208 - 217 218 - 227 228 - 237 238 - 247 248 - 255

0 - 7

8 - 19 20 - 28 29 - 31 32 - 39 40 - 47 48 - 50 51 - 57 58 - 65 66 - 73 74 - 74

75 76

77 78 - 79 80 - 81 82 - 85 86 - 89 90 - 93 94 - 97

98 - 100

0 - 255 0 - 100

Intensity

0 – 100%

0 - 255 0 - 100

Cyan

White → Cyan

0 - 255 0 - 100

Magenta

White → Magenta

0 - 255 0 - 100

Yellow

White → Yellow

0 - 255 0 - 100

CTC

White → CTC

0 - 9 10 - 14 15 - 19 20 - 24 25 - 29 30 - 34

35 - 39 40 - 44 45 - 49 50 - 54 55 - 59

60 - 74 75 - 89

90 - 104 105 - 119 120 - 134

135 - 149 150 - 164 165 - 179 180 - 194 195 - 209

210 - 232 233 - 255

0 - 3 4 - 5 6 - 7

8 - 9 10 - 11 12 - 13

14 - 15 16 - 17 18 - 19 20 - 21 22 - 23

24 - 29 30 - 35 36 - 41 42 - 46 47 - 52

53 - 58 59 - 64 65 - 70 71 - 67 77 - 82

83 - 91

92 - 100

Rotating gobo 1 selection

Gobo shake (indexing)

Gobo 1 slow → fast Gobo 2 slow → fast Gobo 3 slow → fast Gobo 4 slow → fast Gobo 5 slow → fast

Gobo shake (continuous gobo rotation)

Gobo 1 slow → fast Gobo 2 slow → fast Gobo 3 slow → fast Gobo 4 slow → fast Gobo 5 slow → fast

Gobo wheel continuous rotation (continuous gobo rotation)

CW slow → fast CCW fast → slow

Page 43

0 - 255

0 - 2

3 - 127 128 - 252 253 - 255

0 - 100

0 - 1

2 - 50

51 - 98

99 - 100

Rotating gobo index (Set gobo selection on channel 7) Index min. → max

Rotating gobo cont. rotation (Set gobo selection on channel 7) Static CCW slow → fast CW fast → slow Static

0 - 9 10 - 19 20 - 29 30 - 39 40 - 49

50 - 139

140 - 229

230 - 235

236 - 239 240 - 243 244 - 247 248 - 251 252 - 255

0 - 3 4 - 7

8 - 11 12 - 15 16 - 19 20 - 54

55 - 89

90 - 92

94 - 95

97 - 98

99 - 100

Gobo Animation wheel position

on channel 10) Animation wheel scroll position (Horizontal → Vertical) – Cont. Rot. (set

dir/speed on channel 10) No Effect

Gobo Animation MACROS

Macro 1 Macro 2 Macro 3 Macro 4 Macro 5

0 - 255

0 - 2

3 - 127 128 - 252 253 - 255

0 - 100

0 - 1

2 - 50

51 - 98

99 - 100

Gobo Animation wheel index (Set position on channel 9) Index min. → max

Gobo Animation wheel cont. rotation (Set position on channel 9) Static CCW slow → fast CW fast → slow Static

1 - 234 235 - 242 243 - 250 251 - 255

1 - 91 92 - 94 95 - 98

99 - 100

Effect selection

Open Variable Frost min. → max. Effect 1 Effect 2 Open

0 - 199 200 - 215 216 - 229 230 - 243 244 - 246 247 - 249 250 - 252 253 - 255

0 - 78 79 - 84 85 - 89 90 - 95

96 97 98

99 - 100

Iris

Open → close Close Pulse opening fast → slow Pulse closing fast → slow Random pulse opening fast Random pulse opening slow Random pulse closing fast Random pulse closing slow

0 - 2

3 - 255

0 - 1

2 - 100

Framing MACRO functions

No Macro Reserved for macros

0 - 255 0 - 100

Focus

Focus far → near

0 - 255 0 - 100

Zoom

Zoom wide → narrow

0 - 255 0 - 100

Framing shutter 1

Out → In

0 - 126

127-128

129 - 255

100

Framing shutter 1

Angle – Parallel Angle +

0 - 255 0 - 100

Framing shutter 2

Out → In

0 - 126

127-128

129 - 255

100

Framing shutter 2

Angle – Parallel Angle +

DMX channel Value Percent Function Start code = 0

Page 44

0 - 255 0 - 100

Framing shutter 3

Out → In

0 - 126

127-128

129 - 255

100

Framing shutter 3

Angle – Parallel Angle +

0 - 255 0 - 100

Framing shutter 4

Out → In

0 - 126

127-128

129 - 255

100

Framing shutter 4

Angle – Parallel Angle +

0 - 255 0 - 100

Rotate Framing Shutters

Right → Center → Left

0 127 255

100

Pan

Max Left Neutral Max Right

0 127 255

100

Tilt

Max Up Neutral Max Down

0 - 2

3 - 236 237 - 239 240 - 242 243 - 245 246 - 248 249 - 251 252 - 255

0 - 1

2 - 92

94 - 95

96 97 98

99 - 100

Speed: Pan/Tilt Movement

Tracking Speed Fast → Slow Tracking (Slow speed -– overrides the

$ ' % $ menu setting)

Tracking (Normal speed – overrides the

$ ' % $ menu setting)

Tracking (Fast speed – overrides the

$ ' % $ menu setting)

Fan speed (Regulation, min. noise level – overrides the

/ ! 0 menu setting)

Fan speed (Full speed, max. cooling – overrides the

/ ! 0 menu setting)

Blackout while moving

0 - 2 3 - 239 240 - 242 243 - 245 246 - 248 249 - 251 252 - 255

0 - 2

3 - 239 240 - 242 243 - 245 246 - 248 249 - 251 252 - 255

0 - 1

2 - 93

94 - 95

96 97 98

99 - 100

0 - 1

2 - 93

94 - 95

96 97 98

99 - 100

Speed: Dimmer, Cyan, Magenta, Yellow, CTC, Effect, Iris, Focus, Zoom

Tracking Speed Fast → Slow Tracking (Studio mode disabled – overrides the

2 1 " & menu setting)

Tracking (Studio mode enabled – overrides the

2 1 " & menu setting)

Tracking (Shortcuts disabled – overrides the

% 6 5 ' menu setting)

Tracking (Shortcuts enabled – overrides the

% 6 5 ' menu setting)

Fast Speed

Speed: Gobo 1, Framing, Animation wheel pos., Animation wheel rot.

Tracking Speed Fast→ Slow Tracking (Studio mode disabled – overrides the

2 1 " & menu setting)

Tracking (Studio mode enabled – overrides the

2 1 " & menu setting)

Tracking (Shortcuts disabled – overrides the

% 6 5 ' menu setting)

Tracking (Shortcuts enabled – overrides the

% 6 5 ' menu setting)

Blackout while moving

DMX channel Value Percent Function Start code = 0

Page 45

ONTROL MENU

Menu Item Options Notes (Default settings in bold print)

! " " # E ,E F , 8

DMX address.

$ % & ' E

( ) * +

Full control with coarse pan, tilt, and gobo indexing.

, - ) +

Full control with fine pan, tilt, and gobo indexing.

$ ! ' .

% 4 ! $

1 0

Map DMX pan control to tilt channel and vice versa.

1 / /

Normal pan and tilt control.

$ . 0 >

1 0

Reverse DMX pan control, right ! left.

1 / /

Normal pan control, left ! right.

' . 0 >

1 0

Reverse DMX tilt control, down ! up.

1 / /

Normal tilt control, up ! down.

$ ' % $ E

0 1 # 2

Medium pan/tilt speed.

/ ! % '

Optimize movement for speed.

% 3 1 4

Optimize movement for smoothness.

% + G " E

1 / /

Optimize effects for speed.

1 0

Optimize effects for silence.

$ & # %

" . % $

1 0

Display remains on.

1 / /

Display extinguishes 2 minutes after last key press.

" . 0 ' , H E , H H

Adjust display intensity.

" 3 1 /

1 0

Enable DMX lamp off command.

1 / /

Disable DMX lamp off command.

" # & %

1 0

Enable DMX reset command.

1 / /

Disable DMX reset command.

! 3 1 0

1 / /

No automatic lamp strike.

1 0

Lamp strikes automatically within 90 seconds of power on.

" 2 ;

Lamp strikes if DMX is present, douses 15 mins. after it’s missing.

% 6 5 '

1 0 =

Gobo and effect wheels turn shortest distance.

1 / /

Gobo and effect wheel paths oscillate.

" . 6 5 " . 2 ,

Smoother dimming during final 25 percent of fade out.

" . 2 8

More responsive but less smooth

' # ! 6 2 1 " &

2 1 " ,

(default): Absolute delta value algorithm (for most

controllers)

2 1 " 8 : Real delta value algorithm.

6 ! 3

, E , H I =

Tracking samples. Increase if pan/tilt is not smooth.

(Default =

- ).

" / % &

/ ! 6 ' 3 1 ! 9

Return all personality settings (not calibrations) to factory defaults.

6 5 % , , 6 5 % 8 , 6 5 % J

3 1 ! "

Load custom configuration.

% ! > &

Save current configuration.

Table 2: Control menu

Page 46

. 0 / 1

' . 2 & 7 < # % =

' 1 ' 3

Total hours of operation since fabricated.

# % & '

Hours of operation since counter reset. To reset, display counter and press [↑] for 5 seconds.

' . 2 & 7 3 = < #

' 1 ' 3

Total hours of operation with lamp on since fabricated.

# % & '

Lamp hours since counter reset. To reset, display counter and press [↑] for 5 seconds.

' . 2 & 7 3 = % '

' 1 ' 3

Total number of lamp strikes since fabricated.

# % & '

Number of lamp strikes since counter reset. To reset, display counter and press [↑] for 5 seconds.

' & 2 $

< & ! "

Head temperature.

) ! % &

Base temperature.

3 ! 2 $

Temperature in the lamp module (not the temperature of the lamp itself).

> & # E

CPU firmware version.

" 2 ; 3 E

% ' 6 1

Decimal value of the DMX start code. The start code must be 0 for the MAC 2000 Performance II to function properly.

" . 2 I I & / % $

DMX value (from 0 - 255) received for each channel.

2 ! 0

# % ' E

Reset fixture.

3 1 0 -

Lamp on.

3 : / / -

Lamp off.

% < 5 '

1 $ & 0

Open shutter.

6 3 1 %

Close shutter.

% ' # /

Fast strobe.

% ' # 2

Medium strobe.

% ' # %

Slow strobe.

" . 2 H - 8 F F

Dimmer.

6 D ! 0 , 2 ! ? , D & 3

H - 8 F F

White →Cyan/Magenta/Yellow.

6 ' 6 H - 8 F F

Color temperature correction. Cold →Warm (0-178 mireds).

? 1 )

1 $ & 0

Gobo wheel. Open position.

K , . - K F .

Gobo wheel. Indexed gobos 1→5.

K , K - K F = #

Gobo wheel. Rotating gobos 1→5.

K , . % - K F . %

Gobo wheel. Indexed gobo shake 1→5.

K , # % - K F # %

Gobo wheel Rotating gobo shake 1→5.

6 4 = /

Gobo wheel. Clockwise wheel rotation - fast.

6 6 4 /

Gobo wheel. Counter clockwise wheel rotation - fast.

6 4 = 2

Gobo wheel. Clockwise wheel rotation - medium.

6 6 4 2

Gobo wheel. Counter clockwise wheel rotation - medium.

6 4 = %

Gobo wheel. Clockwise wheel rotation - slow.

6 6 4 %

Gobo wheel. Counter clockwise wheel rotation - slow.

. 7 % H - 8 F F

Clockwise rotation of gobo. Slow→fast.

Menu Item Options Notes (Default settings in bold print)

Table 2: Control menu

Page 47

2 ! 0

c o n t .

! 0 . 4

! 4 ! D

Gobo animation wheel. Move away from optical path.

> 3 = H - L

Gobo animation wheel. Select speed of vertical movement left.

> # = L - H

Gobo animation wheel. Select speed of vertical movement right.

< # = H - L

Gobo animation wheel. Select speed of horizontal movement right.

< 3 = L - H

Gobo animation wheel. Select speed of horizontal movement left.

& / /

/ = H - / , M F

Effects. Variable frost 0→100%.

& / / ,

Effect 1.

& / / 8

Effect 2.

. # . %

. = H - . , L L

Iris - Open→Closed.

$ 1 5 '

Pulse opening.

$ = . 0

Pulse closing.

# 0 " 1

Random pulse opening.

# 0 " .

Random pulse closing.

/ 1 6 H - 8 F F

Focus - Infinity→Near.

C 1 1 2 H - 8 F F

Zoom - Flood→spot.

) , . 1 H - 8 F F

Framing shutter blade 1. Move in or out.

) , ! ?

# H H H - # , 8 M

Framing shutter blade 1. Angle right 0 - 127.

3 H H H - 3 , 8 M

Framing shutter blade 1. Angle left 0 - 127.

) 8 . 1 H - 8 F F

Framing shutter blade 2. Move in or out.

) 8 ! ?

# H H H - # , 8 M

Framing shutter blade 2. Angle right 0 - 127.

3 H H H - 3 , 8 M

Framing shutter blade 2. Angle left 0 - 127.

) J . 1 H - 8 F F

Framing shutter blade 3. Move in or out.

) J ! ?

# H H H - # , 8 M

Framing shutter blade 3. Angle right 0 - 127.

3 H H H - 3 , 8 M

Framing shutter blade 3. Angle left 0 - 127.

) N . 1 H - 8 F F

Framing shutter blade 4. Move in or out.

) N ! ?

# H H H - # , 8 M

Framing shutter blade 4. Angle right 0 - 127.

3 H H H - 3 , 8 M

Framing shutter blade 4. Angle left 0 - 127.

$ ! 0 H - 8 F F

Pan - Left→Right

' . 3 ' H - 8 F F

Tilt - Up→Down

' % & @ E #5 0

Run a general test of all effects

Menu Item Options Notes (Default settings in bold print)

Table 2: Control menu

Page 48

5 ' . 3

(Pre ss and hold Ente r fo r a fe w seco nd s to us e this menu )

/ & ) !

1 0

Enable pan/tilt position correction system.

1 / /

Disable pan/tilt feedback. Setting not saved.

& / / )

1 0

Enable on the fly reset of color, gobo, and effect wheels.

1 / /

Disable on the fly reset of color, gobo, and effect wheels.

! " B E

See “Adjustment submenu” on page 49.

6 ! 3 7 $ = 1 / = , E 8 F F

Pan offset.

6 ! 3 7 ' = 1 / , E 8 F F

Tilt offset.

6 ! 3 7 " = 1 / , E 8 F F

Dimmer offset.

6 ! 3 7 6 = 1 / , E 8 F F

Cyan offset.

6 ! 3 7 2 = 1 / , E 8 F F

Magenta offset.

6 ! 3 7 D = 1 / , E 8 F F

Yellow offset.

6 ! 3 7 6 ' 1 / , E 8 F F

CTC offset.

6 ! 3 7 ? 1 ) 1 , E 8 F F

Gobo wheel offset.

6 ! 3 7 & / 1 / , E 8 F F

Effect wheel offset.

6 ! 3 7 . # 1 / , E 8 F F

Iris offset.

6 ! 3 7 / 1 1 / , E 8 F F

Focus offset.

6 ! 3 7 C 1 1 / , E 8 F F

Zoom offset.

" / 1 / % 5 # &

Return all offsets to the default settings.

$ 6 ) ' 3 & "

PCB test for service use only.

/ ! 0 %

# & ?

Regulate the effect cooling fans for quieter performance. Enabling this option increases the operating temperature and thus increases wear on the components.

/ 5 3 3

Operate cooling fans at full speed. This is the default from software version 1.4.

5 $ 3 " % 5 # &

Manually set fixture to software update mode.

% 2 % ?

(when Service LED is lit)

# & $ 3 ! 6 & = 3 ! 2 $

Displayed when lamp hours exceed average life (750 hours).

/ . ; ' 5 # & = 1 > & # < & ! ' . 0 ?

Displayed if head temperature exceeds 120° C (248° F).

Menu Item Options Notes (Default settings in bold print)

Table 2: Control menu

Page 49

DJUSTMENT SUBMENU

This functions are used by Martin service technicians to adjust the fixture. This menu is located under 5' . 3 7 ! " B .

Menu Item Options Notes

# % ' E E

Reset fixture.

3 = 1 0 E E

Strike lamp.

3 : / / E E

Douse lamp.

< & ! "

" . 2

1 $ & 0

Open dimmer.

! " B

Turn dimmer to adjustment position (closed mechanical stop).

6 3 1 %

Close dimmer.

% ' # 1

Strobe.

6 D ! 0 , = 2 ! ? ,= D & 3 ,= 6 ' 6

2 . 0

Color flags out.

2 ! ;

Color flags in.

? 1 ) 1

' 1 1 3

For gobo adjustment at factory.

1 $ & 0

Turn gobo wheel to open position.

! " B

Turn gobo wheel to adjustment position.

! 0 . 4

% 4 = $

Animation wheel switch position adjustment.

1 5 '

Animation wheel out position adjustment.

> & #

Animation wheel vertical position adjustment.

< 1 #

Animation wheel horizontal position adjustment.

& / /

' 1 1 3

For effect wheel adjustment at factory.

1 $ & 0

Turn effect wheel to open position.

! " B

Turn effect wheel to adjustment position.

. # . %

1 5 '

Iris out.

. 0

Iris in.

) & ! 2

! " B

Beam adjustment.

. 0

Beam in.

1 5 '

Beam out.

/ # 1 '

3 & / '

Frame rotation left.

# . ? <

Frame rotation right.

/ 1 6 5

0 & ! #

Move focus lens to front.

/ ! #

Move focus lens to back.

C 1 1 2

0 ! # #

Zoom to full spot.

4 . " &

Zoom to full flood.

Table 3: Adjustment menu

Page 50

$ ! ' . E

0 & 5 '

Move pan and tilt to neutral positions.

$ 0 ' "

Pan neutral, tilt down.

$ 0 ' 5

Pan neutral, tilt up.

$ 3 ' 0

Pan left, tilt neutral.

$ # ' 0

Pan right, tilt neutral.

$ 3 ' "

Pan left, tilt down.

$ # ' 5

Pan right, tilt up.

Menu Item Options Notes

Table 3: Adjustment menu

Page 51

ISPLAY MESSAGES

Message Appears when... What to do

# % ' (Reset)

... the fixture is indexing effects at startup. Wait for reset to complete.

% # % ' (Serial reset)

... the fixture has received a reset command from the controller.

Wait for reset to complete. Set

$ & # % 7 " # & % to off to prevent

accidental reset commands.

< 1 2 &

... the effects have been indexed and are moving to their default positions.

Wait a few moments.

1 $ & 0 =

...the lamp access cover is not fully closed.

Verify that the lamp access cover is locked in place.

3 & # # (Lamp error)

... the lamp doesn’t ignite within 10 minutes of receiving the ‘Lamp ON’ command. Likely reasons are a missing or defective lamp, or insufficient AC voltage.

Check the lamp. Check that the voltage and frequency settings match the local supply.

2 & # # (Memory error) ...the EEPROM memory cannot be read.

Contact Martin service personnel for assistance.

% O & # (Short error)

... the fixture detects the lamp is on but no ‘Lamp ON’ command has been received. This can occur if the lamp relay is stuck or if the lamp-power feedback circuit fails. The fixture may be operated but remote lamp on/off may be affected.

Contact Martin service personnel for assistance.

) ' & # (Base temperature error) < ' & # (Head temperature error)

... there is a fault with the temperature sensor in the base or head.

Contact Martin service personnel for assistance.

/ ) & $ (Feedback error pan) / ) & ' (Feedback error tilt) / ) & # (Feedback error pan/tilt)

...pan (/ ) & $ ), tilt (/ ) & ' ) or both (/ ) & # ) feedback circuits are malfunctioning. It will still be possible to operate the fixture, though it goes into a “safe” mode where maximum speed is reduced, thus preventing the fixture from losing track of its home position (losing step).

Contact Martin service personnel for assistance.

$ ! & # (Pan time-out) ' . & # (Tilt time-out) 6 D & # (Cyan time-out) 2 ! & # (Magenta time-out) D & & # (Yellow time-out) 6 ' & # (CTC time-out) / 1 & # (Focus time-out) C 1 & # (Zoom time-out)

...the electric indexing circuit is malfunctioning. The fixture will, after the time-out, establish a mechanical stop, and continue to work normally.

Reset fixture again. Contact Martin service personnel if problem continues.

K 1 & # (Gobo wheel time-out) K # & # (Gobo wheel rotation time-out) P $ & # (Animation wheel position time-out) P # & # (Animation wheel rotation time-out) & / & # (Effect wheel time-out) # / & # (Frame rotation index time-out)

...the magnetic-indexing circuit malfunctions (e.g. sensor defective or magnet missing). After the time-out, the effect in question stops in a random position.

Reset fixture again. Contact Martin service personnel if problem continues.

% J % 6 % , H % % N % 6 % , , % % F % 6 % , 8 % % - % 6 % M % 6 % ( % 6 % L % 6

...an effect does not move away from the index position under reset, a sensor or micro-switch circuit is shorted, or a micro-switch is stuck or connected incorrectly.

Contact Martin service personnel for assistance.

# ! 2 &

...there is an on board RAM memory error.

Contact Martin service personnel for assistance.

1 $ & # ...there is an on-board programming error.

Contact Martin service personnel for assistance.

3 , & #

...light sensor 1 is in error status.

Contact Martin service personnel for assistance.

' < & #

---there is a thermoswitch error or a jumper on PL47 error.

Contact Martin service personnel for assistance.

Table 4: Display messages

Page 52

ROUBLESHOOTING

Problem Probable cause(s) Remedy

One or more of the fixtures is completely dead.

No power to fixture.

Check that power is switched on and cables are plugged in.

Primary fuse blown (located near mains inlet). Disconnect fixture and replace fuse.

Secondary fuse(s) blown (located on PCB inside base).

Disconnect fixture. Check fuses on PCB and replace.

Fixtures reset correctly but respond erratically or not at all to the controller.

Bad data link.

Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.

Data link not terminated.

Insert termination plug in output jack of the last fixture on the link.

Incorrect addressing of the fixtures. Check fixture address and protocol settings.

One of the fixtures is defective and disturbs data transmission on the link.

Bypass one fixture at a time until normal operation is regained: unplug the XLR in and out connectors and connect them directly together. Have the fixture serviced by a qualified technician.

XLR pin-out on fixtures does not match (pins 2 and 3 reversed).

Install a phase-reversing cable between the fixtures or swap pins 2 and 3 in the fixture that behaves erratically.

Magnetically indexed effect resets correctly but wanders after fixture reaches operating temperature.

Effect wheel requires mechanical adjustment.

Disable effects feedback (page 14). Contact Martin technician for service.

Mechanical effect loses position.

Mechanical train requires cleaning, adjustment, or lubrication.

Contact Martin technician for service.

No light and

3 & # # error

message displayed.

Lamp blown Disconnect fixture and replace lamp.

Lamp not installed Disconnect fixture and install lamp.

Lamp access safety switch open

Verify that lamp access plate is fully seated and locked in place.

Lamp cuts out intermittently. Fixture is too hot.

Allow fixture to cool. Clean air filters. Reduce ambient room temperature.

Table 5: Troubleshooting

Page 53

IRCUIT BOARD CONNECTIONS

Page 54

PECIFICATIONS

MAC 2000 P

ERFORMANCE

PHYSICAL

Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408 mm (16.0 in)

Width: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490 mm (19.3 in)

Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 743 mm (29.3 in)

Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39.5 kg (87 lbs)

OURCE

Lamp: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200 W short arc discharge

Base: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Double-ended SFc 10-4 with key

Approved models . . . . . . . . . . . . . . . . Philips MSR 1200 SA/DE Gold (installed), Osram HMI 1200 W/S Short-Arc

Control: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .automatic and remote, hot re-strike

Ballast: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . electronic

Low voltage power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . electronic auto-ranging, or manually set

HERMAL

Maximum ambient temperature (Ta):. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° C (104° F)

Maximum surface temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140° C (284° F)

Total heat dissipation:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ca. 5120 Btu/hr

HOTOMETRICS

Light output: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23000 lumens

Beam angle (focused on open gobo) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12° - 29°

Focal length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58 - 143 mm

Measurement source: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Osram HMI 1200 W/S

LECTRICAL

AC input:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 m trailing cable w/o cord cap

Operating ranges: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-130/200-260 V, 50/60 Hz

Ballast: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . electronic

Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .auto-ranging

Main fuses (x 2 - when local AC supply is 208 - 250 V). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 A

Main fuses (x 2 - when local AC supply is 100 - 120 V). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T 20 A

Fuse F101: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T 6.3 A

Fuse F102: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T 10 A

Fuse F103: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T 3.15 A

Fuse F104: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T 3.15 A

AXIMUM POWER AND CURRENT

100 V, 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1590 W, 19.8 A

100 V, 60 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1560 W, 19.3 A

120 V, 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1560 W, 16.8 A

120 V, 60 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1540 W, 16.3 A

208 V, 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1470 W, 10.5 A

208 V, 60 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1470 W, 10.3 A

230 V, 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1480 W, 9.6 A

230 V, 60 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1470 W, 9.4 A

250 V, 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1480 W, 8.6 A

250 V, 60 Hz: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1480 W, 8.5 A

Figures are valid at nominal voltage. Allow for +/- 10% variation.

Page 55

GOBOS

Outside diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37.5 +0/-0.3 mm (1.48 +0/-0.01 in.)

Image diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mm (1.18 in.)

Thickness:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.1 mm in static slots, up to 7 mm in rotating slots

Material: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . high-temperature Borofloat or better glass

Coating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dichroic or enhanced aluminum

OBO ANIMATION WHEELS

Outside diameter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133 mm +0/-0.25 mm)

Image outer diameter:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130 mm (5.12 in)

Image inner diameter:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 mm (0.63 in)

Thickness:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 mm (0.02 in)

Construction: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Aluminium

ONTROL AND PROGRAMMING

Protocol: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USITT DMX-512

Control channels: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 or 31

Receiver:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Opto-isolated RS-485

Data I/O: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . locking 3-pin & 5-pin XLR, pin 1 shield, pin 2 cold (-), pin 3 hot (+)

Setting and addressing:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LED control panel, remote w/ MP-2 uploader

Pan/tilt resolution:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8- or 16-bit

Gobo indexing: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8- or 16-bit

Movement control: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . tracking and vector

Software installation: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . serial upload (MUF)

LECTROMECHANICAL EFFECTS

Cyan:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 100%

Magenta: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 100%

Yellow: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 100%

Color correction:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 178 mireds

Gobo animation wheel:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Animation effects at any angle

Gobo wheel: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 rotating and indexable slots

Four-blade framing system: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Blade tilting +/- 31°, frame rotation +/- 45°

Effect wheel:. . . . . . . . . . . . . . . . . . . . . . . . . . . . wide-angle converter lens, non-rotating 9-facet prism, variable frost

Iris. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .motorized

Dimmer/shutter: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .full range dimming and variable speed flash

Focus: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 m (6.5 ft.) - infinity

Zoom: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10° - 28°

Pan: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540°

Tilt: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267°

ESIGN STANDARDS

EU EMC: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 50 081-1, EN 50 082-1

EU safety: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 60598-1, EN 60598-2-17

Canadian safety: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CSA C22.2 No. 166

US safety: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ANSI/UL 1573

ONSTRUCTION

Housing: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UV-resistant fiber-reinforced composite

Colors: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . black

Protection factor: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IP 20

NSTALLATION

Mounting points:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 pairs of 1/4-turn locks, offset 45°

Orientation:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . any

RDERING INFORMATION

MAC 2000 Performance II in cardboard carton: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90205465

MAC 2000 Performance II in 1-unit flight case: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90205460

Two MAC 2000 Performance IIs in 2-unit flight case: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90205450

Page 56

INCLUDED ITEMS

2 x Omega bracket, 1/4-turn

User manual:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 35000103

Realistic stars gobo (E size): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 43036008

Cloud gobo (E size): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 43036008

Radial breakup gobo animation wheel (installed): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400211

Cloud breakup animation wheel: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400213

Dot breakup animation wheel: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400214

Tangential breakup animation wheel:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400215

Spiral breakup animation wheel: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400216

CCESSORIES

Wide-angle lens kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91610020

Linear breakup gobo animation wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400223

Triangle break gobo animation wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400225

Elliptical breakup gobo animation wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400221

Flicker wheel gobo animation wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400222

Coarse radial breakup gobo animation wheel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400224

Coarse tangential breakup gobo animation wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 62400226

MP-2 Uploader: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 90758420

G-clamp: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602003

Half-coupler clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91602005

“The Wife” DMX Tester. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 91611038

Philips MSR 1200 SA/DE Gold lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 97010310

OSRAM HMI 1200 W/S lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P/N 97010304

Page 57

Disposing of this product

Martin products are supplied in compliance with Directive 2002/96/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), as amended by Directive 2003/108/EC, where applicable.

Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products.

Page 58

Page 59

Page 60

Martin Professional MAC 2000 Performance II User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
