MartinLogan Motion 2i, Motion 4i, Motion 6i, Motion 8i Brochure

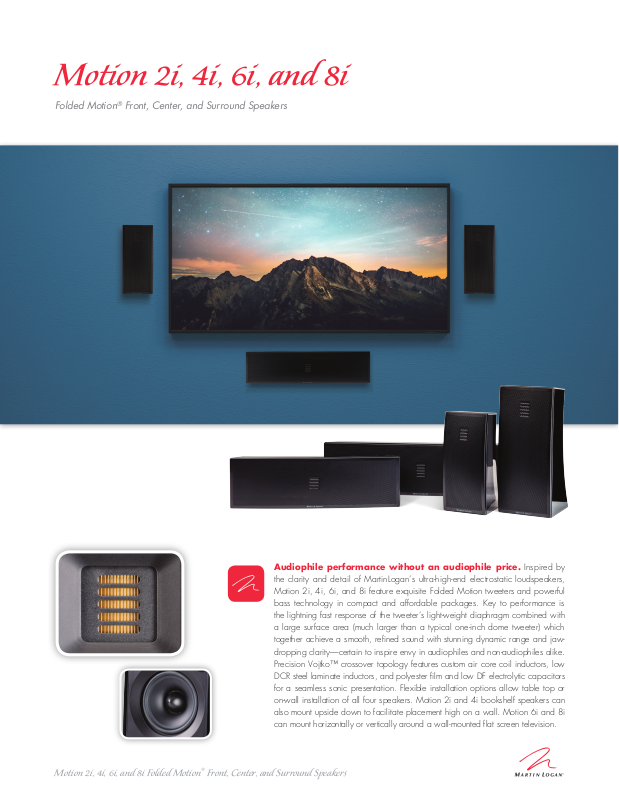

Motion 2i, 4i, 6i, and 8i
Folded Motion® Front, Center, and Surround Speakers
Audiophile performance without an audiophile price. Inspired by
the clarity and detail of MartinLogan’s ultra-high-end electrostatic loudspeakers,
Motion 2i, 4i, 6i, and 8i feature exquisite Folded Motion tweeters and powerful
bass technology in compact and affordable packages. Key to performance is
the lightning fast response of the tweeter’s light-weight diaphragm combined with
a large surface area (much larger than a typical one-inch dome tweeter) which
together achieve a smooth, refined sound with stunning dynamic range and jawdropping clarity—certain to inspire envy in audiophiles and non-audiophiles alike.
Precision Vojtko™ crossover topology features custom air core coil inductors, low
DCR steel laminate inductors, and polyester film and low DF electrolytic capacitors
for a seamless sonic presentation. Flexible installation options allow table top or
on-wall installation of all four speakers. Motion 2i and 4i bookshelf speakers can
also mount upside down to facilitate placement high on a wall. Motion 6i and 8i
can mount horizontally or vertically around a wall-mounted flat screen television.
Motion 2i, 4i, 6i, and 8i Folded Motion® Front, Center, and Surround Speakers
System Frequency Response
115–23,000 Hz ±3 dB
Dispersion
80° x 80°
Recommended Amplifier Power
20–100 Wat ts
Maximum Input Power
50 Watts
Sensitivity
86 dB @2.83 volts/meter
Impedance
6 Ohms. Compatible with 4, 6, or 8 Ohm
rated amplifiers.
Crossover Frequency
3,800 Hz
High Frequency Driver
0.94” x 1” (2.4cm x 2.5cm) Folded Motion
Transducer with 2.8” x 1.25” (7.1cm x
3.2cm) diaphragm.
Low Frequency Driver
3.5” (8.9cm) poly cone with stamped steel
basket. Non-resonant asymmetrical chamber
format. Rigid structured dust cap to reduce
cone break-up modes.
Components
Custom air core coil and low DCR steel
laminate inductors. Polyester film capacitors
in series and low DF electrolytic capacitors
in parallel. Overall system thermal/current
protection.
Cabinet
Sealed
Binding Post Inputs
Push style with banana jacks
Finish
Gloss Black
Accessories (included)
Wall mount bracket
Weight
3.4 lbs. each (1.54 kg)
Size (H x W x D)
10” x 4.7” x 4.6” (25.5 x 11.8 x 11.7 cm)
System Frequency Response
70–23,000 Hz ±3 dB
Dispersion
80° x 80
Recommended Amplifier Power
20–150 Watts
Maximum Input Power
75 Watts
Sensitivity
90 dB @2.83 volts/meter
Impedance
4 Ohms. Compatible with 4, 6, or 8 Ohm
rated amplifiers.
Crossover Frequency
2,900 Hz
High Frequency Driver
1” x 1.4” (2.6cm x 3.6cm) Folded Motion
Transducer with 5.25” x 1.75” (13.3cm x
4.4cm) diaphragm.
Low Frequency Driver
4” (10.2cm) paper cone with stamped steel
basket. Non-resonant asymmetrical chamber
format. Rigid structured dust cap to reduce
cone break-up modes.
Components
Custom air core coil and low DCR steel
laminate inductors. Polyester film capacitors
in series and low DF electrolytic capacitors
in parallel. Overall system thermal/current
protection.
Controls
Folded Bass Reflex Port
Binding Post Inputs
Push style with banana jacks
Finish
Gloss Black
Accessories (included)
Wall mount bracket
Weight
6 lbs. each (2.72 kg)
Size (H x W x D)
12. 6” x 5.6” x 5.7” (32 x 14.3 x 14.5 cm)
System Frequency Response
120–23,000 Hz ±3 dB
Dispersion
80° x 80°
Recommended Amplifier Power
20–130 Watts
Maximum Input Power
65 Watts
Sensitivity
89 dB @2.83 volts/meter
Impedance
6 Ohms. Compatible with 4, 6, or 8 Ohm
rated amplifiers.
Crossover Frequency
4,000 Hz
High Frequency Driver
0.94” x 1” (2.4cm x 2.5cm) Folded Motion
Transducer with 2.8” x 1.25” (7.1cm x
3.2cm) diaphragm.
Low Frequency Driver
Two 3.5” (8.9cm) poly cone with stamped
steel basket. Non-resonant asymmetrical
chamber format. Rigid structured dust cap to
reduce cone break-up modes.
Components
Custom air core coil and low DCR steel
laminate inductors. Polyester film capacitors
in series and low DF electrolytic capacitors
in parallel. Overall system thermal/current
protection.
Cabinet
Sealed
Binding Post Inputs
Push style with banana jacks
Finish
Gloss Black
Accessories (included)
Two wall mount brackets
Weight
5.7 lbs. each (2.58 kg)
Size (H x W x D)
5.2
” x 17.5” x 4” (13.2 x 44.4 x 10.1 cm)
System Frequency Response
70–23,000 Hz ±3 dB
Dispersion
80° x 80
Recommended Amplifier Power
20–180 Watts
Maximum Input Power
90 Watts
Sensitivity
89 dB @2.83 volts/meter
Impedance
4 Ohms. Compatible with 4, 6, or 8 Ohm
rated amplifiers.
Crossover Frequency
3,000 Hz
High Frequency Driver
1” x 1.4” (2.6cm x 3.6cm) Folded Motion
Transducer with 5.25” x 1.75” (13.3cm x
4.4cm) diaphragm.
Low Frequency Driver
Two 4” (10.2cm) paper cone with stamped
steel basket. Non-resonant asymmetrical
chamber format. Rigid structured dust cap to
reduce cone break-up modes.
Components
Custom air core coil and low DCR steel
laminate inductors. Polyester film capacitors
in series and low DF electrolytic capacitors
in parallel. Overall system thermal/current
protection.
Controls
Sealed
Binding Post Inputs
Push style with banana jacks
Finish
Gloss Black
Accessories (included)
Two wall mount brackets
Weight
8.5 lbs. each (3.85 kg)
Size (H x W x D)
5.6” x 22” x 5.2” (14.2 x 56 x 13.2 cm)
Specifications are subject to change without notice.
