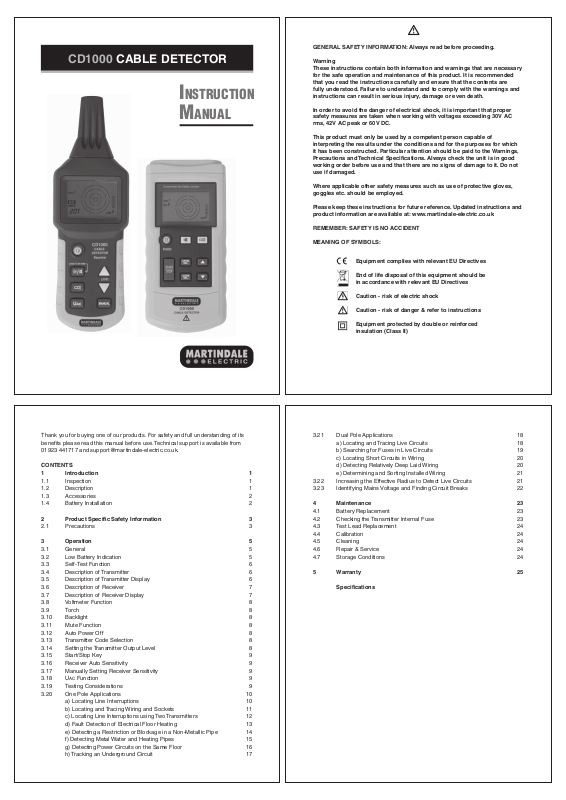

CD1000 CABLE DETECTOR
INSTRUCTION
MANUAL
GENERAL SAFETY INFORMATION: Always read before proceeding.
Warning
These instructions contain both information and warnings that are necessary
for the safe operation and maintenance of this product. It is recommended
that you read the instructions carefully and ensure that the contents are
fully understood. Failure to understand and to comply with the warnings and
instructions can result in serious injury, damage or even death.
In order to avoid the danger of electrical shock, it is important that proper
safety measures are taken when working with voltages exceeding 30V AC
rms, 42V AC peak or 60V DC.
This product must only be used by a competent person capable of
interpreting the results under the conditions and for the purposes for which
it has been constructed. Particular attention should be paid to the Warnings,
Precautions and Technical Specifi cations. Always check the unit is in good
working order before use and that there are no signs of damage to it. Do not
use if damaged.
Where applicable other safety measures such as use of protective gloves,
goggles etc. should be employed.
Please keep these instructions for future reference. Updated instructions and
product information are available at: www.martindale-electric.co.uk
REMEMBER: SAFETY IS NO ACCIDENT
MEANING OF SYMBOLS:
Equipment complies with relevant EU Directives
End of life disposal of this equipment should be
in accordance with relevant EU Directives
Caution - risk of electric shock
Caution - risk of danger & refer to instructions
Equipment protected by double or reinforced
insulation (Class II)
Thank you for buying one of our products. For safety and full understanding of its
benefi ts please read this manual before use. Technical support is available from
01923 441717 and support@martindale-electric.co.uk.
CONTENTS
1 Introduction 1
1.1 Inspection 1
1.2 Description 1
1.3 Accessories 2
1.4 Battery Installation 2
2 Product Specifi c Safety Information 3
2.1 Precautions 3
3 Operation 5
3.1 General 5
3.2 Low Battery Indication 5
3.3 Self-Test Function 6
3.4 Description of Transmitter 6
3.5 Description of Transmitter Display 6
3.6 Description of Receiver 7
3.7 Description of Receiver Display 7
3.8 Voltmeter Function 8
3.9 Torch 8
3.10 Backlight 8
3.11 Mute Function 8
3.12 Auto Power Off 8
3.13 Transmitter Code Selection 8
3.14 Setting the Transmitter Output Level 8
3.15 Start/Stop Key 9
3.16 Receiver Auto Sensitivity 9
3.17 Manually Setting Receiver Sensitivity 9
3.18 U
AC Function 9
3.19 Testing Considerations 9
3.20 One Pole Applications 10
a) Locating Line Interruptions 10
b) Locating and Tracing Wiring and Sockets 11
c) Locating Line Interruptions using Two Transmitters 12
d) Fault Detection of Electrical Floor Heating 13
e) Detecting a Restriction or Blockage in a Non-Metallic Pipe 14
f) Detecting Metal Water and Heating Pipes 15
g) Detecting Power Circuits on the Same Floor 16
h) Tracking an Underground Circuit 17
3.21 Dual Pole Applications 18
a) Locating and Tracing Live Circuits 18
b) Searching for Fuses in Live Circuits 19
c) Locating Short Circuits in Wiring 20
d) Detecting Relatively Deep Laid Wiring 20
e) Determining and Sorting Installed Wiring 21
3.22 Increasing the Effective Radius to Detect Live Circuits 21
3.23 Identifying Mains Voltage and Finding Circuit Breaks 22
4 Maintenance 23
4.1 Battery Replacement 23
4.2 Checking the Transmitter Internal Fuse 23
4.3 Test Lead Replacement 24
4.4 Calibration 24
4.5 Cleaning 24
4.6 Repair & Service 24
4.7 Storage Conditions 24
5 Warranty 25
Specifi cations
1. INTRODUCTION
1.1 Inspection
Examine the shipping carton for any sign of damage. Inspect the unit and any
accessories for damage. If there is any damage then consult your distributor
immediately.
1.2 Description
If you are drilling a hole in a wall, a fl oor or are excavating a road etc. you will
need to know the layout of electricity cables, water or gas pipes etc. One method
would be to refer to constructional drawings, but if these are not available or are
not accurate, another means will be required to fi nd cables and pipes. Failure to do
so could result in serious injury or death if electric cables or gas pipes are drilled
through.
With the CD1000 cable locator electricity cables and pipes can easily be located.
The CD1000 is an easy to use, portable instrument, consisting of a transmitter, a
receiver and numerous accessories.
Using advanced digital circuit technology the transmitter sends to the target cable
(or metal pipe) an AC voltage modulated by digital signals, which generate an
alternating electric fi eld. The alternating electric fi eld is detected by the receiver
sensor head, magnifi ed and decoded. By localising the maximum signal strength
detected, the path of a cable or metal pipe can be traced, a fuse can be found, a
break in a conductor can be found, etc.
The transmitter can also be used as an AC/DC voltmeter and the receiver can be
used as a non-contact voltage indicator.
The CD1000 is a useful tool for those involved in the construction of
telecommunications cables, power cables, building pipes etc. as well as the
maintenance of such cables and pipes.
The CD1000 Transmitter has the following functions:
Easily changeable transmission code. This allows multiple units to be used on the
same site.
LED torch.
Mute function.
Battery low indication.
Self-Test function.
The CD1000 Receiver has the following functions:
LED torch.
Display backlight.
Mute function.
Battery low indication for receiver and transmitter.
Auto power off.
Manual or Auto sensitivity.
1.3 Accessories (included)
Bag.
TL47 test leads (with crocodile clips).
Earthing rod.
9V Alkaline battery.
1.5V Alkaline battery x6.
Instructions.
Accessories not included:
SB13 Safebreak Socket Test Adaptor (Order code MARSB13) – allows convenient
connection of the transmitter to wall sockets.
Extra transmitter units - allows faster identifi cation of multiple cables and more
accurate fault fi nding.
1.4 Battery Installation
Refer to Section 4.1 (Battery Replacement) for the battery installation instructions
for the CD1000 transmitter and receiver.
2. PRODUCT SPECIFIC SAFETY INFORMATION
Measurement Category III (CAT III) is applicable to test and measuring equipment
connected to the distribution part of the building’s low-voltage MAINS installation.
2.1 Precautions
This product has been designed with your safety in mind, but please pay attention to
the following warnings and cautions before use.
Warning
Before use check the unit for cracks or any other damage. Make sure the unit is free
from dust, grease and moisture. Also check any associated leads and accessories for
damage. Do not use if damaged.
Warning
Always test these units on an appropriate proving device or known voltage source
before using them to determine if a hazardous voltage exists in a circuit to be tested.
Warning
Many of the applications of the CD1000 require that the circuits being tested are dead.
Take all necessary safety precautions when proving a circuit is not hazardous live.
Warning
Do not use either unit if the battery cover is not fi tted.
Warning
When the transmitter is used in combination with test leads, the measurement
category of the combination is the lower measurement category of either this unit or
the test leads used. Likewise, if test lead accessories such as crocodile clips are also
used, the measurement category will be the lowest measurement category in that
combination.
Warning
When using test leads / crocodile clips, always keep your fi ngers behind the fi nger
guard on the test lead probe or crocodile clip.
Warning
Connecting the transmitter to live wiring beyond the specifi ed input voltage limits of the
unit may damage the unit and expose the operator to a shock hazard. Always check
the unit’s specifi ed limits before use.
1
2
Caution
Remove the batteries when not in use for an extended period, to avoid corrosion
from leaking batteries.
Caution
Avoid severe mechanical shock or vibration and extreme temperature.
3
4
3. OPERATION
3.1 General
There are two basic methods for using the CD1000:
One-pole application
The transmitter is connected to one conductor and a suitable earth. Due to the high
frequency signal generated by the transmitter a single conductor can be located
and traced. The high frequency signal on the conductor is transmitted to earth in a
similar way to a radio receiver.
The circuit being tested must not be live for these applications.
These applications are described in sections 3.19 a) to h).
Dual-pole application
Dead circuits:
Both transmitter leads are connected to the conductor to be tested to form a
closed circuit or loop so the signal returns back to the transmitter. Alternatively the
transmitter can be connected to two separate parallel conductors and the furthest
ends joined to form a loop.
The circuit being tested must not be live for these applications.
These applications are described in sections 3.20 c) to e).
Live mains:
The transmitter leads are connected to the phase and neutral conductors of a mains
circuit to be tested. Where there is no load on the circuit the closed circuit or loop
will be formed by coupling of the distributed capacitance of the cable being tested.
The circuit being tested may be live for these applications.
These applications are described in sections 3.20 a) & b).
3.2 Low Battery Indication
If the transmitter battery is low the
the buzzer will beep every 5 seconds. The
symbol will fl ash on the transmitter LCD and
symbol will also be displayed on the
receiver LCD when the receiver is receiving a signal from the transmitter.
If the receiver battery is low the
symbol will fl ash on the receiver LCD and the
buzzer will beep every 5 seconds.
Refer to section 4.1 (battery replacement) for battery replacement instructions for
the CD1000 transmitter and receiver.
3.3 Self-Test Function
The transmitter has a self-test function. A selftest failure will be displayed on the LCD.
3.4 Description of Transmitter
1 LCD.
2 POWER on/off key.
3 Transmitter output POWER LEVEL setting
key (Sets levels
4 Code transmit START/STOP key.
5 CODE setting key. Press for 1 second to
enter code setting function and press again
to exit. Used in conjunction with UP and
DOWN keys. Codes F, E, H, D, L, C, O or A
can be selected (Default is F).
6 DOWN key for setting power level and code.
7 UP key for setting power level and code.
8 MUTE key. Turns off/on keypad tone.
9 TORCH on/off key.
10 + terminal.
11 Earth terminal.
3.5 Description of Transmitter Display
1 Battery level (fl ashes when low).
2 Transmitter power level (Indicates levels
I , II or III).
3 Selected transmitter code.
4 Indicates AC voltage being measured.
5 Indicates DC voltage being measured.
6 Measured value of voltage.
7 Indicates signal is being transmitted.
8 Code being transmitted.
9 Indicates transmitted signal level.
10 Indicates voltage t12 AC/DC
present at terminals.
11 Indicates mute is selected.
I , II or III).
CD1000
CABLE DETECTOR
3.6 Description of Receiver
1 Torch.
2 Probe head.
3 LCD.
4 POWER on/off key.
5 BACKLIGHT/MUTE key.
6 TORCH on/off key.
7 UAC key. Switches from cable locating mode
to mains voltage detection.
8 MANUAL key. Switches between manual and
automatic sensitivity functions.
9 Manual SENSITIVITY decrease key.
10 Manual SENSITIVITY increase key.
11 Loudspeaker.
3.7 Description of Receiver Display
1 Receiver battery level (fl ashes when low).
2 Transmitter battery level (fl ashes when low).
3 Transmitter power level setting.
4 Indicates manual sensitivity mode selected.
5 Indicates automatic sensitivity mode
selected.
6 Displays received signal intensity as a
numerical value.
Displays ‘SEL’ in manual mode if no signal is
received.
Displays ‘UAC’ in the U
7 Graphical indication of sensitivity setting.
More concentric circles indicates a higher
sensitivity setting.
8 Indicates the code being received
9 Graphical indication of the received signal
intensity.
10 Indicates voltage present on
wiring under test.
11 Indicates loudspeaker is muted.
AC mode.
CD1000
CABLE
DETECTOR
5
6
3.8 Voltmeter Function of the Transmitter
If the transmitter is connected to a live circuit t12V AC or DC, the voltage of the live
circuit will be measured. The voltage and the AC or DC symbol will be displayed on
the transmitter LCD. See section 3.5,
The
symbol will also be displayed on the transmitter LCD when a voltage t12V
6.
AC or DC is measured.
3.9 Torch
A torch is fi tted on the transmitter and receiver. Press the key on the
transmitter and the key on the receiver to turn on the torch. Press again to
turn it off.
3.10 Backlight
Press
key on the receiver to turn on the backlight. Press again to turn it off.
The transmitter does not have a backlight.
3.11 Mute Function
To turn off the buzzer on the transmitter press the mute
key. Press again to turn
it back on.
To turn off the buzzer on the receiver press the backlight/mute
key for 1
second or more. Press again for 1 second or more to turn it back on.
3.12 Auto Power Off
If the keypad of the receiver is inactive for a period of approximately 10 minutes the
receiver will automatically power off. Press the receiver power ON/OFF key to turn
the unit back on.
The transmitter does not have an auto power off function.
3.13 Transmitter Code Selection
The transmitter defaults to code ‘F’ at power on.
Press
Press
Press
key for at least 1 second.(CODE on LCD fl ashes).
keys to set new code.
to exit. (CODE on LCD stops fl ashing).
3.14 Setting the Transmitter Output Level
Defaults to power level
Press
7
8
key for at least 1 second. (LEVEL on LCD fl ashes).
I at power on.
Press keys to set new level. I , II or III will be displayed on the
transmitter LCD and also on the receiver LCD when the receiver is receiving a
signal from the transmitter.
Press
to exit. (LEVEL on LCD stops fl ashing).
3.15 Start/Stop Key
Press the
key to transmit a signal. Press again to stop.
During transmission increasing concentric circles will be displayed and the output
level of the code being transmitted will also be displayed in graphical form.
When a signal is being transmitted, the transmitter code and output level cannot be
changed.
3.16 Receiver Auto Sensitivity
The receiver defaults to the auto sensitivity mode at power up.
AUTO
is displayed
on the LCD.
3.17 Manually Setting Receiver Sensitivity
Press
Press
key.
keys to set a new sensitivity. The LCD will display increasing
is displayed on the LCD.
MANUAL
concentric circles for a higher sensitivity setting.
Press
3.18 U
Press
key to exit and return to the auto sensitivity mode.
AC Function
key to select the UAC function. UAC is displayed on the LCD.
3.19 Testing Considerations
The following considerations should be observed when using the CD1000:
To avoid tripping an RCD that may be in a circuit being tested when the
transmitter is used in a dual-pole live mains application, connect the transmitter
socket to the neutral conductor rather than the earth conductor. The earth
leakage current of the mains circuit combined with the current drawn by the
transmitter to earth may be enough to trip the RCD.
For any application the connections of the transmitter should form a closed circuit
or loop.
When connecting the transmitter for one-pole applications, the auxiliary earth
used must be of a good quality.
The cable locator may not function correctly in the vicinity of strong
electromagnetic fi elds.
3.20 One Pole Applications
Suitable for:
Finding line interruptions in walls and fl oors;
Finding and tracing wiring, sockets, junction boxes, switches, etc. for building
installations;
Finding bottlenecks, kinking, buckling and obstructions in installation pipes by
means of an inserted metal wire.
In all the following applications of section 3.20 a) to h) the conductor or circuit
being tested MUST NOT BE LIVE.
Ensure the transmitter earth socket is connected to a good quality earth for all
the following applications.
The tracing depth depends on the medium and the application. A typical tracing
depth is 0 to 2m.
The protective conductor of an electrical outlet can be used as the earthing
connection of the transmitter.
a) Locating Line Interruptions
The circuit under test must not be live.
Referring to fi gure 1, connect all conductors not being tested to an auxiliary ear th.
Referring to fi gure 1, connect the
and connect the
+ socket of the transmitter to the wire to be tested using the test
socket of the transmitter to the auxiliary earth,
leads provided.
Figure 1
Press the power key to turn on the transmitter. The unit will display the LEVEL
and CODE default settings of
I and F. (See section 3.5, 2 and 3).
Referring to section 3.14 set the transmitter output level to the required level.
If the transmitting code needs to be changed then refer to section 3.13.
Referring to section 3.15 press the
Press the power key
sensitivity mode and
3.7,
5 and 7 ).
Move the receiver to the point where the transmitter connects to the wire being
tested.
to turn on the receiver. The unit will default to the AUTO
AUTO
and 4 concentric circles will be displayed. (See section
Referring to section 3.7 the receiver will display the transmitted power level
transmitted code
8, the received signal intensity as a numerical value 6 and a
graphical indication of the received signal intensity
key to start transmitting the signal.
3, the
9 .
Signal intensity will also be indicated by a change in the tone of the loudspeaker.
Slowly move the receiver along the route of the wire being tested until there is a
signifi cant drop in displayed signal intensity. This will indicate the general area of the
break or interruption.
To fi nd a more exact position of the break press the
key to set the receiver to
the manual sensitivity mode. The receiver will default to the lowest sensitivity setting.
Adjust the
key until the received signal intensity display 6 changes from SEL
to a numerical value. The number of concentric circles will increase.
While positioning the receiver for the maximum displayed signal intensity
gradually lower the receiver sensitivity using the
key until the break can be
localised to a more exact position.
Note 1: The resistance of the interruption/break must be greater than 100 k:.
Note 2: The remaining wires in a multi-core cable should be earthed to avoid
cross-coupling of the fed signals by a capacitive effect to the source
terminals.
Note 3: The transmitter earth connection can be an auxiliar y earth, earth from an
earthed socket or a water pipe which is properly earthed.
b) Locating and Tracing Wiring and Sockets
The circuit under test must not be live.
The neutral and protective earth conductors must be connected and fully
operational.
Referring to fi gure 2 connect the
socket of the transmitter to the protective earth
9
10
wire, and connect the socket of the transmitter to the phase conductor to be
tested using the test leads provided.
Operate the transmitter and receiver as described in section 3.20 a).
Figure 2
Note: Lateral branches of the circuit will also be detected. Remove the
appropriate fuses to avoid this.
c) Locating Line Interruptions using Two Transmitters
When locating a line interruption using one transmitter to feed from one end of
a conductor, the location of the interruption may not be precisely located in the
presence of fi eld disturbances. This problem can be overcome by the use of a
second transmitter set to a different code to the fi rst.
The circuit under test must not be live.
Referring to fi gure 3 connect all conductors not being tested to an auxiliary ear th.
Referring to fi gure 3 connect the
earth, and connect the
+ sockets of the transmitters to either end of the conductor
socket of both transmitters to the auxiliary
to be tested, using the test leads provided.
Operate the transmitters and receiver as described in section 3.20 a).
If the transmitters codes are set as in fi gure 3 then the receiver will detect code F on
one side of the break and code C on the other. Directly above the break no code will
be displayed.
11
12
Figure 3
Note 1: The resistance of the interruption/break must be greater than 100 k:.
Note 2: The remaining wires in a multi-core cable should be earthed to avoid cross-
coupling of the fed signals by a capacitive effect to the source terminals.
Note 3: The transmitter earth connection can be an auxiliary earth, earth from an
earthed socket or a water pipe which is properly earthed.
d) Fault Detection in Electrical Floor Heating
The circuit under test must not be live.
Connect all conductors not being tested to an auxiliary earth.
Referring to fi gure 4a connect the
and connect the
leads provided.
If the two transmitter method is to be used then connect the transmitters as in fi gure
4b.
Operate the transmitter/s and receiver as described in section 3.20 a).
Note 1: If a shield mat is located above the heating wires, no earth connection may
Note 2: Full earthing should be ensured. There should be considerable distance
+ socket of the transmitter to the conductor to be tested using the test
exist. If required, disconnect the shield from the earth connection.
between the earthing terminal of the transmitter and the target line. If this
distance is too short the signal and line cannot be precisely located.
socket of the transmitter to the auxiliary earth,
Figure 4a
Figure 4b
e) Detecting a Restriction or Blockage in a Non-Metallic Pipe
The pipe under test must not be live.
The pipe must be made of non-conductive material (e.g. plastic).
Referring to fi gure 5 connect the
and connect the
fl exible conduit may also be used) using the test leads provided.
Push the metal tubing into the pipe up to the blockage or restriction.
Operate the transmitter and receiver as described in section 3.20 a).
+ socket of the transmitter to a metal helical tube (metal tube or
socket of the transmitter to the auxiliary earth,
Note 1: If there is live wiring in the pipe the power must be cut off and the wiring
earthed.
Note 2: Full earthing should be ensured. There should be considerable distance
between the earthing terminal of the transmitter and the target line. If this
distance is too short the signal and line cannot be precisely located.
Figure 5
f) Detecting Metal Water and Heating Pipes
The electrical distribution system must be turned off.
The pipe to be detected should not be earthed. There should be a relatively high
resistance between the pipe and earth otherwise the detection distance will be very
short.
Referring to fi gures 6a and 6b, connect the
auxiliary earth, and connect
using the test leads provided.
Operate the transmitter and receiver as described in section 3.20 a).
+ the socket of the transmitter to the metal piping
socket of the transmitter to an
13
15
14
Figure 6a
Figure 6b
Note 1: Full earthing should be ensured. There should be considerable distance
between the earthing terminal of the transmitter and the target line. If this
distance is too short the signal and line cannot be precisely located.
g) Detecting Power Circuits on the Same Floor
The electrical distribution system for the building must be turned off.
Disconnect the neutral conductor in the distribution box of this fl oor from the neutral
conductors of other fl oors.
Referring to fi gure 7 connect the
and connect the
test leads provided.
16
+ socket of the transmitter to the conductor to be tested using the
socket of the transmitter to an auxiliary earth,
Operate the transmitter and receiver as described in section 3.20 a).
Figure 7
Note: Full earthing should be ensured. There should be considerable distance
between the earthing terminal of the transmitter and the target line. If this
distance is too short the signal and line cannot be precisely located.
h) Tracking an Underground Circuit
The circuit under test must not be live.
Referring to fi gure 8 connect the
and connect the
test leads provided.
Operate the transmitter and receiver as described in section 3.20 a).
+ socket of the transmitter to the conductor to be tested using the
socket of the transmitter to the auxiliary earth,
Figure 8
Note: Full earthing should be ensured. There should be considerable distance
between the earthing terminal of the transmitter and the target line. If this
distance is too short the signal and line cannot be precisely located.
3.21 Dual Pole Applications
Applications 3.21 a) & b) are suitable for live circuits.
Take all necessary safety precautions when connecting the transmitter test
leads to the circuit being traced.
In the applications of section 3.21 c) to e) the conductor or circuit being tested
MUST NOT BE LIVE.
When working on live circuits the transmitter will measure and display the voltage
value of the circuit being tested. See section 3.5,
The receiver will also indicate the presence of a live circuit by displaying
See section 3.6,
a) Locating and Tracing Live Circuits
Referring to fi gure 9, connect the
conductor and the
to be located or traced, using the test leads provided.
Operate the transmitter and receiver as described in section 3.20 a).
Note 1: This application can also be applied to dead circuits.
Note 2: Connections to wall sockets can be made easily with a Martindale SB13
10 and section 3.8.
socket of the transmitter to the neutral
+ socket of the transmitter to the phase conductor of the circuit
Safebreak Socket Test Adaptor (Order code MARSB13).
6.
.
Figure 9
b) Searching for Fuses in Live Circuits
Referring to fi gure 10, connect the
conductor, and connect the
be tested using the test leads provided.
Operate the transmitter and receiver as described in section 3.20 a).
Note 1: The identifi cation of fuses can be infl uenced by wiring positioning in the
distribution box, so where possible dismantle the cover of the distribution
box to search for the feed wire of the fuse.
Note 2: Due to coupling the signal may be detected on other fuses. Those signals
will be weaker than the signal on the target fuse. Manually decrease the
receiver sensitivity to isolate to only one fuse. Adjust the transmitter power
if necessary.
socket of the transmitter to the neutral
+ socket of the transmitter to the phase conductor to
Figure 10
17
19
18
c) Locating Short Circuits in Wiring
If the fuses or trips for the faulty circuit are still active the power for that circuit MUST
BE TURNED OFF.
Referring to fi gure 11, connect the
or earth conductors, and connect the
conductor to be tested using the test leads provided.
Operate the transmitter and receiver as described in section 3.20 a).
Note: Generally only short circuits with an impedance < 20: can be correctly
detected. If the impedance is > 20: try the method of section 3.20 a).
d) Detecting Relatively Deep Laid Wiring
In dual-pole applications, if the closed circuit is made of core wires in cables with
multiple core wires the depth of detection will be greatly limited. This is because
the feed line and loop or return line create a seriously distorted magnetic fi eld.
If a separate loop line is used this problem is avoided. The loop line may be any
conducting wire or cable reel. Referring to fi gure 12, the important factor is for the
loop wire to be positioned more than the depth of the cable being detected away. A
common distance is > 2m.
The circuit under test must not be live.
Referring to fi gure 8, connect the
conductor to be traced via a suitable lead or cable reel, and connect the
of the transmitter to the conductor to be tested using one of the test leads provided.
Operate the transmitter and receiver as described in section 3.20 a).
20
socket of the transmitter to the neutral
+ socket of the transmitter to the phase
Figure 11
socket of the transmitter to one end of the
+ socket
Figure 12
e) Determining and Sorting Installed Wiring
The circuit under test must not be live.
Referring to fi gure 13, connect the
socket and + socket of the transmitter to the
conductors to be tested using the test leads provided.
The ends of the conductors in individual cables to be sorted must be twisted
together to make electrical contact.
A single transmitter or multiple transmitters set to different codes can be used.
If a single transmitter is used change the connections to the cable to be sorted as
required.
Operate the transmitter/s and receiver as described in section 3.20 a).
Figure 13
Figure 14 a and 14b
3.23 Identifying Mains Voltage and Finding Circuit Breaks
The circuit under test must be live.
The transmitter is not required for this application unless a precise measurement of
voltage is required.
Press the
Referring to section 3.7,
key to select the UAC function. UAC is displayed on the LCD.
9, when the receiver is in close proximity to a live circuit
the voltage level will be displayed in graphical form.
Signal intensity will also be indicated by a change in the tone of the loudspeaker.
Referring to fi gure 15, a circuit break will be indicated when the audible tone ceases
or the graphical display is no longer present.
Note: When searching for the ends of multiple power lines, it is necessary to
connect each line to the phase separately.
Figure 15
3.22 Increasing the Effective Radius to Detect Live Circuits
When the transmitter is directly connected to the phase and neutral conductors, the
signals are conducted on two parallel circuits as shown in fi gure 14a. The twisted
conductors may cause the signals to counteract each other leading to an effective
detection radius of no more than 0.5m.
To overcome this effect connect the transmitter as shown in fi gure 14b where the
loop line uses a separate cable, such as the cable reel shown, to increase the
effective radius to over 2.5m.
4. MAINTENANCE
4.1 Battery Replacement
To avoid shock or injury, disconnect the multimeter from any external circuits or
components and remove the test leads before proceeding.
When replacing batter ies always ensure correct polarity. If the polarity of the
battery is incorrect the unit may be damaged.
Transmitter:
The battery compartment is underneath the unit beneath the stand. Lift the stand
and undo the single screw securing the battery cover. Lift off the battery cover.
Fit a new standard 9V alkaline battery (PP3, NEDA 1604, or equivalent) observing
correct polarity.
Replace the battery cover and screw.
Receiver:
The battery compartment is underneath the unit. Undo the single screw securing
the battery cover. Lift off the battery cover.
Fit 6 new 1.5V alkaline batteries (AAA/LR03, or equivalent) observing correct
polarity.
Replace the battery cover and screw.
Note: Do not mix old and new batteries.
4.2 Checking the Transmitter Internal Fuse
To avoid shock, injury or damage to the transmitter, disconnect it from any
external circuits or components before proceeding.
Press the power key
Connect a test lead between the transmitter
Press the
Press the power key
to turn on the transmitter.
+ and terminals.
key to start transmitting the signal.
to turn on the receiver.
Move the receiver over the body of the transmitter toward the test lead.
If the received signal level decreases at the test lead then the internal fuse has
blown.
The internal fuse is not user replaceable and the CD1000 should be returned to
Martindale Electric.
21
22
4.3 Test Lead Replacement
If the test leads become damaged they should be replaced.
The replacement test leads must have the same overvoltage category rating as
the TL47 leads supplied, or better.
4.4 Calibration
To maintain the integrity of measurements made using your instrument, Martindale
Electric recommends that it is returned at least once a year to an approved
Calibration Laboratory for recalibration and certifi cation.
Martindale Electric is pleased to offer you this service. Please contact our Service
Department for details.
Email: service@martindale-electric.co.uk
Tel: 01923 650660
4.5 Cleaning
The unit may be cleaned using a soft dry cloth. Do not use moisture, abrasives,
solvents, or detergents, which can be conductive.
4.6 Repair & Service
There are no user serviceable parts in this unit other than those that may be
described in section 4. Return to Martindale Electric if faulty. Our service department
will quote promptly to repair any fault that occurs outside the guarantee period.
Before the unit is returned, please ensure that you have checked the unit, batteries,
fuse, leads and poor connections.
4.7 Storage Conditions
The instrument should be kept in warm dry conditions away from direct sources of
heat or sunlight, and in such a manner as to preserve the working life of the unit.
It is strongly advised that the unit is not kept in a tool box where other tools may
damage it.
23
24
5. WARRANTY AND LIMITATION OF LIABILITY
This Martindale product is warranted to be free from defects in material and
workmanship under normal use and service. The warranty period is 2 years and
begins on the date of receipt by the end user. This warranty extends only to the
original buyer or end-user customer, and does not apply to fuses, disposable
batteries, test leads or to any product which, in Martindale’s opinion, has been
misused, altered, neglected, contaminated, or damaged by accident or abnormal
conditions of operation, handling or storage.
Martindale authorised resellers shall extend this warranty on new and unused
products to end-user customers only but have no authority to extend a greater or
different warranty on behalf of Martindale.
Martindale’s warranty obligation is limited, at Martindale’s option, to refund of the
purchase price, free of charge repair, or replacement of a defective product which is
returned to Martindale within the warranty period.
This warranty is the buyer’s sole and exclusive remedy and is in lieu of all other
warranties, expressed or implied, including but not limited to any implied warranty of
merchantability or fi tness for a particular purpose. Martindale shall not be liable for
any special, indirect, incidental or consequential damages or losses, including loss
of data, arising from any cause or theory.
Since some jurisdictions do not allow limitation of the term of an implied warranty,
or exclusion or limitation of incidental or consequential damages, the limitations and
exclusions of this warranty may not apply to every buyer. If any part of any provision
of this warranty is held invalid or unenforceable by a court or other decision-maker
of competent jurisdiction, such holding will not affect the validity or enforceability of
any other provision or other part of that provision.
Nothing in this statement reduces your statutory rights.
Speci cation
CD1000
Cable Detector
ELECTRICAL SPECIFICATIONS
Transmitter:
Output carrier signal frequency: 125 kHz
Voltmeter function:
Range: 12V to 400V DC & AC rms (50Hz to 60Hz)
Accuracy: ± 2.5%
Maximum input voltage 400V DC or AC rms
Receiver:
Tracking Depth
Cable locating mode Maximum tracking depth
Single pole 2m approx
Dual pole 0.5m approx
Single loop line 2.5m approx
U
AC 0.4m approx
GENERAL SPECIFICATIONS
Temperature & Humidity
Operating: 0°C to40°C max 80% R.H. (non condensing)
Storage: -20°C to 60°C max 80% R.H. (non condensing)
Altitude: up to 2000m
25
Speci cation
CD1000
Cable Detector
Power
Transmitter: single 9V IEC 6LR61 battery
Receiver: 6 x 1.5V AAA, IEC LR03 batteries
Current consumption
Transmitter: 31mA approx minimum
Receiver: 32mA approx minimum
Auto off time: 10 minutes approx (receiver only)
Dimensions
Transmitter: 190 x 89 x 42.5mm
Receiver: 241.5 x 78 x 38.5mm
Weight
Transmitter: 360g approx (batteries not included)
Receiver: 280g approx (batteries not included)
Includes: bag, TL47 test leads (with crocodile clips), earthing rod, 9V alkaline battery,
1.5V alkaline battery x 6 and instructions.
Safety
Transmitter:
Conforms to BS EN61010-1 CAT III 300V
Class II Double Insulation
Pollution degree: 2
Receiver:
Conforms to BS EN 61010-1 CAT III 600V
Class II Double Insulation
Pollution degree: 2
Test leads supplied conform to BS EN61010-031 CAT III 1000V, 10A
EMC: Conforms to BS EN61326
115mA approx maximum
89mA approx maximum
420g approx (batteries included)
350g approx (batteries included)
Check out what else you can get from Martindale:
z18th Edition Testers
Accessories
z
zCalibration Equipment
zContinuity Testers
zElectricians’ Kits
zEnvironmental Products
zFull Calibration & Repair Service
zFuse Finders
zDigital Clamp Meters
zDigital Multimeters
zLabels
zMicrowave Leakage Detectors
Martindale Electric Company Limited
Metrohm House, Imperial Park, Imperial Way,
Watford, Hertfordshire, WD24 4PP, UK
Tel: +44(0)1923 441717 Fax: +44 (0)1923 446900
E-mail:sales@martindale-electric.co.uk
Website: www.martindale-electric.co.uk
Registered in England No. 3387451. E. & O.E. Document Rev1 LITCD1000
© 2012 Martindale Electric Company Ltd.
zMotor Maintenance Equipment
zMultifunction Testers
zNon-trip Loop Testers
zPat Testers & Accessories
zPhase Rotation Testers
zProving Units
zSocket Testers
zThermometers & Probes
zTest Leads
zVoltage Indicators
zSpecialist Metrohm Testers (4 & 5kV)
zSpecialist Drummond Testers
Loading...
