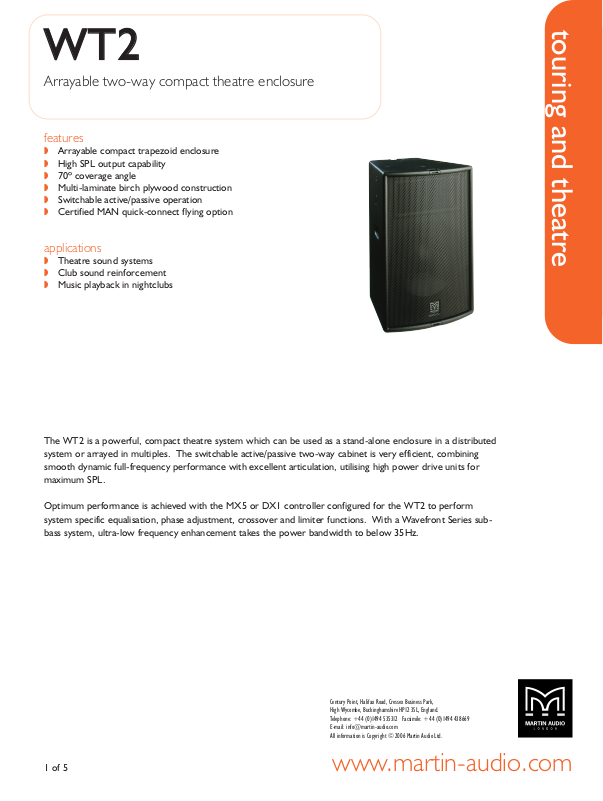

Martin Audio WT2 User Manual

WWTT22

Arrayable two-way compact theatre enclosure

Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: [phone] Facsimile: [phone]
E-mail: [e-mail]
All information is Copyright © 2006 Martin Audio Ltd.

www.martin-audio.com

1 of 5

touring and theatre

features

 Arrayable compact trapezoid enclosure
 High SPL output capability
 70º coverage angle
 Multi-laminate birch plywood construction
 Switchable active/passive operation
 Certified MAN quick-connect flying option

applications

 Theatre sound systems
 Club sound reinforcement
 Music playback in nightclubs

The WT2 is a powerful, compact theatre system which can be used as a stand-alone enclosure in a distributed
system or arrayed in multiples. The switchable active/passive two-way cabinet is very efficient, combining
smooth dynamic full-frequency performance with excellent articulation, utilising high power drive units for
maximum SPL.

Optimum performance is achieved with the MX5 or DX1 controller configured for the WT2 to perform
system specific equalisation, phase adjustment, crossover and limiter functions. With a Wavefront Series sub­bass system, ultra-low frequency enhancement takes the power bandwidth to below 35Hz.

WWTT22

Arrayable two-way compact theatre enclosure

Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: [phone] Facsimile: [phone]
E-mail: [e-mail]
All information is Copyright © 2006 Martin Audio Ltd.

www.martin-audio.com

2 of 5

touring and theatre

polar plots

WWTT22

Arrayable two-way compact theatre enclosure

Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: [phone] Facsimile: [phone]
E-mail: [e-mail]
All information is Copyright © 2006 Martin Audio Ltd.

www.martin-audio.com

3 of 5

touring and theatre

frequency responses

WWTT22

Arrayable two-way compact theatre enclosure

Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: [phone] Facsimile: [phone]
E-mail: [e-mail]
All information is Copyright © 2006 Martin Audio Ltd.

www.martin-audio.com

4 of 5

touring and theatre

overall dimensions

WWTT22

Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: [phone] Facsimile: [phone]
E-mail: [e-mail]
All information is Copyright © 2006 Martin Audio Ltd.

www.martin-audio.com

5 of 5

Arrayable two-way compact theatre enclosure

touring and theatre

technical specifications

TYPE Compact two-way trapezoid, switchable

active/passive

FREQUENCY RESPONSE (5) 70Hz-18kHz ± 3dB

-10dB @ 52Hz

DRIVERS 12" (300mm) / 3" (75mm) voice coil

1" (25mm) exit HF compression driver

RATED POWER (2) LF/(LF + HF): 400W AES, 1600W peak

HF: 60W AES, 240W peak
RECOMMENDED AMPLIFIER 400-600W into 4 ohms
SENSITIVITY (6) LF/(LF + HF): 98dB

HF: 107dB
MAXIMUM SPL (7) 123dB continuous, 129dB peak
NOMINAL IMPEDANCE LF/(LF + HF) 8 ohms

HF: 8 ohms
DISPERSION (-6dB) 70º horizontal, 40º vertical
CROSSOVER 2kHz active/passive
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS 10 x M8 threaded inserts

1 x mounting pole socket

2 x MAN blanking plates

2 x rear kelp fittings

2 x front lid fittings
DIMENSIONS (W) 365mm x (H) 554mm x (D) 364mm

(W) 14.4ins x (H) 21.8ins x (D) 14.3ins
WEIGHT 24.5kg (54lbs)

accessories

WT2LID Lid
HTKWT2Y Flying yoke
HTKCT05 8mm Shouldered eye bolt
GPT060 Fitted enclosure flying points
HTKLIS Lightweight install stud

NN oo tt ee ss
(1) Measured on-axis in half space at 2 metres, then referred to 1 metre.
(2) AES Standard ANSI S4.26-1984.
(3) Measured in half space at 2 metres with 1 watt input, using band limited pink noise, then referred to 1 metre.
(4) Measured in half space at 2 metres using band limited pink noise, then referred to 1 metre.
(5) Measured on-axis in open (4π) space at 2 metres, then referred to 1 metre.
(6) Measured in open (4π) space at 2 metres with 1 watt input, using band limited pink noise, then referred to 1 metre.
(7) Measured in open (4π) space at 2 metres using band limited pink noise, then referred to 1 metre.

architectural and engineering specifications

The loudspeaker system shall be of the two-way
switchable active/passive type consisting of one 12"
(300mm) direct radiating reflex loaded low frequency
transducer and one 1" (25mm) exit HF compression
driver mounted on a constant directivity horn in a
trapezoidal plywood enclosure. The enclosure shall be
fitted with an integral pole mounting socket and
threaded inserts to facilitate a variety of mounting
options. Active or passive operation shall be selected by
a switch at the rear of the enclosure. In active mode the
loudspeaker shall be bi-amped and operated with a
separate electronic controller. In passive mode, low and
high frequency sections shall be integrated by an
internal 2kHz passive crossover network.

Performance of the loudspeaker system with its
electronic controller shall meet or exceed the following
criteria:
Frequency response measured 1 metre on axis shall be
70Hz-18kHz ±3dB.
High frequency dispersion at -6dB points shall be
70˚H x 40˚V.
Power handling shall be 400W AES, 1600W peak
LF/(LF+HF), 60W AES, 240W peak HF.
Rated impedance shall be 8 ohms LF/(LF+HF).
Maximum SPL measured at 1 metre on axis shall be
122dB continuous, 128dB peak.
Dimensions (W) 365mm x (H) 554mm x (D) 364mm
(14.4ins x 21.8ins x 14.3ins).
Weight 24.5kg (54lbs).

The loudspeaker system shall be the Martin Audio
WT2.

TTrr aa dd ee DD ee ss cc rr ii pp tt ii oo nn ss AA cc tt
Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.
Martin Audio is committed to refining state of the art sound reinforcement, combining in-depth product and field applications
research with advanced manufacturing techniques. Every Martin Audio product is built to the highest manufacturing standards
and rigorously tested to ensure that it meets the performance criteria specified in the design.
