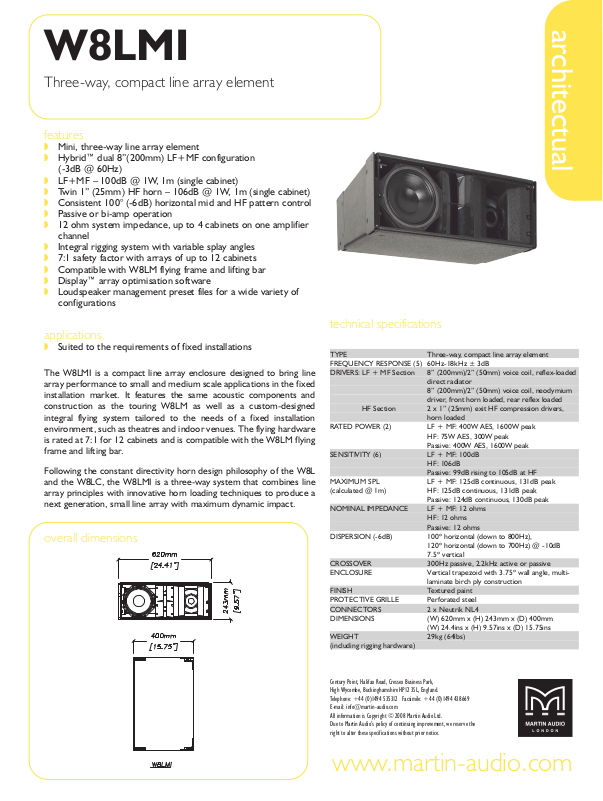

W8LMI
Three-way, compact line array element
features
◗ Mini, three-way line array element
◗ Hybrid™ dual 8”(200mm) LF+MF configuration
(-3dB @ 60Hz)
◗ LF+MF – 100dB @ 1W, 1m (single cabinet)
◗ Twin 1” (25mm) HF horn – 106dB @ 1W, 1m (single cabinet)
◗ Consistent 100° (-6dB) horizontal mid and HF pattern control
◗ Passive or bi-amp operation
◗ 12 ohm system impedance, up to 4 cabinets on one amplifier
channel
◗ Integral rigging system with variable splay angles
◗ 7:1 safety factor with arrays of up to 12 cabinets
◗ Compatible with W8LM flying frame and lifting bar
◗ Display™ array optimisation software
◗ Loudspeaker management preset files for a wide variety of
configurations
applications
◗ Suited to the requirements of fixed installations
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2008 Martin Audio Ltd.
Due to Martin Audio’s policy of continuing improvement, we reserve the
right to alter these specifications without prior notice.
The W8LMI is a compact line array enclosure designed to bring line
array performance to small and medium scale applications in the fixed
installation market. It features the same acoustic components and
construction as the touring W8LM as well as a custom-designed
integral flying system tailored to the needs of a fixed installation
environment, such as theatres and indoor venues. The flying hardware
is rated at 7:1 for 12 cabinets and is compatible with the W8LM flying
frame and lifting bar.
Following the constant directivity horn design philosophy of the W8L
and the W8LC, the W8LMI is a three-way system that combines line
array principles with innovative horn loading techniques to produce a
next generation, small line array with maximum dynamic impact.
architectual
www.martin-audio.com
overall dimensions
technical specifications
TYPE Three-way, compact line array element
FREQUENCY RESPONSE (5) 60Hz-18kHz ± 3dB
DRIVERS: LF + MF Section 8” (200mm)/2” (50mm) voice coil, reflex-loaded
direct radiator
8” (200mm)/2” (50mm) voice coil, neodymium
driver, front horn loaded, rear reflex loaded
HF Section 2 x 1” (25mm) exit HF compression drivers,
horn loaded
RATED POWER (2) LF + MF: 400W AES, 1600W peak
HF: 75W AES, 300W peak
Passive: 400W AES, 1600W peak
SENSITIVITY (6) LF + MF: 100dB
HF: 106dB
Passive: 99dB rising to 105dB at HF
MAXIMUM SPL LF + MF: 125dB continuous, 131dB peak
(calculated @ 1m) HF: 125dB continuous, 131dB peak
Passive: 124dB continuous, 130dB peak
NOMINAL IMPEDANCE LF + MF: 12 ohms
HF: 12 ohms
Passive: 12 ohms
DISPERSION (-6dB) 100º horizontal (down to 800Hz),
120º horizontal (down to 700Hz) @ -10dB
7.5º vertical
CROSSOVER 300Hz passive, 2.2kHz active or passive
ENCLOSURE Vertical trapezoid with 3.75º wall angle, multi-
laminate birch ply construction
FINISH Textured paint
PROTECTIVE GRILLE Perforated steel
CONNECTORS 2 x Neutrik NL4
DIMENSIONS (W) 620mm x (H) 243mm x (D) 400mm
(W) 24.4ins x (H) 9.57ins x (D) 15.75ins
WEIGHT 29kg (64lbs)
(including rigging hardware)
