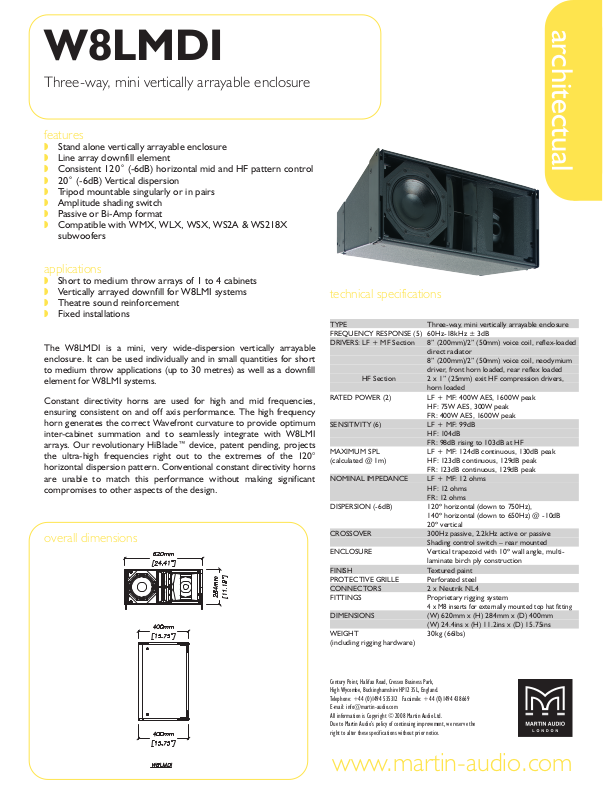

W8LMDI
Three-way, mini vertically arrayable enclosure
features
◗ Stand alone vertically arrayable enclosure
◗ Line array downfill element
◗ Consistent 120˚ (-6dB) horizontal mid and HF pattern control
◗ 20˚ (-6dB) Vertical dispersion
◗ Tripod mountable singularly or in pairs
◗ Amplitude shading switch
◗ Passive or Bi-Amp format
◗ Compatible with WMX, WLX, WSX, WS2A & WS218X
subwoofers
applications
◗ Short to medium throw arrays of 1 to 4 cabinets
◗ Vertically arrayed downfill for W8LMI systems
◗ Theatre sound reinforcement
◗ Fixed installations
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2008 Martin Audio Ltd.
Due to Martin Audio’s policy of continuing improvement, we reserve the
right to alter these specifications without prior notice.
The W8LMDI is a mini, very wide-dispersion vertically arrayable
enclosure. It can be used individually and in small quantities for short
to medium throw applications (up to 30 metres) as well as a downfill
element for W8LMI systems.
Constant directivity horns are used for high and mid frequencies,
ensuring consistent on and off axis performance. The high frequency
horn generates the correct Wavefront curvature to provide optimum
inter-cabinet summation and to seamlessly integrate with W8LMI
arrays. Our revolutionary HiBlade™ device, patent pending, projects
the ultra-high frequencies right out to the extremes of the 120°
horizontal dispersion pattern. Conventional constant directivity horns
are unable to match this performance without making significant
compromises to other aspects of the design.
architectual
www.martin-audio.com
overall dimensions
technical specifications
TYPE Three-way, mini vertically arrayable enclosure
FREQUENCY RESPONSE (5) 60Hz-18kHz ± 3dB
DRIVERS: LF + MF Section 8” (200mm)/2” (50mm) voice coil, reflex-loaded
direct radiator
8” (200mm)/2” (50mm) voice coil, neodymium
driver, front horn loaded, rear reflex loaded
HF Section 2 x 1” (25mm) exit HF compression drivers,
horn loaded
RATED POWER (2) LF + MF: 400W AES, 1600W peak
HF: 75W AES, 300W peak
FR: 400W AES, 1600W peak
SENSITIVITY (6) LF + MF: 99dB
HF: 104dB
FR: 98dB rising to 103dB at HF
MAXIMUM SPL LF + MF: 124dB continuous, 130dB peak
(calculated @ 1m) HF: 123dB continuous, 129dB peak
FR: 123dB continuous, 129dB peak
NOMINAL IMPEDANCE LF + MF: 12 ohms
HF: 12 ohms
FR: 12 ohms
DISPERSION (-6dB) 120º horizontal (down to 750Hz),
140º horizontal (down to 650Hz) @ -10dB
20º vertical
CROSSOVER 300Hz passive, 2.2kHz active or passive
Shading control switch – rear mounted
ENCLOSURE Vertical trapezoid with 10º wall angle, multi-
laminate birch ply construction
FINISH Textured paint
PROTECTIVE GRILLE Perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS Proprietary rigging system
4 x M8 inserts for externally mounted top hat fitting
DIMENSIONS (W) 620mm x (H) 284mm x (D) 400mm
(W) 24.4ins x (H) 11.2ins x (D) 15.75ins
WEIGHT 30kg (66lbs)
(including rigging hardware)
