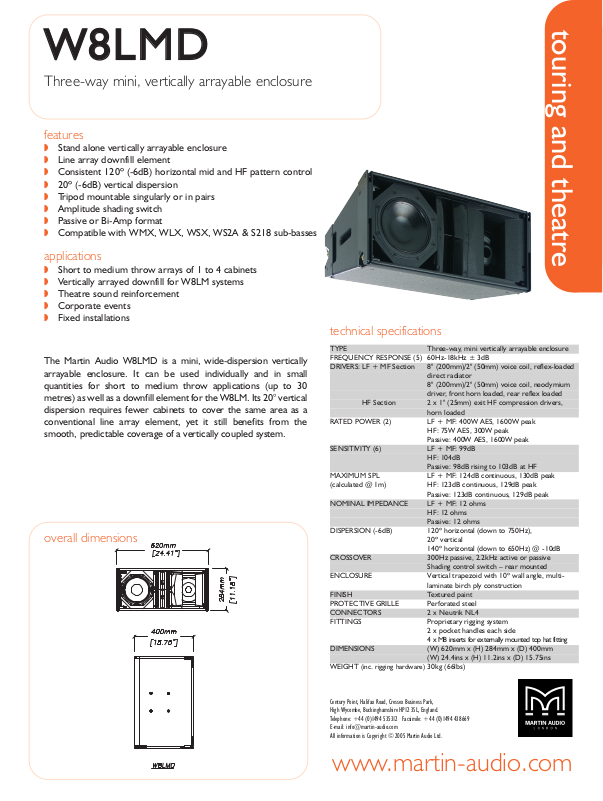

WW88LLMMDD
Three-way mini, vertically arrayable enclosure
features
Stand alone vertically arrayable enclosure
Line array downfill element
Consistent 120º (-6dB) horizontal mid and HF pattern control
20º (-6dB) vertical dispersion
Tripod mountable singularly or in pairs
Amplitude shading switch
Passive or Bi-Amp format
Compatible with WMX, WLX, WSX, WS2A & S218 sub-basses
applications
Short to medium throw arrays of 1 to 4 cabinets
Vertically arrayed downfill for W8LM systems
Theatre sound reinforcement
Corporate events
Fixed installations
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2005 Martin Audio Ltd.
The Martin Audio W8LMD is a mini, wide-dispersion vertically
arrayable enclosure. It can be used individually and in small
quantities for short to medium throw applications (up to 30
metres) as well as a downfill element for the W8LM. Its 20° vertical
dispersion requires fewer cabinets to cover the same area as a
conventional line array element, yet it still benefits from the
smooth, predictable coverage of a vertically coupled system.
www.martin-audio.com
overall dimensions
technical specifications
TYPE Three-way, mini vertically arrayable enclosure
FREQUENCY RESPONSE (5) 60Hz-18kHz ± 3dB
DRIVERS: LF + MF Section 8" (200mm)/2" (50mm) voice coil, reflex-loaded
direct radiator
8" (200mm)/2" (50mm) voice coil, neodymium
driver, front horn loaded, rear reflex loaded
HF Section 2 x 1" (25mm) exit HF compression drivers,
horn loaded
RATED POWER (2) LF + MF: 400W AES, 1600W peak
HF: 75W AES, 300W peak
Passive: 400W AES, 1600W peak
SENSITIVITY (6) LF + MF: 99dB
HF: 104dB
Passive: 98dB rising to 103dB at HF
MAXIMUM SPL LF + MF: 124dB continuous, 130dB peak
(calculated @ 1m) HF: 123dB continuous, 129dB peak
Passive: 123dB continuous, 129dB peak
NOMINAL IMPEDANCE LF + MF: 12 ohms
HF: 12 ohms
Passive: 12 ohms
DISPERSION (-6dB) 120º horizontal (down to 750Hz),
20º vertical
140º horizontal (down to 650Hz) @ -10dB
CROSSOVER 300Hz passive, 2.2kHz active or passive
Shading control switch – rear mounted
ENCLOSURE Vertical trapezoid with 10º wall angle, multi-
laminate birch ply construction
FINISH Textured paint
PROTECTIVE GRILLE Perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS Proprietary rigging system
2 x pocket handles each side
4 x M8 inserts for externally mounted top hat fitting
DIMENSIONS (W) 620mm x (H) 284mm x (D) 400mm
(W) 24.4ins x (H) 11.2ins x (D) 15.75ins
WEIGHT (inc. rigging hardware) 30kg (66lbs)
touring and theatre
