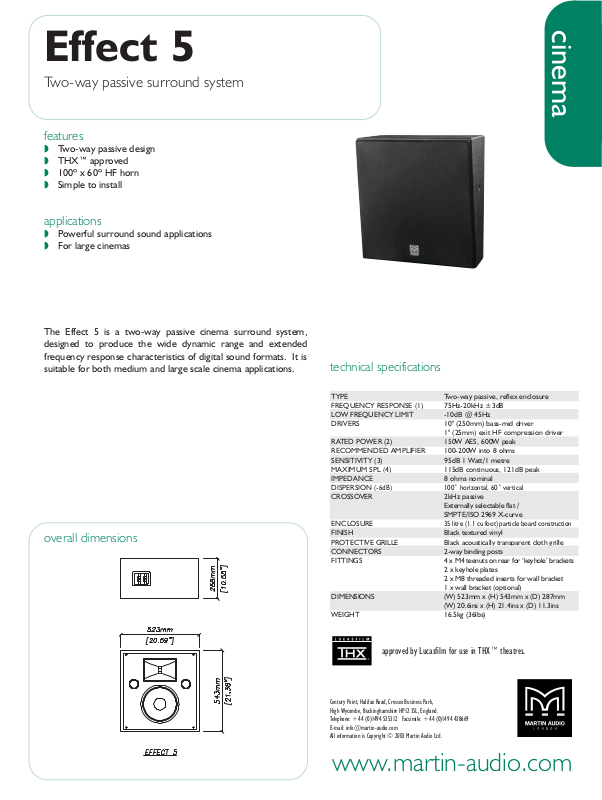

Effect 5
Tw o -way passive surround system
features
! Tw o -way passive design
! THX™ approved
! 100º x 60º HF horn
! Simple to install
applications
! Powerful surround sound applications
! For large cinemas
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2003 Martin Audio Ltd.
The Effect 5 is a two-way passive cinema surround system,
designed to produce the wide dynamic range and extended
frequency response characteristics of digital sound formats. It is
suitable for both medium and large scale cinema applications.
cinema
www.martin-audio.com
overall dimensions
technical specifications
TYPE Two-way passive, reflex enclosure
FREQUENCY RESPONSE (1) 75Hz-20kHz ±3dB
LOW FREQUENCY LIMIT -10dB @ 45Hz
DRIVERS 10" (250mm) bass-mid driver
1" (25mm) exit HF compression driver
RATED POWER (2) 150W AES, 600W peak
RECOMMENDED AMPLIFIER 100-200W into 8 ohms
SENSITIVITY (3) 95dB 1 Watt/1 metre
MAXIMUM SPL (4) 115dB continuous, 121dB peak
IMPEDANCE 8 ohms nominal
DISPERSION
(-6dB) 100˚ horizontal, 60˚ vertical
CROSSOVER 2kHz passive
Externally selectable flat /
SMPTE/ISO 2969 X-curve
ENCLOSURE
35 litre (1.1 cu foot) particle board construction
FINISH Black textured vinyl
PROTECTIVE GRILLE Black acoustically transparent cloth grille
CONNECTORS 2-way binding posts
FITTINGS 4 x M4 teenuts on rear for ‘keyhole’ brackets
2 x keyhole plates
2 x M8 threaded inserts for wall bracket
1 x wall bracket (optional)
DIMENSIONS (W) 523mm x (H) 543mm x (D) 287mm
(W) 20.6ins x (H) 21.4ins x (D) 11.3ins
WEIGHT 16.5kg (36lbs)
approved by Lucasfilm for use in THX™ theatres.
