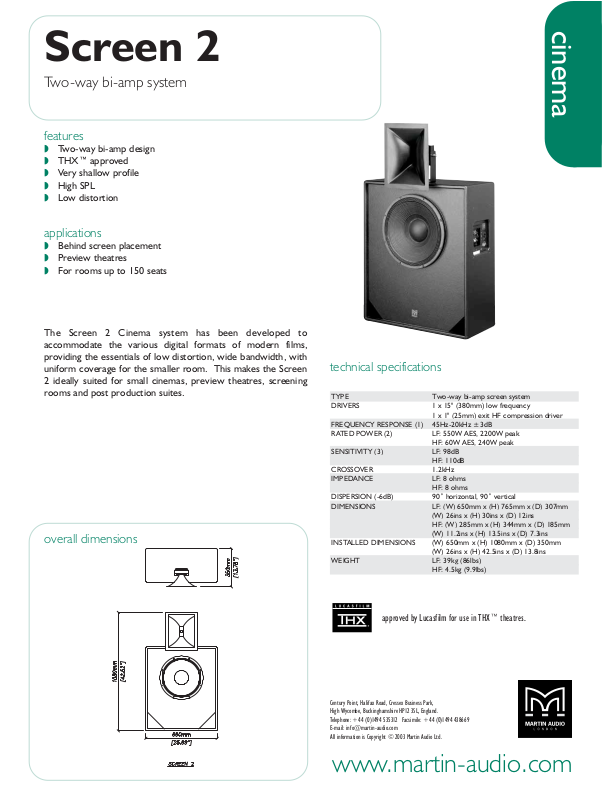

Page 1
Screen 2
Tw o -way bi-amp system
features
! Tw o-way bi-amp design
! THX™ approved
! Very shallow profile
! High SPL
! Low distortion
applications
! Behind screen placement
! Preview theatres
! For rooms up to 150 seats
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2003 Martin Audio Ltd.
The Screen 2 Cinema system has been developed to
accommodate the various digital formats of modern films,
providing the essentials of low distortion, wide bandwidth, with
uniform coverage for the smaller room. This makes the Screen
2 ideally suited for small cinemas, preview theatres, screening
rooms and post production suites.
cinema
www.martin-audio.com
overall dimensions
technical specifications
TYPE Two-way bi-amp screen system
DRIVERS 1 x 15" (380mm) low frequency
1 x 1" (25mm) exit HF compression driver
FREQUENCY RESPONSE (1) 45Hz-20kHz ±3dB
RATED POWER (2) LF: 550W AES, 2200W peak
HF: 60W AES, 240W peak
SENSITIVITY (3) LF: 98dB
HF: 110dB
CROSSOVER 1.2kHz
IMPEDANCE LF: 8 ohms
HF: 8 ohms
DISPERSION (-6dB) 90˚ horizontal, 90˚ vertical
DIMENSIONS LF: (W) 650mm x (H) 765mm x (D) 307mm
(W) 26ins x (H) 30ins x (D) 12ins
HF: (W) 285mm x (H) 344mm x (D) 185mm
(W) 11.2ins x (H) 13.5ins x (D) 7.3ins
INSTALLED DIMENSIONS (W) 650mm x (H) 1080mm x (D) 350mm
(W) 26ins x (H) 42.5ins x (D) 13.8ins
WEIGHT LF: 39kg (86lbs)
HF: 4.5kg (9.9lbs)
approved by Lucasfilm for use in THX™ theatres.
