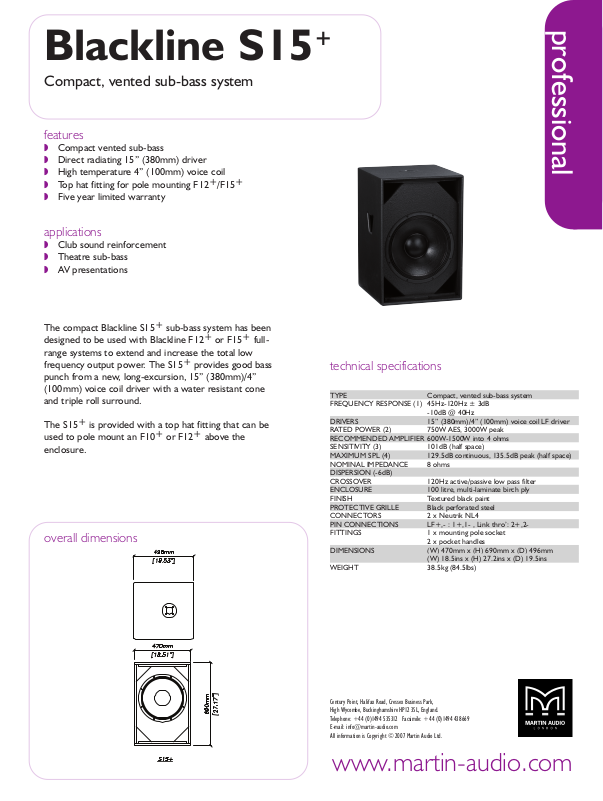

Blackline S15
+
Compact, vented sub-bass system
features
Compact vented sub-bass
Direct radiating 15” (380mm) driver
High temperature 4” (100mm) voice coil
Top hat fitting for pole mounting F12+/F15
+
Five year limited warranty
applications
Club sound reinforcement
Theatre sub-bass
AV presentations
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2007 Martin Audio Ltd.
The compact Blackline S15+sub-bass system has been
designed to be used with Blackline F12+or F15+fullrange systems to extend and increase the total low
frequency output power. The S15+provides good bass
punch from a new, long-excursion, 15” (380mm)/4”
(100mm) voice coil driver with a water resistant cone
and triple roll surround.
The S15+is provided with a top hat fitting that can be
used to pole mount an F10+or F12+above the
enclosure.
www.martin-audio.com
overall dimensions
technical specifications
TYPE Compact, vented sub-bass system
FREQUENCY RESPONSE (1) 45Hz-120Hz ± 3dB
-10dB @ 40Hz
DRIVERS 15” (380mm)/4” (100mm) voice coil LF driver
RATED POWER (2) 750W AES, 3000W peak
RECOMMENDED AMPLIFIER 600W-1500W into 4 ohms
SENSITIVITY (3) 101dB (half space)
MAXIMUM SPL (4) 129.5dB continuous, 135.5dB peak (half space)
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB)
CROSSOVER 120Hz active/passive low pass filter
ENCLOSURE 100 litre, multi-laminate birch ply
FINISH Textured black paint
PROTECTIVE GRILLE Black perforated steel
CONNECTORS 2 x Neutrik NL4
PIN CONNECTIONS LF+,- : 1+,1- , Link thro’: 2+,2FITTINGS 1 x mounting pole socket
2 x pocket handles
DIMENSIONS (W) 470mm x (H) 690mm x (D) 496mm
(W) 18.5ins x (H) 27.2ins x (D) 19.5ins
WEIGHT 38.5kg (84.5lbs)
