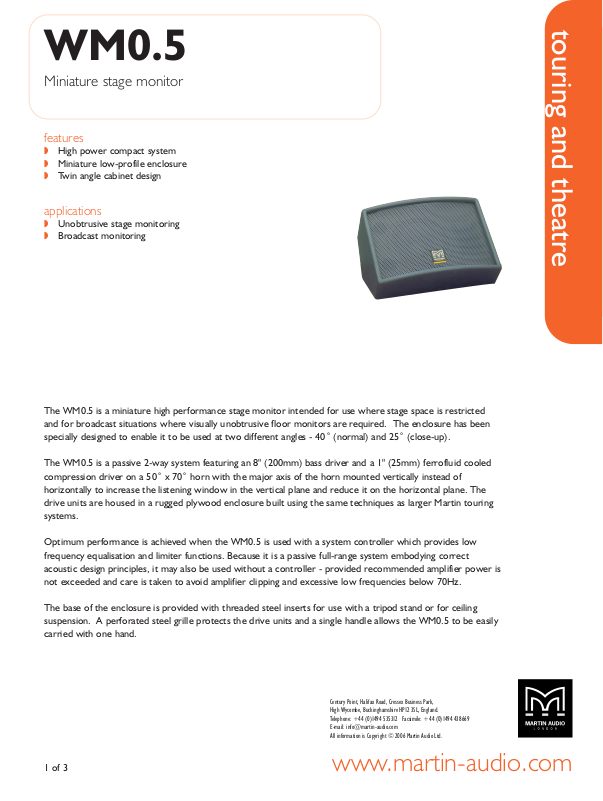

WM0.5
Miniature stage monitor
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2006 Martin Audio Ltd.
www.martin-audio.com
1 of 3
touring and theatre
features
High power compact system
Miniature low-profile enclosure
Twin angle cabinet design
applications
Unobtrusive stage monitoring
Broadcast monitoring
The WM0.5 is a miniature high performance stage monitor intended for use where stage space is restricted
and for broadcast situations where visually unobtrusive floor monitors are required. The enclosure has been
specially designed to enable it to be used at two different angles - 40˚ (normal) and 25˚ (close-up).
The WM0.5 is a passive 2-way system featuring an 8" (200mm) bass driver and a 1" (25mm) ferrofluid cooled
compression driver on a 50˚ x 70˚ horn with the major axis of the horn mounted vertically instead of
horizontally to increase the listening window in the vertical plane and reduce it on the horizontal plane. The
drive units are housed in a rugged plywood enclosure built using the same techniques as larger Martin touring
systems.
Optimum performance is achieved when the WM0.5 is used with a system controller which provides low
frequency equalisation and limiter functions. Because it is a passive full-range system embodying correct
acoustic design principles, it may also be used without a controller - provided recommended amplifier power is
not exceeded and care is taken to avoid amplifier clipping and excessive low frequencies below 70Hz.
The base of the enclosure is provided with threaded steel inserts for use with a tripod stand or for ceiling
suspension. A perforated steel grille protects the drive units and a single handle allows the WM0.5 to be easily
carried with one hand.
WM0.5
Miniature stage monitor
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2006 Martin Audio Ltd.
www.martin-audio.com
2 of 3
touring and theatre
overall dimensions
WM0.5
Miniature stage monitor
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2006 Martin Audio Ltd.
www.martin-audio.com
3 of 3
touring and theatre
architectural and engineering specifications
The loudspeaker system shall be of the two-way passive
type consisting of one 8" (200mm) direct radiating
reflex loaded low frequency transducer and one 1"
(25mm) ferrofluid cooled high frequency driver
mounted in a miniature low-profile plywood enclosure.
The enclosure shall be fitted with threaded inserts for
wall and ceiling mounting. Low and high frequency
sections shall be integrated by an internal 3kHz passive
crossover network.
Performance of the loudspeaker system with its
electronic controller shall meet or exceed the following
criteria:
Frequency response measured 1 metre on axis shall be
70Hz-18kHz ±3dB.
High frequency dispersion at -6dB points shall be
50˚H x 70˚V.
Power handling shall be 125W AES, 500W peak.
Rated impedance shall be 8 ohms.
Maximum SPL measured at 1 metre on axis shall be
114dB continuous, 120dB peak.
Dimensions (W) 390mm x (H) 276mm x (D) 270mm
(15.3ins x 10.9ins x 10.6ins).
Weight 9kg (19.8lbs).
The loudspeaker system shall be the Martin Audio
WM0.5.
NN oo tt ee ss
(1) Measured on-axis in half space at 2 metres, then referred to 1 metre.
(2) AES Standard ANSI S4.26-1984.
(3) Measured in half space at 2 metres with 1 watt input, using band limited pink noise, then referred to 1 metre.
(4) Measured in half space at 2 metres using band limited pink noise, then referred to 1 metre.
(5) Measured on-axis in open (4π) space at 2 metres, then referred to 1 metre.
(6) Measured in open (4π) space at 2 metres with 1 watt input, using band limited pink noise, then referred to 1 metre.
(7) Measured in open (4π) space at 2 metres using band limited pink noise, then referred to 1 metre.
TTrr aa ddee DD eess ccrr ii pp tt ii oo nnss AAcc tt
Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.
Martin Audio is committed to refining state of the art sound reinforcement, combining in-depth product and field applications
research with advanced manufacturing techniques. Every Martin Audio product is built to the highest manufacturing standards
and rigorously tested to ensure that it meets the performance criteria specified in the design.
technical specifications
TYPE Miniature two-way passive stage monitor
FREQUENCY RESPONSE (5) 70Hz-18kHz ± 3dB
-10dB @ 50Hz
DRIVERS 8" (200mm) bass driver
1" (25mm) exit HF compression driver
RATED POWER (2) 125W AES, 500W peak
RECOMMENDED AMPLIFIER 300-400W into 4 ohms
SENSITIVITY (6) 94dB
MAXIMUM SPL (7) 114dB continuous, 120dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) 50º horizontal, 70º vertical
CROSSOVER 3kHz passive
FINISH Textured grey paint
PROTECTIVE GRILLE Grey perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS 4 x M8 threaded inserts
DIMENSIONS (W) 391mm x (H) 270mm x (D) 334mm
(W) 15.4ins x (H) 10.6ins x (D) 13.1ins
WEIGHT 9kg (19.8lbs)
