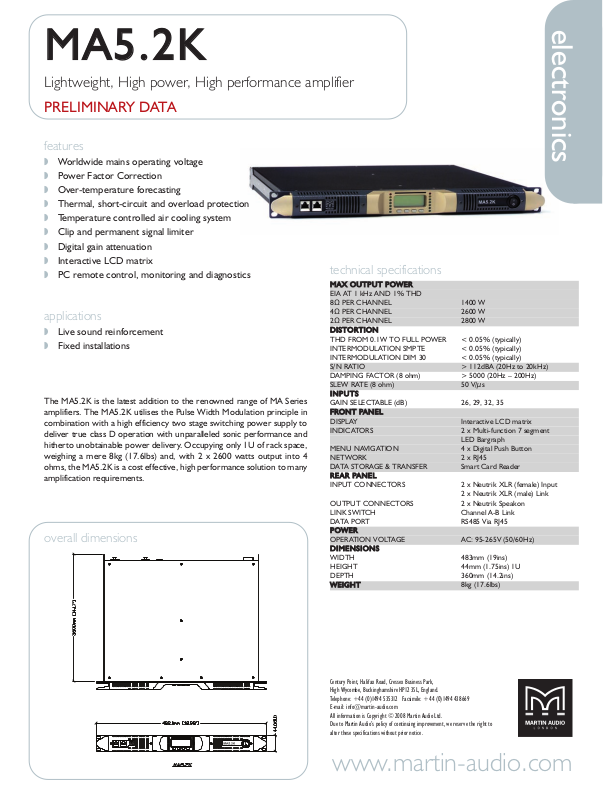

MMAA55..22KK
Lightweight, High power, High performance amplifier
PRELIMINARY DATA
features
Worldwide mains operating voltage
Power Factor Correction
Over-temperature forecasting
Thermal, short-circuit and overload protection
Temperature controlled air cooling system
Clip and permanent signal limiter
Digital gain attenuation
Interactive LCD matrix
PC remote control, monitoring and diagnostics
applications
Live sound reinforcement
Fixed installations
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2008 Martin Audio Ltd.
Due to Martin Audio’s policy of continuing improvement, we reserve the right to
alter these specifications without prior notice.
The MA5.2K is the latest addition to the renowned range of MA Series
amplifiers. The MA5.2K utilises the Pulse Width Modulation principle in
combination with a high efficiency two stage switching power supply to
deliver true class D operation with unparalleled sonic performance and
hitherto unobtainable power delivery. Occupying only 1U of rack space,
weighing a mere 8kg (17.6lbs) and, with 2 x 2600 watts output into 4
ohms, the MA5.2K is a cost effective, high performance solution to many
amplification requirements.
www.martin-audio.com
overall dimensions
technical specifications
MMAAXX OO UU TTPPUUTT PPOOWWEE RR
EIA AT 1 kHz AND 1% THD
8Ω PER CHANNEL 1400 W
4Ω PER CHANNEL 2600 W
2Ω PER CHANNEL 2800 W
DD IISSTTOO RRTTIIOO NN
THD FROM 0.1W TO FULL POWER < 0.05% (typically)
INTERMODULATION SMPTE < 0.05% (typically)
INTERMODULATION DIM 30 < 0.05% (typically)
S/N RATIO > 112dBA (20Hz to 20kHz)
DAMPING FACTOR (8 ohm) > 5000 (20Hz – 200Hz)
SLEW RATE (8 ohm) 50 V/µs
IINN PPUU TT SS
GAIN SELECTABLE (dB) 26, 29, 32, 35
FF RR OONN TT PPAANNEELL
DISPLAY Interactive LCD matrix
INDICATORS 2 x Multi-function 7 segment
LED Bargraph
MENU NAVIGATION 4 x Digital Push Button
NETWORK 2 x RJ45
DATA STORAGE & TRANSFER Smart Card Reader
RREEAARR PPAANNEELL
INPUT CONNECTORS 2 x Neutrik XLR (female) Input
2 x Neutrik XLR (male) Link
OUTPUT CONNECTORS 2 x Neutrik Speakon
LINK SWITCH Channel A-B Link
DATA PORT RS485 Via RJ45
PPOOWWEE RR
OPERATION VOLTAGE AC: 95-265V (50/60Hz)
DD IIMMEENNSSIIOONNSS
WIDTH 483mm (19ins)
HEIGHT 44mm (1.75ins) 1U
DEPTH 360mm (14.2ins)
WWEEIIGGHHTT
8kg (17.6lbs)
