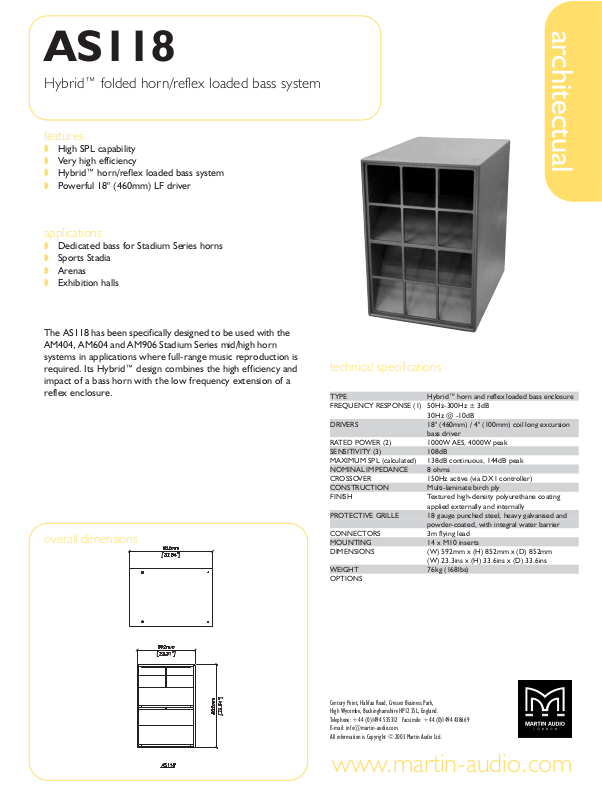

AS118
Hybrid™ folded horn/reflex loaded bass system
features
! High SPL capability
! Very high efficiency
! Hybrid™ horn/reflex loaded bass system
! Powerful 18" (460mm) LF driver
applications
! Dedicated bass for Stadium Series horns
! Sports Stadia
! Arenas
! Exhibition halls
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2003 Martin Audio Ltd.
The AS118 has been specifically designed to be used with the
AM404, AM604 and AM906 Stadium Series mid/high horn
systems in applications where full-range music reproduction is
required. Its Hybrid™ design combines the high efficiency and
impact of a bass horn with the low frequency extension of a
reflex enclosure.
architectual
www.martin-audio.com
overall dimensions
technical specifications
TYPE Hybrid™ horn and reflex loaded bass enclosure
FREQUENCY RESPONSE (1) 50Hz-300Hz ± 3dB
30Hz @ -10dB
DRIVERS 18" (460mm) / 4" (100mm) coil long excursion
bass driver
RATED POWER (2) 1000W AES, 4000W peak
SENSITIVITY (3) 108dB
MAXIMUM SPL (calculated) 138dB continuous, 144dB peak
NOMINAL IMPEDANCE 8 ohms
CROSSOVER 150Hz active (via DX1 controller)
CONSTRUCTION Multi-laminate birch ply
FINISH Textured high-density polyurethane coating
applied externally and internally
PROTECTIVE GRILLE 18 gauge punched steel, heavy galvanised and
powder-coated, with integral water barrier
CONNECTORS 3m flying lead
MOUNTING 14 x M10 inserts
DIMENSIONS (W) 592mm x (H) 852mm x (D) 852mm
(W) 23.3ins x (H) 33.6ins x (D) 33.6ins
WEIGHT 76kg (168lbs)
OPTIONS
