AQ5
Ultra-compact, wide angle system
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2005 Martin Audio Ltd.
www.martin-audio.com
1of 5
architectual
features
! Very wide 120° x 60° dispersion
! 4 ohms or 16 ohms (low profile switch on rear)
! Dual 5.2" (130mm) ICT™
! Light weight structural foam enclosure
! Discreet, architecturally friendly styling
! 1st & 2nd fix wall and ceiling brackets available
applications
! Clubs, bars and restaurants
! Theatres
! Exhibition centres
! AV presentations
The ultra-compact Martin Audio AQ5 is equipped with two 5.25" (130mm) ICT™ (Inductively Coupled
Transducer) drivers optimally splayed for smooth, very wide coverage. The AQ5’s HF diaphragms are driven via
inductive coupling, avoiding the tweeter burn-out commonly associated with miniature loudspeakers. ICT™
technology also obviates the need for a crossover as the inductive coupling provides a complementary transfer
function for the tweeter.
Designed for discreet architectural use, the exceptionally wide coverage of the AQ5 makes it ideal for clubs, bars,
AV presentations, places of worship, museums, foyers, sports venue concourses and exhibition centres. The AQ5
may also be used for very wide coverage live sound applications such as theatre front fills, orchestra pit fills and
surround sound effects.
The AQ5 is housed in a thick-walled structural ABS foam enclosure with a flush, acoustically transparent steel
grille. The enclosure is fitted with four M6 inserts for fitting either AQWB6 or AQCB6 brackets to allow for
horizontal or vertical mounting, plus an additional M6 insert for a safety point.
A Martin Audio AQX Electronic Controller is available to provide AQ5/subwoofer crossover, limiter and trim
functions.
AQ5
Ultra-compact, wide angle system
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2005 Martin Audio Ltd.
www.martin-audio.com
2of 5
architectual

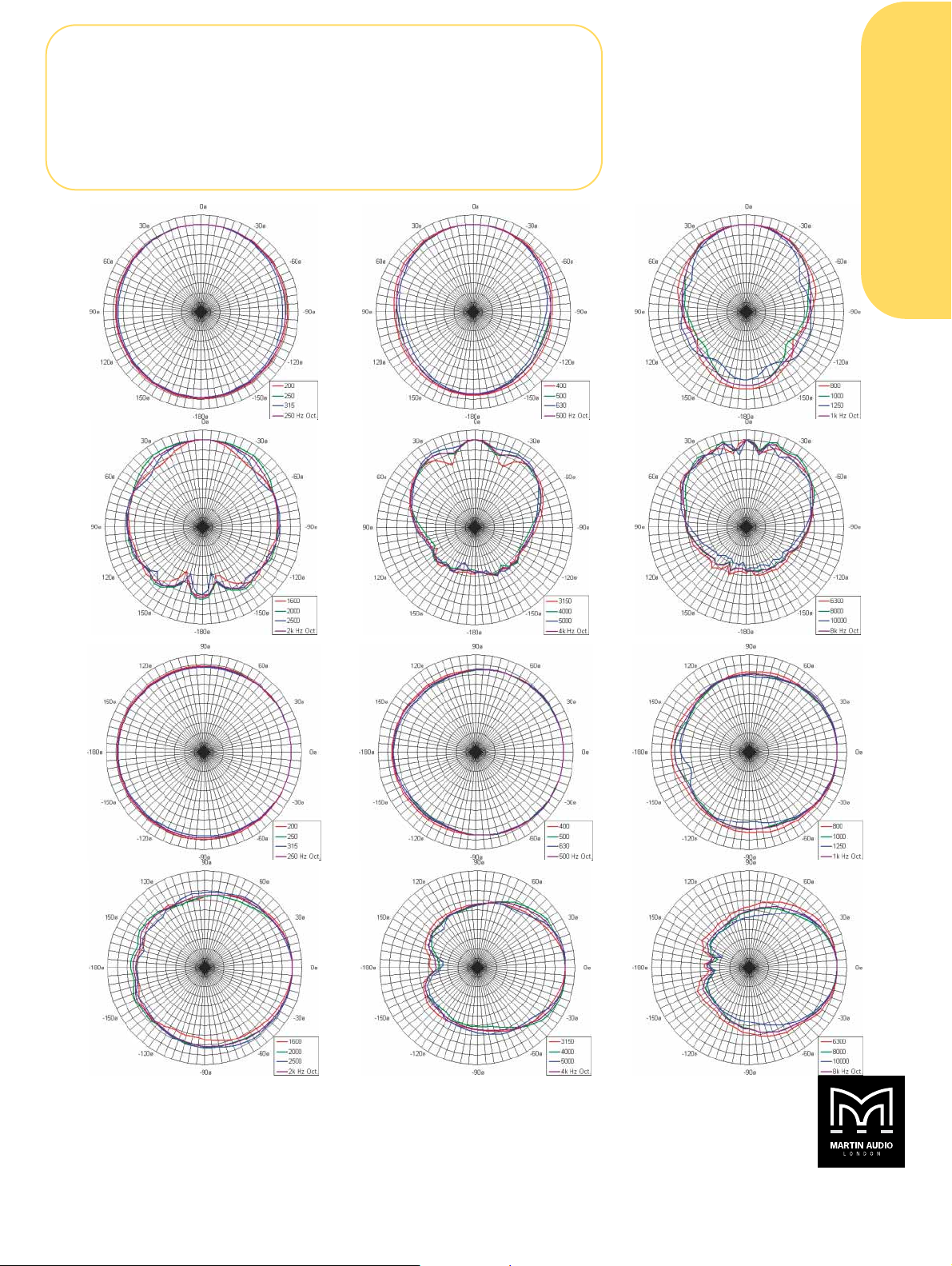

polar plots - 1/3rd 8ve, 6dB/div
Horizontal
Vertical
AQ5
Ultra-compact, wide angle system
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2005 Martin Audio Ltd.
www.martin-audio.com
3of 5
architectual
frequency responses
Horizontal
(symmetrical)
Vertical
(symmetrical)
AQ5
Ultra-compact, wide angle system
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2005 Martin Audio Ltd.
www.martin-audio.com
4of 5
architectual
overall dimensions
AQ5
Ultra-compact, wide angle system
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: info@martin-audio.com
All information is Copyright © 2005 Martin Audio Ltd.
www.martin-audio.com
5of 5
architectual
architectural and engineering specifications
The loudspeaker system shall be of the two-way passive
type consisting of two 5.25" (130mm) full-range ICT™
drivers each fitted with a concentric 1" (25mm) high
frequency diaphragm, loaded by a phase plug and
waveguide. The transducers shall be mounted in a
reflex loaded enclosure constructed of structural
foamed ABS and fitted with threaded inserts to match
the mounting hardware. 4 or 16 ohm operation shall be
selected by a switch at the rear of the enclosure.
Performance of the loudspeaker system with its
electronic controller shall meet or exceed the following
criteria:
Frequency response measured 1 metre on axis shall be
120Hz-20kHz ±3dB.
High frequency dispersion at -6dB points shall be
120˚H x 60˚V.
Power handling shall be 75W AES, 300W peak.
Rated impedance shall be 4 ohms (16 ohms switchable).
Maximum SPL measured at 1 metre on axis shall be
109dB continuous, 115dB peak.
Dimensions (W) 282mm x (H) 172mm x (D) 180mm
(11.1ins x 6.8ins x 7.1ins).
Weight 3.5kg (8lbs).
The loudspeaker system shall be the Martin Audio AQ5.
Notes
(1) Measured on-axis in half space at 2 metres, then referred to 1 metre.
(2) AES Standard ANSI S4.26-1984.
(3) Measured in half space at 2 metres with 1 watt input, using band limited pink noise, then referred to 1 metre.
(4) Measured in half space at 2 metres using band limited pink noise, then referred to 1 metre.
(5) Measured on-axis in open (4π) space at 2 metres, then referred to 1 metre.
(6) Measured in open (4π) space at 2 metres with 1 watt input, using band limited pink noise, then referred to 1 metre.
(7) Measured in open (4π) space at 2 metres using band limited pink noise, then referred to 1 metre.
Trade Descriptions Act
Due to Martin Audio’s policy of continuing improvement, we reserve the right to alter these specifications without prior notice.
Martin Audio is committed to refining state of the art sound reinforcement, combining in-depth product and field applications
research with advanced manufacturing techniques. Every Martin Audio product is built to the highest manufacturing standards
and rigorously tested to ensure that it meets the performance criteria specified in the design.
technical specifications
TYPE Ultra-compact, Dual ICT™, wide dispersion
vented trapezoid
FREQUENCY RESPONSE (1) 120Hz-20kHz ± 3dB
DRIVERS 2 x 5.25" (130mm) ICT™ full-range drivers
RATED POWER (2) 75W AES, 300W peak
RECOMMENDED 75-150W into 4 ohms
AMPLIFIER
SENSITIVITY (6) 91dB
MAXIMUM SPL (7) 109dB continuous, 115dB peak
NOMINAL IMPEDANCE Externally switchable 4 or 16 ohms
DISPERSION (-6dB) 120º horizontal, 60º vertical
CROSSOVER ICT™
ENCLOSURE 5 litre, structural foamed ABS
FINISH Textured light grey paint
PROTECTIVE GRILLE Light grey perforated steel
CONNECTORS Low profile 12 amp push-lock
FITTINGS 4 x M6 inserts for bracket
1 x M6 insert for safety point
OPTIONS 30W 100/70V line transformer
DIMENSIONS (W) 282mm x (H) 172mm x (D) 180mm
(W) 11.1ins x (H) 6.8ins x (D) 7.1ins
WEIGHT 3.5kg (8lbs)
accessories
AQWB6 Wall Bracket
AQCB6 Ceiling Bracket
